ZONESUN ZS-FAL180P11 Automatic Jar Paste Bottling Line

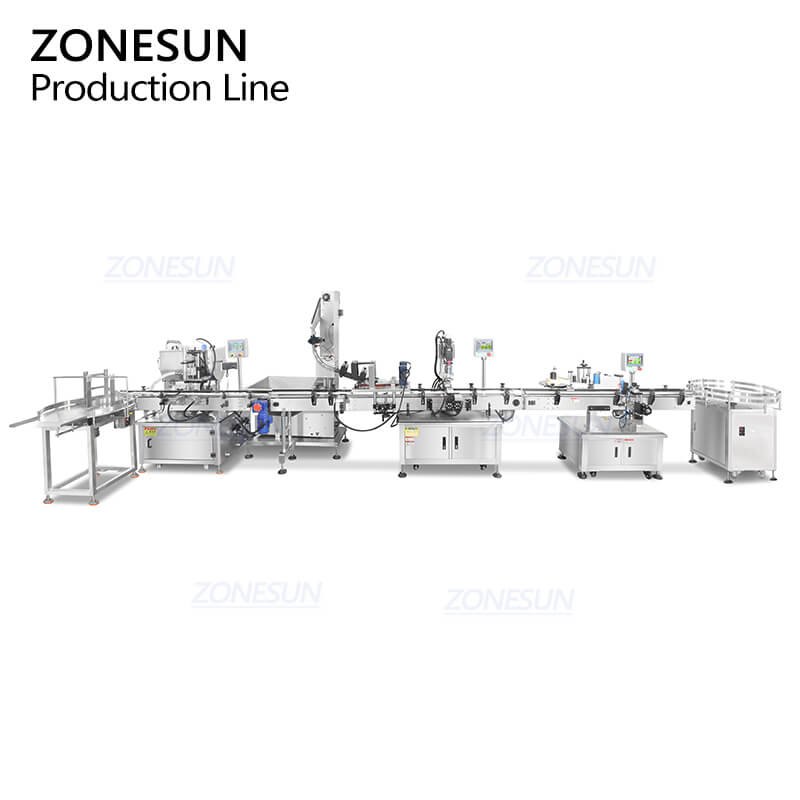

This jar paste bottling line runs filling, capping and labeling as one connected setup. A servo rotor pump handles quantitative filling for thick pastes, so each jar receives the set volume. Servo capping closes metal lug caps, the twist-off type used on jars. Labeling covers single side, double side and wrap around formats on the same line, so different jar labels do not call for a second machine.
$25,779.00
Share to
Product Description
This jar paste bottling line runs filling, capping and labeling as one connected setup. A servo rotor pump handles quantitative filling for thick pastes, so each jar receives the set volume. Servo capping closes metal lug caps, the twist-off type used on jars. Labeling covers single side, double side and wrap around formats on the same line, so different jar labels do not call for a second machine.
Product Applications

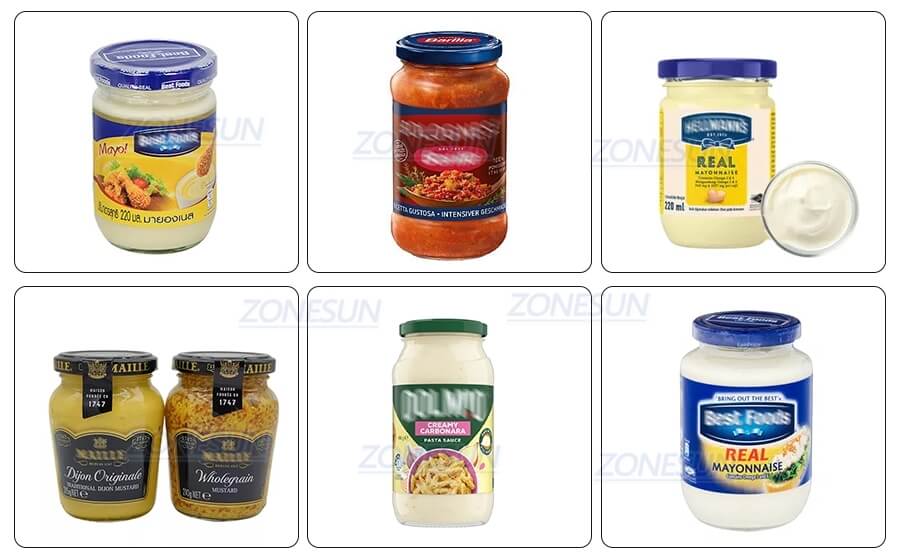

This jar paste bottling line is built for thick sauces and pastes filled into glass jars, then capped and labeled on the same conveyor. A servo rotor pump doses by volume, so heavy products such as mayonnaise, salad cream, tomato and basil pasta sauce, sweet pepper sauce, creamy pasta sauce, Dijon mustard and whole grain mustard are filled in measured portions rather than by hand. A servo capper runs metal lug caps, the twist off type used on sauce and mayonnaise jars, and the labeler applies single side, double side or wrap around labels.
Product Production Process

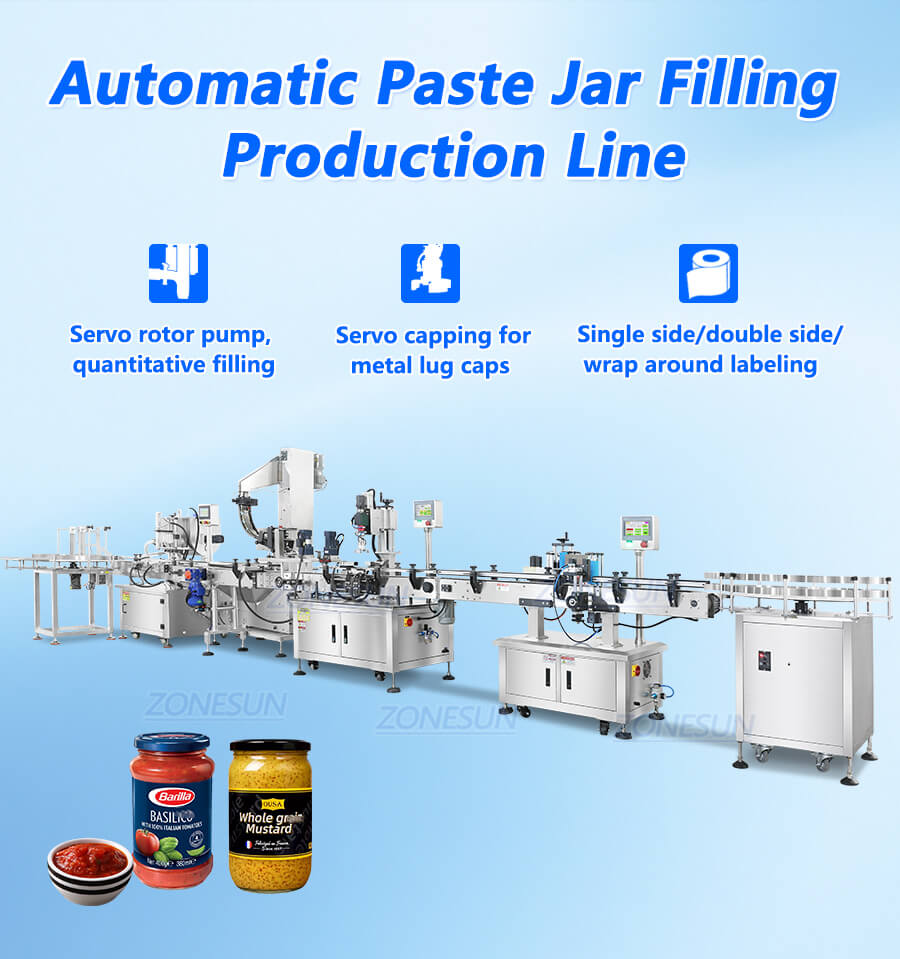

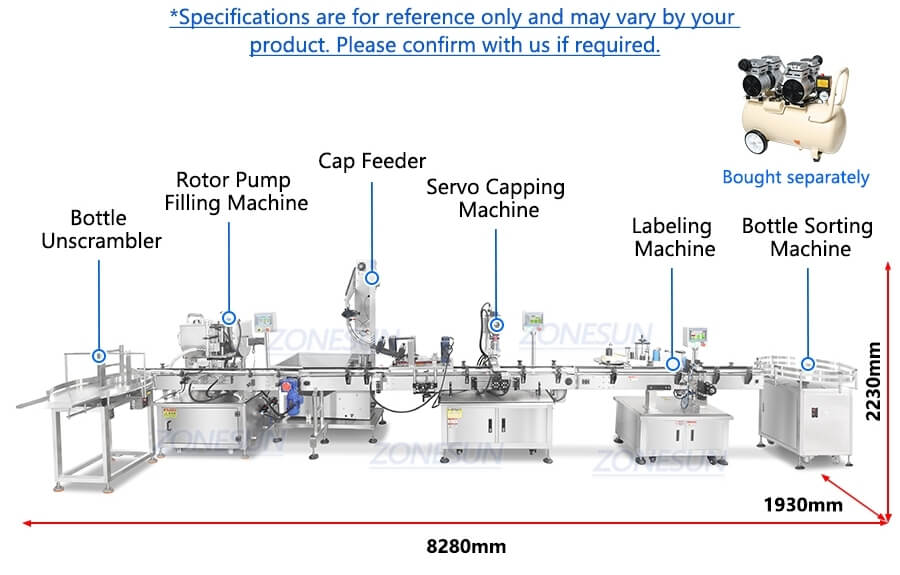

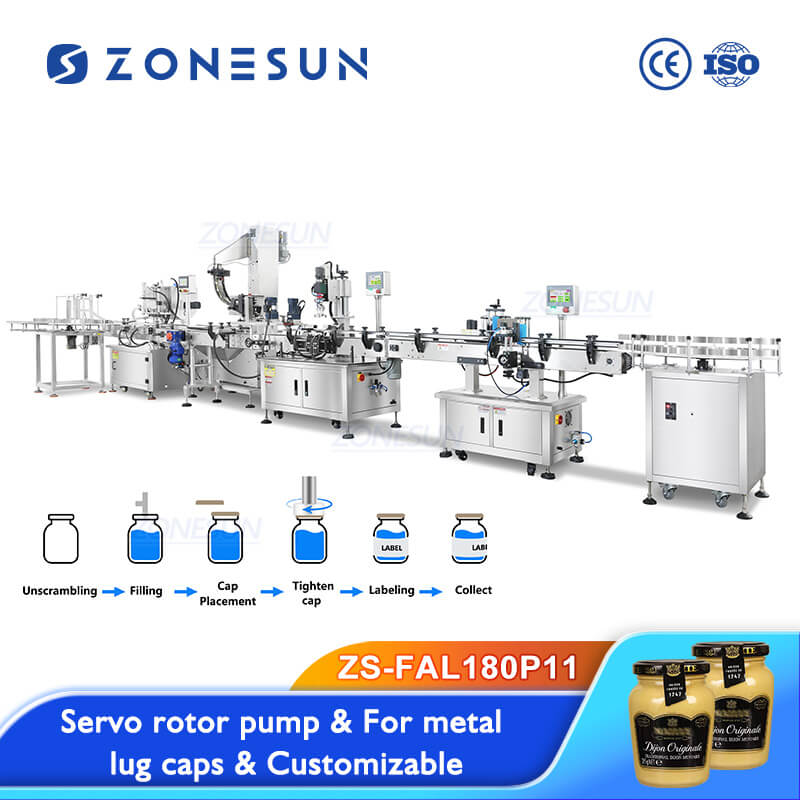

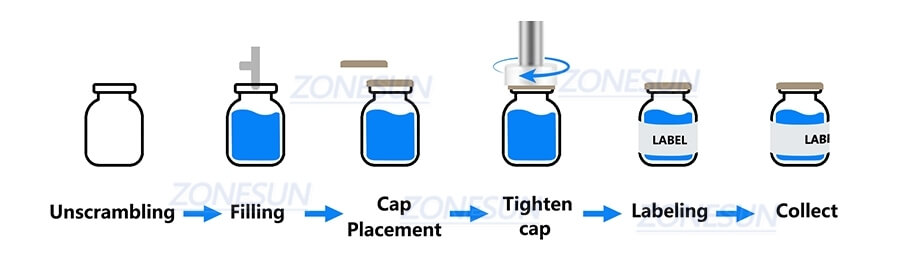

This jar paste bottling line runs the jars through six steps on one conveyor. Empty jars are unscrambled, then the servo rotor pump fills a measured volume of product into each jar. A cap is placed on the jar, the servo capper tightens the metal lug cap, and the labeler applies the label in single side, double side or wrap around mode. Filled, capped and labeled jars are collected at the end of the line.
Product Parameter
>Bottle Unscrambler
| Machine Model | ZS-LP800N |
| Power Supply | 220V/110V 50-60Hz 200W |
| Turntable Diameter | 800mm |
| Suitable Bottle Diameter | 20-100mm |
| Suitable Bottle Height | 30-320mm |
| Working Speed | 40-60 bottles/min(depending on bottle size) |
>Paste Filling Machine
| Machine model | ZS-YT1T-1PXM |
| Power supply | 220V/110V 50-60Hz 2.5kW |
| Filling pump | Servo rotor pump |
| Filling speed | About 20-30bottles/min(depending on filling materials) |
| Filling range | 100-1000ml(Customizable) |
| Filling accuracy | ±1% |
| Hopper size | About 70L(with mixer) |
| Air pressure | 0.5-0.7MPA |
| Machine size | About 2090*1070*1700mm(L*W*H) |
| Package size | About 1740*1010*1670mm(L*W*H) |
| Package weight | About 350kg |
>Capping Machine
| Machine model | ZS-XG440T |
| Machine voltage | 110/220V 50-60HZ 2KW |
| Suitable caps diameter | 140mm (customizable) |
| Working pressure | 0.5-0.7 MPa |
| Working speed | 15-30 bottles/min |
| Machine size | About 3050*1230*2350(L*W*H) |
| Machine weight | About 250kg |
>Labeling Machine
| Model | ZS-TB260R Labeling Machine |
| Power supply | AC220V 50Hz/60Hz 1000W |
| Labeling capacity(bottles/min) | 25-50 bottles/min(depends on bottle size) |
| Labeling accuracy(mm) | ±1.0mm |
| Suitable Bottle Diameter | Φ12-100mm |
| Label size(mm) | (L)20-300mm (H)15-150mm |
| Roll inside diameter(mm) | Φ76mm |
| Roll outside diameter(mm) | Φ350mm |
| Conveyor Size | 112*2000mm(W) |
| Machine size | About (L)2000*(W)820*(H)1380(mm) |
| Machine weight | About 180kg |
| Packing Size | About (L)2100*(W)890*(H)1520(mm) |
| Package weight | About 250kg |
>Bottle Sorting Machine
| Bottle specifications | Square bottle/round bottle |
| Conveying speed | 0-20 revolutions per minute(adjustable) |
| Voltage | 220V 50Hz (110V can be customized) |
| Power supply | 200W |
| Turntable diameter | 800 mm Available |
| Dimensions | About 550*550*990mm |
| Package size | About 1050*1000*1130mm |
| Net weight/Gross weight | About 93kg/120kg |
Product Details

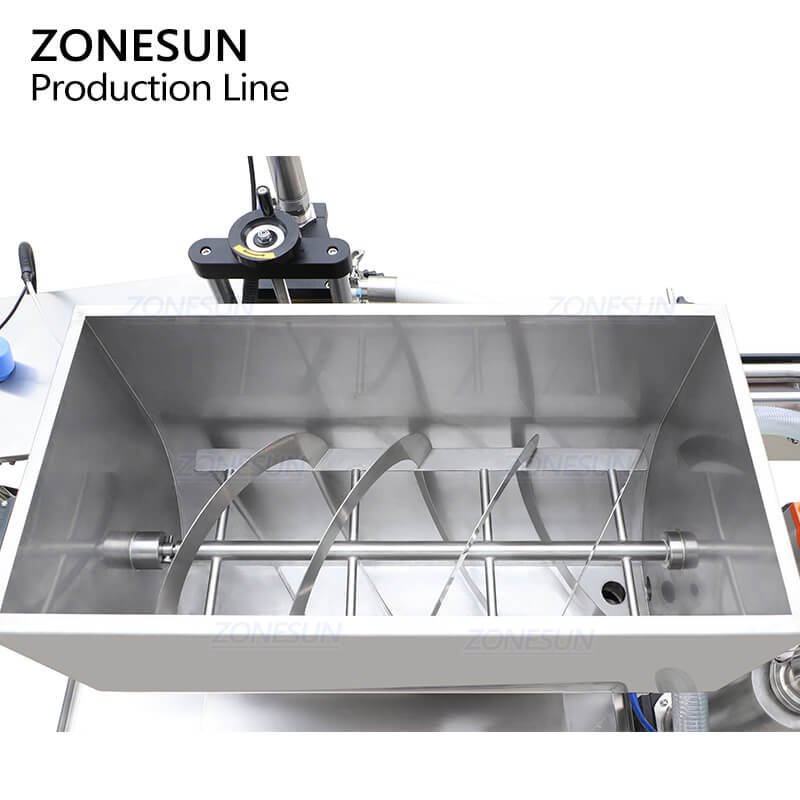

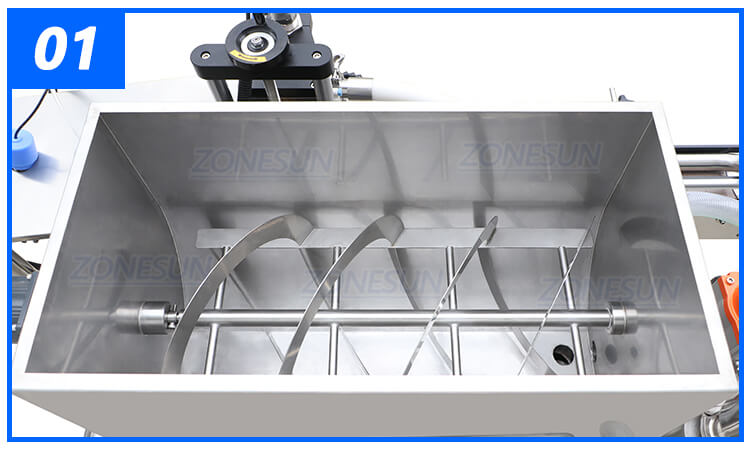

U-shaped Hopper
Equipped with mixer, it ensures consistent and smooth product flow.

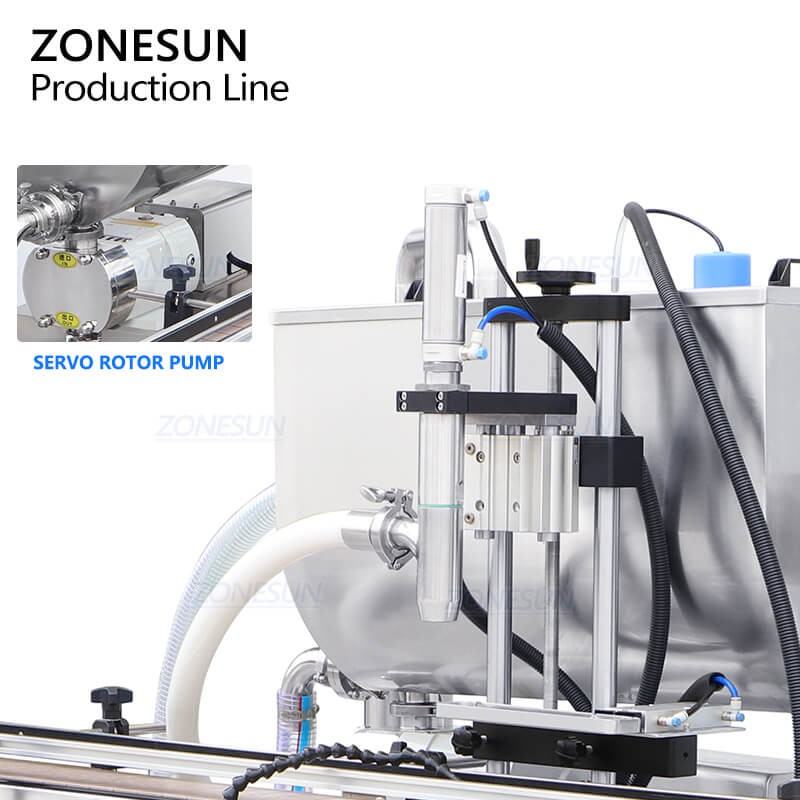

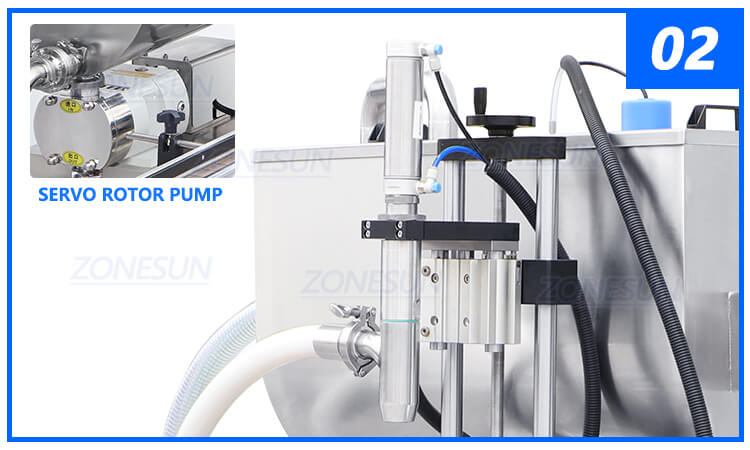

Servo Rotor Pump System
Provides accurate and stable filling for viscous pastes. Filling volume can be set directly on panel.

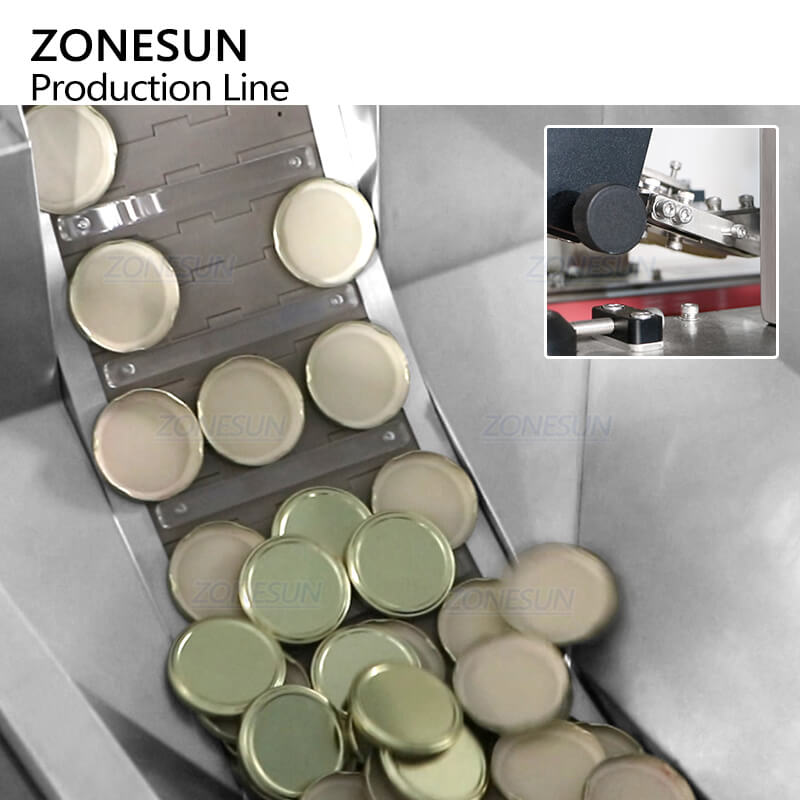

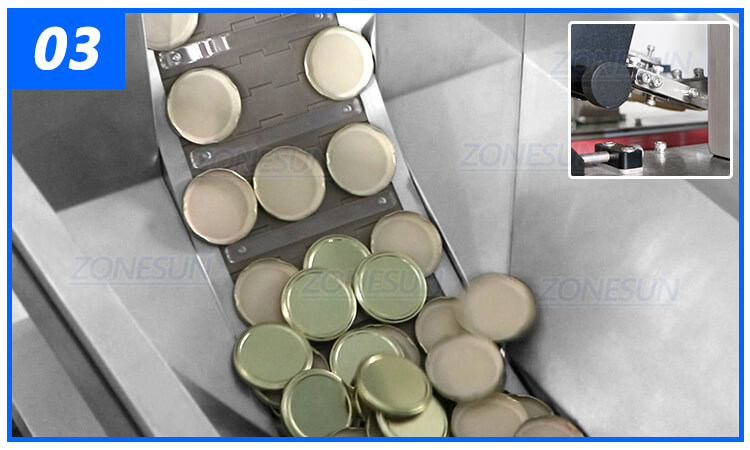

Cap Feeding Structure
Capable of feeding caps to the machine, ensuring continuous operation and reducing manual handling.

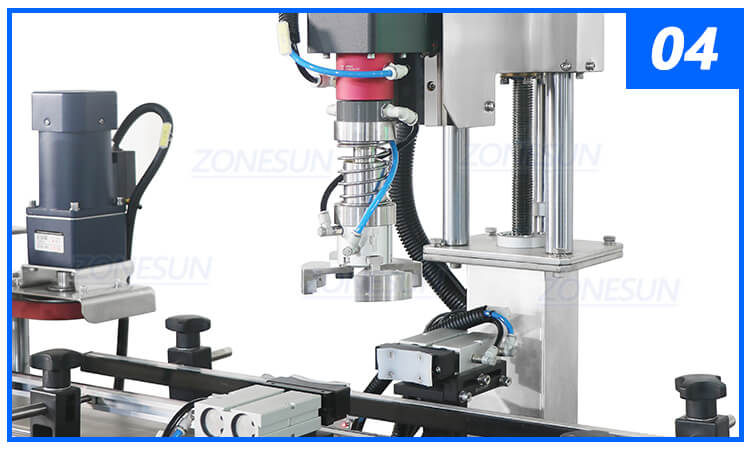

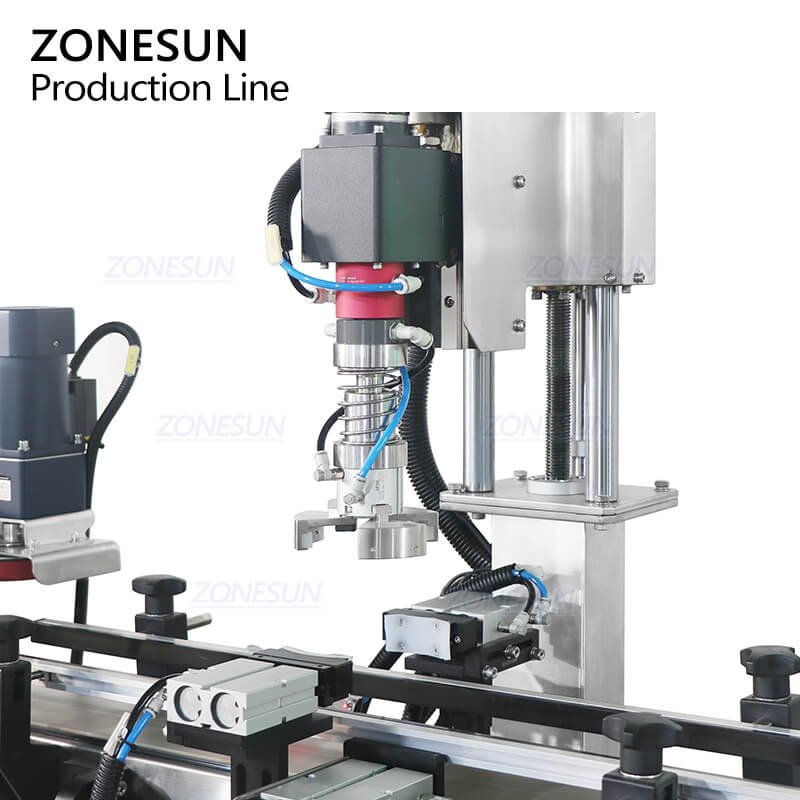

Servo Capping Structure
Provides consistent torque to ensure secure capping. Capping structure is customizable as cap size.

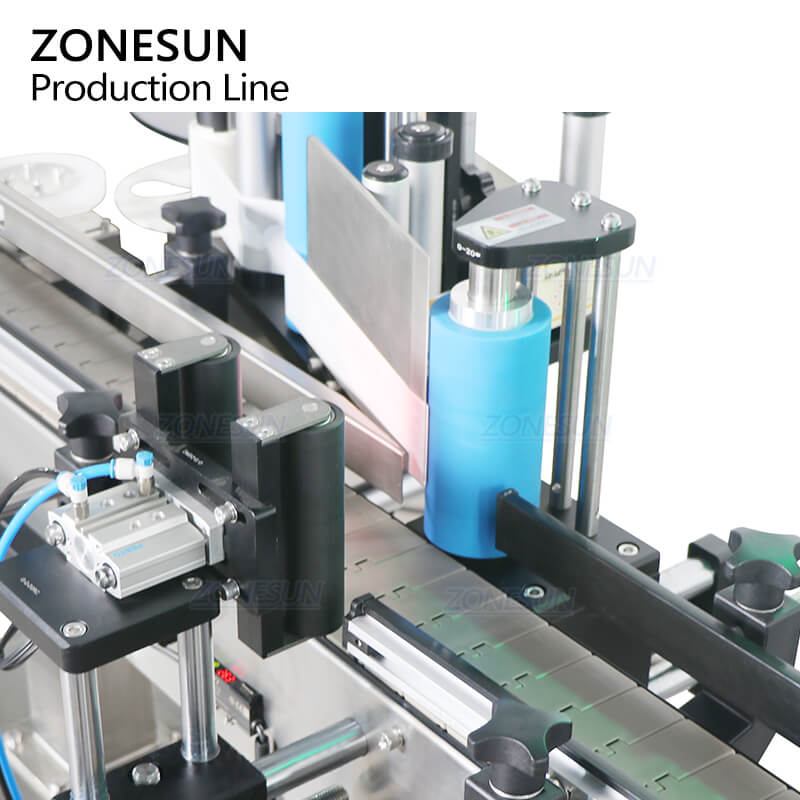

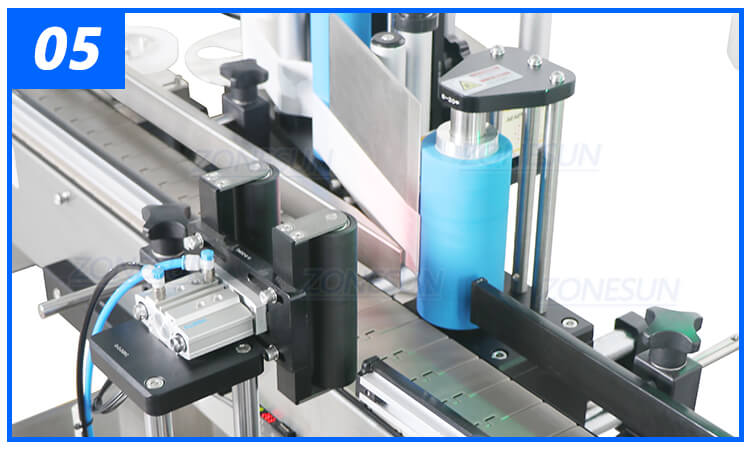

Labeling Rollers
Supports single side, double sides or wrap around labeling. Date coder is optional.

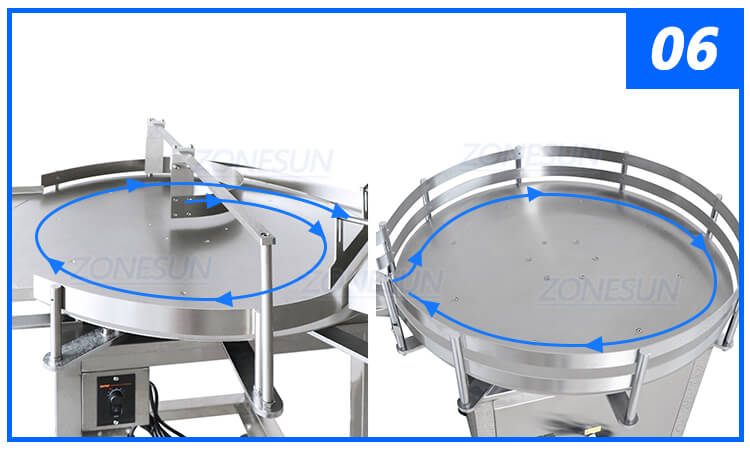

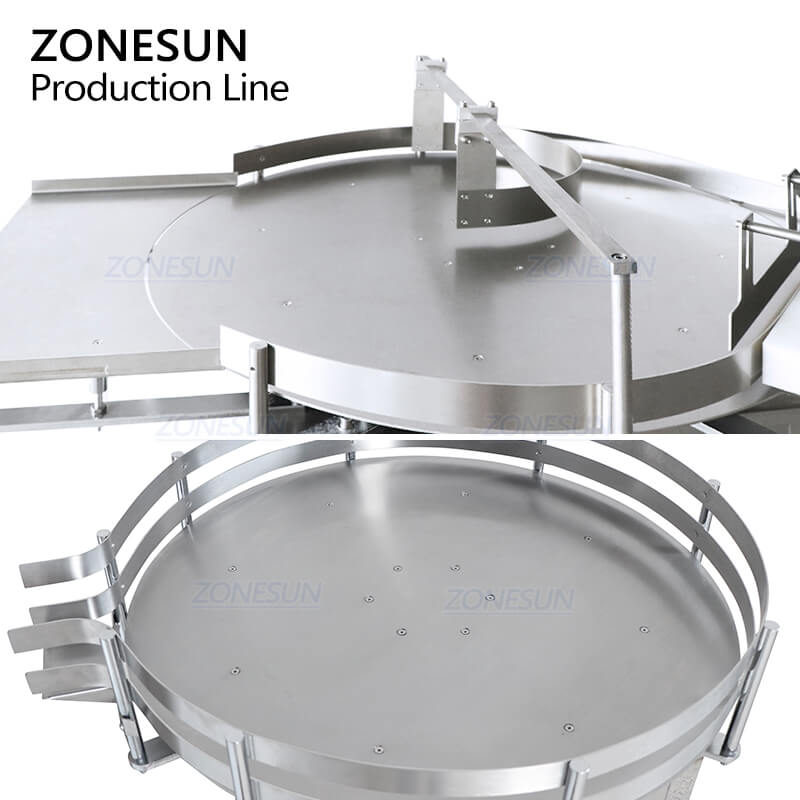

Bottle Sorting Machines
Feed and collect the bottles during production to ensure smooth packaging work.
FAQ
Are you factory or trading company?
We are factory or manufacturer. you not only buy the machine .
Can you guarantee your quality?
Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
What should I do if we are not able to operate the machine when we receive it?
Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer ‘s site to solve any problems.
How could I get the spares on machines?
We will send extra sets of easy broken spares and accessories . Non-artificial damaged spares will be sent freely and shipping free during 1 year’s warranty.
What’s the payment terms and trade terms for new customers?
Payment terms:PayPal, T/T, credit card, WeChat Pay, and Alipay.
What’s the Minimum Order Quantity and warranty?
MOQ:1 set warrnty :1year

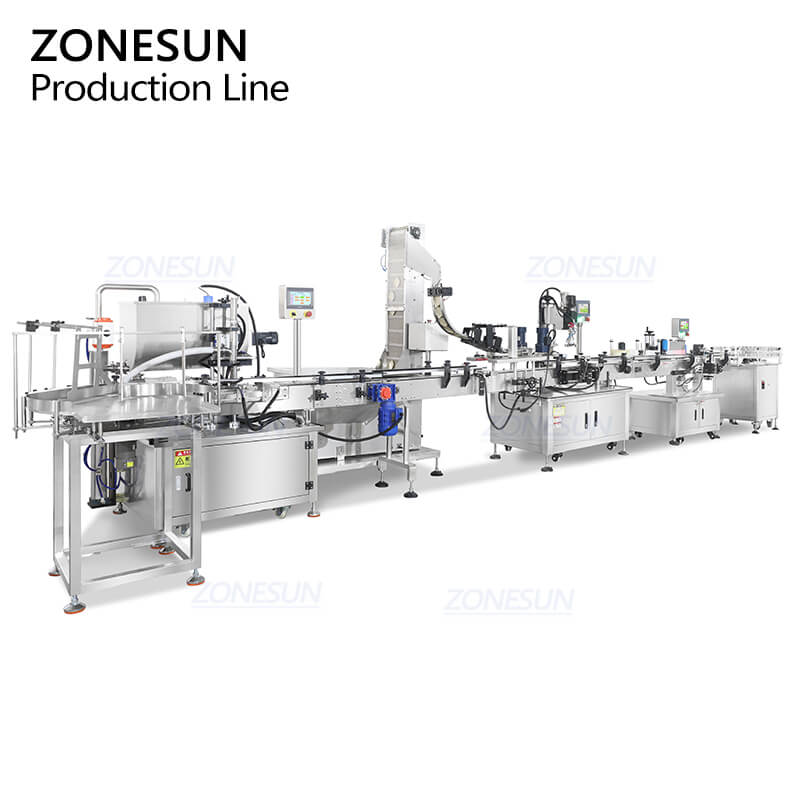

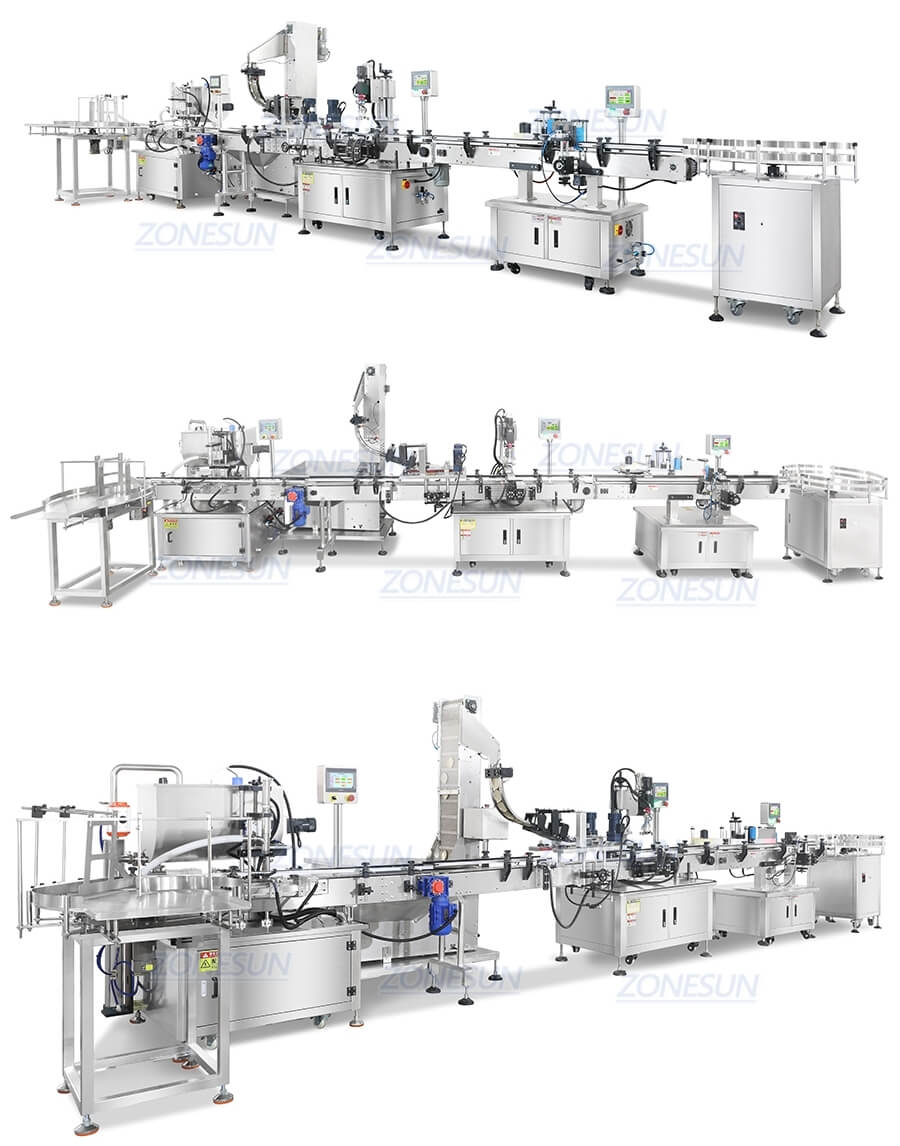

Product Real Shot
