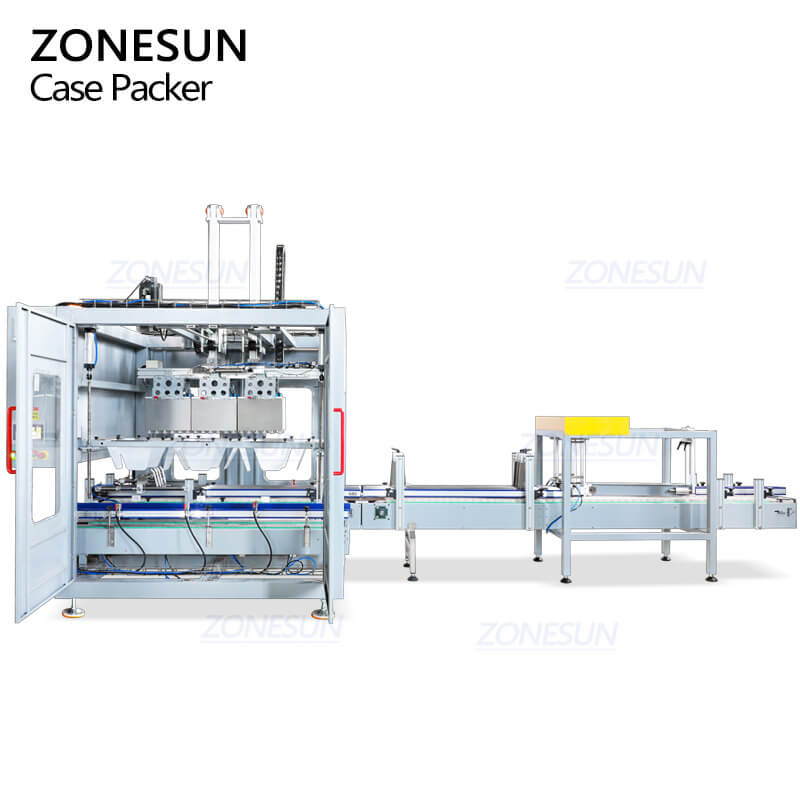

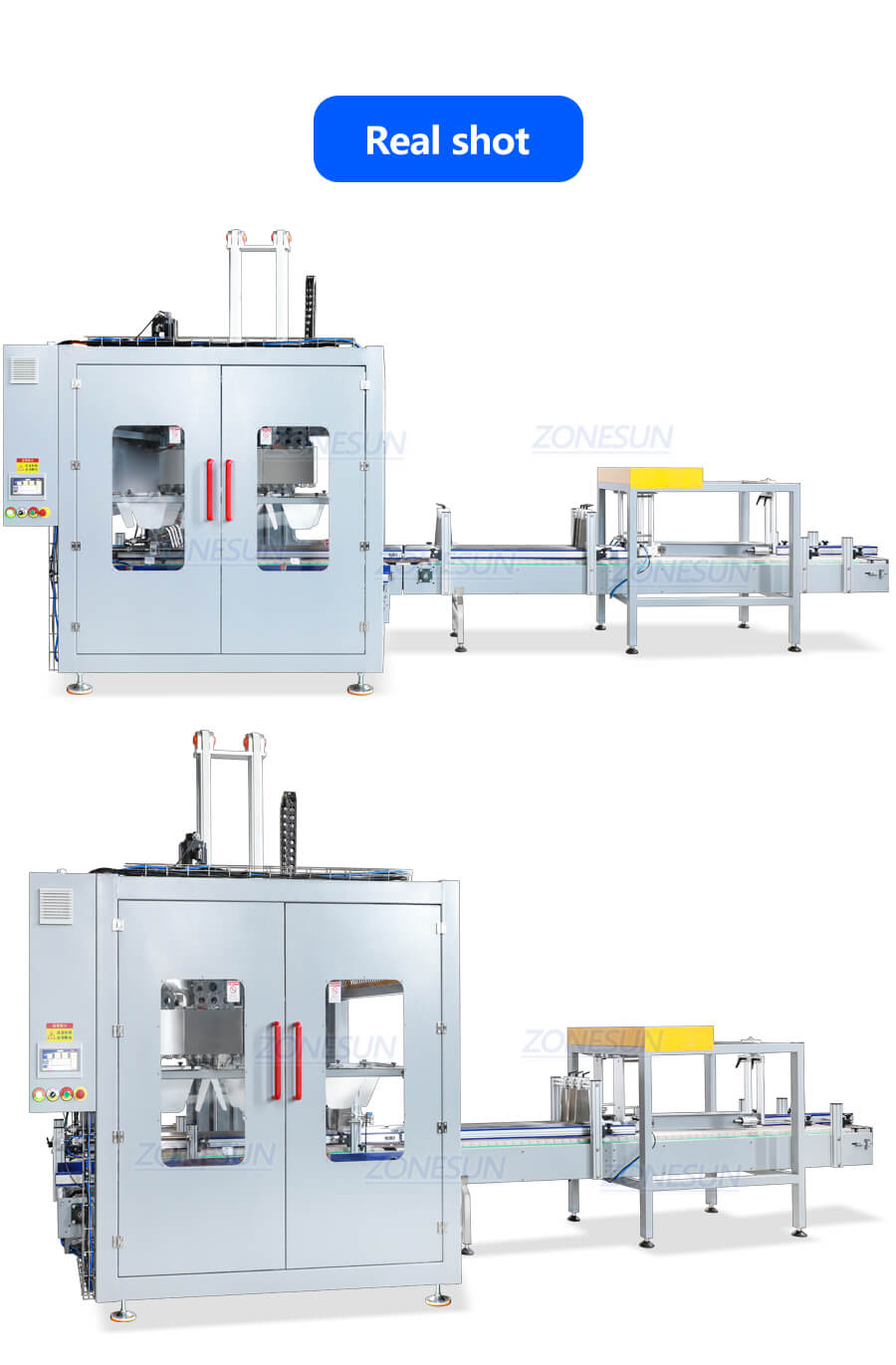

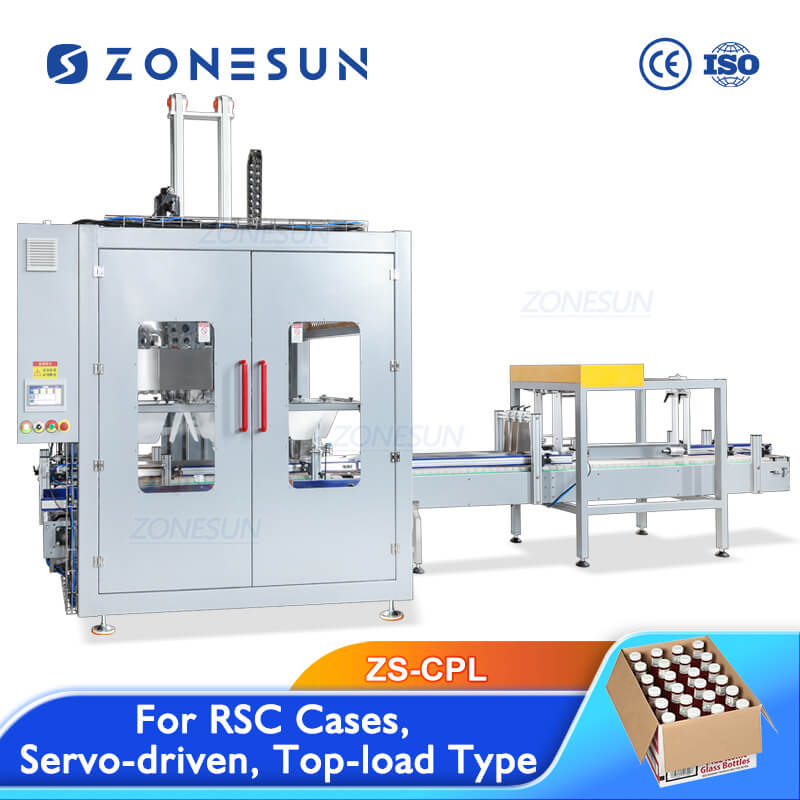

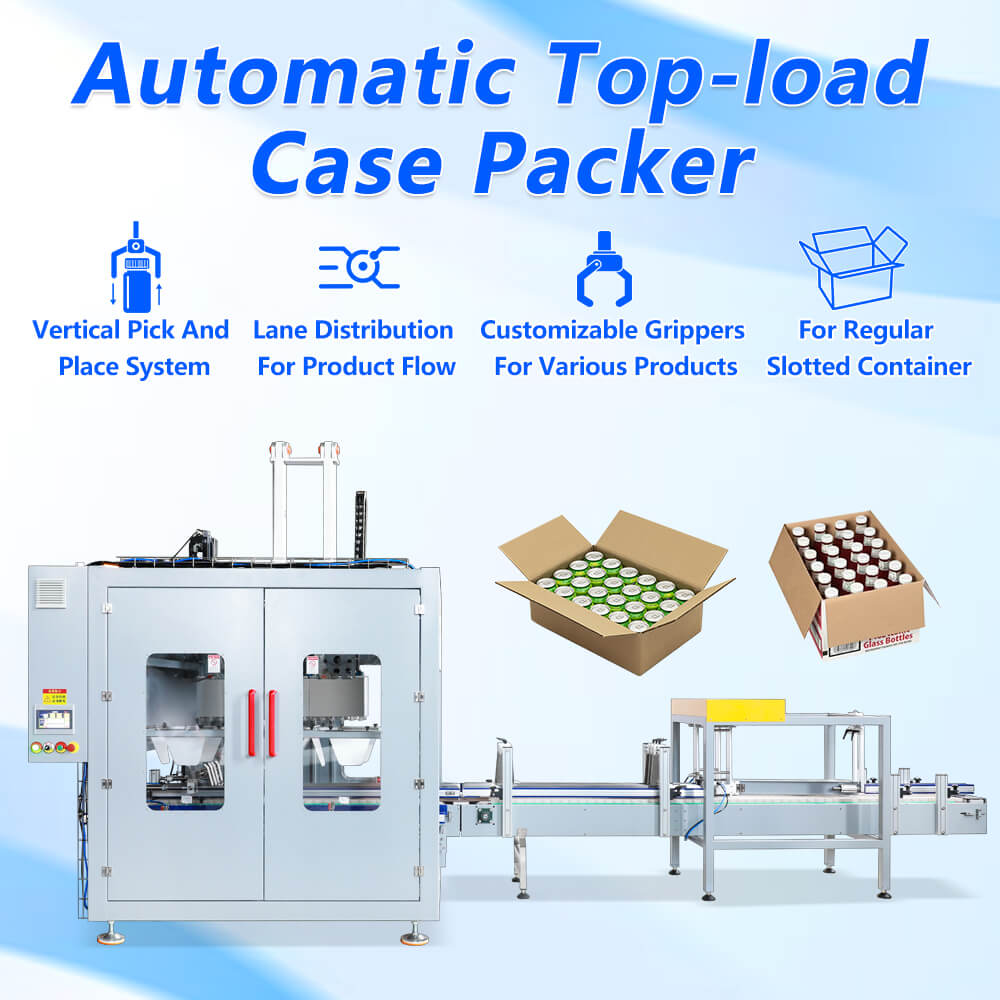

ZONESUN ZS-CPL Servo Pick-and-Place Top Load Case Packer
The top load case packing machine is a compact and efficient solution for automatically loading bottles, jars, and similar containers into cartons. It uses a vertical pick-and-place system to transfer products from above, making it ideal for items that are difficult to pack using horizontal pushing methods.
$47,999.00
Share to
Product Description:
The top load case packing machine is a compact and efficient solution for automatically loading bottles, jars, and similar containers into cartons. It uses a vertical pick-and-place system to transfer products from above, making it ideal for items that are difficult to pack using horizontal pushing methods.
Product Parameters:
| Model | ZS-CPL |
| Power Supply | 3-phase, 220V/380V, 50/60Hz, 5kW |
| Air Consumption | 0.45 m³/min at 0.6 MPa |
| Applicable Container Types | Various bottles and cans |
| Packing Speed | 10-15 cartons per minute |
| Infeed Conveyor Height | 1100 mm ±50 mm |
| Gripping Units | 3–6 sets (customizable) |

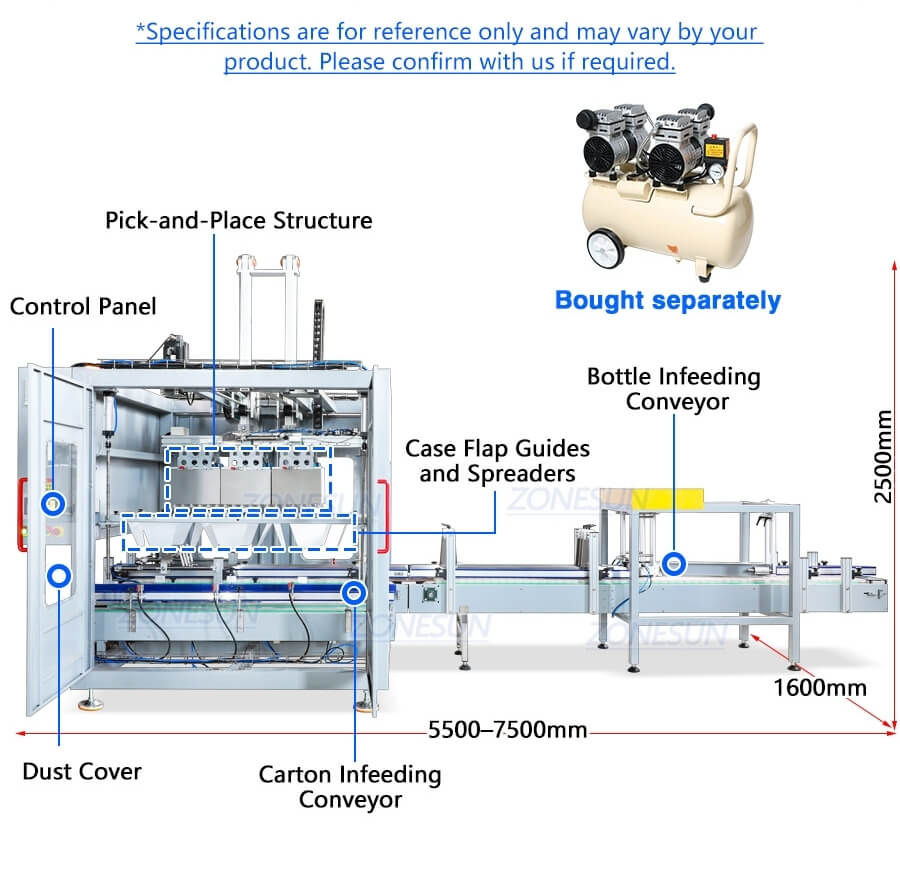

| Machine Dimensions | 5500–7500 × 1600 × 2500 mm |
| Machine Weight | 2000 kg |
| Package Size | About 2390*1800*2460mm(Main Machine) About 3550*890*1560(Conveyor) |
| Package Weight | About 1148kg(Main Machine) About 433kg(Conveyor) |
Product Details:

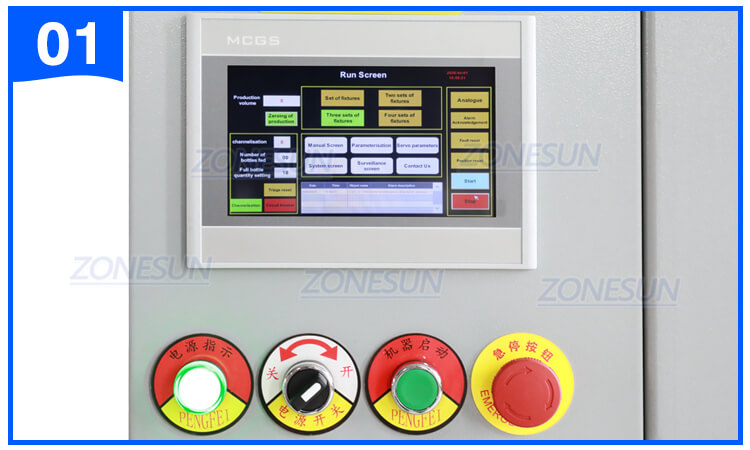

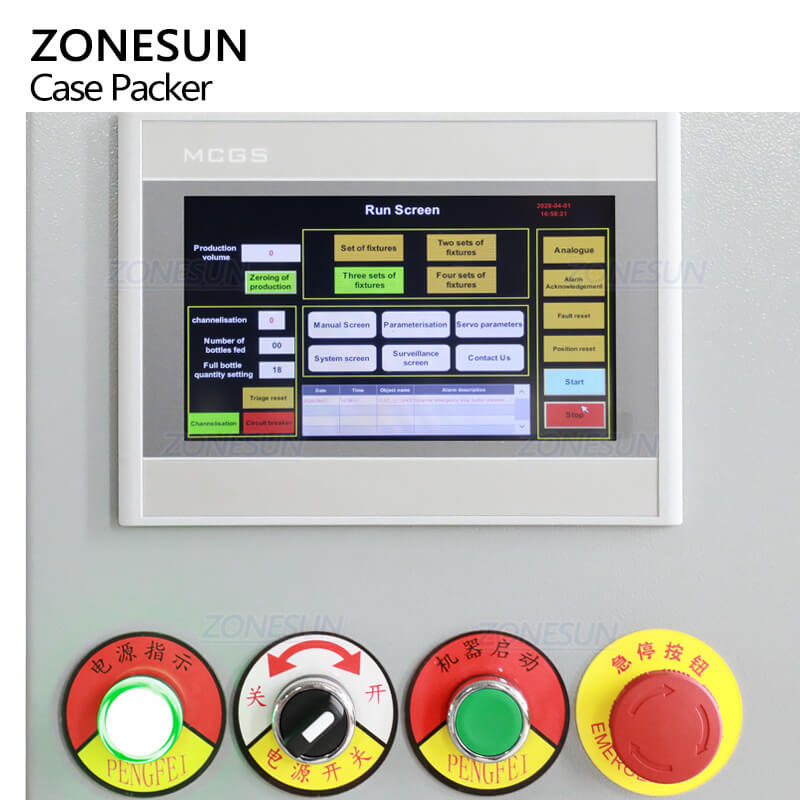

Human-Machine Interface (HMI)
Provides intuitive control for operation setup, monitoring, and adjustments.

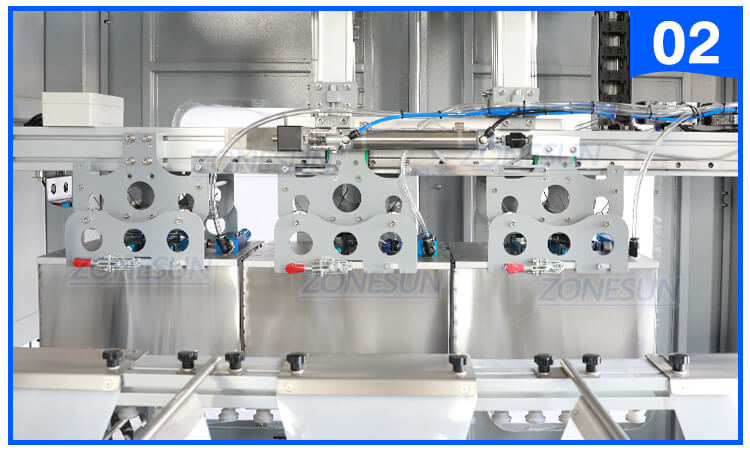

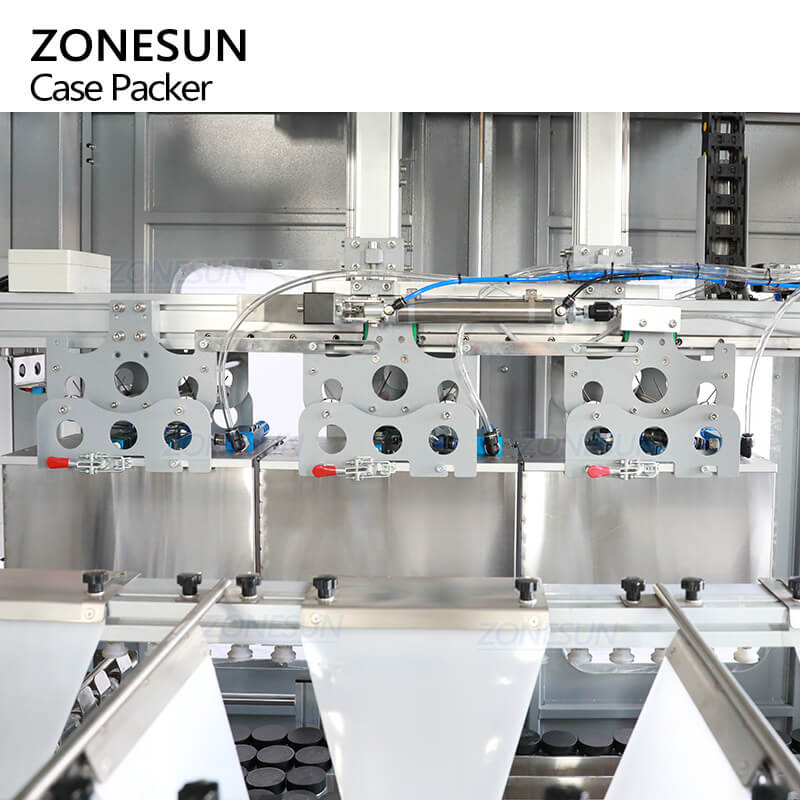

Servo Pick-and-Place Structure
Uses servo drive to ensure precise and stable product handling.

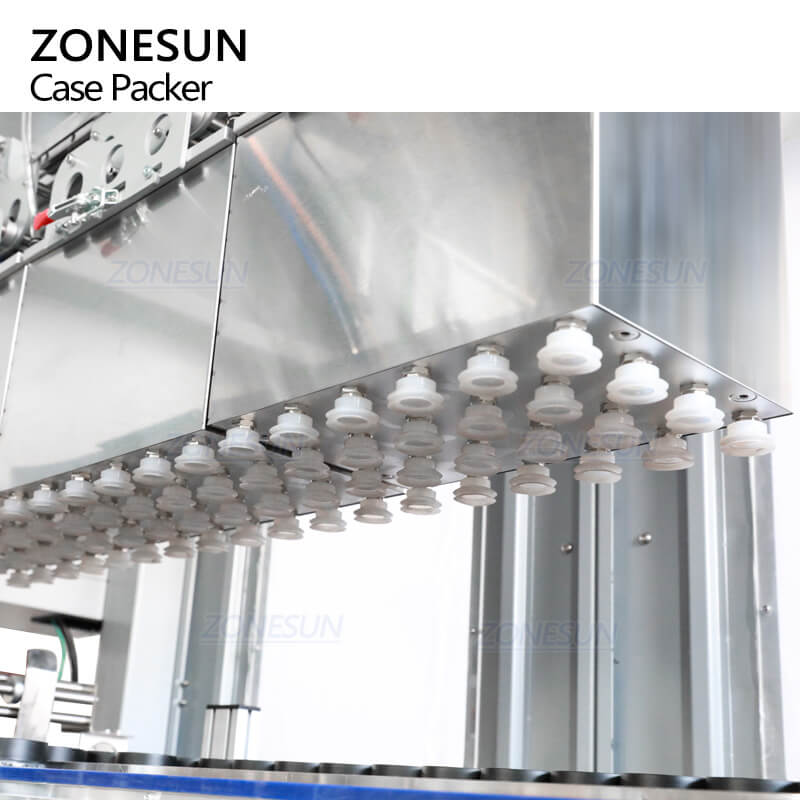

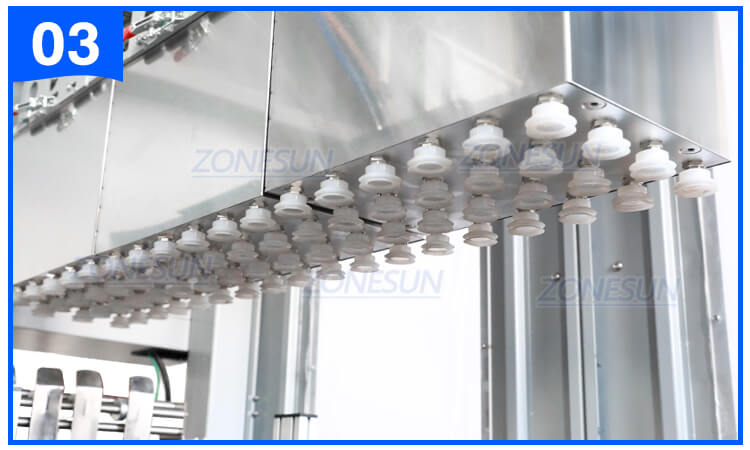

End Effector (Vacuum Gripper)
Customizable for different products to improve secure and efficient picking.

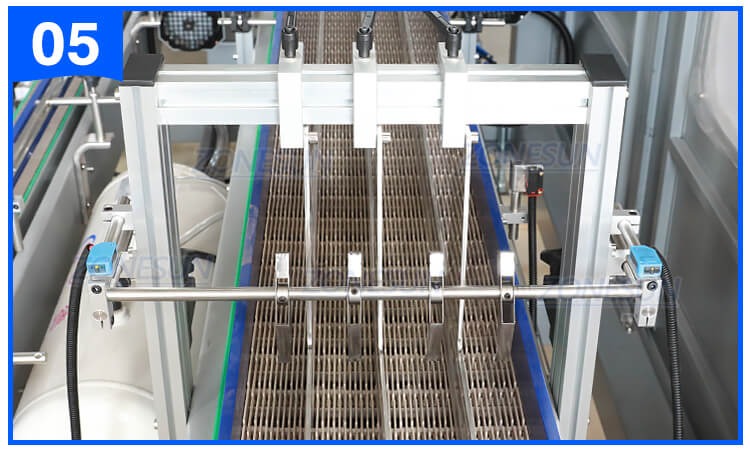

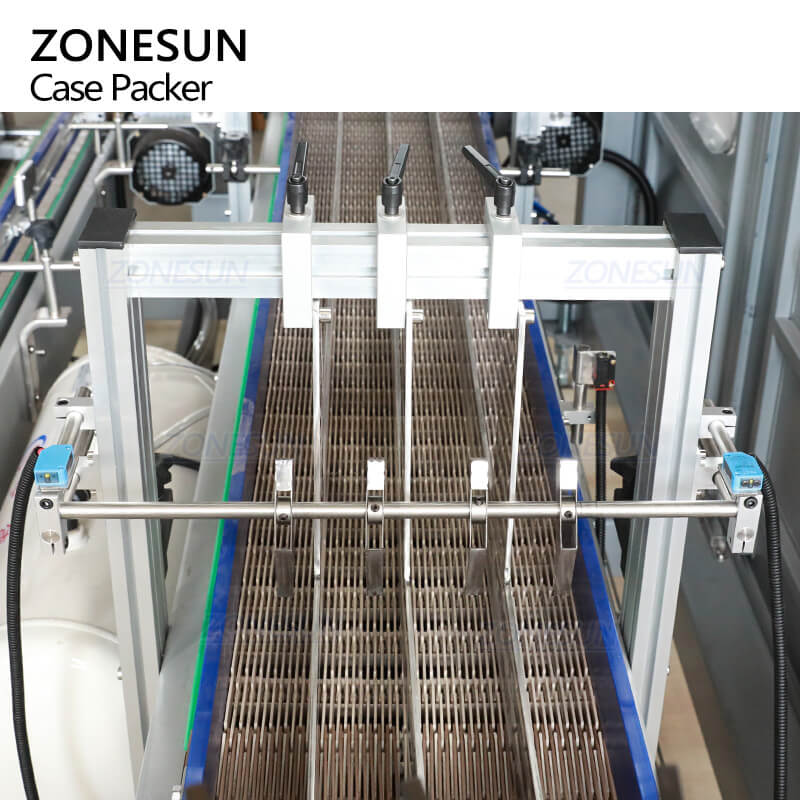

Bottle Lane Divider System
Separates and organizes bottle flow into multiple lanes for smooth handling.

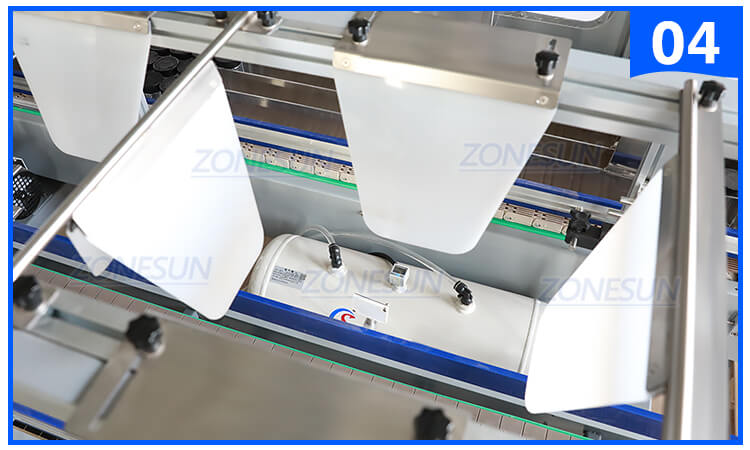

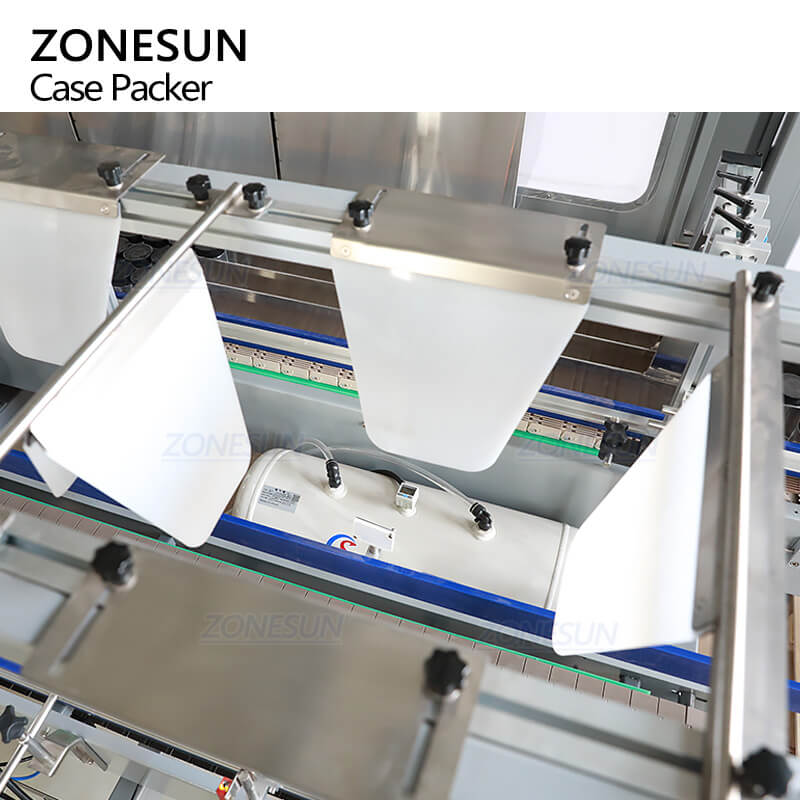

Case Flap Guides and Spreaders
Assist in opening and stabilizing carton flaps during loading.

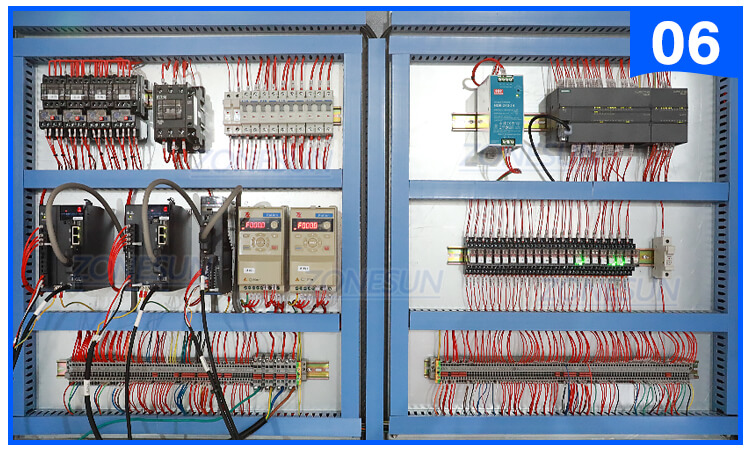

Electrical Control System
Ensures reliable operation with stable and safe performance.
