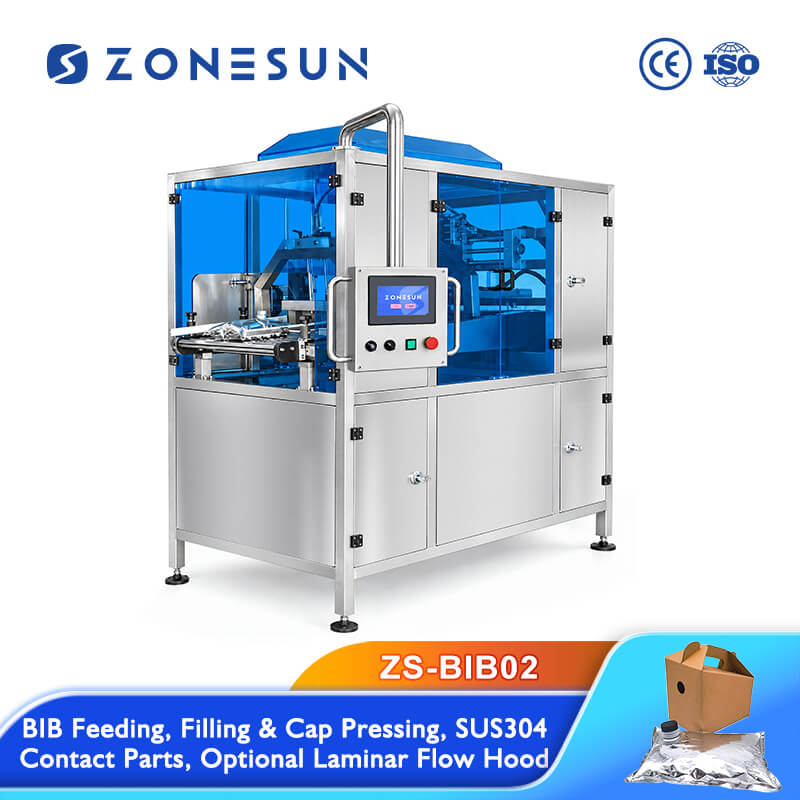

ZONESUN ZS-BIB02 Automatic Bag In Box Filling Machine

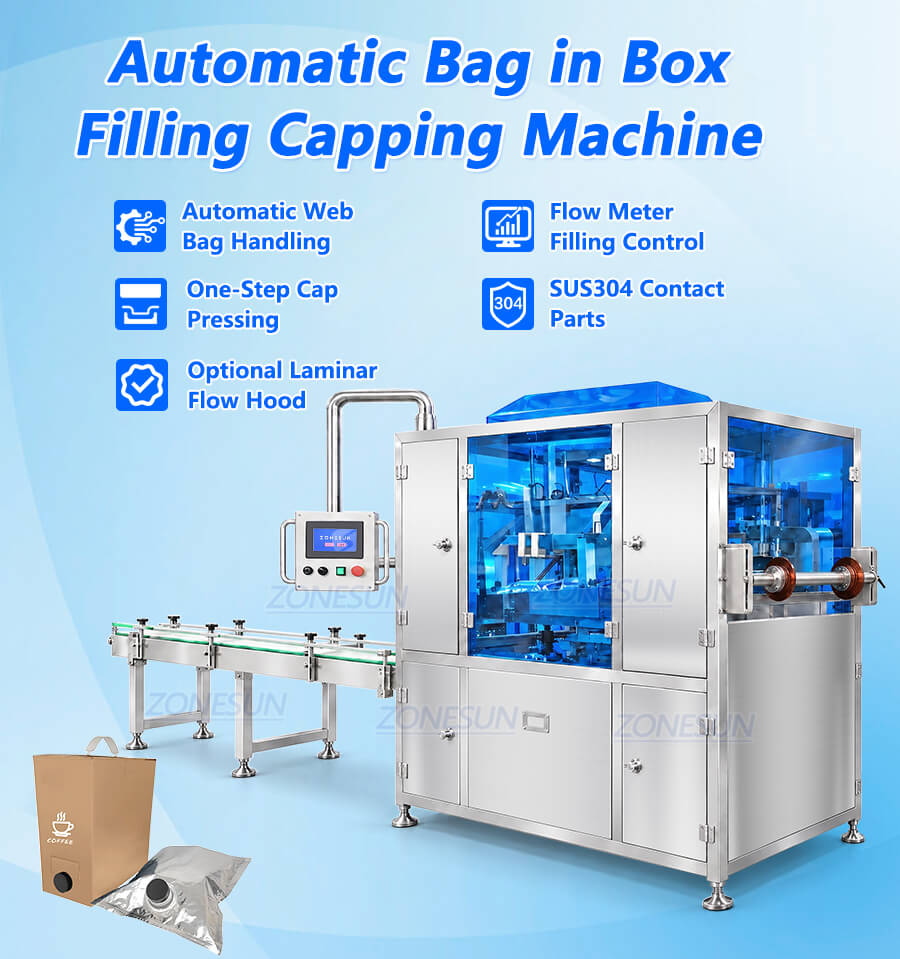

This automatic bag in box filling capping machine takes the bag from the web, fills it through the spout and presses the cap on in one step. Filling is controlled by a flow meter, so the dose is set by measurement rather than by time. Contact parts are SUS304, and an optional laminar flow hood can be fitted over the filling area where a cleaner zone is needed for the product being packed.
Original price was: $68,999.00.$66,999.00Current price is: $66,999.00.
Share to
Product Description
This automatic bag in box filling capping machine takes the bag from the web, fills it through the spout and presses the cap on in one step. Filling is controlled by a flow meter, so the dose is set by measurement rather than by time. Contact parts are SUS304, and an optional laminar flow hood can be fitted over the filling area where a cleaner zone is needed for the product being packed.
Product Applications

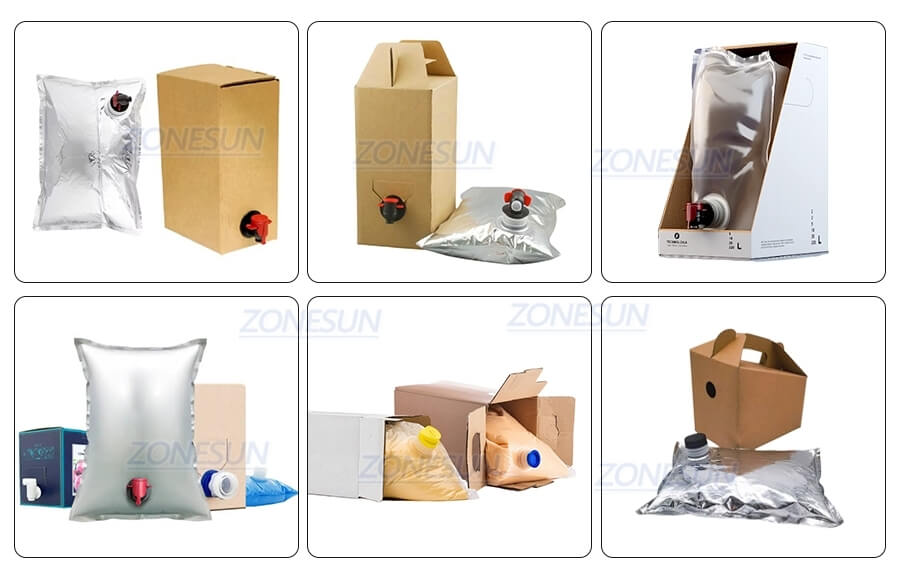

This machine suits bag in box packs, where a flexible bag with a spout is filled and then packed into a carton. The applications shown are foil and metallized bags with a tap or a screw spout, in cartons from small coffee style boxes up to large catering boxes with the tap on the front. Packs of this kind are used for liquids that are dispensed from the box instead of poured, and in every case the bag is filled and capped before it goes into the carton.
Product Parameter
| Machine Model | ZS-BIB02 |
| Power Supply | AC 220 V / 50 Hz |
| Power | ≤1.5 kW |
| Filling Range | 1–4.5 L |
| Filling Method | Flow Meter Filling |
| Production Capacity | 250–280 bags/hour |
| Filling Accuracy | ≤±0.2–0.5% |
| Working Air Pressure | 0.6–0.8 MPa |
| Air Consumption | ≤0.1 m³/min |
| Bag Type | Connected Web Bags |
| Nitrogen Flushing | Optional |
| Laminar Flow Hood | Optional |

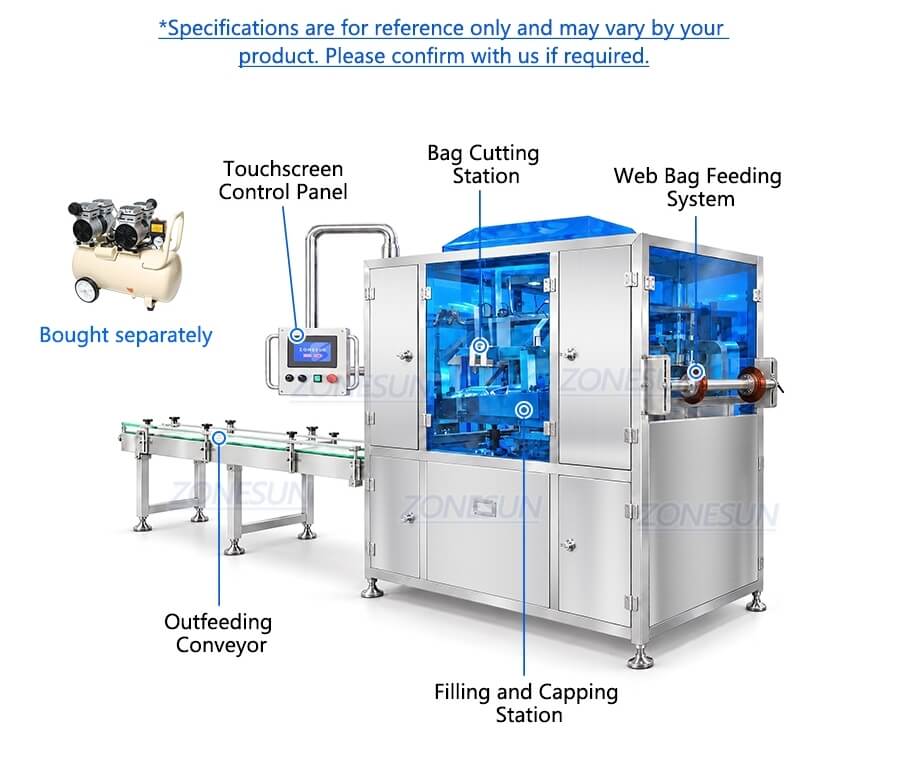

Product Details

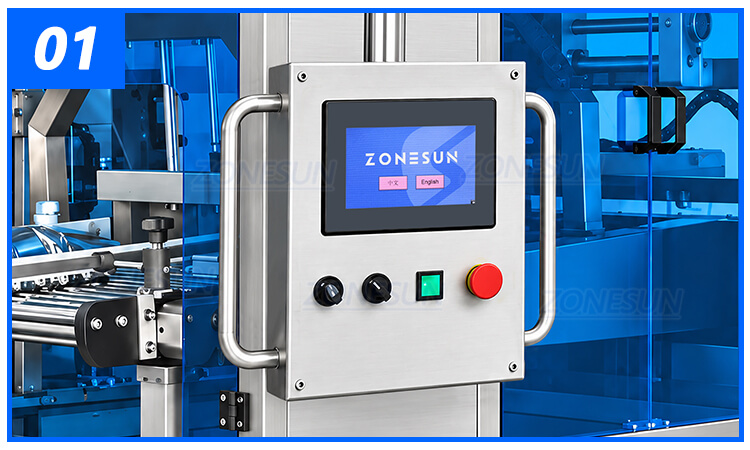

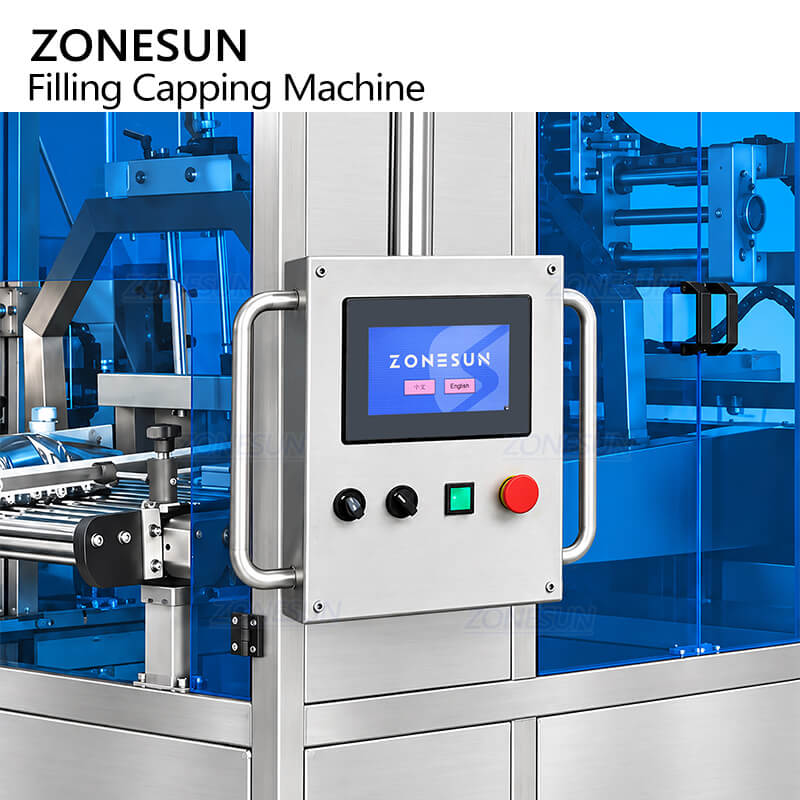

Touchscreen Control Panel
The PLC touchscreen controls bag feeding, filling, capping, and cutting parameters. Operators can set and adjust the filling volume directly through the interface.

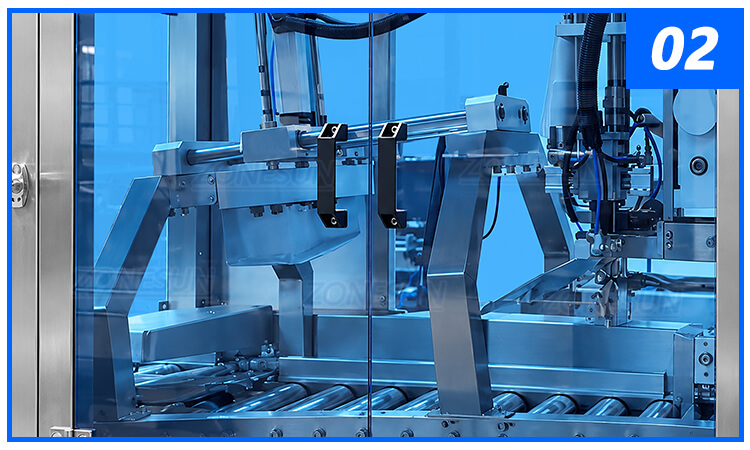

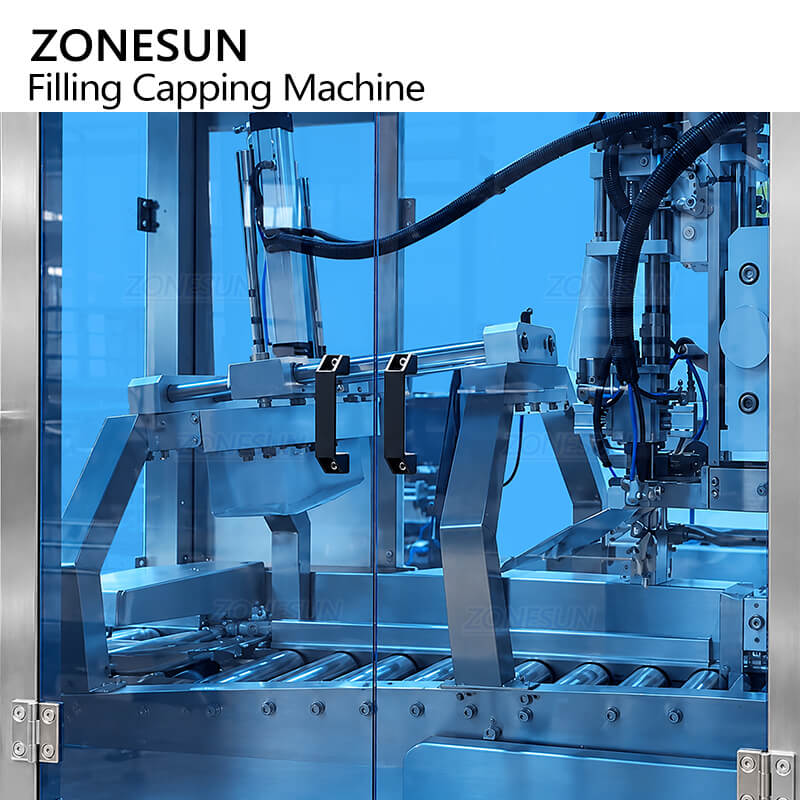

Filling and Capping Structure
The flow-meter filling system fills 1–4.5 L connected bags. The structure completes automatic cap removal before filling and presses the cap into position after filling.

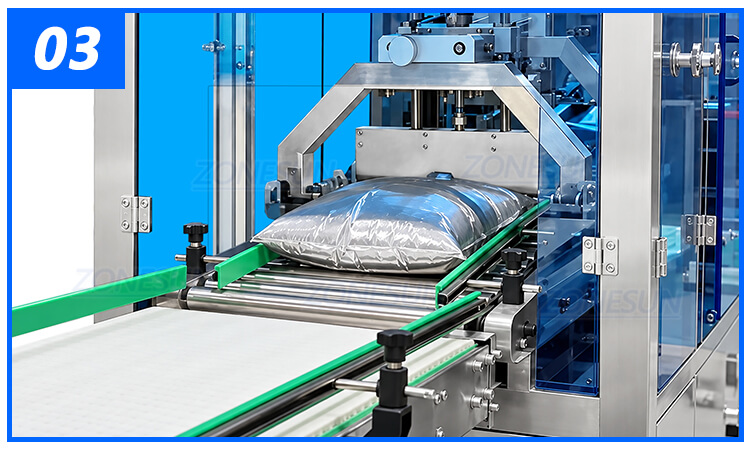

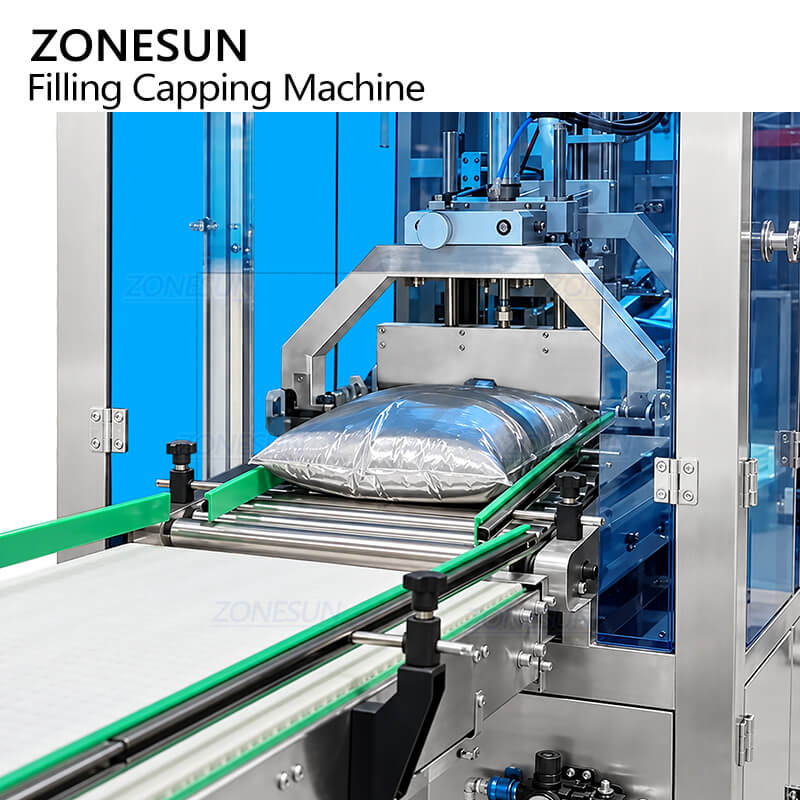

Bag Cutting Structure
The cutting structure separates filled bags from the connected web. Bag-length positioning and cutting-error detection support consistent bag separation.

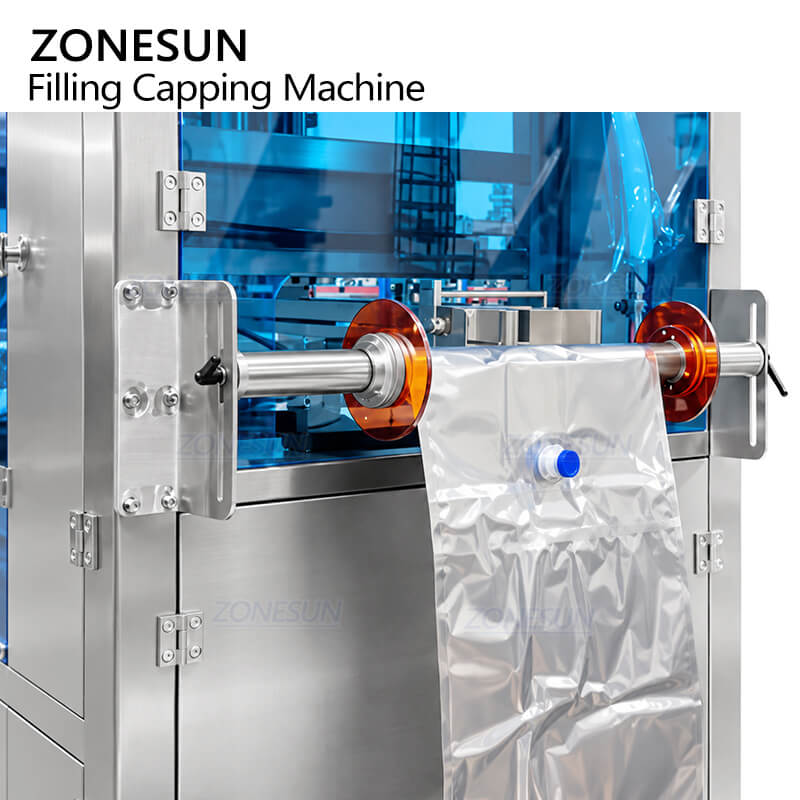

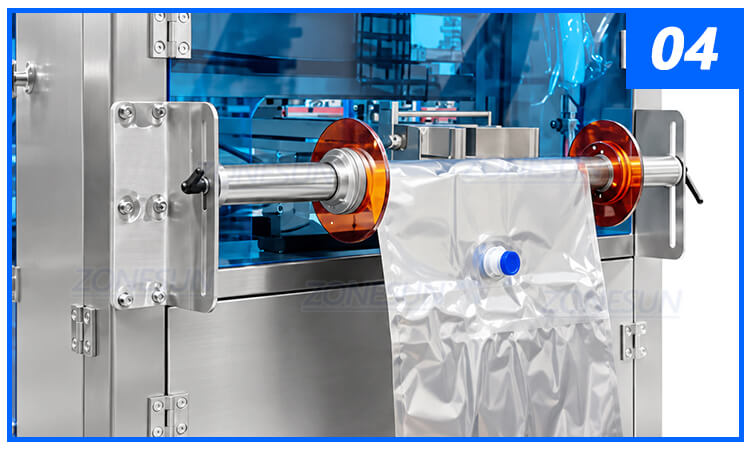

Web Bag Feeding Structure
The web bag feeding structure automatically feeds connected bags into the working station. Bag-tension control and spout positioning help keep each bag aligned for filling and capping.
FAQ
Are you factory or trading company?
We are factory or manufacturer. you not only buy the machine .
Can you guarantee your quality?
Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
What should I do if we are not able to operate the machine when we receive it?
Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer ‘s site to solve any problems.
How could I get the spares on machines?
We will send extra sets of easy broken spares and accessories . Non-artificial damaged spares will be sent freely and shipping free during 1 year’s warranty.
What’s the payment terms and trade terms for new customers?
Payment terms:PayPal, T/T, credit card, WeChat Pay, and Alipay.
What’s the Minimum Order Quantity and warranty?
MOQ:1 set warrnty :1year
Do I need to pay for the extra cost like tax or duty ?
A:Yes, custom duty / tax it’s the buyer responsibility need to pay it, the shipping cost it’s not included the tax.

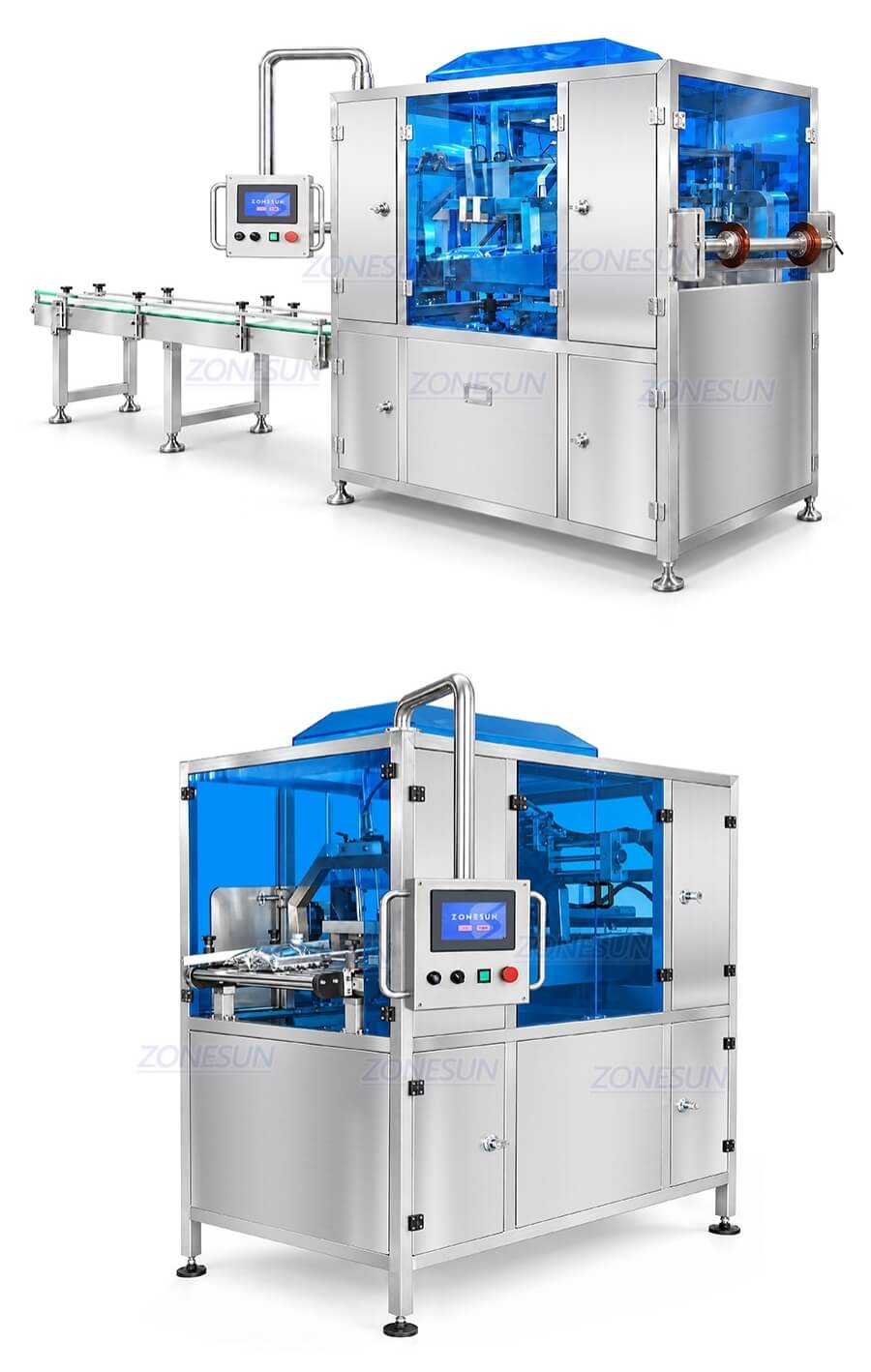

Product Real Shot
