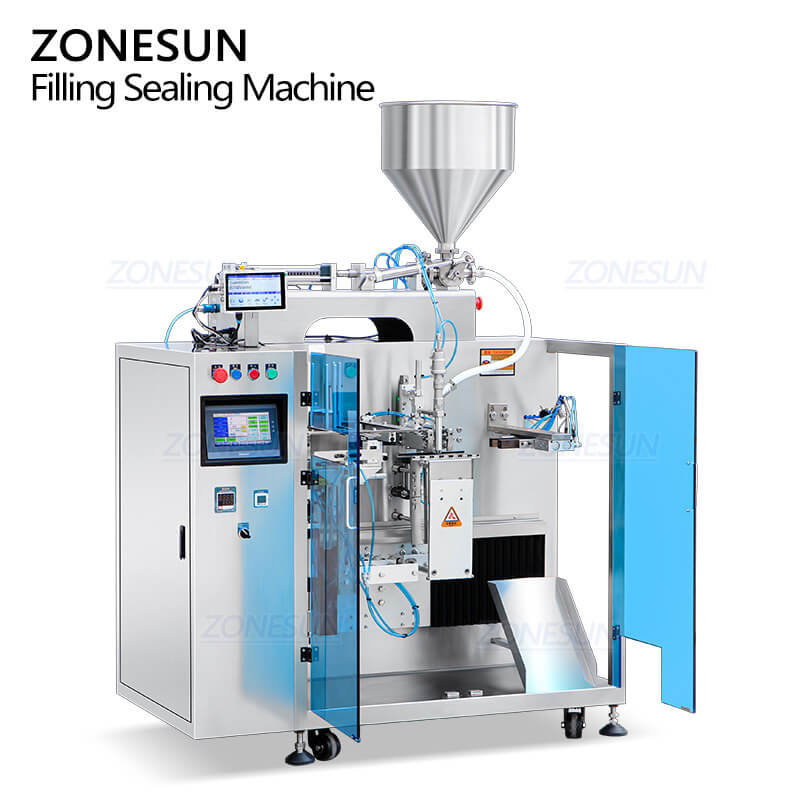

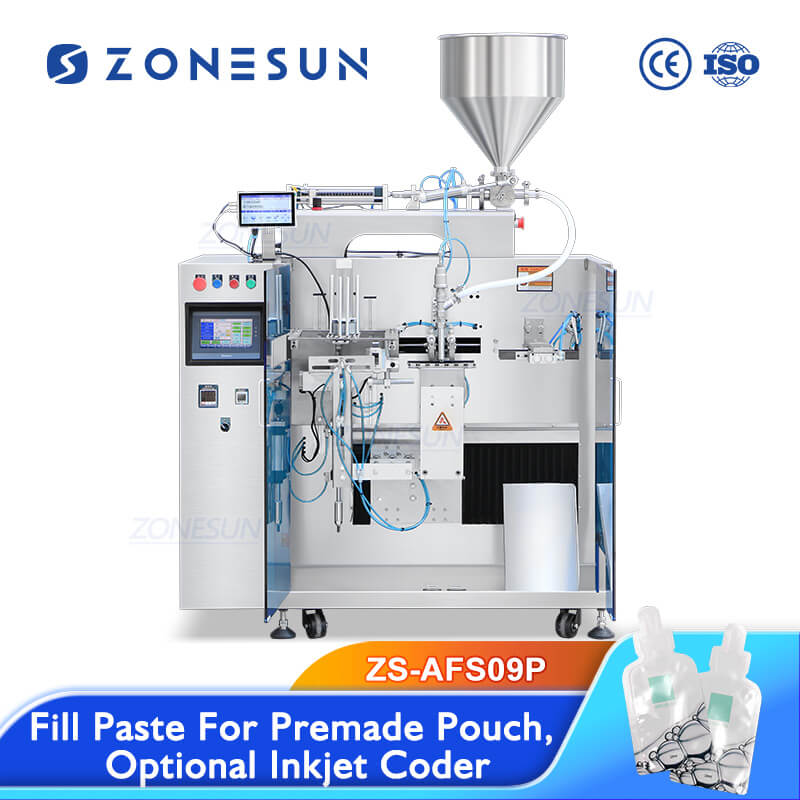

ZONESUN ZS-AFS09P Premade Pouch Filling Sealing Machine

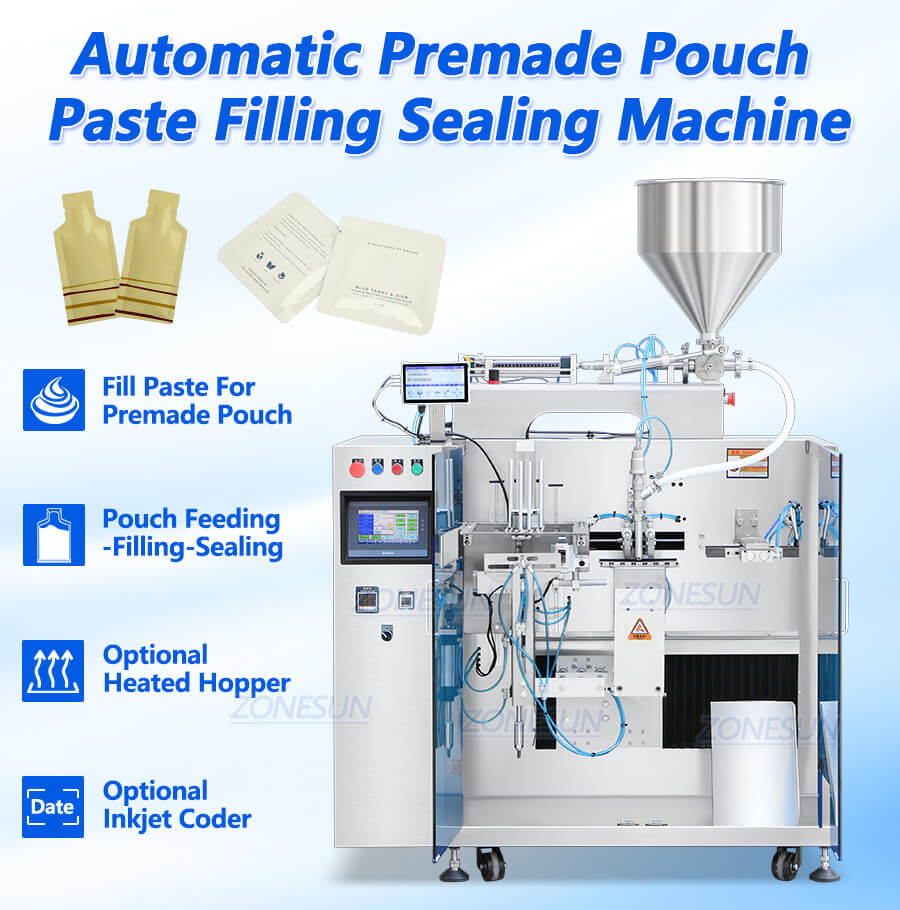

This automatic premade pouch paste filling sealing machine fills thick paste into premade pouches, so the pouch is made before it reaches the machine and only needs to be filled and sealed. Pouches are fed in, filled and sealed in one pass, and the machine handles both flat sachets and shaped pouches. A heated hopper is available as an option, and an optional inkjet coder prints the date on each pouch.
Price range: $7,279.00 through $7,729.00
Share to
Product Description
This automatic premade pouch paste filling sealing machine fills thick paste into premade pouches, so the pouch is made before it reaches the machine and only needs to be filled and sealed. Pouches are fed in, filled and sealed in one pass, and the machine handles both flat sachets and shaped pouches. A heated hopper is available as an option, and an optional inkjet coder prints the date on each pouch.
Product Applications

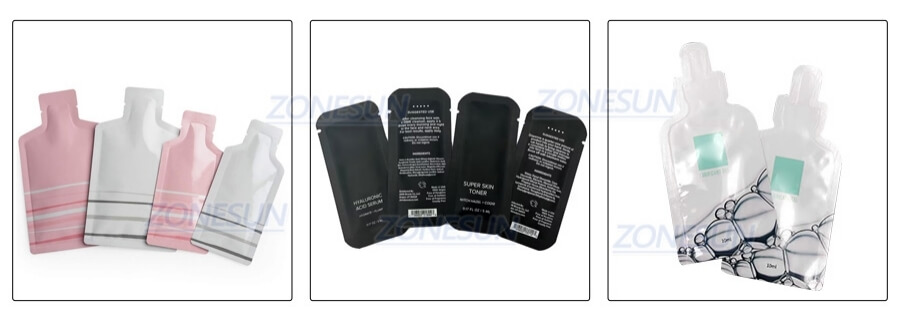

This machine suits premade spout pouches and flat sachets filled with paste, cream and thick liquid products. The applications shown are shaped spout pouches for a liquid wash product, black flat sachets for a cream or sunscreen, and clear spout pouches for a gel or lotion. The packs in this range share a small pouch body, so one machine covers a line where the pouch shape, colour and printed artwork change from product to product.
Product Production Process

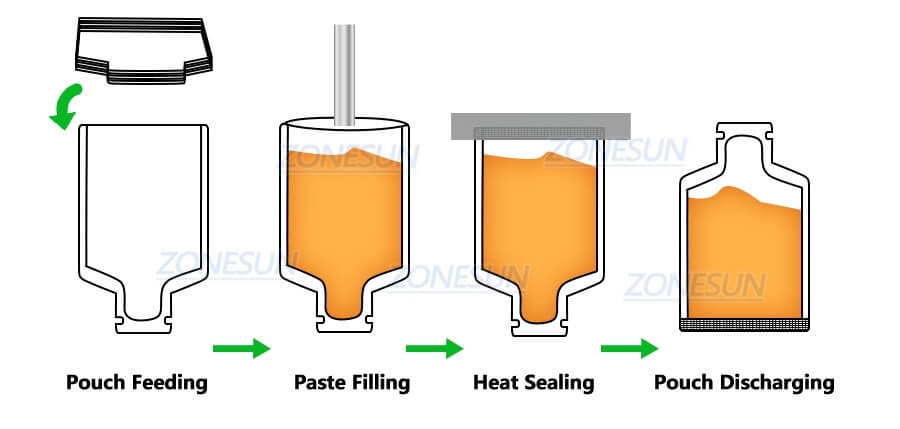

How the machine runs: premade pouches are fed in one by one, a filling nozzle goes down into the pouch opening and the paste is filled, the pouch mouth is then heat sealed, and the sealed pouch is discharged at the end.
Product Parameter
| Machine Model | ZS-AFS09P |
| Packaging Speed | 5–30 bags/min |
| Maximum Filling Volume | Depends on material |
| Power Consumption | 4 kW |
| Filling Range | 5-50ml (Customizable) |
| Air Consumption | 0.1 m³/min |
| Power Supply | 220 VAC |
| Operating Temperature | 5–35°C |
| Relative Humidity | ≤85% |

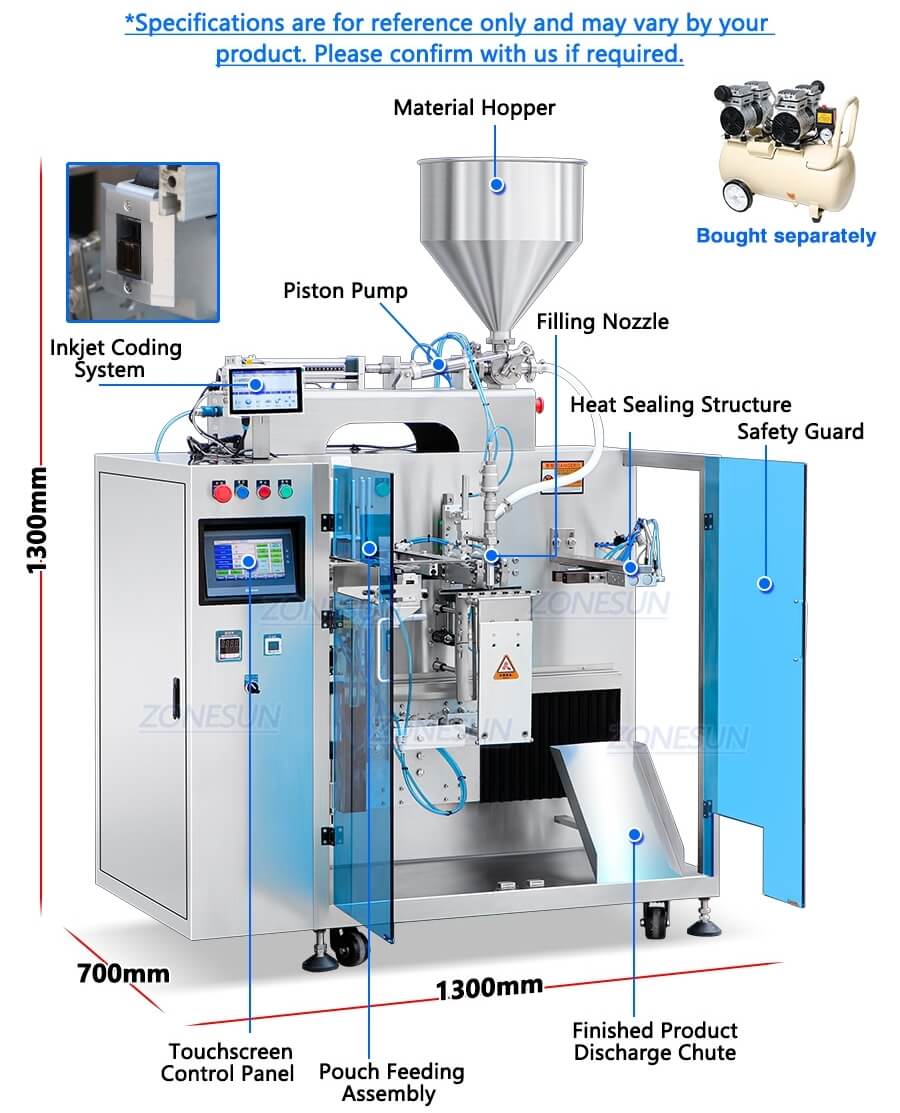

| Machine Dimensions | About 1300*700*1300 mm |
| Net Weight | About 280 kg |
| Package Size | About 1420*1010*1590mm |
| Package Weight | About 320 kg |
Product Details

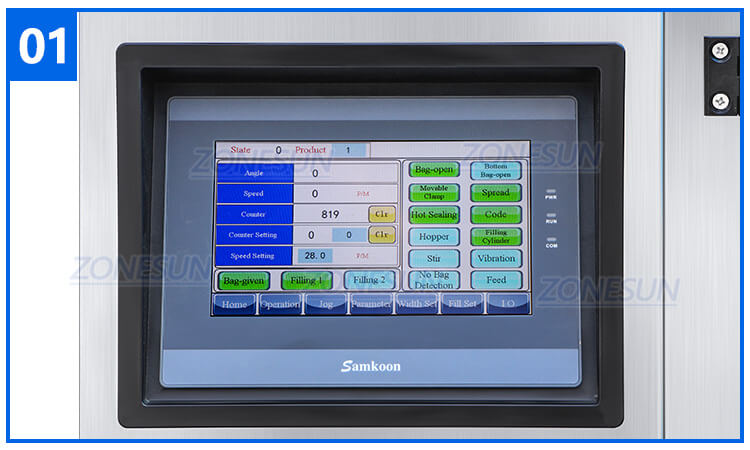

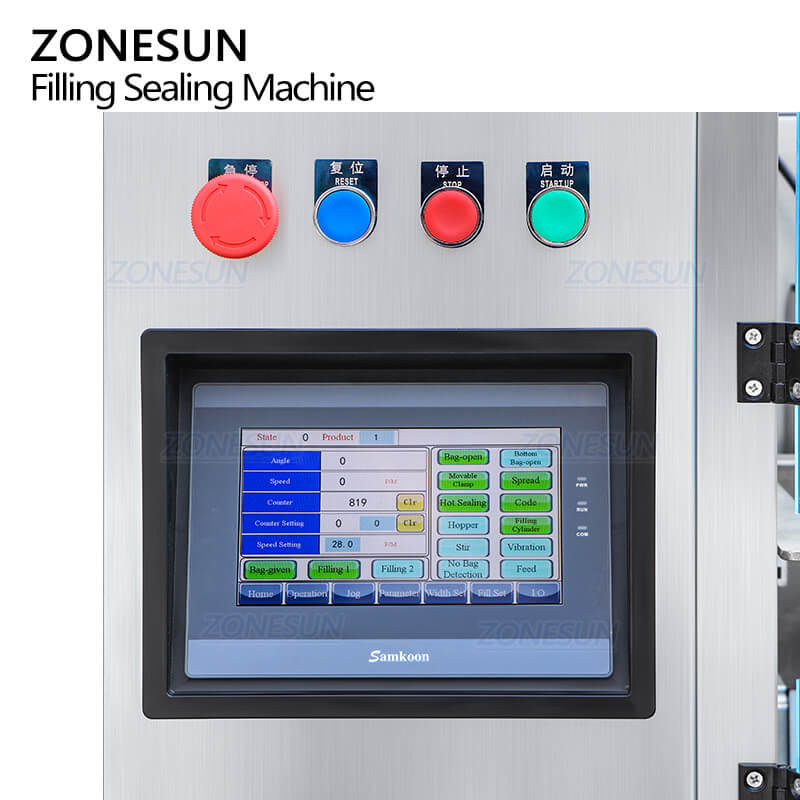

Touchscreen Control Panel
The touchscreen displays operating parameters clearly for convenient setting and adjustment. Interface languages can be customized according to customer requirements.

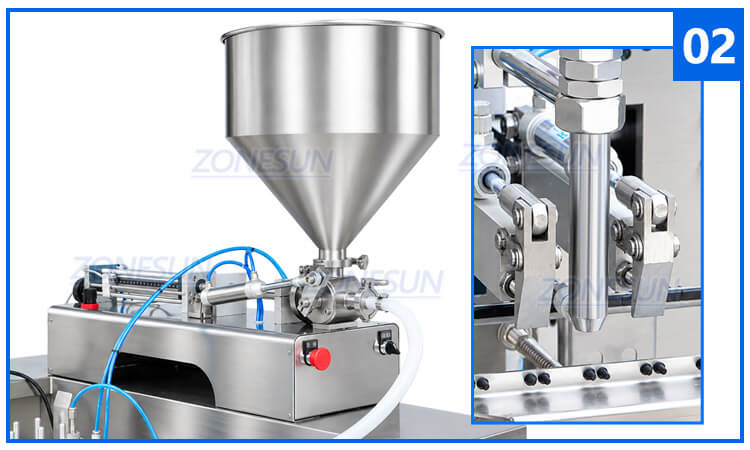

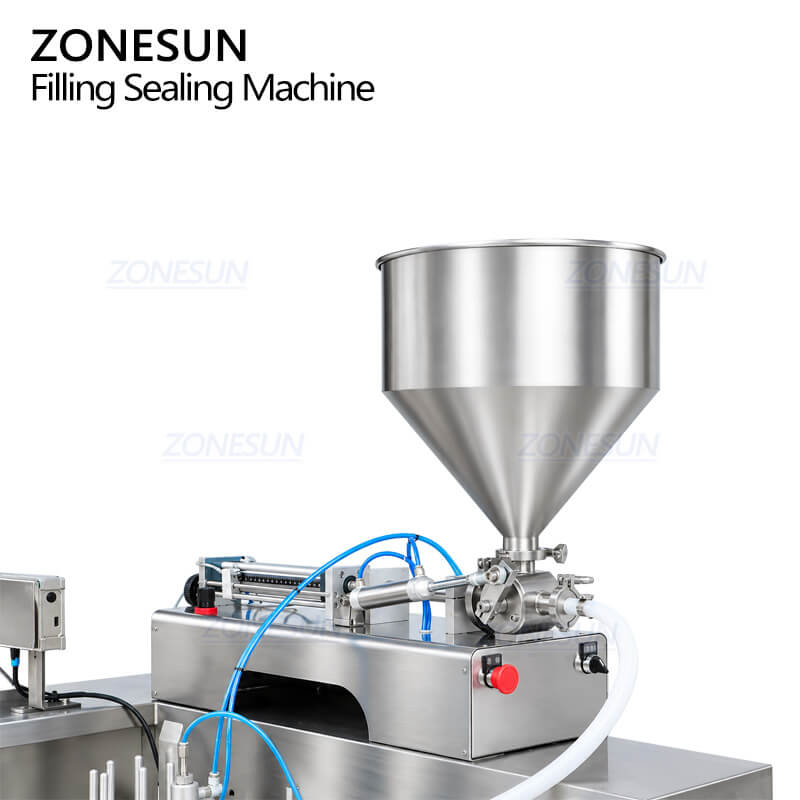

Piston Filling System
The piston filling system is available with different filling ranges. A suitable cylinder capacity can be selected according to the required filling volume and production requirements.

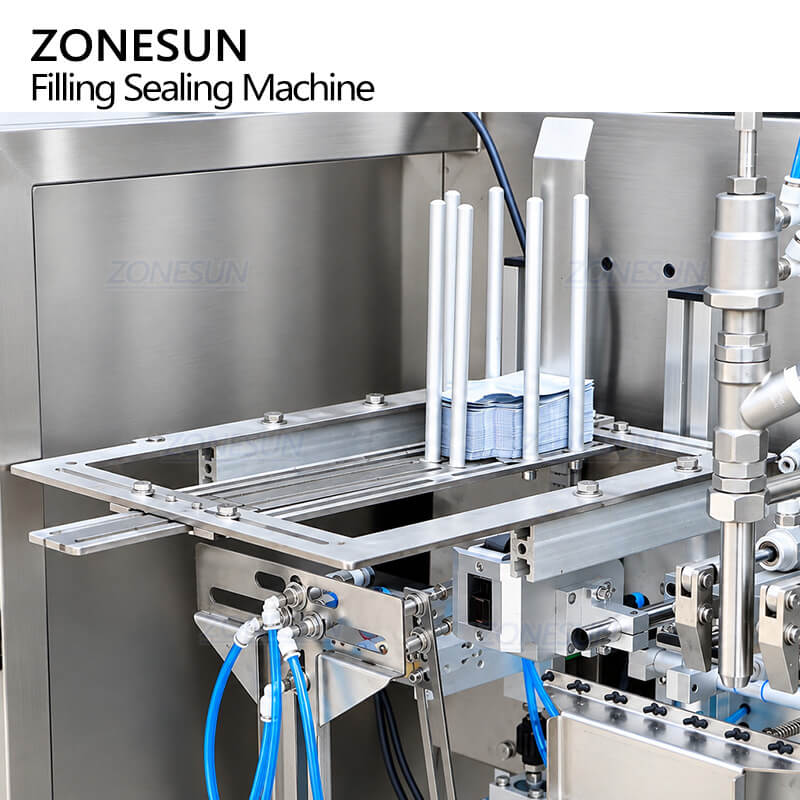

Pouch Feeding & Opening Structure
The pouch holder can be adjusted according to pouch dimensions. Suction cups automatically open flat pouches, stand-up pouches, and other compatible premade pouch styles.

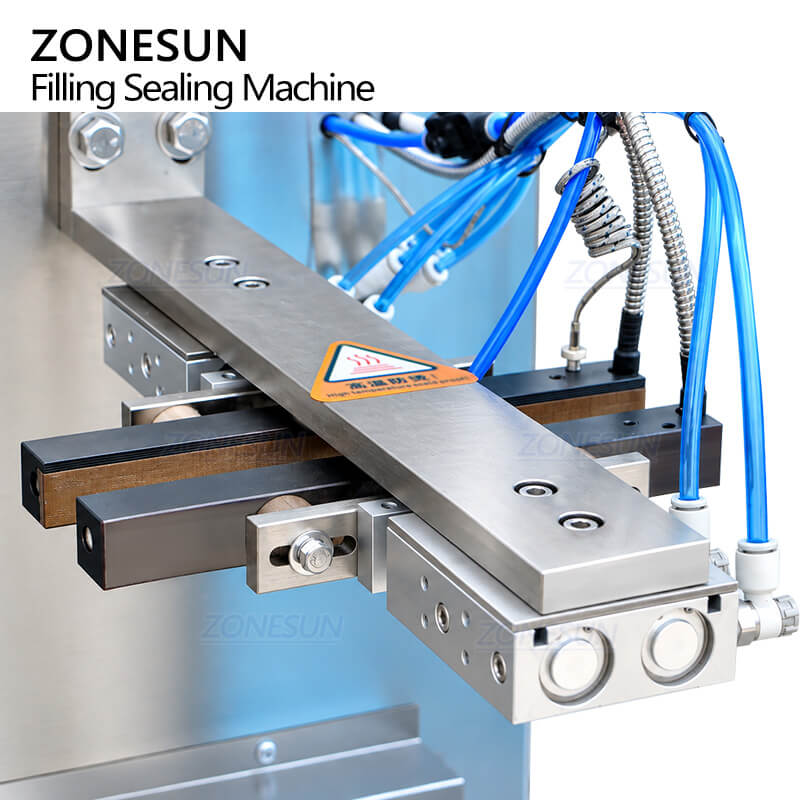

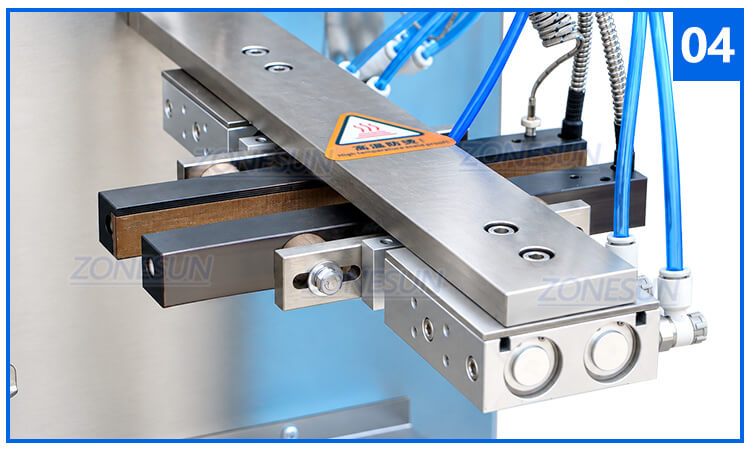

Heat Sealing Structure
Sealing temperature can be adjusted according to pouch material. Stripe sealing or checkerboard sealing patterns can be customized as required.

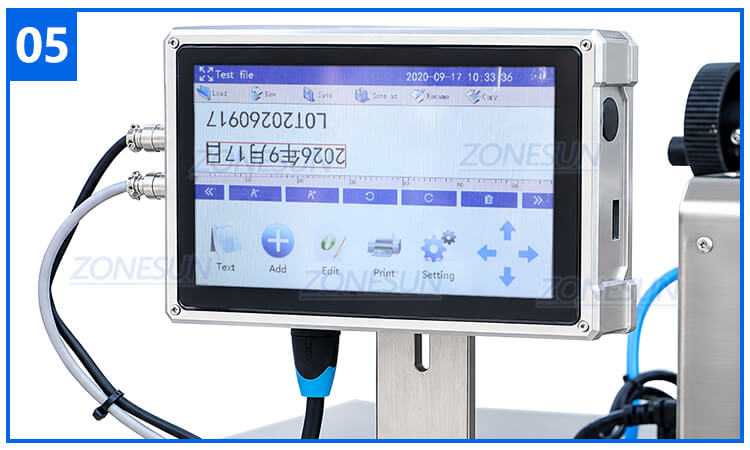

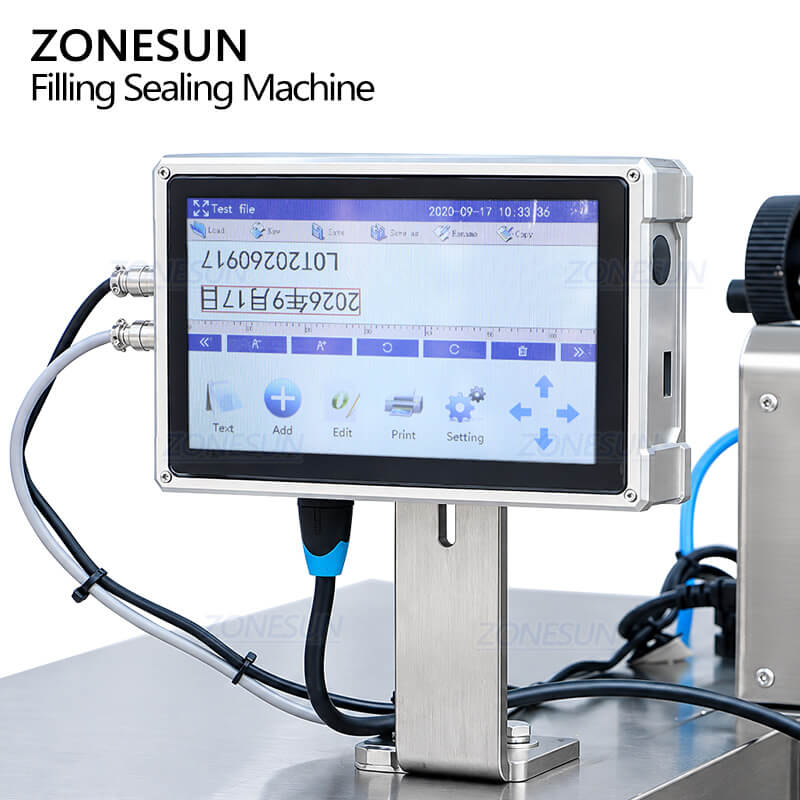

Optional Coding Interface
The optional coding system supports editable QR codes, barcodes, dates, and other identification content. Different coding colors can be selected as required.

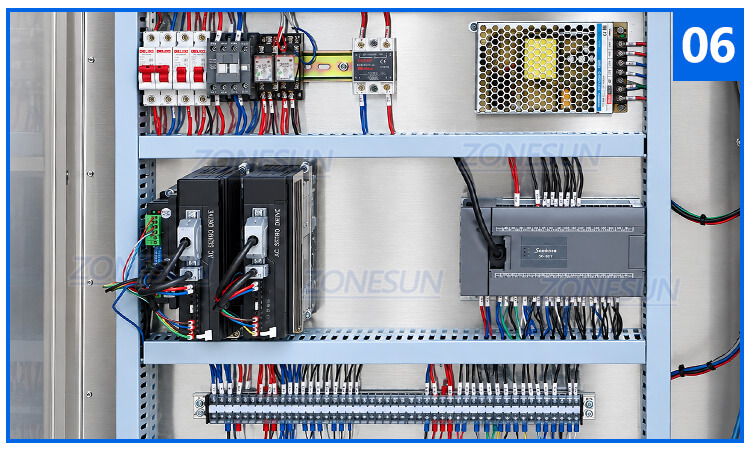

Electrical Control Cabinet
Electrical components are arranged neatly inside the control cabinet. The organized layout supports stable machine operation and convenient maintenance.
FAQ
Are you factory or trading company?
We are factory or manufacturer. you not only buy the machine .
Can you guarantee your quality?
Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
What should I do if we are not able to operate the machine when we receive it?
Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer ‘s site to solve any problems.
How could I get the spares on machines?
We will send extra sets of easy broken spares and accessories . Non-artificial damaged spares will be sent freely and shipping free during 1 year’s warranty.
What’s the payment terms and trade terms for new customers?
Payment terms:PayPal, T/T, credit card, WeChat Pay, and Alipay.
What’s the Minimum Order Quantity and warranty?
MOQ:1 set warrnty :1year
Do I need to pay for the extra cost like tax or duty ?
A:Yes, custom duty / tax it’s the buyer responsibility need to pay it, the shipping cost it’s not included the tax.

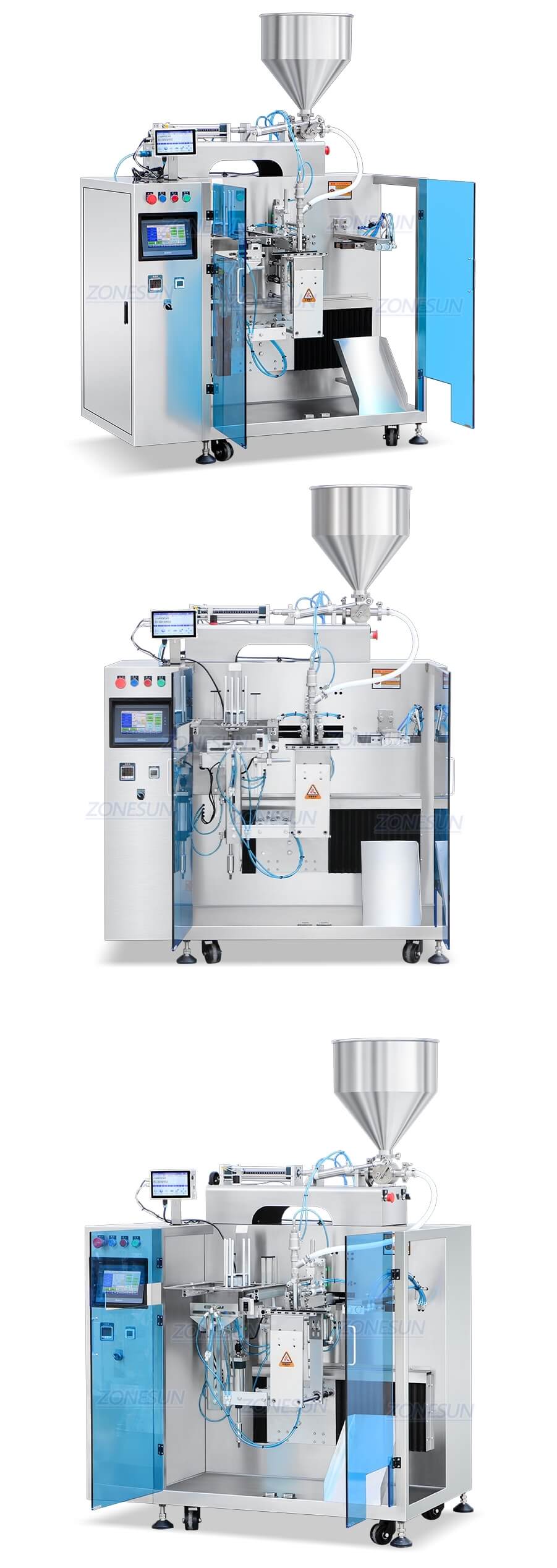

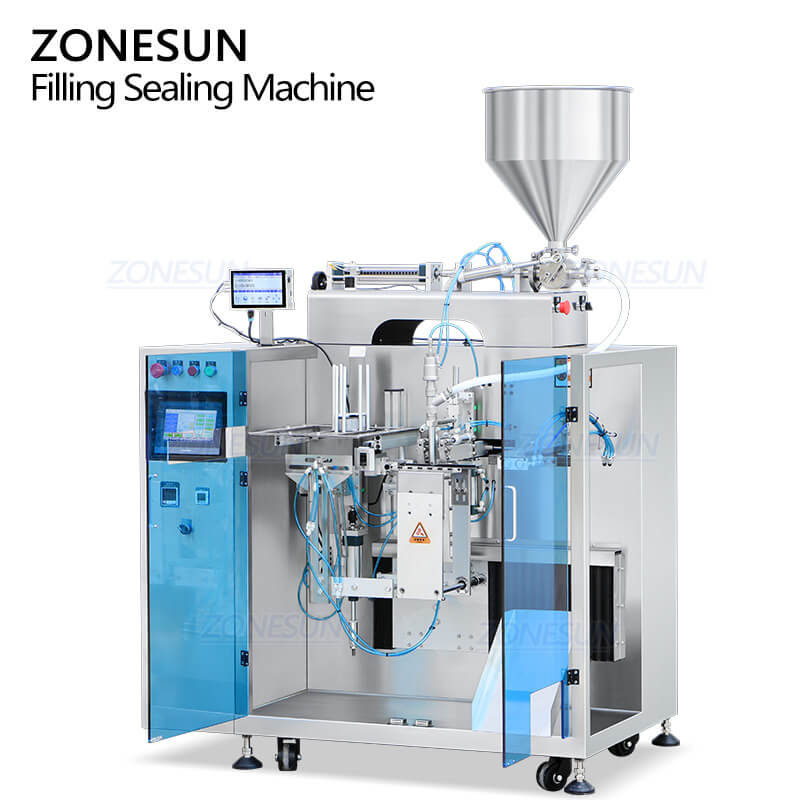

Product Real Shot
