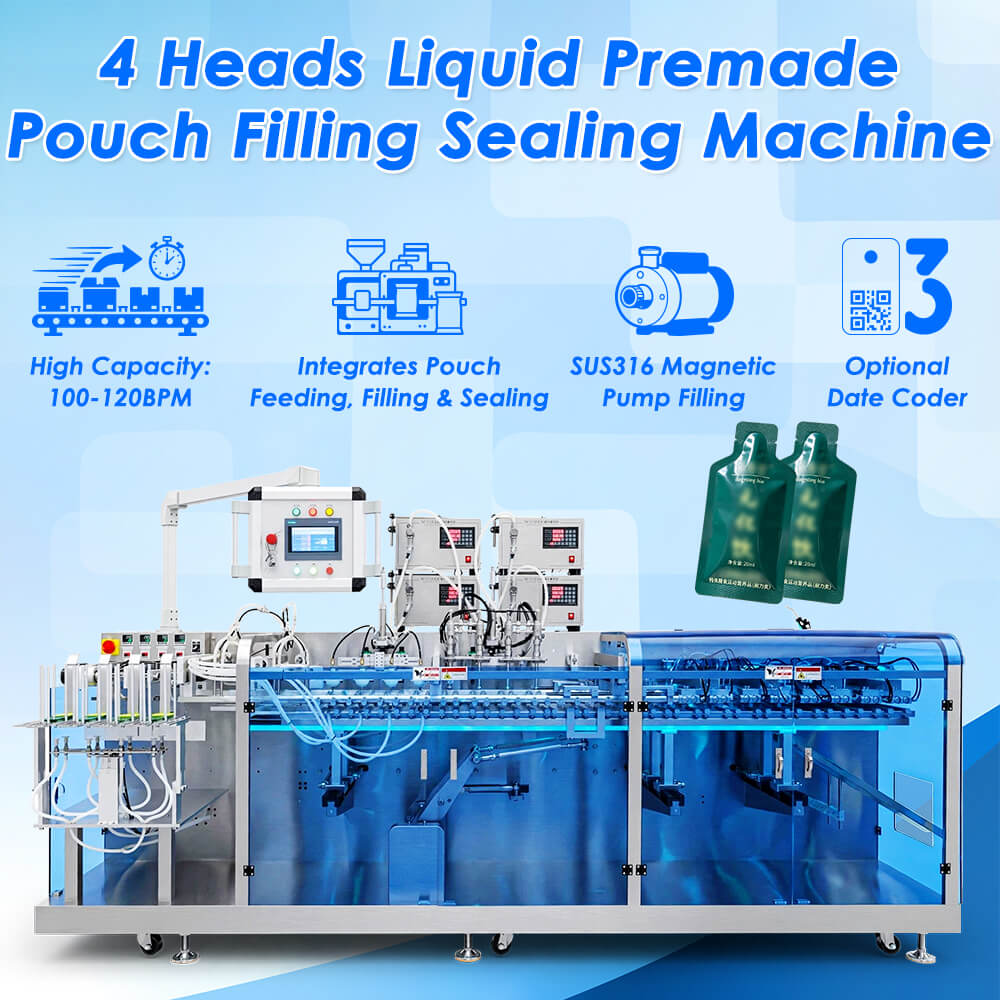

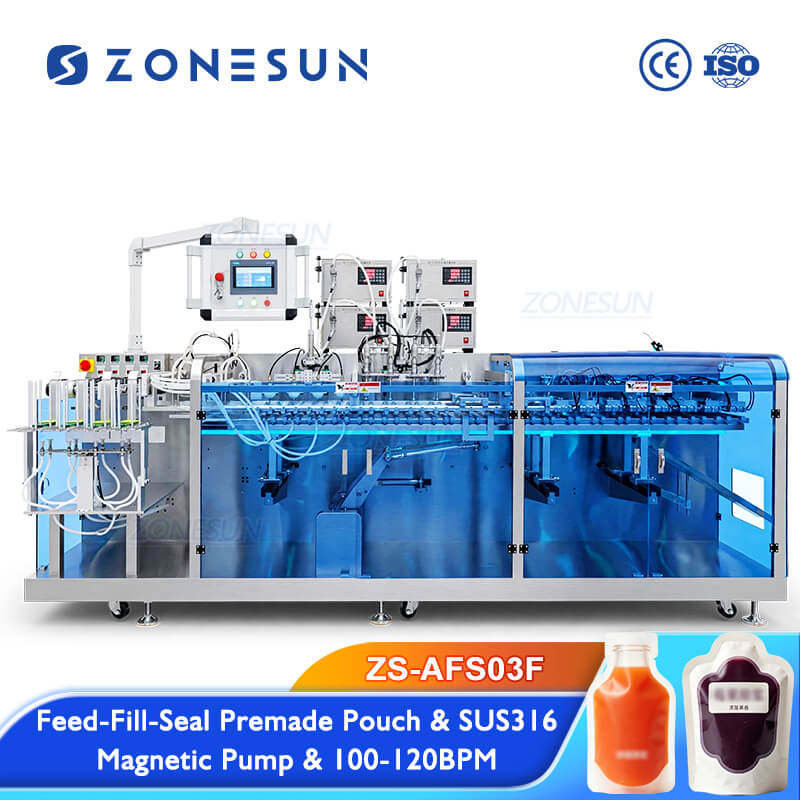

ZONESUN ZS-AFS03F Premade Pouch Filling Sealing Machine
This 4 head liquid premade pouch filling sealing machine fills and seals liquid products into premade pouches at 100 to 120 bags per minute. Pouch feeding, filling and sealing are handled on one machine rather than at separate stations, and the four filling heads dose liquid through SUS316 magnetic pumps. A date coder can be added as an option to print dates onto the pouch during sealing.
Original price was: $49,199.00.$47,799.00Current price is: $47,799.00.
Share to
Product Description
This 4 head liquid premade pouch filling sealing machine fills and seals liquid products into premade pouches at 100 to 120 bags per minute. Pouch feeding, filling and sealing are handled on one machine rather than at separate stations, and the four filling heads dose liquid through SUS316 magnetic pumps. A date coder can be added as an option to print dates onto the pouch during sealing.

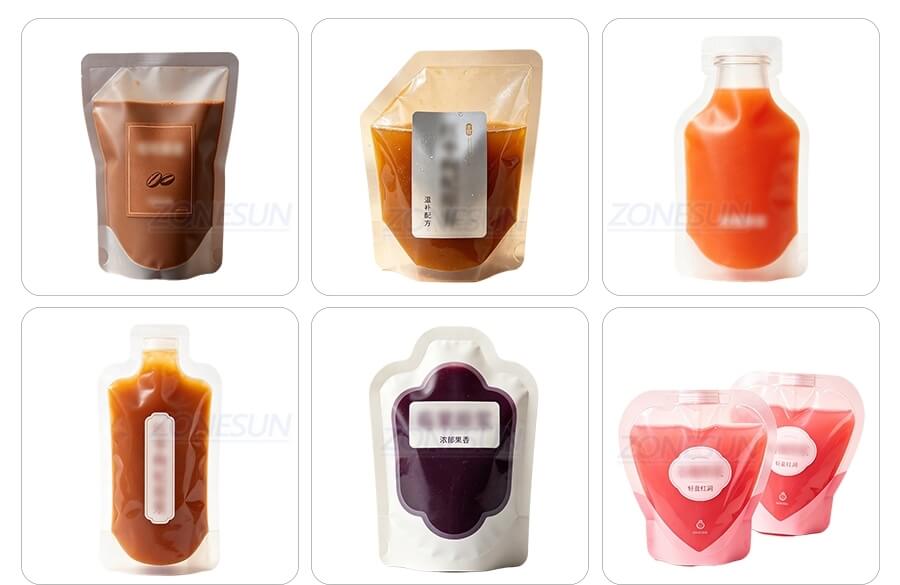

Product Applications
Product Parameter
| Machine Model | ZS-AFS03F |
| Power Supply | 110/220/380V 50Hz |
| Main Machine Power | 6KW |
| Filling Pump | SUS316 Magnetic Pumps (Customizable) |
| Filling Heads | 4 (Customizable) |
| Production Capacity | 100-120 bags/min(depending on filling materials) |
| Suitable Pouch Size | W: 55-100mm* L: 100-230mm |
| Machine Body Materials | SUS304 |
| Air Pressure | 0.6Mpa |
| Air Consumption | 0.5m³/min |

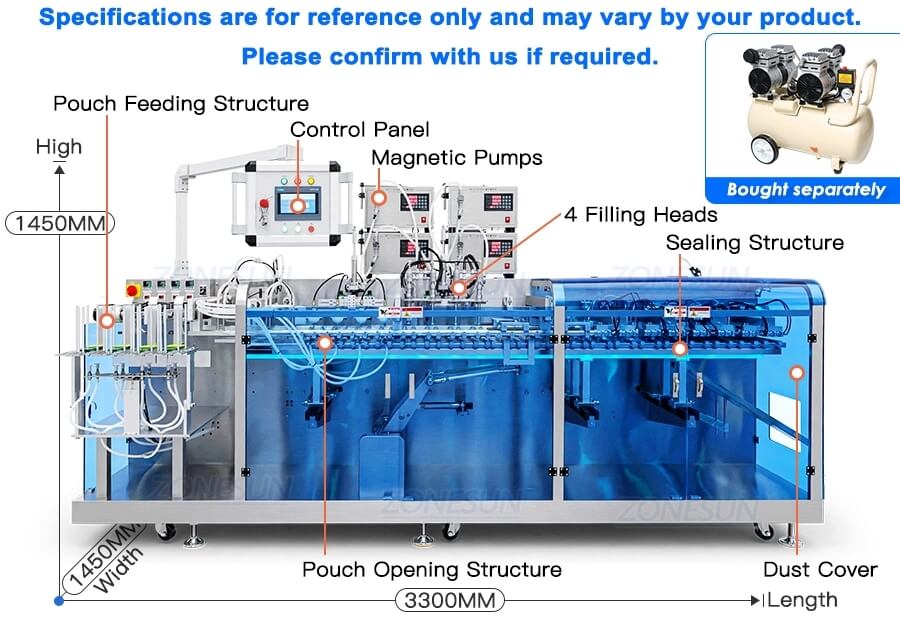

| Machine Dimensions | About 3300*1450*1450mm |
| Machine Weight | About 1000kg |
Product Details

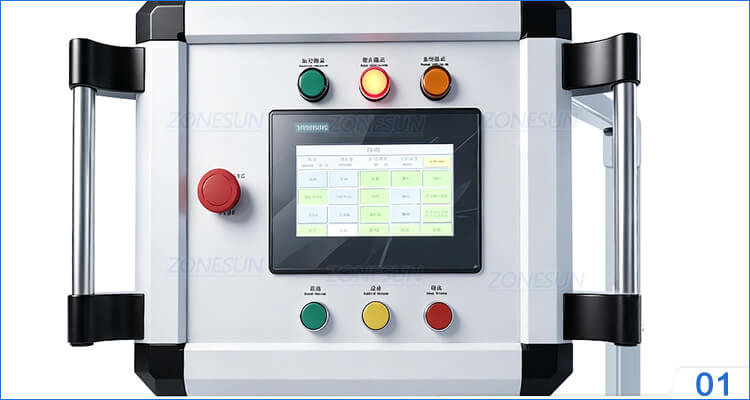

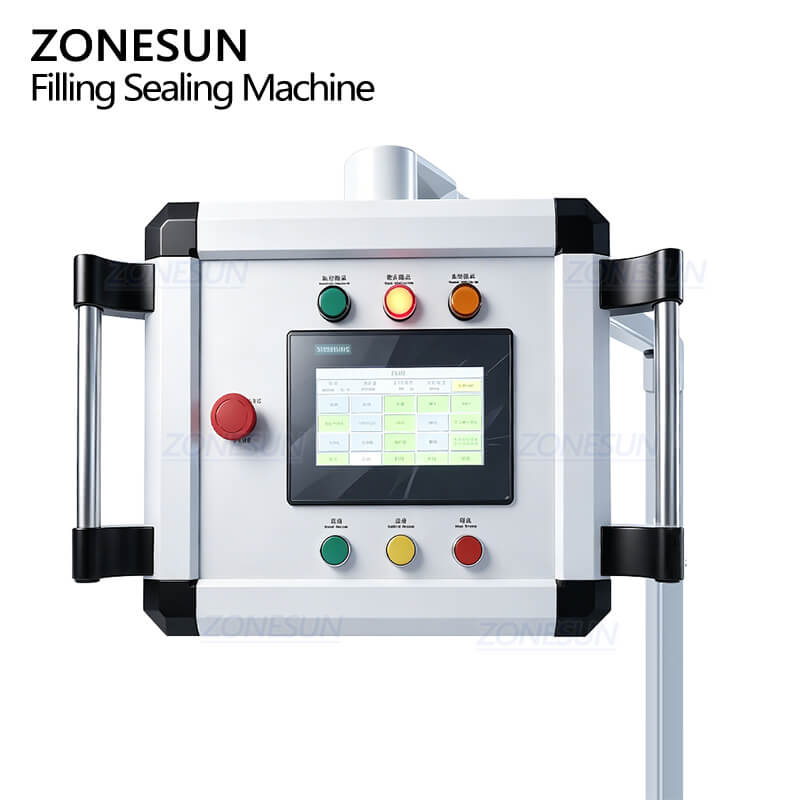

Swing Arm Control Panel
Allows for real-time monitoring, parameters adjustment and easy operation.

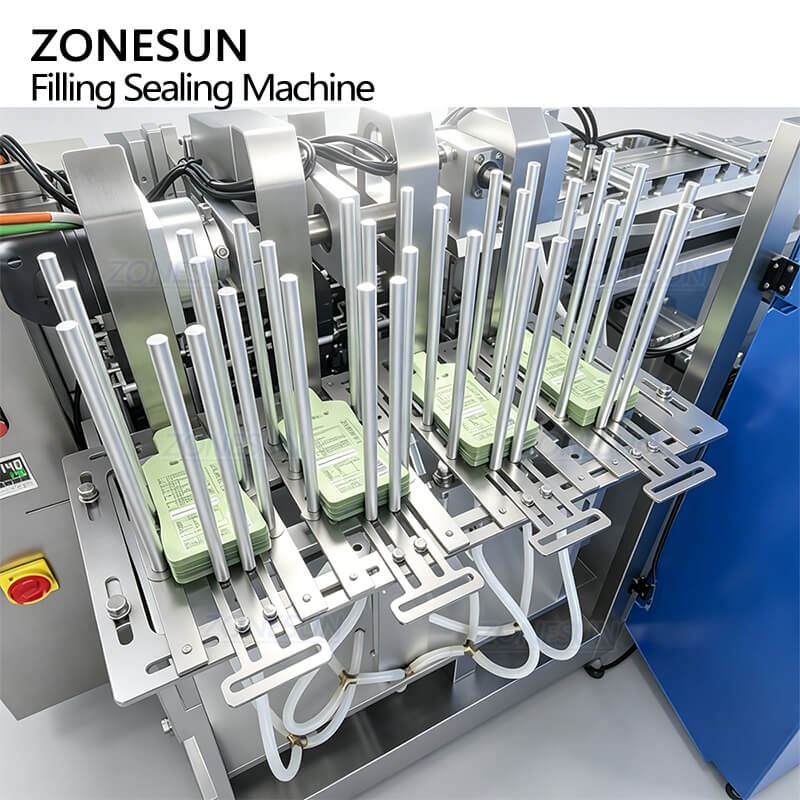

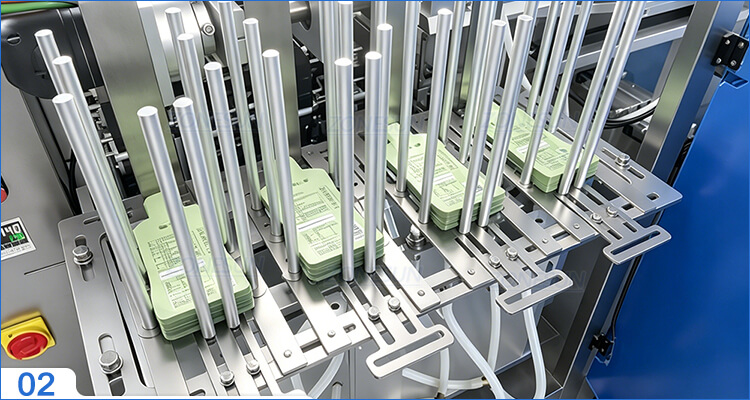

Pouch Feeding Structures
Vacuum suction mechanisms can automatically pick and deliver pouches to next station for continuous production.

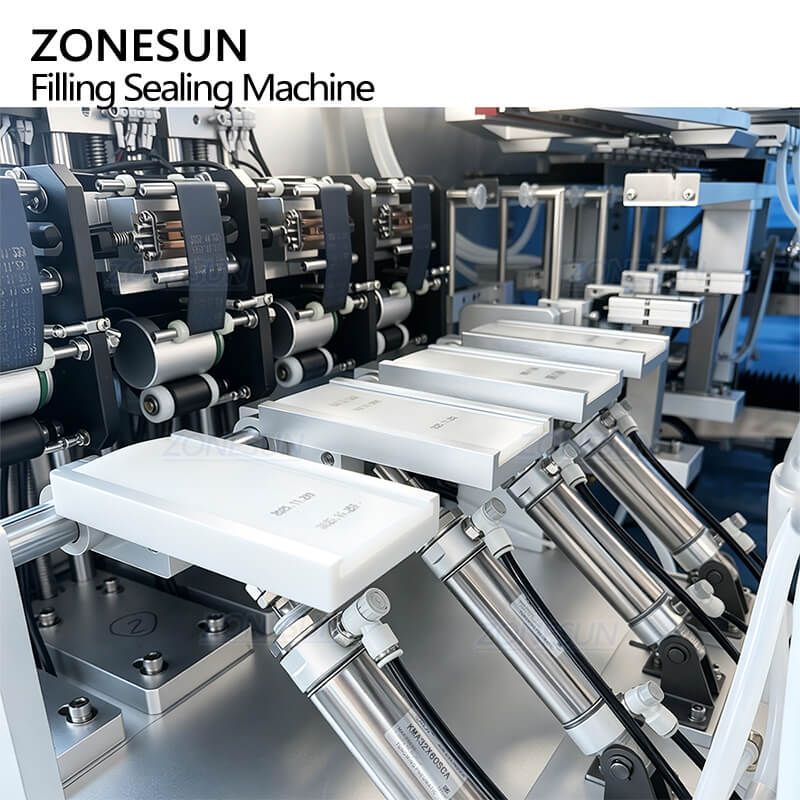

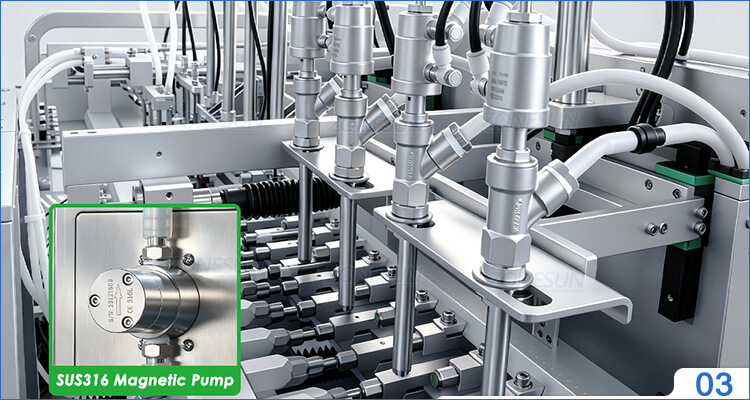

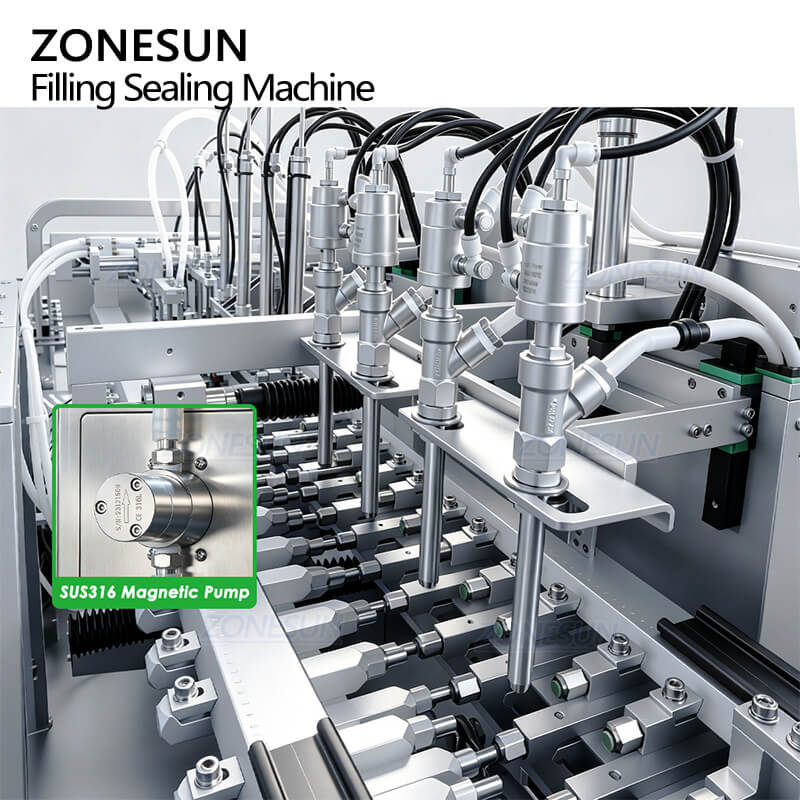

Four Filling Heads
SUS316 magnetic pumps ensure stable and accurate liquid filling. Filling pumps are customizable according to your products.

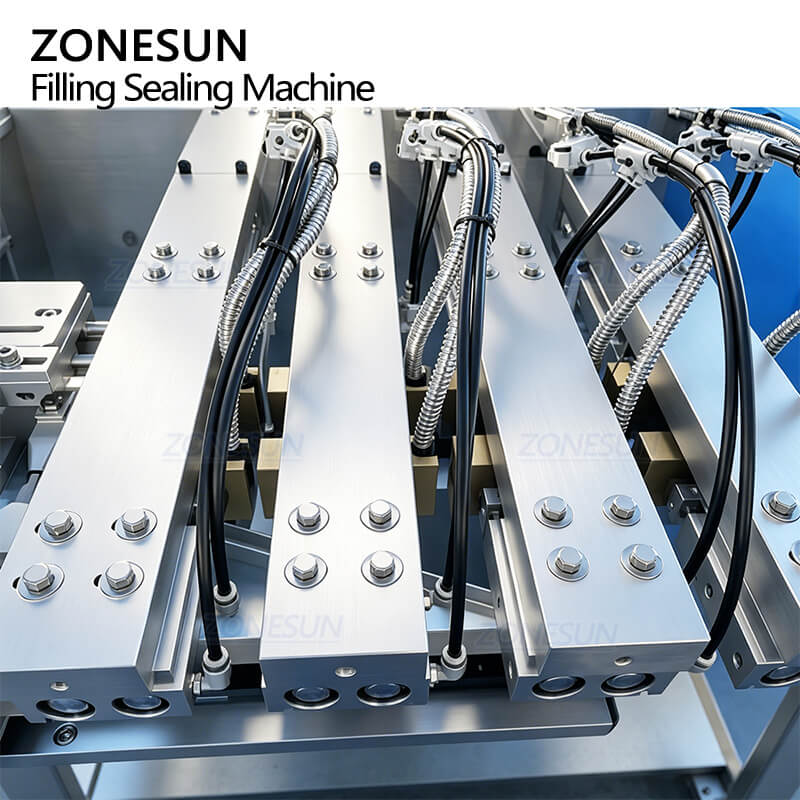

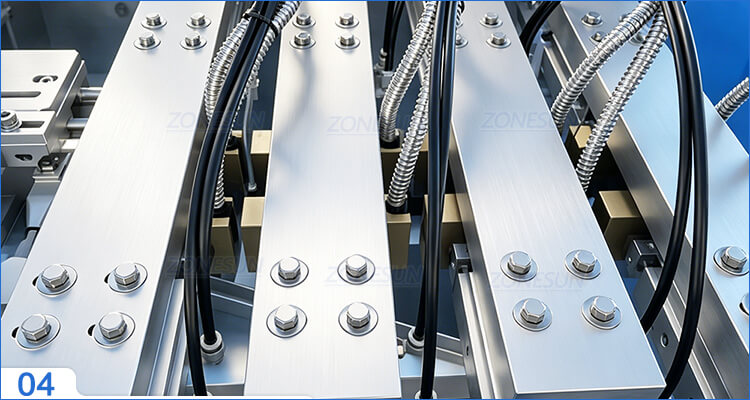

Sealing Structures
Sealing structures with adjustable temperature control ensure airtight pouch sealing.

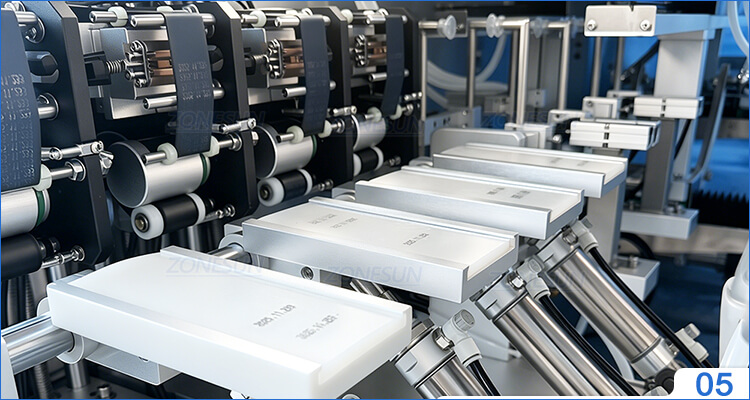

Optional Date Coder
Date coders can be equipped to print production dates or batch numbers on pouches.

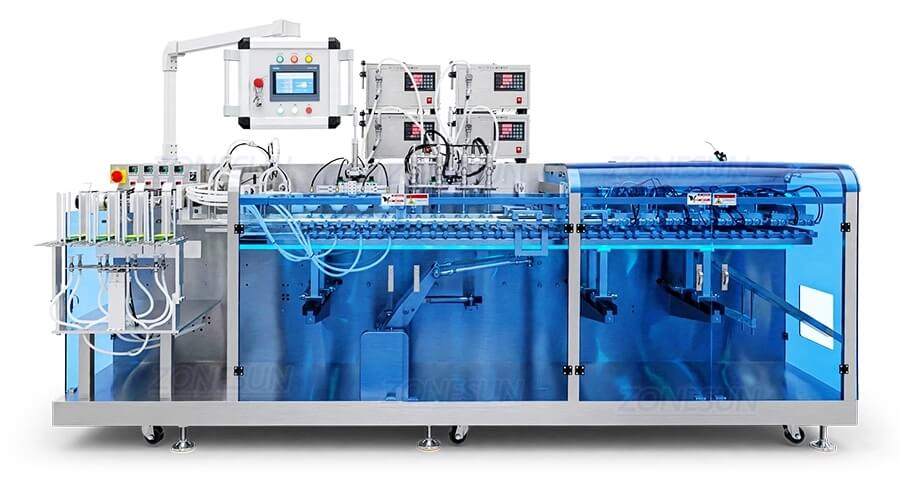

Product Real Shot
