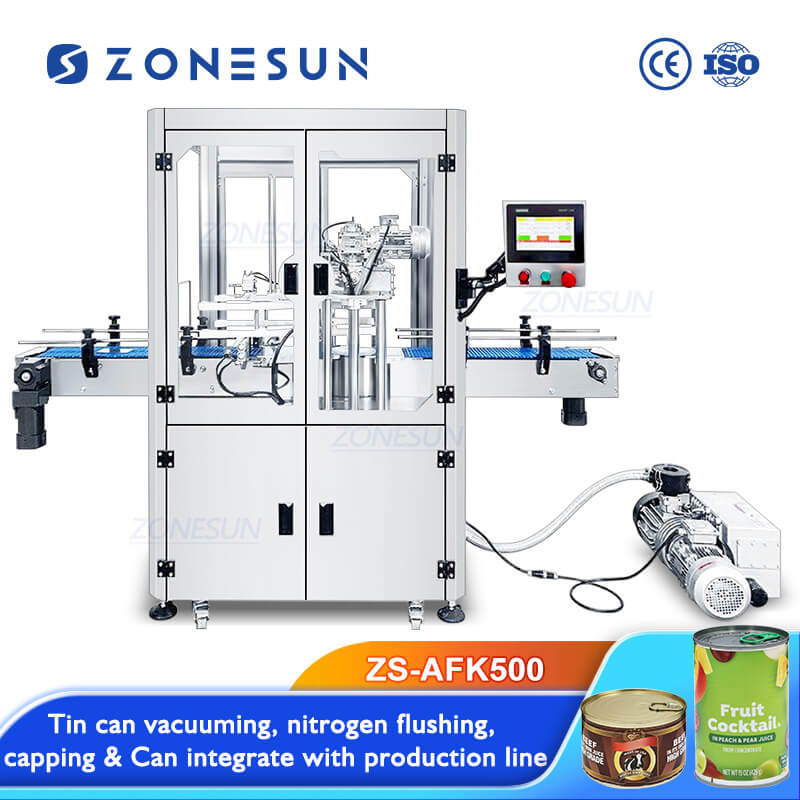

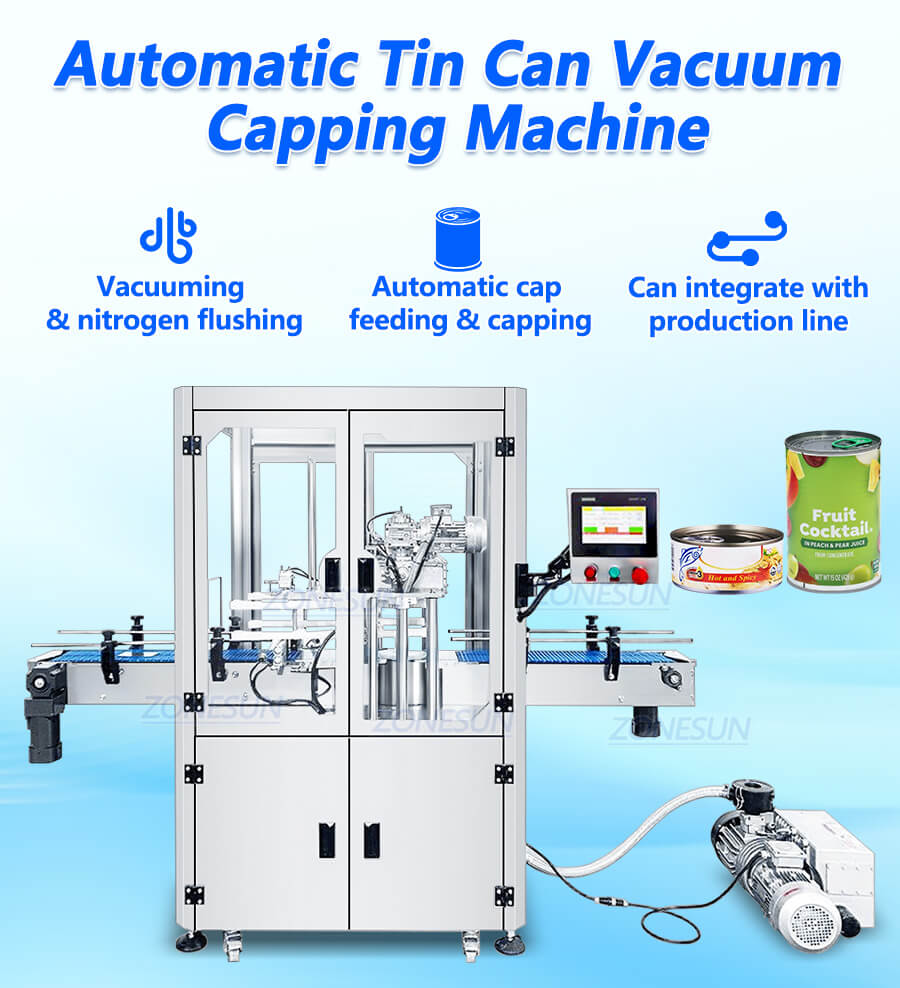

ZONESUN ZS-AFK500 Automatic Vacuum Tin Can Sealing Machine
It is a fully automatic tin can vacuum sealing machine that is made specifically for use by the food, beverages, and chemicals industry. This machine will enable you to carry out vacuuming, nitrogenation, automatic feeding of caps, and finally sealing of the caps all at once. The machine is equipped with a precision vacuuming system and a PLC controlled system, making sure that the level of oxygen in the tin can is reduced.
$22,999.00
Share to
Product Description
It is a fully automatic tin can vacuum sealing machine that is made specifically for use by the food, beverages, and chemicals industry. This machine will enable you to carry out vacuuming, nitrogenation, automatic feeding of caps, and finally sealing of the caps all at once. The machine is equipped with a precision vacuuming system and a PLC controlled system, making sure that the level of oxygen in the tin can is reduced.
Product Application
Product Parameters
| Machine model | ZS-AFK500 |
| Power supply | 3-Phase AC380V/220V 50/60Hz |
| Total power | 2.85KW |
| Working capacity | About 5-7BPM(based on product size) |
| Suitable can size | φ50-127mm*50-190mm(H) |
| Nitrogen consumption | 25L/min |
| Residual oxygen | ≤3% |
| Air supply | ≥0.6MPa, 20L/min |

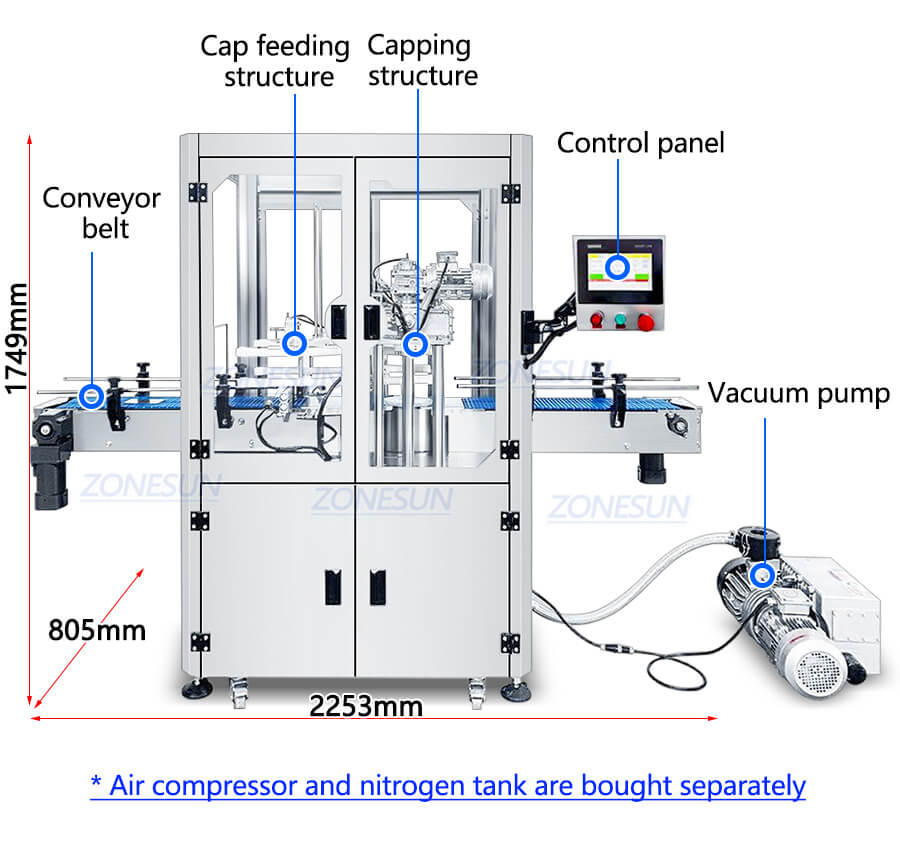

| Machine size | About 2253*805*1749mm(L*W*H) |
| Machine weight | About 650KG |
| *Specifications are for reference only and may vary by yourproduct. Please confirm with us if required. | |
| Machine Configuration | ||
| Component | Brand | Origin |
| PLC | SIEMENS | Germany |
| Control panel | SIEMENS | Germany |
| Photoelectric sensor | SICK | Germany |
| Relay | SIEMENS | Germany |
| Breaker | SCHNEIDER | France |
| Servo motor | INOVANCE | China |
Product Details

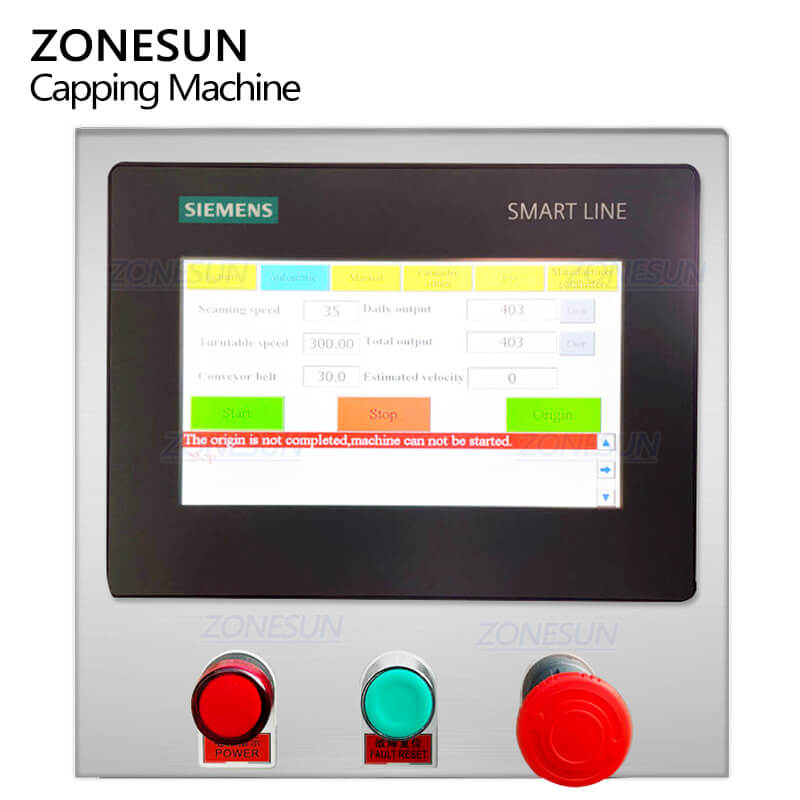

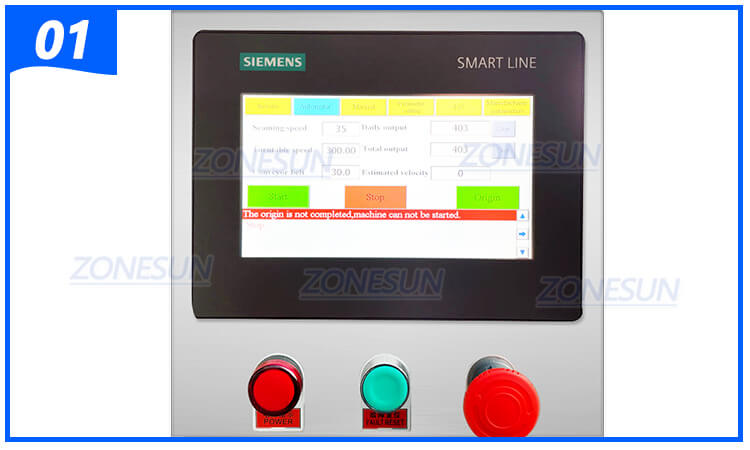

Touchscreen Control Panel
Allows for real-time monitoring and easy setting. Multiple languages are customizable.

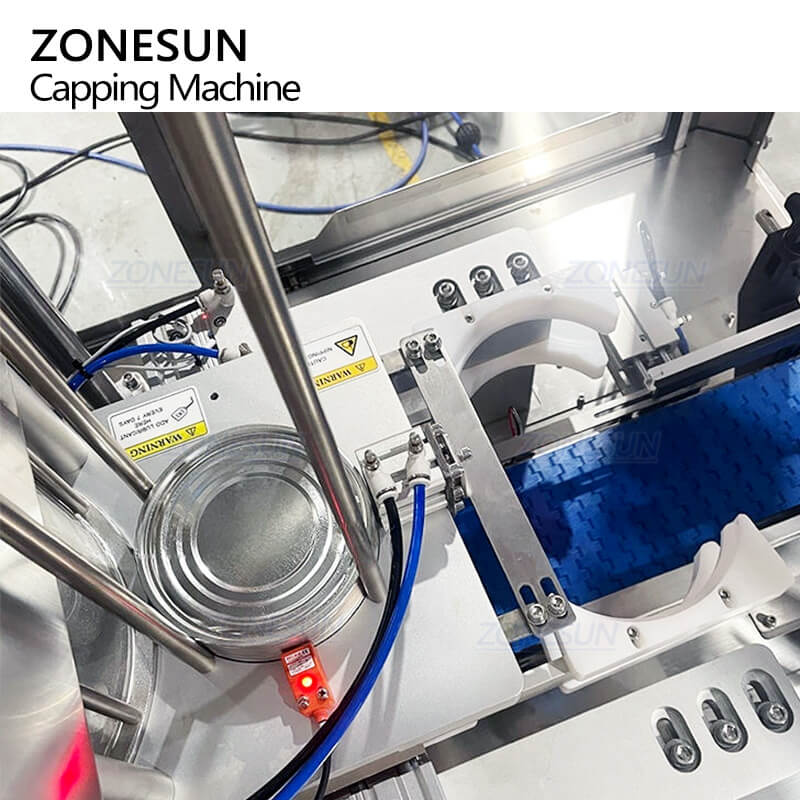

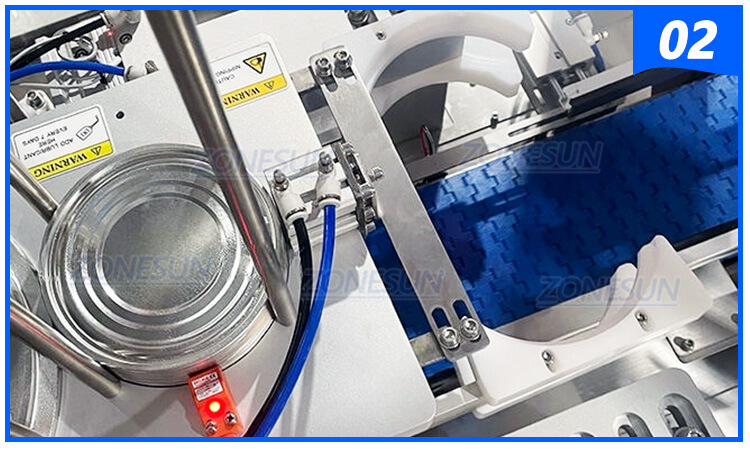

Cap Guide Rail
Feed caps to tin cans orderly and automatically. It is customizable as needed.

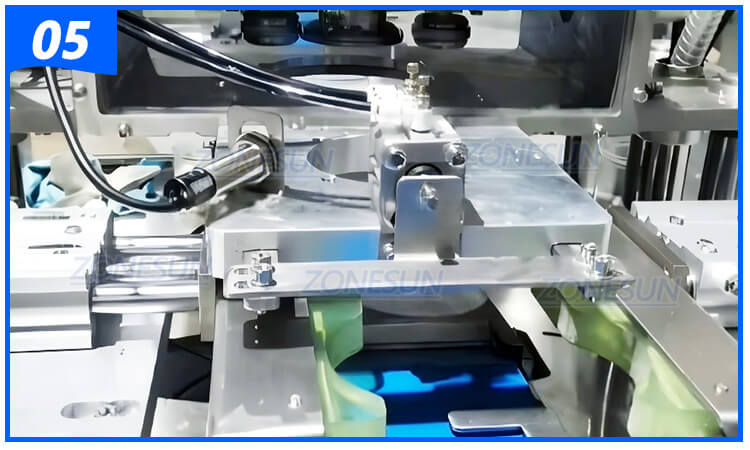

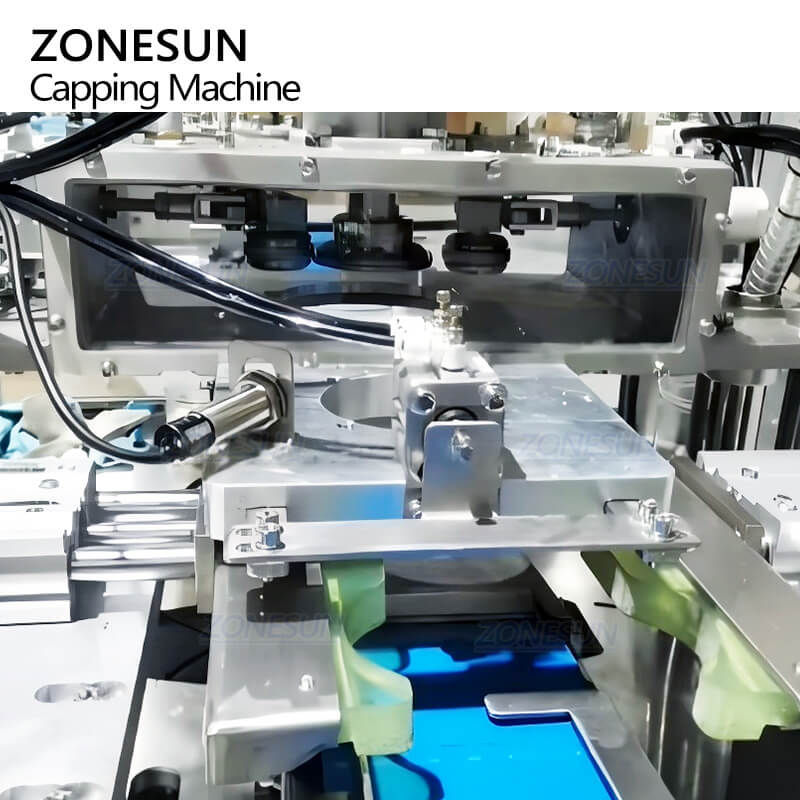

Vacuum Chamber
Can create a fully sealed chamber and vacuum the cans,ensuring sealing quality.

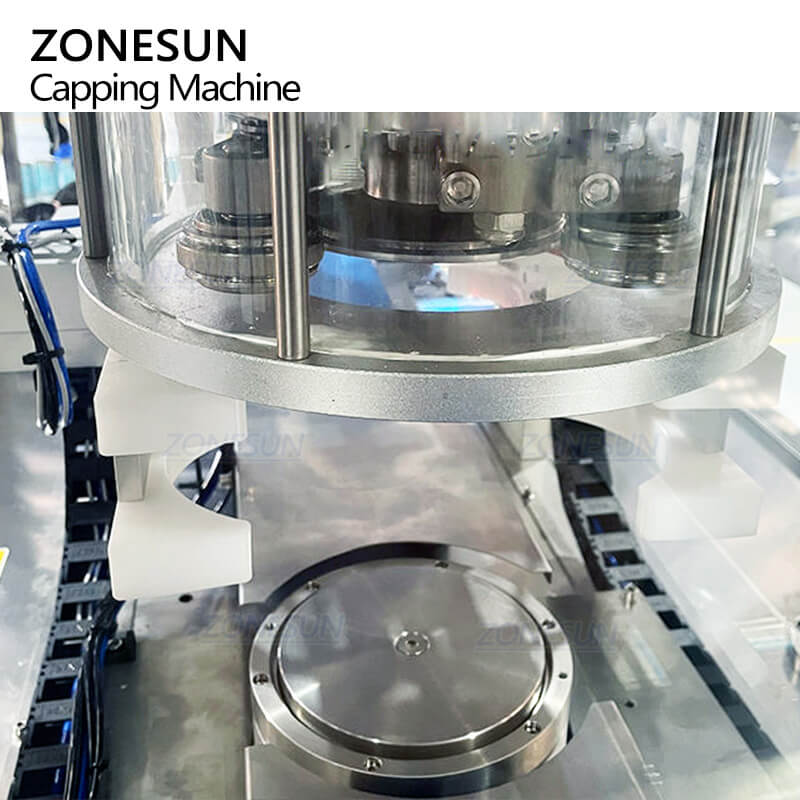

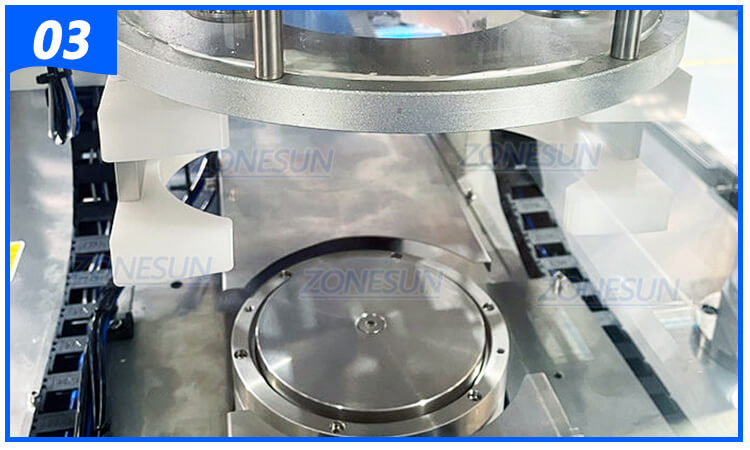

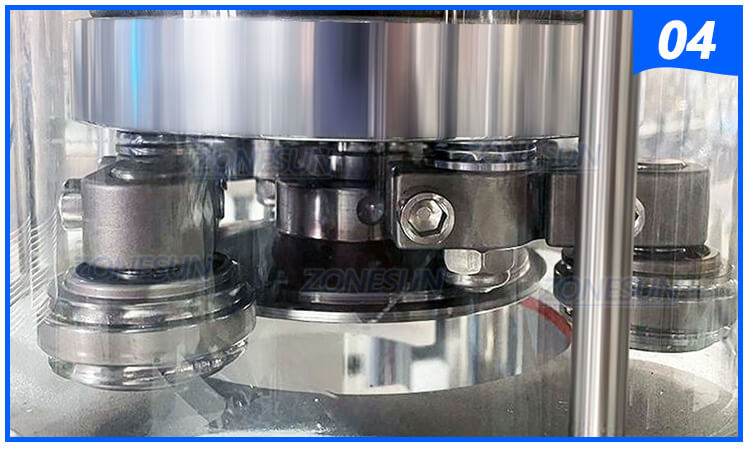

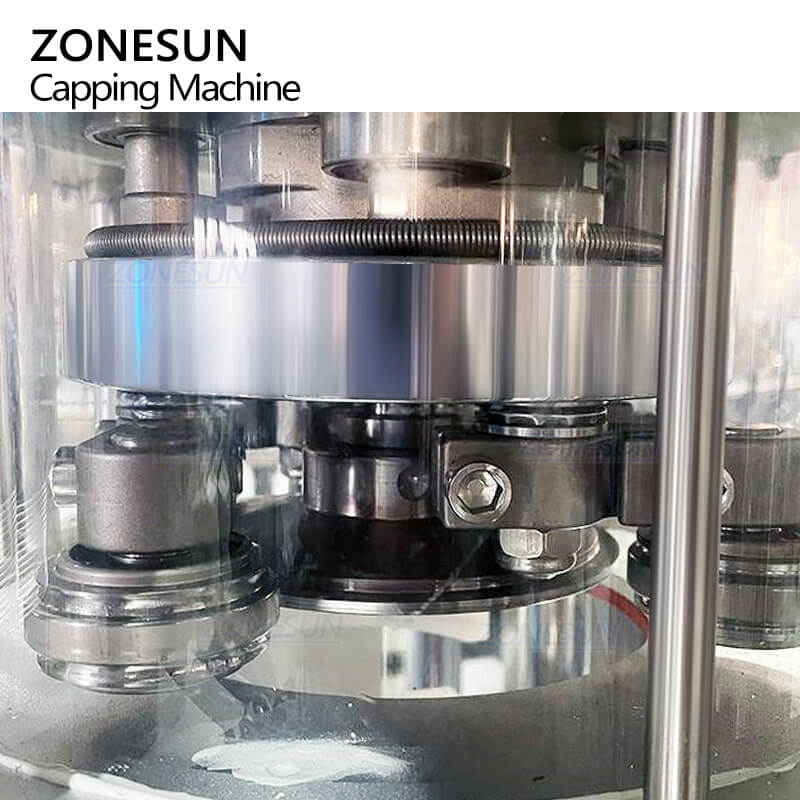

Sealing Mold
Can be customized according to product size, ensuring capping accuracy.
Detection System
Uses high-sensitivity inductive sensors for “No Can, NoSealing” detection, minimizing waste.

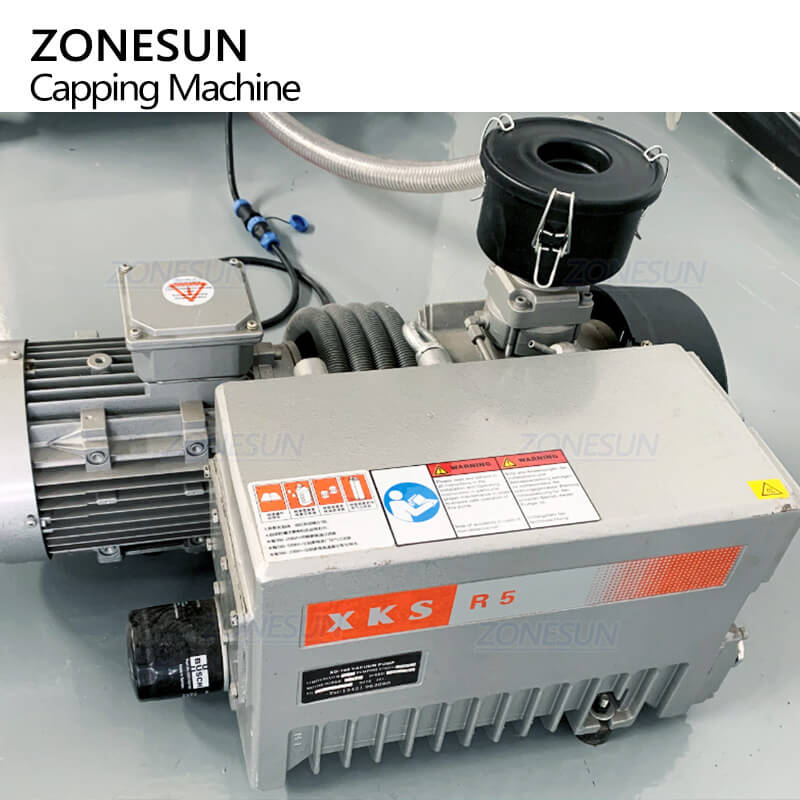

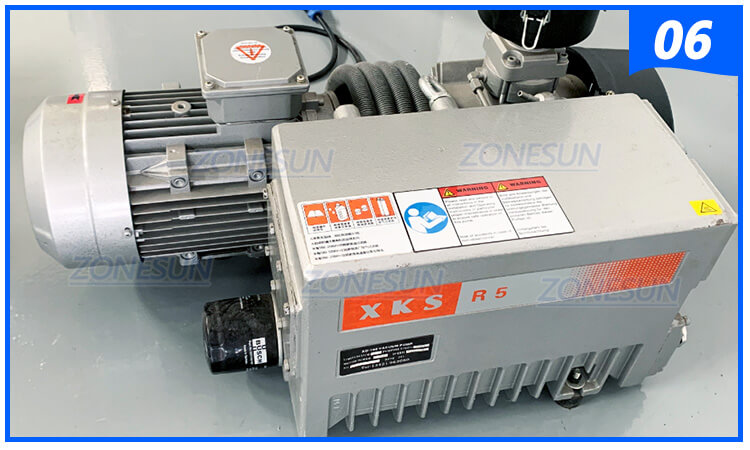

Vacuum Pump
Generates strong and stable vacuum pressure to remove oxygen during capping.

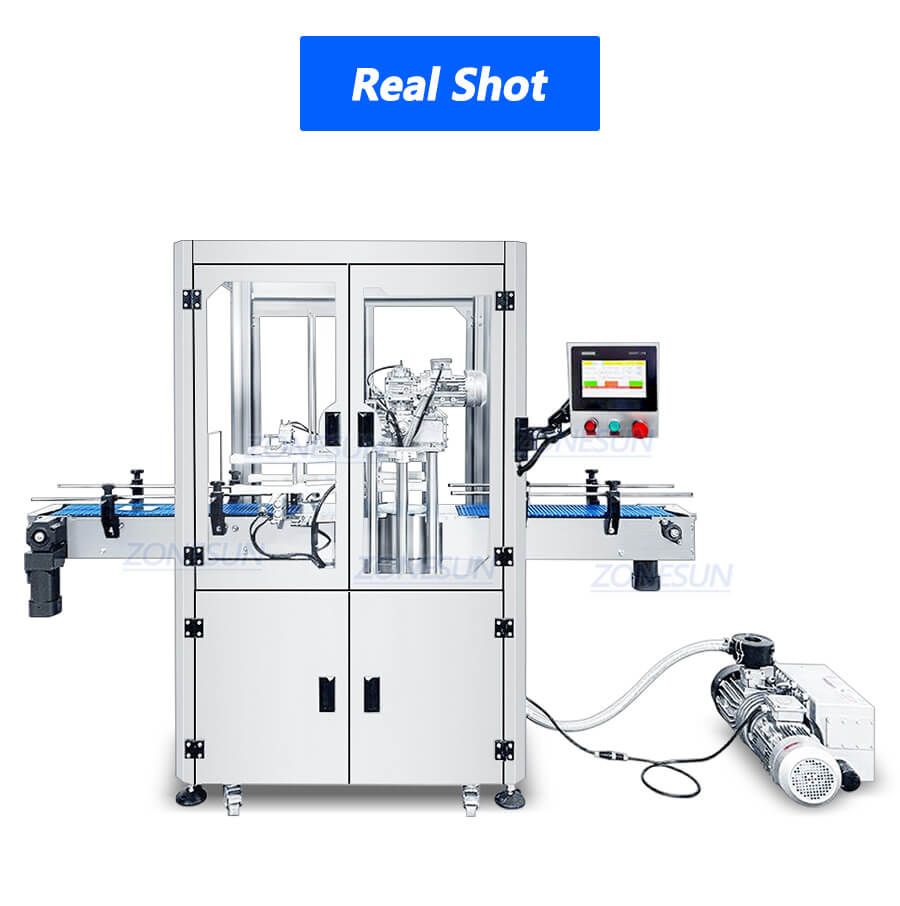

Product Real Shot
