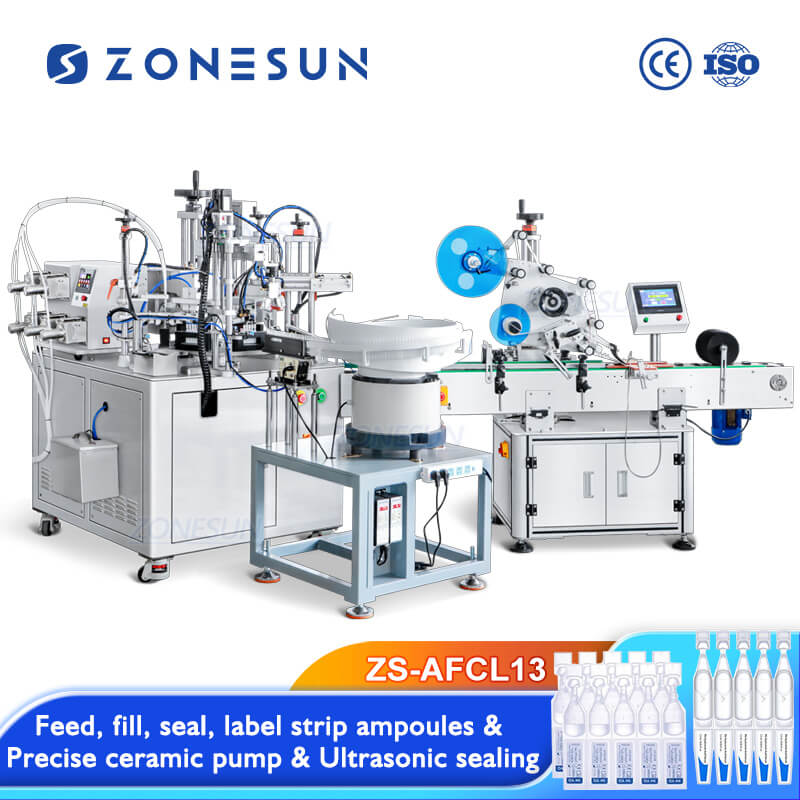

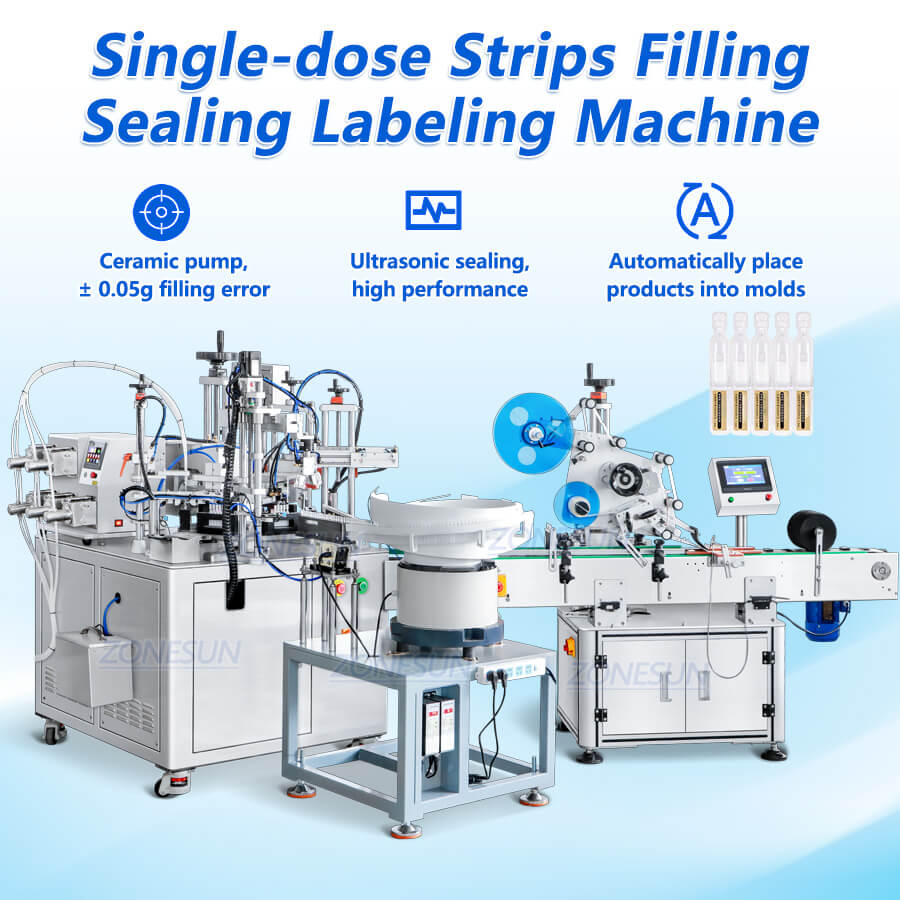

ZONESUN ZS-AFCL13 Single Dose Strips Bottling Line
An advanced, fully automatic solution designed for high-precision production of single-dose strip packaging.This high-performance machine integrates multiple processes in one compact line: automatic product placement into molds, precise filling, ultrasonic sealing, and labeling. Equipped with a ceramic pump filling system, it achieves exceptional accuracy with a filling error of only ±0.05g, making it ideal for cosmetic and chemical liquid products.
$26,089.00
Share to
Product Description
An advanced, fully automatic solution designed for high-precision production of single-dose strip packaging.This high-performance machine integrates multiple processes in one compact line: automatic product placement into molds, precise filling, ultrasonic sealing, and labeling. Equipped with a ceramic pump filling system, it achieves exceptional accuracy with a filling error of only ±0.05g, making it ideal for cosmetic and chemical liquid products.

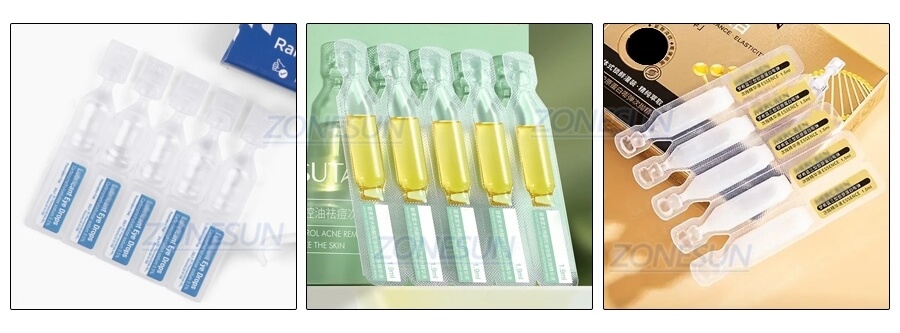

Product Applications

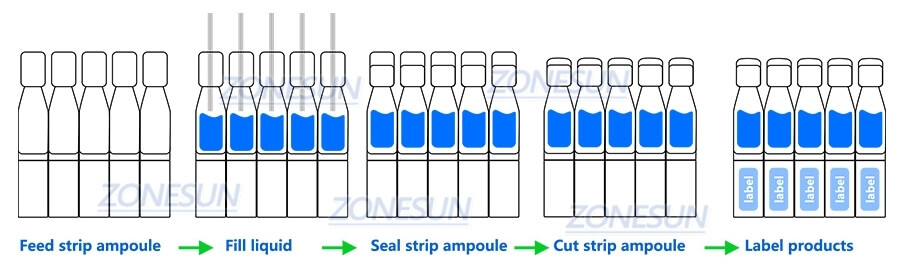

Product Production Process
Product Parameter
Filling Sealing Machine
| Machine model | ZS-FS50U |
| Power supply | 110/220V 50Hz/60Hz Single Phrase |
| Power | 2.6KW |
| Air pressure | 0.6Mpa |
| Recommend filling range | 0.5-15ml |
| Sealing speed | About 13-15 rows/minute |
| Filling accuracy | ±0.05g |
| Sealing height | 50-150mm |
| Ultrasonic frequency | 20KHz |
| Sealing diameter | 50-1350mm |
| Body material | 304 stainless steel |
| Machine size | About 1187*W1106*H1553mm |
| Machine weight | About 350kgs |
| *Specifications are for reference only and may vary by your product. Please confirm with us if required. | |
Labeling Machine
| Machine Model | ZS-TB831 |
| Power Supply | 110V/220V 50-60HZ |
| Working Speed | About 40-80pcs/min |
| Labeling Accuracy | ±1mm |
| Suitable Labeling Object | 40-400mm(L), 40-200mm(W), 0.5-150mm(H) |
| Suitable Label Size | 6-300mm(L)*15-130mm(W) |
| Label Roll OD | φ300mm |
| Label Roll ID | φ76mm |
| Machine Weight | About 188.5kg |
| Machine Size | About 1920*830*1350mm(L*W*H) |
| *Specifications are for reference only and may vary by your product. Please confirm with us if required. | |

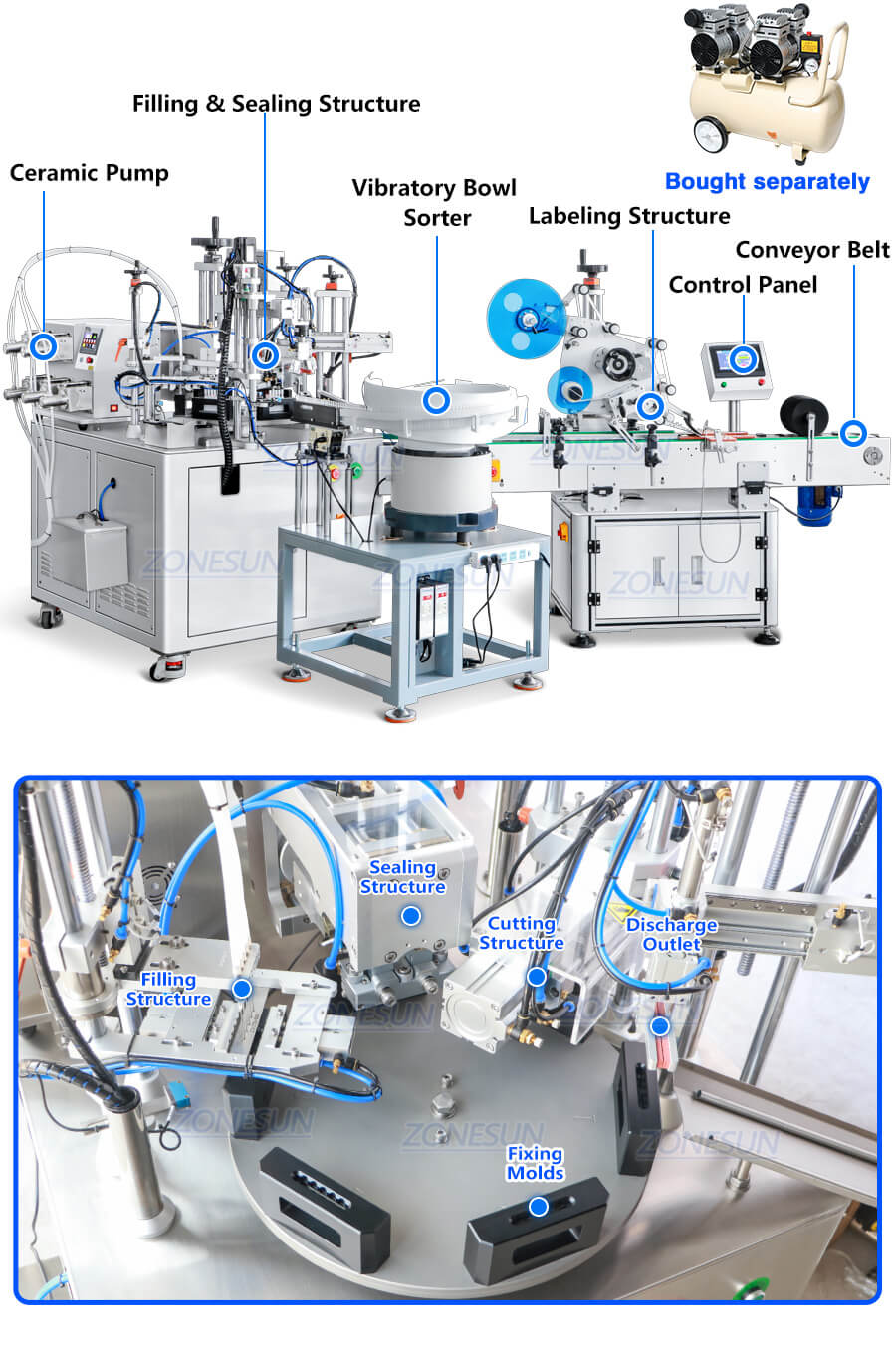

Product Details

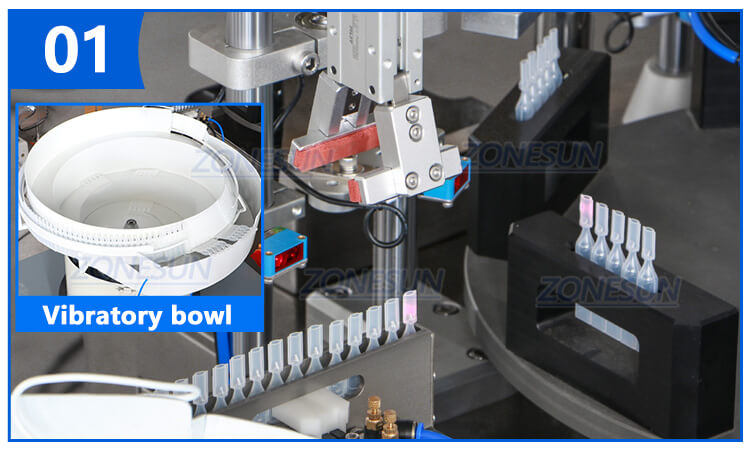

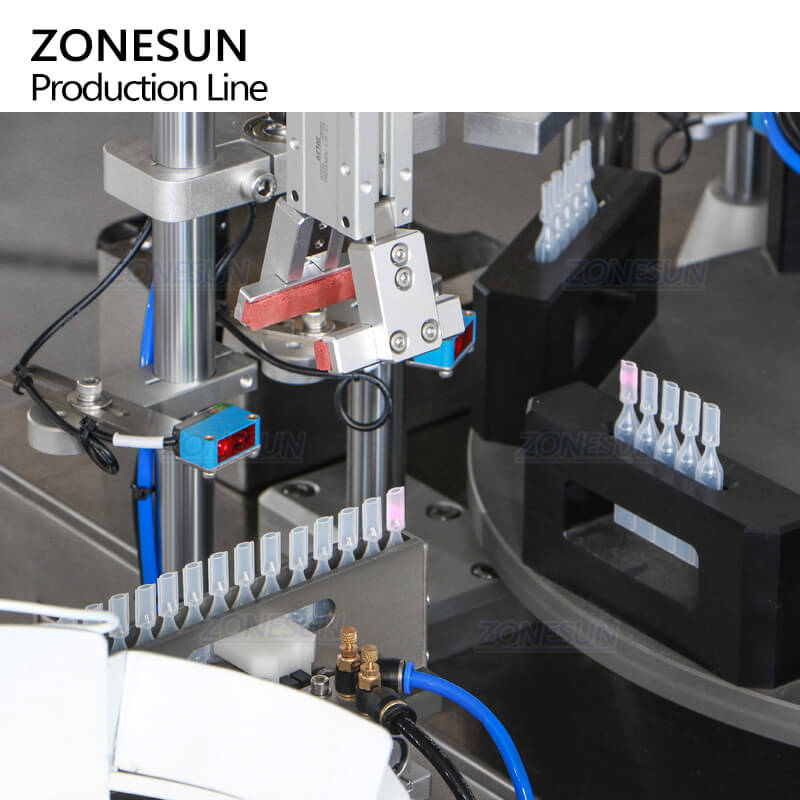

Product Feeding Structure
Feeds, picks and places products into fixing molds, saving labor.

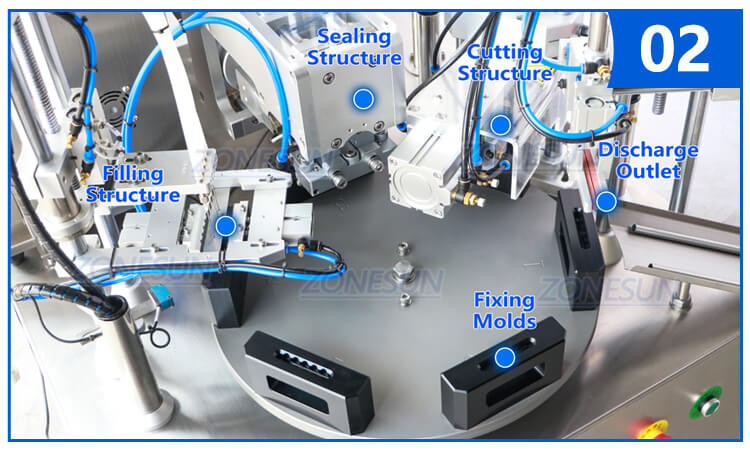

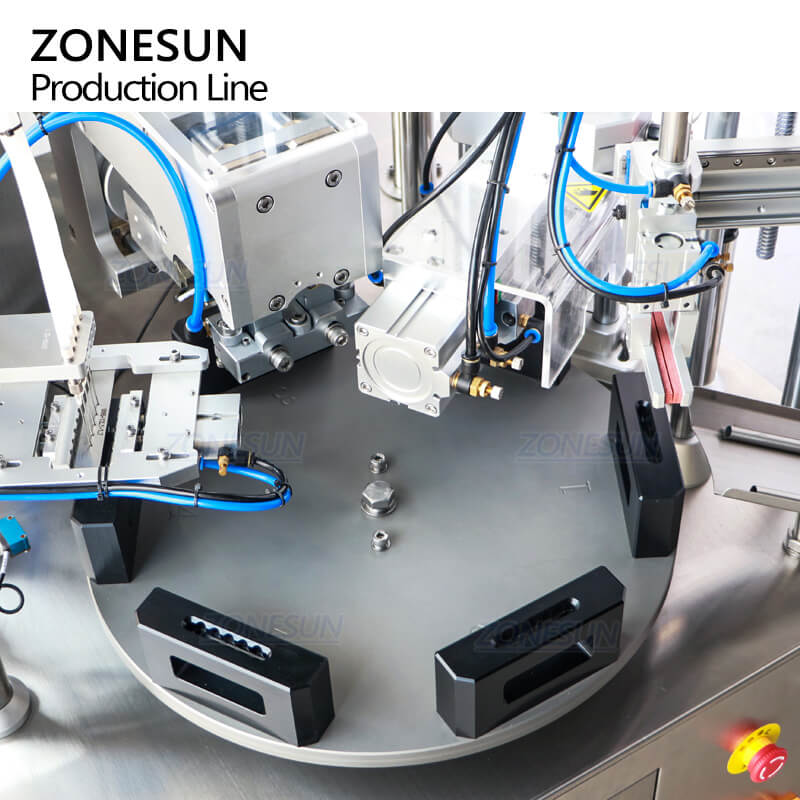

Compact Working Station
Combines filling, strip ampoule sealing, and cutting into one compact unit.

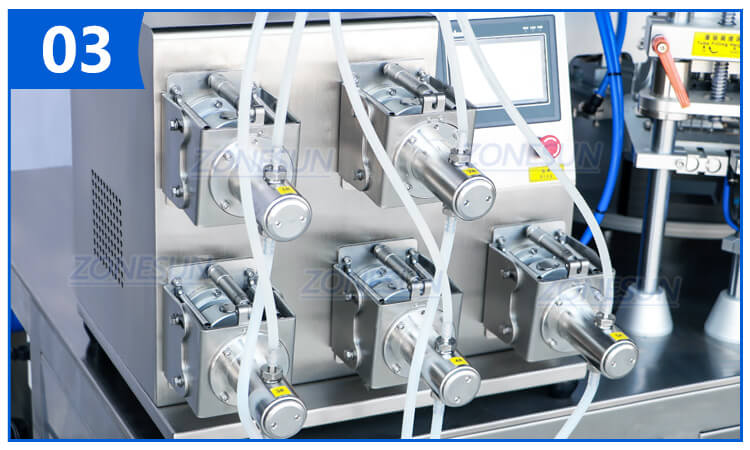

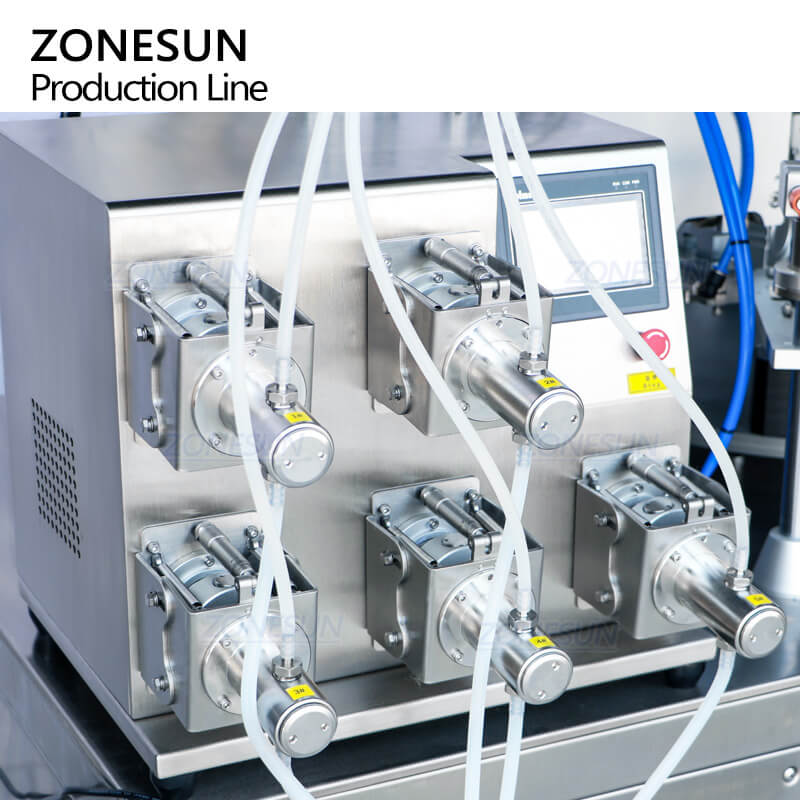

Precision Ceramic Pump
Filling accuracy up to ±0.05g for consistent results.

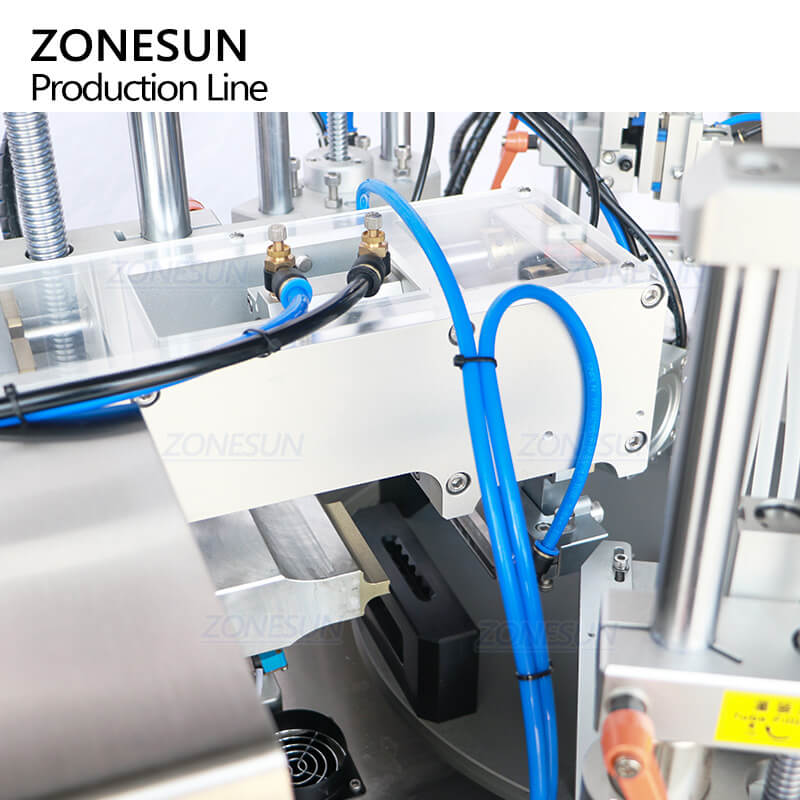

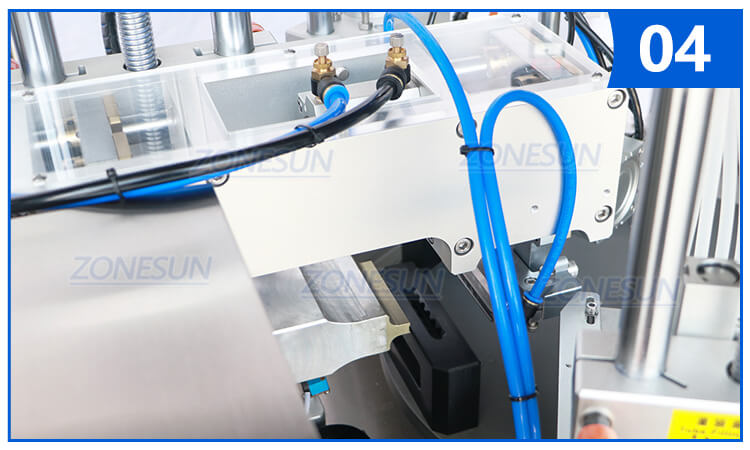

Ultrasonic Sealing
Ensures strong, reliable tail sealing for strip ampoules.

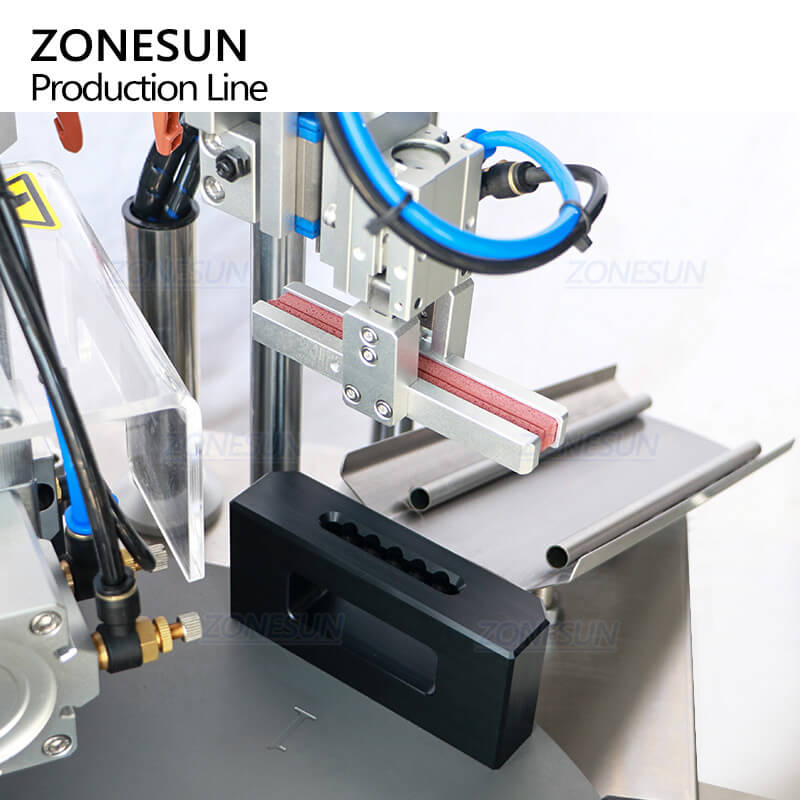

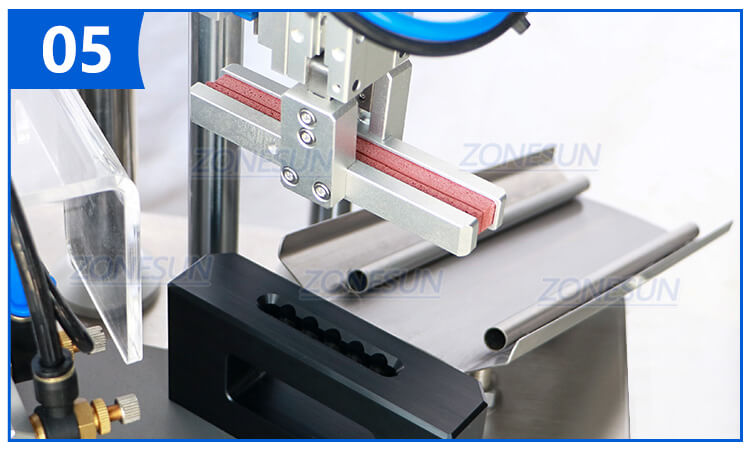

Automatic Pick-up
Sealed products will be picked and moved to labeling area automatically.

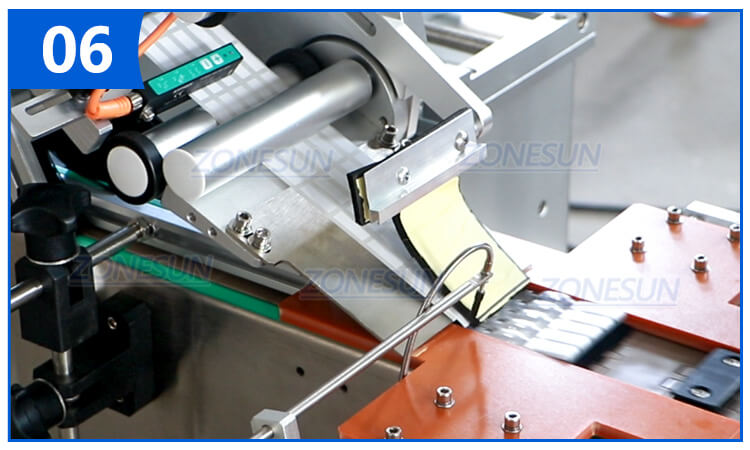

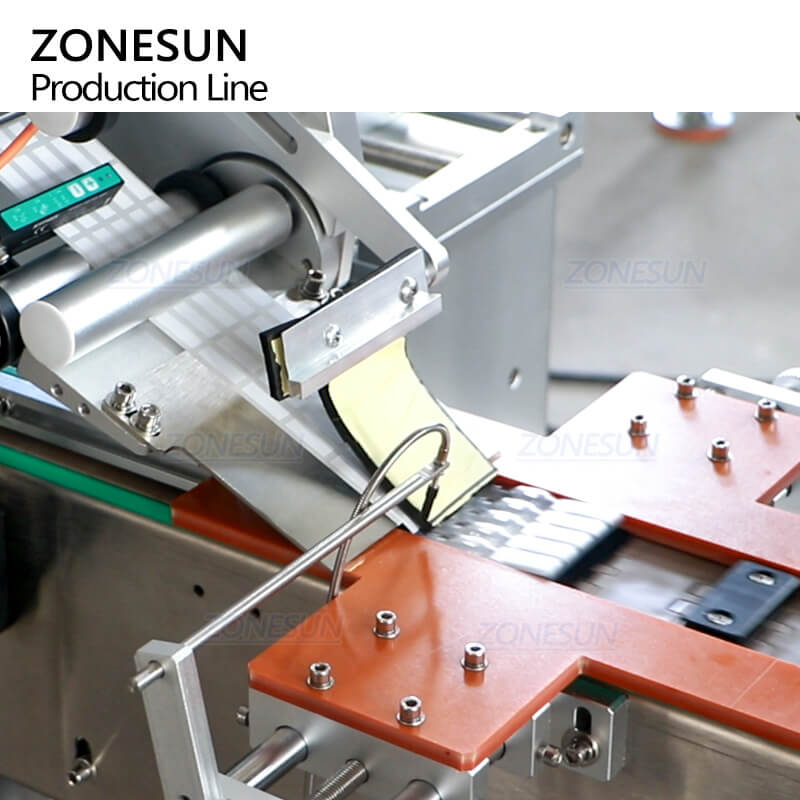

Labeling Structure
Applies multiple labels to products accurately and simultaneously.

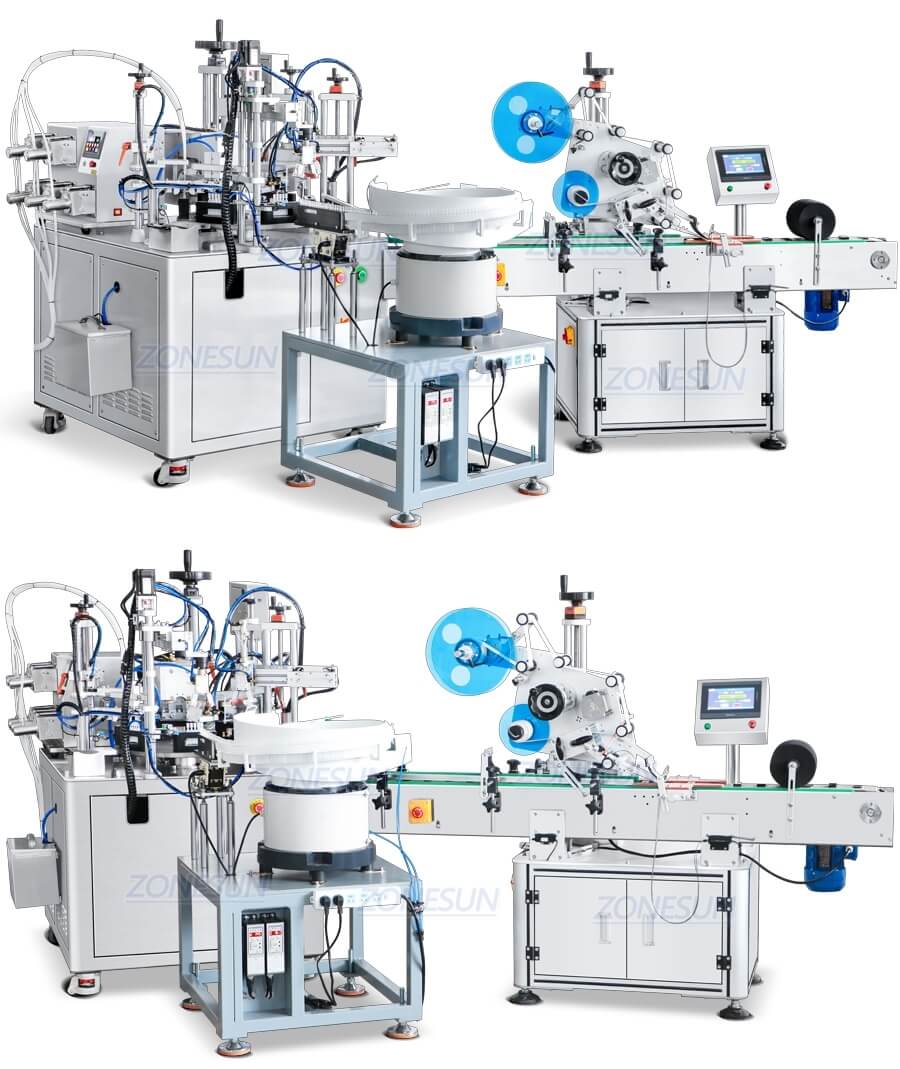

Product Real Shot
