ZONESUN ZS-AFCL12 Liquid Aromatherapy Diffuser Bottling Line
The automatic diffuser filling line is an elegant, compact, and highly accurate filler machine made especially for manufacturing reed diffusers, aromatic oils, and home fragrance liquids. Perfect for small and mid-size businesses, the filling line features consistent and accurate operations while minimizing waste.Produced using a tough SUS316 magnetic pump, the device can perform safe, gentle, and accurate liquid filling, making it ideal for all kinds of fragrance oils and essential oil blends.
$33,799.00
Share to
Product Description
The automatic diffuser filling line is an elegant, compact, and highly accurate filler machine made especially for manufacturing reed diffusers, aromatic oils, and home fragrance liquids. Perfect for small and mid-size businesses, the filling line features consistent and accurate operations while minimizing waste.Produced using a tough SUS316 magnetic pump, the device can perform safe, gentle, and accurate liquid filling, making it ideal for all kinds of fragrance oils and essential oil blends.

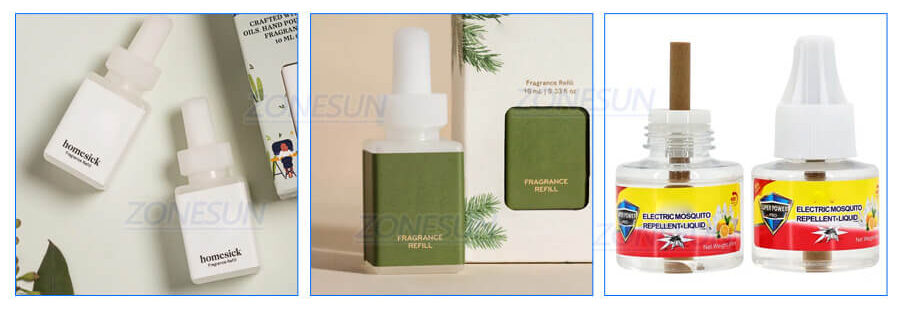

Product Applications

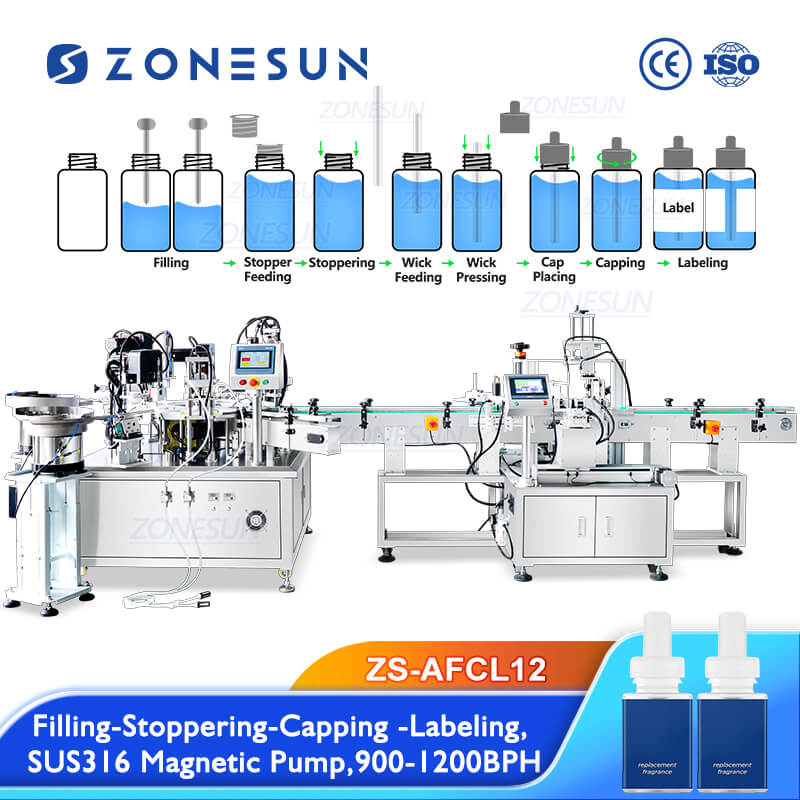

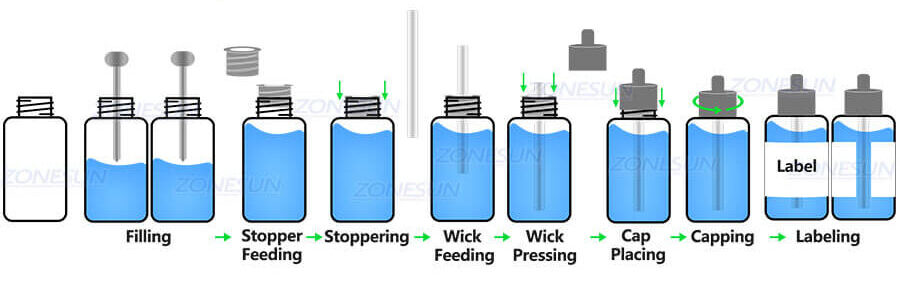

Product Production Process
Product Parameter
| Machine Model | ZS-AFC33A01 |
| Machine Voltage | 220V/50HZ/5A (110V is Customizable) |
| Recommend Filling Volume | 10-20 ml (Customizable) |
| Filling Pump Type | 316 Magnetic Pump |
| Max Flow Rate | 1.5L/min (Based on water) |
| Working Capacity | 15-20 BPM (Based on filling volume & filling material) |
| Suitable Bottle Size | 25.8*18.3*55.7mm(Customizable) |
| Bottle Cap Size | φ17*25mm(Customizable) |
| Air Pressure | 0.6 MPa |
| Machine Size | About 2362.1*2175.8*1523.3 mm |
| Machine Weight | About 611.87 kg |
| Package Size | About 1720*1660*1590mm |
| Package Weight | About 720 kg |
| Machine Model | ZS-SL25 |
| Power Supply | 220V 50-60 HZ (Customizable) |
| Stepper Traction | 570 W |
| Labeling Accuracy | ±1 mm |
| Labeling Speed | 25-45 pcs/min(Stepper Motor) 30-60 pcs/min(Servo Motor) |
| Conveying Speed | 5-18 m/min |
| Suitable Label Size | 20-290 mm(W)*20-130 mm(H) |
| Suitable Label Roll Inner Diameter | φ76 mm |
| Suitable label Roll Outer Diameter | φ280 mm |
| Suitable Product Dimensions | 25-110mm*25-150 mm (φ*H, Customizable According to Product) |

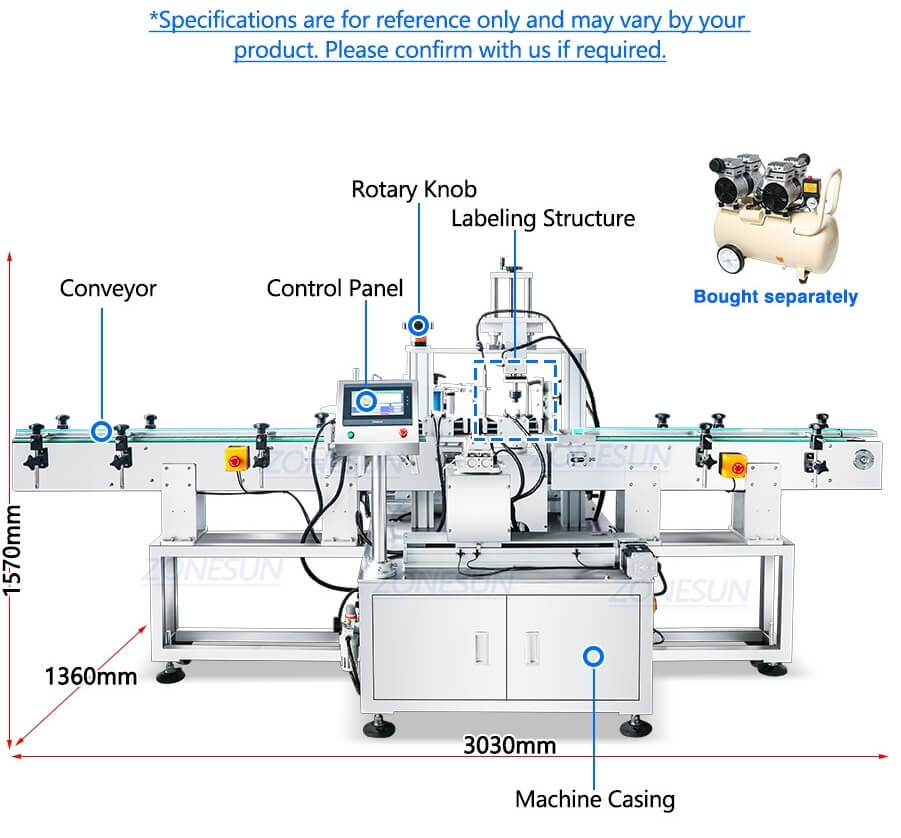

| Machine Size | 3030*1360*1570 mm(L*W*H) |
| Machine Weight (kg) | 200 kg |
| Package size | About 3530*1500*1820mm(L*W*H) |
| Package weight | About 680kg |
Product Details

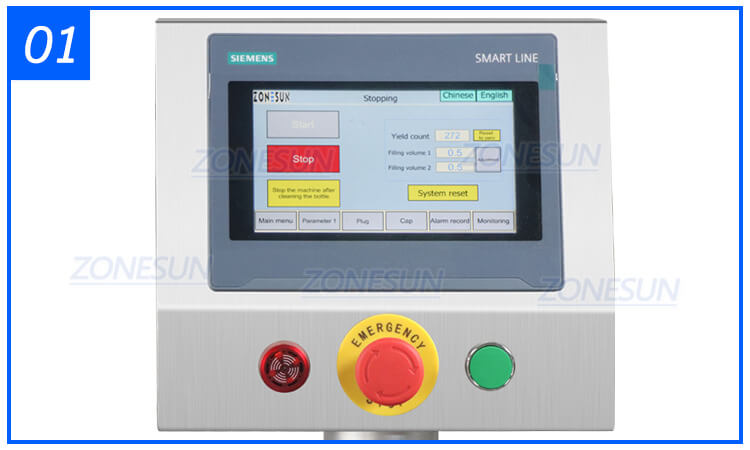

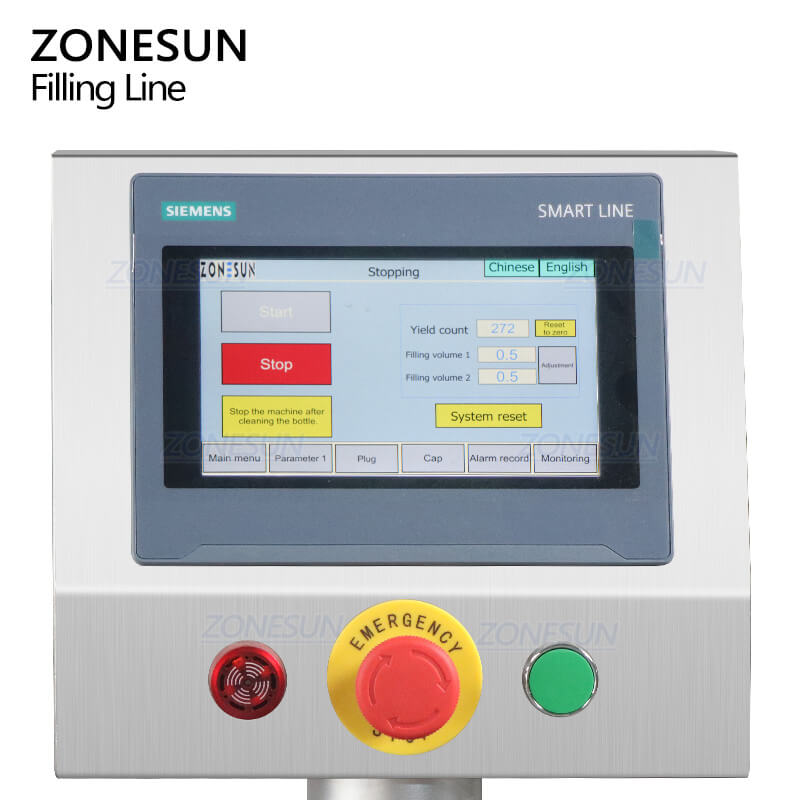

Touchscreen Control Panel
Controls filling, capping, and labeling functions through a centralized operating interface.

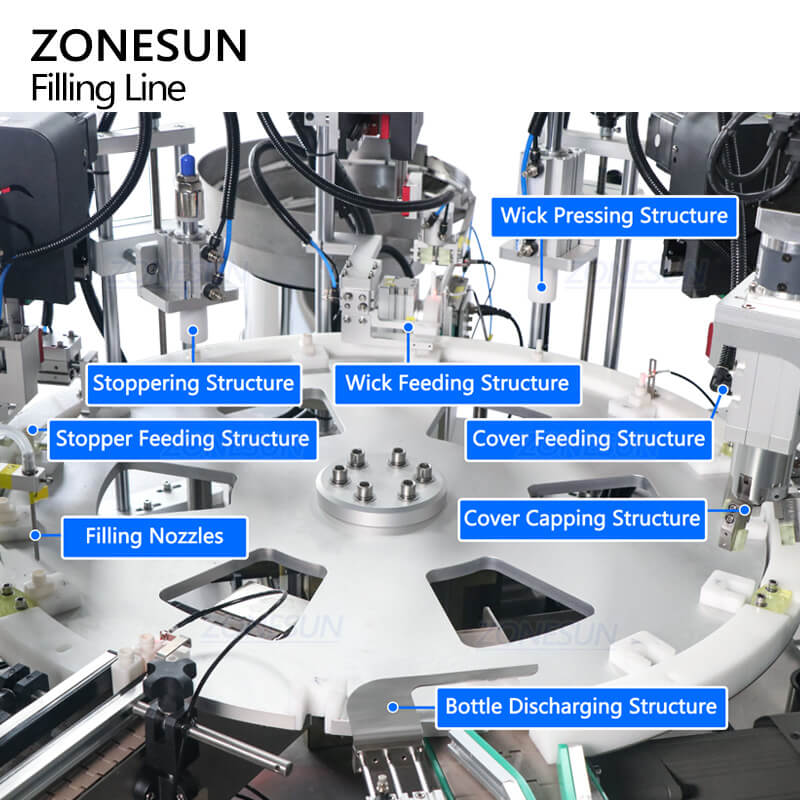

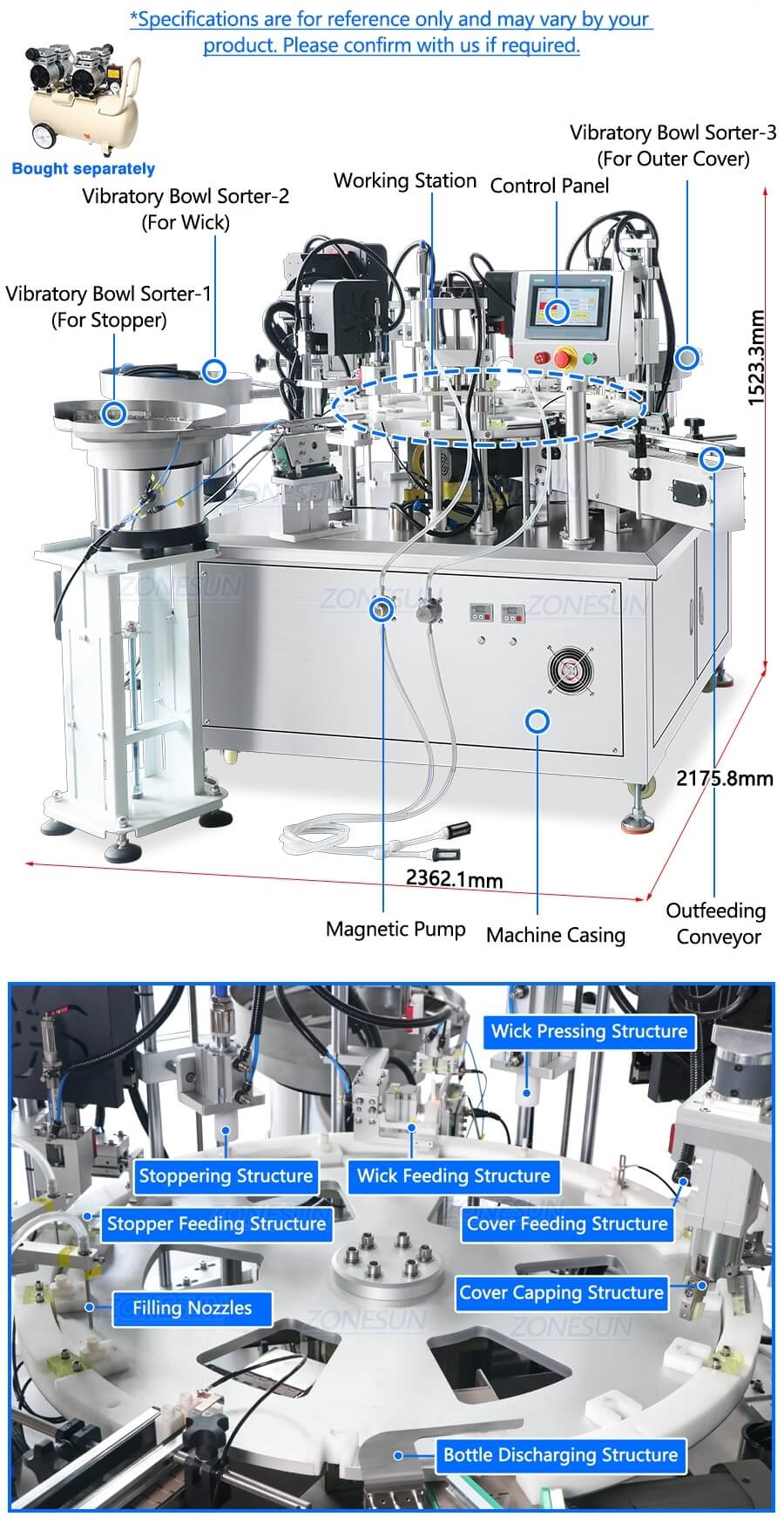

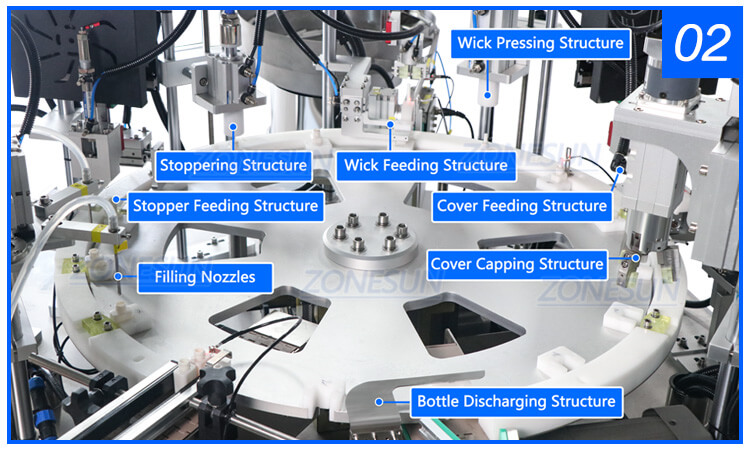

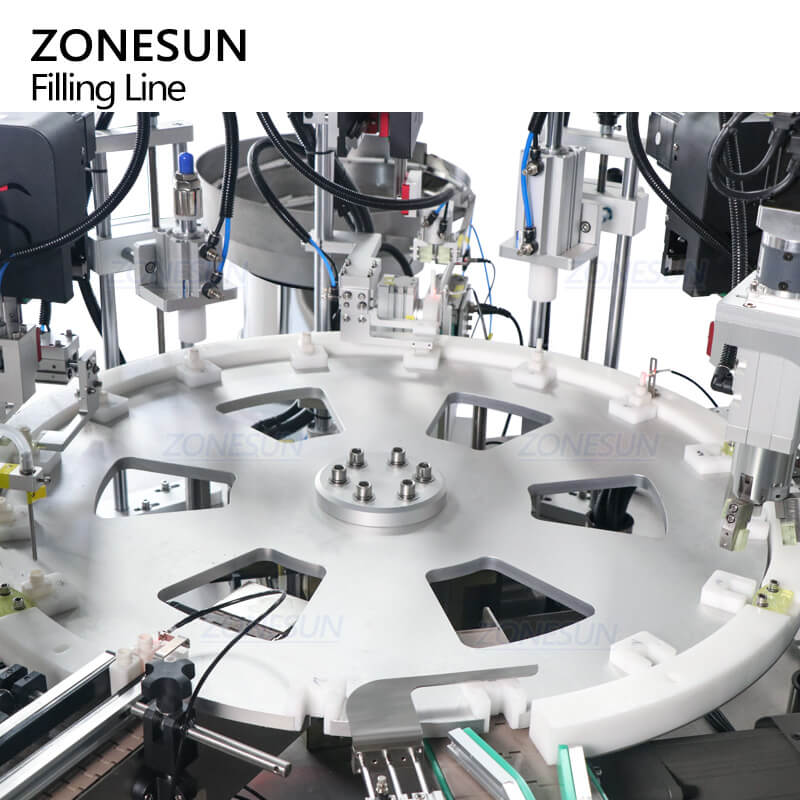

Multi-station Starwheel Transfer System
Uses customized star wheels to stabilize bottles during production.

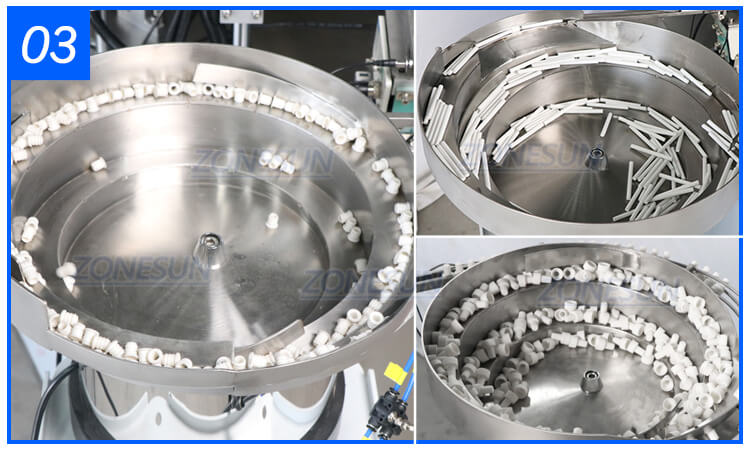

Vibratory Bowl Feeding System
Automatically sorts and feeds plugs, wicks, and caps for continuous operation.

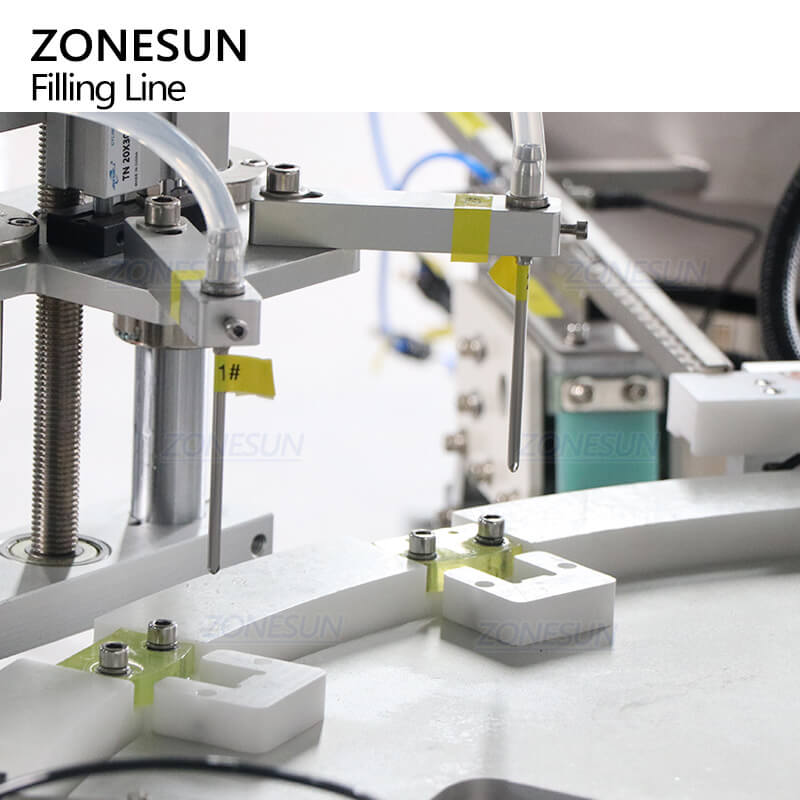

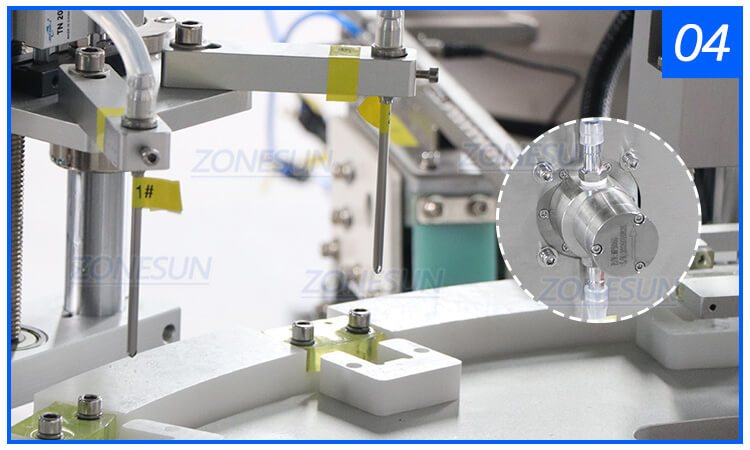

Magnetic Pump Filling Structure
Using SUS316 magnetic pump, which provides accurate filling for low viscosity liquids.

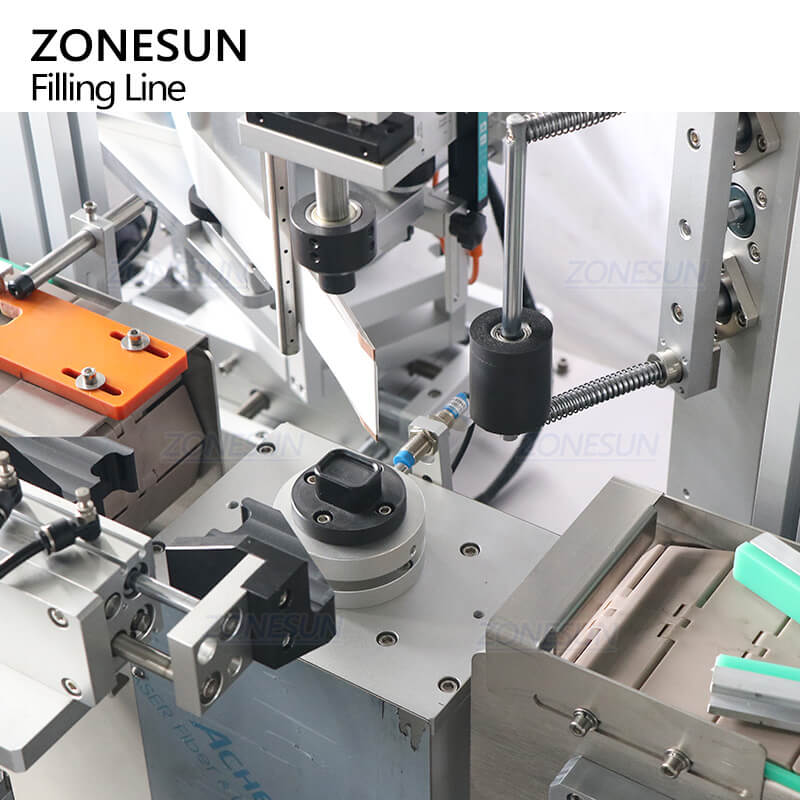

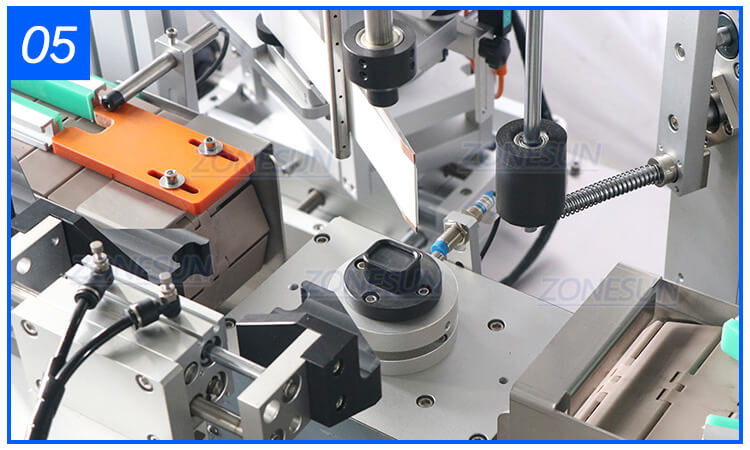

Labeling Structure
With custom fixtures, it supports round, square, and hexagonal bottles by changing dedicated positioning molds.

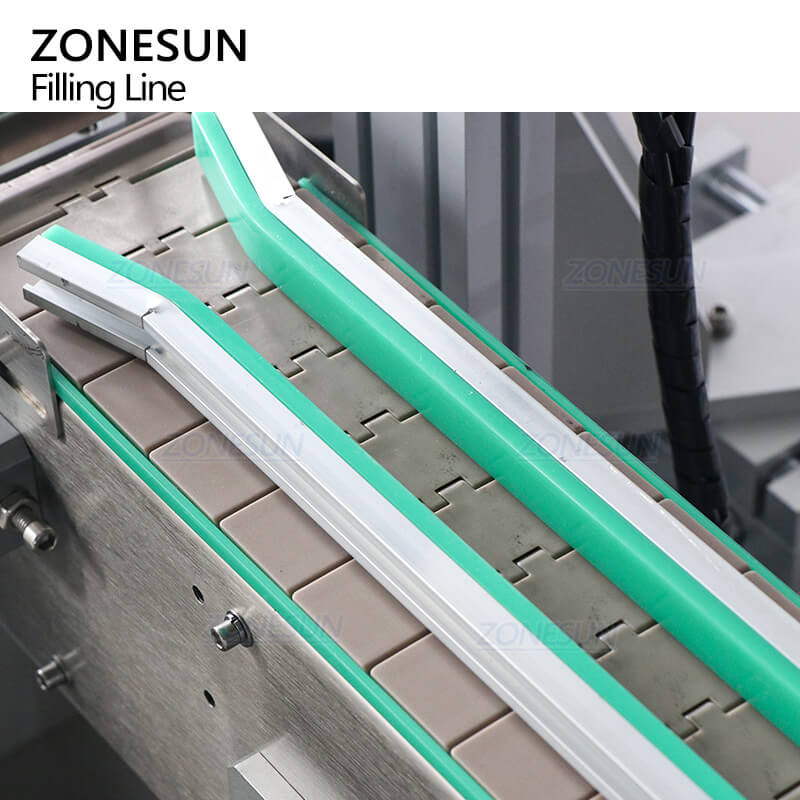

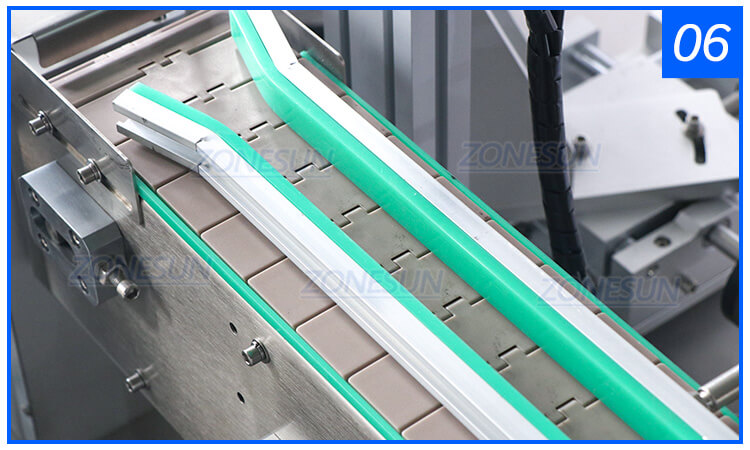

Chain Conveyor System
Transfers bottles smoothly between different working stations, length & width are customizable.

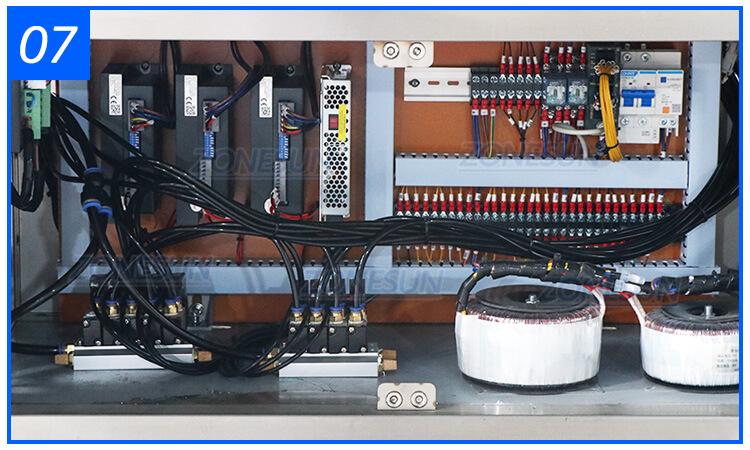

Electrical Control Components
Coordinate multi-step production processes for stable machine operation.

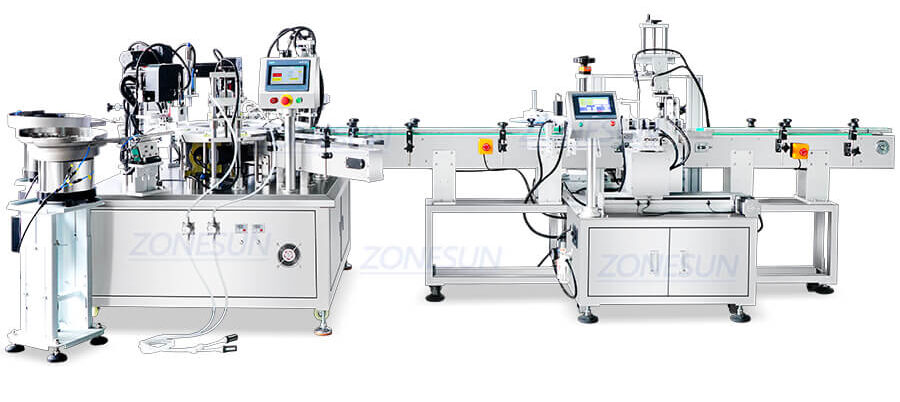

Product Real Shot
