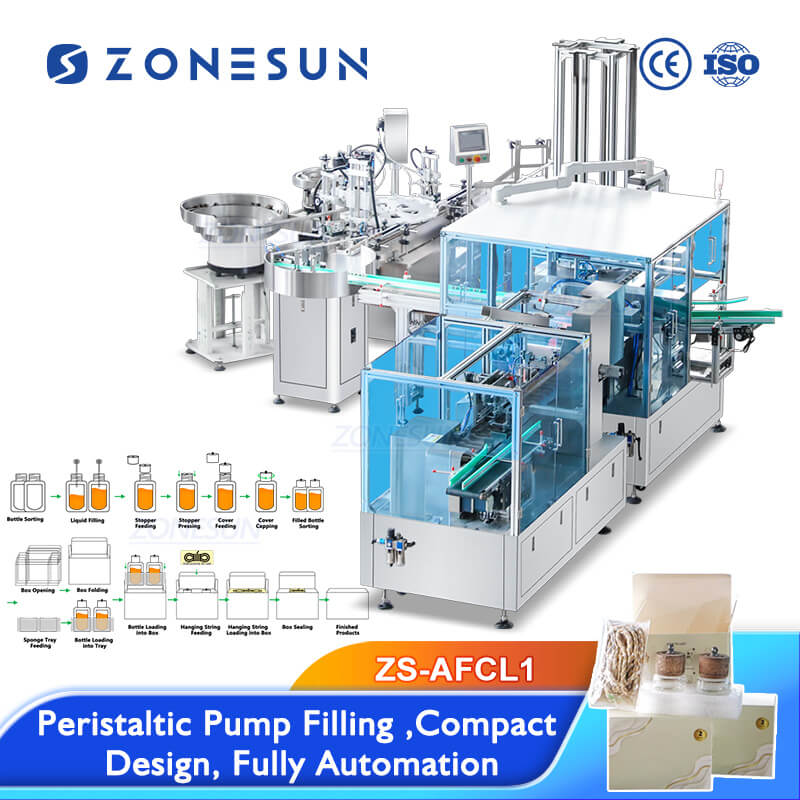

ZONESUN ZS-AFCL11 Car Diffuser Essential Oils Cartoning Bottling Line

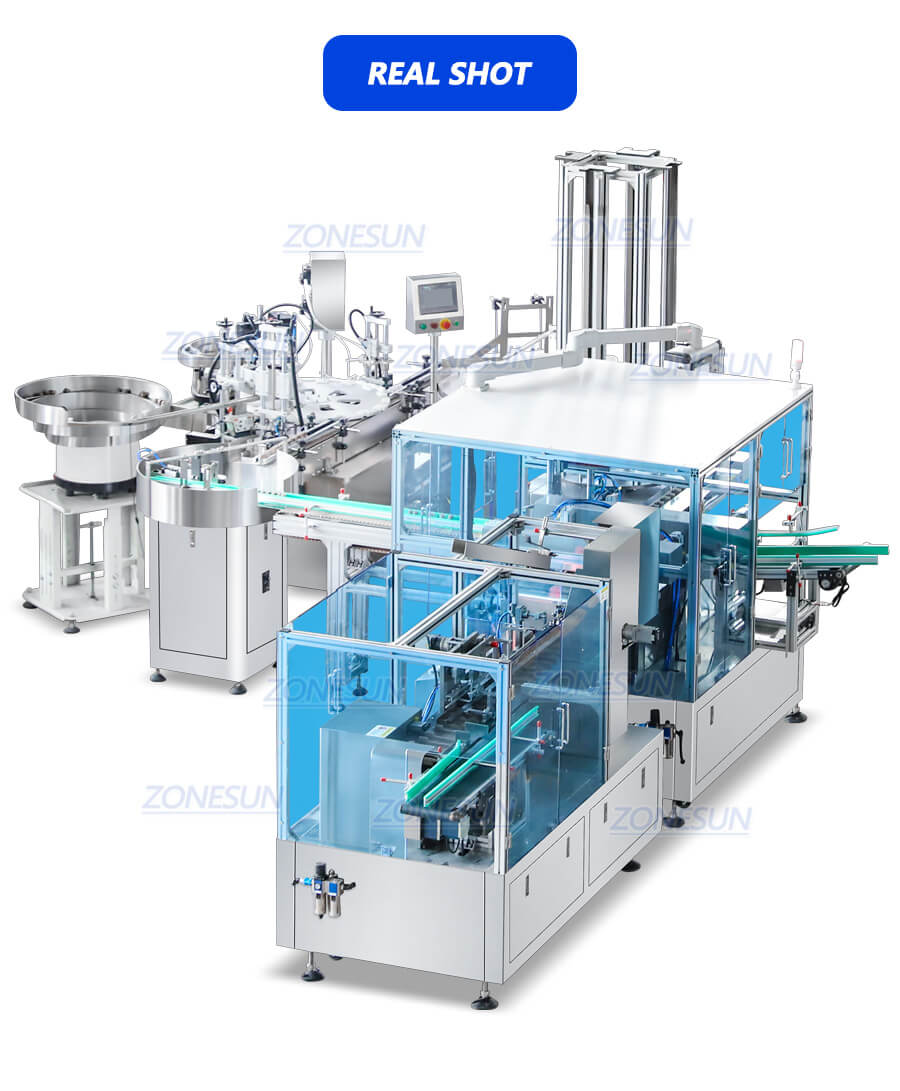

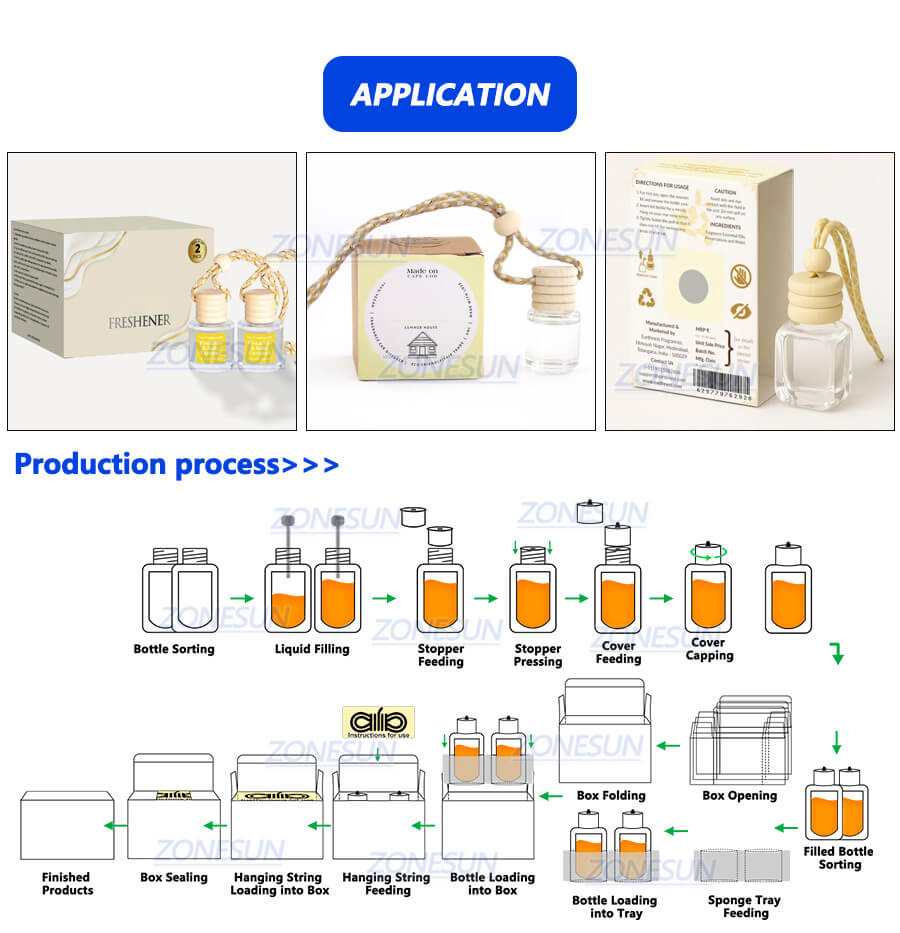

This automatic car diffuser production line integrates bottle unscrambling,filling and capping,finished bottle conveying,tray loading, and cartoning.The filling system uses a peristaltic pump to ensure hygienic dosing,while vibratory bowls handle plug and cap feeding.The fully automated line is controlled by touchscreen and operates at about 20-25 bottles per minute. This filling line is suitable for car diffuser,essential oil.
$74,999.00
Share to
Product Description:
This automatic car diffuser production line integrates bottle unscrambling,filling and capping,finished bottle conveying,tray loading, and cartoning.The filling system uses a peristaltic pump to ensure hygienic dosing,while vibratory bowls handle plug and cap feeding.The fully automated line is controlled by touchscreen and operates at about 20-25 bottles per minute. This filling line is suitable for car diffuser,essential oil.
Product Parameters:
| Model | ZS-AFC52 |
| Voltage | 220 V/ 110 V,50-60 Hz, 2.8 KW |
| Filling Pump | Peristaltic Pump |
| Suitable Bottle Size | Customized |
| Suitable Cap Size | Customized |
| Filling Range | Customized |
| Filling Nozzle Quantity | 2 (Customizable) |
| Working Speed | About 20-30 bottles/min (based on filling material and volume) |
| Conveyor Size | About 1920mm×100mm(L x W) |

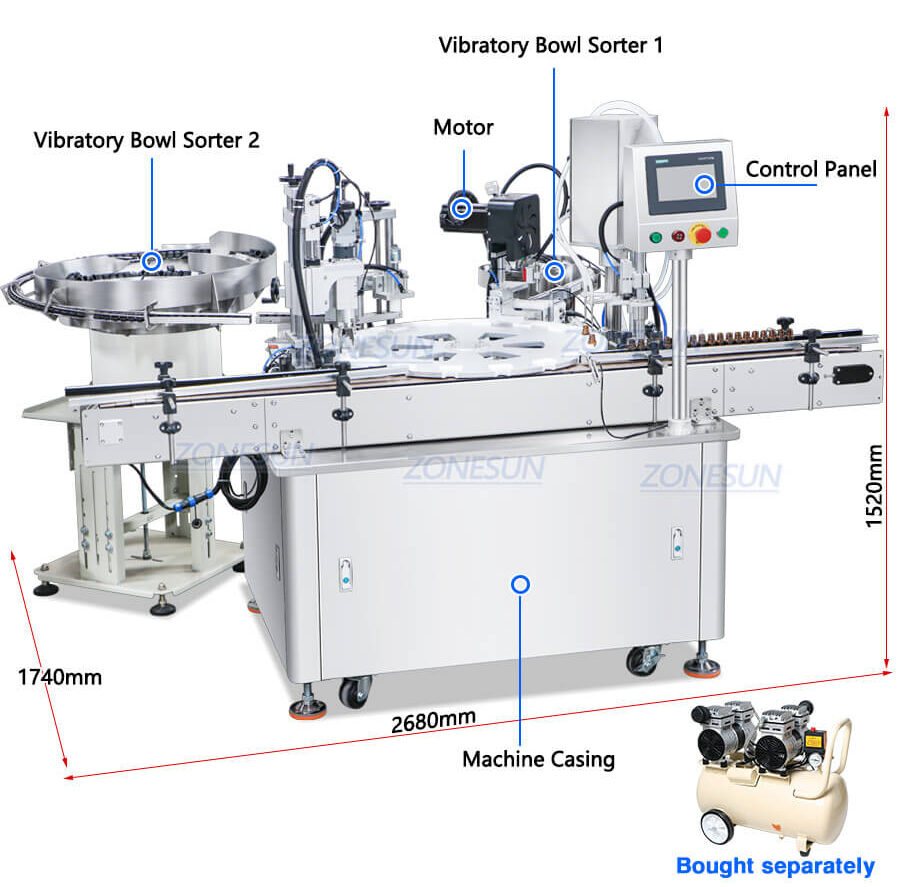

| Machine Size | About 2680*1740*1520mm(L*W*H) |
| Machine Weight | About 455 kg |
| Package Weight | About 576 kg |
| Specifications are for reference only and may vary by your product.Please confirm with us if required. | |
| Model | ZS-MSZH25 |
| Power Supply | 110 V,60 Hz, single-phase |
| Main Motor Power | 4KW |
| Cartoning Speed | 15-25 boxes/min |
| Carton Requirements | 250-350 g/m² (Paper Quality) |
| Carton Size Range | Customizable (Based on Product Requirements) |
| Compressed Air Pressure | 20.6 MPa |
| Compressed Air Consumption | 20 m²/h |
| Discharge Conveyor Height | 850-900 mm |

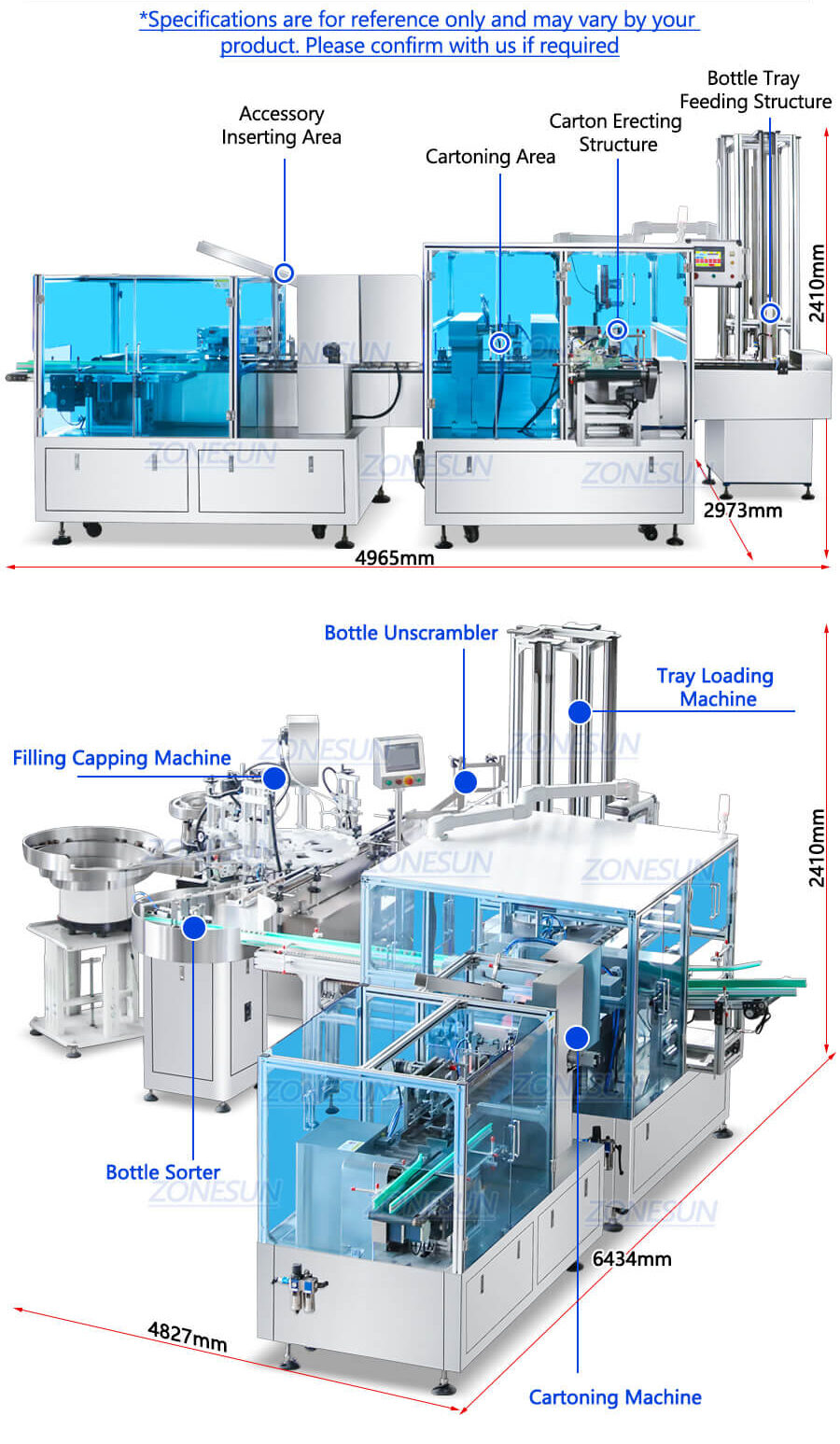

| Machine Dimensions | About 4965×2973×241 mm(L * W * H) |
| Machine Net Weight | About 1300 kg |
Product Details:

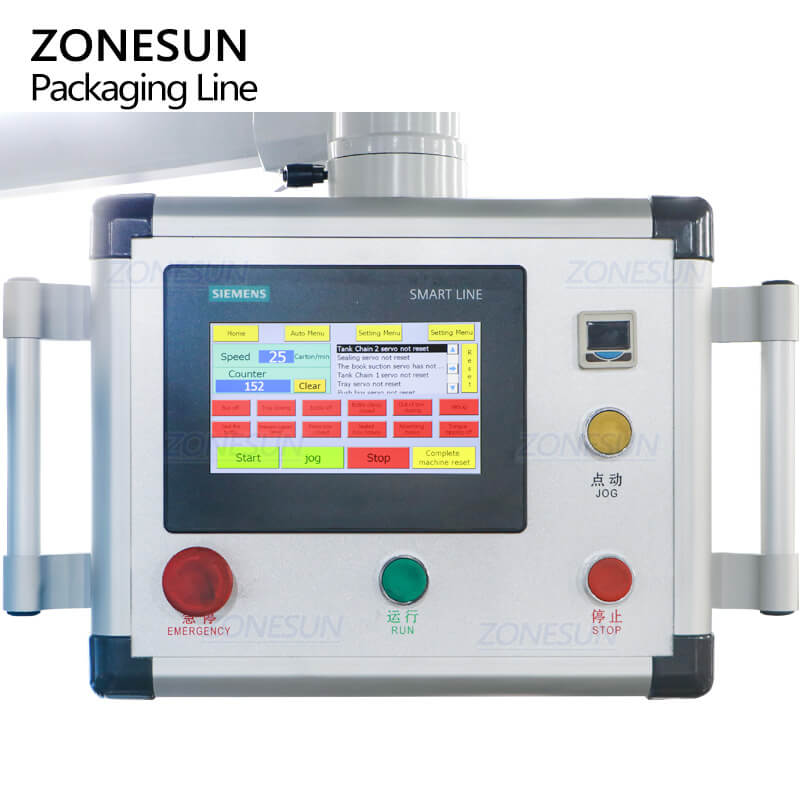

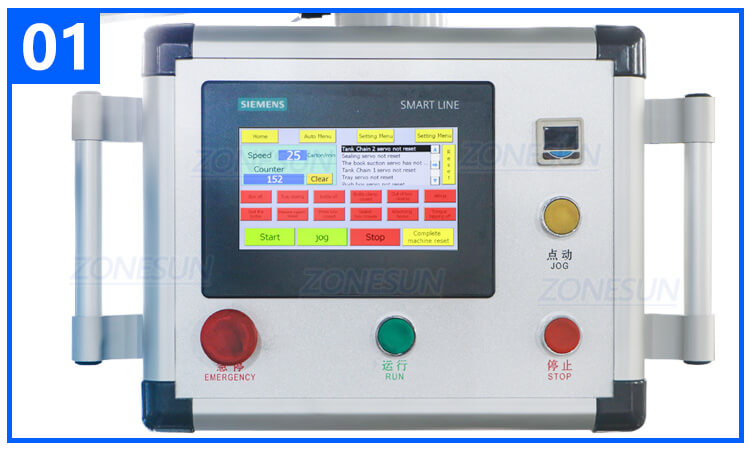

Control Panel
Centralized touchscreen control allows easy parameter setting and monitoring of the entire line.

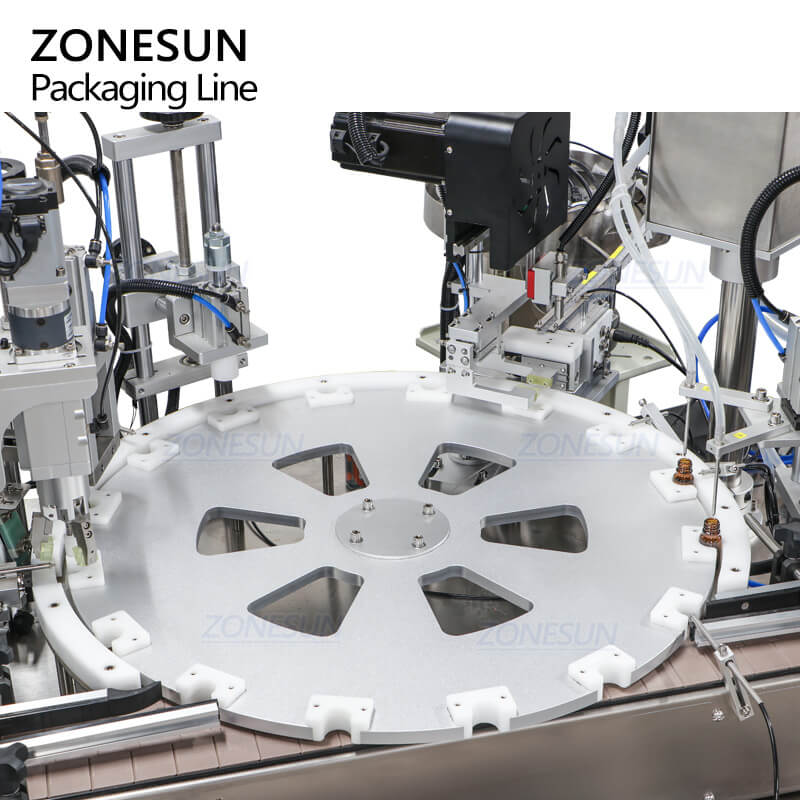

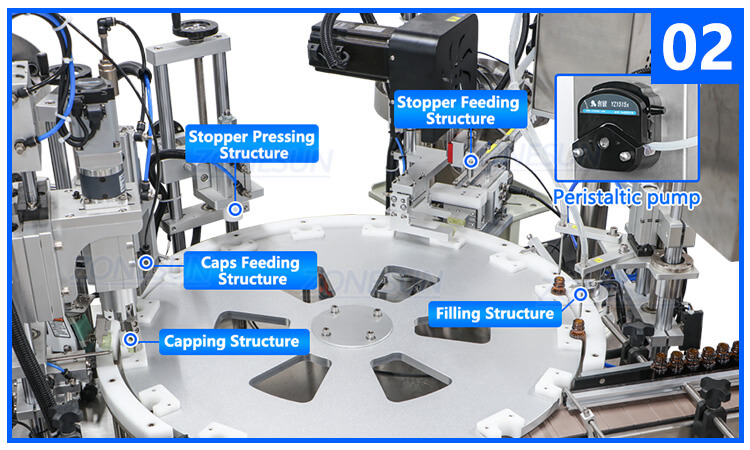

Compact Working Station
Combines peristaltic pump filling, plug insertion, and cap tightening in one compact unit.

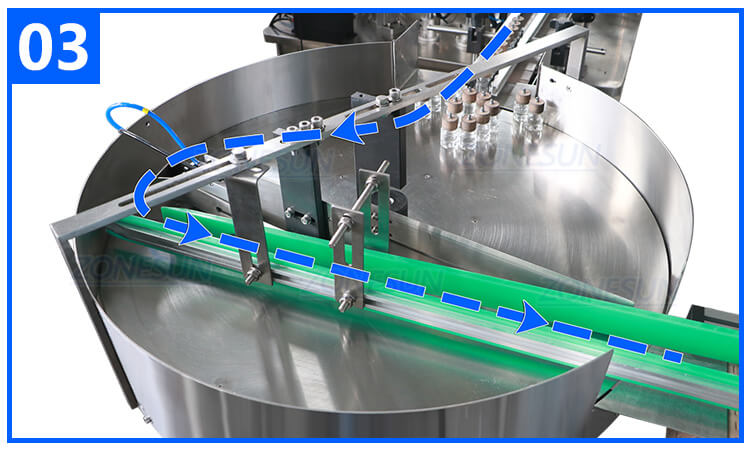

Finished Bottle Arranging Structure
Organizes filled bottles and transfers them smoothly to the cartoning process.

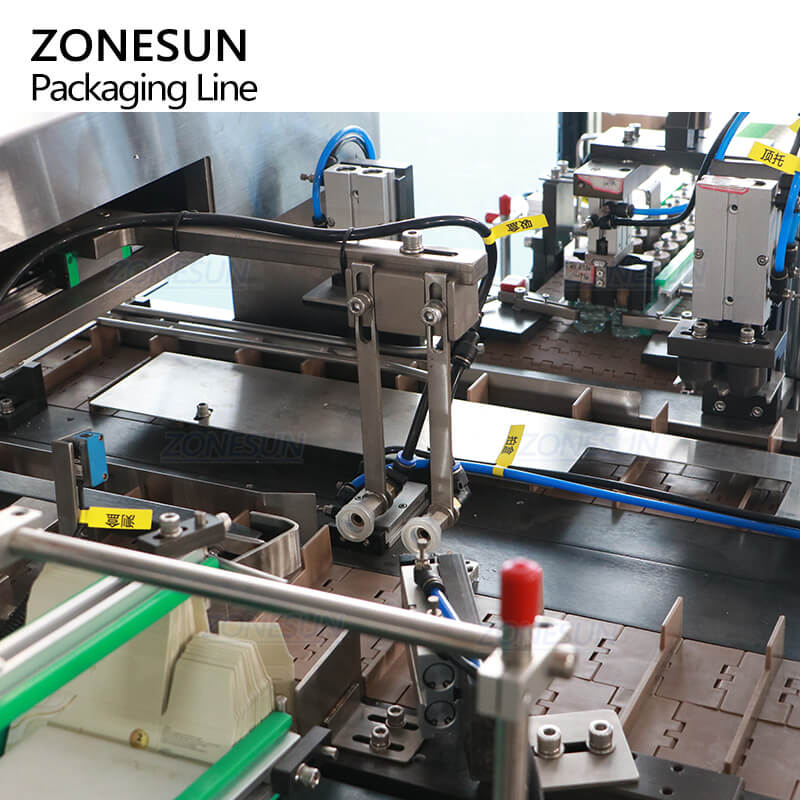

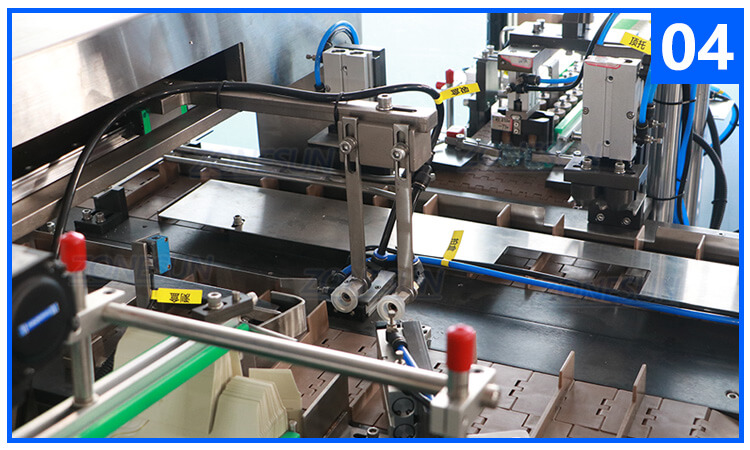

Carton Erecting & Bottle Loading Structucture
Automatically opens and forms cartons, places the filled bottles accurately into sponge trays for protection.
Cartoning Structure
Transfers the tray with bottles into the prepared carton automatically, improves working acc.

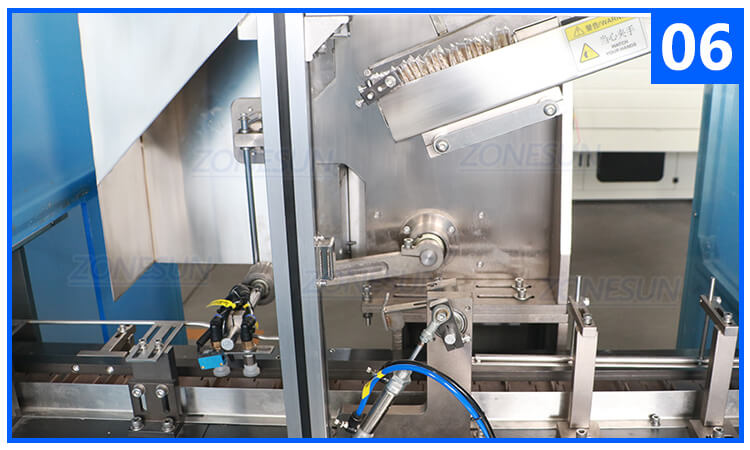

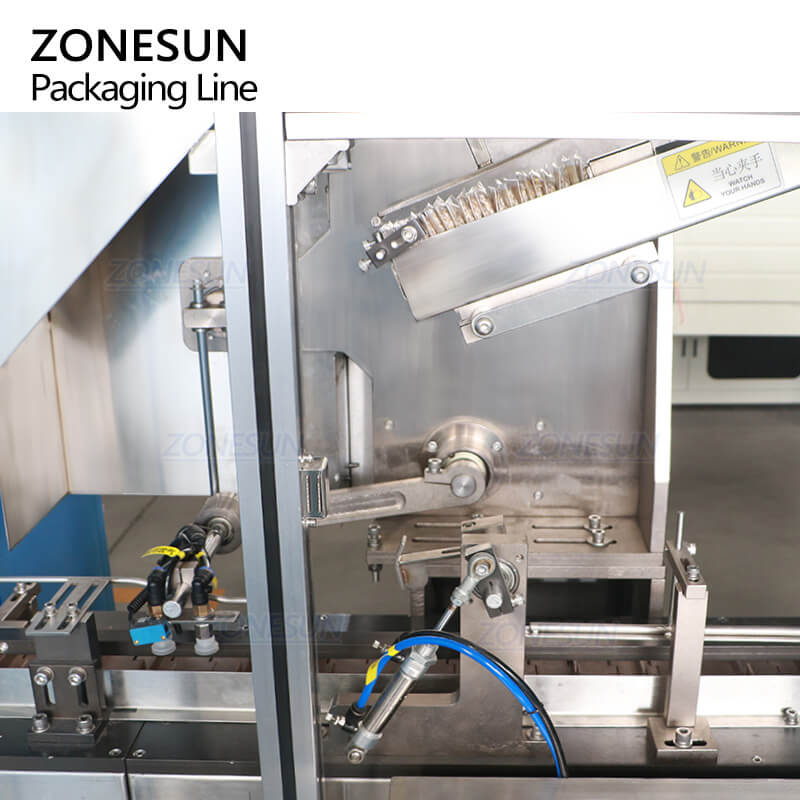

Accessory Inserting Structure
Adds accessories such as hanging strings into the carton before closing, save working labor.
