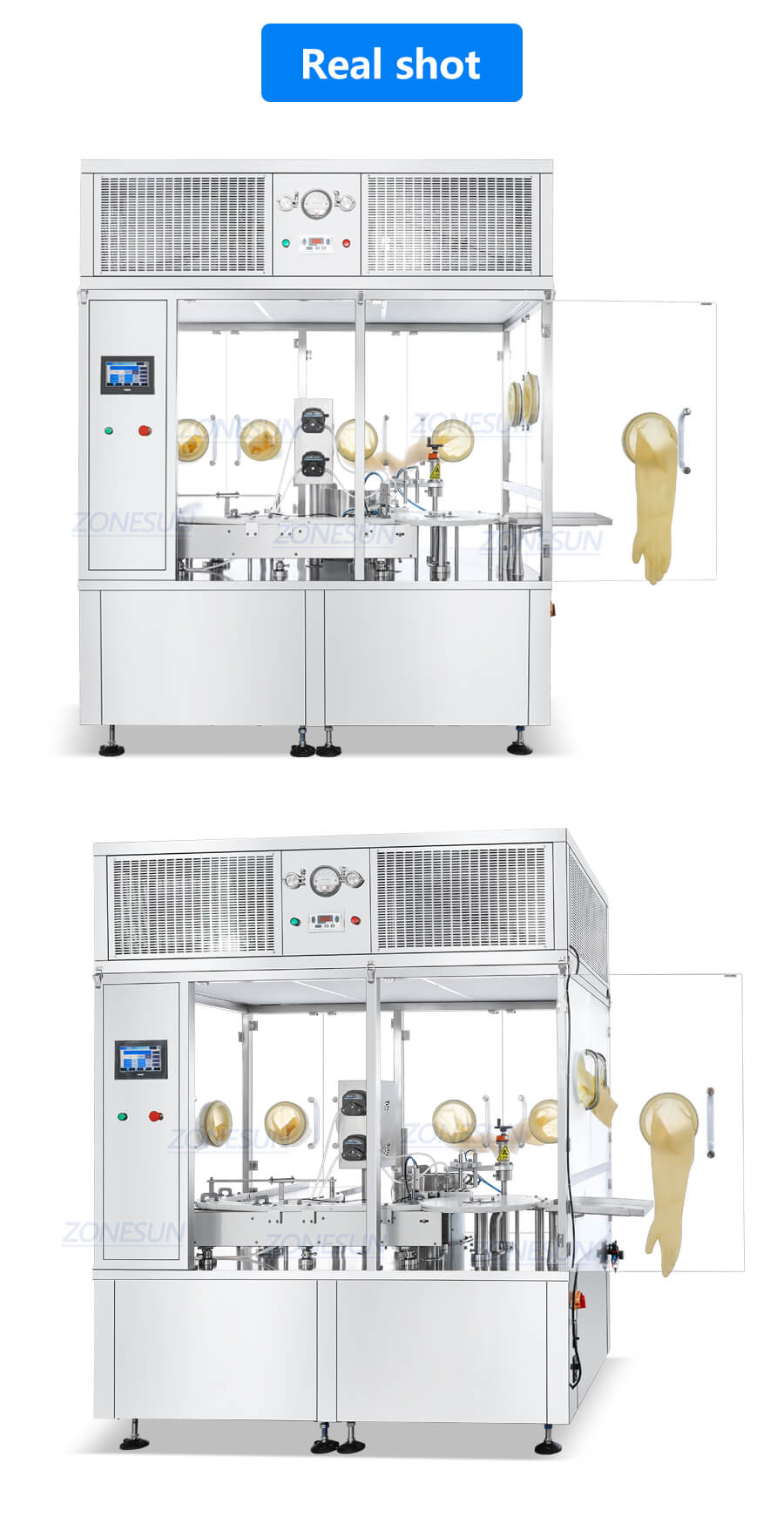

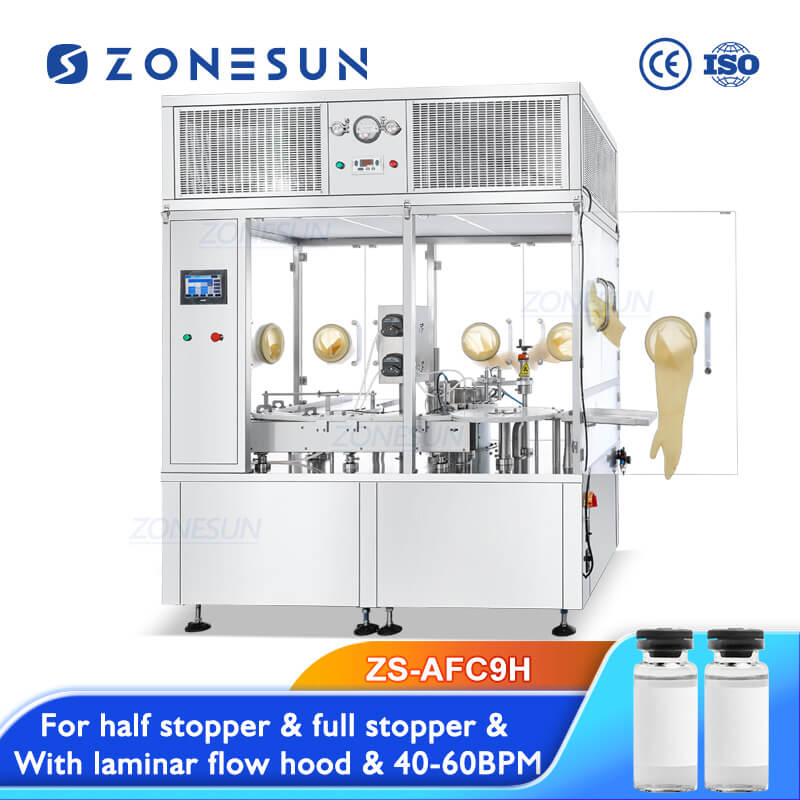

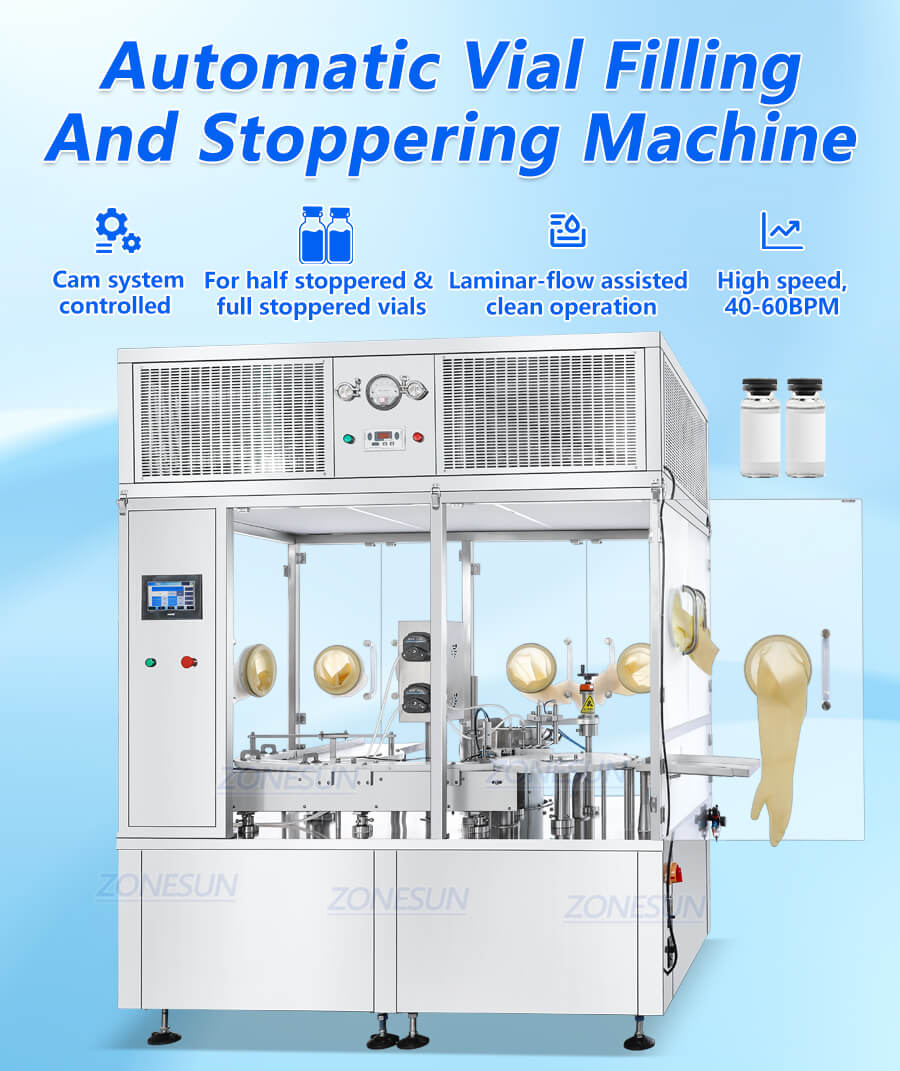

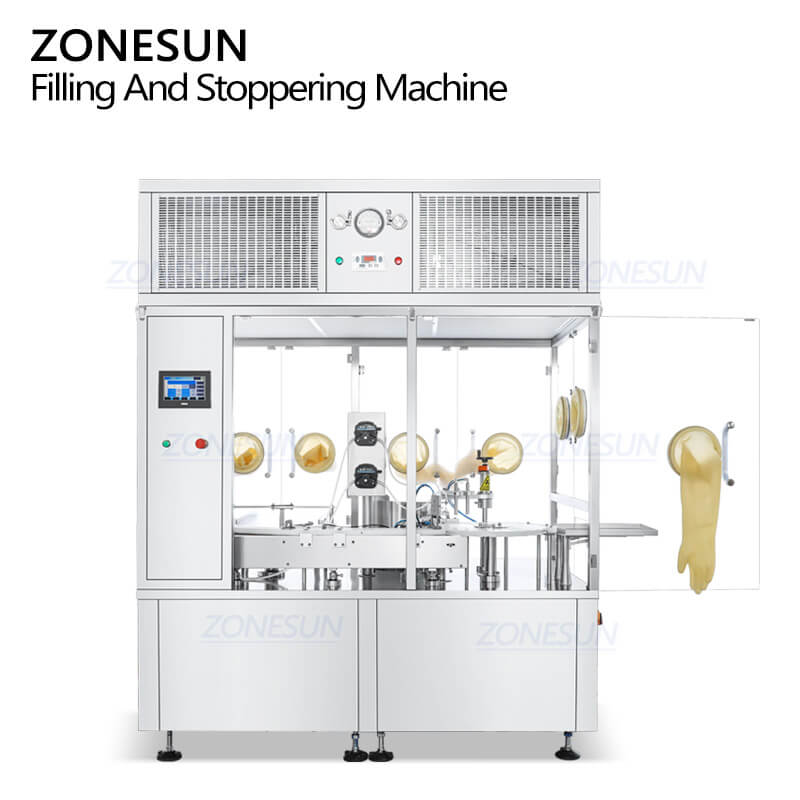

ZONESUN ZS-AFC9H High Speed Liquid Vial Filling Stoppering Machine
This monoblock vial filling and stoppering machine is designed for small or medium volume packaging production. It combines bottle unscrambling, liquid filling (peristaltic pump), stopper sorting and inserting, stopper pressing, and vial collection into one compact unit. Bottles are precisely transported via a star wheel mechanism, ensuring accurate positioning throughout the process. Equipped with a laminar flow hood to improves packaging quality, the filling reaches up to 3600 BPH.
$25,199.00
Share to
Product Description:

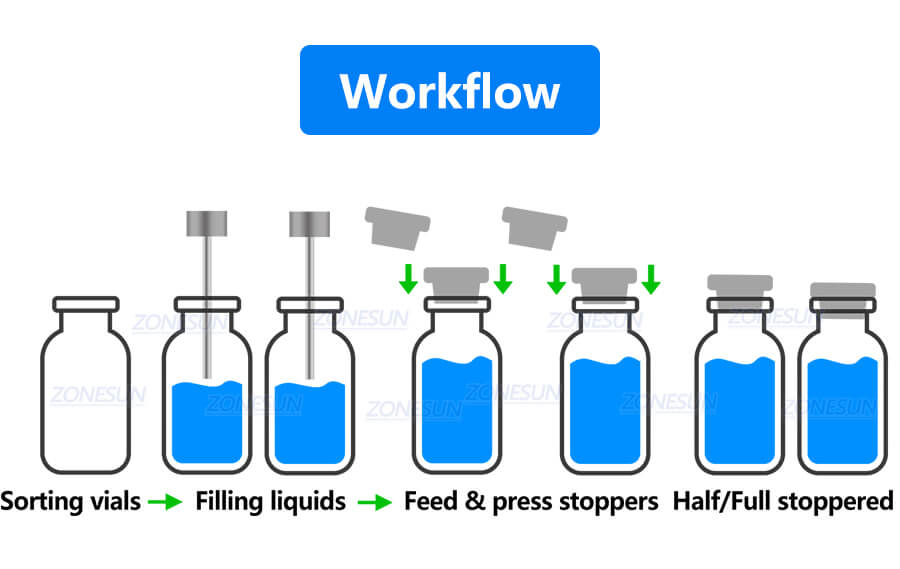

This monoblock vial filling and stoppering machine is designed for small or medium volume packaging production. It combines bottle unscrambling, liquid filling (peristaltic pump), stopper sorting and inserting, stopper pressing, and vial collection into one compact unit. Bottles are precisely transported via a star wheel mechanism, ensuring accurate positioning throughout the process. Equipped with a laminar flow hood to improves packaging quality, the filling reaches up to 3600 BPH.
Product Parameters:
| Machine Model | ZS-AFC9H |
| Voltage | AC 110/220V 50-60Hz |
| Power | <3000W/h |
| Working Speed | About 40-60bottles/min(depending on filling range) |
| Filling Pump | Peristaltic pump |
| Filling Nozzle Quantity | 2 |
| Filling Range | Customizable |
| Filling Accuracy | ±3% |
| Package Size | About 610*1900*1270mm(Laminar Flow Hood)
About 2110*1320*2110mm(Main Machine) |
| Package Weight | About 181kg(Laminar Flow Hood)+908kg(Main Machine) |
| *Specifications are for reference only and may vary by your product. Please confirm with us if required. | |

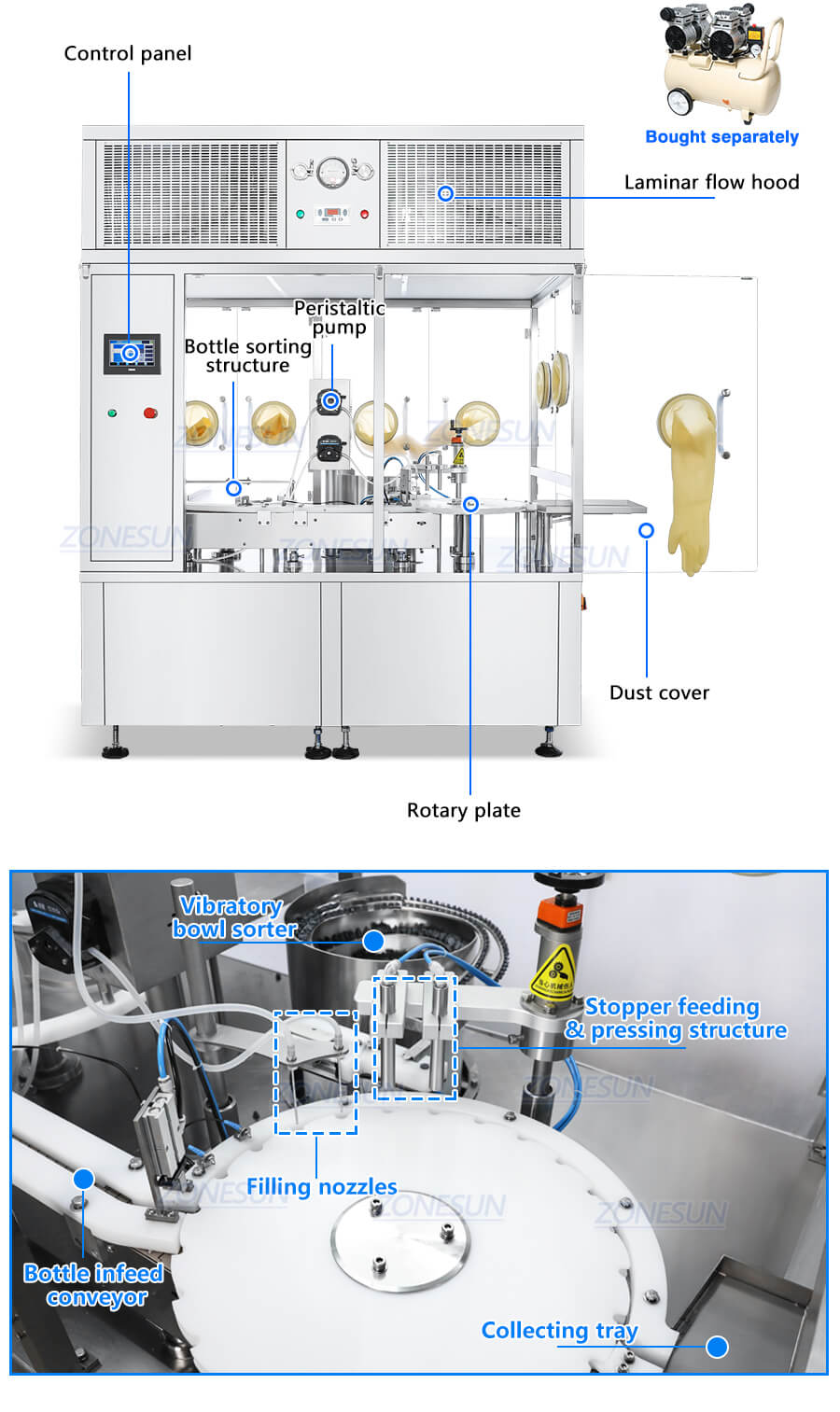

Product Details:

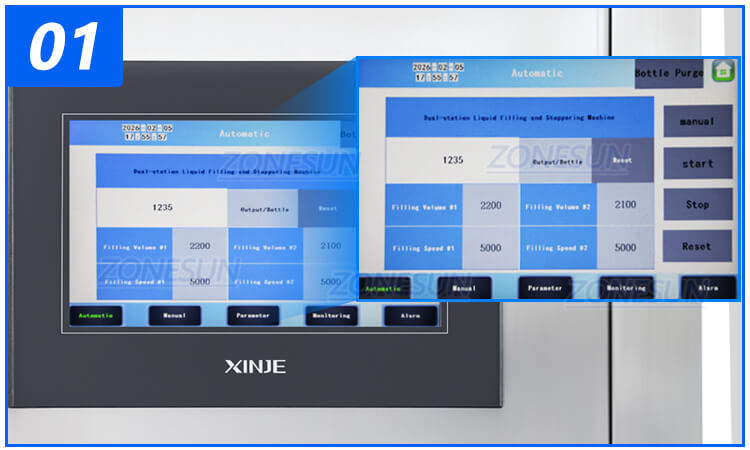

Touchscreen Panel
Allows for intuitive parameter setting and real-time operation monitoring.

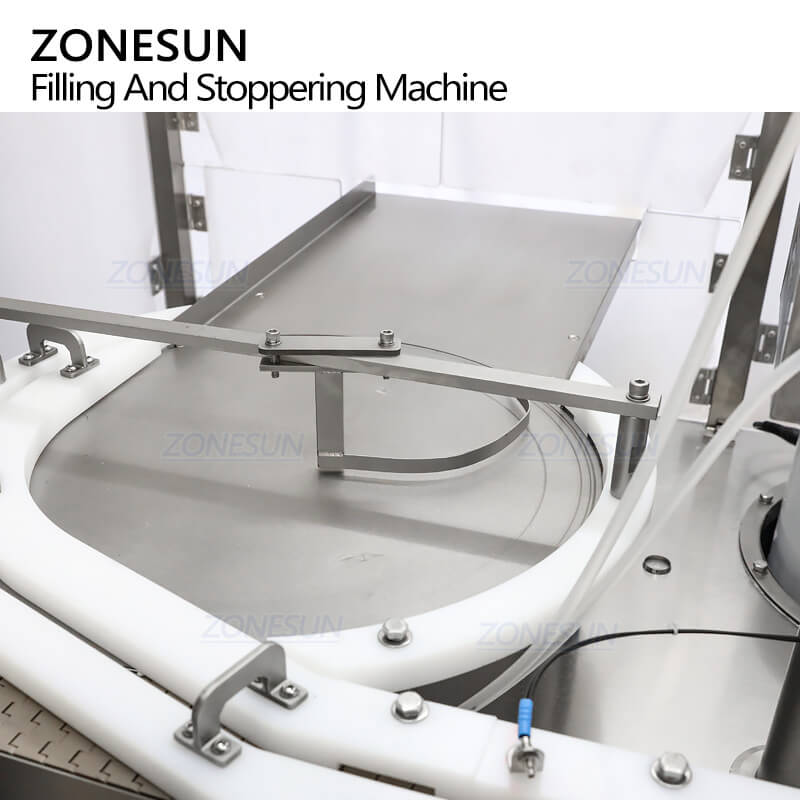

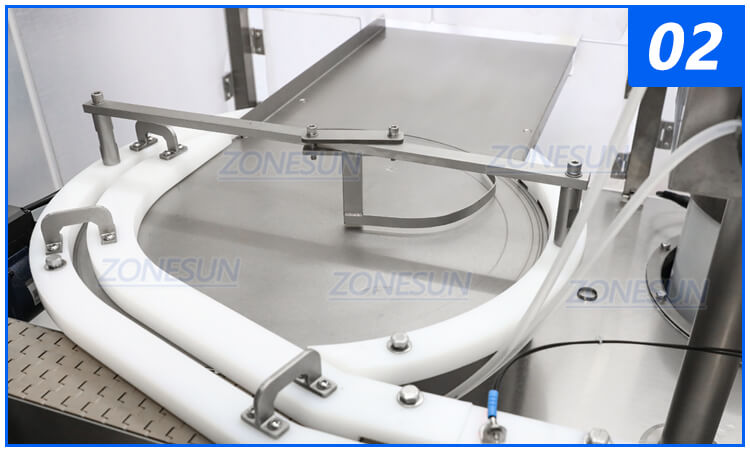

Bottle Sorting Structure
Automatically feed bottles to filling area. It is customizable as bottle size.

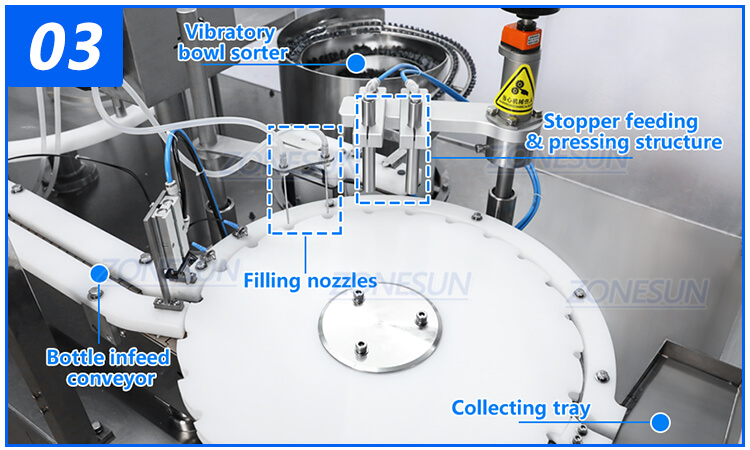

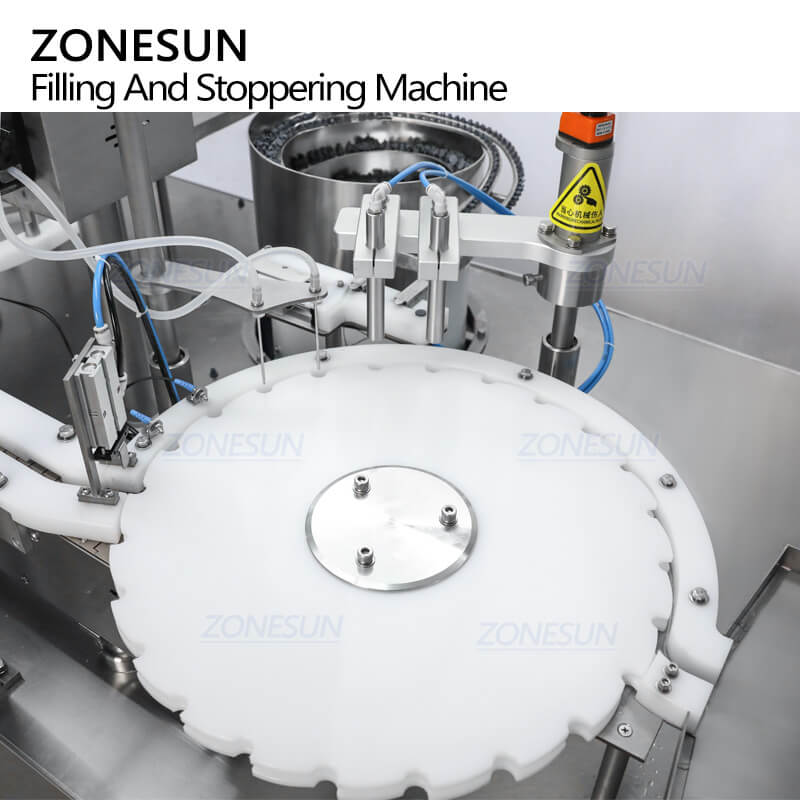

Integrated Working Structure
Controlled by cam system, multi working structures can work at the same time.

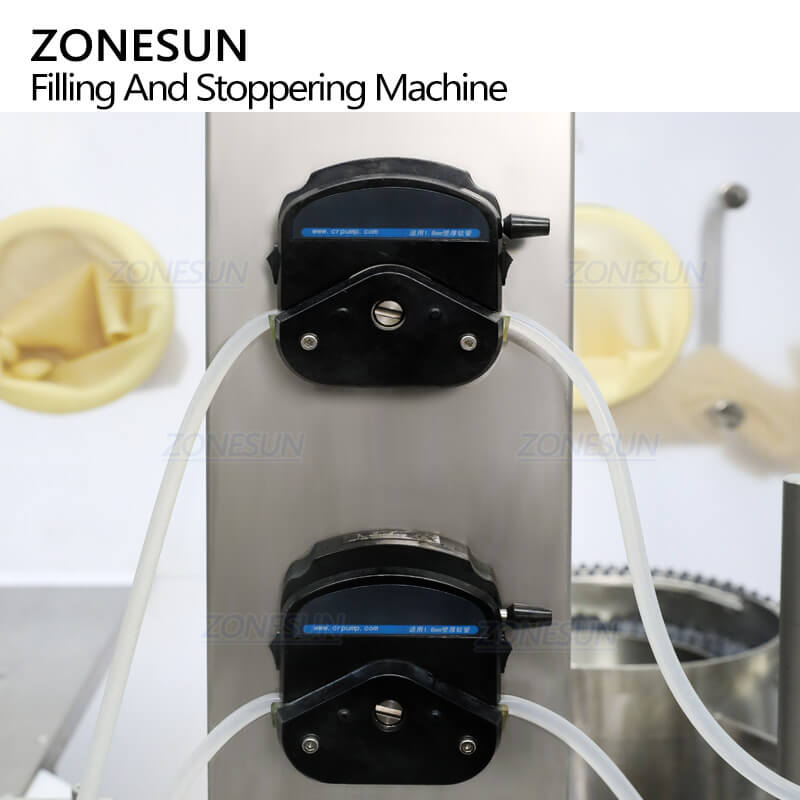

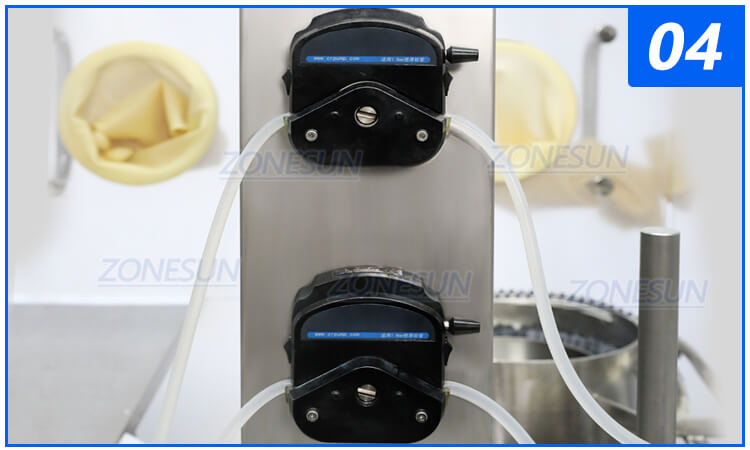

Peristaltic Pump System
Ensures liquid only passes through hose, it can realize hygienic filling.

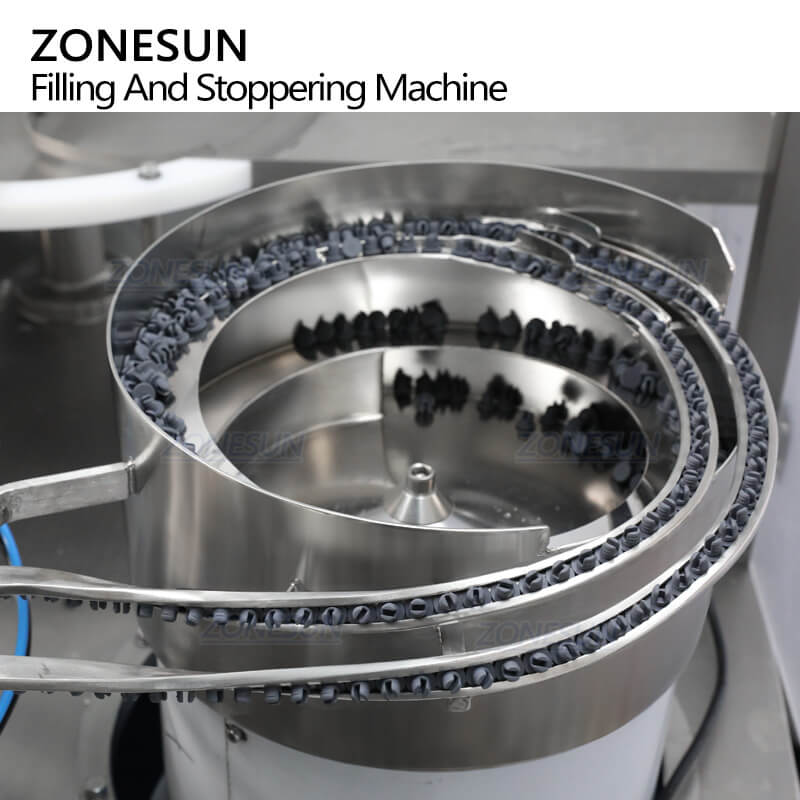

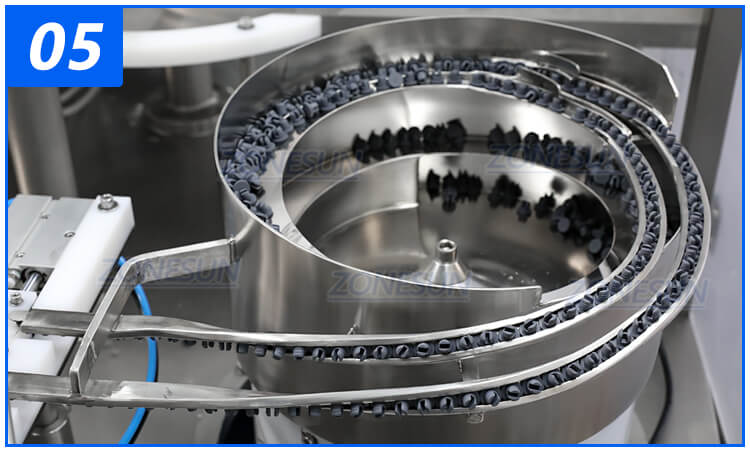

Vibratory Bowl Sorter
Automatically orients and feeds stoppers for continuous production.

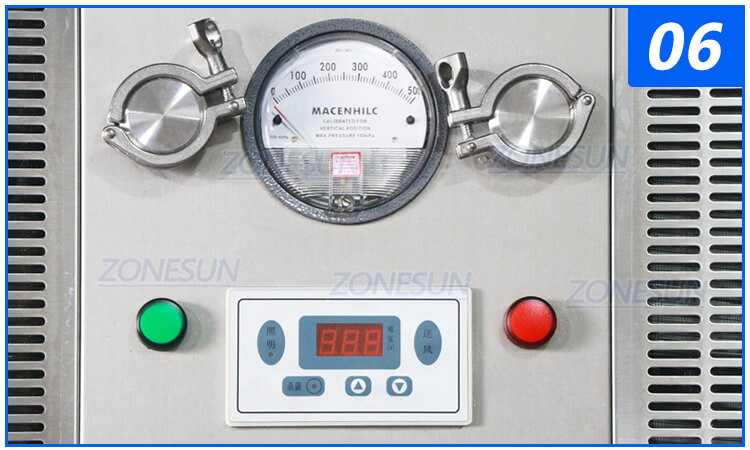

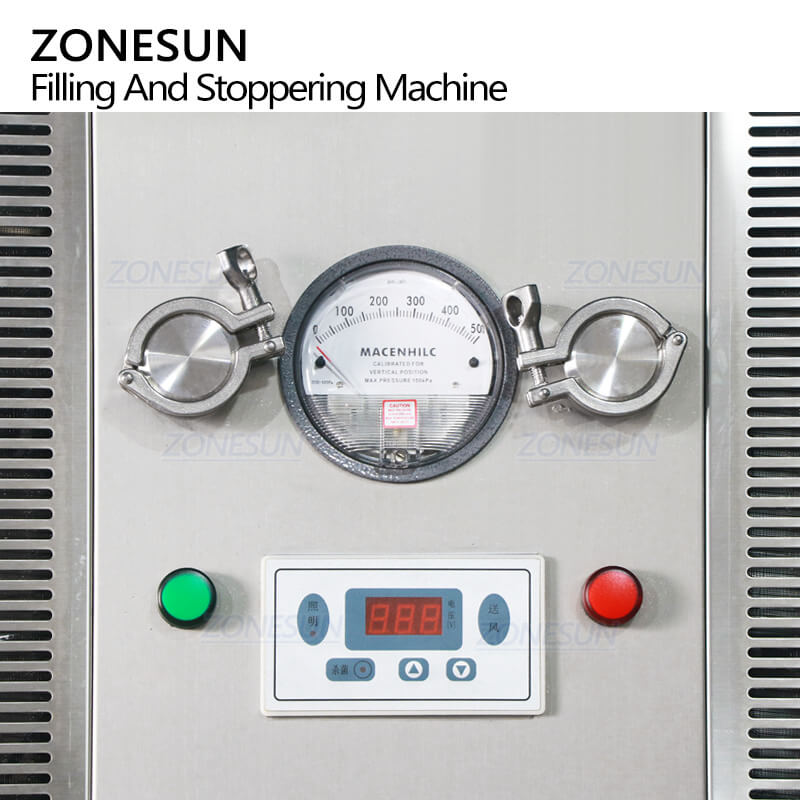

Laminar Flow Hood
Delivers clean airflow over critical areas to protect product quality.

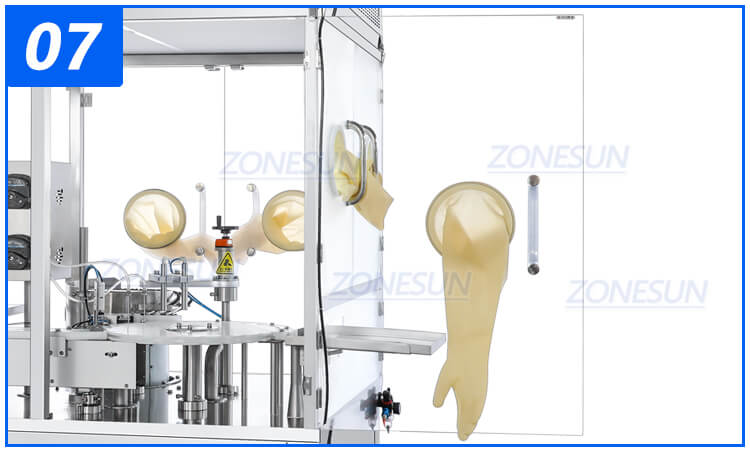

Dust Cover
Reduces external contamination and improves production cleanliness.
