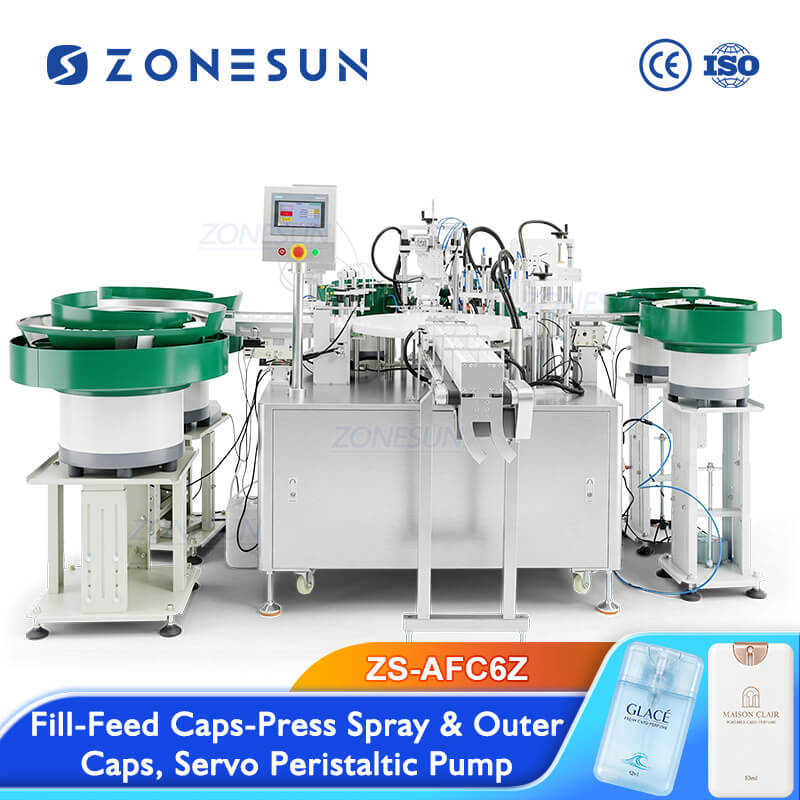

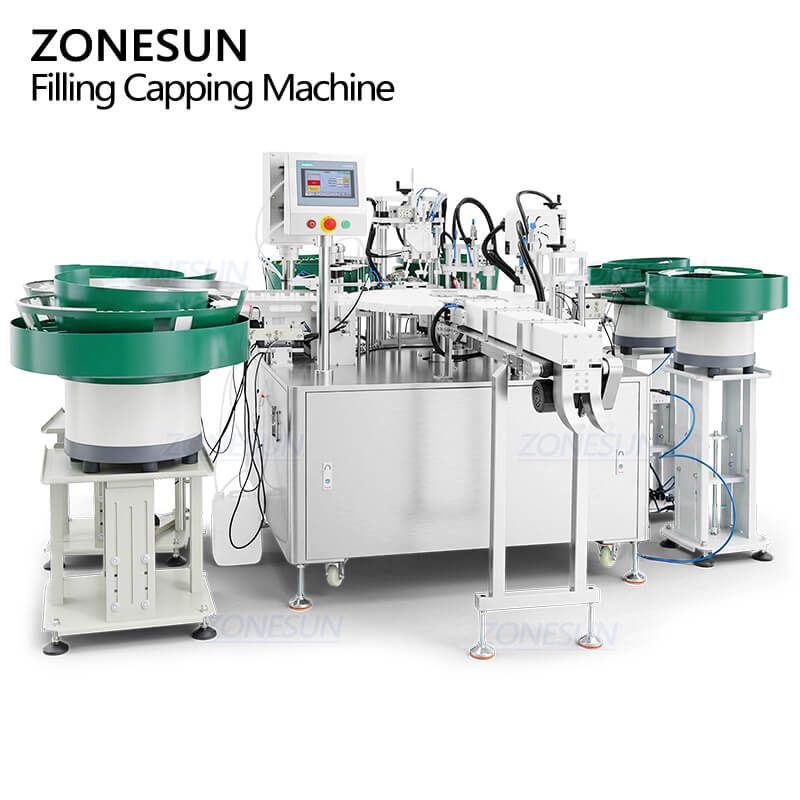

ZONESUN ZS-AFC6Z Pocket Perfume Filling Capping Machine

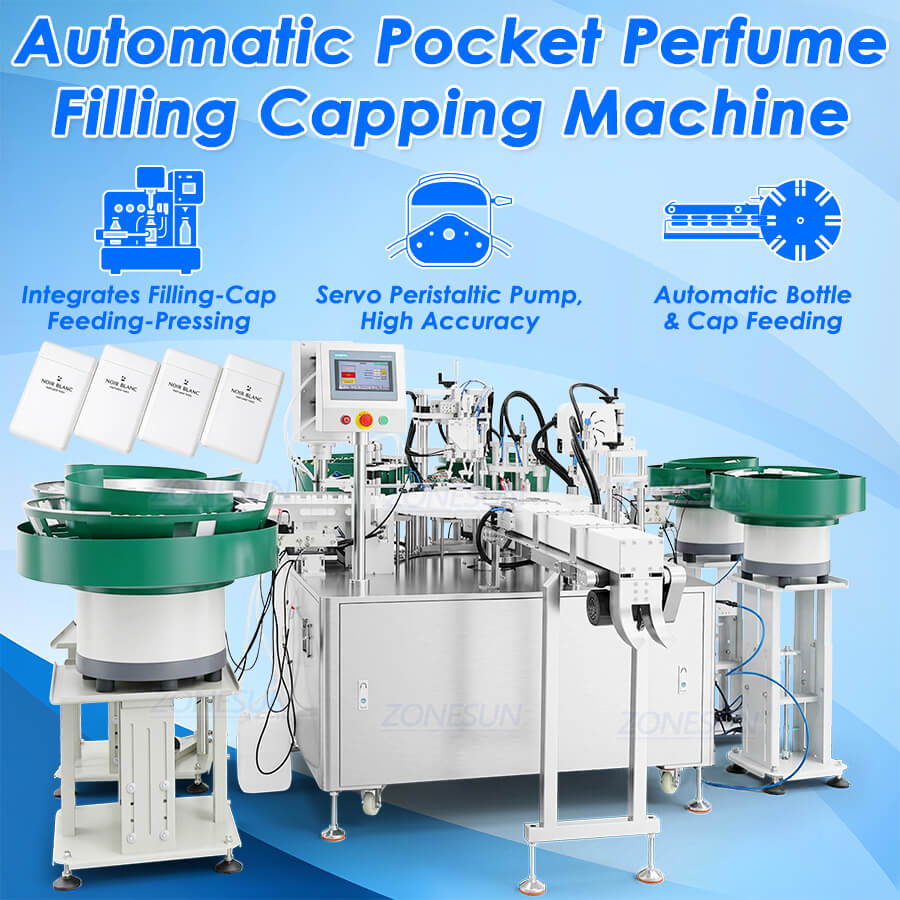

This automatic pocket perfume filling capping machine fills and caps small perfume bottles on one machine. Bottles and caps are fed automatically, and filling, cap feeding and pressing run as one linked sequence instead of separate steps. Liquid is dosed by a servo peristaltic pump for high accuracy, which suits the small fill volumes pocket perfume uses.
$99,999.00
Share to
Product Description
This automatic pocket perfume filling capping machine fills and caps small perfume bottles on one machine. Bottles and caps are fed automatically, and filling, cap feeding and pressing run as one linked sequence instead of separate steps. Liquid is dosed by a servo peristaltic pump for high accuracy, which suits the small fill volumes pocket perfume uses.

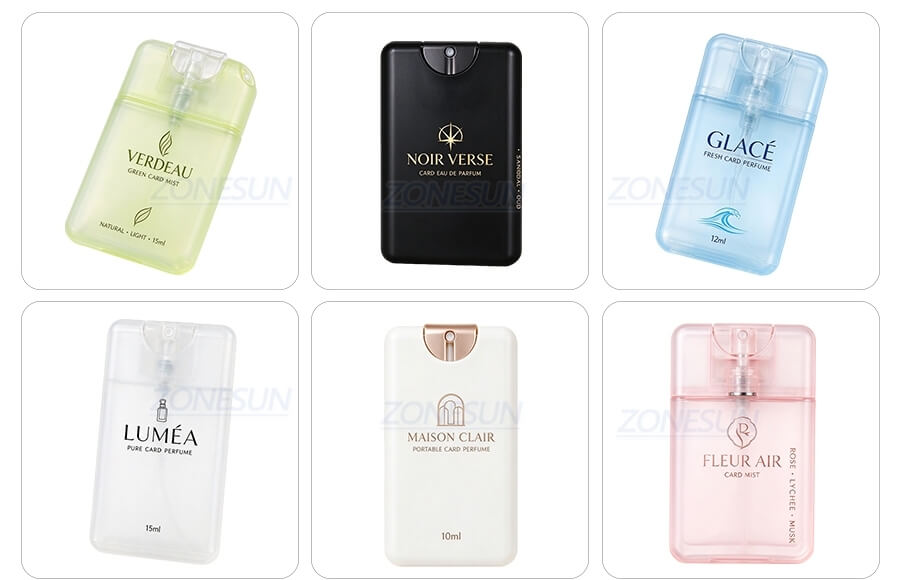

Product Applications
Product Parameter
| Machine Model | ZS-AFC6Z |
| Power Supply | 110/220V 50Hz 6.5KW |
| Filling Pump | Servo Peristaltic Pump |
| Filling Range | Customizable |
| Production Speed | 25-40BPM(depending on product size and filling material) |
| Bottle & Cap Size | Customizable |
| Air Pressure | 0.5-0.8MPA |

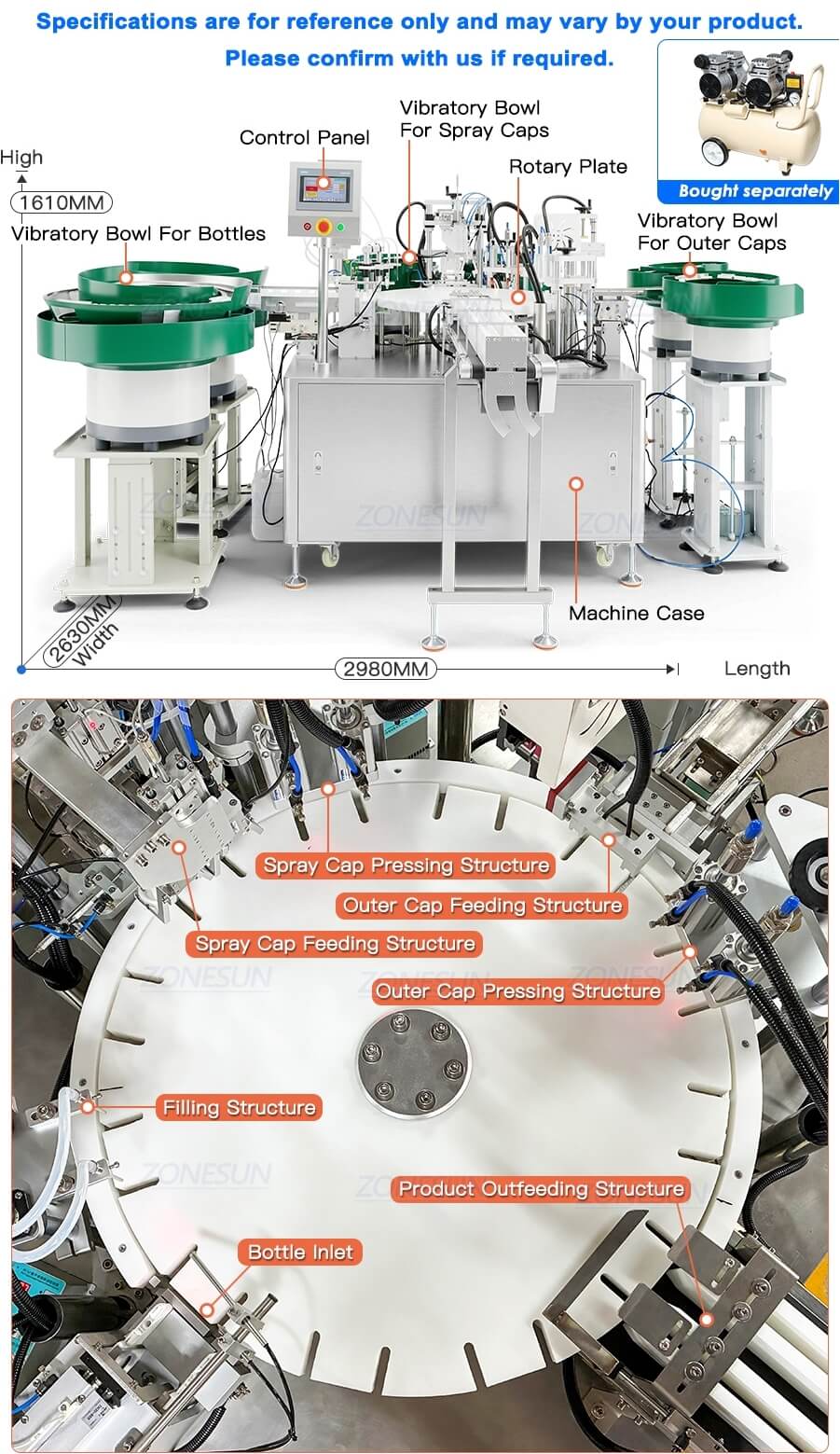

| Machine Size | About 2980*2630*1610mm(L*W*H) |
Product Details

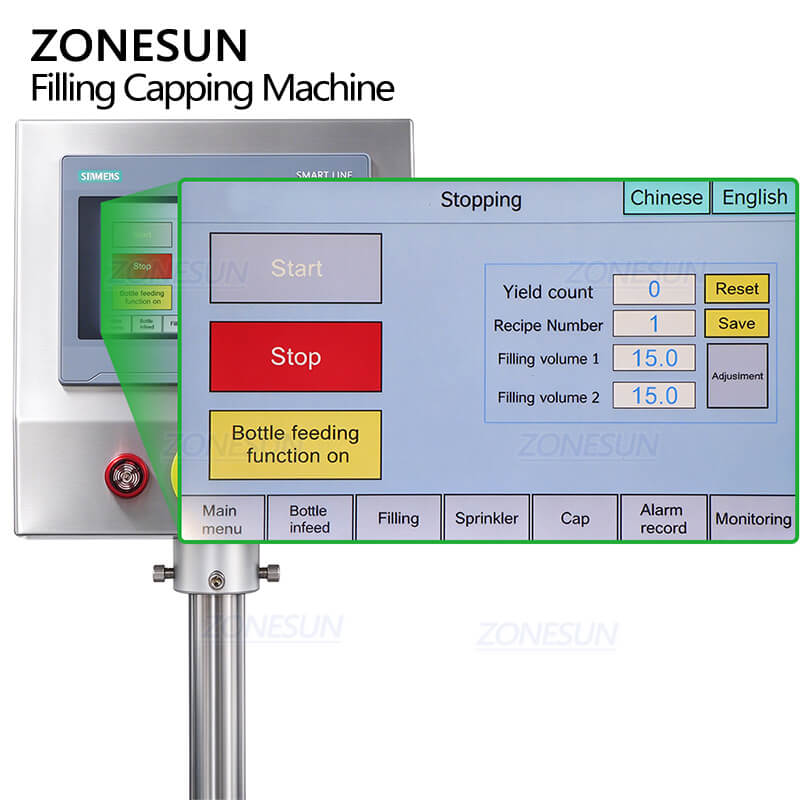

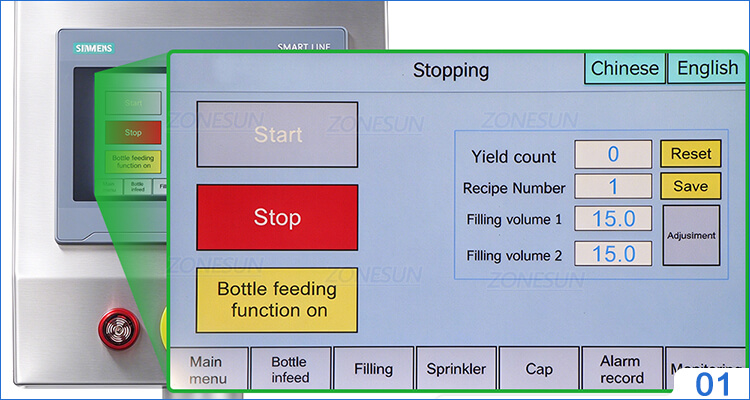

Touchscreen Control Panel
Allows for machine operation, parameter adjustment, and recipe management.
Bottle Vibratory Sorters
Automatically sort and feed the pocket bottles to rotary plate for continuous production.

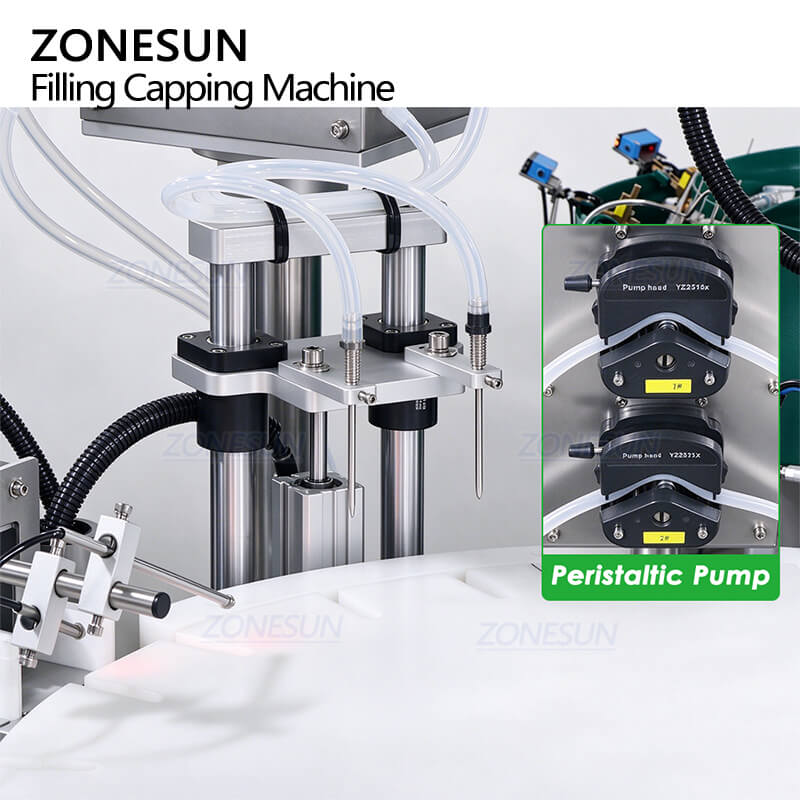

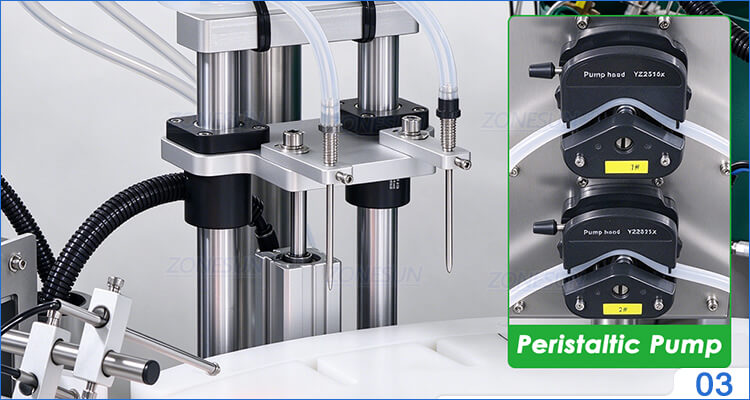

Peristaltic Pump Filling Structure
Servo peristaltic pumps deliver accurate liquid dosing, while the tubing can be replaced to simplify product changeover.

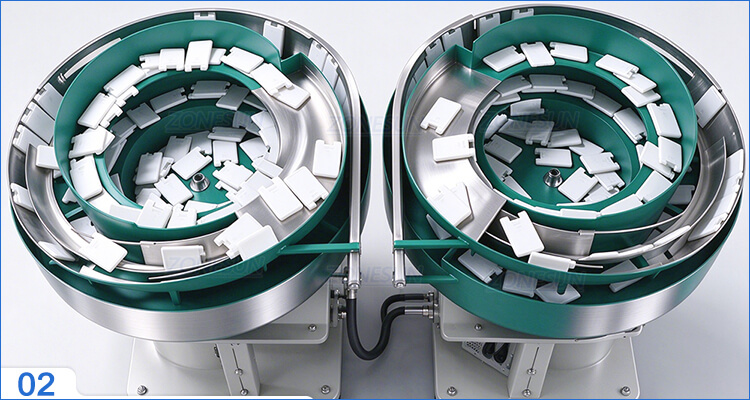

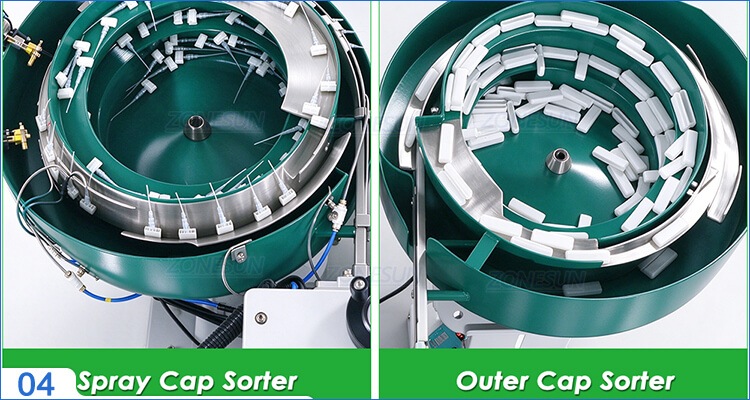

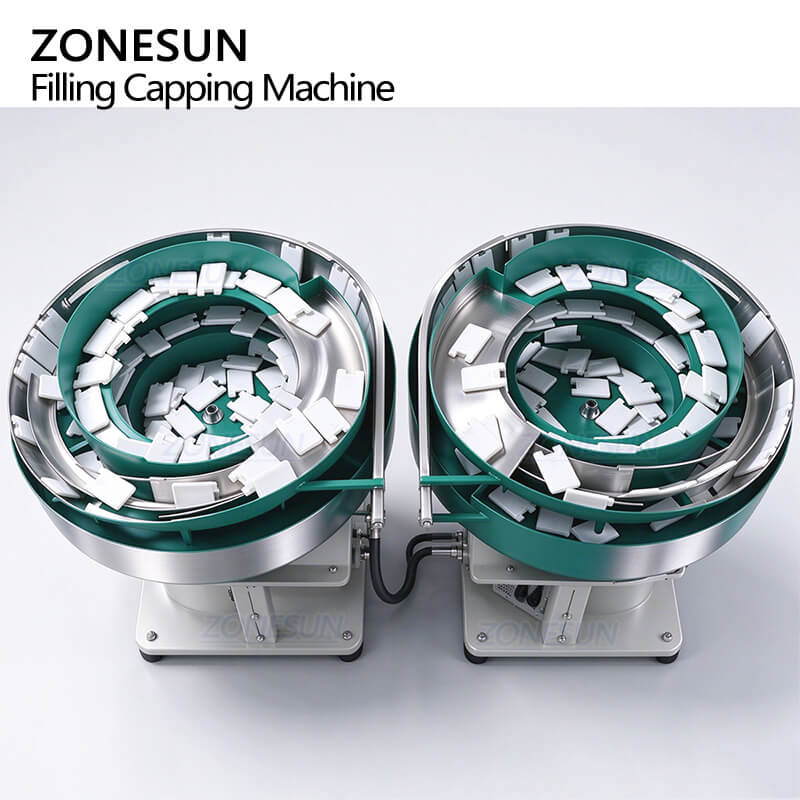

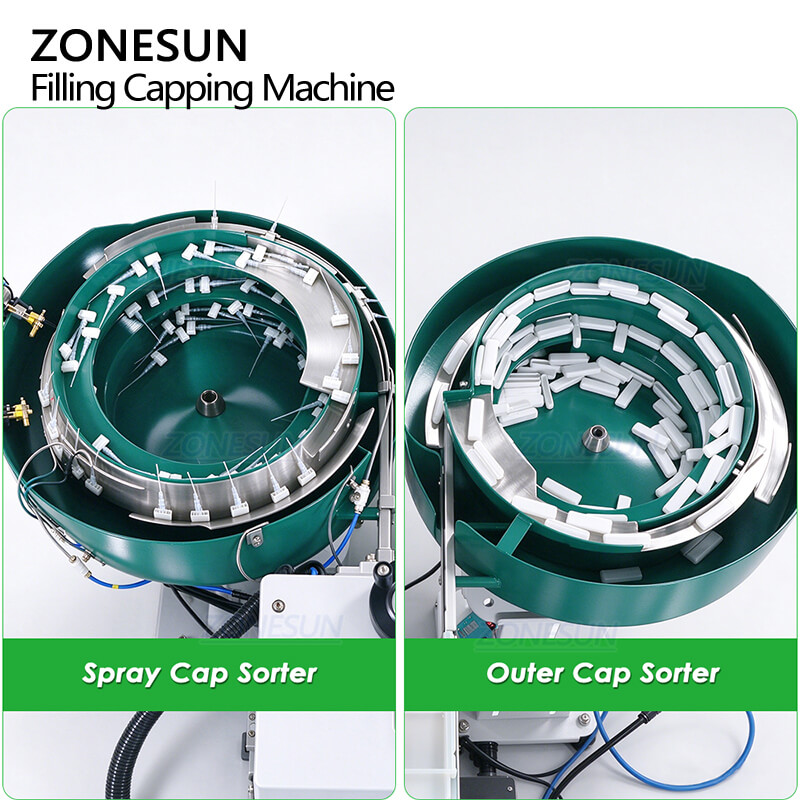

Cap Vibratory Bowls
Automatically deliver the spray caps and outer caps to bottles, which reduces manual handling.

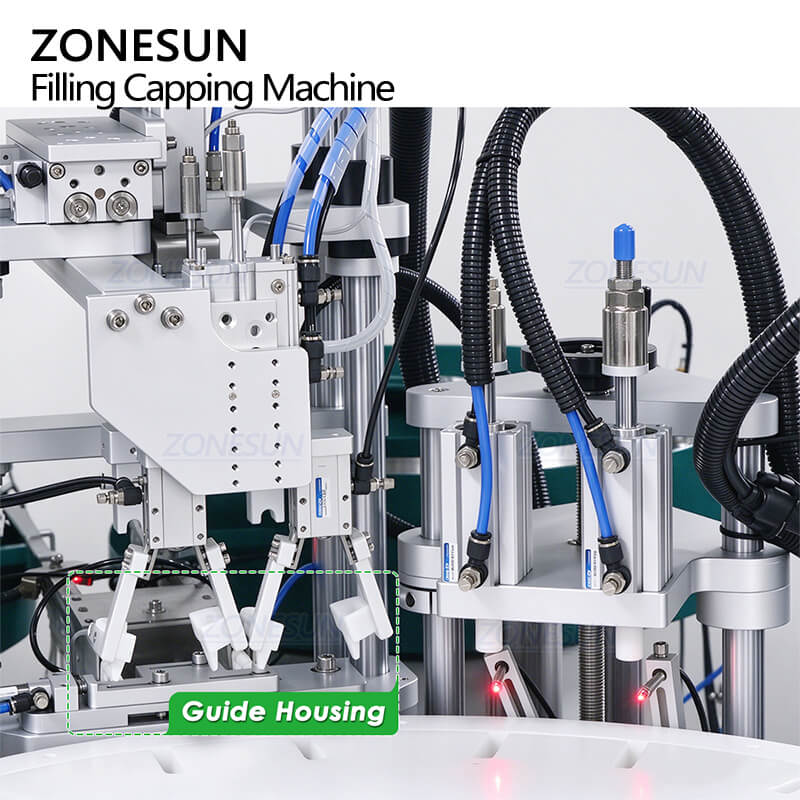

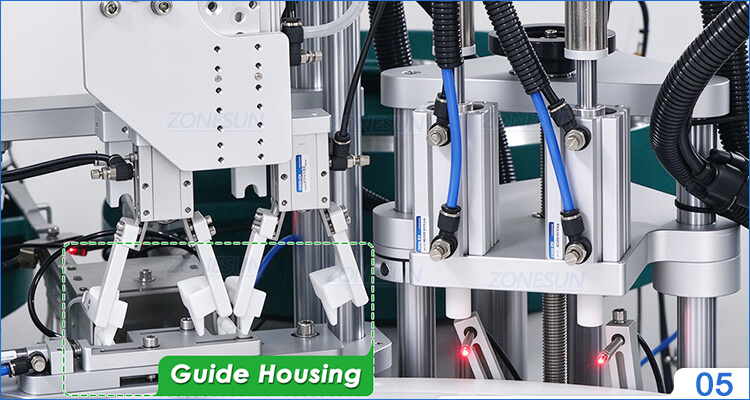

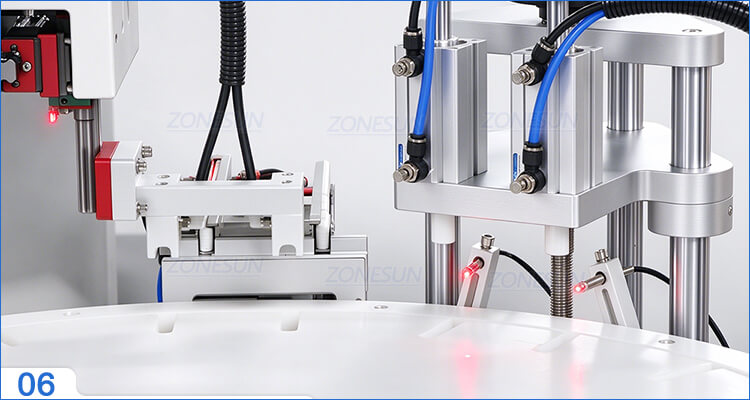

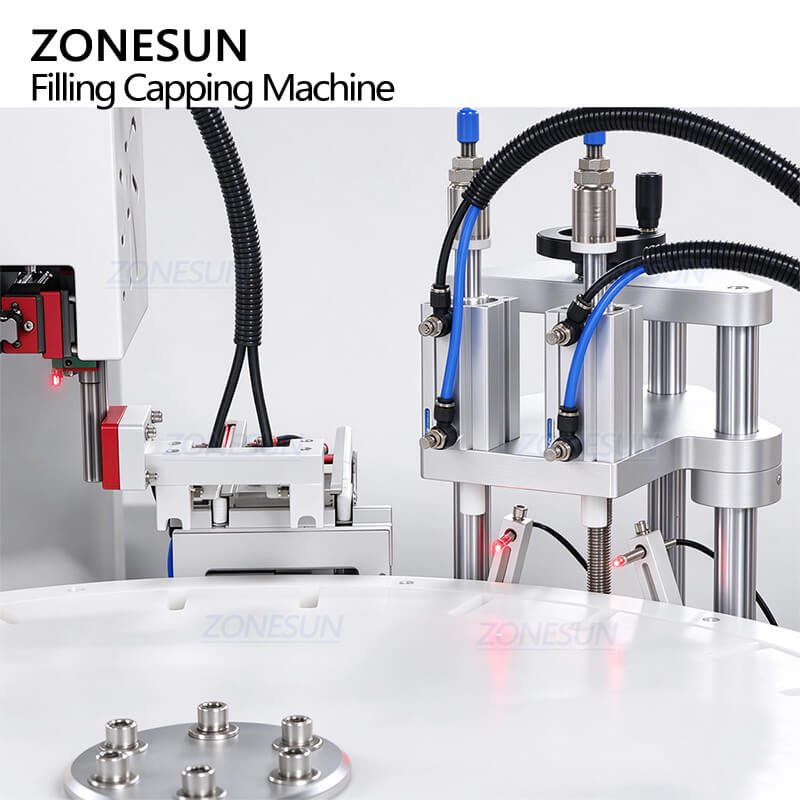

Spray Cap Feeding & Pressing
Guide housing ensures caps can drop into bottles accurately, and pressing heads can push down to ensure airtight capping.
Outer Cap Feeding & Pressing
Automatically pick, place and press outer caps onto bottles. The feeding and pressing structure is customizable as needed.

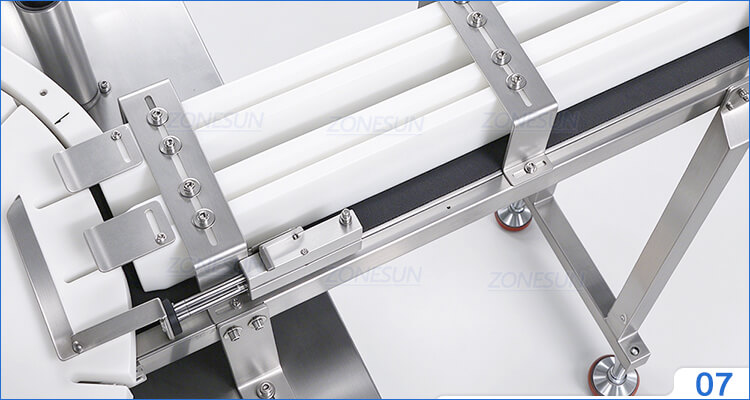

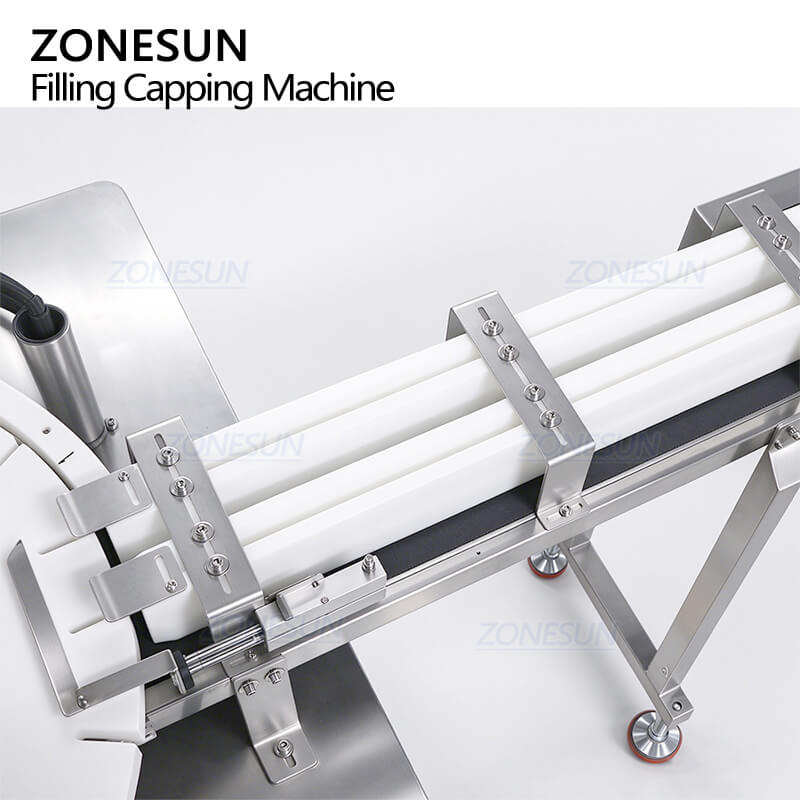

Product Outfeeding Structure
The outfeeding structure can deliver the finished products for collection or downstream handling.

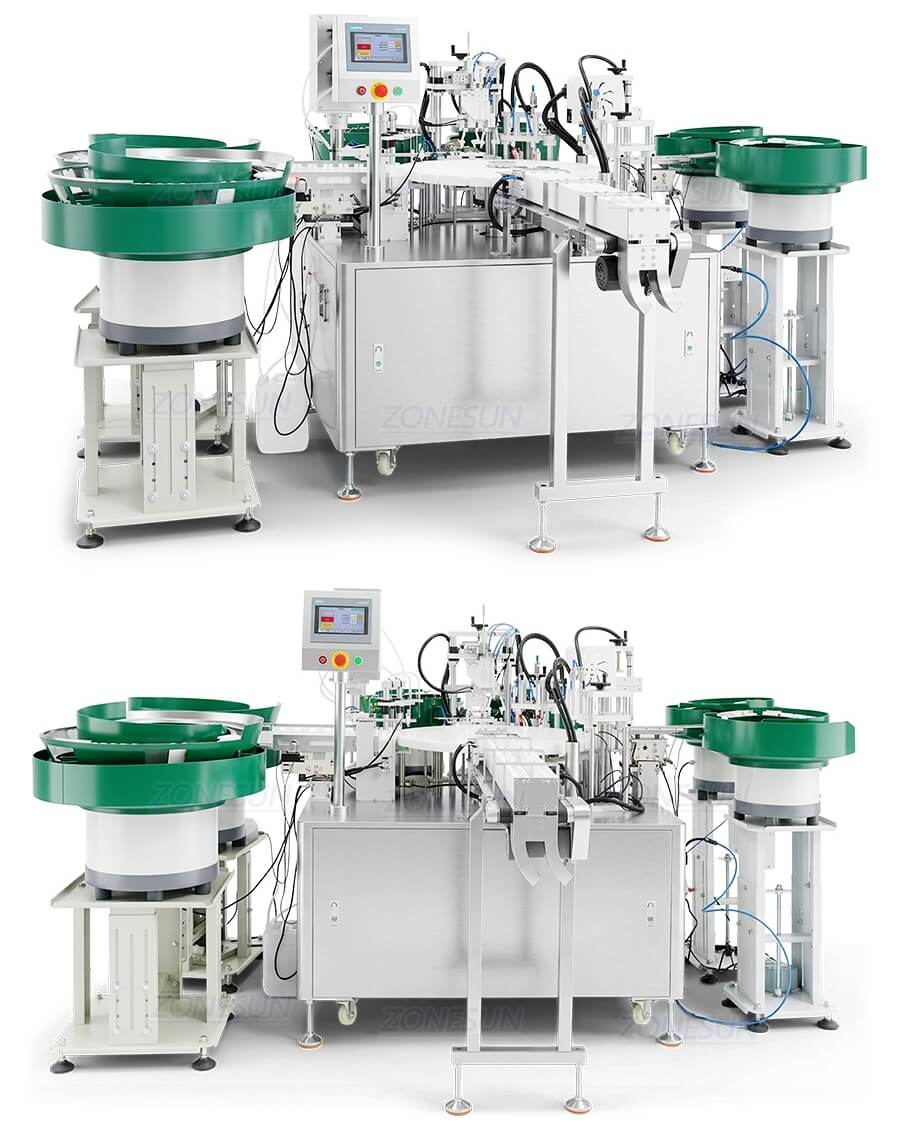

Product Real Shot
