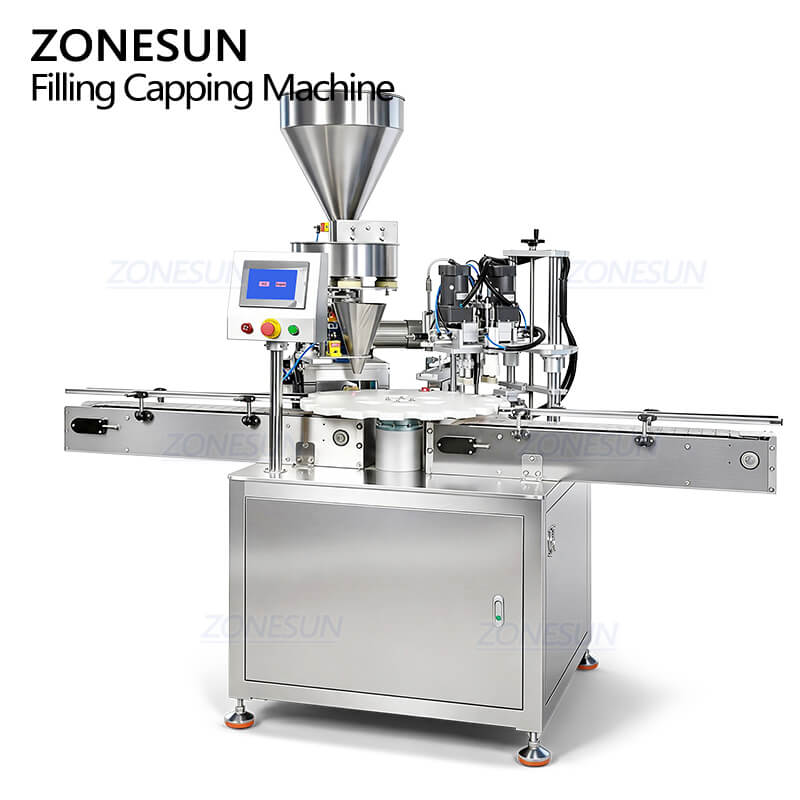

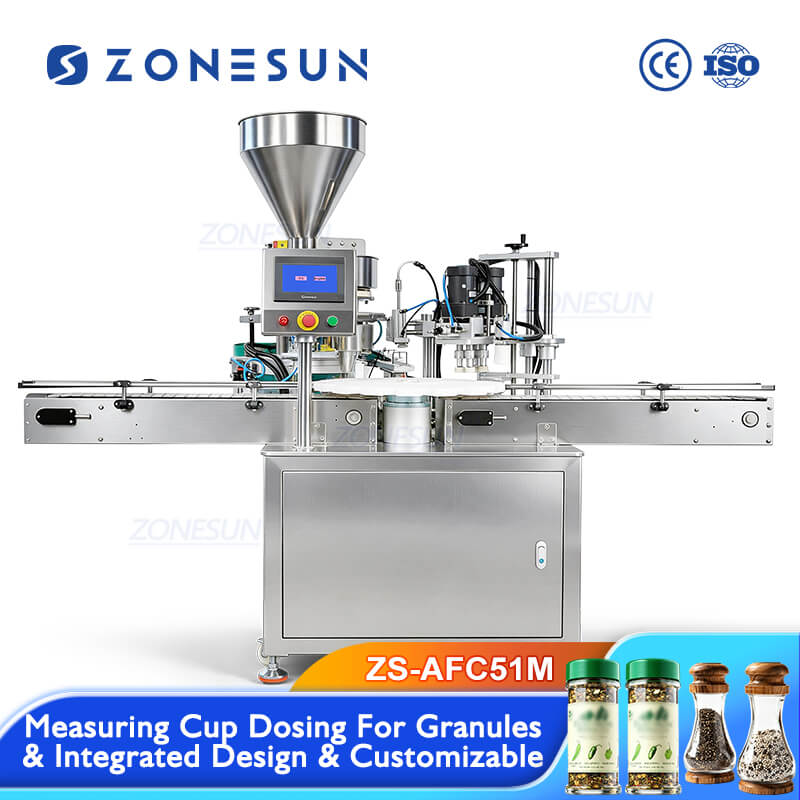

ZONESUN ZS-AFC51M Bottle Grain Filling Capping Machine

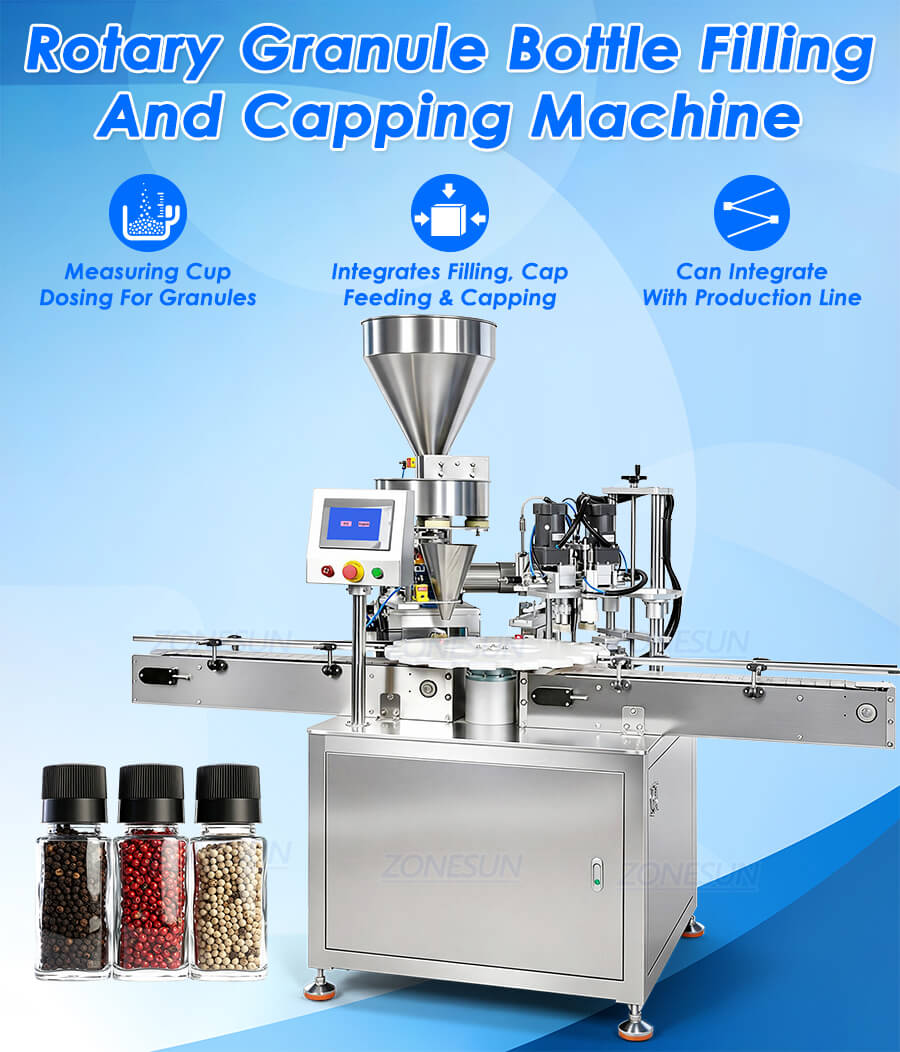

This rotary grain bottle filling and capping machine doses granules with a measuring cup and handles filling, cap feeding and capping on one rotary platform. Bottles index around the table through the filling and capping stations, so they are not moved between separate machines. It can also be linked into an existing production line.
Original price was: $12,999.00.$12,599.00Current price is: $12,599.00.
Share to
Product Description
This rotary grain bottle filling and capping machine doses granules with a measuring cup and handles filling, cap feeding and capping on one rotary platform. Bottles index around the table through the filling and capping stations, so they are not moved between separate machines. It can also be linked into an existing production line.
Product Applications
Product Parameter
| Machine Model | ZS-AFC51M |
| Power Supply | 110/220V 50-60Hz |
| Filling System | Measuring Cup |
| Filling Range | Customizable |
| Filling Accuracy | ±3g |
| Working Speed | About 20BPM |
| Suitable Bottle Diameter | 30-80mm(Customizable) |
| Suitable Cap Size | Customizable |
| Air Pressure | 0.5-0.8MPa |

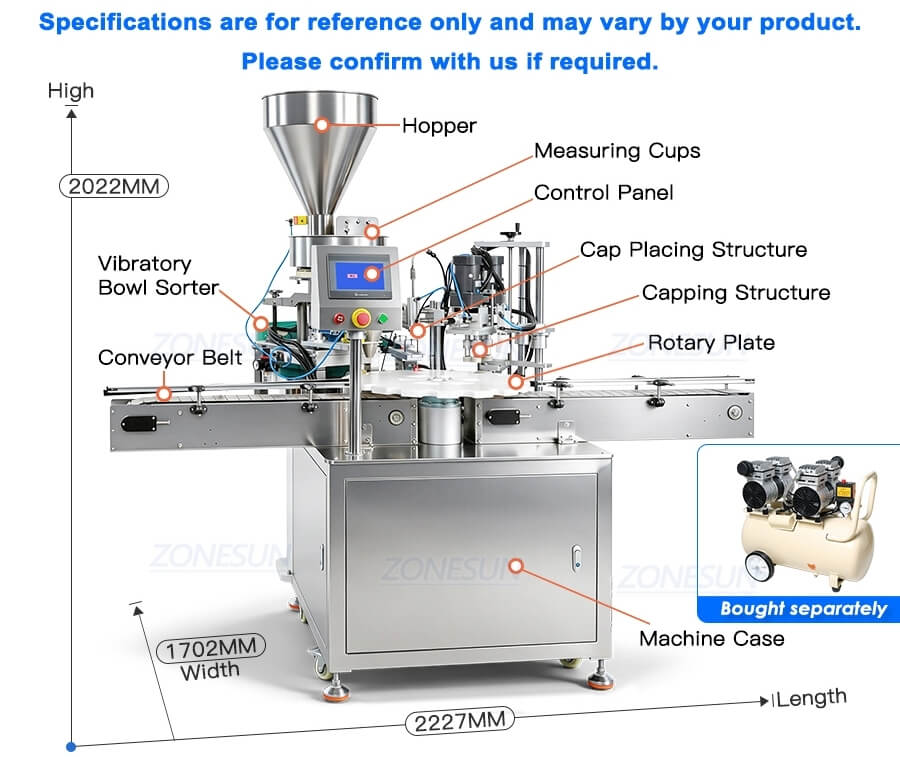

| Machine Dimensions | About 2227*1702*2022mm(L*W*H) |
| Package Size | About 2280*1080*1750mm |
| Package Weight | About 520kg |
Product Details

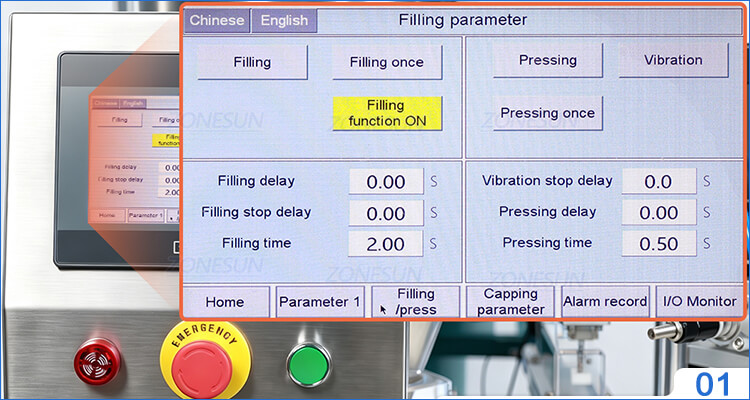

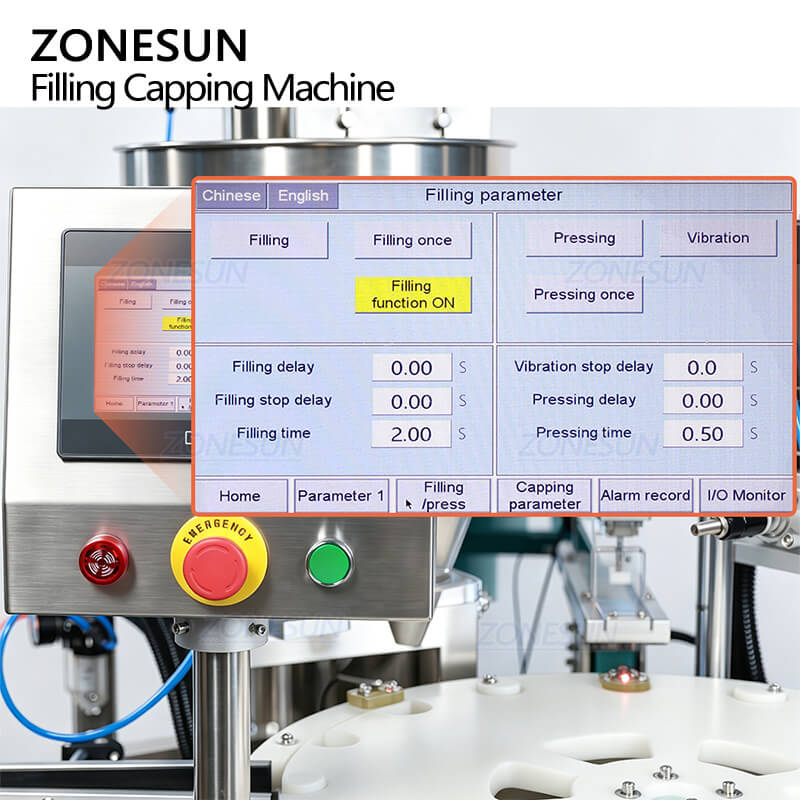

Touchscreen Control Panel
Allows users to adjust working parameters and monitor operating status.

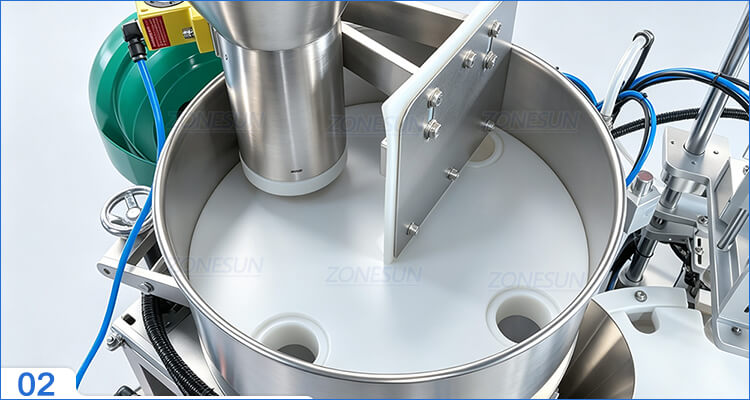

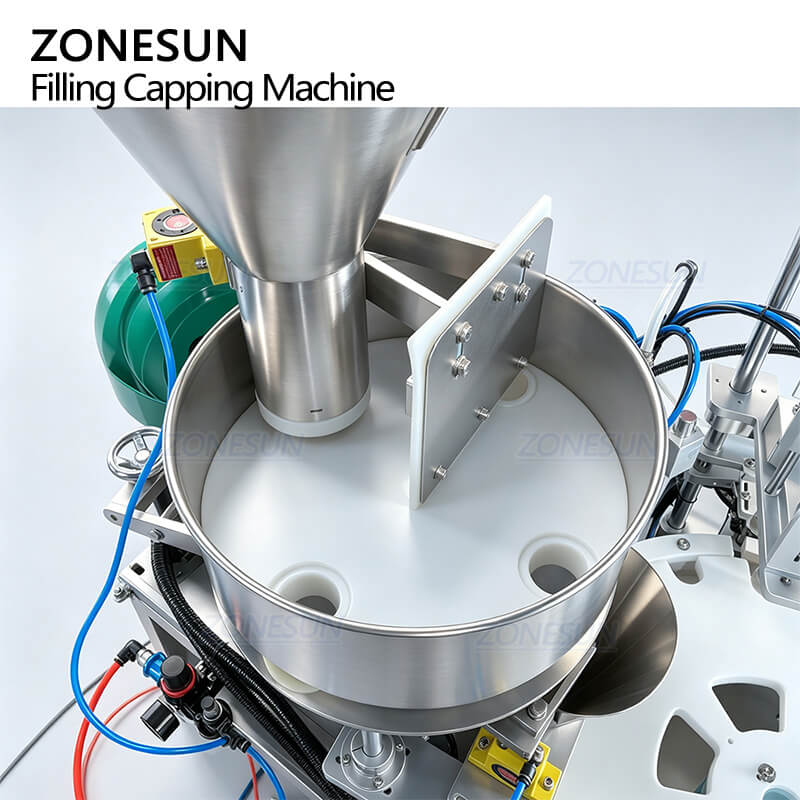

Measuring Cup Dosing System
Allows for quantitative filling of granules. Measuring cups are customizable according to filling volumes.

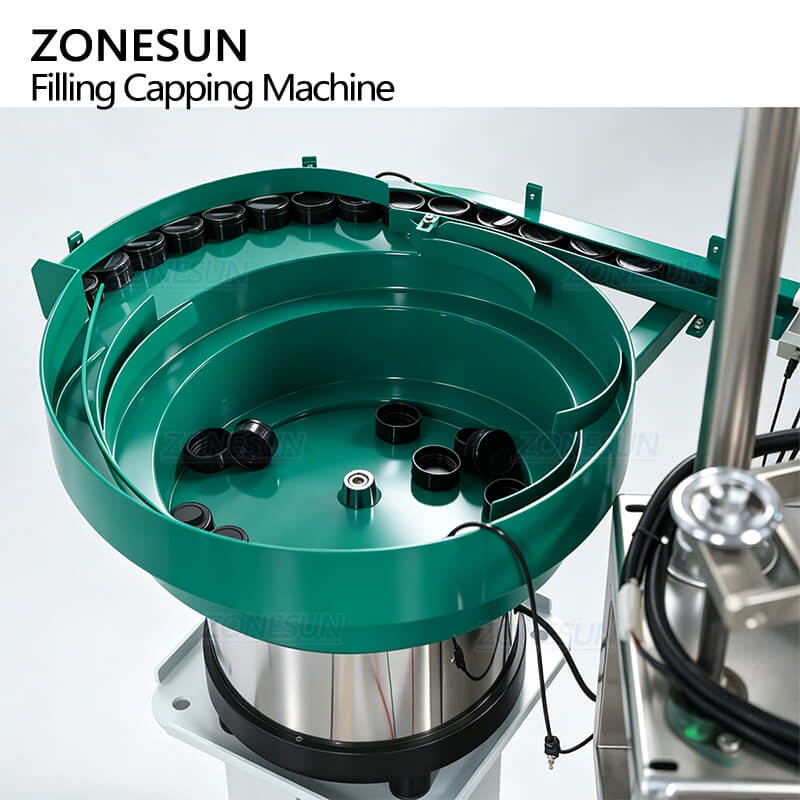

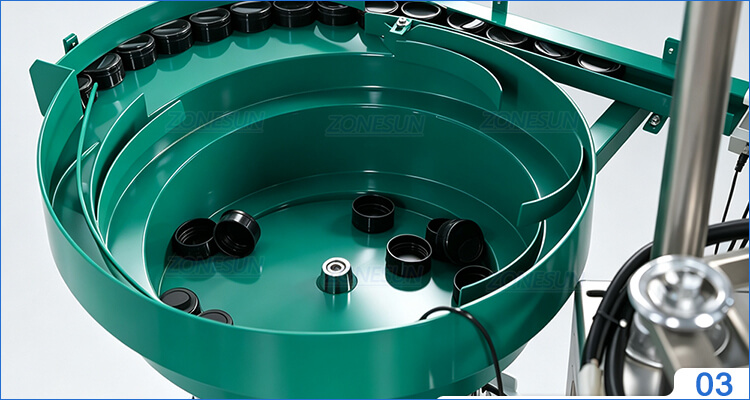

Vibratory Bowl Sorter
Automatically sorts and transfers the caps to ensure continuous cap placement.

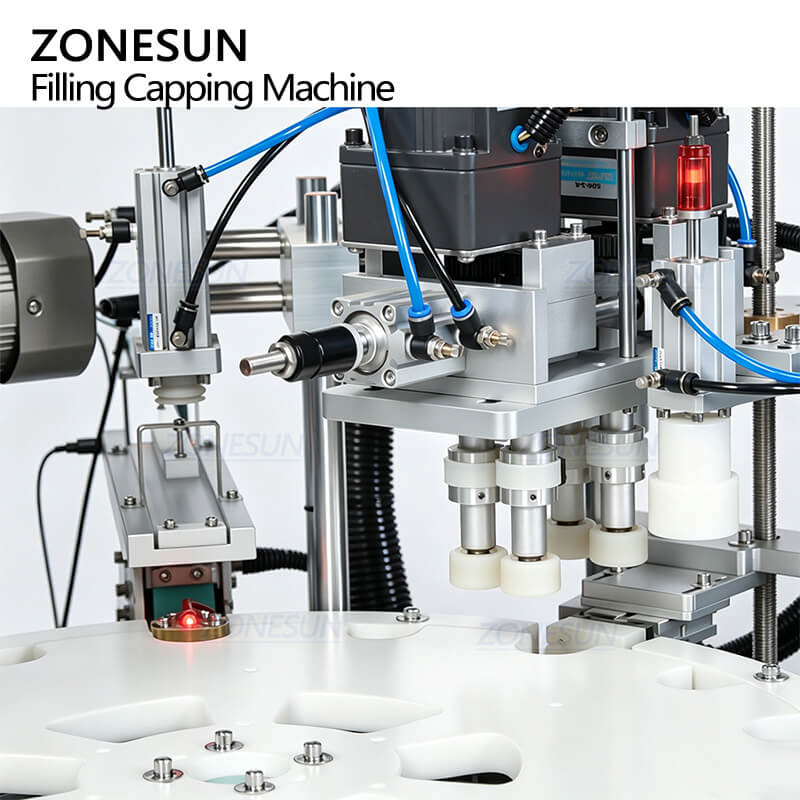

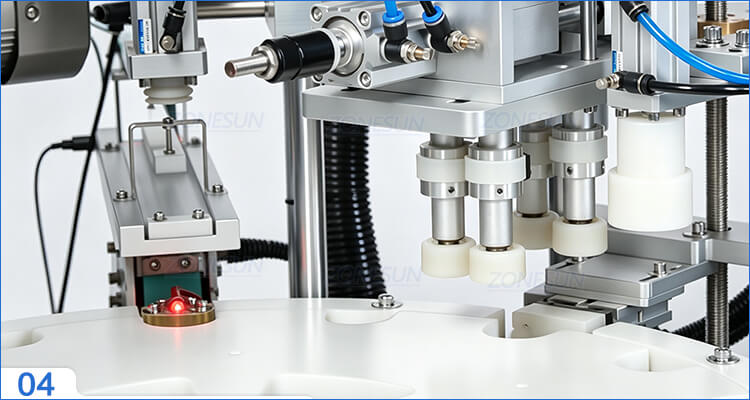

Cap Placing & Screwing Structure
Vacuum mechanism can pick and place caps onto bottles before capping head tightens the caps.

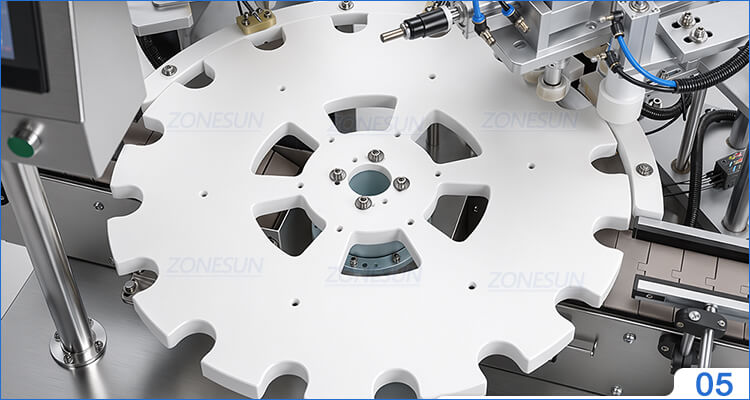

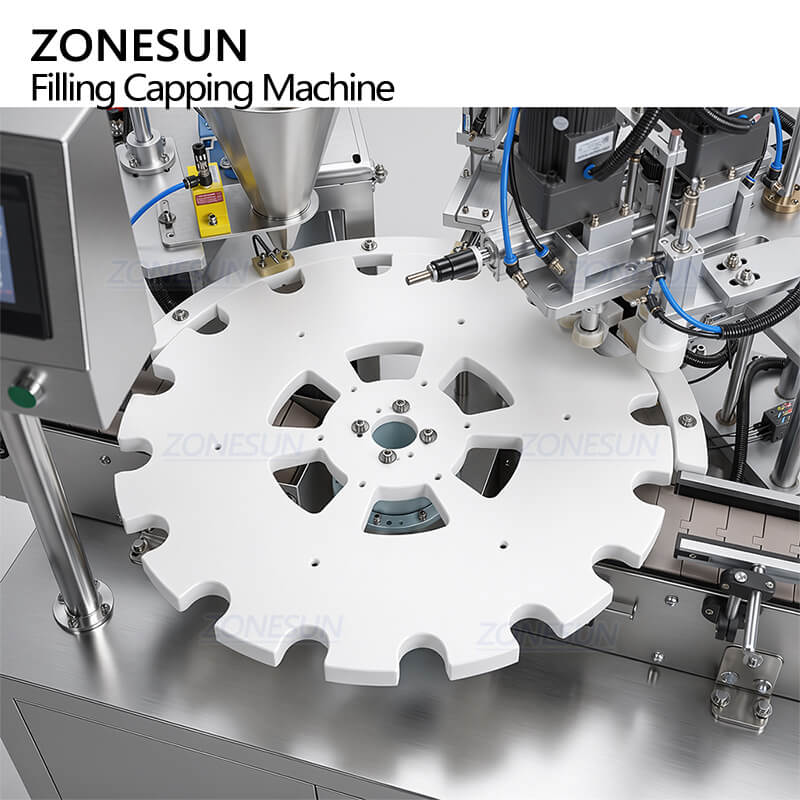

Starwheel Mechanism
Starwheel can accurately transfer and position the bottles during production. It is customizable according to bottle size.

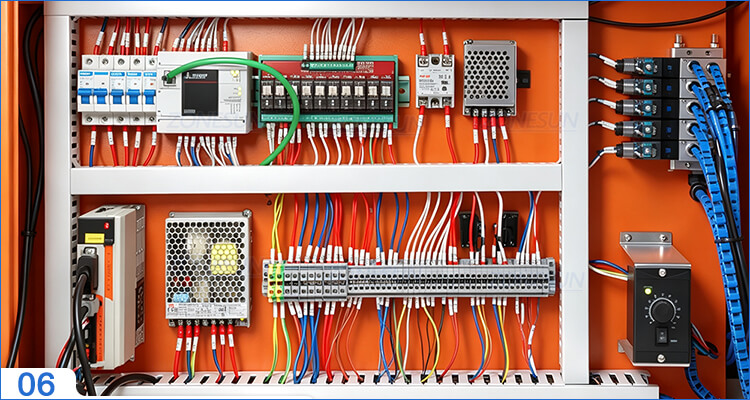

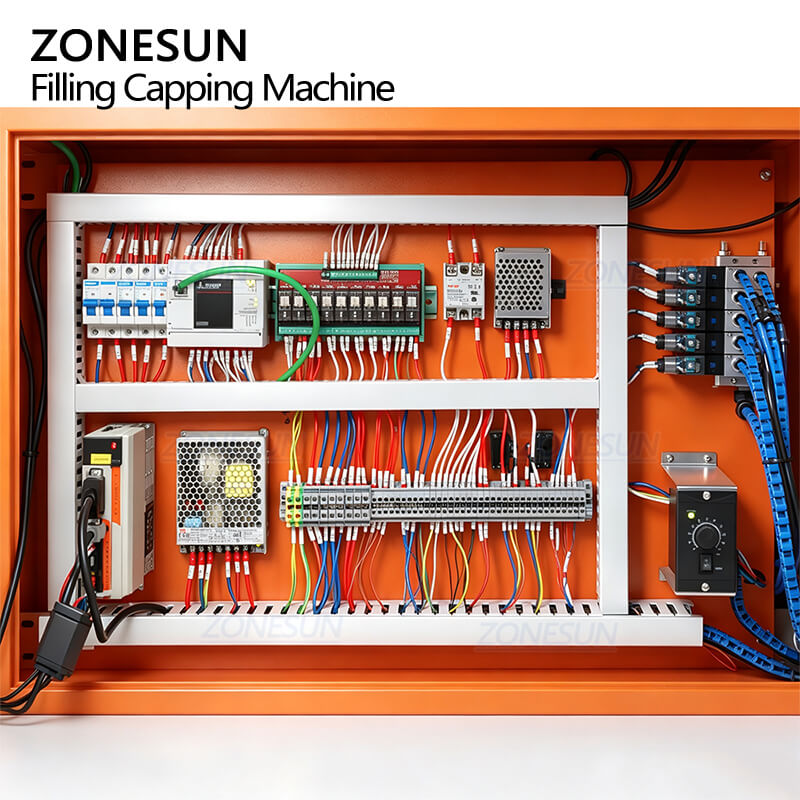

Electrical Control Box
Electrical components are arranged neatly to ensure stable operation and easy maintenance.

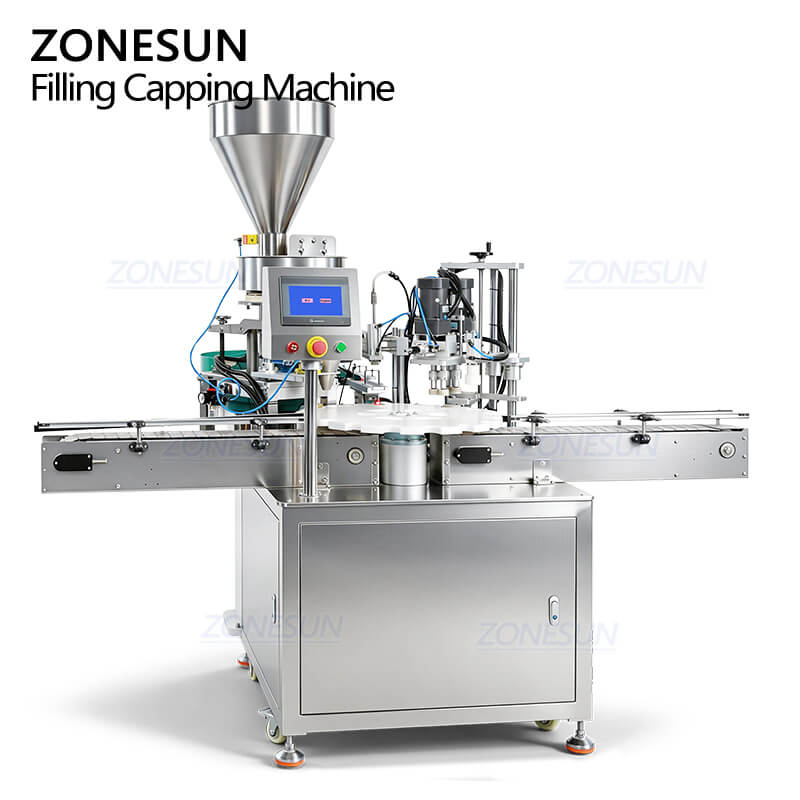

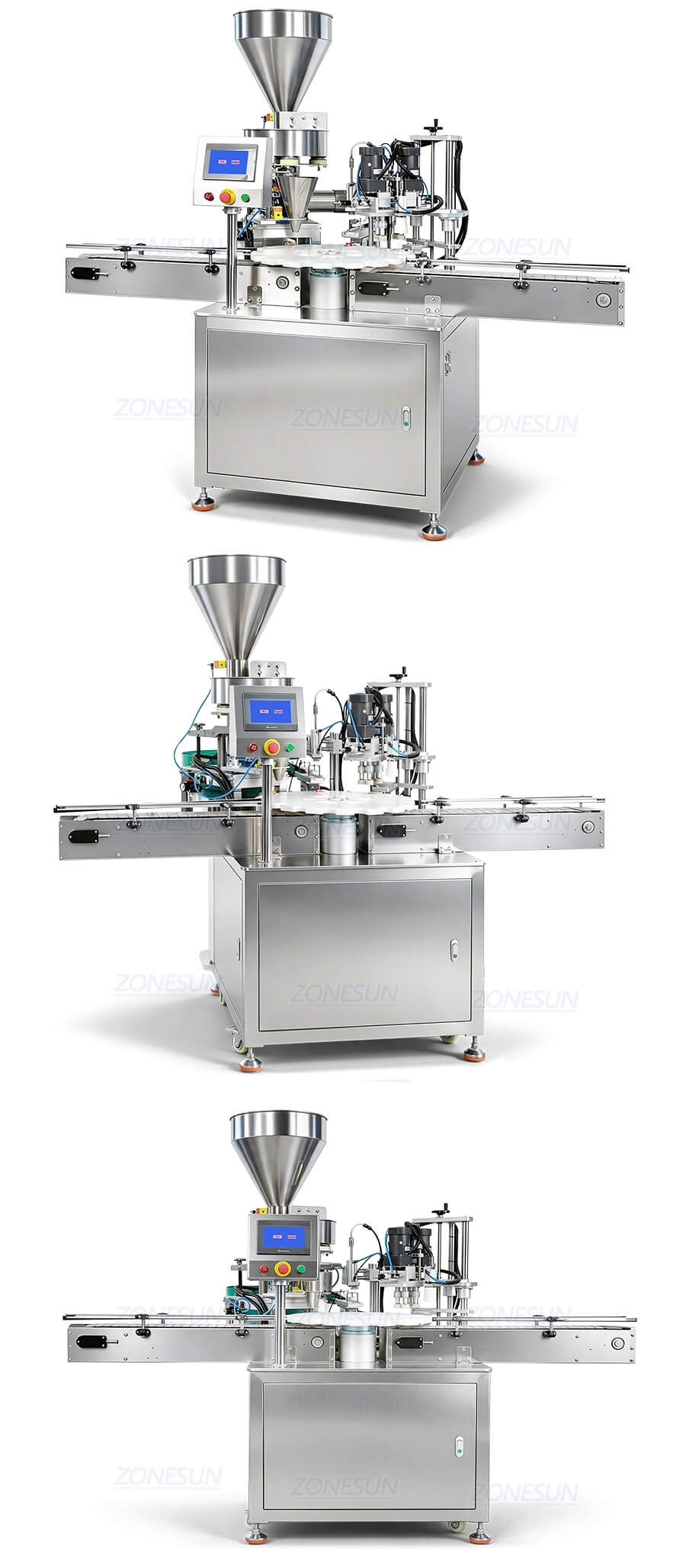

Product Real Shot
