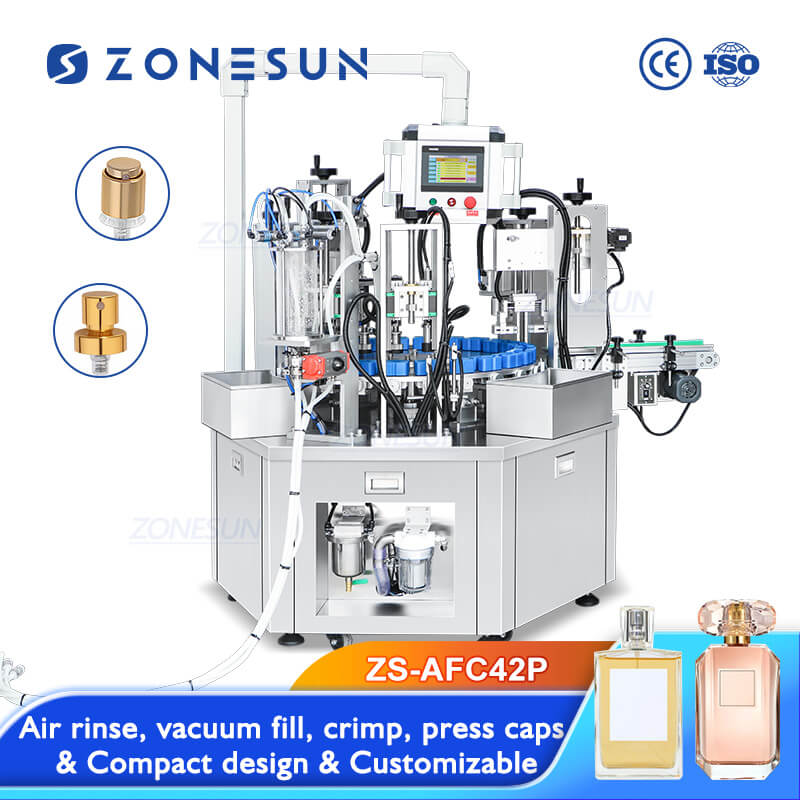

ZONESUN ZS-AFC42P Perfume Filling Capping Machine

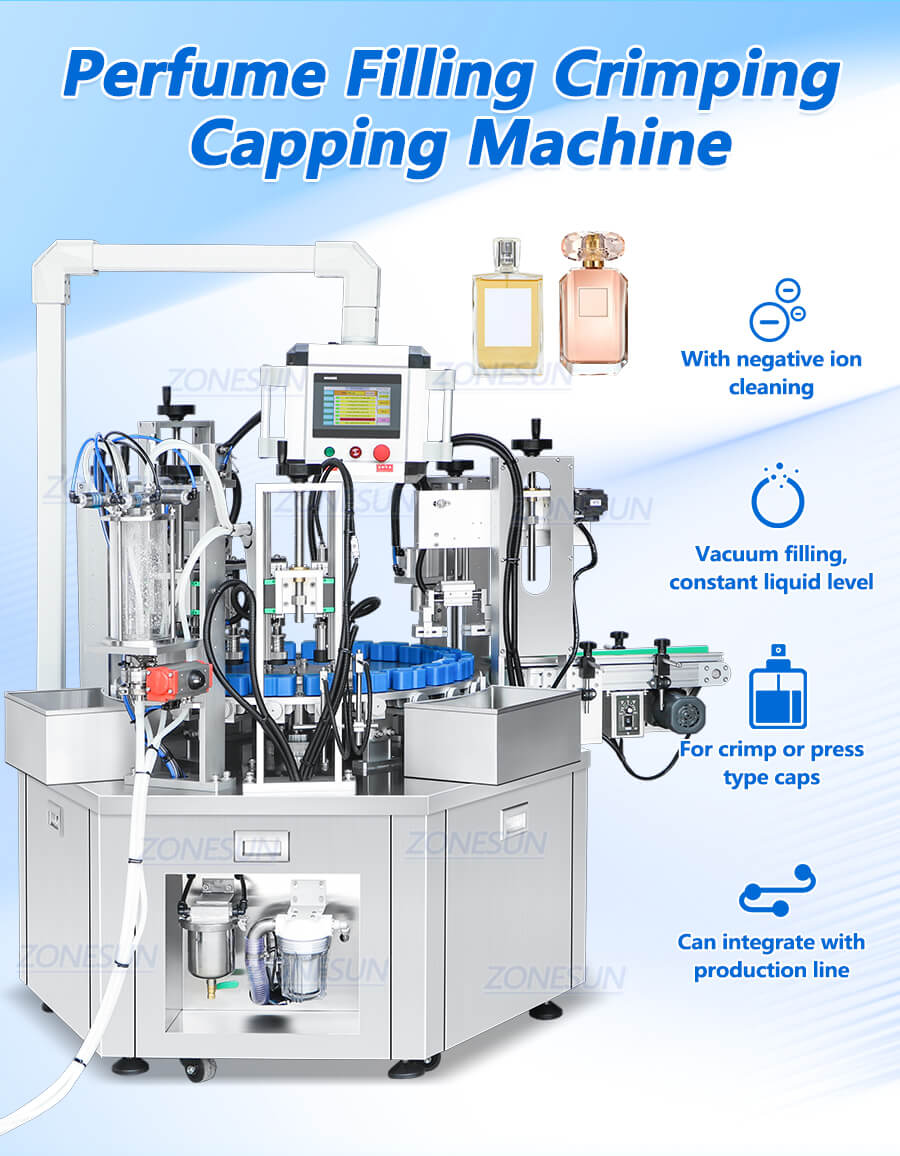

Perfume filling capping machine featuring negative ion cleaning for ultimate hygiene and vacuum filling for perfectly consistent liquid levels, it ensures a premium look for every bottle. Versatile and efficient, it handles both crimp and press caps and easily integrates into production lines. Elevate your manufacturing precision and efficiency.
Original price was: $26,799.00.$25,999.00Current price is: $25,999.00.
Share to
Product Description
Perfume filling capping machine featuring negative ion cleaning for ultimate hygiene and vacuum filling for perfectly consistent liquid levels, it ensures a premium look for every bottle. Versatile and efficient, it handles both crimp and press caps and easily integrates into production lines. Elevate your manufacturing precision and efficiency.
Product Applications

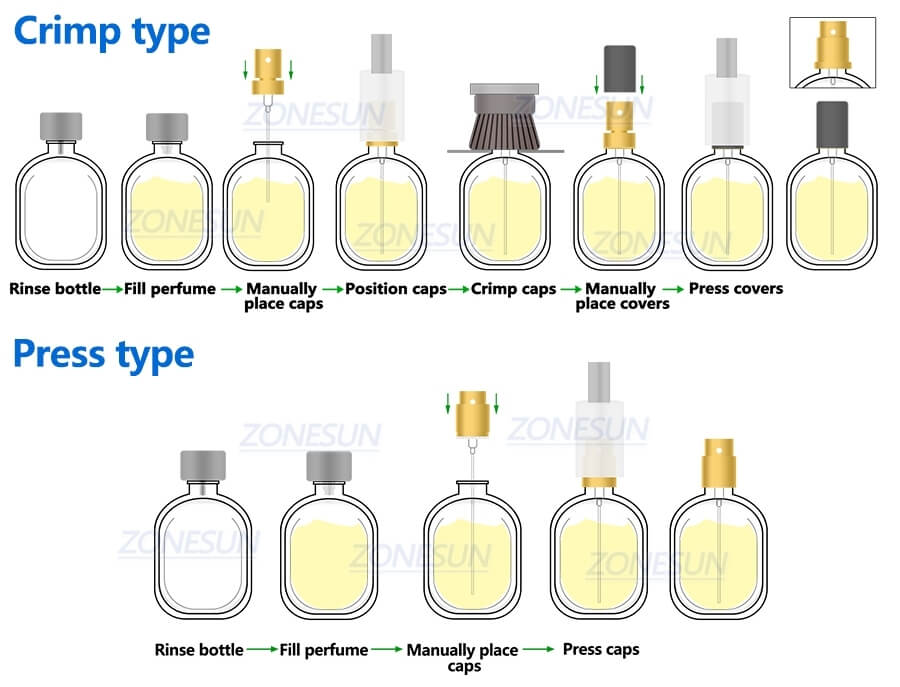

Product Production Process
Product Parameter
| Machine model | ZS-AFC42P |
| Power supply | 220V 50-60HZ 1.5kW |
| Filling system | Vacuum filling |
| Working speed | About 20-30BPM(depending on filling range) |
| Filling range | 3-100ml(Customizable) |
| Filling accuracy | ≤±1% |
| Bottle diameter | Φ12-65mm (Customizable) |
| Cap size | Customizable |
| Air pressure | 0.5-0.8MPa |
| Machine body | 304 stainless steel |

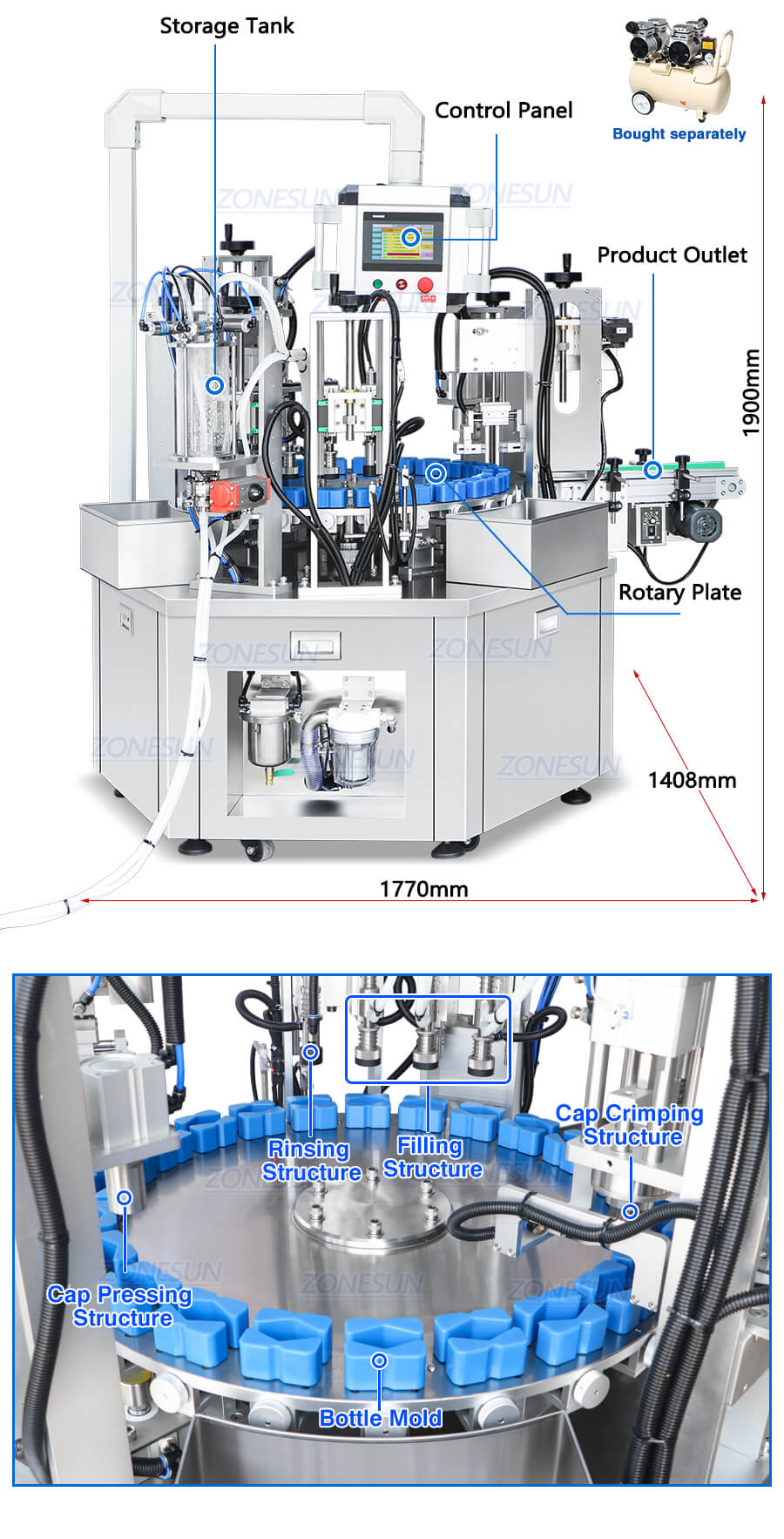

| Machine size | About 1770*1408*1900mm(L*W*H) |
| Package size | About 1900*1490*2030mm(L*W*H) |
| Package weight | About 712kg |
| *Specifications are for reference only and may vary by your product. Please confirm with us if required. | |
Product Details

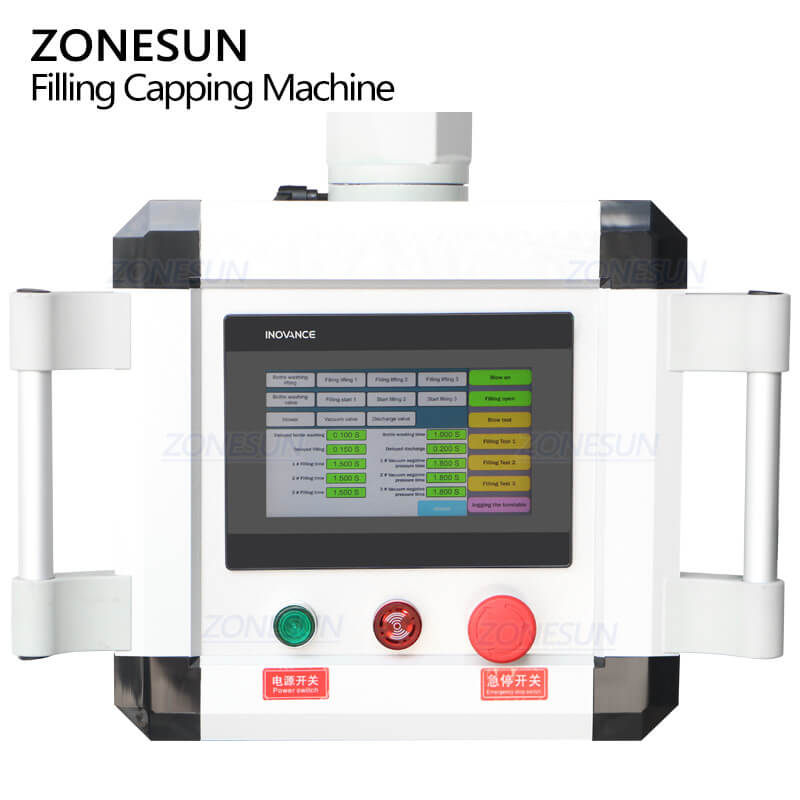

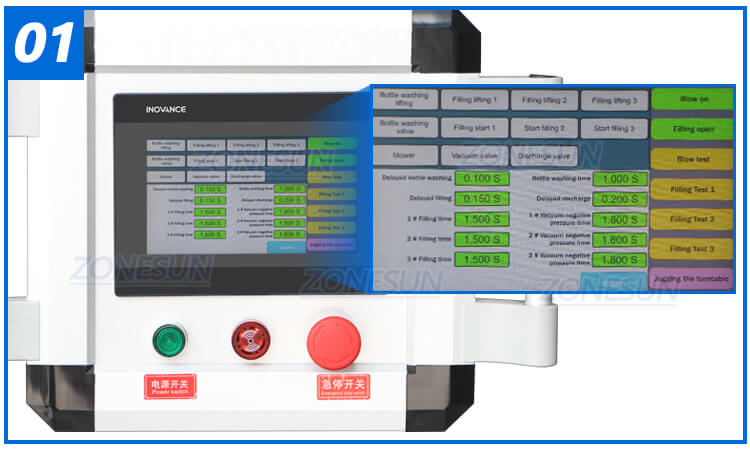

Touchscreen Control Panel
Allows for easy control and parameter adjustment. Multiple languages are customizable.

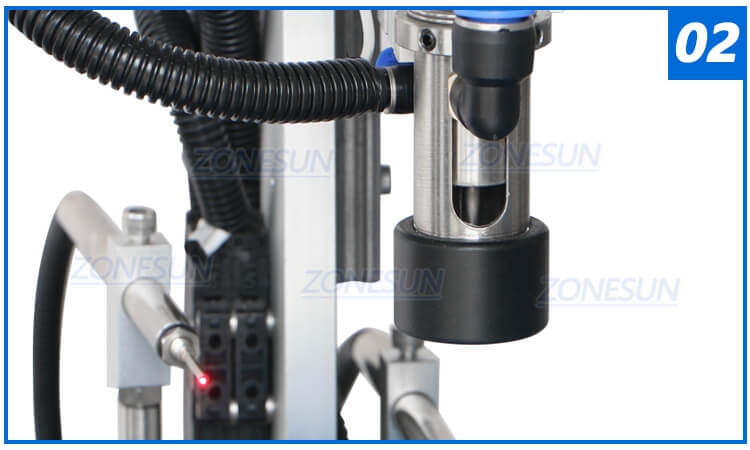

Rinsing Structure
Uses negative ion air to clean internal bottles, ensuring production cleanliness.

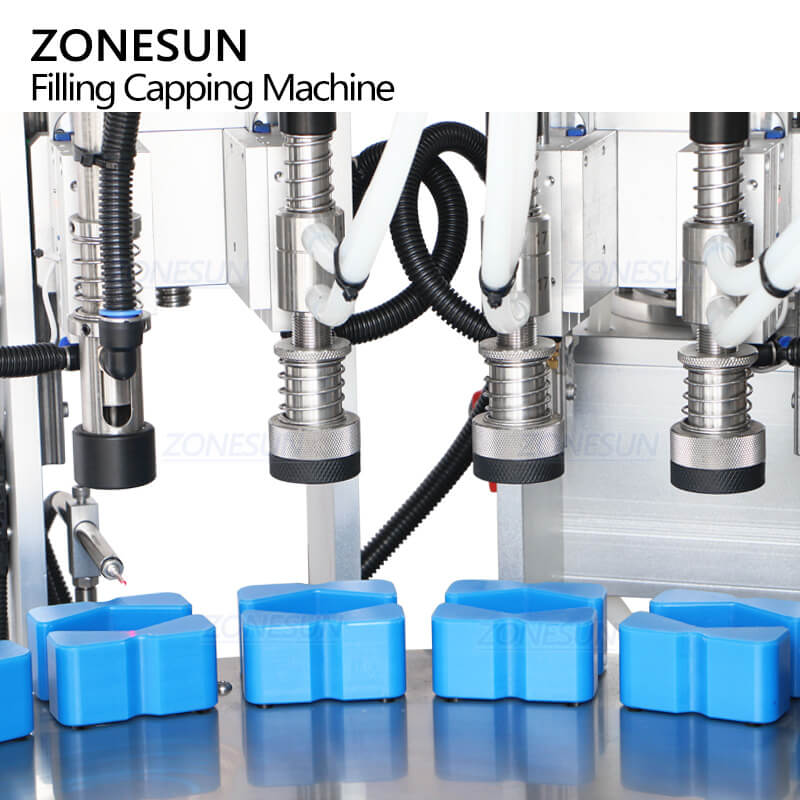

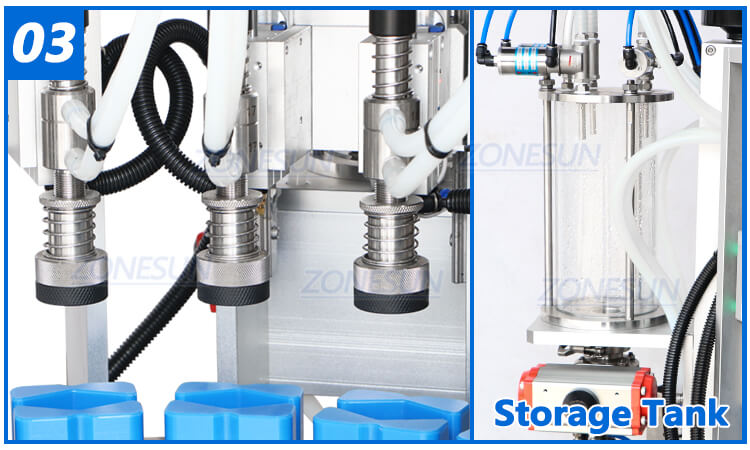

Vacuum Filling Structure
Extra liquids will flow back to the tank to ensure constant liquid level.

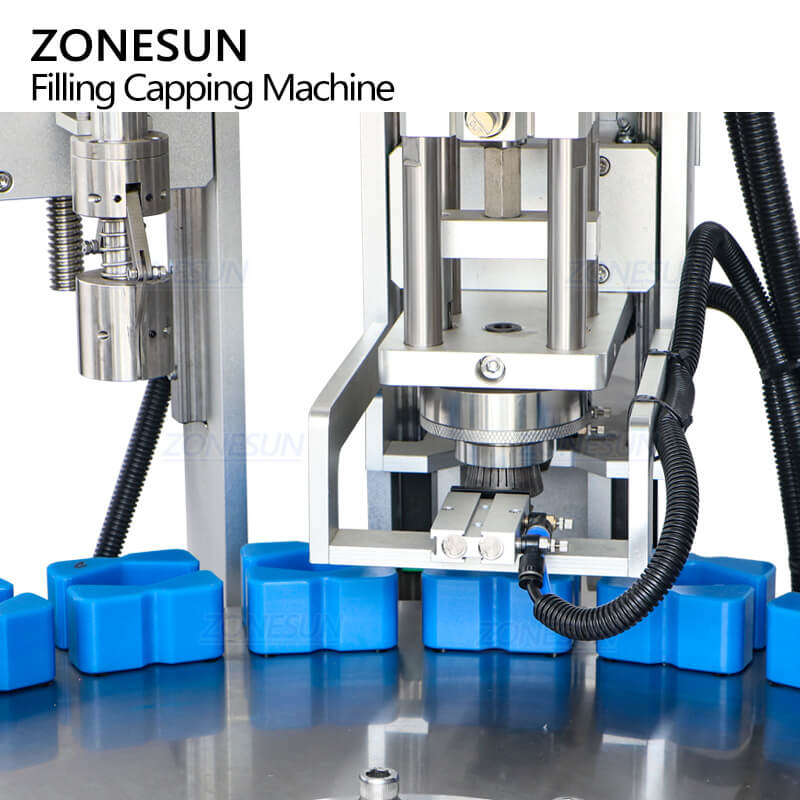

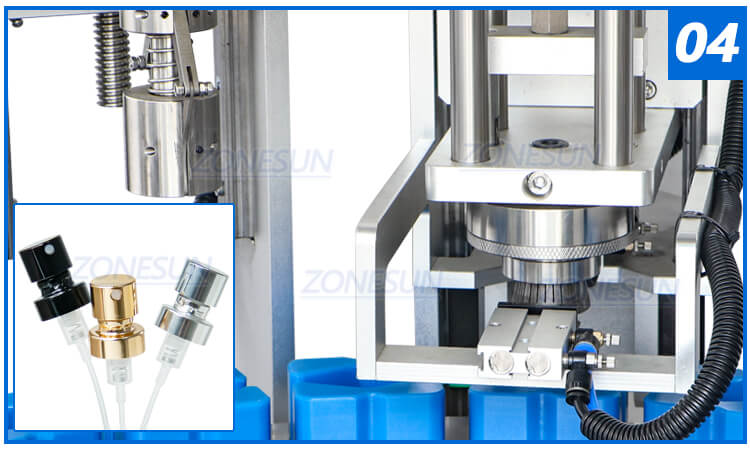

Cap Positioning & Crimping
Positions the caps before crimping, ensuring accuracy. Crimping mold size is customizable.

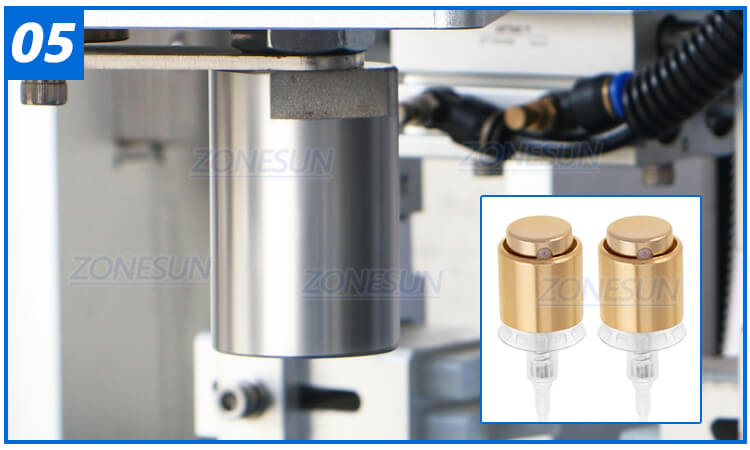

Cap Pressing Structure
Suitable for press-type perfume caps or collar rings.

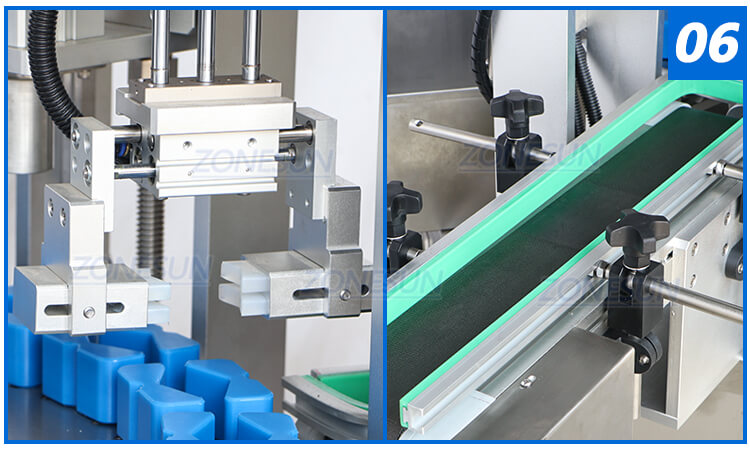

Product Outlet
Gripper can pick and place bottles onto outlet conveyor, convenient for downstream production.

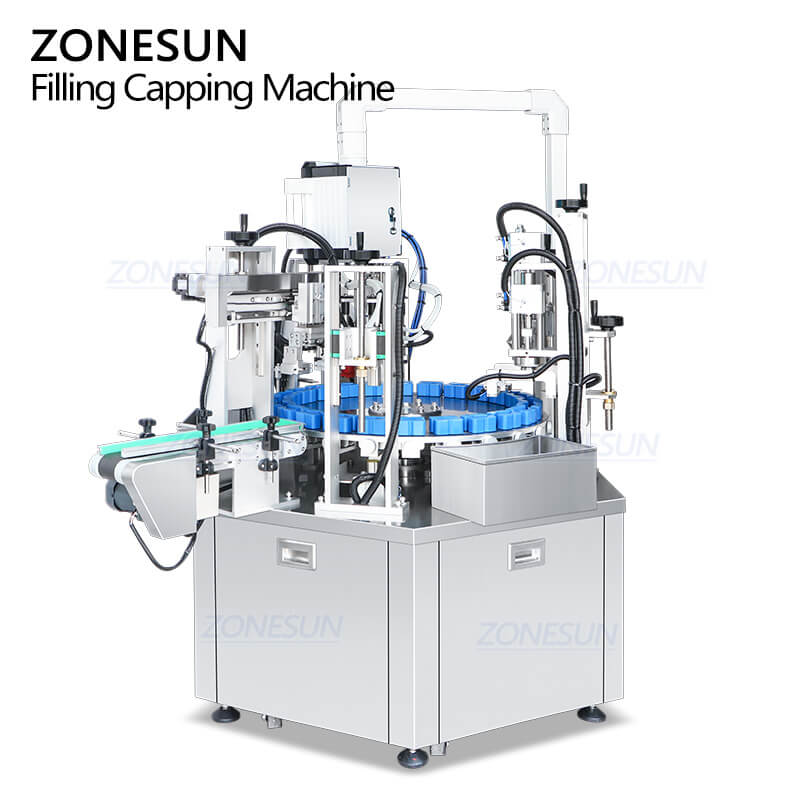

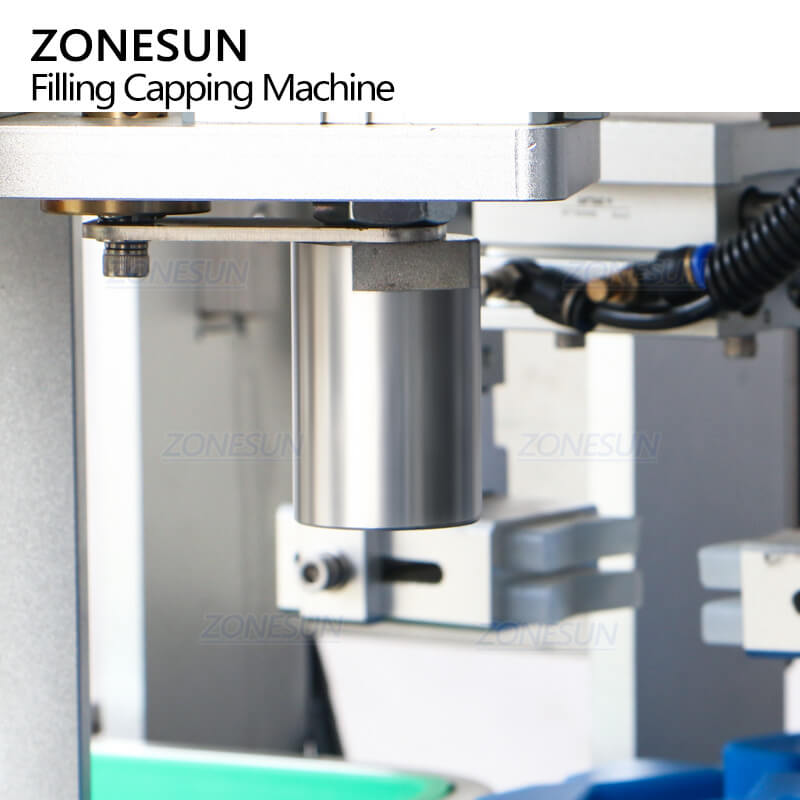

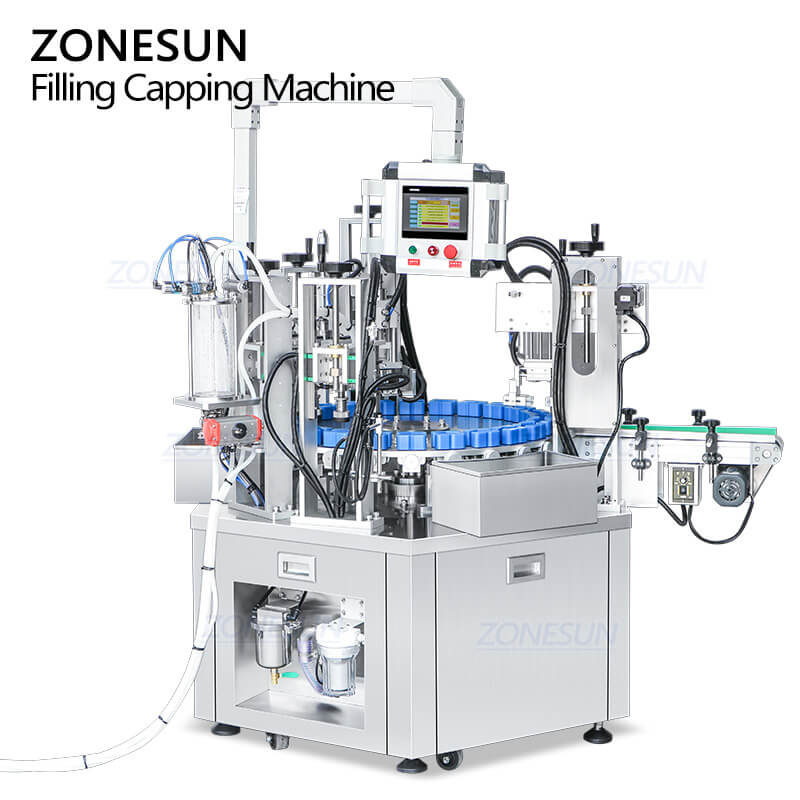

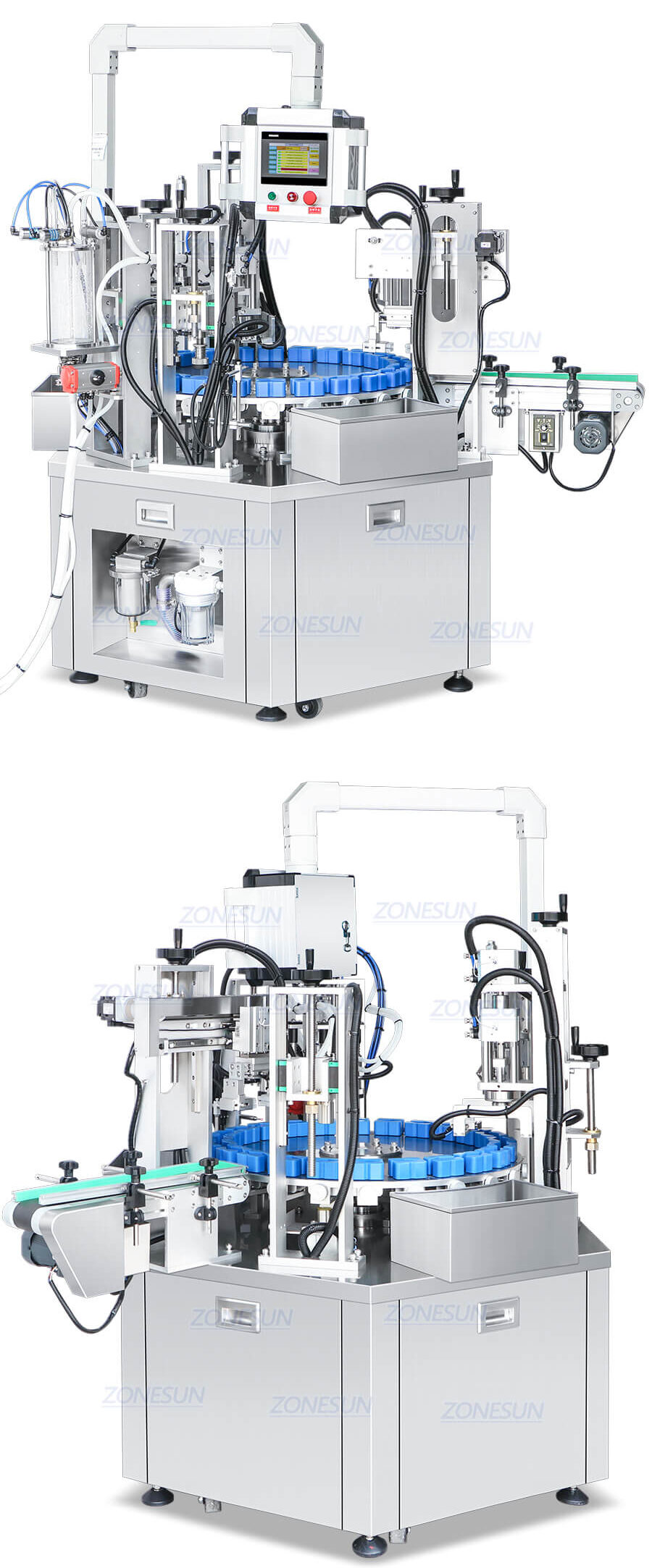

Product Real Shot
