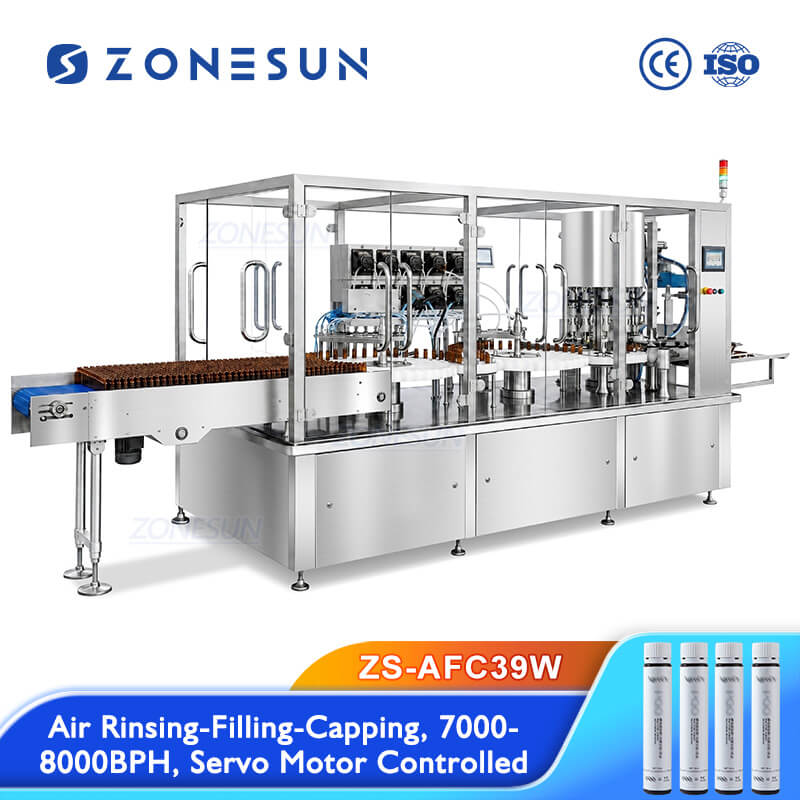

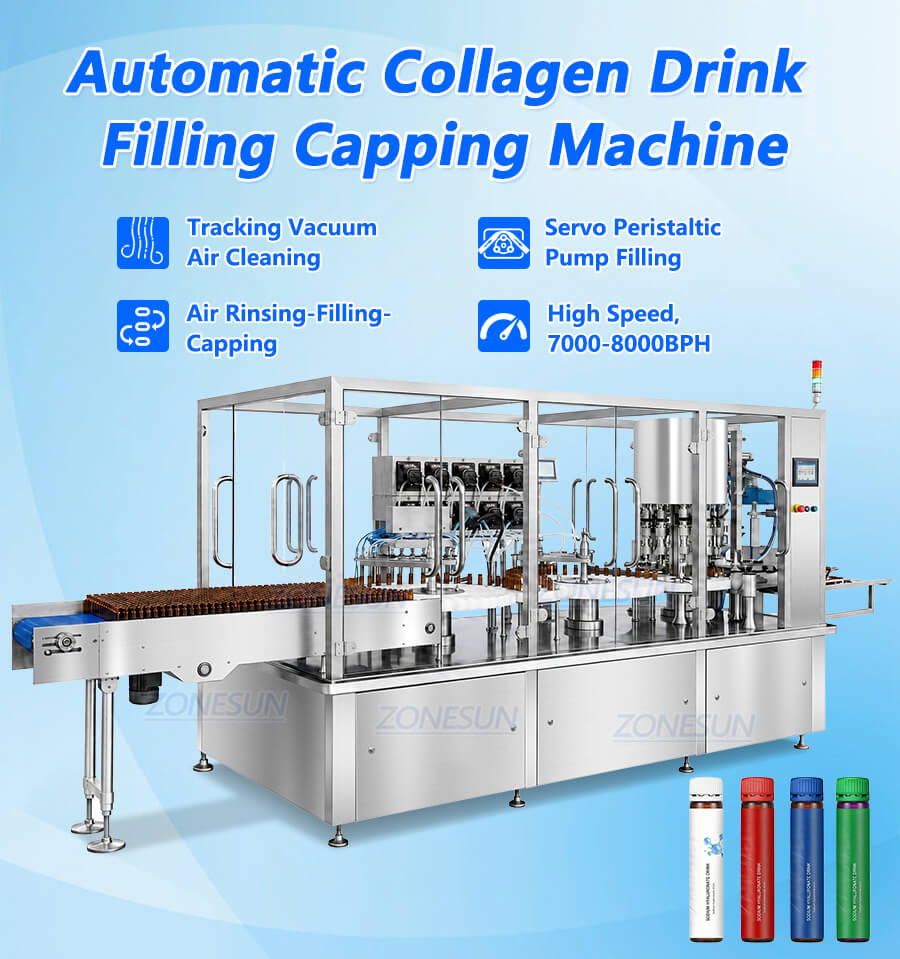

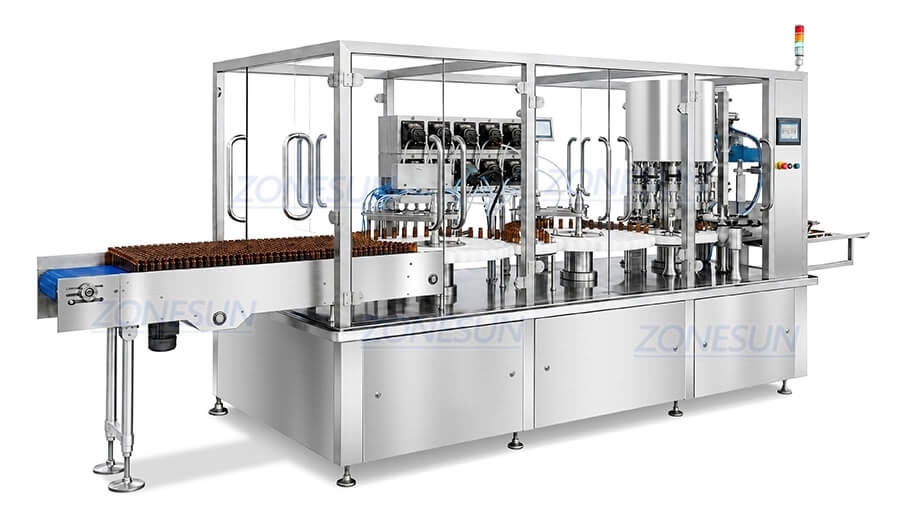

ZONESUN ZS-AFC39W Small Bottle Liquid Filling Capping Machine
This small bottle liquid filling capping machine runs air rinsing, filling and capping in one frame, so small bottles pass through a single unit instead of three stations. Tracking vacuum air cleaning removes dust from each bottle before filling, and a servo peristaltic pump doses the liquid. Output runs at high speed, 7000-8000BPH, which suits collagen drinks and similar small bottle beverages.
Original price was: $49,999.00.$48,499.00Current price is: $48,499.00.
Share to
Product Description
This small bottle liquid filling capping machine runs air rinsing, filling and capping in one frame, so small bottles pass through a single unit instead of three stations. Tracking vacuum air cleaning removes dust from each bottle before filling, and a servo peristaltic pump doses the liquid. Output runs at high speed, 7000-8000BPH, which suits collagen drinks and similar small bottle beverages.
Product Applications

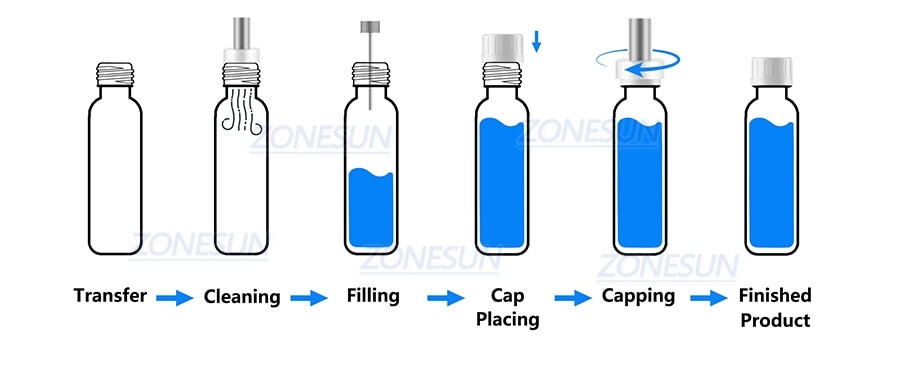

Product Production Process
Product Parameter
| Machine Model | ZS-AFC39W |
| Total Power | 3 kW |
| Power Supply | 380V, 50Hz, 3-Phase 4-Wire |
| Production Capacity | 7,000–8,000 bottles/hour |
| Bottle Cleaning Method | Tracking Air Rinsing |
| Bottle Cleaning Stations | 10 stations |
| Filling Volume | 30 mL (single specification) |
| Filling Temperature | 0–60°C |
| Filling Stations | 10 stations |
| Filling Method | Peristaltic Pump, Tracking Filling, Volumetric Filling |
| Filling Accuracy | ≤ ±1% |
| Capping Stations | 8 stations |
| Capping Qualification Rate | ≥99.8% |
| Clean Compressed Air Pressure | 0.25–0.35 MPa |
| Clean Compressed Air Consumption | 30 m³/h |

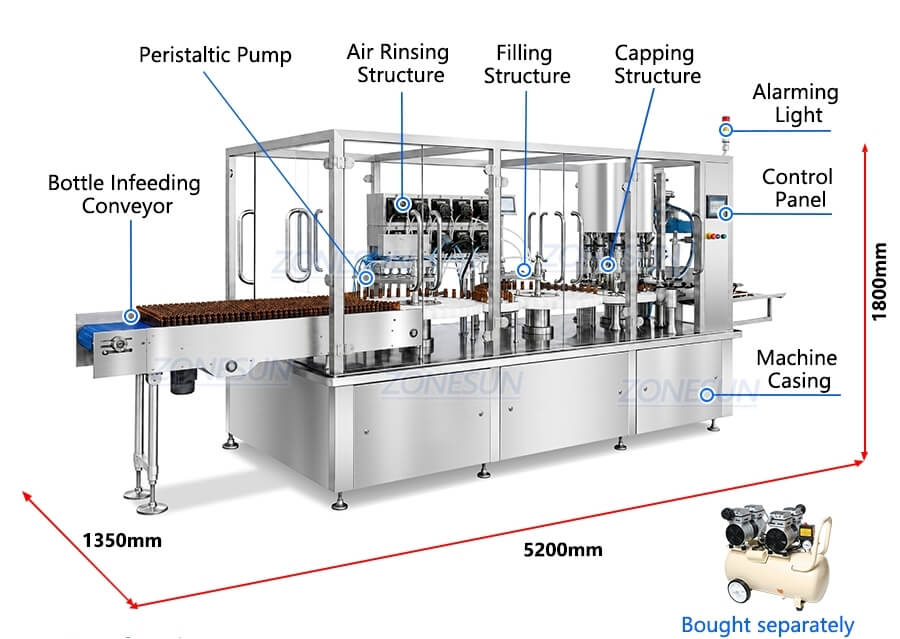

| Machine Size | About 5200*1350*1800 mm |
| *Specifications are for reference only and may vary by your product. Please confirm with us if required. | |
Product Details

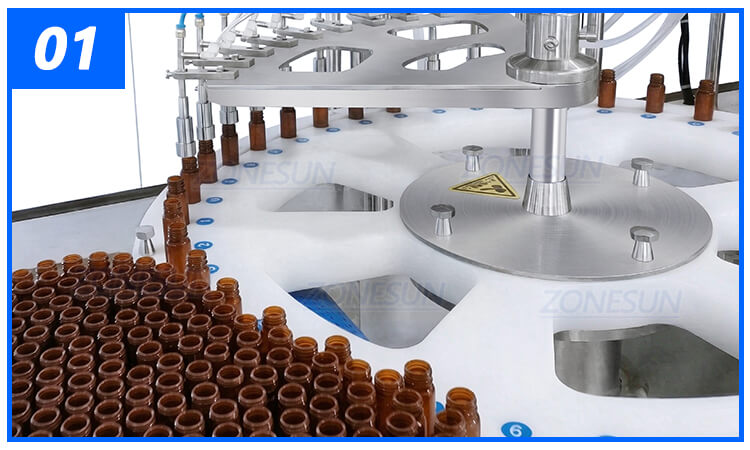

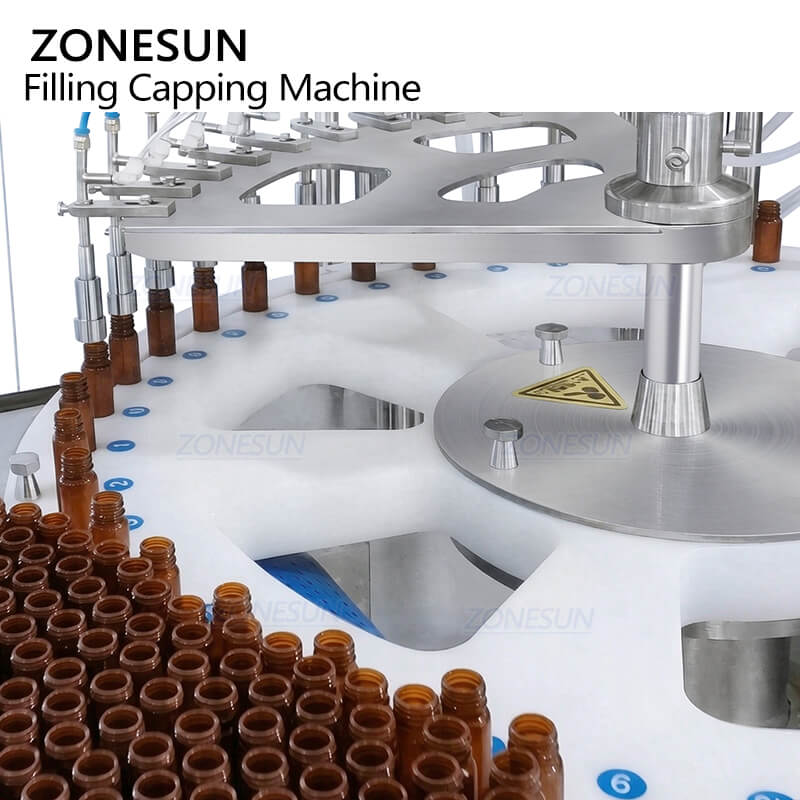

Vacuum Air Cleaning System
Ten tracking cleaning heads use vacuum air cleaning to remove dust and small particles inside bottles before filling.

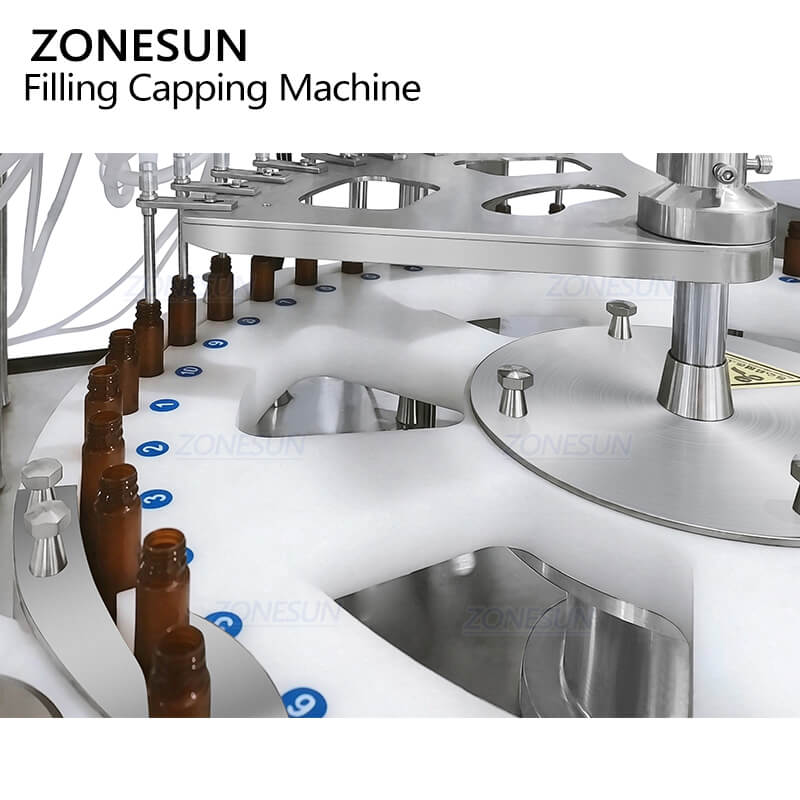

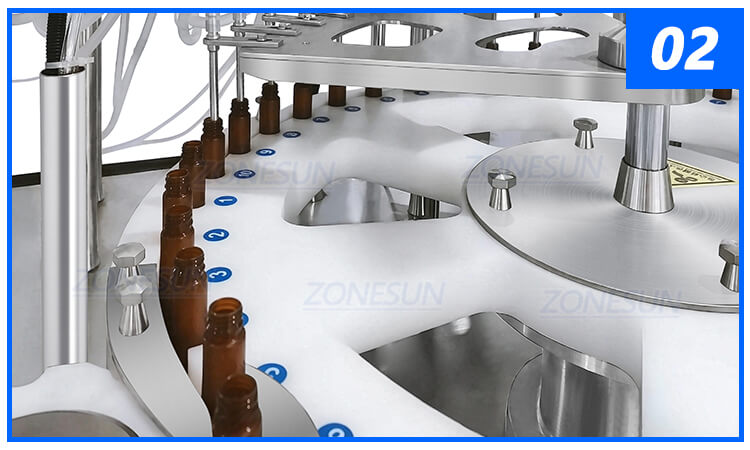

10-Head Filling System
The servo-controlled filling system can use peristaltic pumps with disposable tubing, making tube replacement easier and reducing product contact with internal pump parts.

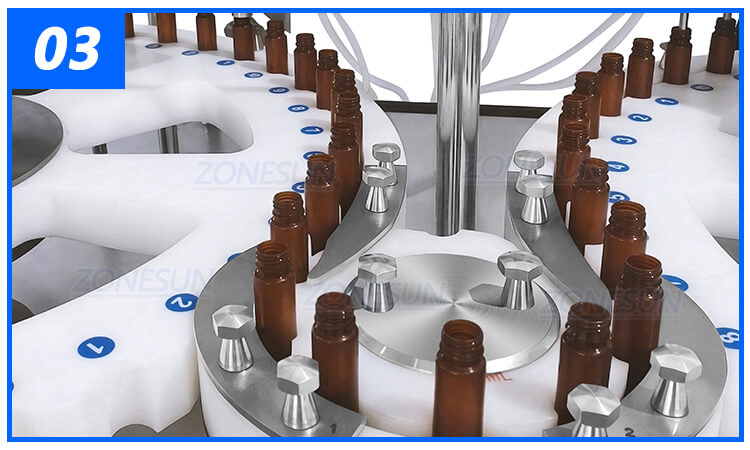

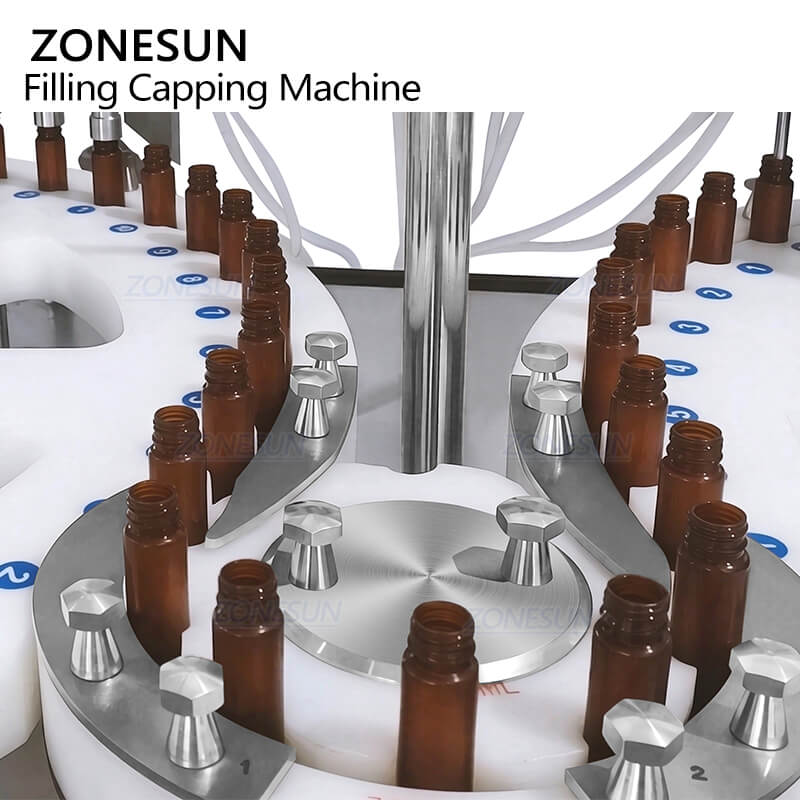

Bottle Guide Star Wheel
The customized star wheel positions and transfers bottles between working stations, helping maintain stable bottle movement during high-speed production.

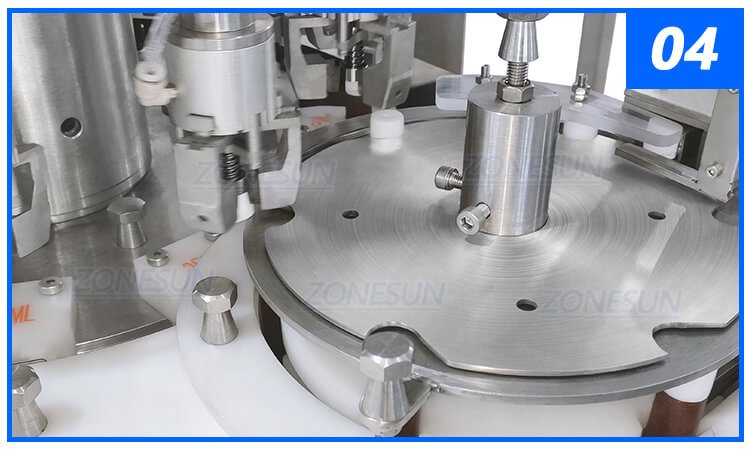

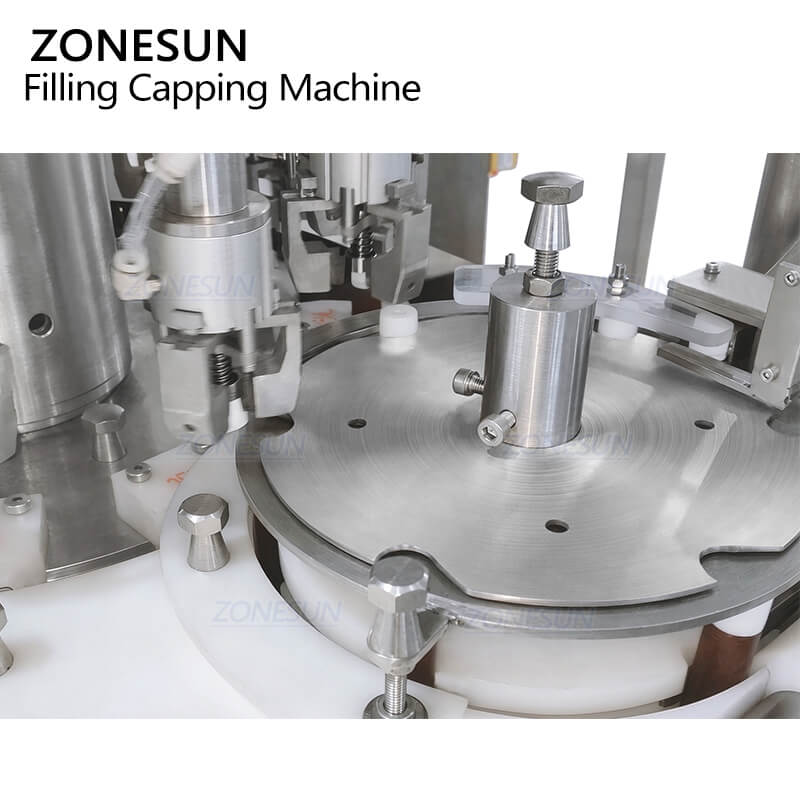

Rotary Capping System
Eight rotary magnetic three-jaw capping heads grip and tighten caps continuously, providing stable capping performance at higher production speeds.
Finished Bottle Collection Tray
Finished bottles are transferred to the collection tray after capping, making bottle collection and connection with the next packaging process easier.
Product Real Shot
