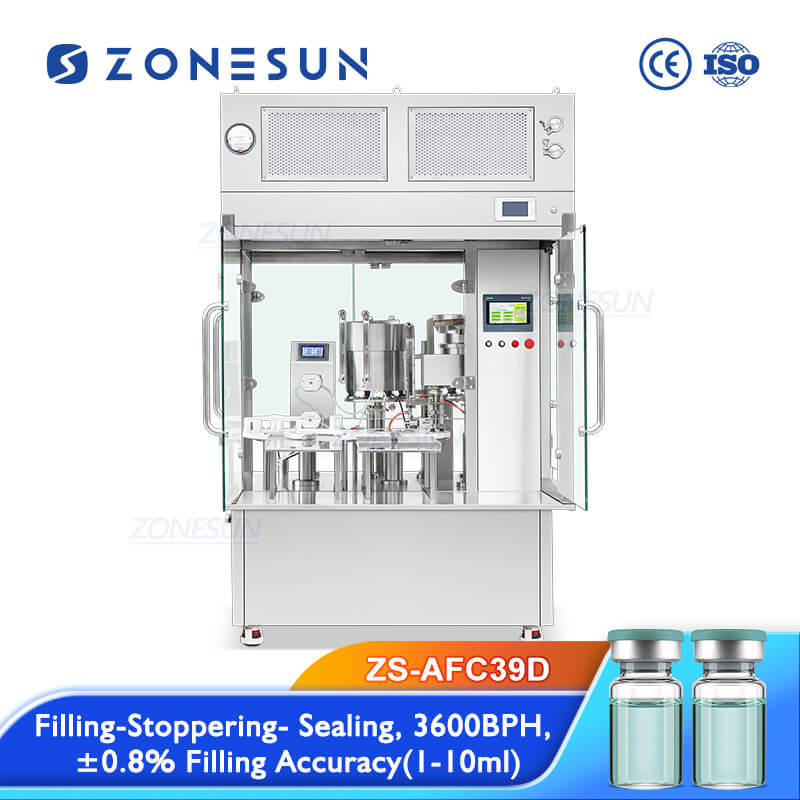

ZONESUN ZS-AFC39D Liquid Vial Filling Capping Machine

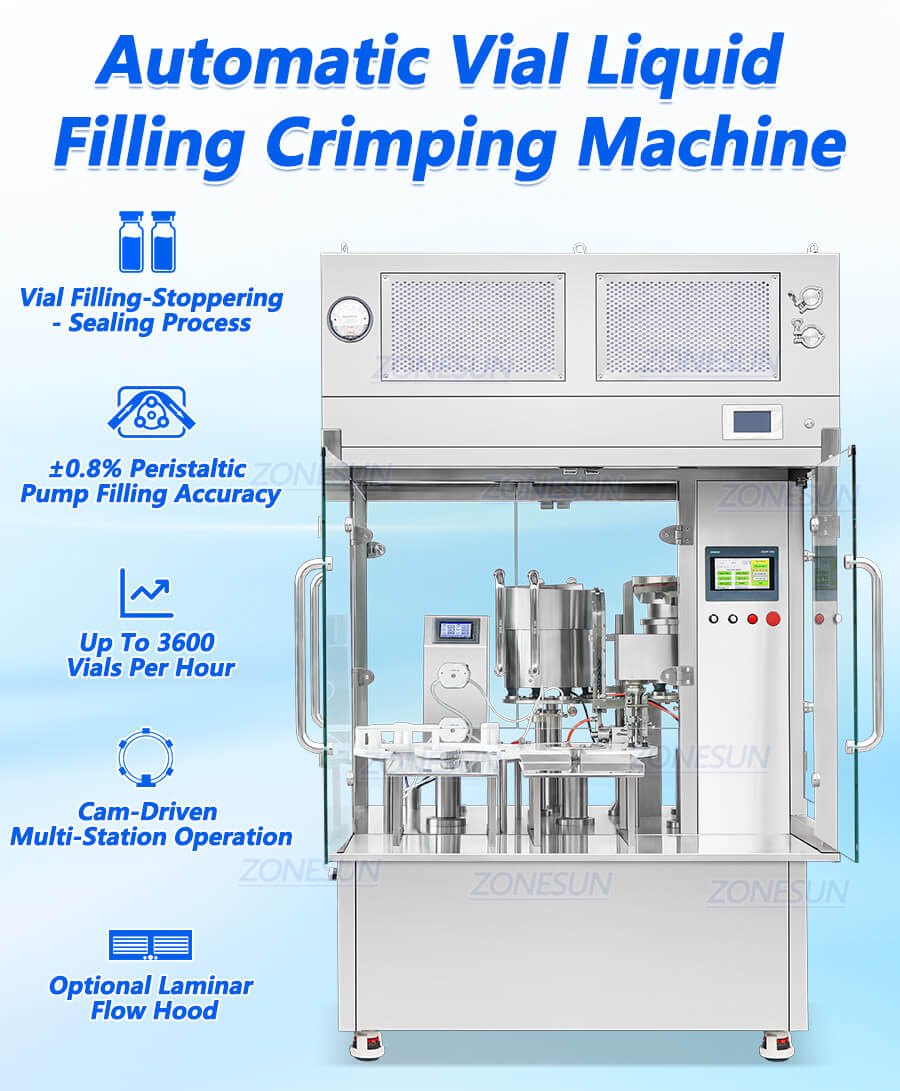

This liquid vial filling capping machine runs the filling, stoppering and sealing process in one unit, so vials stay on one platform instead of moving between three stations. A peristaltic pump fills to ±0.8% accuracy, and a cam driven multi station system handles the indexing. Output reaches up to 3600 vials per hour, and a laminar flow hood is available as an option.
Original price was: $26,799.00.$25,999.00Current price is: $25,999.00.
Share to
Product Description
This liquid vial filling capping machine runs the filling, stoppering and sealing process in one unit, so vials stay on one platform instead of moving between three stations. A peristaltic pump fills to ±0.8% accuracy, and a cam driven multi station system handles the indexing. Output reaches up to 3600 vials per hour, and a laminar flow hood is available as an option.

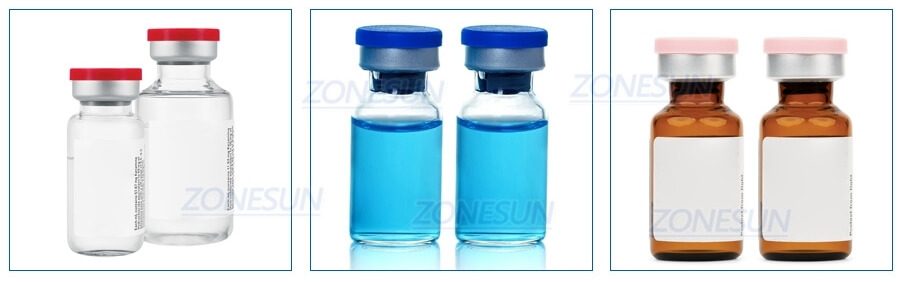

Product Applications

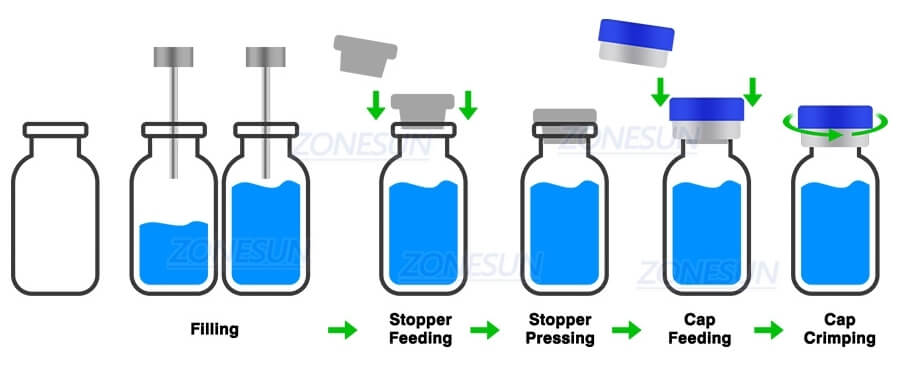

Product Production Process

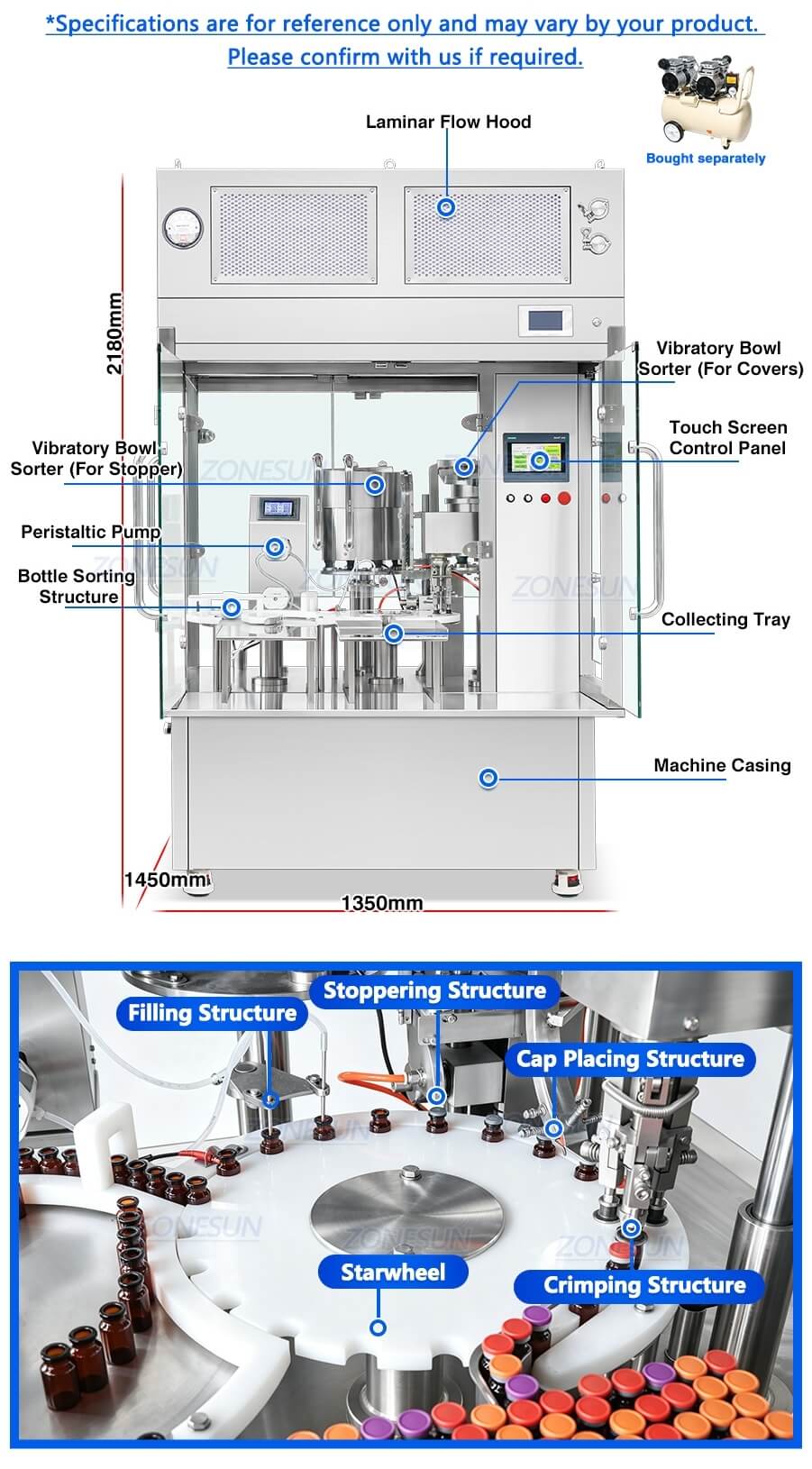

Product Parameter
| Machine Model | ZS-AFC39D |
| Voltage | 110/220V 50-60 HZ 2KW |
| Filling Pump | Peristaltic Pump |
| Filling Nozzle quantity | 2 |
| Filling Range | 1-10ml (Sample)Customized |
| Filling Accuracy | ±0.8% |
| Working Capacity | About 3600BPH |
| Material of Filling Nozzle | SUS304 |
| Material of Vibratory Bowl Sorter | SUS304 |
| Material of Stopper-contact parts | SUS316 |
| Machine Size | About 1350*1450*2180mm |
| Package Size | About 1670*1600*2450mm |
| Package Weight | About 1091kg |
Product Details

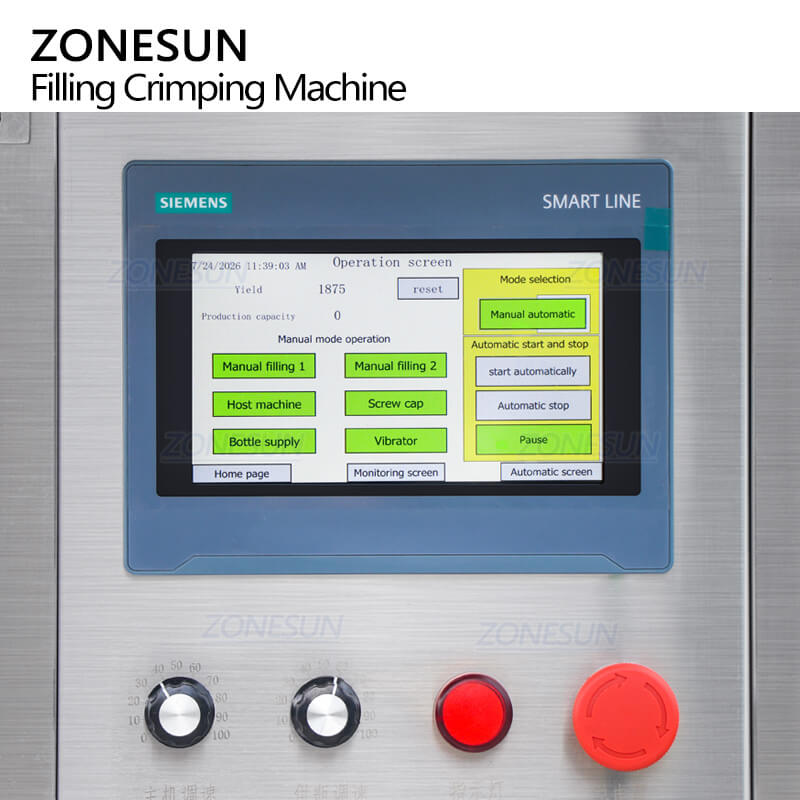

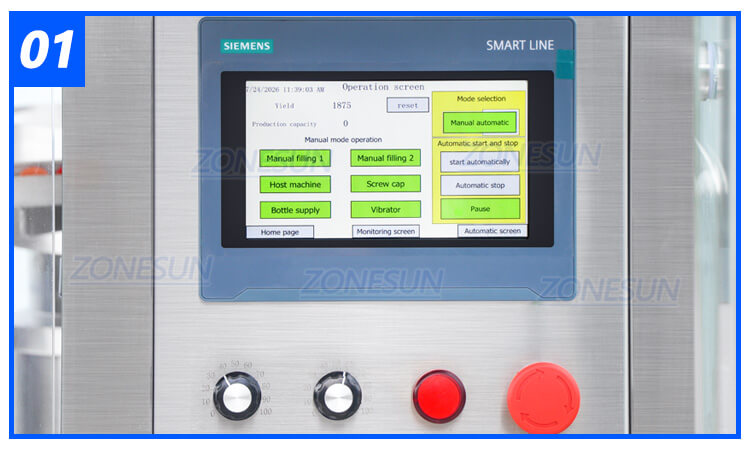

Touchscreen Control Panel
The touchscreen provides centralized control of filling and machine operating parameters for easier production adjustment.

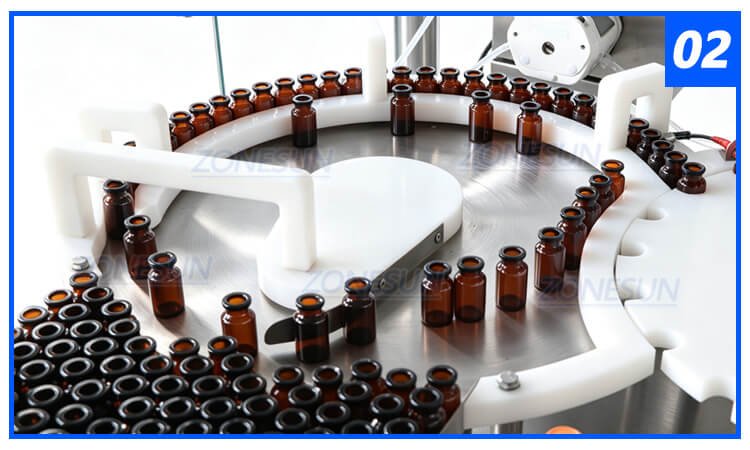

Vial Unscrambling System
Automatically arranges and feeds small vials into the production line for continuous filling and sealing.

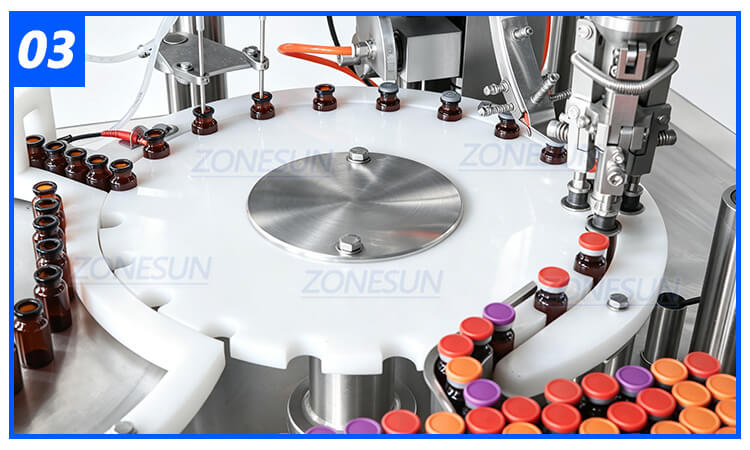

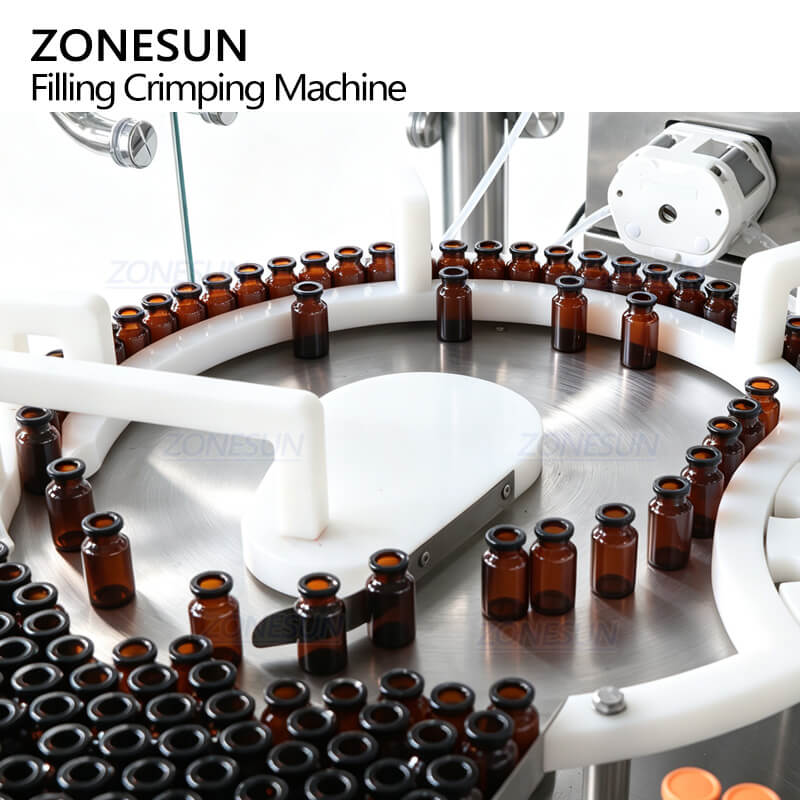

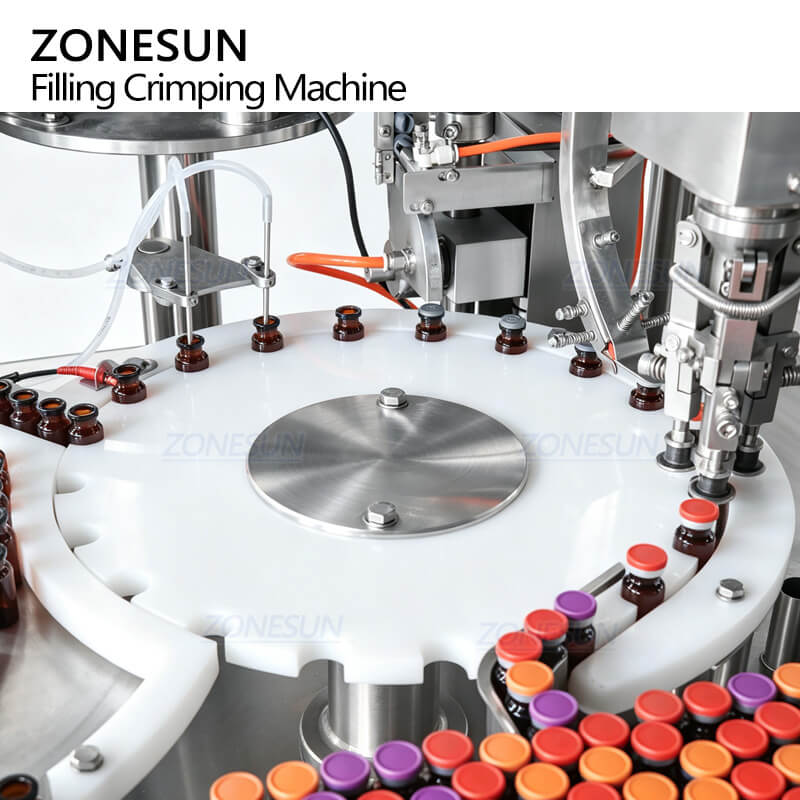

Star Wheel Multi-Station System
The star wheel transfers and positions vials between each working station, while the cam-driven system keeps multiple operations synchronized.

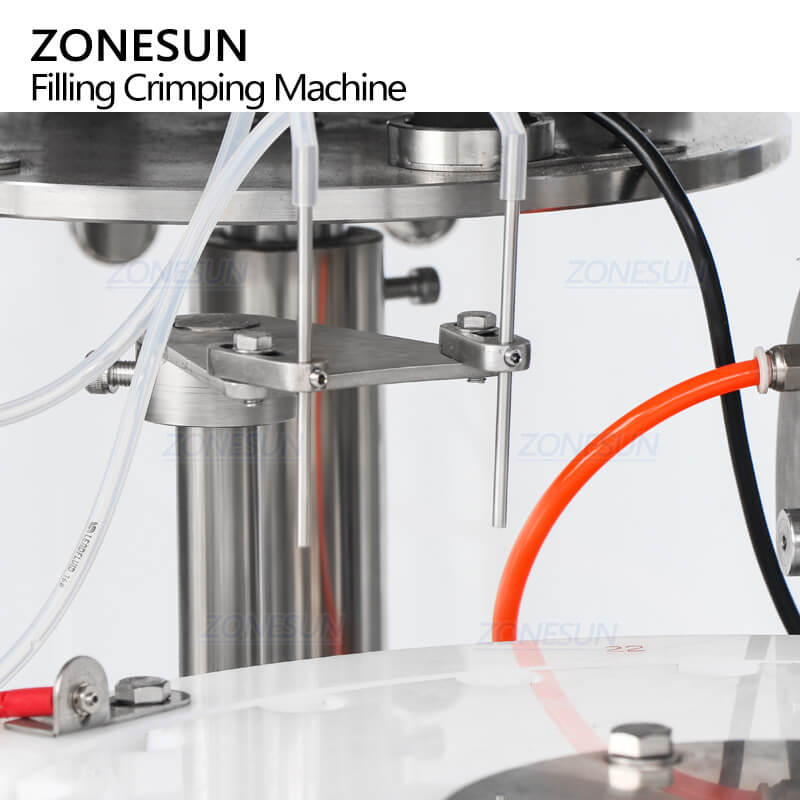

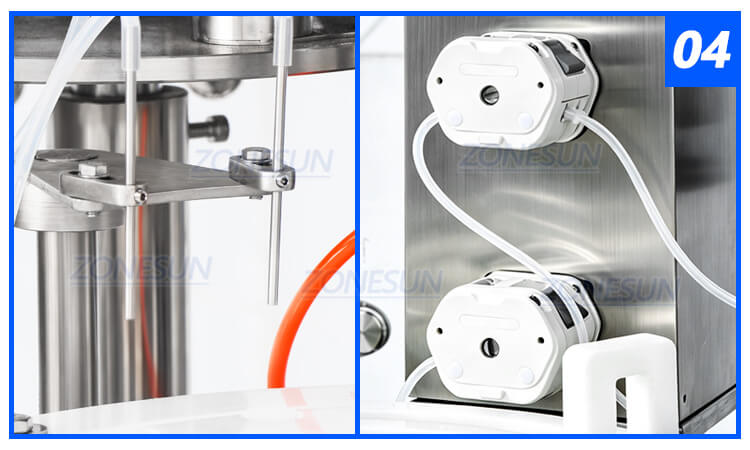

Peristaltic Pump Filling System
The dual-head peristaltic pump system provides filling accuracy up to ±0.8%, with replaceable tubing to simplify product changeover and reduce cross contamination.

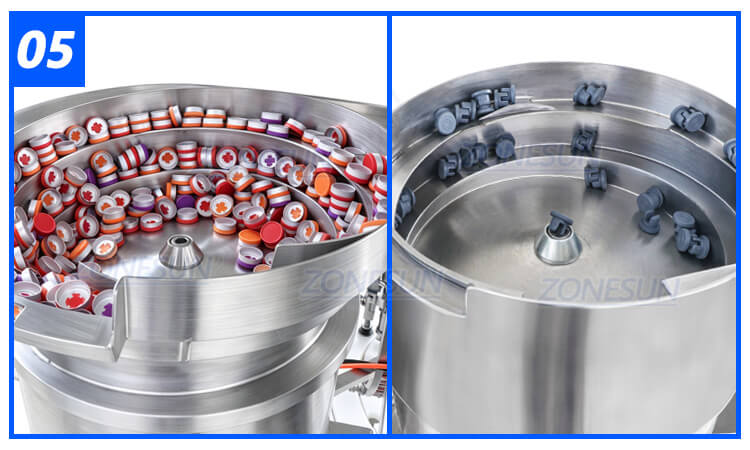

Dual Vibratory Feeding Bowls
Separate electromagnetic vibratory bowls automatically sort and feed stoppers and caps with low operating noise for continuous production.

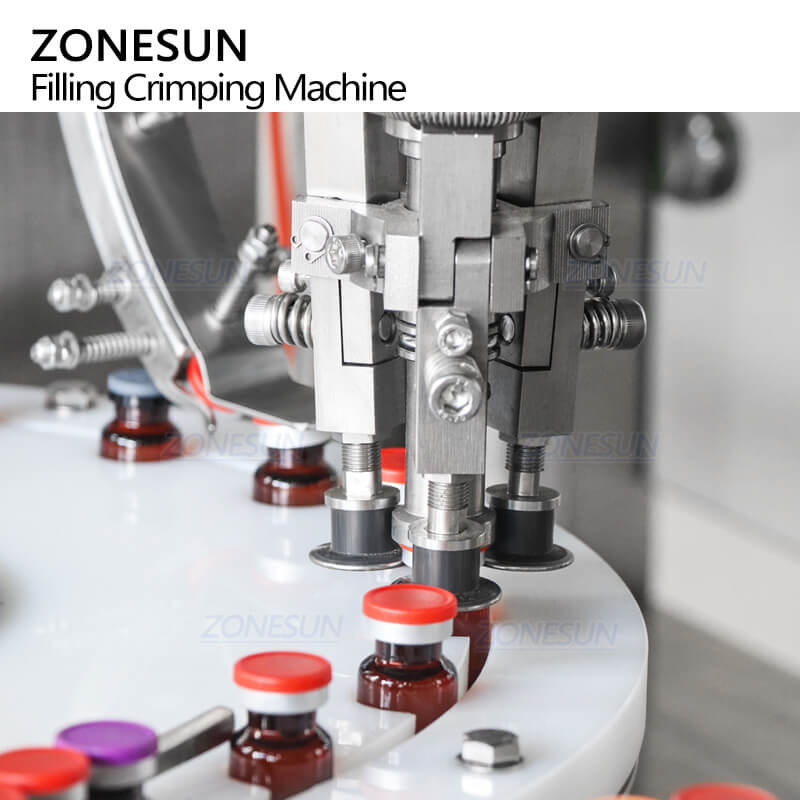

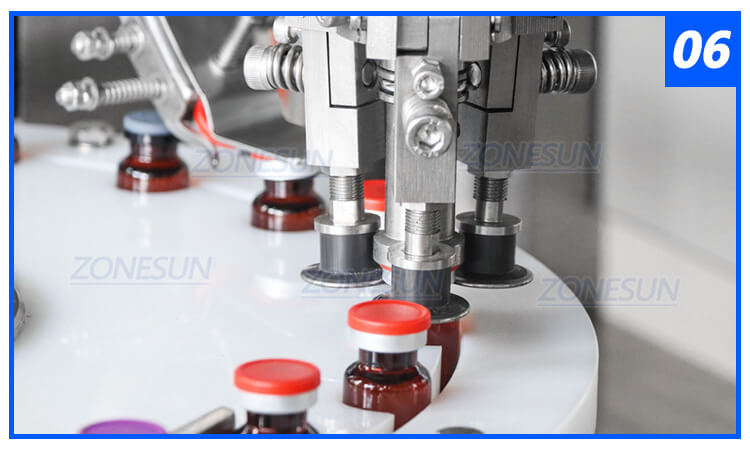

Spinning Head Crimping System
The spinning heads crimp aluminum caps securely onto the vial neck for stable and consistent sealing during continuous production.

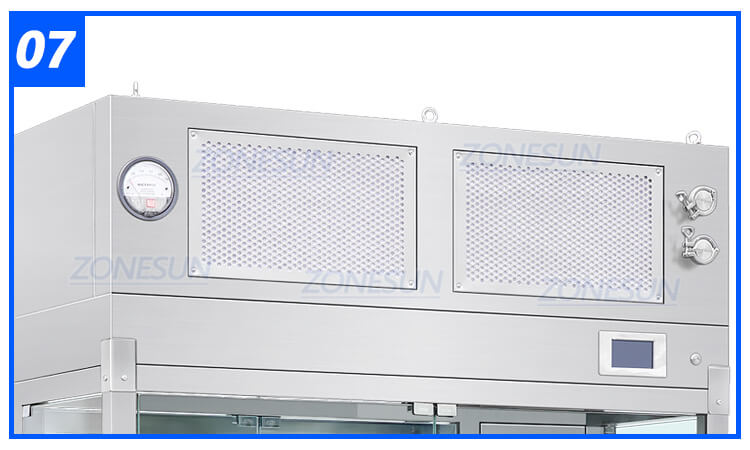

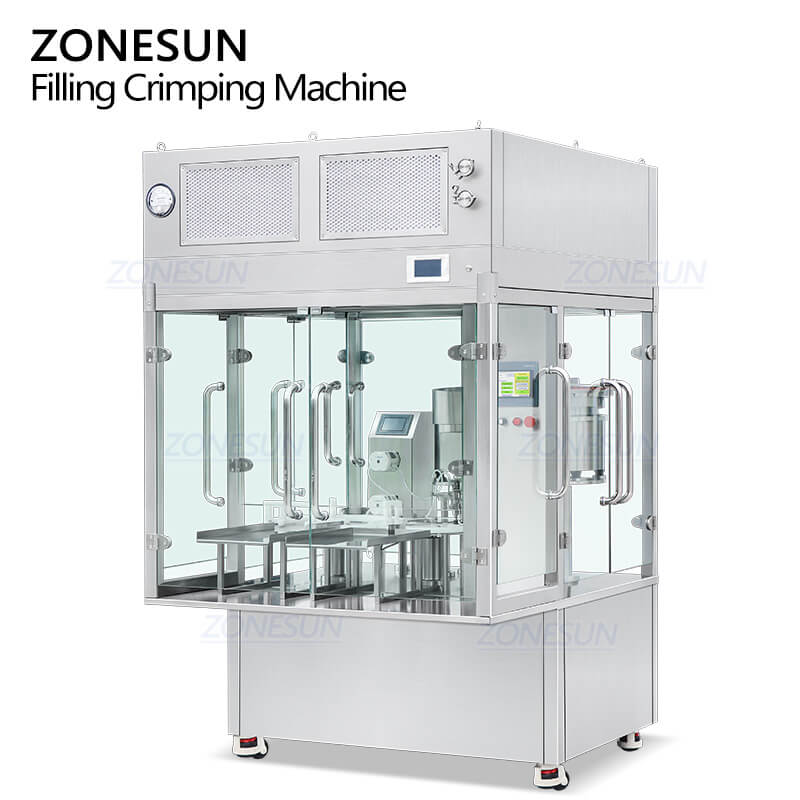

Laminar Flow Hood
Provides filtered laminar airflow over the filling and sealing area to help reduce airborne contamination during vial production.

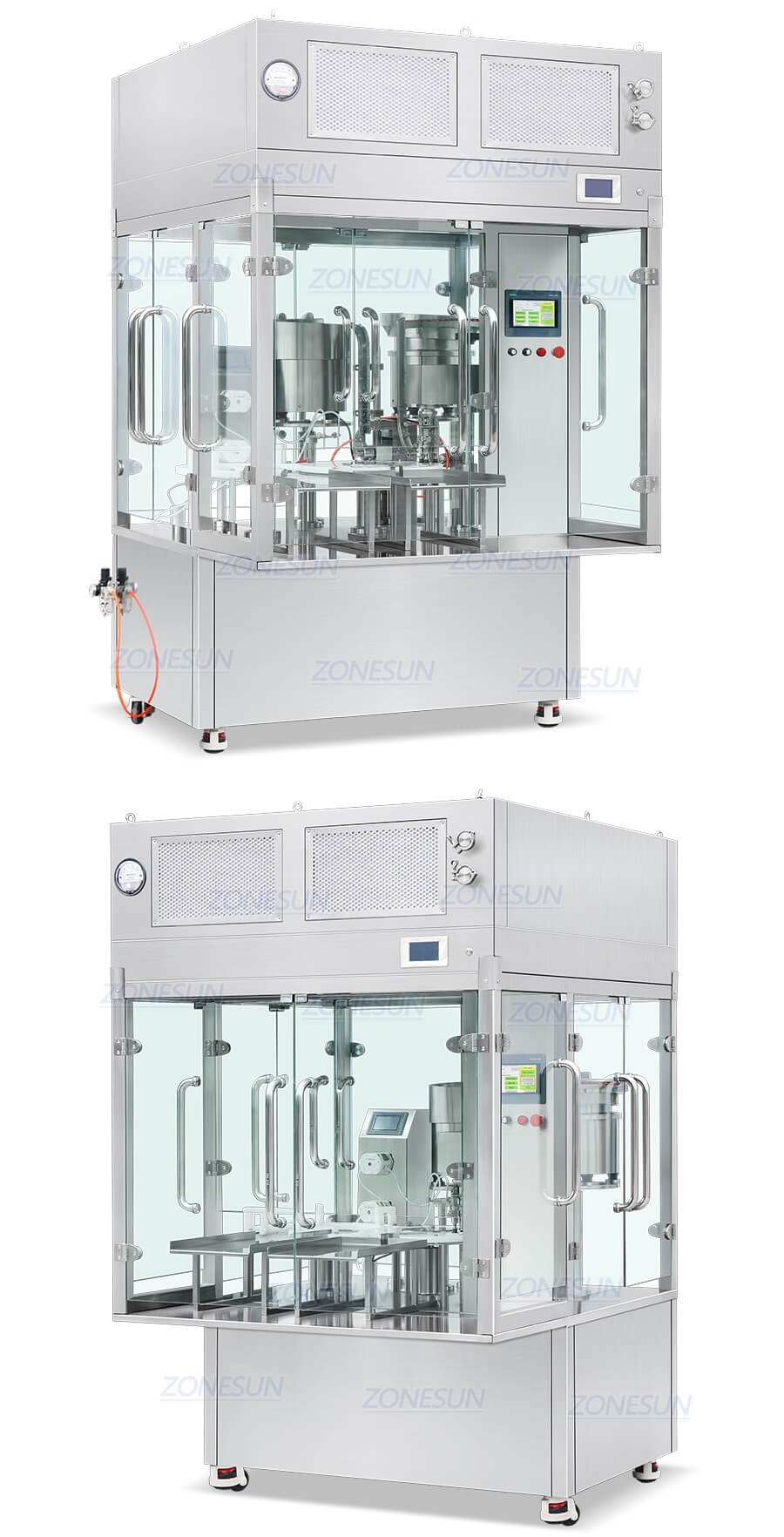

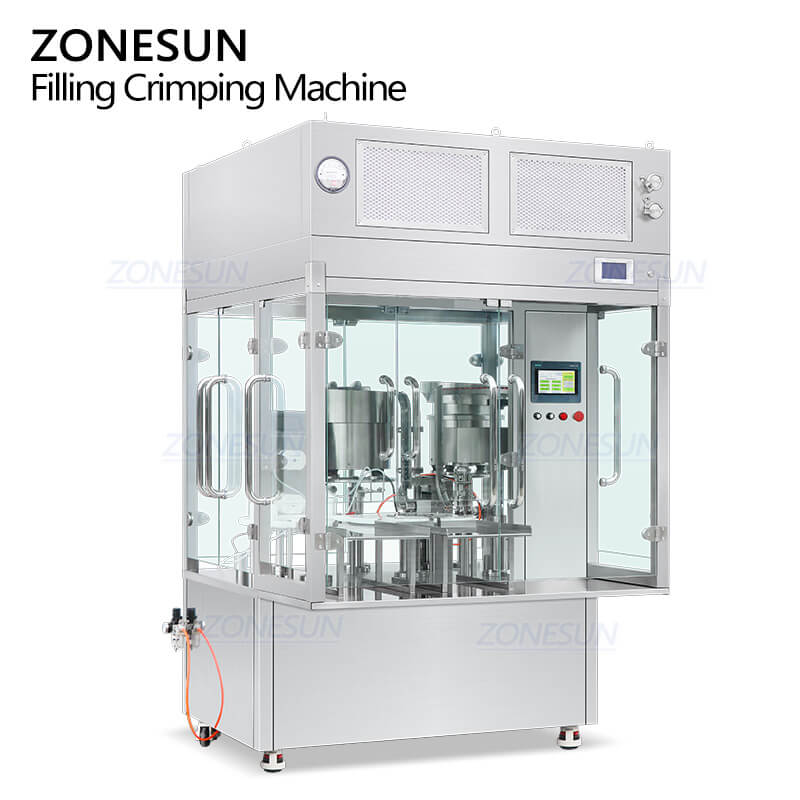

Product Real Shot
