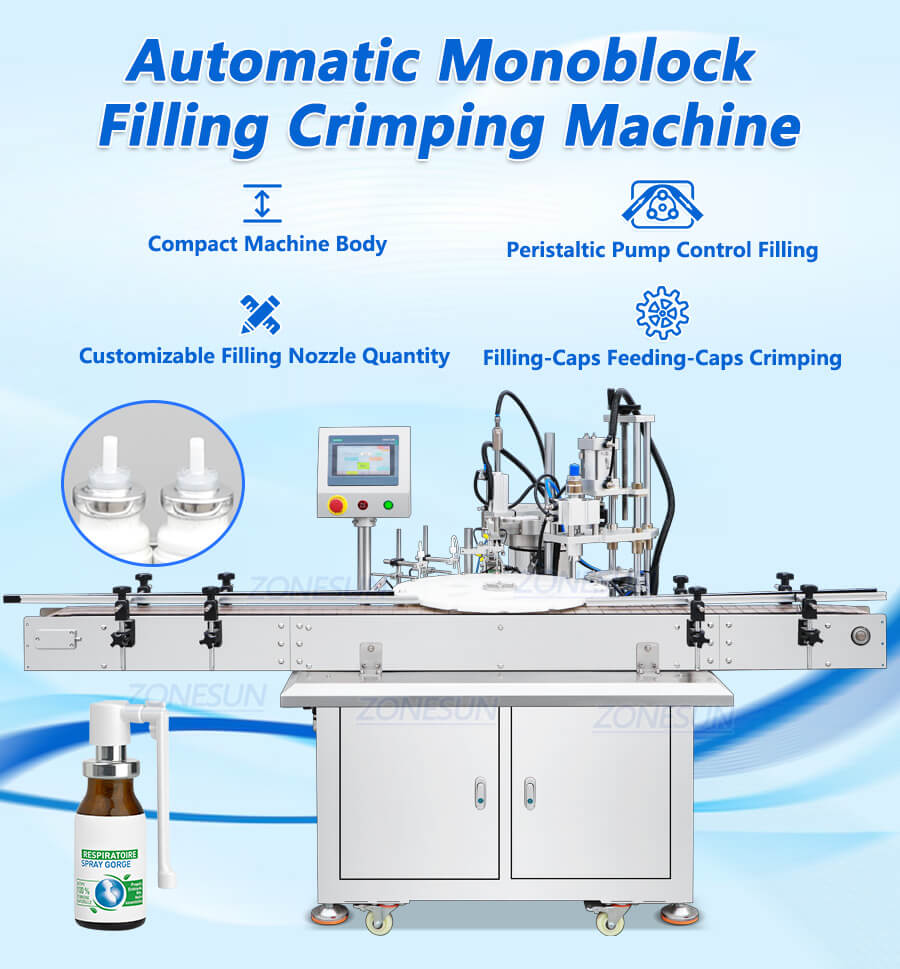

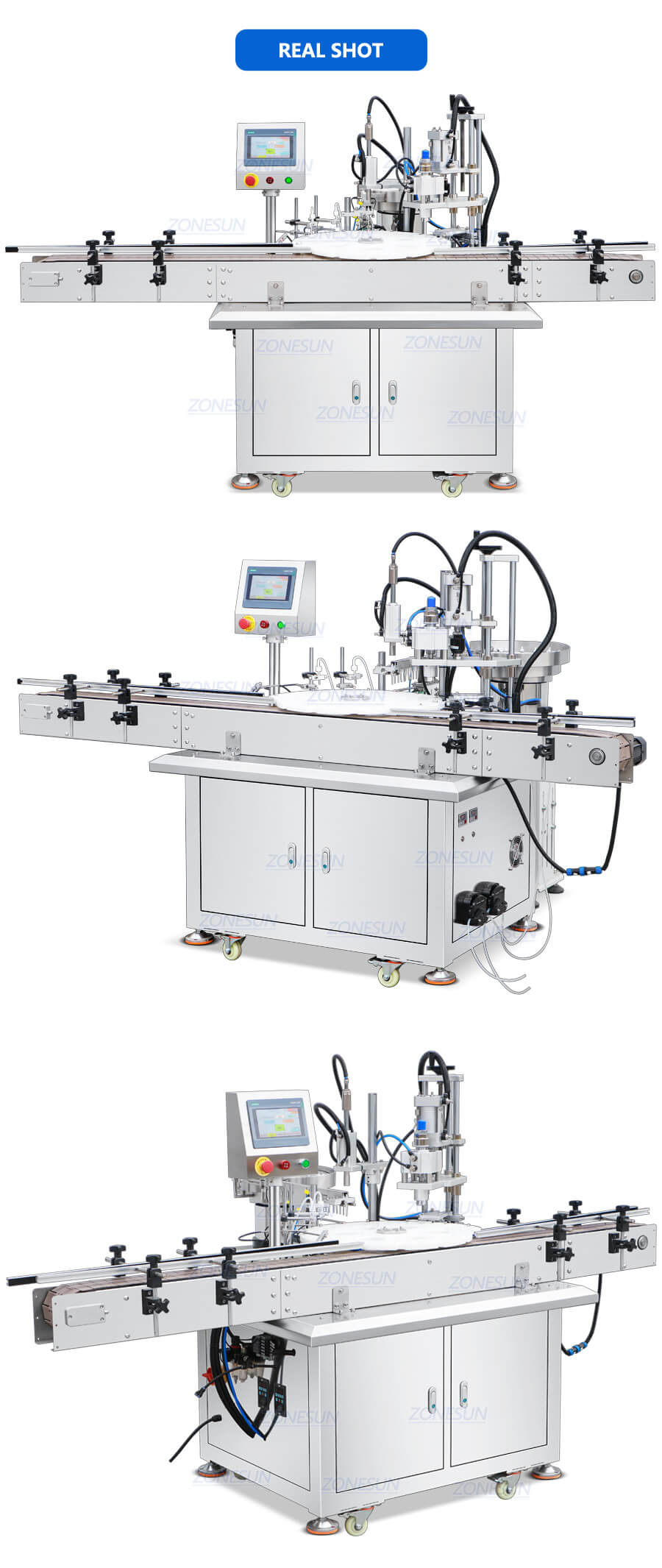

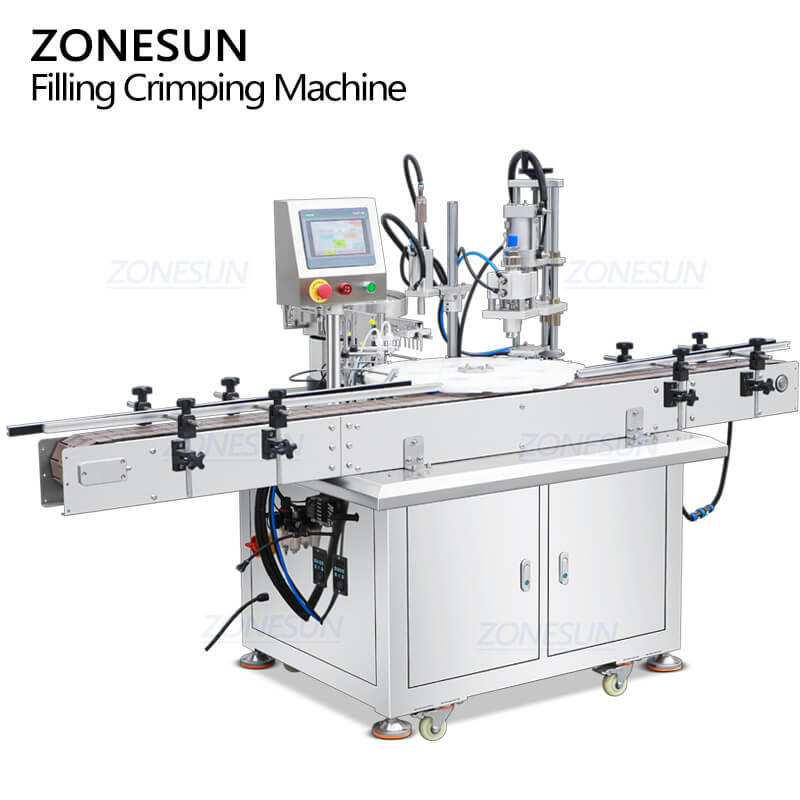

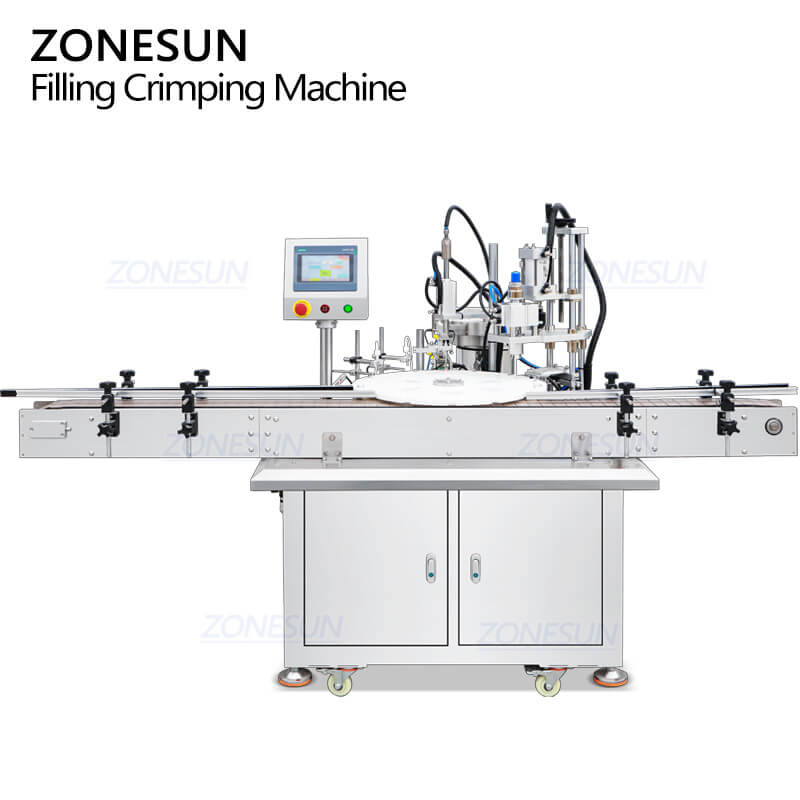

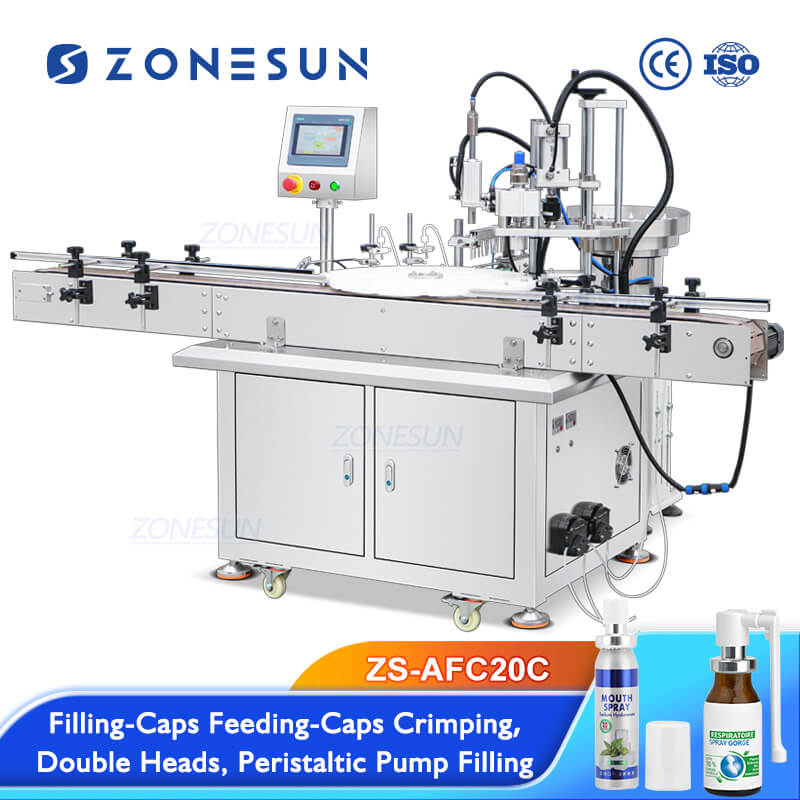

ZONESUN ZS-AFC20C Servo Spray Bottles Filling Capping Machine

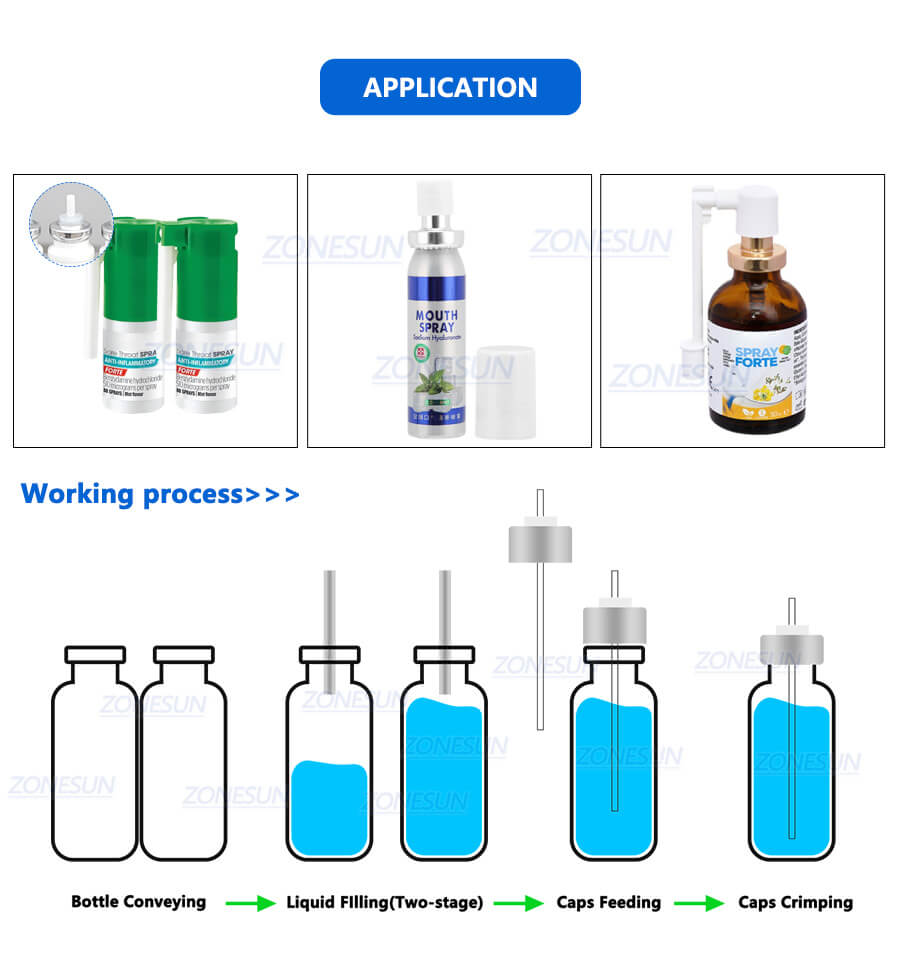

This filling capping machine is equipped with peristaltic pump, which ensure liquid only pass through filling hose.It can finish liquid filling, caps feeding, cap crimping at the same time, it is good for automated production of oral freshener, nasal spray.
Original price was: $11,999.00.$11,599.00Current price is: $11,599.00.
Share to
Product Description:
This filling capping machine is equipped with peristaltic pump, which ensure liquid only pass through filling hose.It can finish liquid filling, caps feeding, cap crimping at the same time, it is good for automated production of oral freshener, nasal spray.
Product Parameters:
| Machine Model | ZS-AFC20C |
| Voltage | 110/220V 50-60HZ |
| Power | 1.5KW |
| Filling Pump | Peristaltic Pump |
| Recommended Filling Volume | 5-20 ml (customizable) |
| Maximum Flow Rate | 1.5L/minute for per nozzle (water-based) |
| Filling Nozzle Quantity | 2 (customizable) |
| Production Capacity | 20-30 bottles/minute (depending on filling material and bottle size) |
| Suitable Bottle Size | Customizable |
| Suitable Cap Diameter | Customizable |

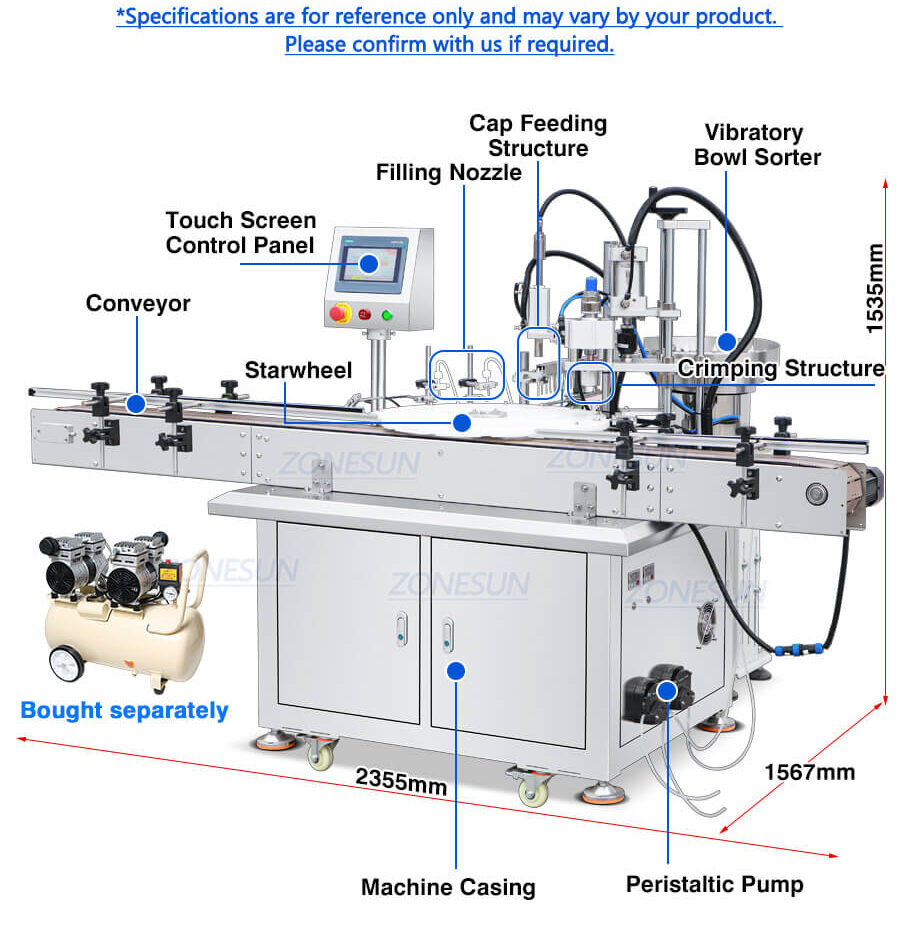

| Machine Size | About 2355*1567*1535mm(L*W*H) |
| Package Size | About 1980*990*1630mm(L*W*H) |
| Package Weight | About 450kg |
Product Details:

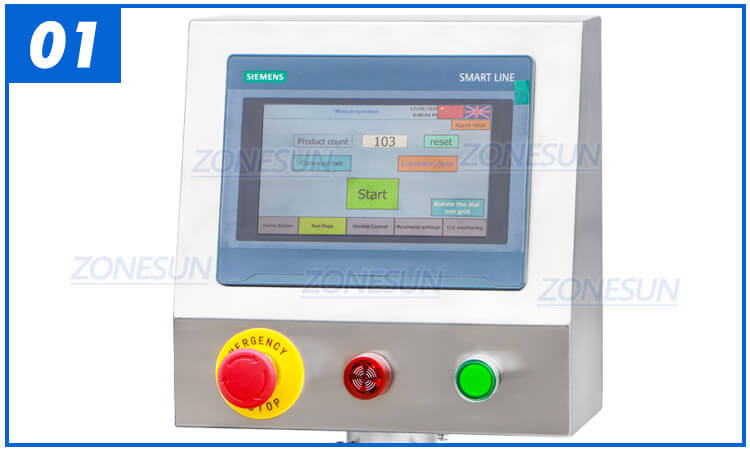

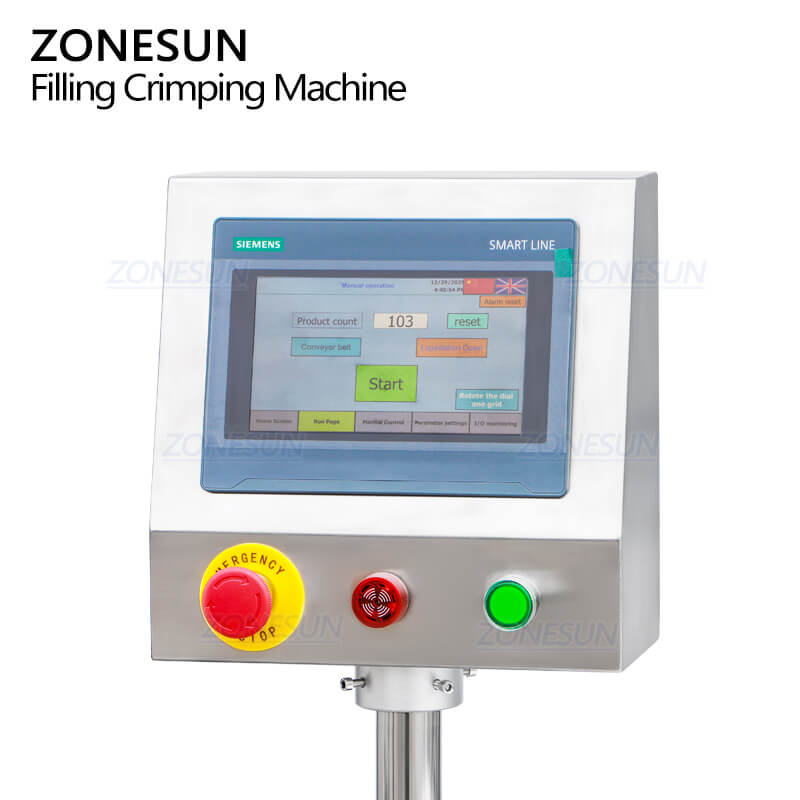

Control Panel
Provides an intuitive interface for parameter setting, operation control, and real-time monitoring.

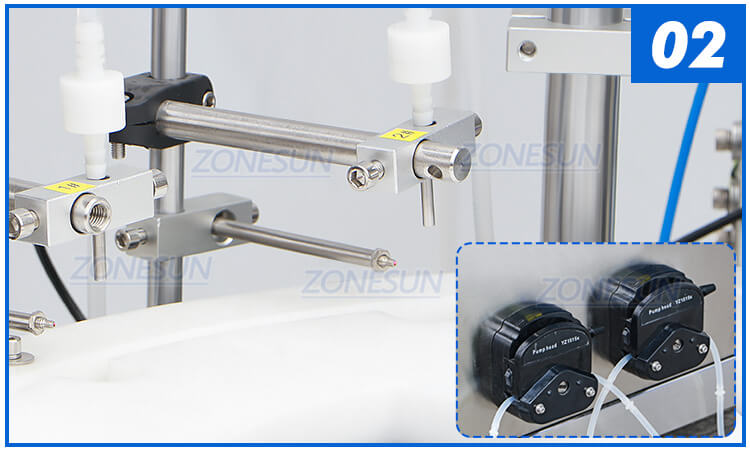

Peristaltic Pump Filling System
Liquid only passes through the filling tube, multiple filling nozzles are customizable.

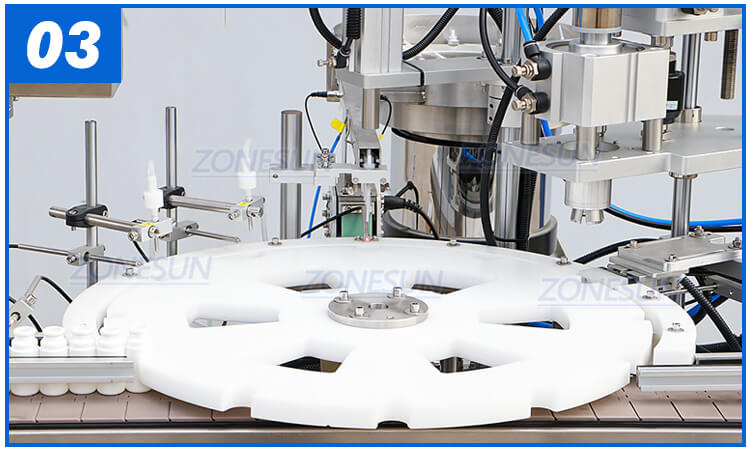

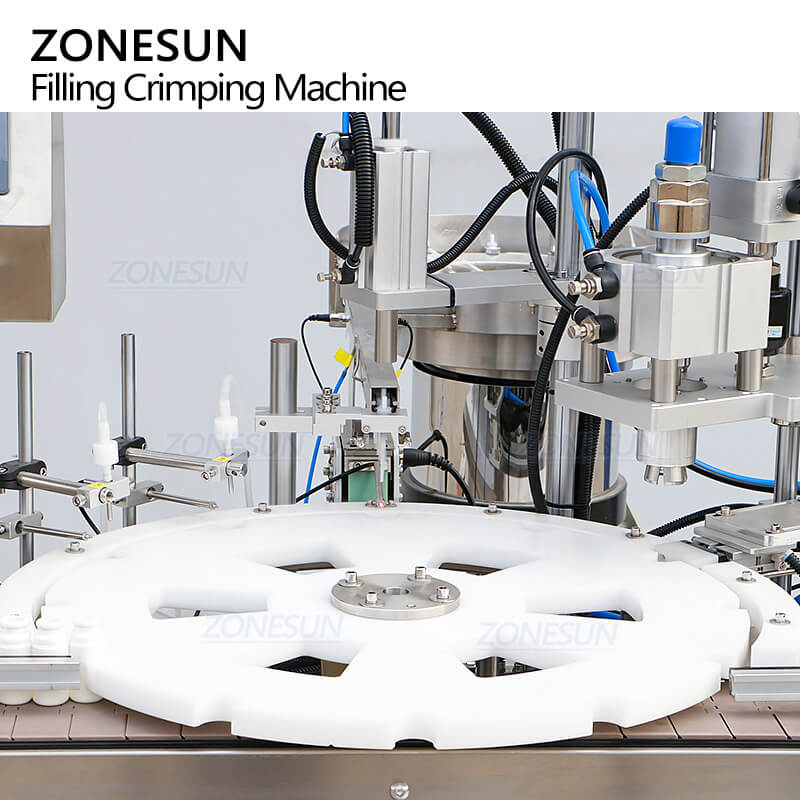

Starwheel
It is customized as bottle size, can position bottles during filling and capping.

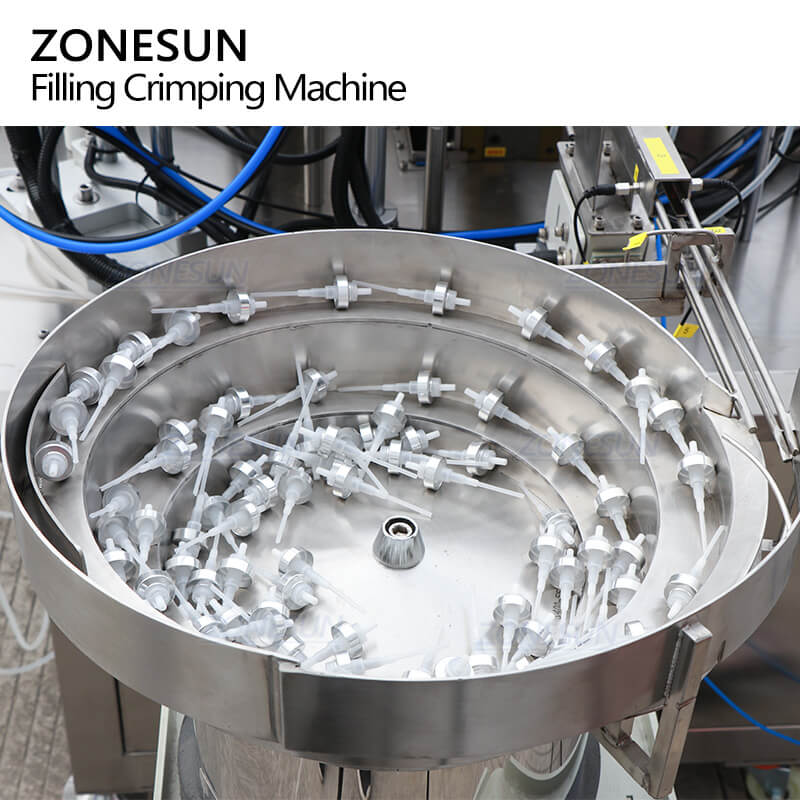

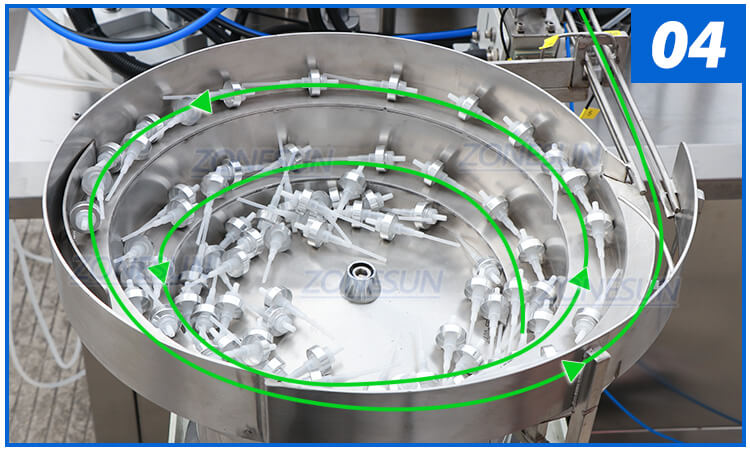

Vibratory Bowl Cap Feeder
Automatically sorts and feeds caps in the correct orientation for continuous production.

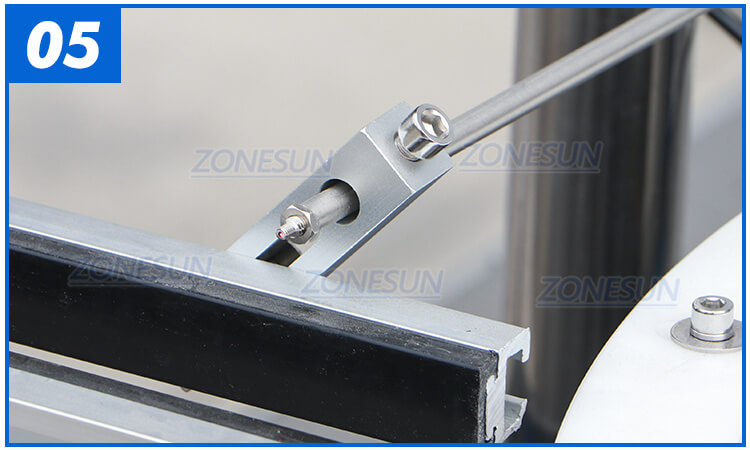

Sensor
Detect bottle and control each working station to ensure smooth operation.

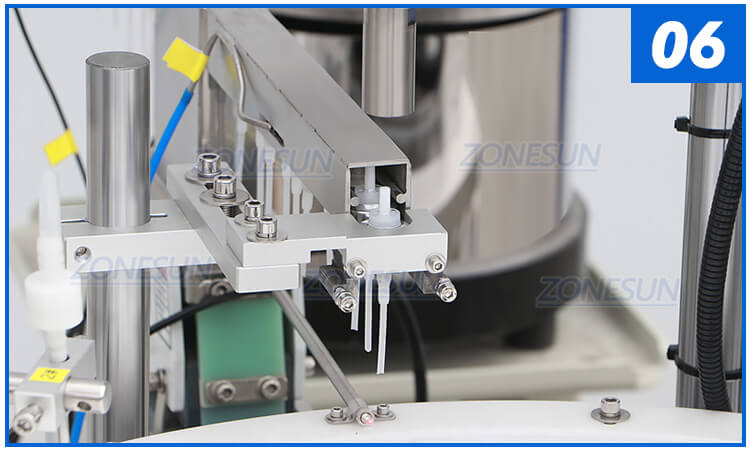

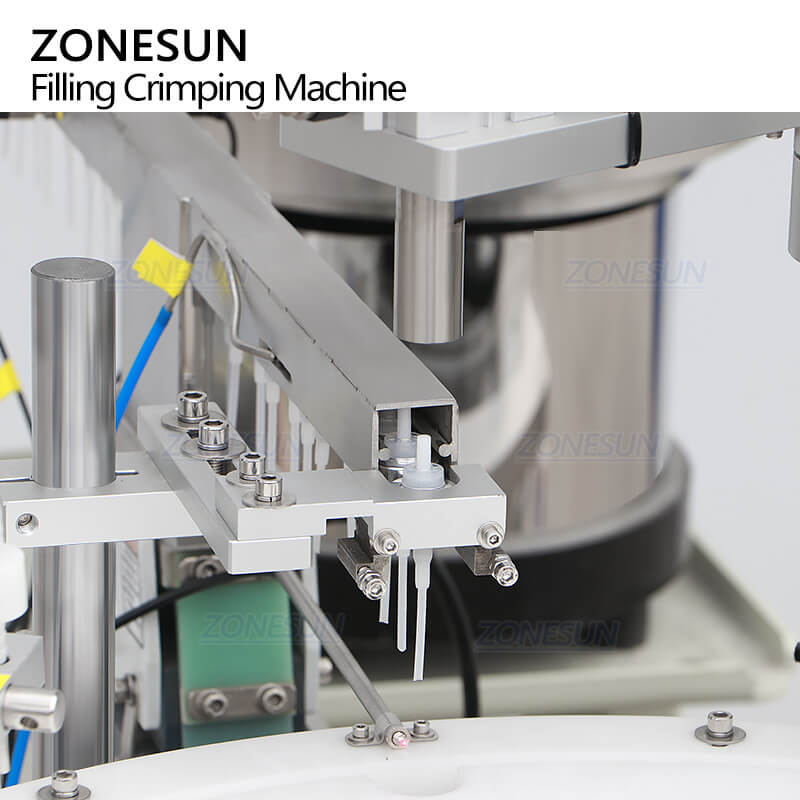

Cap Placing Structure
Accurately guides and places caps onto bottles before the crimping process.

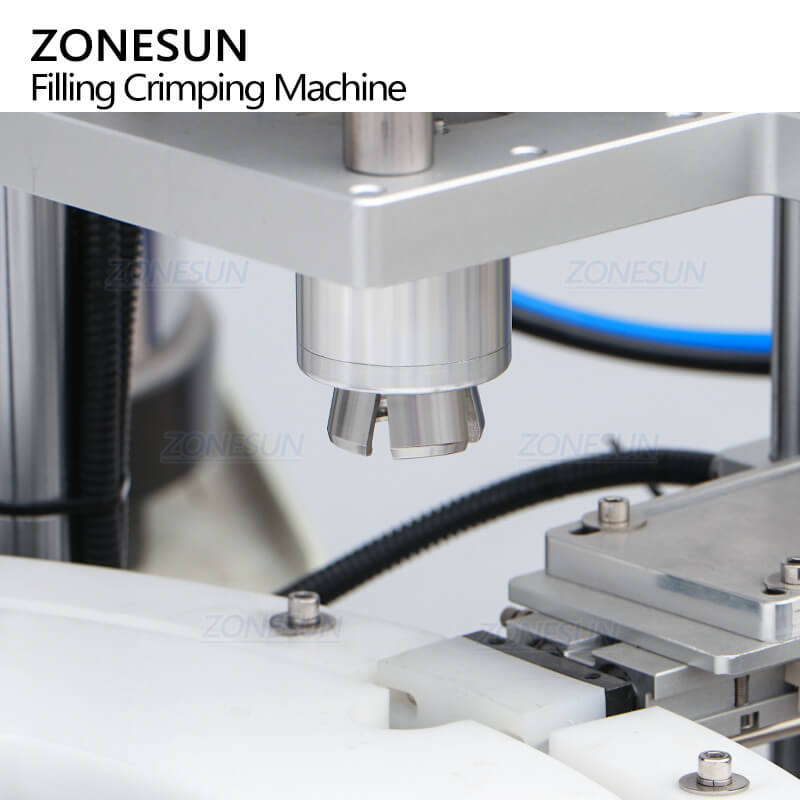

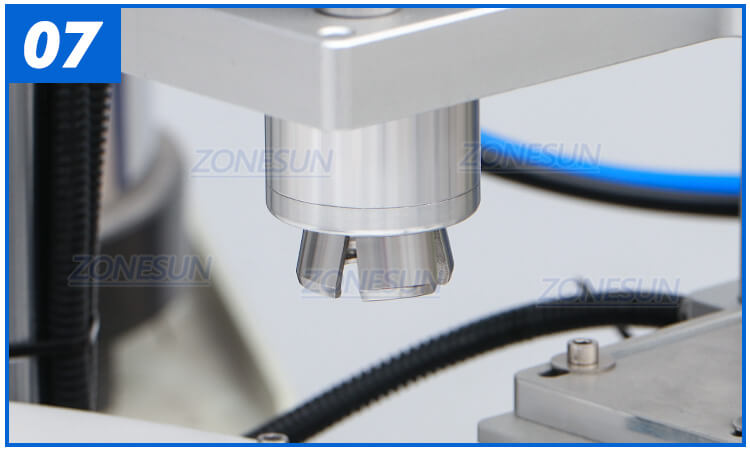

Crimping Structure
Securely crimp the caps to ensure tight and consistent closure.
