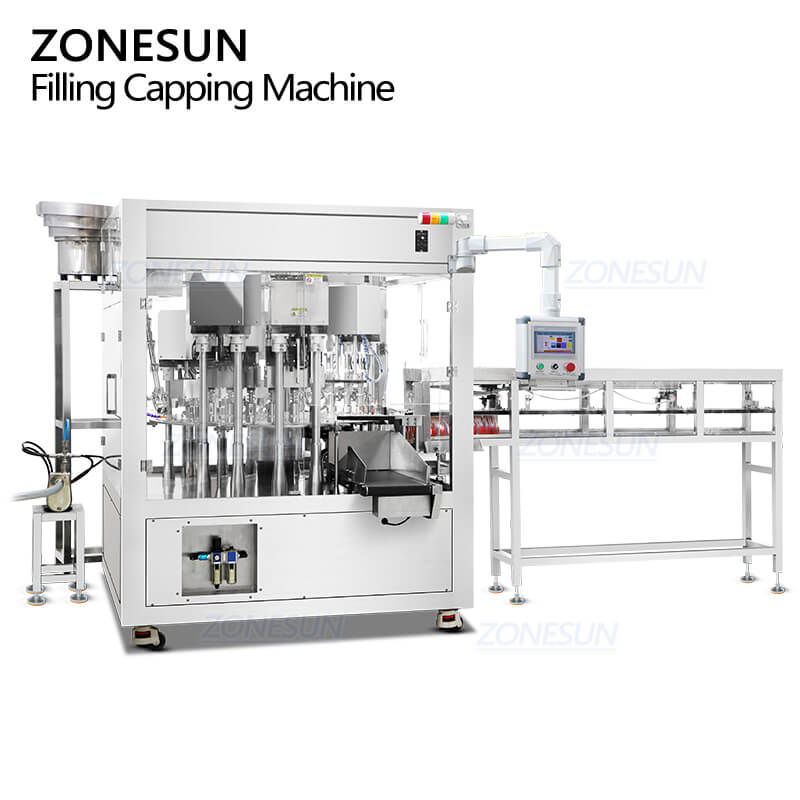

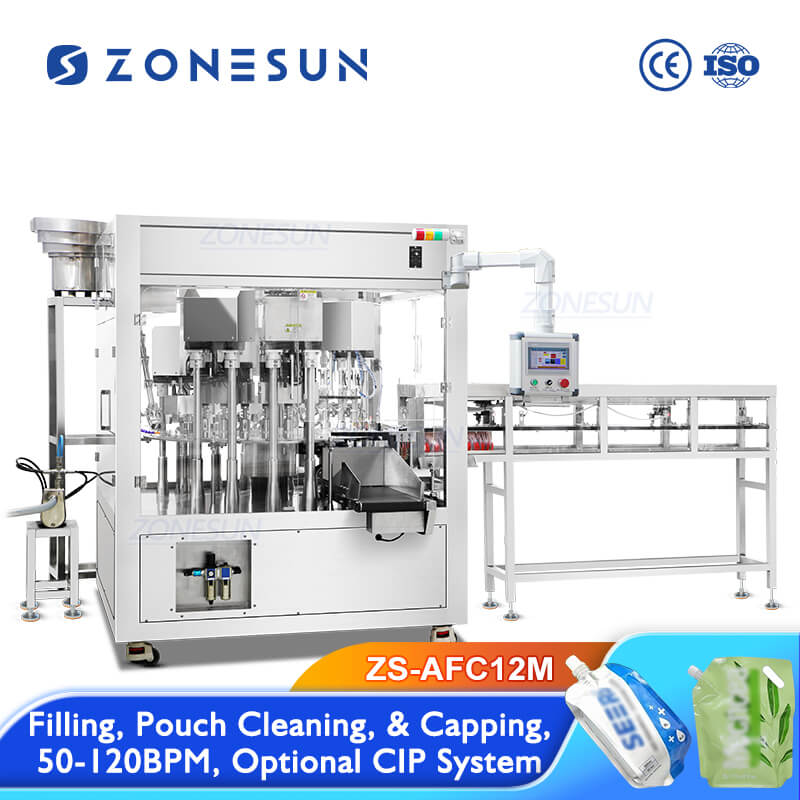

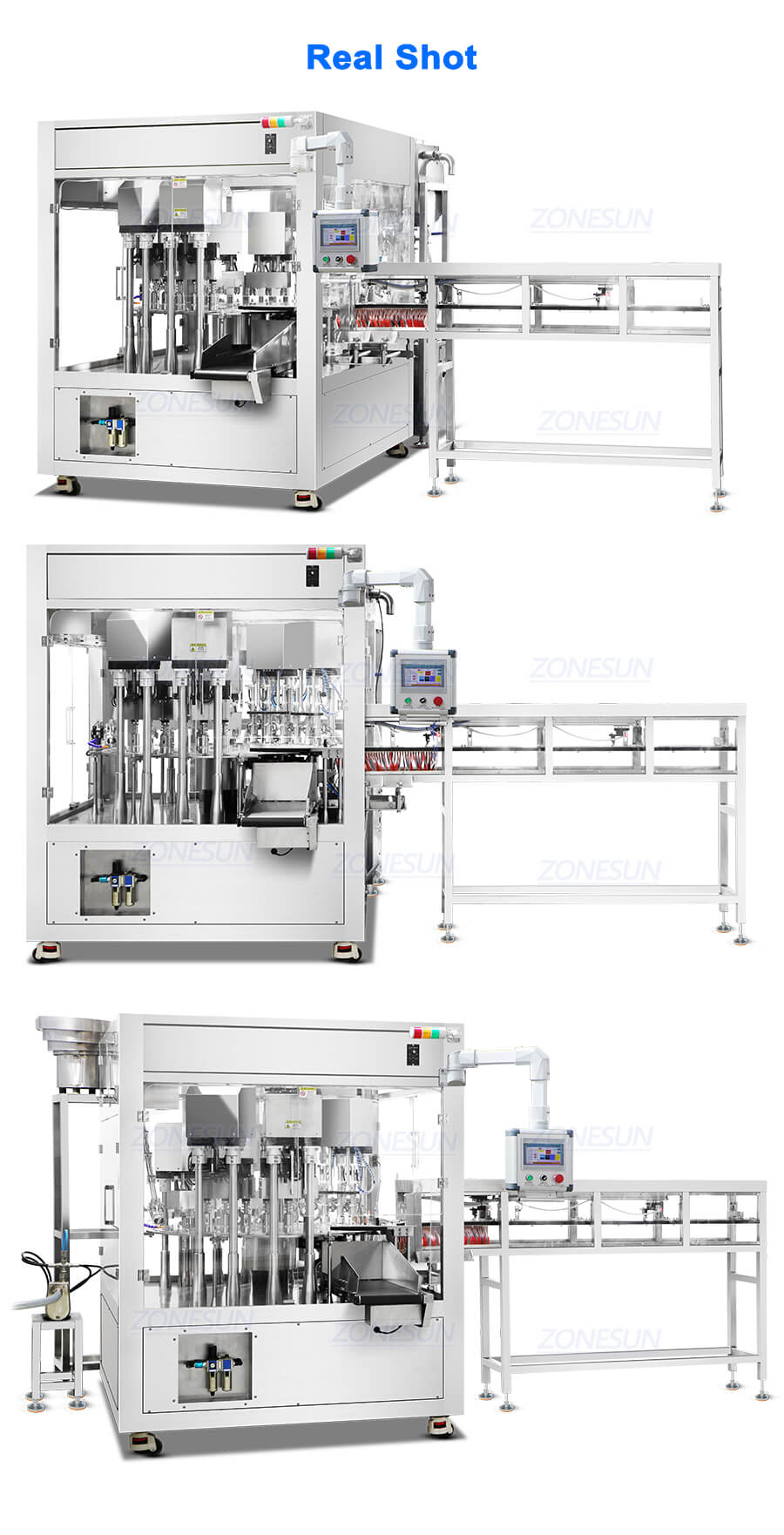

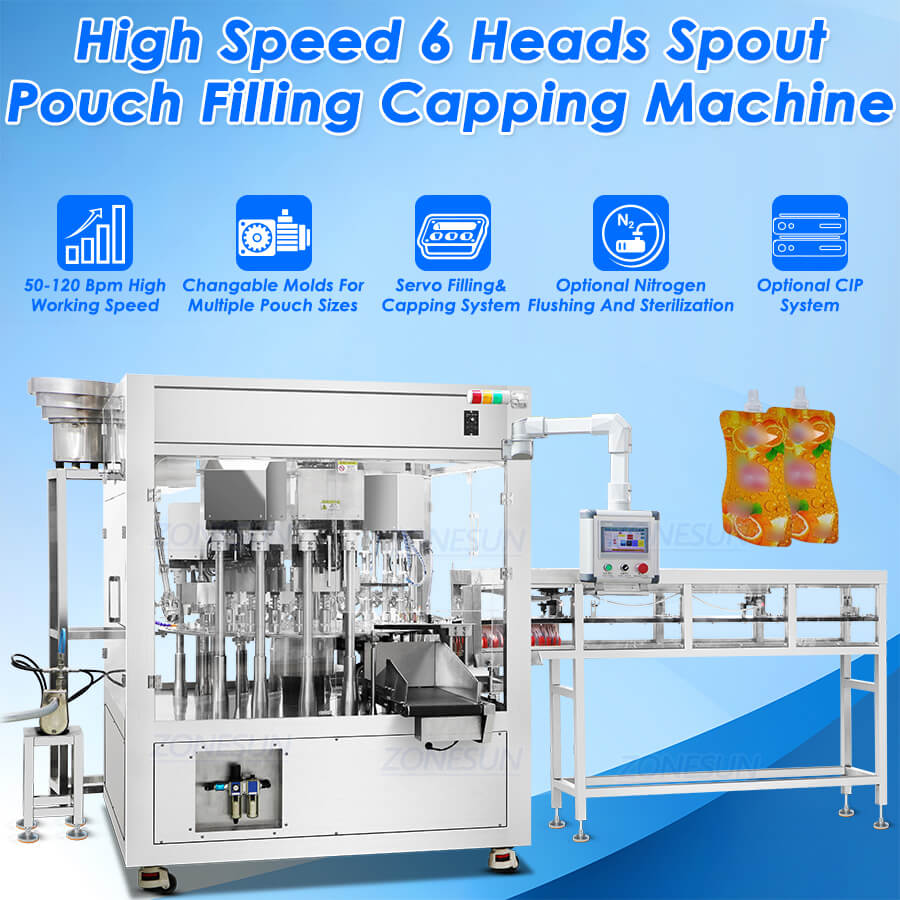

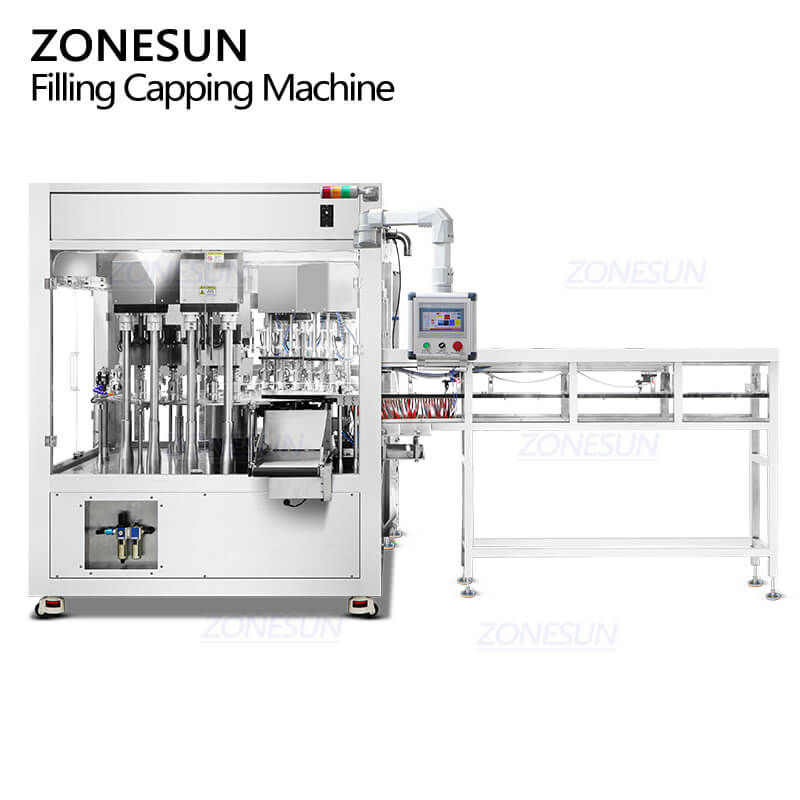

ZONESUN ZS-AFC12M Servo High Speed Spout Pouch Filling Capping Machine
This fully automatic high-speed spout pouch filling and capping machine is designed for food, daily chemical, and automotive liquid products. It integrates pouch feeding, pouch cleaning, filling, cap placing, and capping in one system, offering stable and efficient production. The machine features GMP-grade laminar flow dust control, and can be equipped with nitrogen flushing and sterilization functions. With a waterproof structure and optional CIP system, it ensures hygienic operation and easy cleaning, while maintaining compatibility with different pouch sizes through mold change.
Original price was: $28,999.00.$28,199.00Current price is: $28,199.00.
Share to
Product Description:
This fully automatic high-speed spout pouch filling and capping machine is designed for food, daily chemical, and automotive liquid products. It integrates pouch feeding, pouch cleaning, filling, cap placing, and capping in one system, offering stable and efficient production. The machine features GMP-grade laminar flow dust control, and can be equipped with nitrogen flushing and sterilization functions. With a waterproof structure and optional CIP system, it ensures hygienic operation and easy cleaning, while maintaining compatibility with different pouch sizes through mold change.
Product Parameters:
| Machine Model | ZS-AFC12M |
| Voltage | 220V/110V 50-60Hz |
| Power | 5kW |
| Filling Range | 100-1000 ml(Customizable) |
| Production Capacity | 30–50g: 100–120 bags/minute;
200–300g: 70–100 bags/minute; 500g: 60–80 bags/minute; 1L: Approx. 50 bags/minute (based on filling volume) |
| Filling Accuracy | ±1% |
| Hopper Capacity | 120L(Customizable) |
| Filling Pump | Piston Pump |
| Filling Nozzle Quantity | 6 (Customizable) |
| Suitable Cap Diameter | Can be customized |
| Suitable Pouch Size | Can be customized |
| Frame Material | 304 Stainless Steel |
| Material Contact Parts | 316 Stainless Steel |

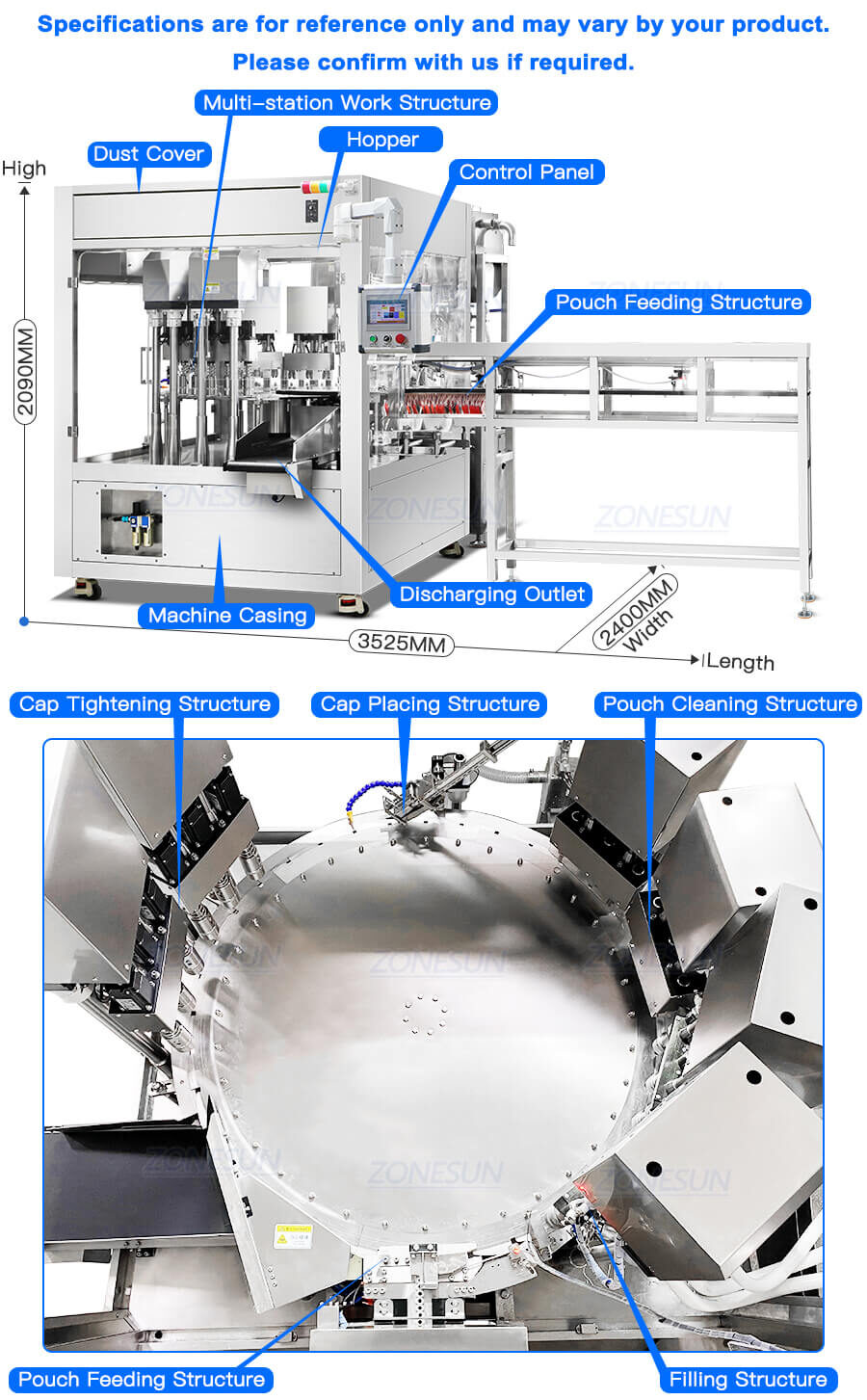

| Machine Size | About 3525*2400*2090mm(L*W*H) |
| Machine Weight | About 1000kg |
Product Details:

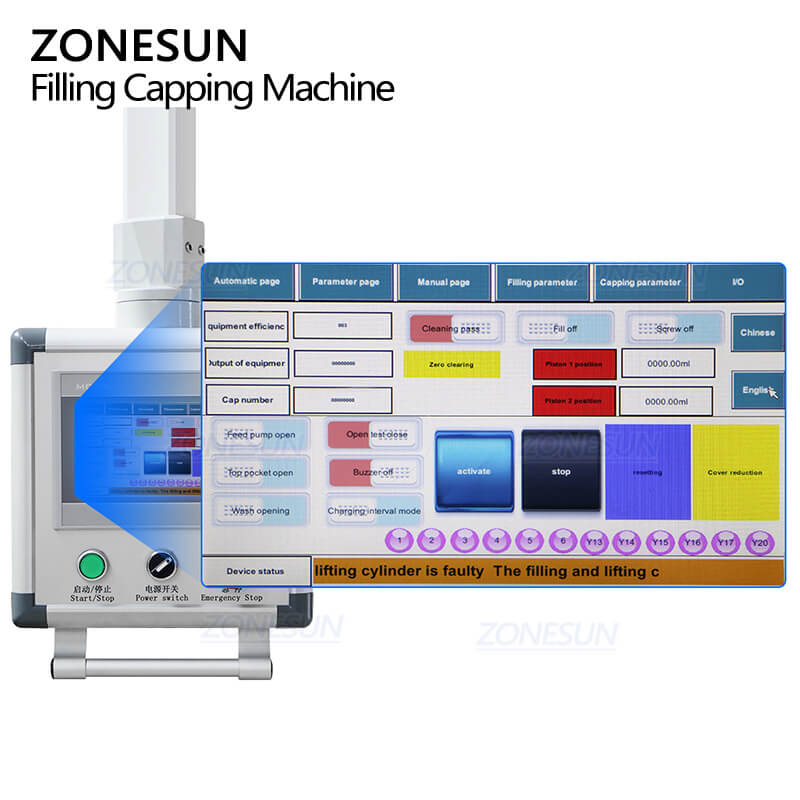

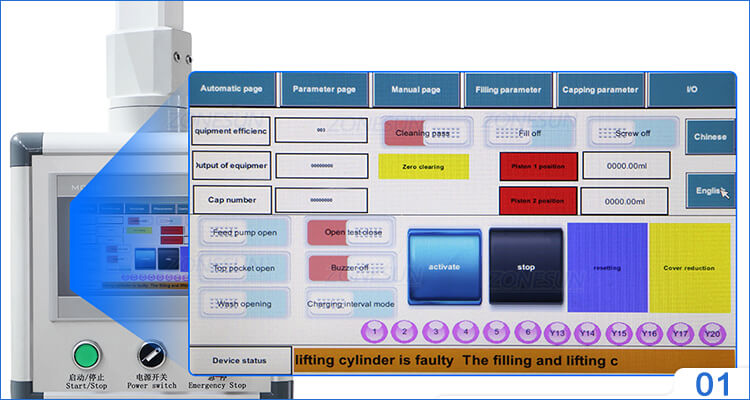

Touchscreen Control Panel
Centralized control system enables easy operation, parameter setting, and real-time monitoring.

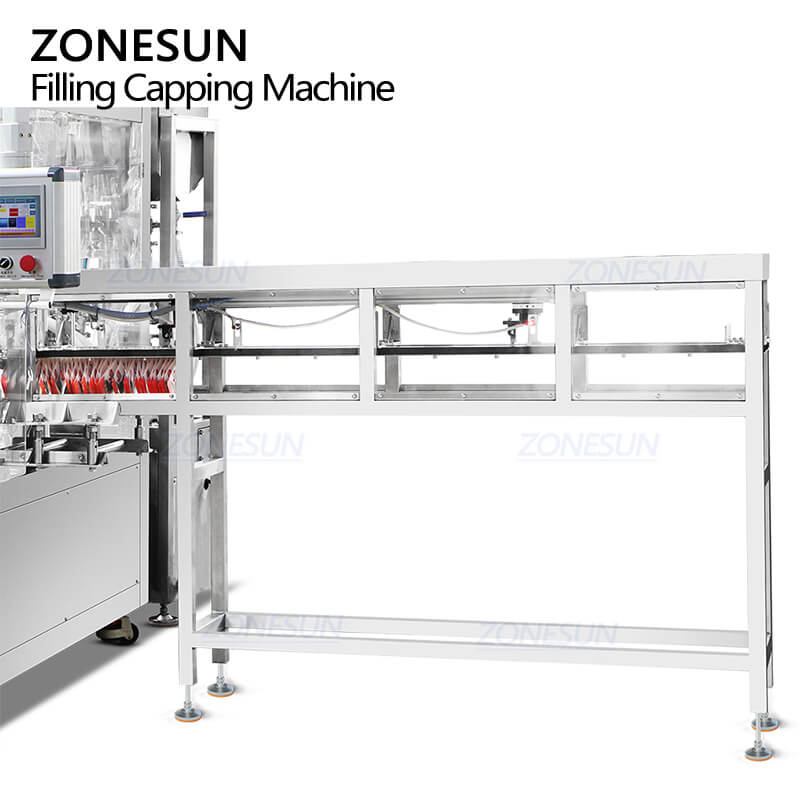

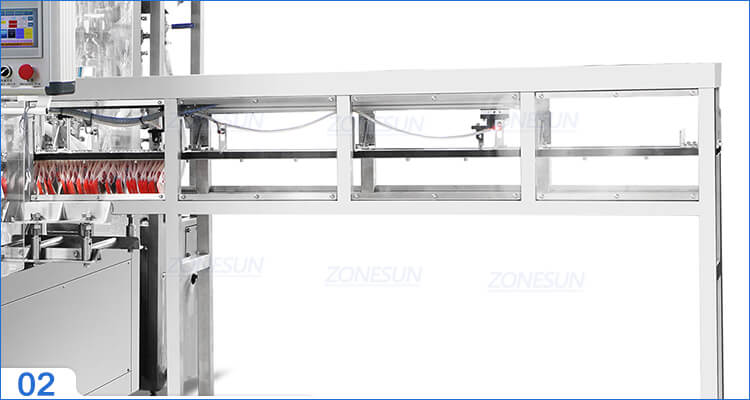

Automatic Pouch Feeding Structure
Arrange pouch orderly, optional automatically pouch loading structure can realize continuous high-speed production.

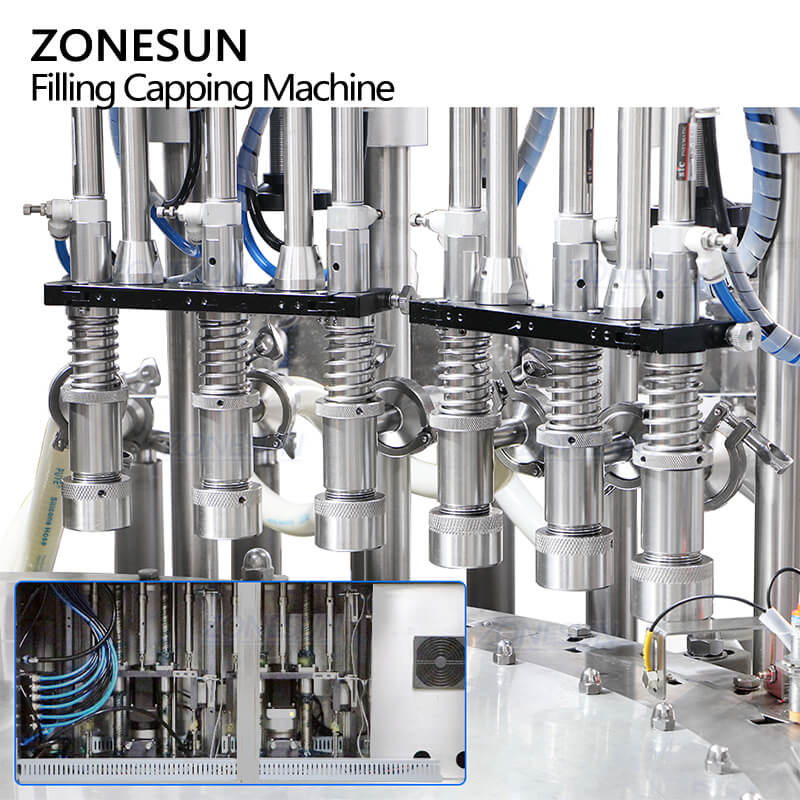

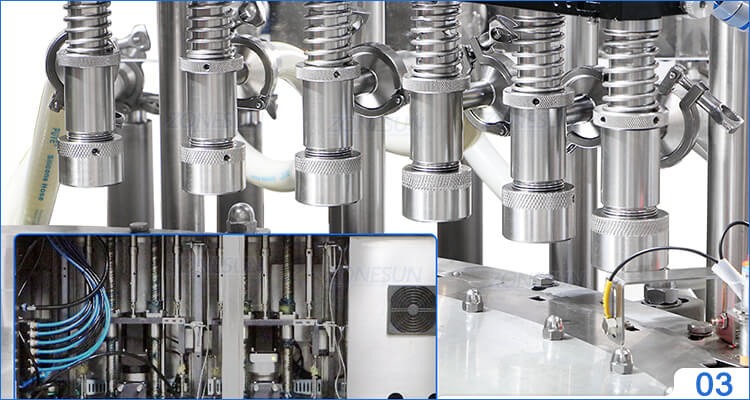

Filling Structure
Controlled by servo piston pump, customizable multiple filling nozzles. Using 304 & 316 stainless steel for hygienic filling.
Pouch Cleaning Structure
Cleans the pouch body and spout opening to ensure hygienic filling conditions.

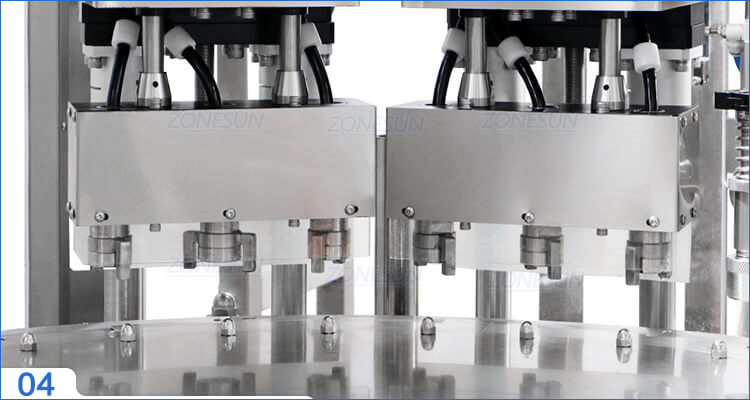

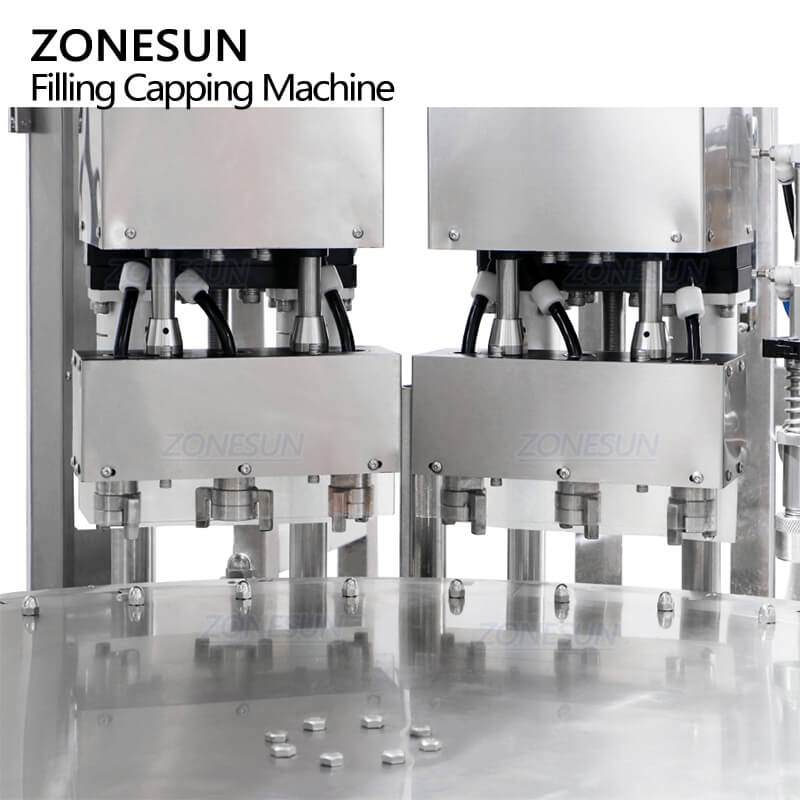

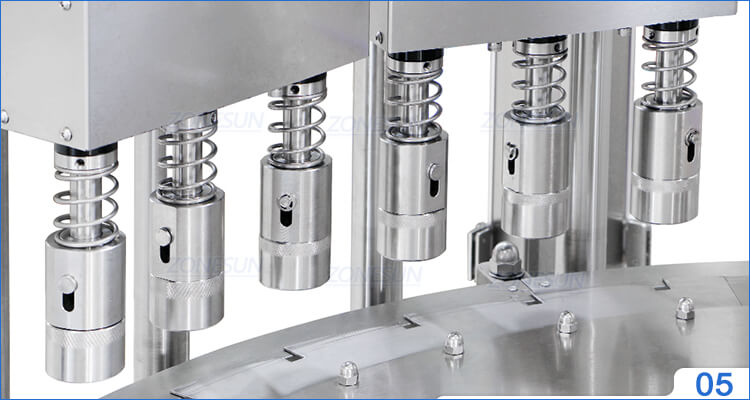

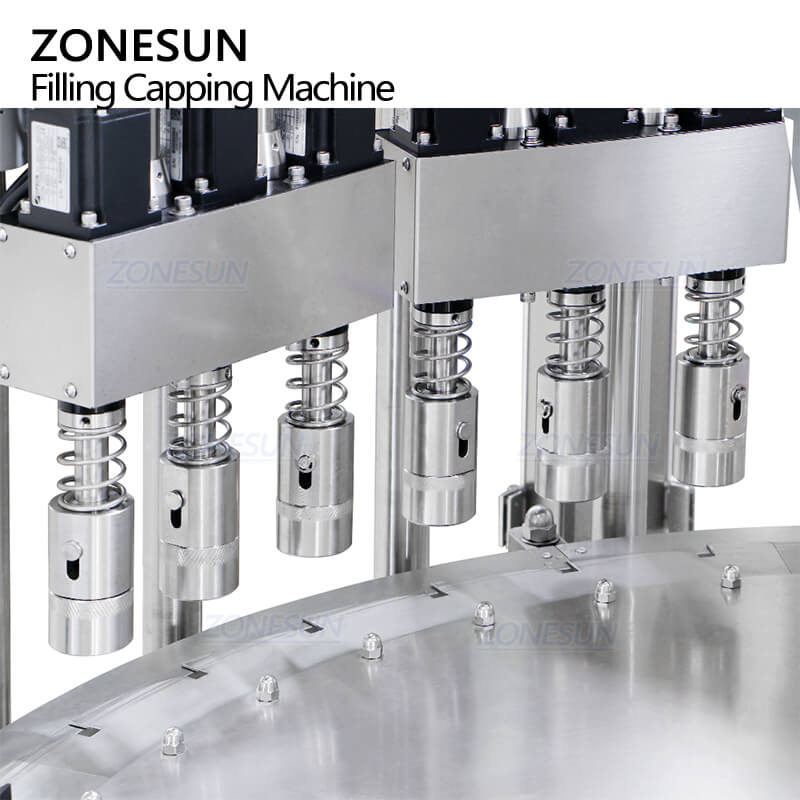

Servo Capping Structure
Applies consistent torque with independent servo control for reliable sealing.
