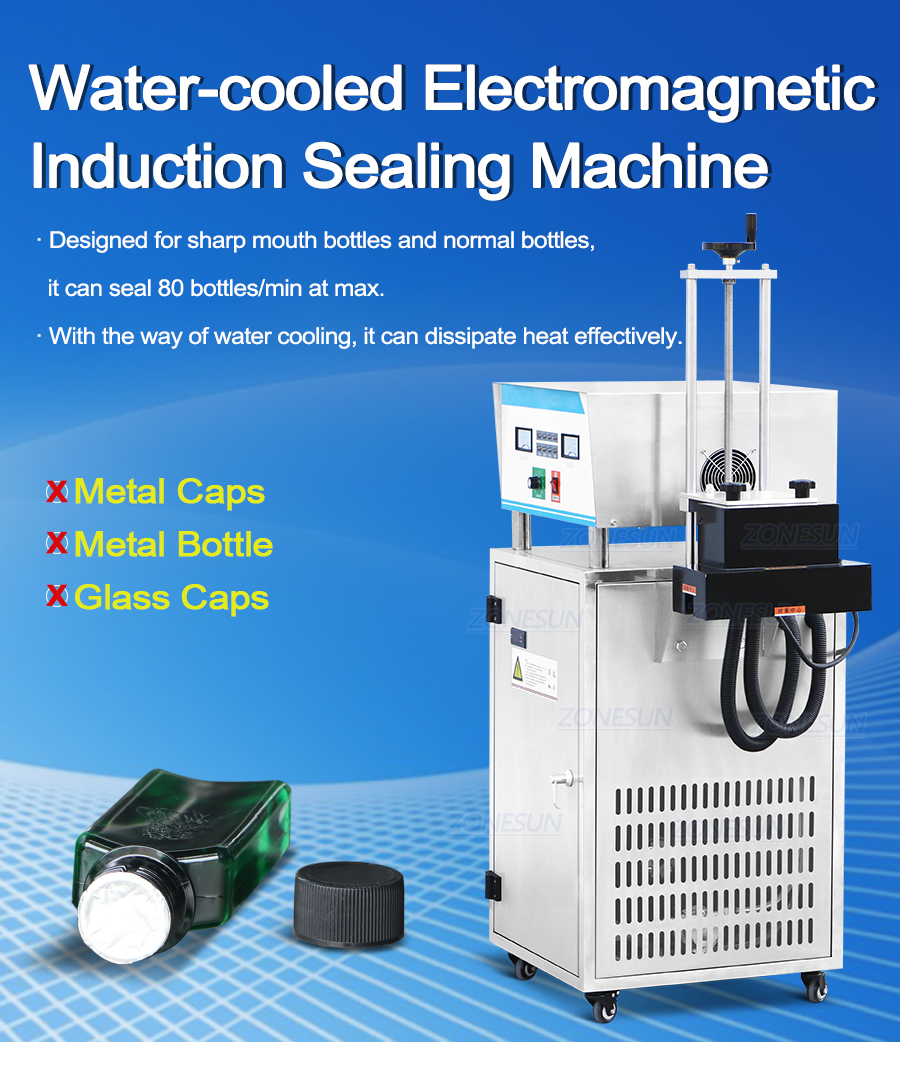

Water-cooled Electromagnetic Induction Heat Sealing Machine
The machine’s principle of operation is when a metal aluminum foil is close to the induction head, it generates eddy currents on the aluminum foil, thereby producing heat to seal the bottle mouth. The heat generation is dependent on the strength of the eddy currents, frequency level, and action time. The machine is equipped with a self-check function to ensure safe operation. It utilizes a dual water-cooled self-circulation cooling system, which cools the induction head and the power module of the machine host respectively.
$2,299.00
Share to
Product Description
The machine’s principle of operation is when a metal aluminum foil is close to the induction head, it generates eddy currents on the aluminum foil, thereby producing heat to seal the bottle mouth. The heat generation is dependent on the strength of the eddy currents, frequency level, and action time. The machine is equipped with a self-check function to ensure safe operation. It utilizes a dual water-cooled self-circulation cooling system, which cools the induction head and the power module of the machine host respectively.
Product Applications
Product Information
|
Machine Model
|
ZS-FK6000
|
|||
|
Voltage
|
220V 50Hz
|
|||
|
Power
|
3.6kW
|
|||
|
Sealing Speed
|
About 0-80 bottles/min
|
|||
|
Sealing Diameter
|
15-60mm(Can be customized)
|
|||
|
Sealing Height
|
50-335mm
|
|||
|
Cooling Method
|
Water Cooling
|
|||
|
Application
|
Suitable for normal bottles and sharp mouth bottles,plastic and glass bottles.
Inapplicable for glass caps,metal bottles or metal caps.
|
|||
|
Machine Size
|
About 707*950*1510mm
|
|||
|
Packaging Size
|
About 660*790*1430mm
|
|||
|
Net Weight/Gross Weight
|
About 76kg/106kg
|
|||

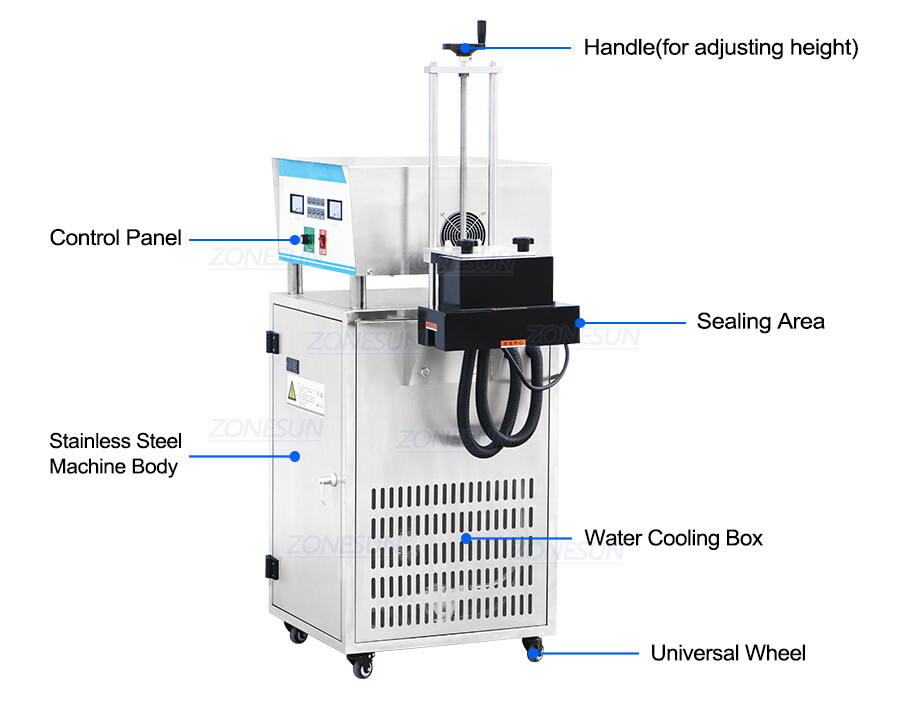

Product Detail

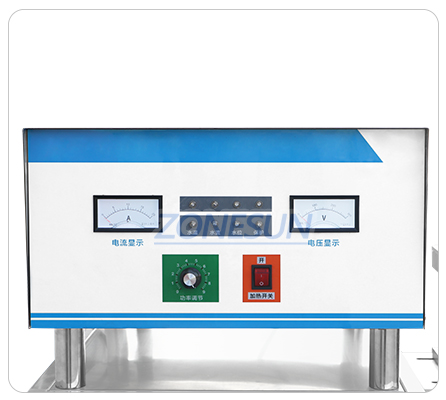

Button Control Panel

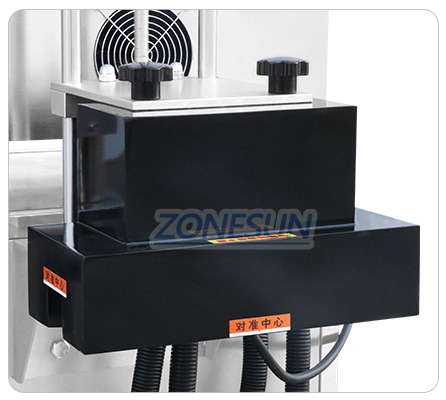

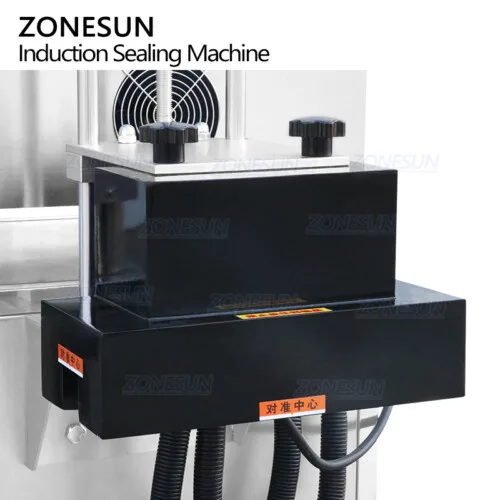

Induction Sealing Head

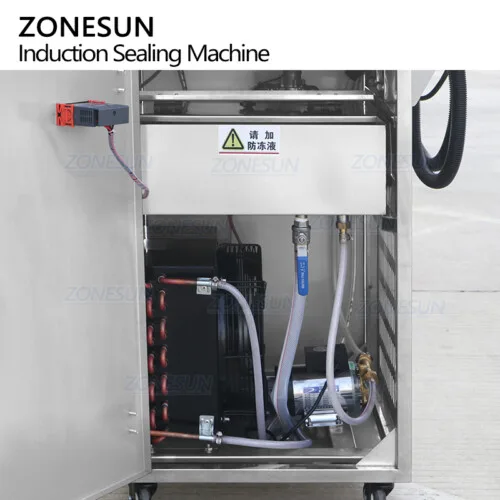

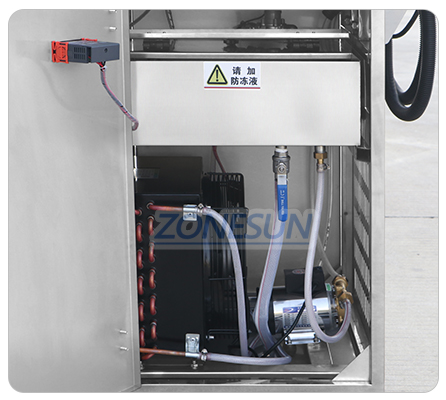

Water Cooling System

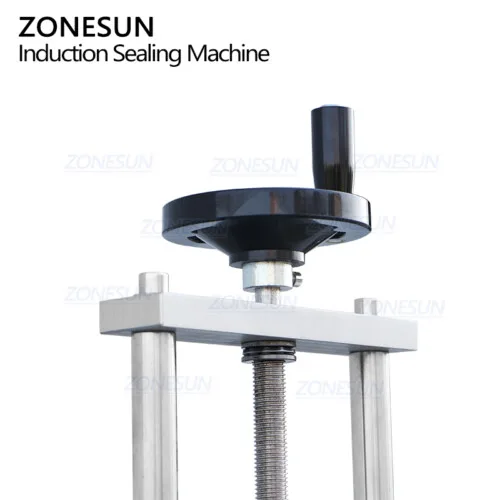

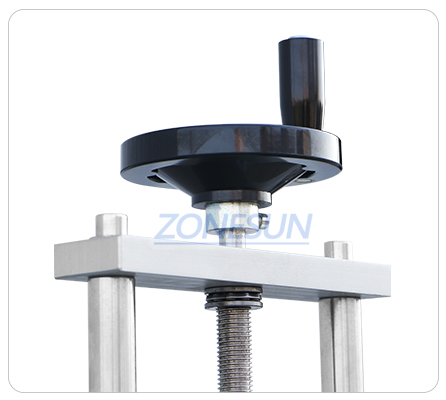

Height Adjustment Knob
Product Real Shot
