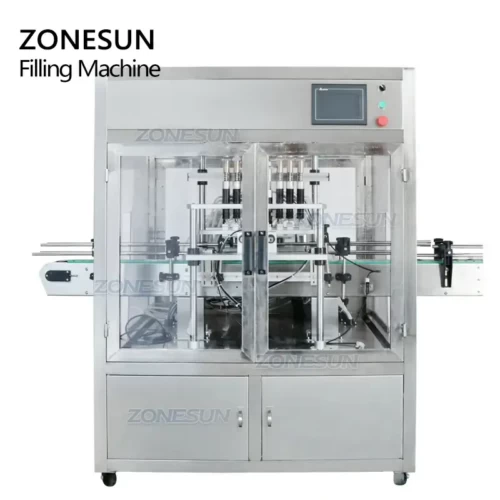

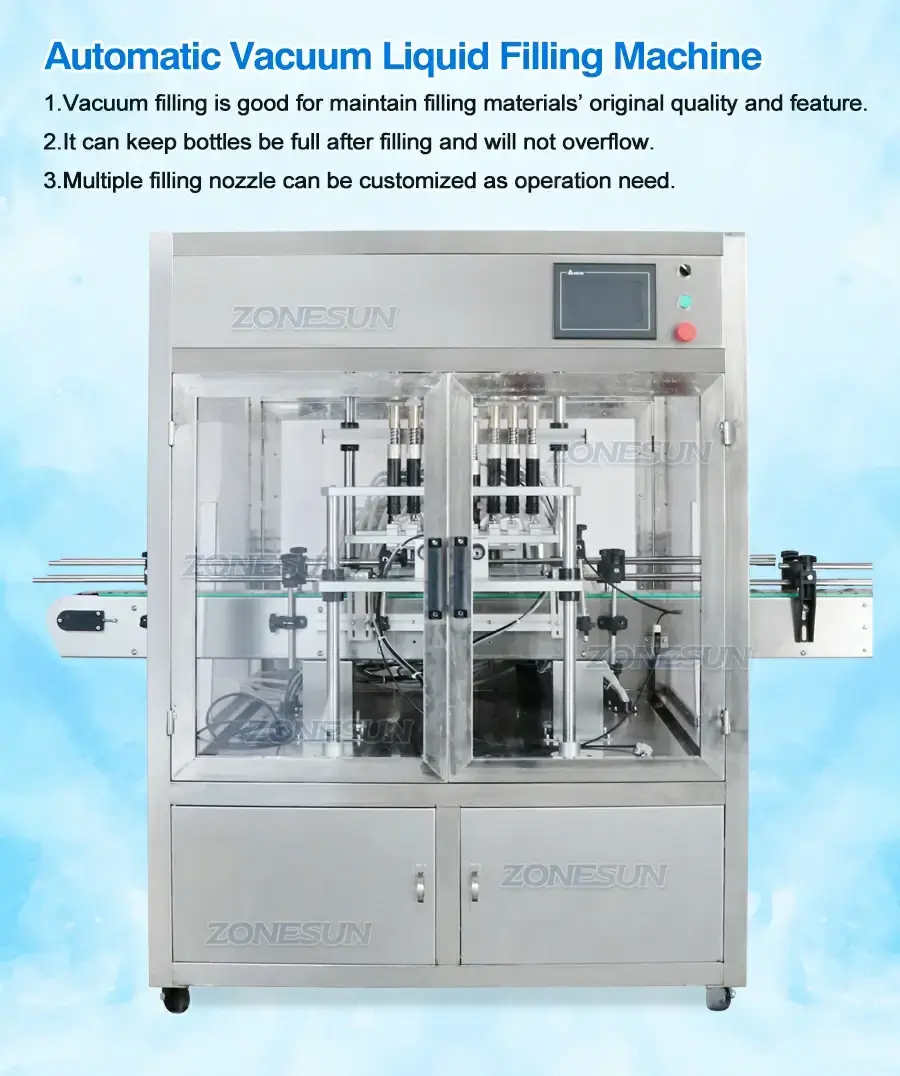

Vacuum Perfume Filling Machine

This automatic filling machine fill liquid in a most natural way,which allows to maintain filling materials’original quality and feature.This is an ideal choice for perfume,fresh juice,wine etc.It is widely used in beverage,cosmetics,and daily chemical industries.

Product Detail

Product Tags


Description:

This automatic filling machine fill liquid in a most natural way,which allows to maintain filling materials’original quality and feature.This is an ideal choice for perfume,fresh juice,wine etc.It is widely used in beverage,cosmetics,and daily chemical industries.

Parameter:

Model ZS-YTZL8A
Filling head 8 Head
Air pressure 0.5-0.8MPa
Liquid level accuracy ±1mm
Viscosity range The maximum applicable viscosity is 20Cps (static viscosity)
Working speed 20-60 Bottles/Minute
Bottle height ≤250mm
Bottle opening size ≤φ4.5mm-φ28mm
Adjustable liquid level (from the bottle mouth) 15-50mm
Air pumping rate 5.5L/S
Machine size About 2000*1395*1715mm
Machine weight About 480kg
Package size About 2095*1560*1850mm
Package weight About 550kg
