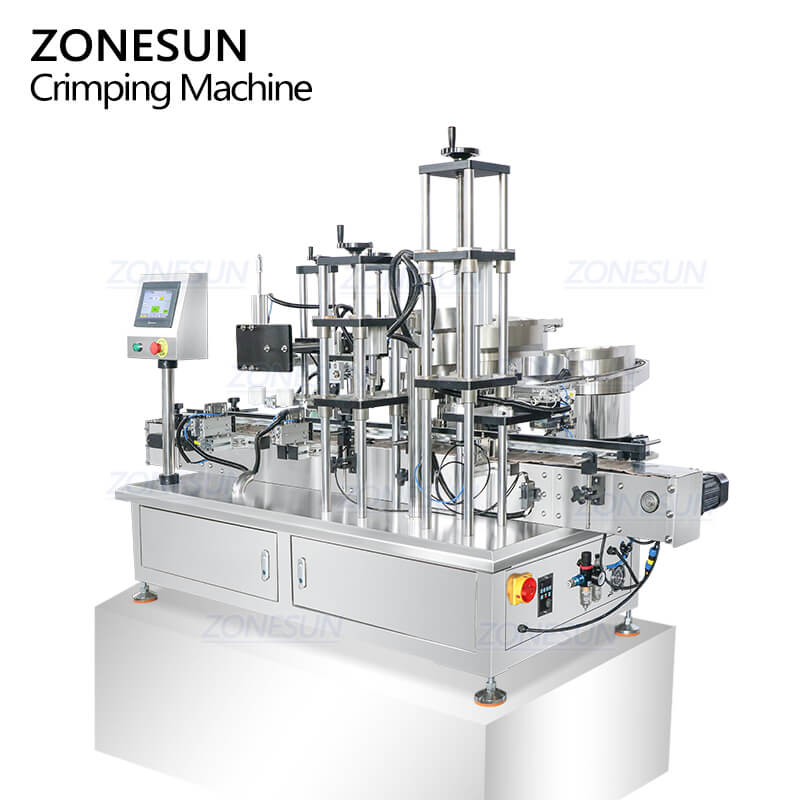

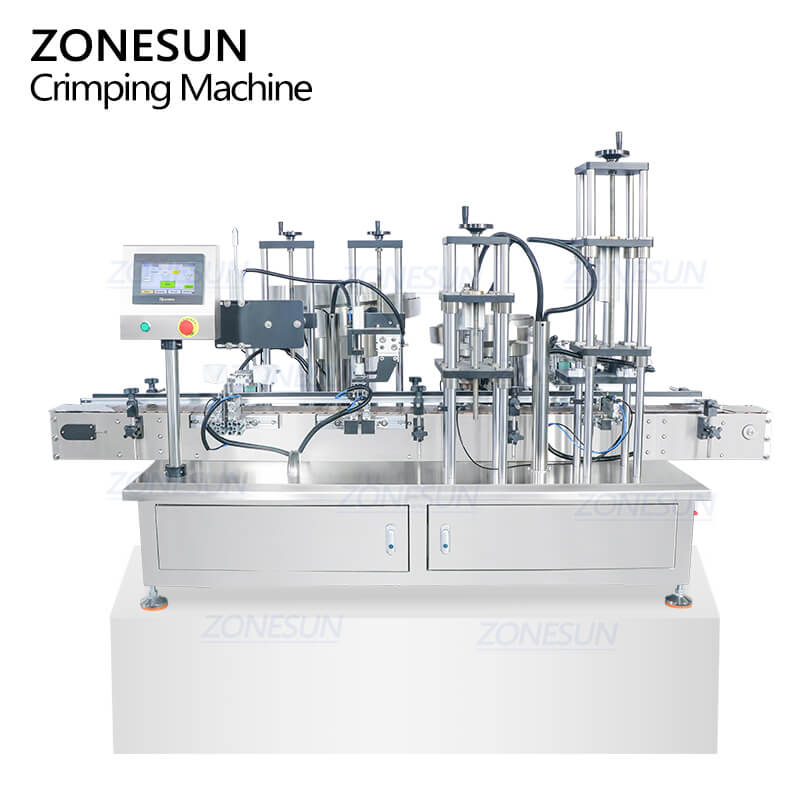

Tabletop Perfume Crimping Machine
This perfume capping machine can crimp perfume collar ring and spray caps, it has compact machine body to save working space, and can work with tabletop liquid filler to realize automated production.
Share to
Product Description:
This perfume capping machine can crimp perfume collar ring and spray caps, it has compact machine body to save working space, and can work with tabletop liquid filler to realize automated production.
Product Parameters:
Vibratory Bowl Sorter
| Machine Power | 110/220V 50-60HZ |
| Material | Stainless Steel |
| Suitable Caps Diameter | Customized |
| Working Speed | Customized |
| Machine Size | Customized |
Capping Machine
| Machine Model | ZS-DTYG11U |
| Voltage | 220V/110V 50-60Hz |
| Power | 1.5kW |
| Capping Speed | About 20bottles/min(depending on bottle and cap size) |
| Suitable Bottle Height | 50-200mm |
| Bottle Cap Diameter | 15-22mm |
| Bottle Mouth Diameter | 14-20mm |
| Suitable Bottle Diameter | 40-110mm |
| Machine Size | About 2300*750*1780(L*W*H) (Main Machine) About 440*440*1370(Vibratory Bowl Sorter-1) About 350*350*1270(Vibratory Bowl Sorter-1) |
Product Details:

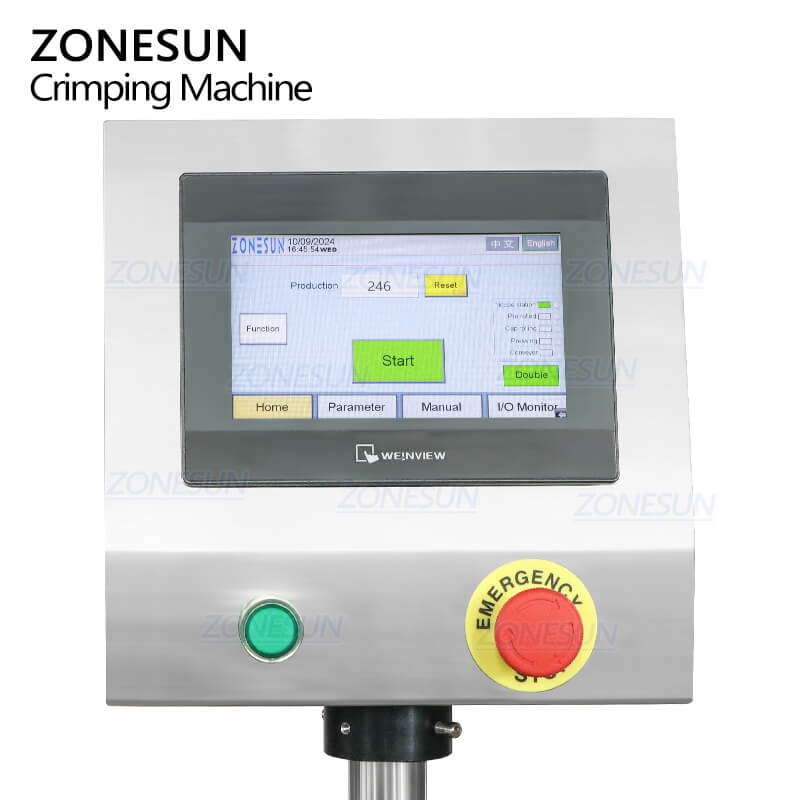

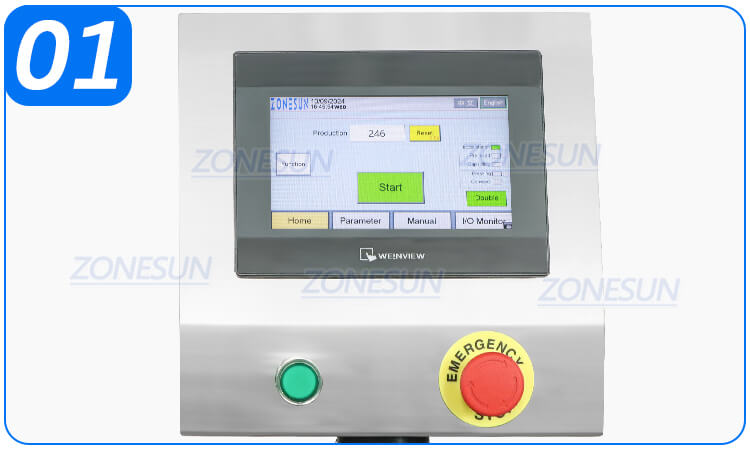

Control Panel
Touch screen control panel makes parameter setting & machine debugging more convenient.

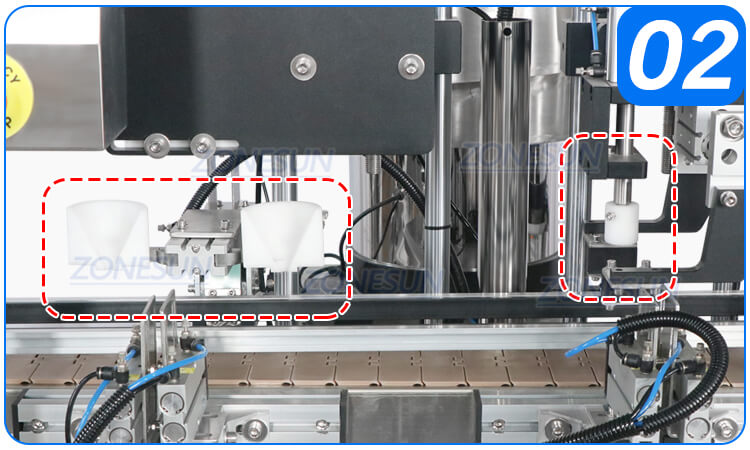

Cap Positioning Structure
Put spray caps into bottles and position spray caps before crimping, improves working accuracy.

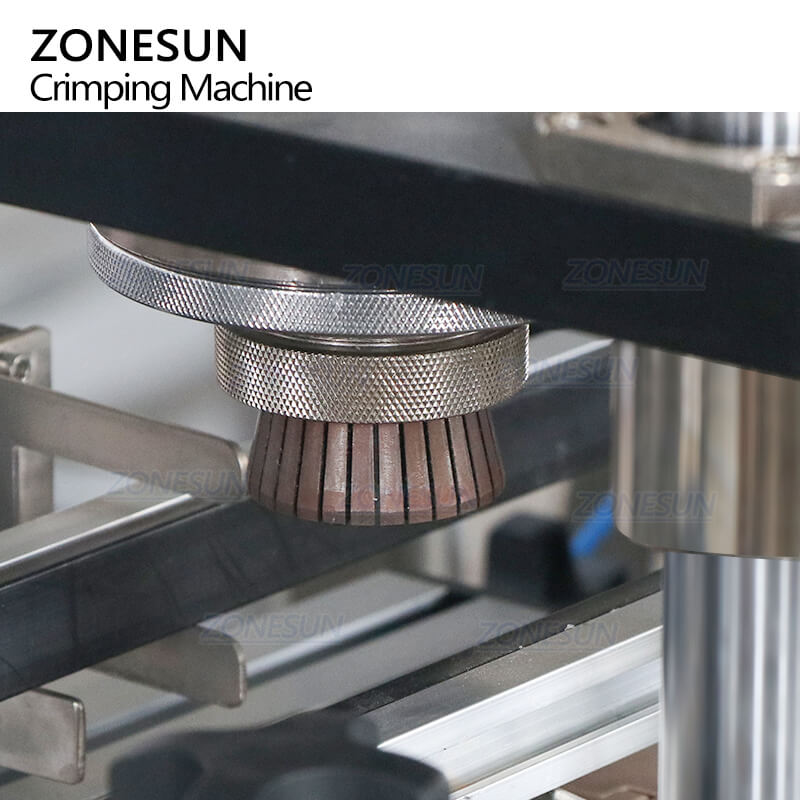

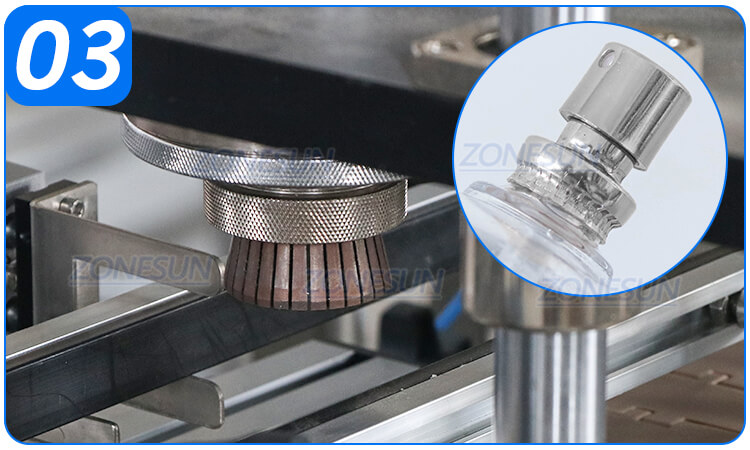

Crimping Structure
Changing molds suits different sizes of spray caps, it widens application range.

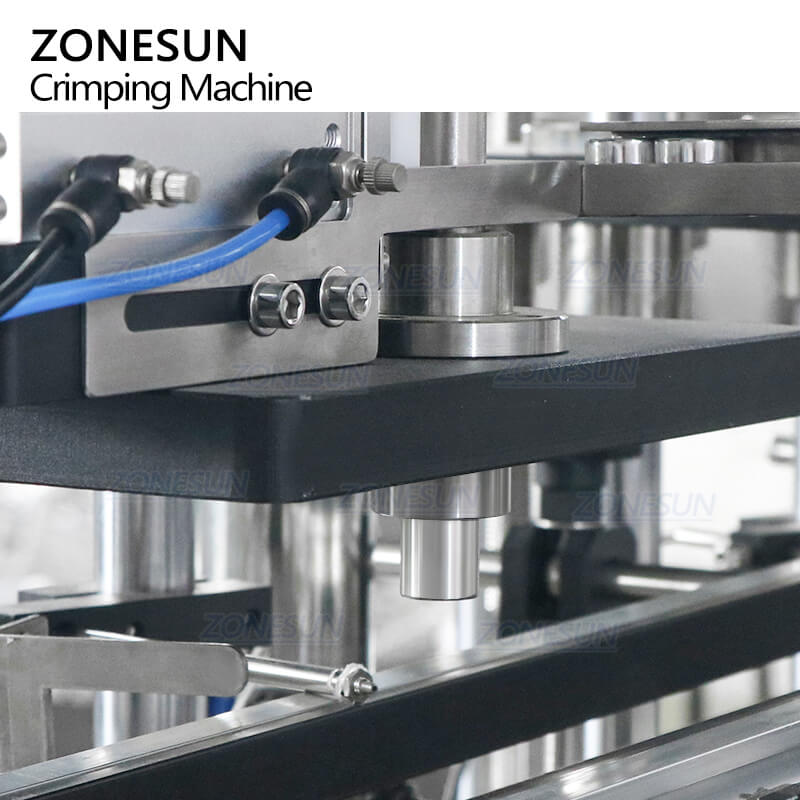

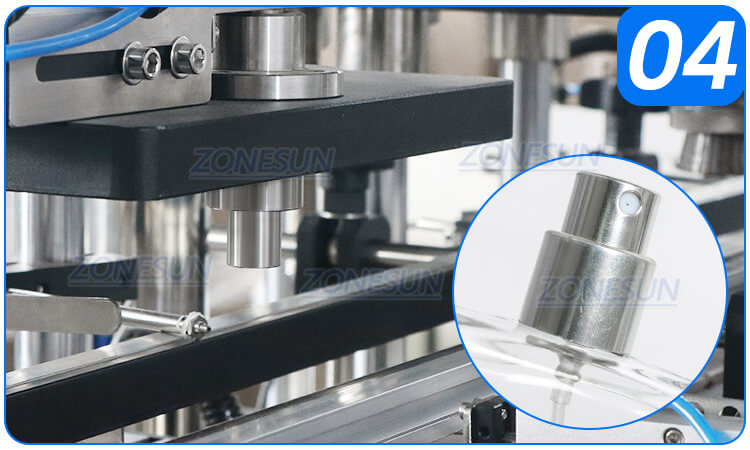

Cap Pressing Structure
This is suitable for pressing collar ring and the pressing type spray caps, it is customizable based on cap size.
Electric Eye
Can detect passing by bottles and control machine to crimp caps automatically.

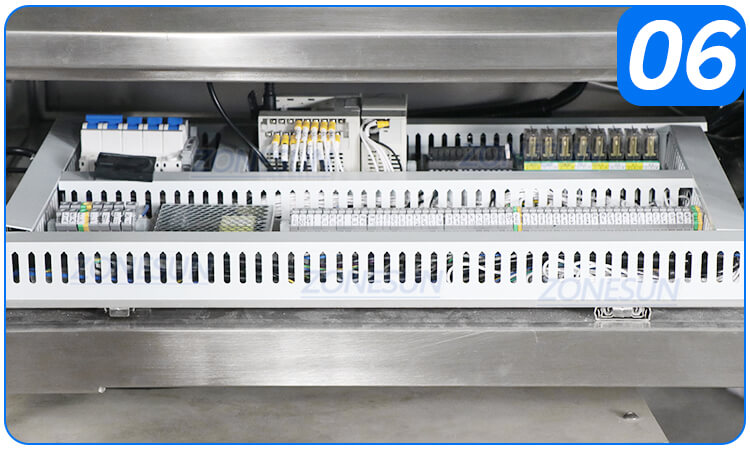

Electric Circuit
Electric circuits are connected neatly, this ensures stable working and will be more convenient for debugging.
