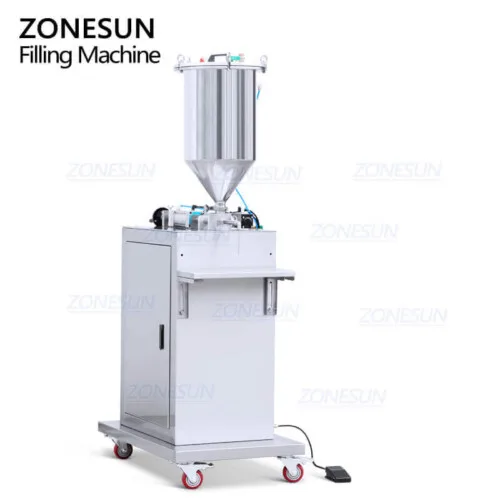

Small Volume Filling Machine

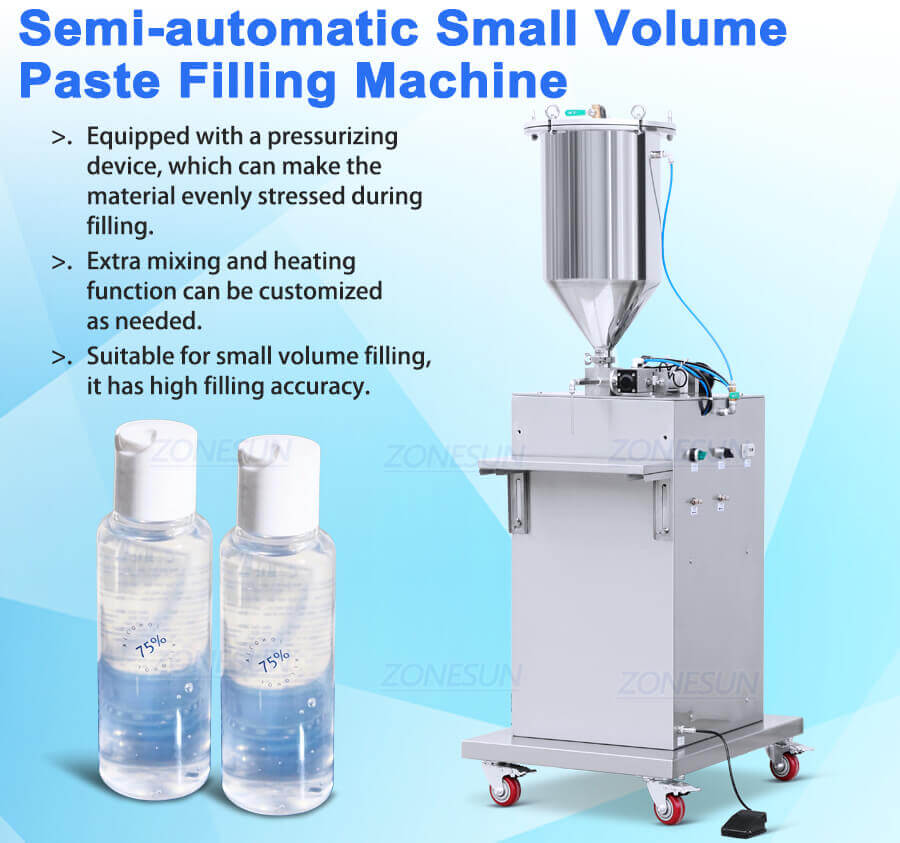

This semi-automatic paste filling machine is equipped with piston pump,it is designed for the small volume filling like mascara cream,liquid foundation,lip gloss etc.The hopper is equipped with a pressurizing device,which can make the material evenly stressed during the filling process and ensure the stability of the filling process.Extra mixing and heating function can be customized according to production need.
Price range: $1,599.00 through $4,299.00
Share to
Product Description
This semi-automatic paste filling machine is equipped with piston pump,it is designed for the small volume filling like mascara cream,liquid foundation,lip gloss etc.The hopper is equipped with a pressurizing device,which can make the material evenly stressed during the filling process and ensure the stability of the filling process.Extra mixing and heating function can be customized according to production need.
Product Applications
Product Parameter
| Machine model | ZS-GTPP1 |
| Machine voltage | 110/220V 50-60HZ 100W |
| Air pressure | 0.3-0.6MPa |
| Hopper size | 18L |
| Hopper pressure resistance | 6kg/cm² |
| Filling range |
1-20ml |
| Filling accuracy | ±0.1ml |
| Working capacity | 1200-1800BPH |
| Machine size | About 410*770*1550mm |
| Machine weight | About 80kg |
| Package size | About 830*570*1630mm |
| Package weight | About 85kg |
| Specifications are for reference only and may vary by your product. Please confirm with us if required. | |

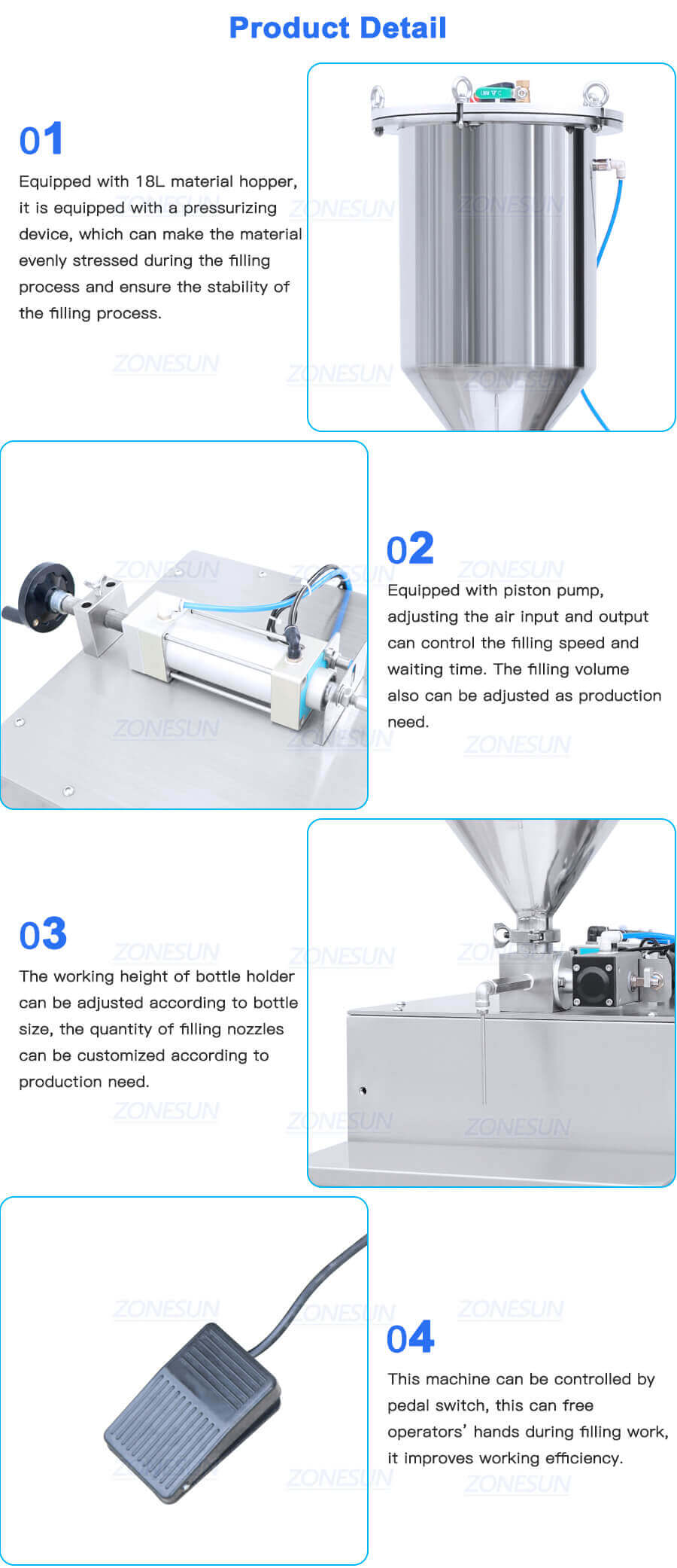

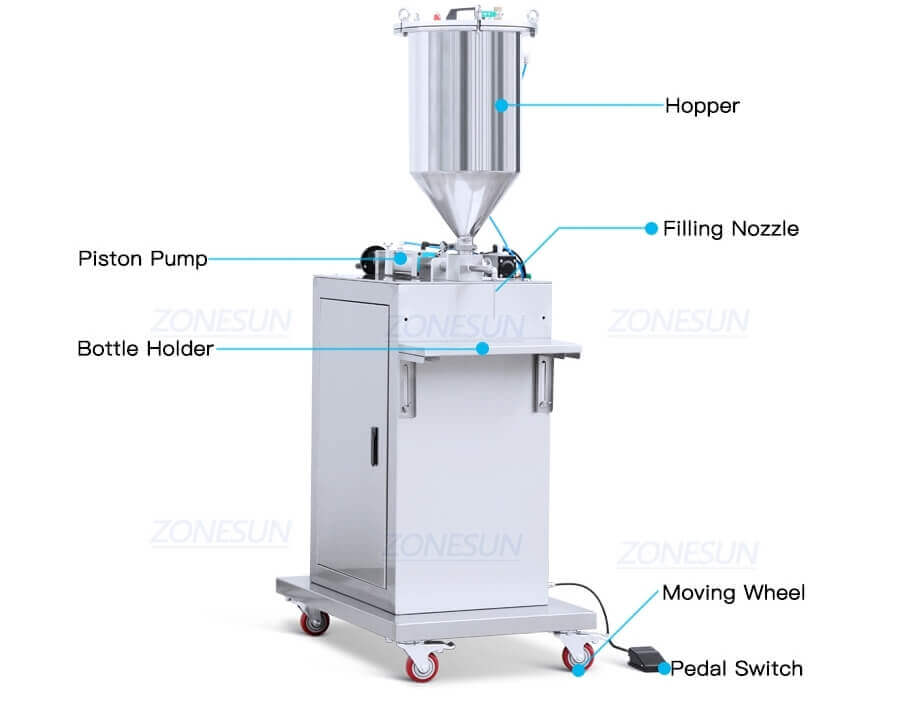

Product Details

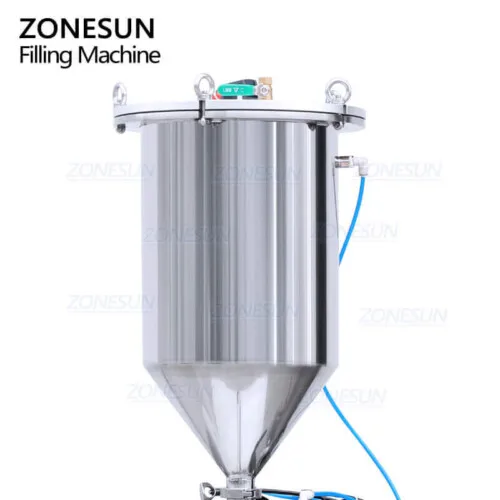

Equipped with 18L material hopper, it is equipped with a pressurizing device, which can make the material evenly stressed during the filling process and ensure the stability of the filling process.

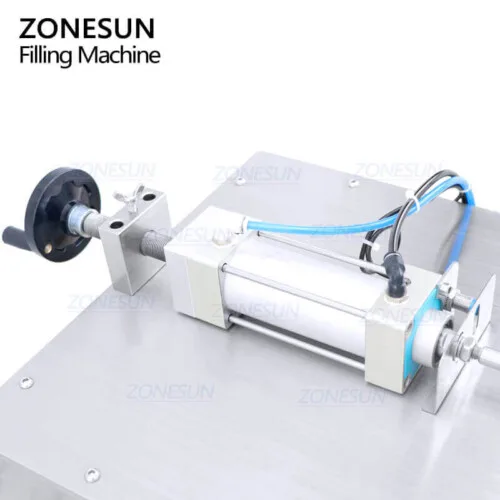

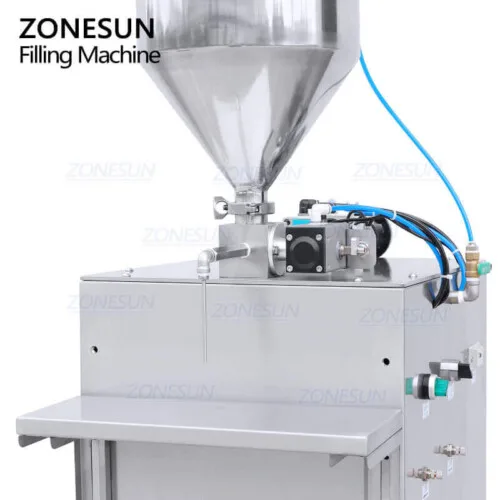

Equipped with piston pump, adjusting the air input and output can control the filling speed and waiting time. The filling volume also can be adjusted as production need.
The working height of bottle holder can be adjusted according to bottle size, the quantity of filling nozzles can be customized according to production need.

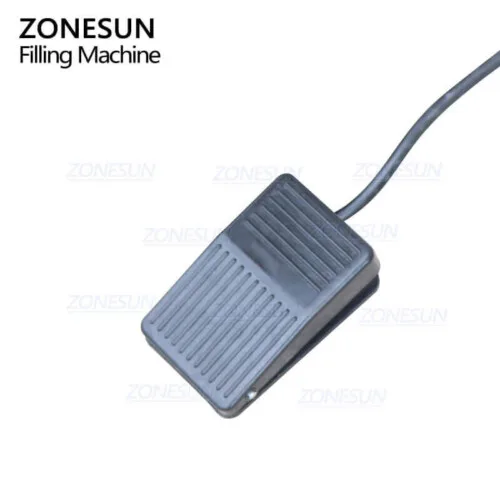

This machine can be controlled by pedal switch, this can free operators’ hands during filling work, it improves working efficiency.

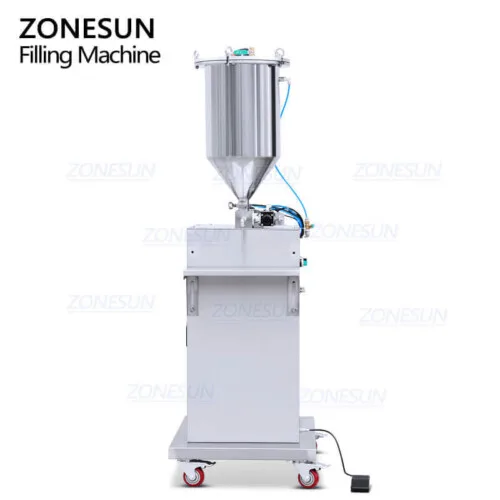

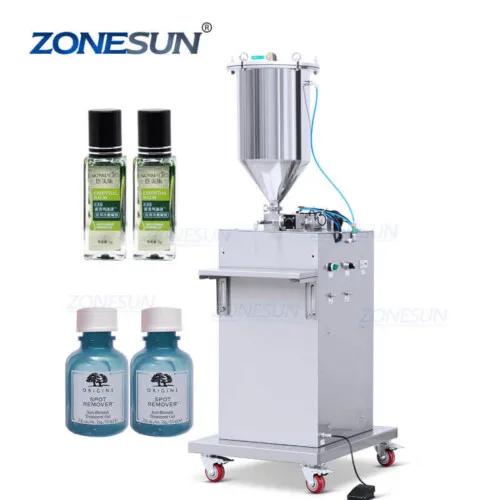

Product Real Shot
