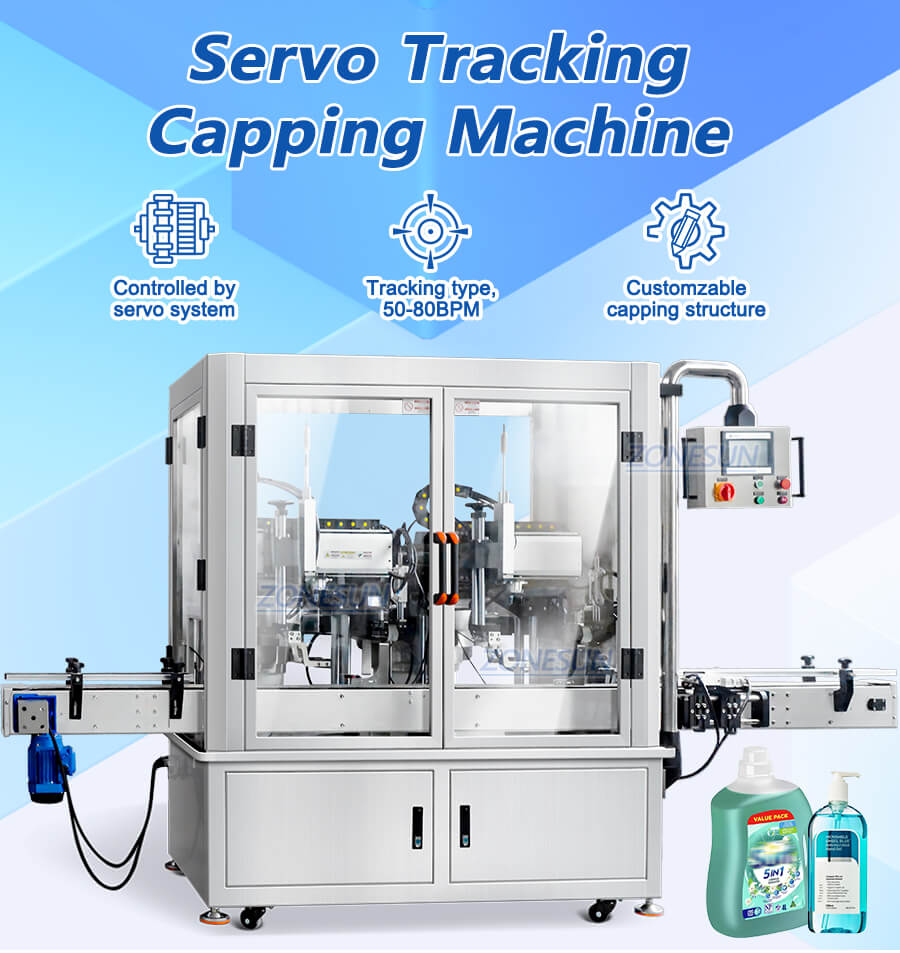

Servo Tracking Capping Machine
The linear tracking capping machine consists of a servo bottle clamping conveying mechanism, a reciprocating servo following capping mechanism, an electrical control system and a frame. It can complete the capping and quickly reset during the bottle conveying process, and repeat the capping action after grabbing the cap, effectively improving work efficiency.
Share to
Product Description:
The linear tracking capping machine consists of a servo bottle clamping conveying mechanism, a reciprocating servo following capping mechanism, an electrical control system and a frame. It can complete the capping and quickly reset during the bottle conveying process, and repeat the capping action after grabbing the cap, effectively improving work efficiency.
Product Parameters:
|
Machine model
|
ZS-VTXG2
|
|
Machine voltage
|
380V 50HZ
|
|
Working capacity
|
50-80BPM
|
|
Suitable bottle size
|
H＜250mm φ＜110mm
|
|
Suitable cap size
|
φ=20-80mm
|
|

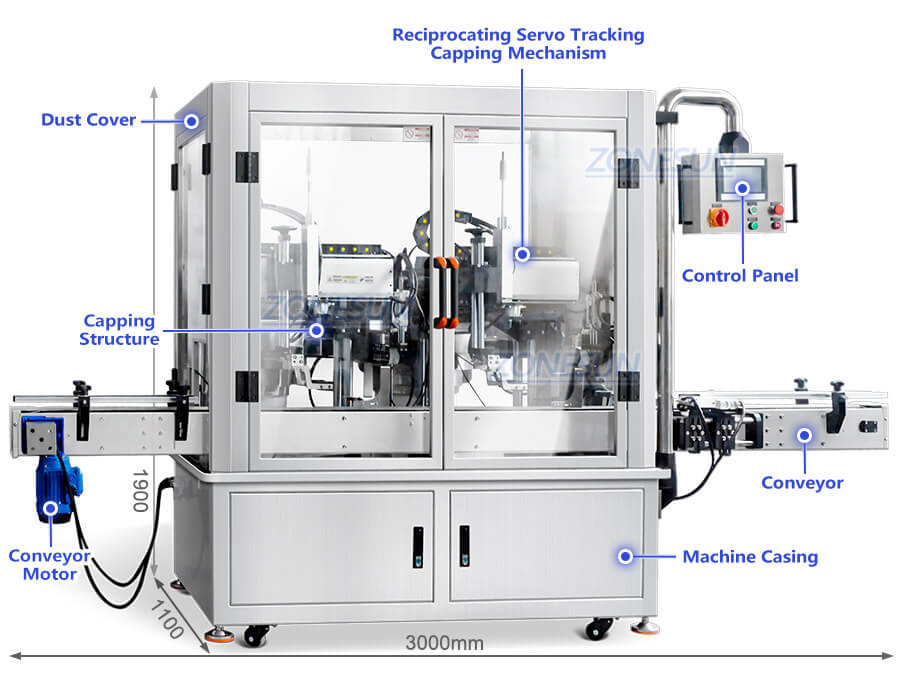

Machine size
|
About 3000*1100*1900mm(118.11*43.31*74.8 inch)
|
|
Machine weight
|
About 450kg
|
Product Details:

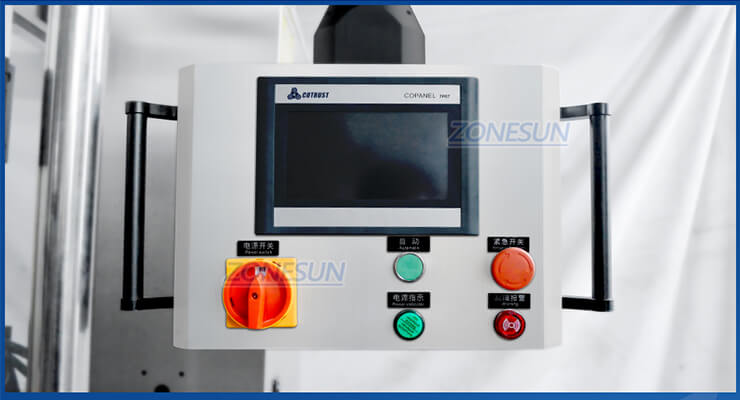

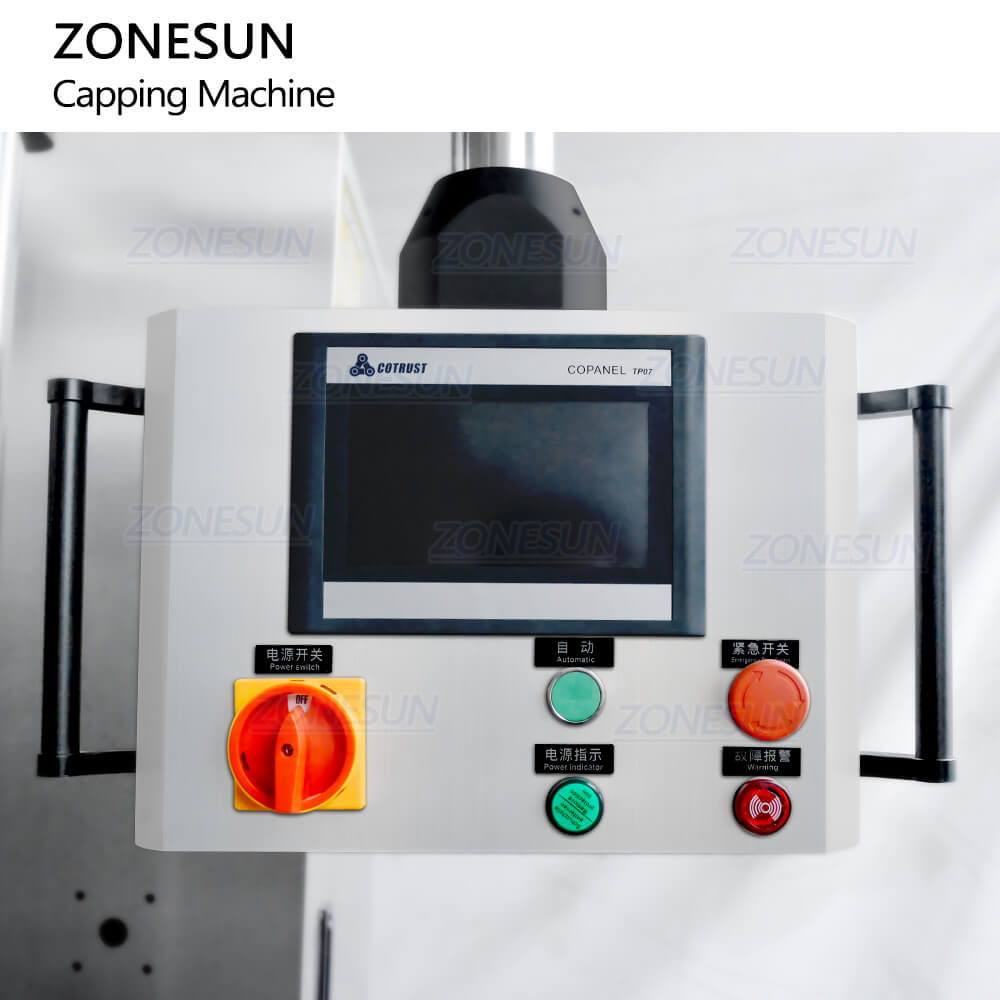

Control Panel
Touch screen operation panels makes parameter setting and machine debugging more convenient.

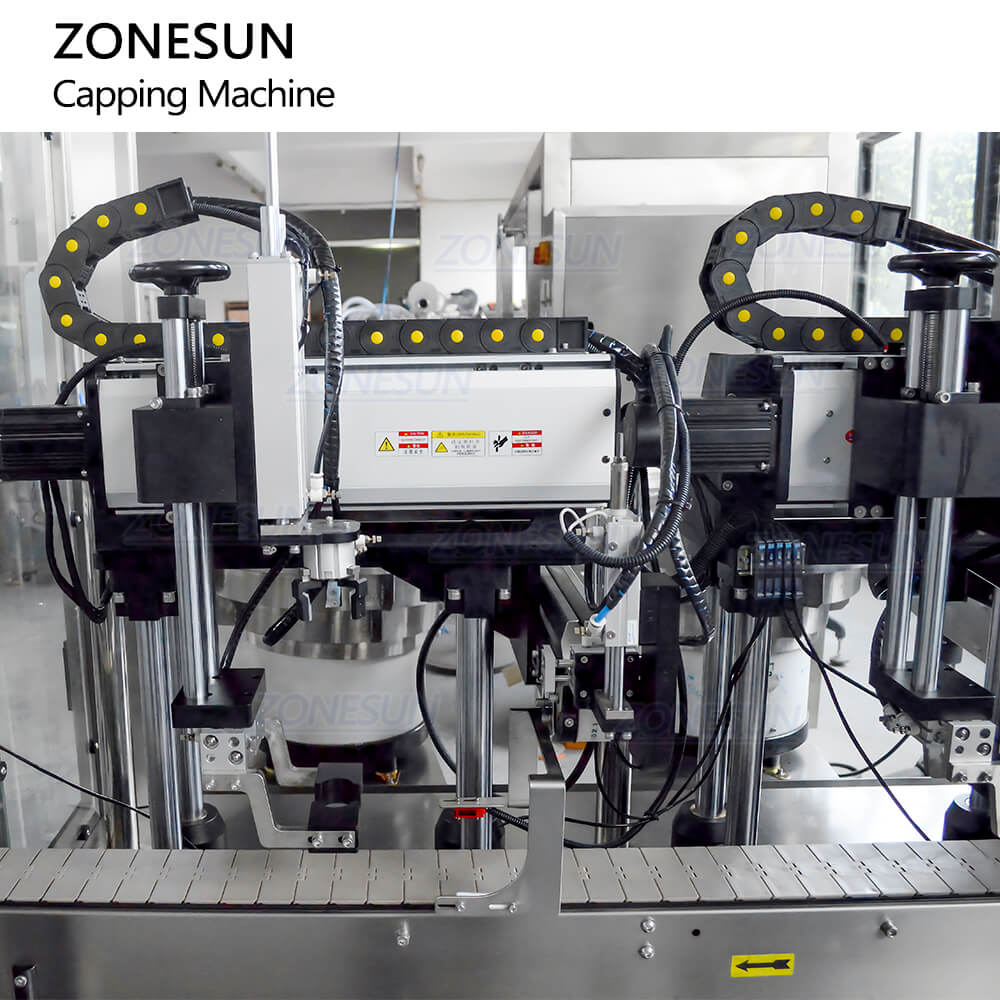

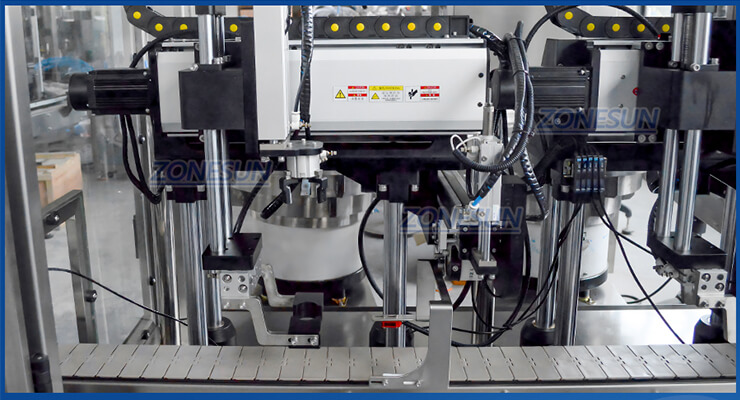

Reciprocating Tracking Capping Mechanism
Servo motor controls capping structure to track bottles and capping, it can reach 50-80BPM.

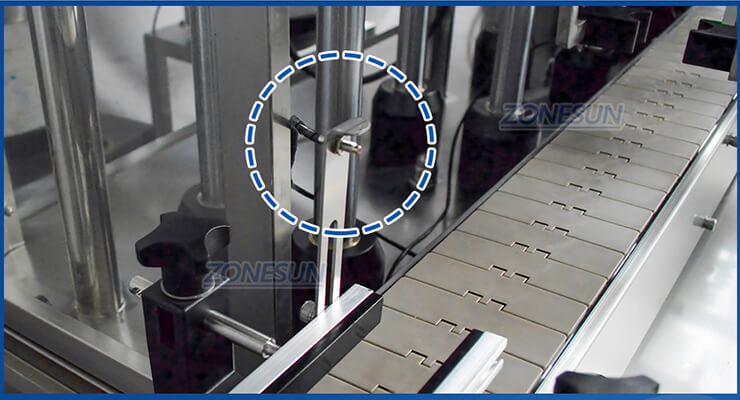

Electric Eye
This can detect passing by bottles and control machine to process capping work automatically.

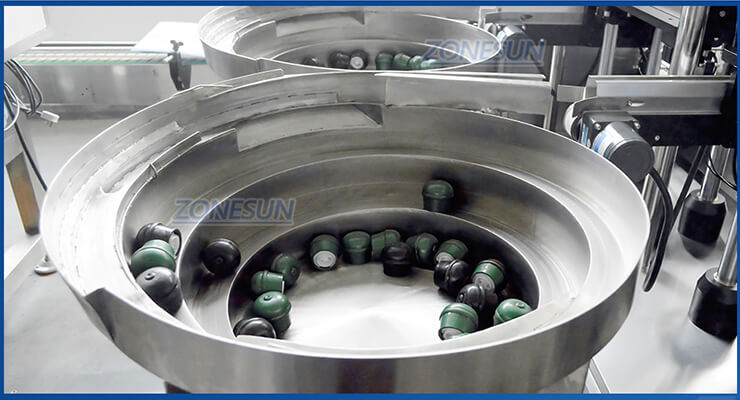

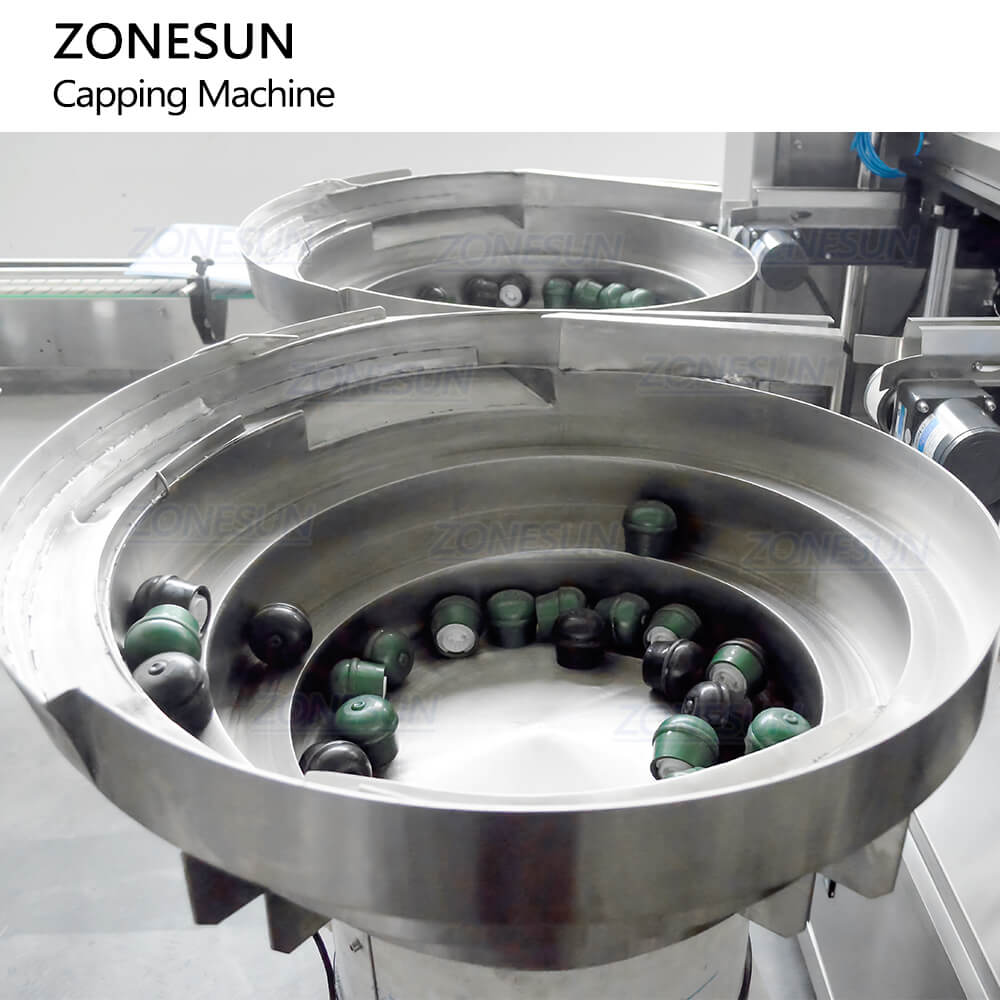

Vibratory Bowl Sorter
This makes bottles be in order, it is customzable based on cap size.

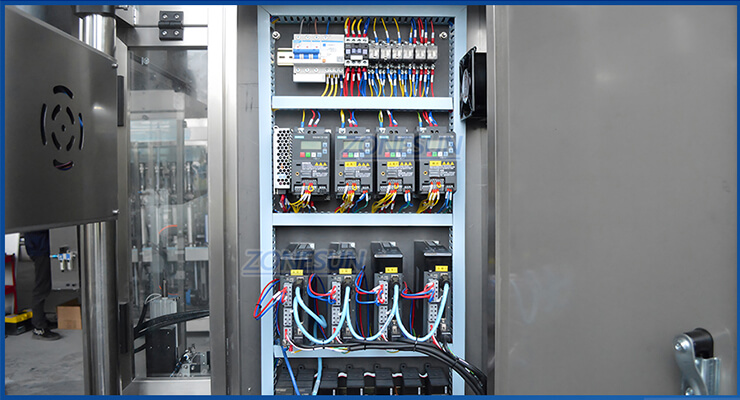

Electric Circuit
Electric circuits are connected neatly to ensure machine work stably.
