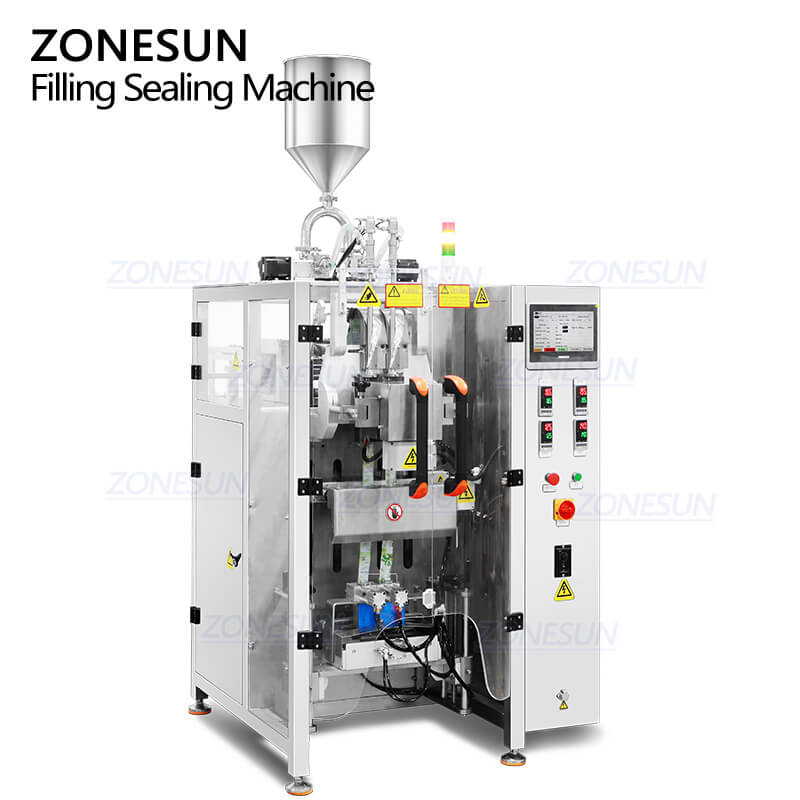

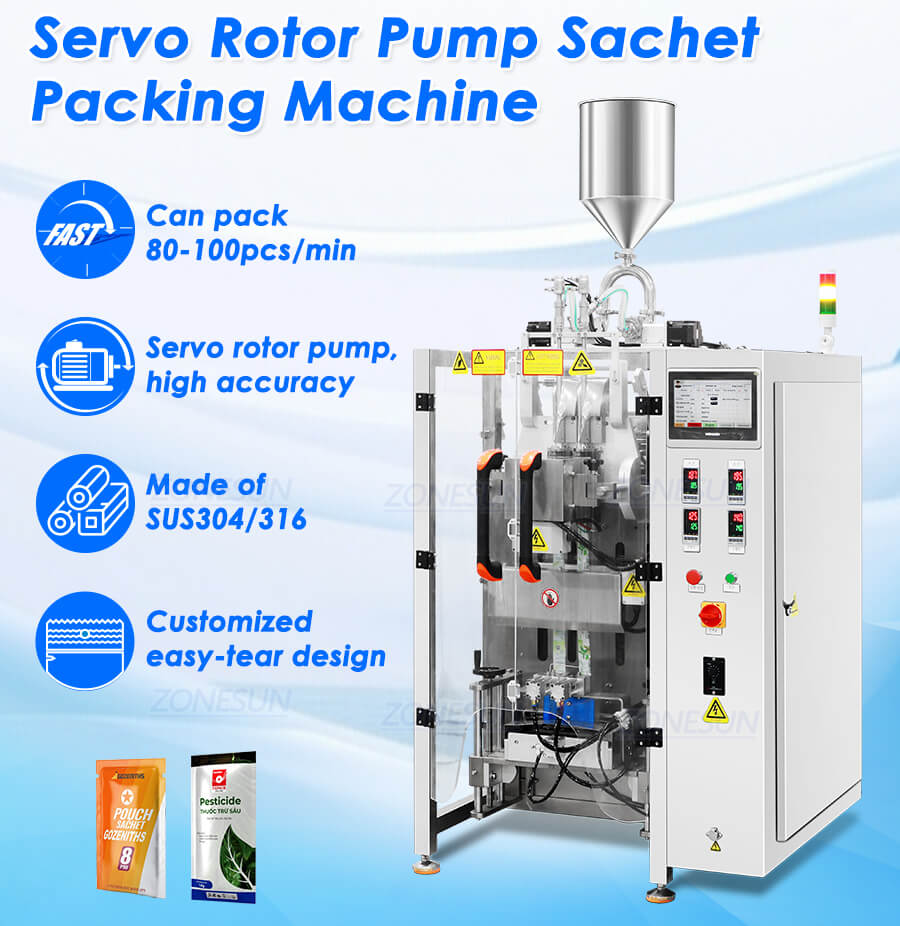

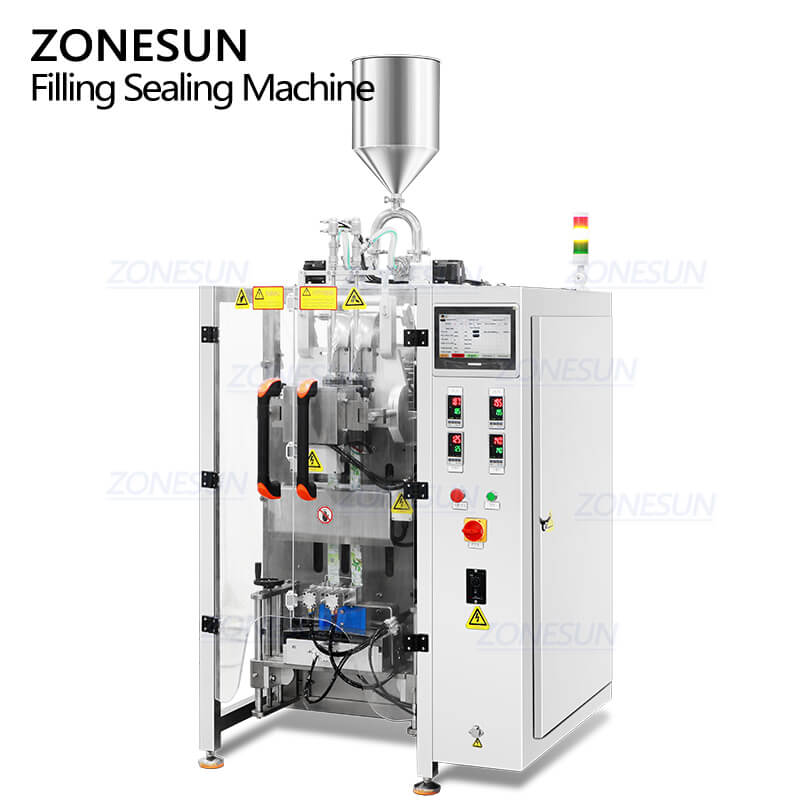

Sauce Sachet Vertical Form Filling Sealing Machine
This servo motor VFFS packing machine can efficiently complete the process of supplying material, bag making, filling, sealing, and date coding. With a double lane design, it enhances productivity. The sealing type can be customized based on production requirements. It is ideal for packaging shampoo, sauce, honey, fruit jam, and ketchup.
Share to
Product Description:
This servo motor VFFS packing machine can efficiently complete the process of supplying material, bag making, filling, sealing, and date coding. With a double lane design, it enhances productivity. The sealing type can be customized based on production requirements. It is ideal for packaging shampoo, sauce, honey, fruit jam, and ketchup.
Product Parameters:
| Machine Model | ZS-FS04 |
| Power Supply | 380V/220V/110V 4.5KW |
| Working Speed | About 40-50pcs/min*2 (depending on filling materials and sachet size) |
| Filling Range | 1-40ml (customized) |
| Filling Accuracy | ±1% |
| Filling Lanes | 2 Lanes (customized) |
| Filling Pump | Servo Rotor Pump |
| Sachet Length | 40-170mm |
| Sachet Width | 16mm-67mm |
| Sealing Type | 3-side/back-side sealing |
| Easy-tear Design | Dot-shape/V-shaped (customized) |
| Hopper Capacity | 30L |
| Air Supply | ≥0.6Mpa 0.6m³/min |
| Machine Material | The whole machine is SUS304, the part in contact with materials is SUS316 |

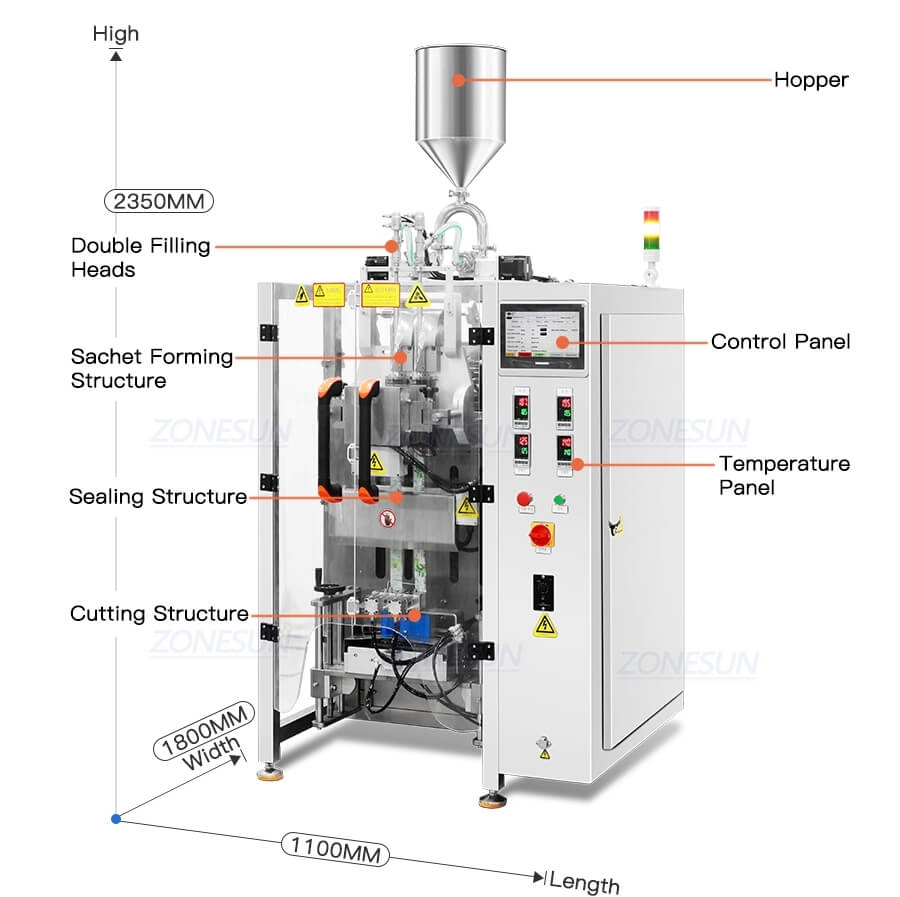

| Machine Size | About 1100*1800*2350mm/ 43.3*70.9*92.5 inch |
Product Details:

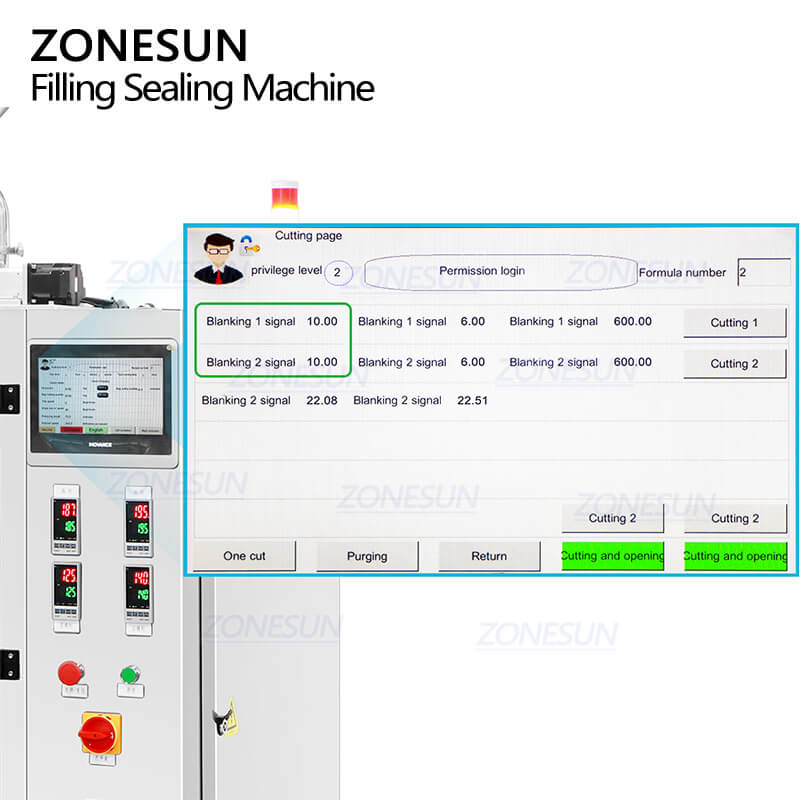

Touchscreen Panel
The parameters like filling range can be set directly on panel. Language of panel can be customized.

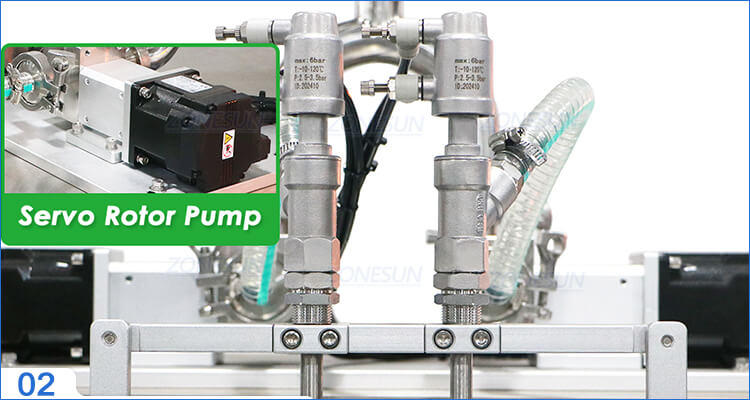

Anti-dripping Filling Nozzles
Driven by servo rotor pump, it can be used for filling viscous liquid or paste. Filling range can be customized.

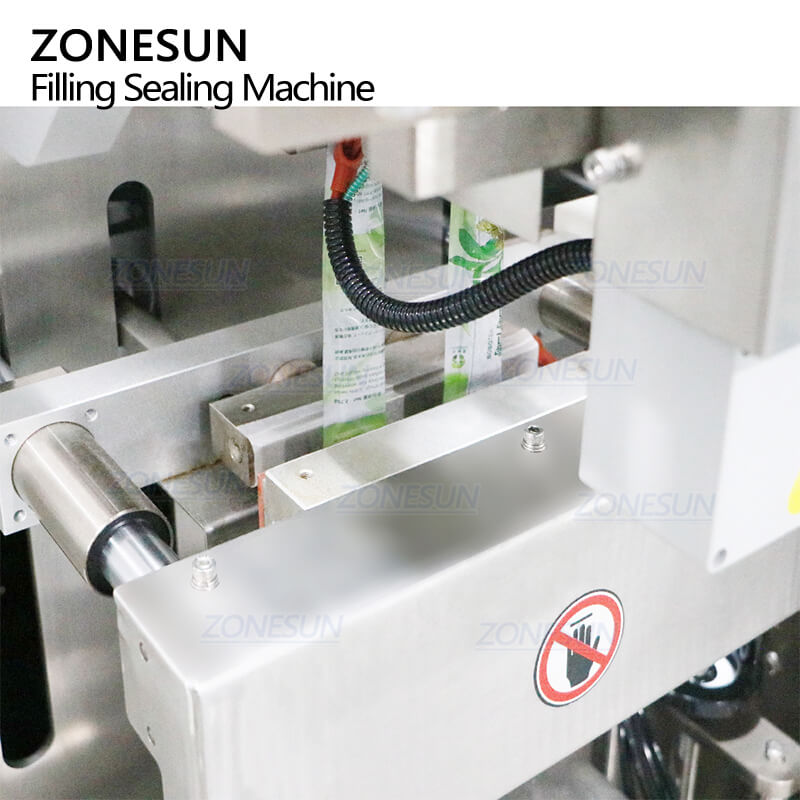

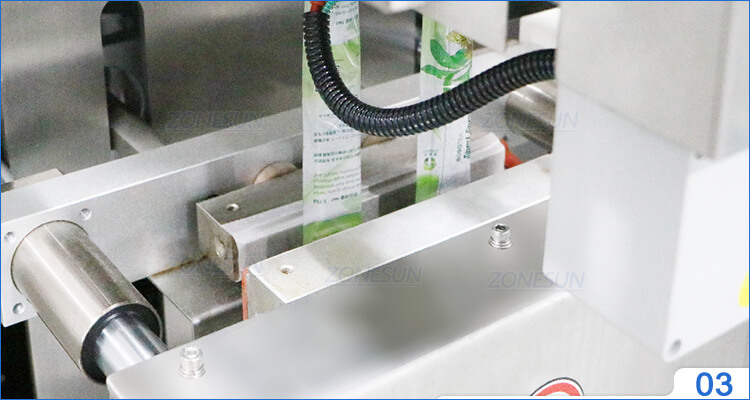

Sealing Structure
The sealing temperature and sealing length can be adjusted as needed.

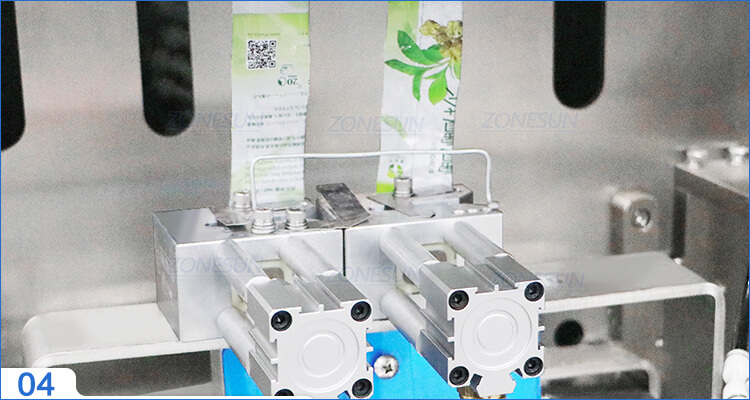

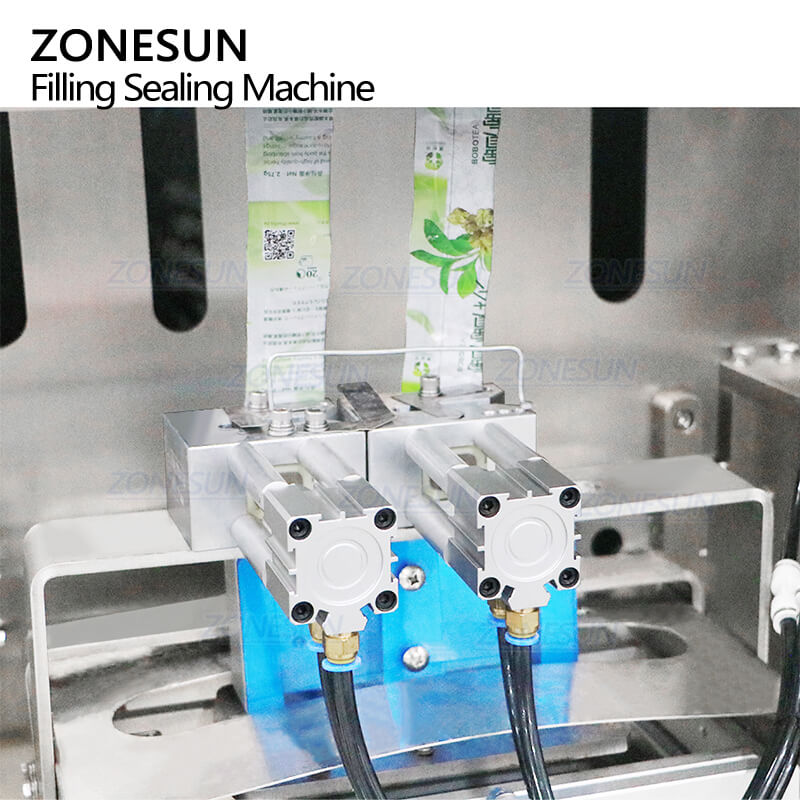

Cutting Structure
Can be customized for different kinds of easy-tear design. Please contact us if you need it.

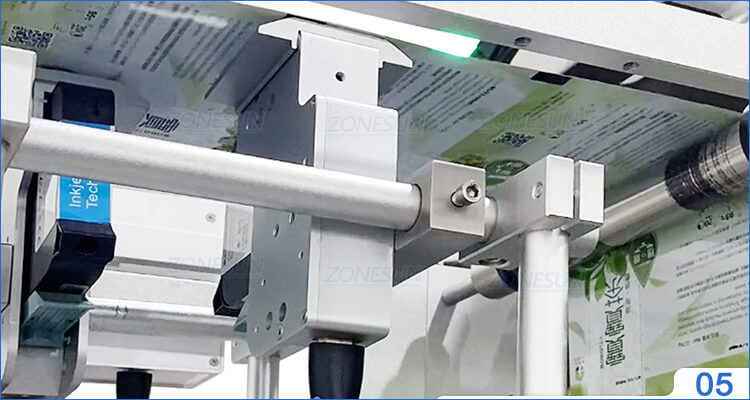

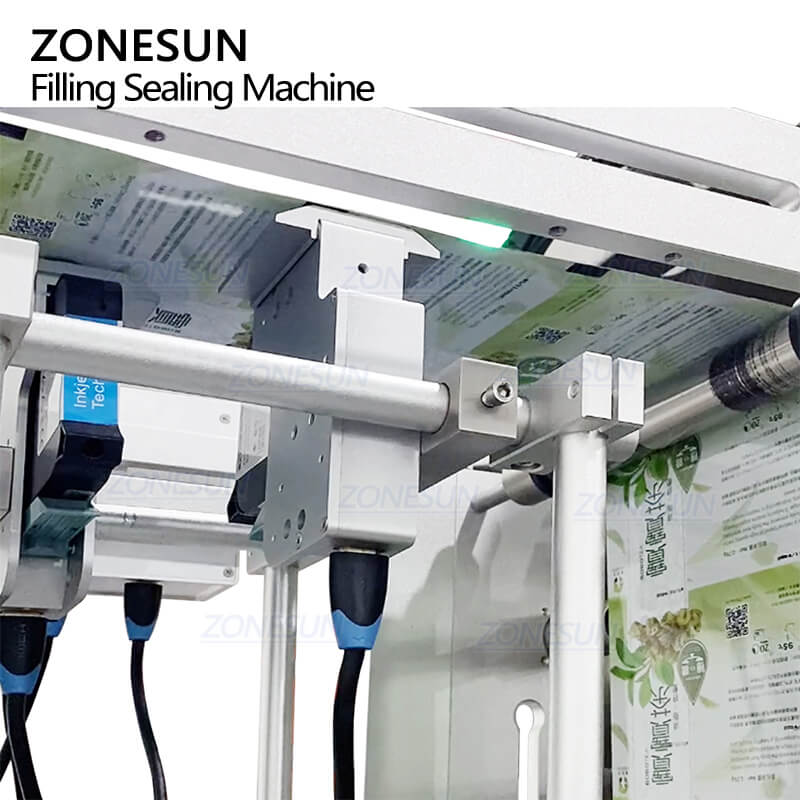

Date Coder
Can print batch, production date, QR code, barcode on films automatically.

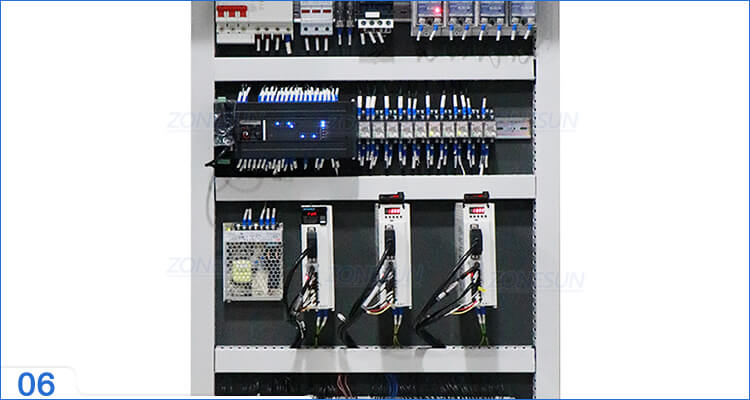

Wiring Box
Well-organized wiring ensures stable and safe production.
