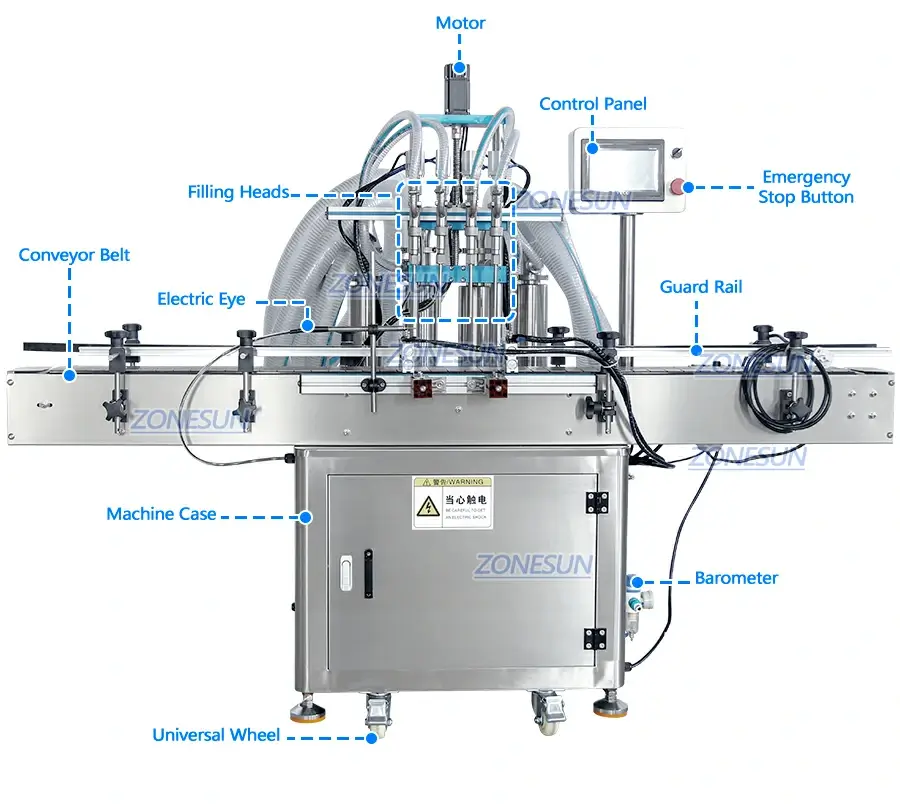

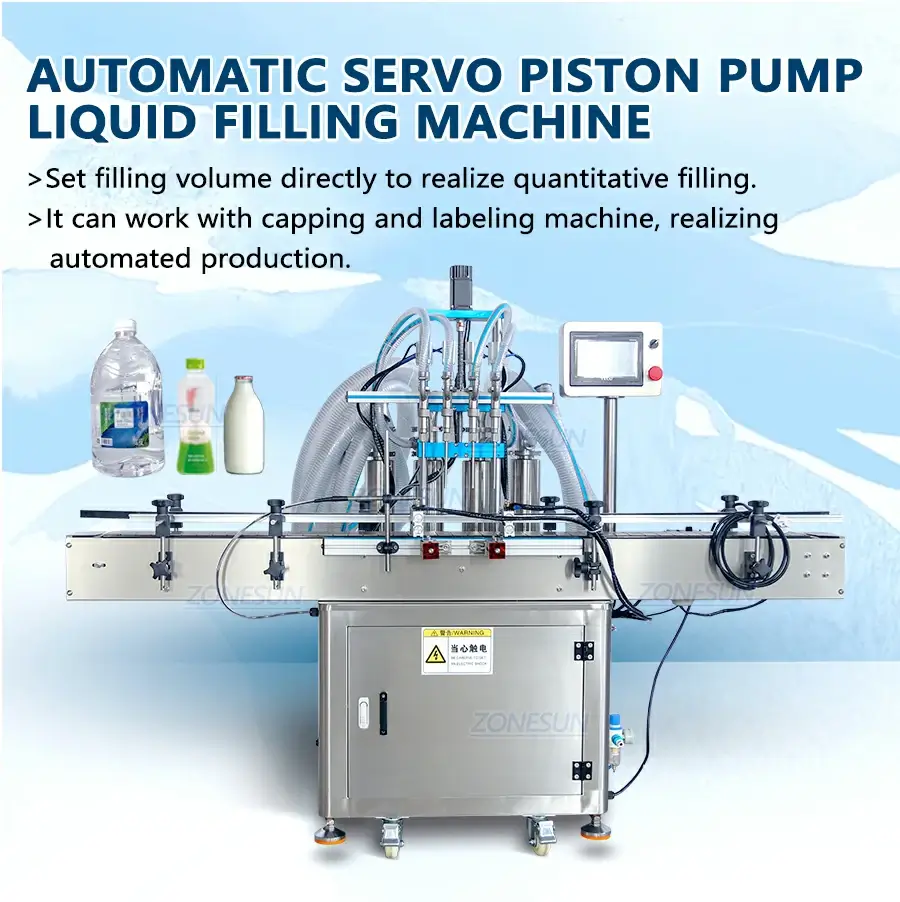

Servo Liquid Filling Machine
Price range: $5,499.00 through $5,699.00
Share to
| Machine Model | ZS-SV4HS |
| Voltage | 220V/110V 50-60Hz |
| Power | About 3kW |
| Filling Range | 100-1000ml(Can be customized) |
| Filling Speed | About 30-40 bottles/min
(depending on bottle size and filling material) |
| Filling Error | About±0.5% |
| Air Pressure | 0.5-0.8Mpa |
| Conveyor Belt Size | About 114*2000mm(W*L) |
| Machine Size | About 2000*990*1780mm |
| Machine Weight | About 130kg |
| Package Size | About 2070*760*1670mm |
| Package Weight | About 275KG |
| Filling Machine Configuration | ||
| Name | Origin | Brand |
| Intermediate relay | France | Schneider |
| Electromagnetic valve | Taiwan,China | AirTac |
| PLC | HCFA | China |
| Operation Panel | Taiwan,China | WEINVIEW/TECO |
| Residual Current Circuit Breaker | China | Delixi |
| AC Contactor | China | Delixi |

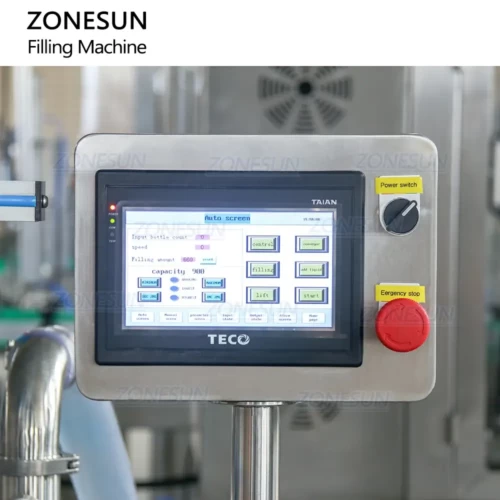

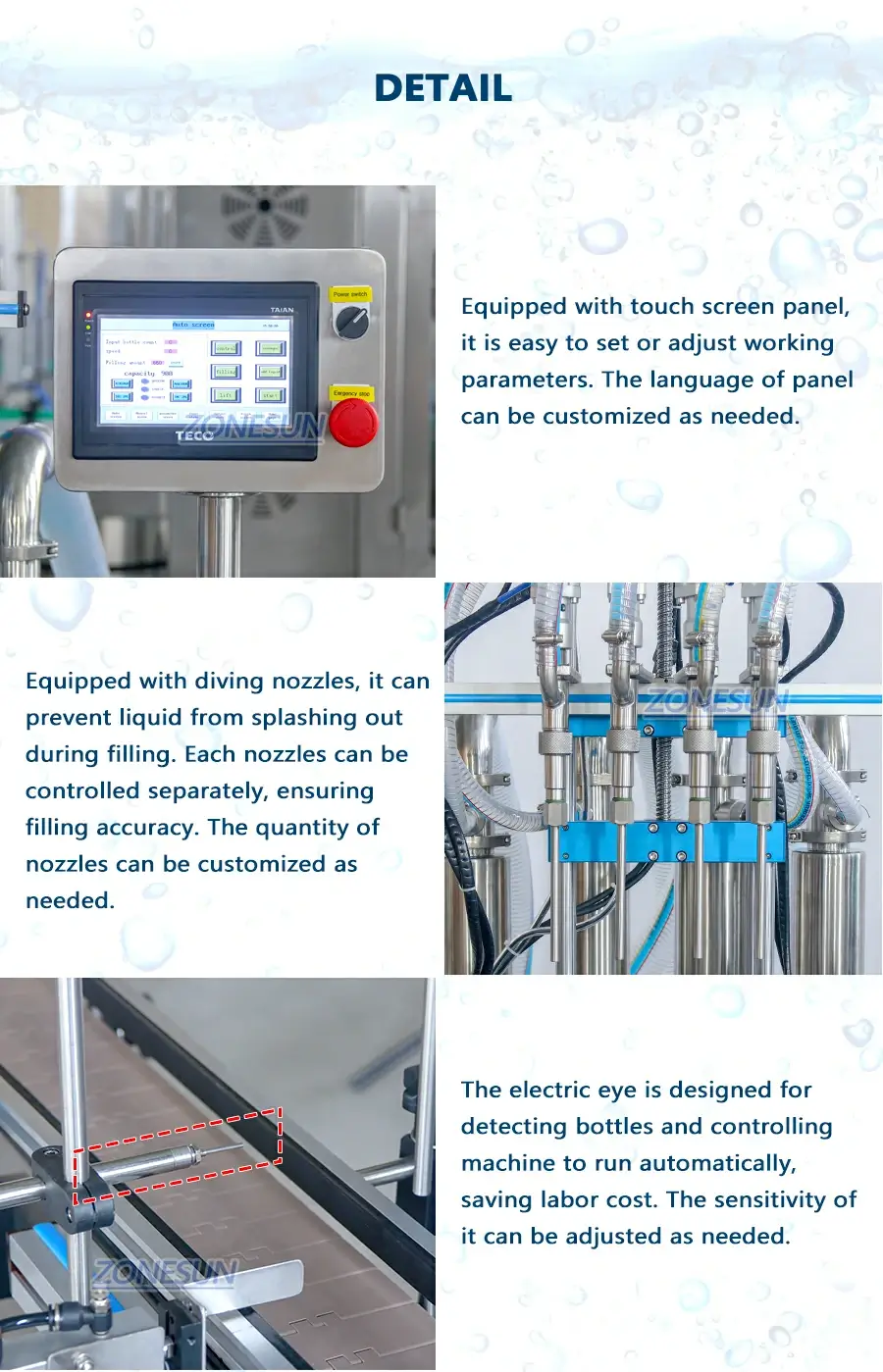

Control Panel
Touch screen control panel to make parameter setting more intuitive, customizable language as needed.

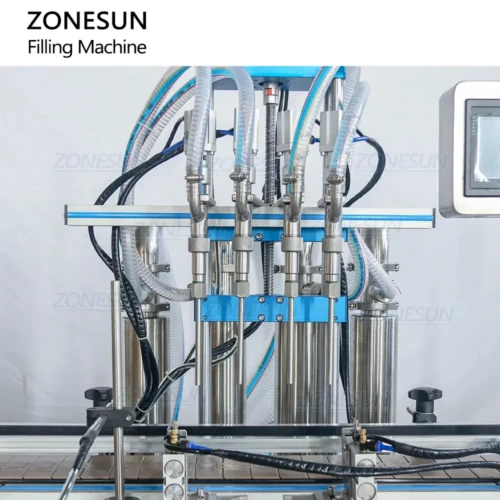

Diving Filling Nozzles
This can prevent liquid from splashing out during filling. The quantity of nozzles can be customized as needed.
Bottle Clamping Structure
Can clamp bottle mouth during filling work, ensures the stable working.Anti-dripping slot improves production quality.

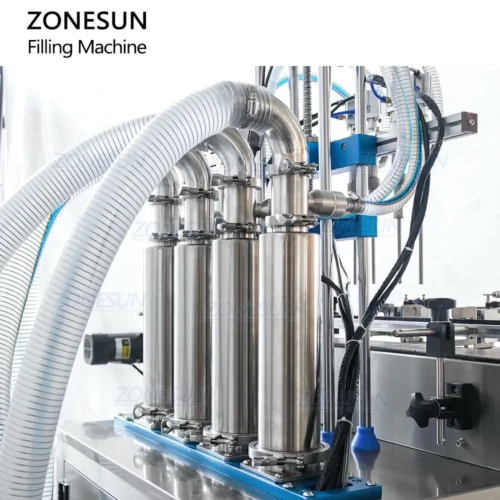

Servo Piston Pump
Set filling volume through control panel directly, servo piston pump improves working efficiency.

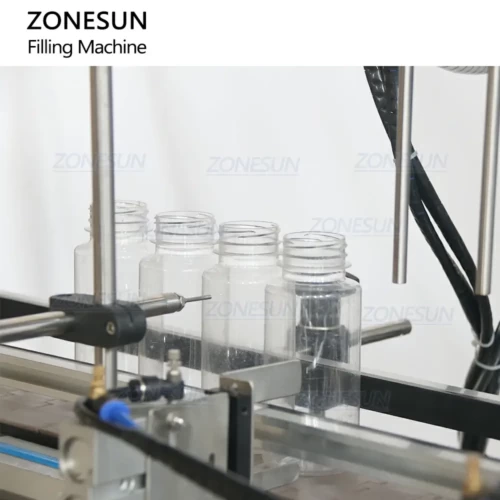

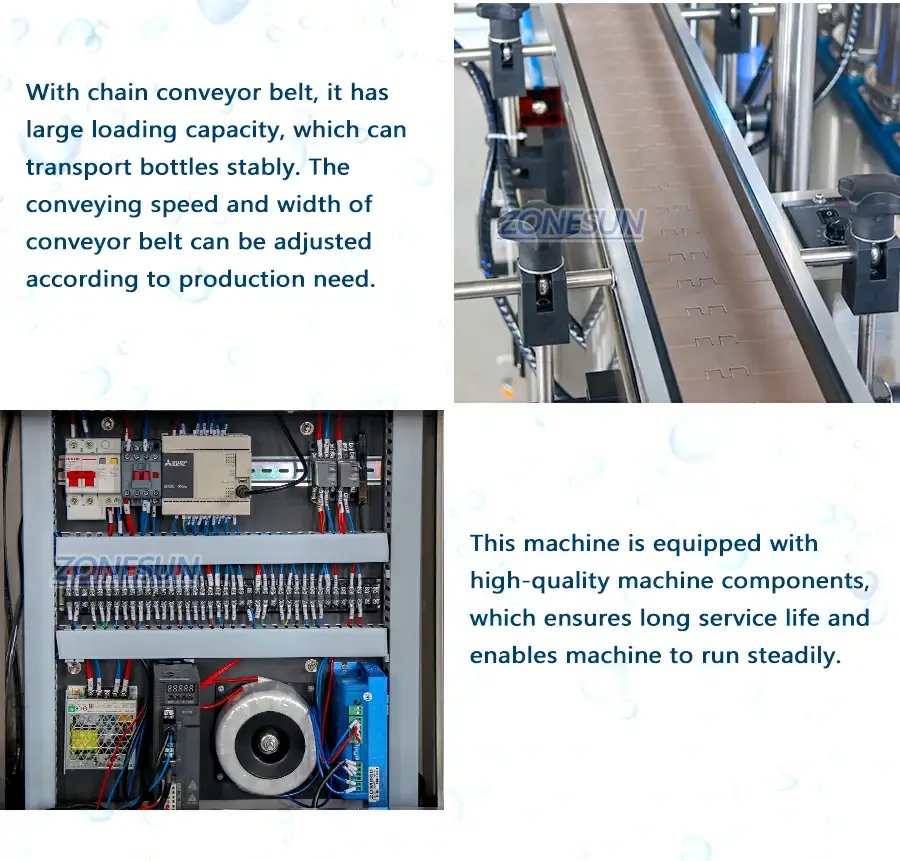

Conveyor Belt
Chain conveyor belt has large loading capacity to ensure bottles can be transported bottles stably. Length and width are customizable as needed.
Electric Circuit
Using branding machine components and electric circuit are arranged neatly, it makes machine is easier to maintain.
