Sauce Jar Paste Filling Line

Sauce Jar Paste Filling Line

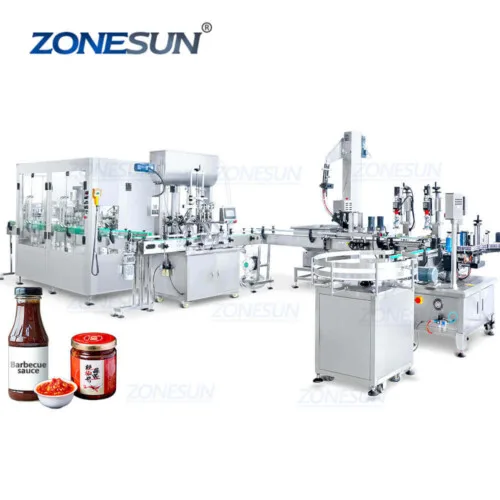

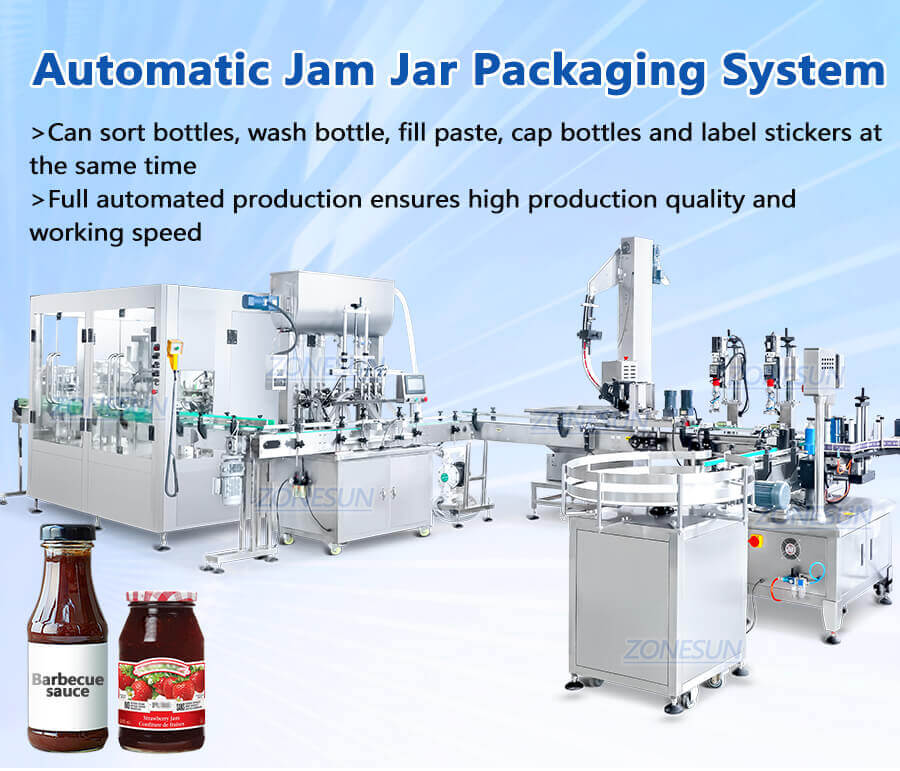

This packaging system is consist of turntable machine,bottle rinser&dryer,piston pumpfilling machine,twist off capping machine, round bottle labeling machine and bottle sorting machine.it is can realize the automated production of jam,ketchup,hot sauce etc.

Machine Video Click Here:

Product Detail

Product Tags

Sauce Jar Paste Filling Line-ZONESUN TECHNOLOGY LIMITED

Description:
This packaging system is consist of turntable machine,bottle rinser&dryer,piston pumpfilling machine,twist off capping machine,round bottle labeling machine and bottle sorting machine.it is can realize the automated production of jam,ketchup,hot sauce etc.

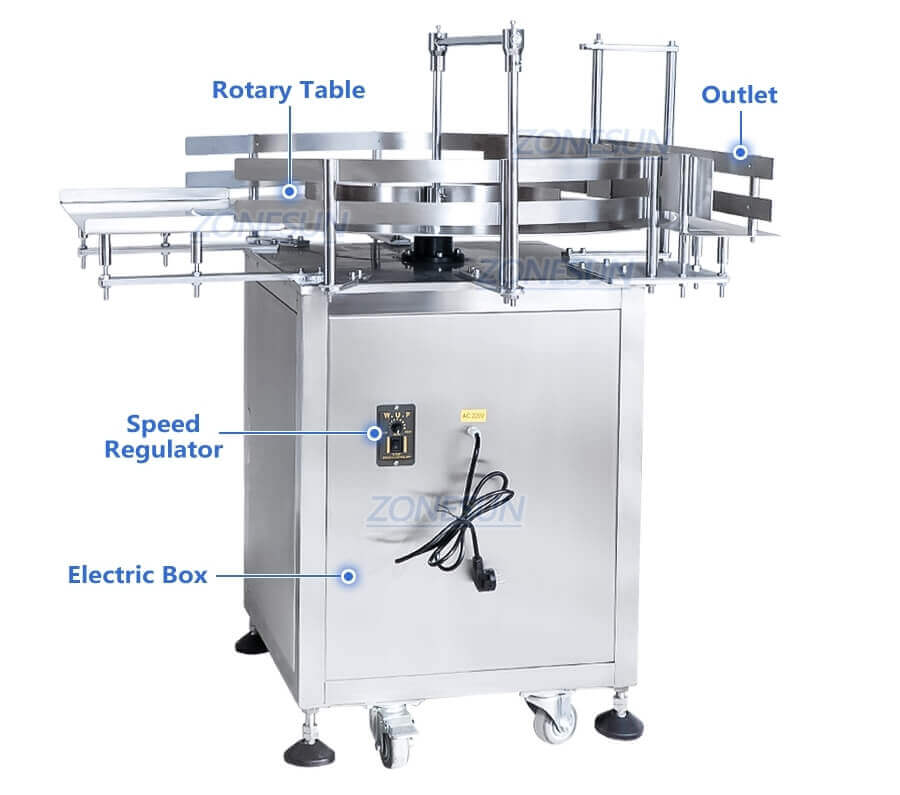

Sauce Jar Paste Filling Line-ZONESUN TECHNOLOGY LIMITED

ModelZS-LP800SZS-LP1000S
Turntable Diameter800mm1000mm
Suitable Bottle Diameter20-100mm
Suitable Bottle height30-320mm
Working Speed40-60 bottles/min(depends on bottle size)
Power Supply220V/110V 50-60Hz 200W
Package SizeAbout 1150*1000*1320mmAbout 1350*1315*1235mm
Net Weight/Gross WeightAbout 82kg/120kgAbout 135kg/180kg

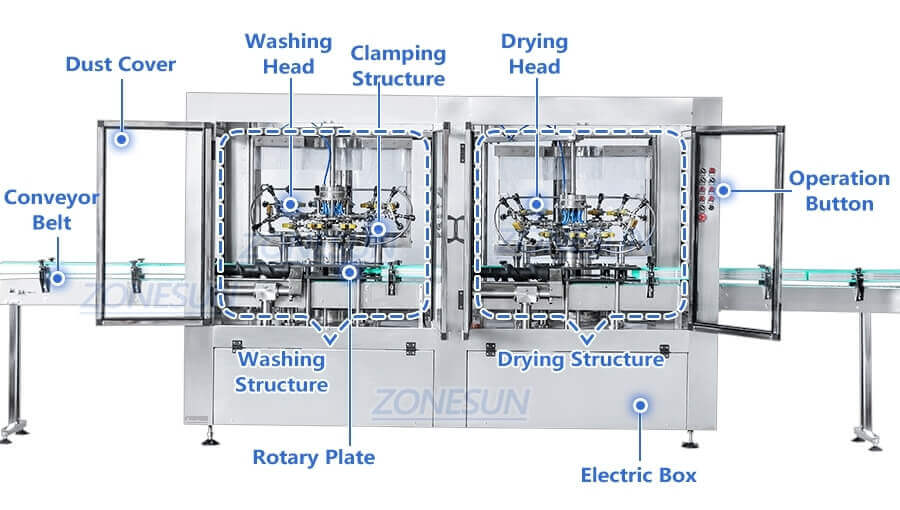

Sauce Jar Paste Filling Line-ZONESUN TECHNOLOGY LIMITED

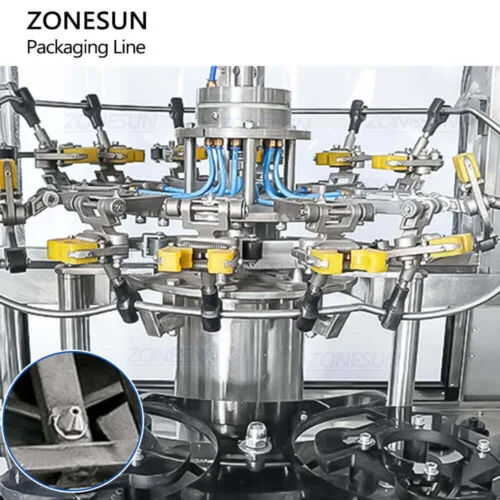

Machine modelZS-WB12A
Voltage110V/220V
Nozzle quantity12+12(washing+drying)
Conveyor sizeAbout 5080mm*90mm
Power1.5KW
Working speedAbout 500-2000 bottles/h
Machine sizeAbout 5080*1460*1930mm
Package sizeAbout 3410*1710*2100mm
Package weightAbout 650kg

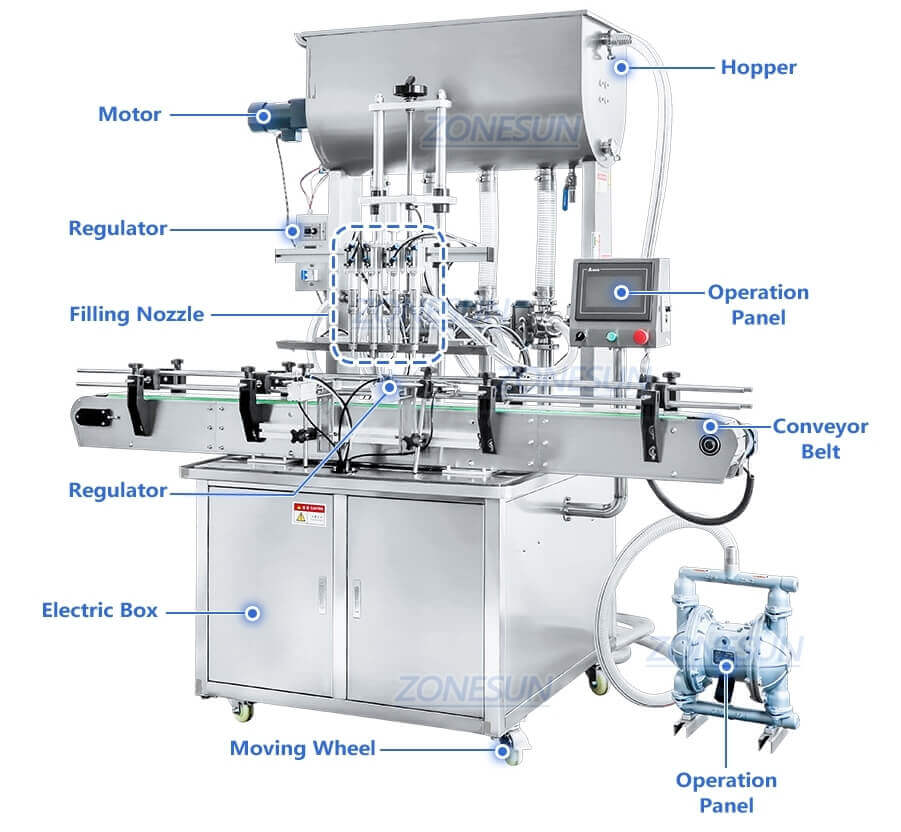

Sauce Jar Paste Filling Line-ZONESUN TECHNOLOGY LIMITED

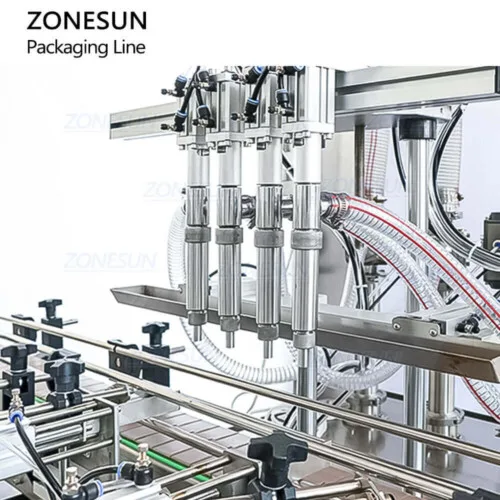

ModelZS-YT4T-4PM
Voltage110/220v 50-60HZ 600W
Filling Range5-100ml/10-300ml/50-500ml/100-1000ml/500-3000m/1000-5000ml
Working Speed

(Based On Water)

20-50bottles/Min

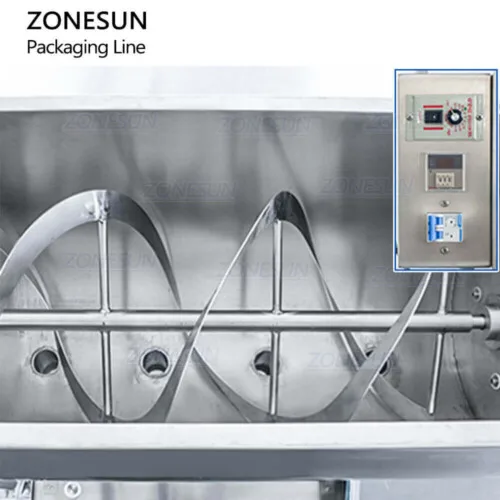

Heating TemperatureAbout 0-300℃
Mixing SpeedAbout 1200r/min
Filling Accuracy≤+1%
Air Pressure0.5-0.7mpa
Conveyor SizeAbout 2000*100mm(l*w)
Size Of Filling Nozzleφ10mm
Size Of Air Compressor Connectorφ10mm
Machine WeightAbout 329kg
Machine SizeAbout 975*1020*2010mm
Package WeightAbout 392kg
Package SizeAbout 1660*1130*2130mm

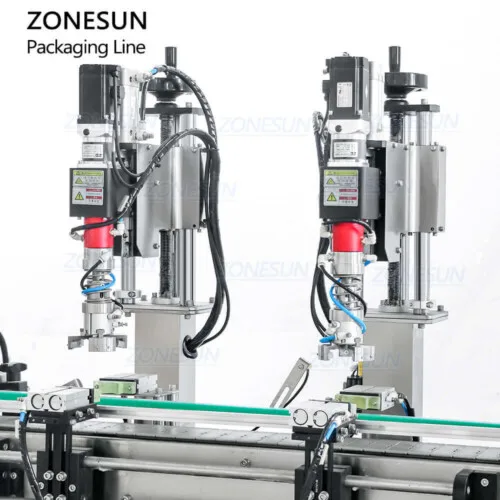

Sauce Jar Paste Filling Line-ZONESUN TECHNOLOGY LIMITED

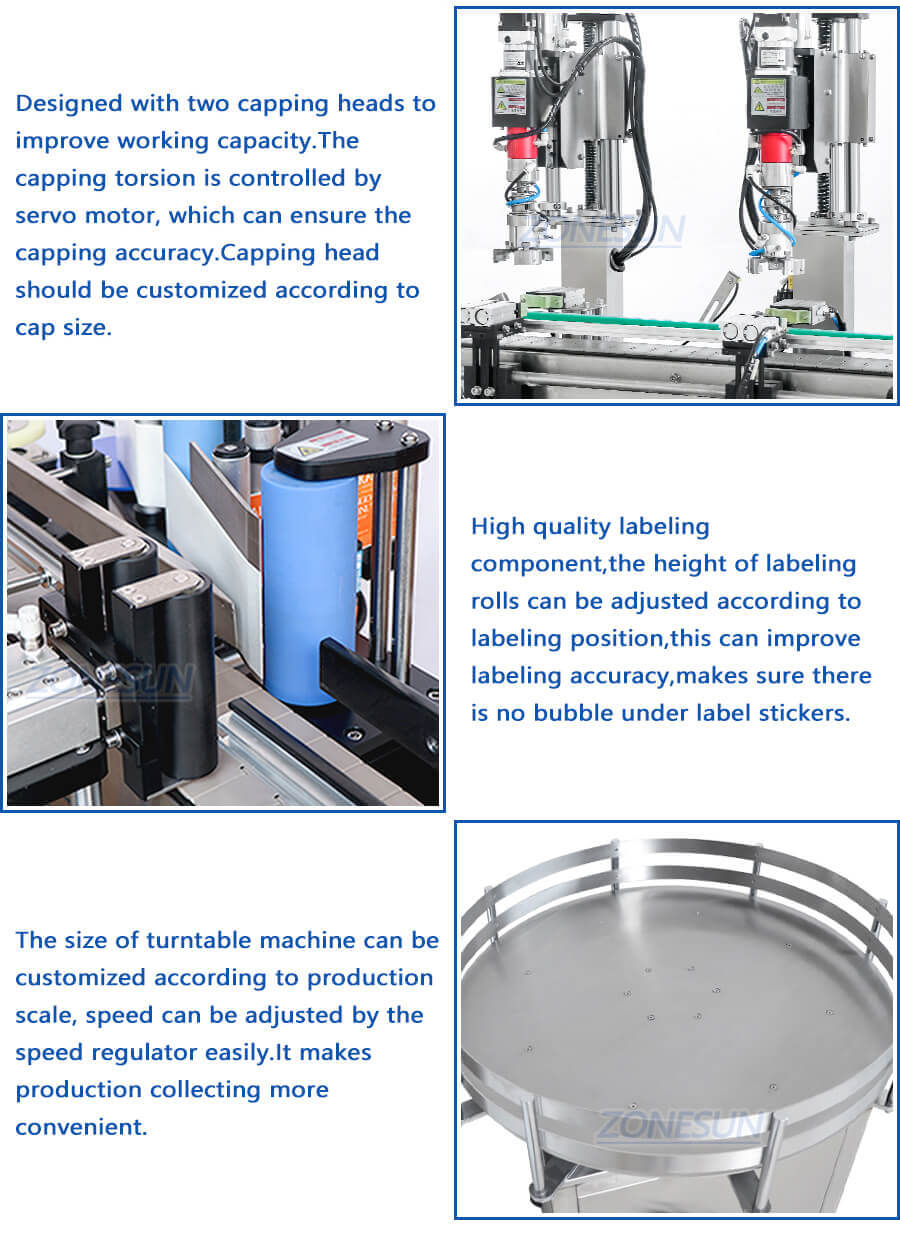

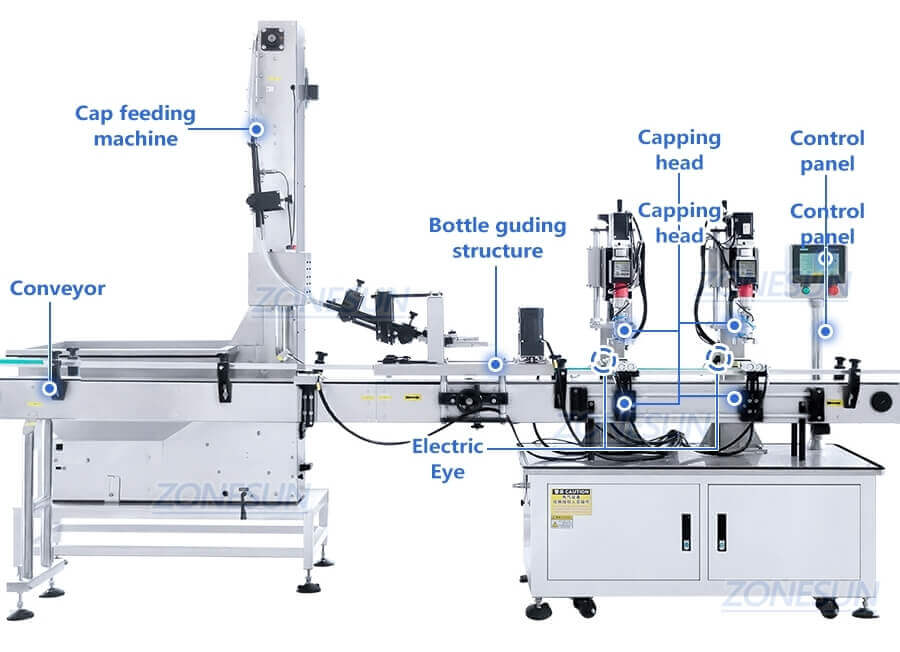

Machine model
ZS-XG440T2
Power voltage
110/220V 50-60HZ 2KW
Suitable cap size
OD30-80mm(Can be customized)
Air pressure
0.7MPa
Working speed
30-40 bottles/min (based on bottle & caps)
Package size
About 2080*780*1730mm(Capping machine)
About 2340*860*1380mm(Feeding machine)
Package weight
About 355kg(Capping machine)
About 252kg(Feeding machine)

Sauce Jar Paste Filling Line-ZONESUN TECHNOLOGY LIMITED

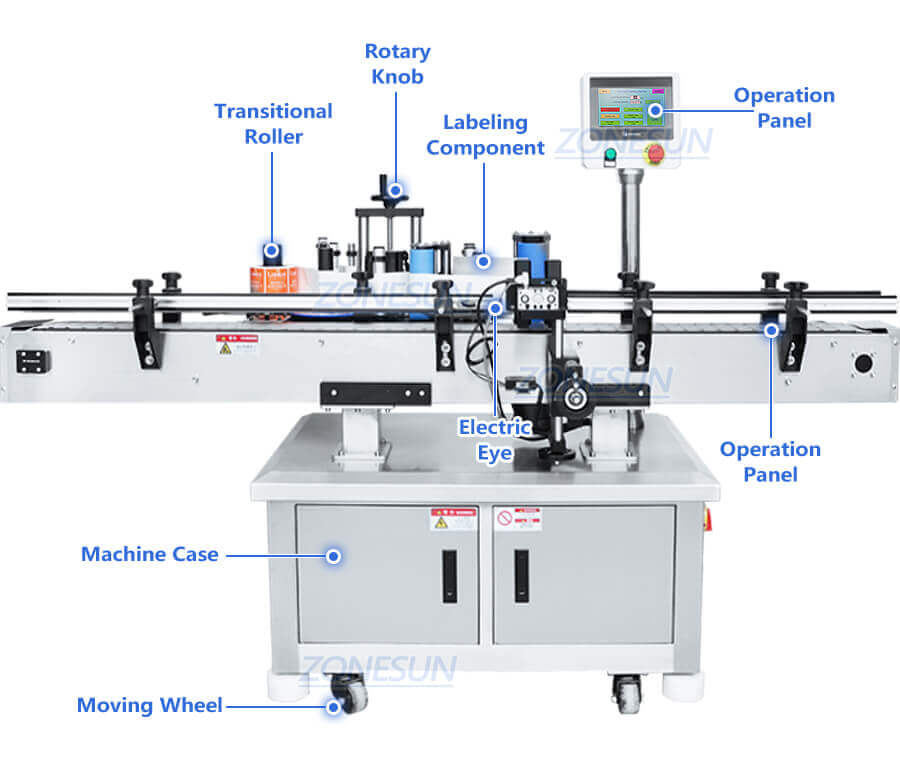

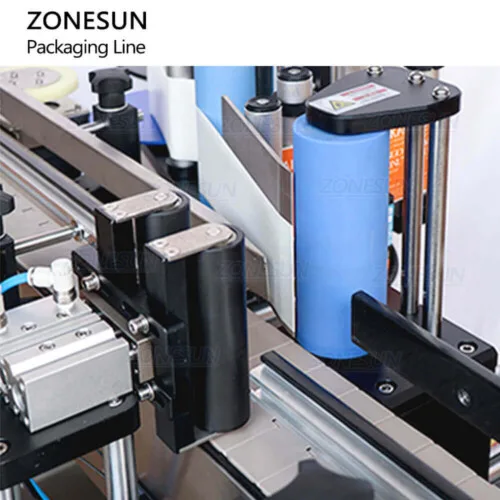

ModelZS-TB260R
Power supplyAC220V 50Hz/60Hz 1000W
Labeling capacity(bottles/min)25-50 bottles/min(depends on bottle size)
Labeling accuracy(mm)±1.0mm
Suitable Bottle Diameterφ12-100mm
Label size(mm)(L)20-300mm (H)15-150mm(Can be customized)
Roll inside diameter(mm)φ76mm
Roll outside diameter(mm)φ350mm
Conveyor Size112*2000mm(W)
Machine sizeAbout (L)2000*(W)820*(H)1380(mm)
Machine weightAbout 180kg
Packing SizeAbout (L)2100*(W)890*(H)1520(mm)
Package weightAbout 250kg

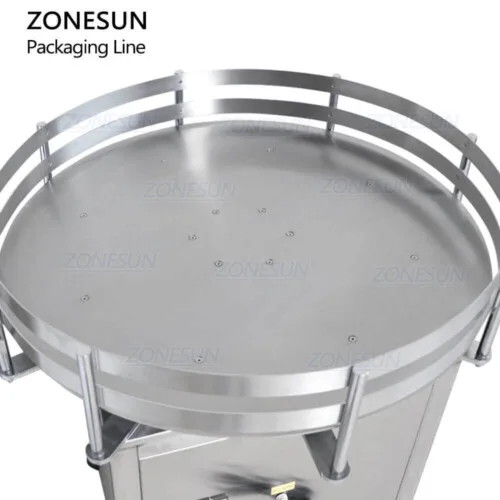

Sauce Jar Paste Filling Line-ZONESUN TECHNOLOGY LIMITED

Bottle specificationsSquare bottle/round bottle
Conveying speed0-20 revolutions per minute(adjustable)
Voltage220V 50Hz (110V can be customized)
Power supply200W
Turntable diameter800 mm Available
DimensionsAbout 550*550*990mm
Package sizeAbout 1050*1000*1130mm
Net weight/Gross weightAbout 93kg/120kg

Sauce Jar Paste Filling Line-ZONESUN TECHNOLOGY LIMITEDSauce Jar Paste Filling Line-ZONESUN TECHNOLOGY LIMITEDSauce Jar Paste Filling Line-ZONESUN TECHNOLOGY LIMITED
