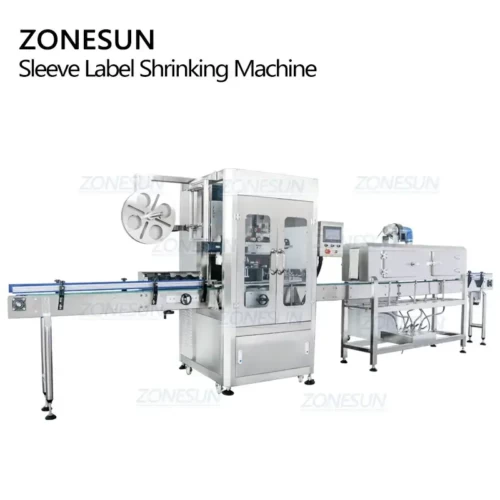

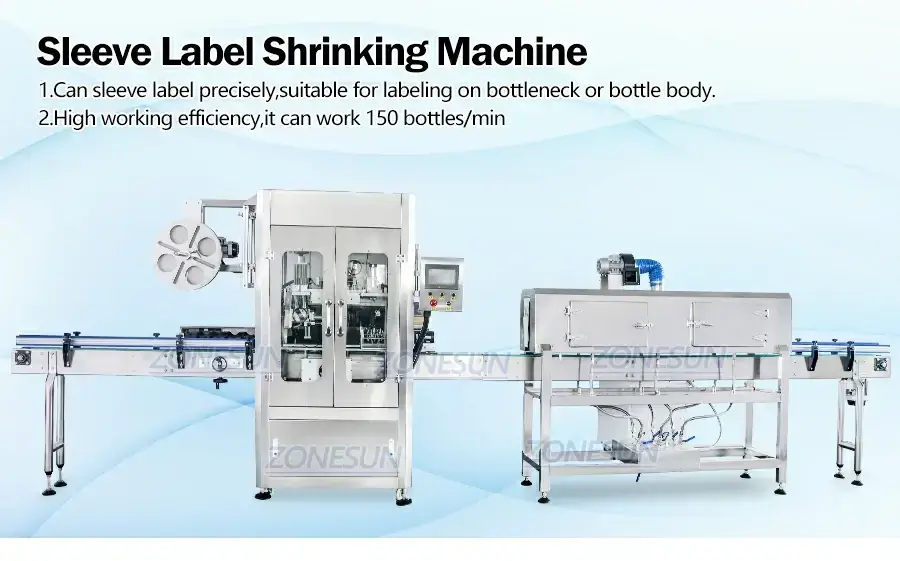

Sleeve Label Shrinking Machine

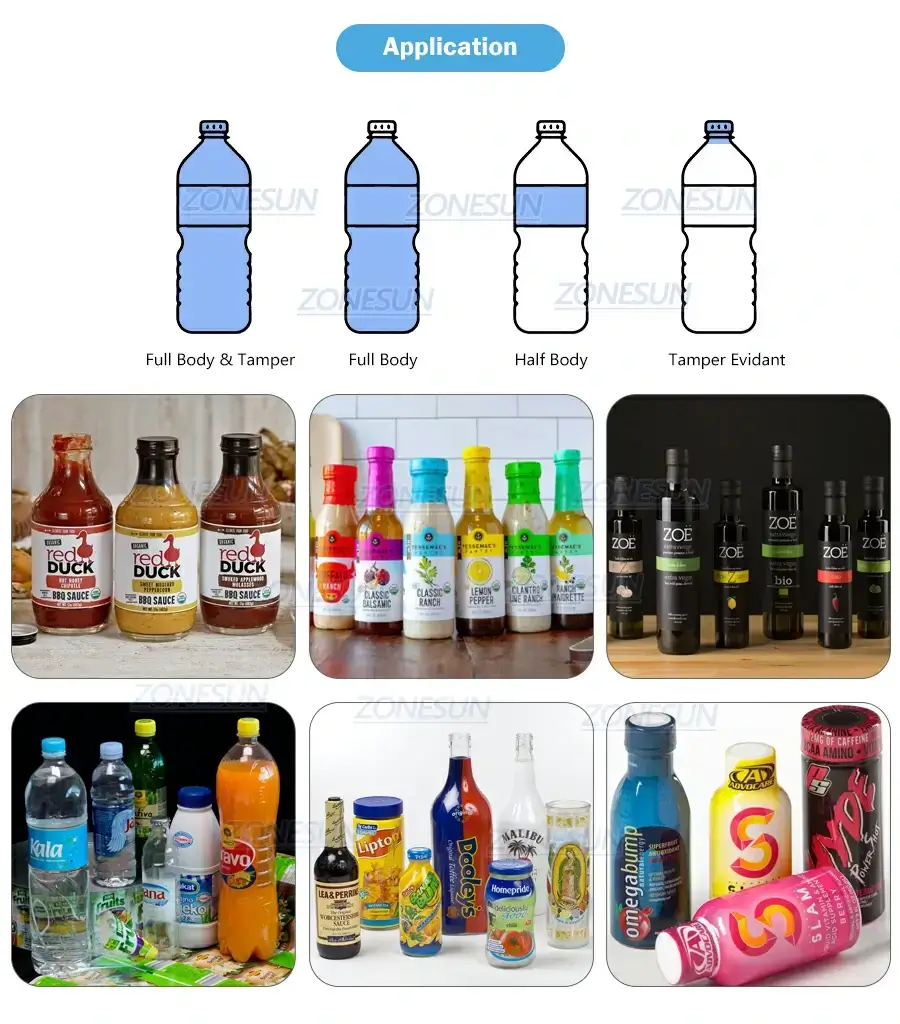

The Sleeve System is a fully automatic shrink sleeve labeling system for applying and shrinking full body sleeve labels or tamper evident bands on a variety of round,square,rectangular&oval container types and shapes with and without contours.Each sleeve system includes a sleeve applicator,one or two shrink tunnel modules,(depending on the application),a steam generator and a stainless steel conveyor for transporting containers through the system.This machine has high accuracy of sleeve label position,and it can highlight the bottle and perfect the bottle shape after shrinking.

Product Detail

Product Tags


Description:

The Sleeve System is a fully automatic shrink sleeve labeling system for applying and shrinking full body sleeve labels or tamper evident bands on a variety of round,square,rectangular&oval container types and shapes with and without contours.Each sleeve system includes a sleeve applicator,one or two shrink tunnel modules,(depending on the application),a steam generator and a stainless steel conveyor for transporting containers through the system.This machine has high accuracy of sleeve label position,and it can highlight the bottle and perfect the bottle shape after shrinking.

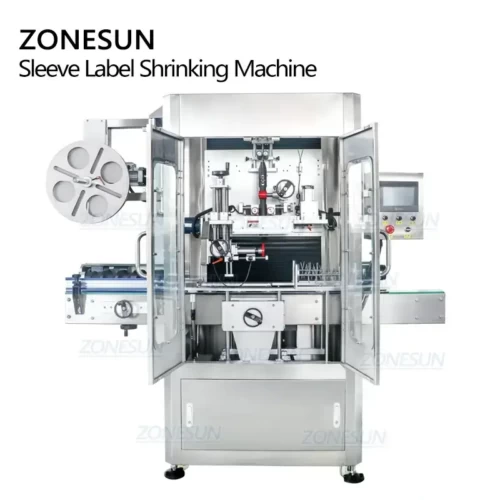

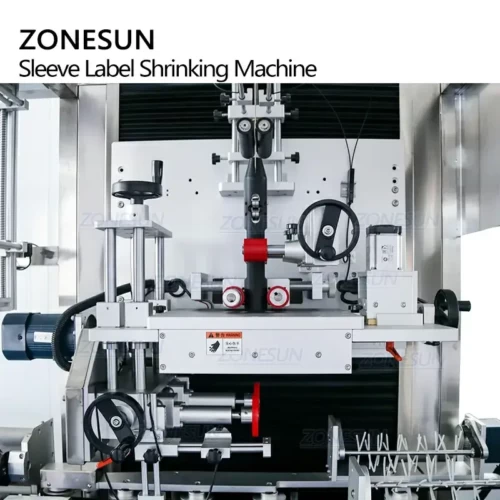

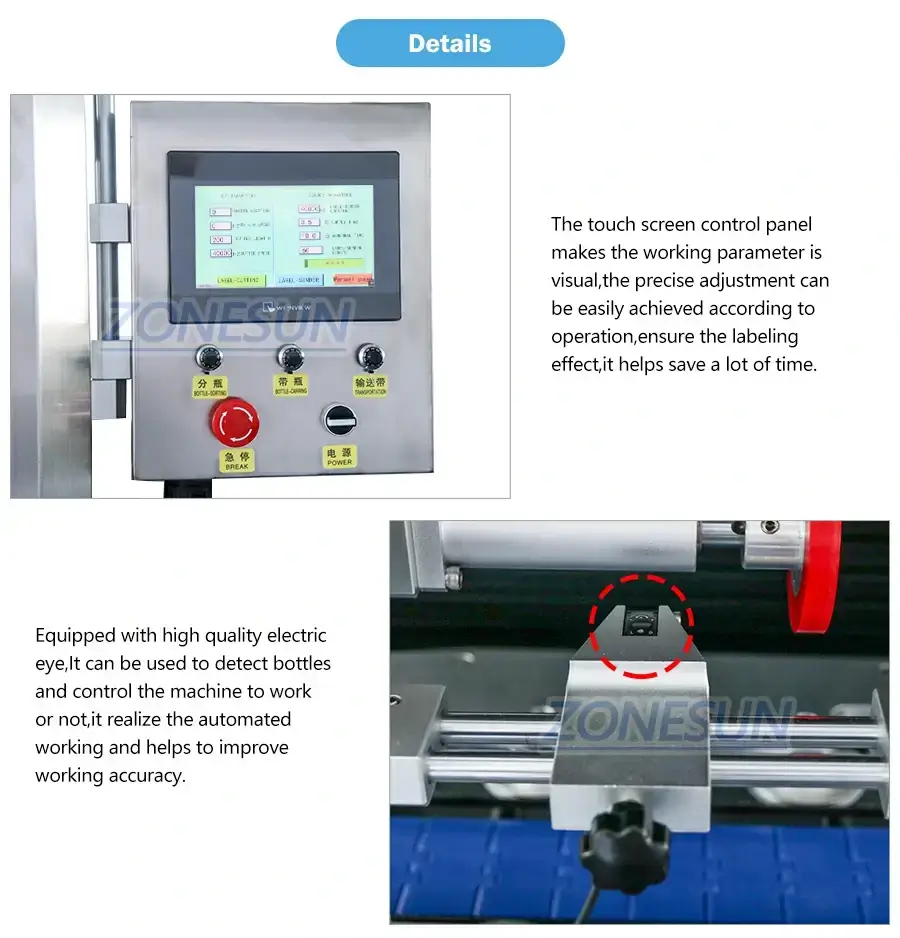

Sleeve Label Machine

Machine modelZS-STB150
Bottle diameter rangeφ28mm-φ125mm (can be customized)

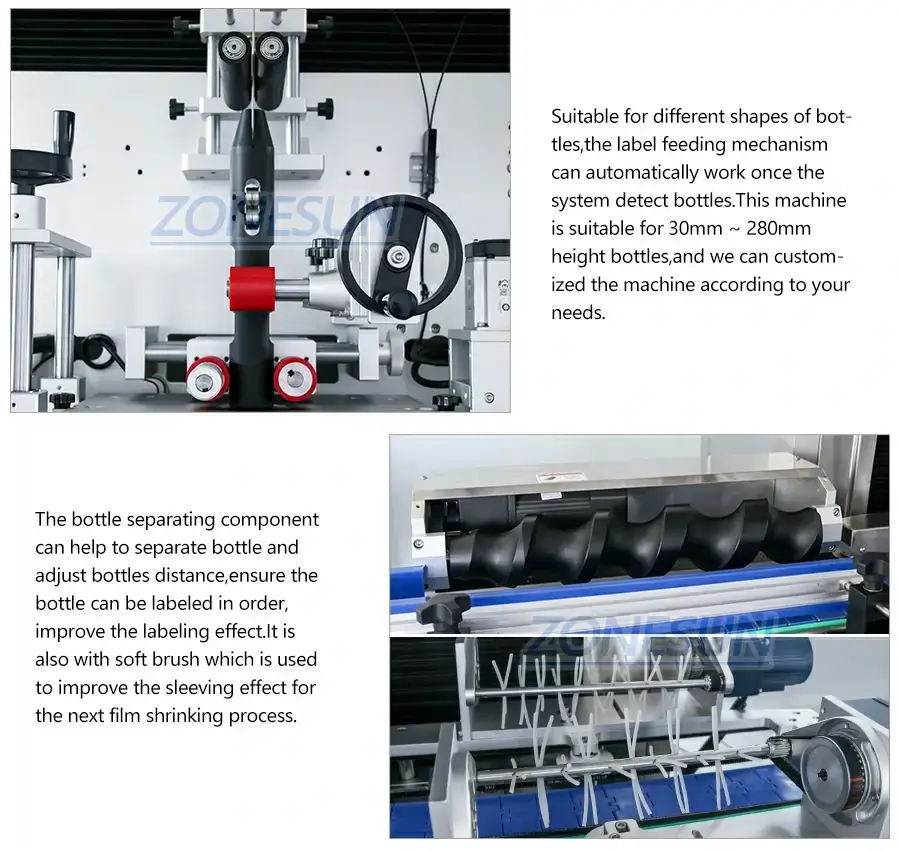

Bottle height30mm ~ 280mm (can be customized)
Label length30mm~250mm (can be customized)
Label thickness0.03 mm~0.13 mm (PVC, PET, OPS, materials are all available)
Sleeve standard error±1.5mm
Paper tube inner diameter5"~10" (can be adjusted)
Machine speed150 bottles/min (based on label length)
Voltage220V Single Phase
Power1.5KW

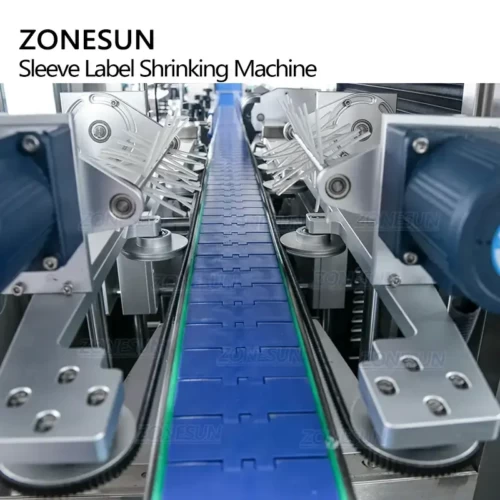

Conveyor beltstandard 2M

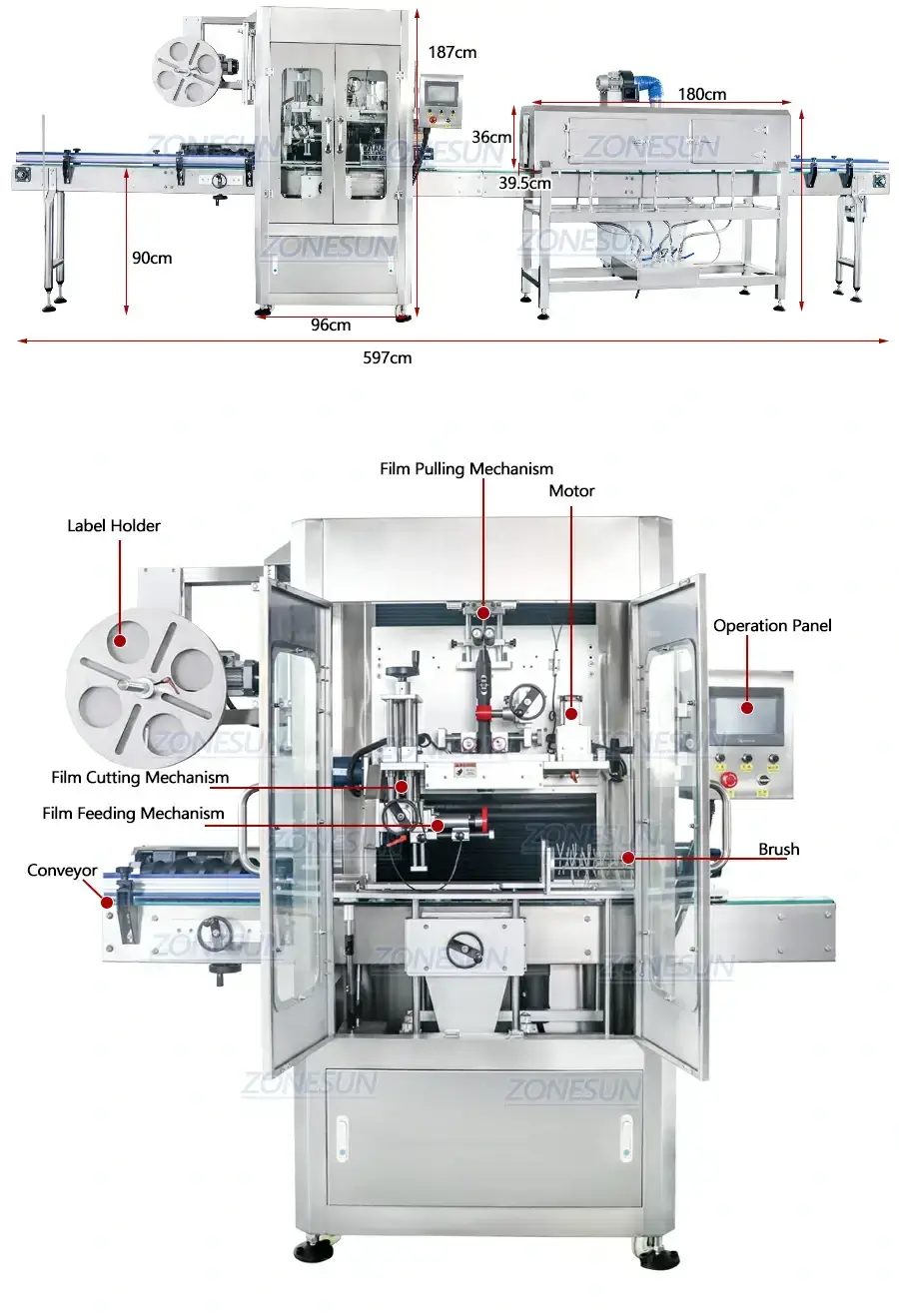

Machine sizeAbout 2950*1030*1870 mm(L*W*H)
Machine weightAbout 464Kg

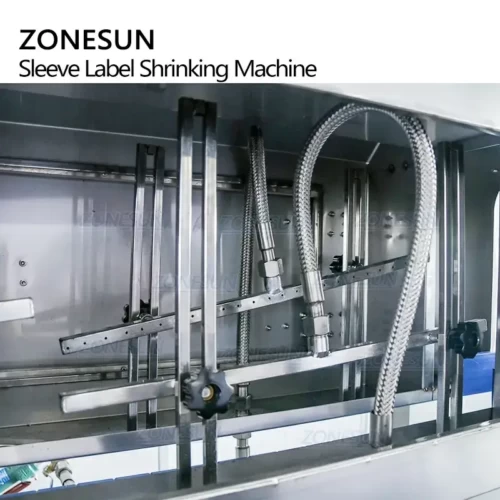

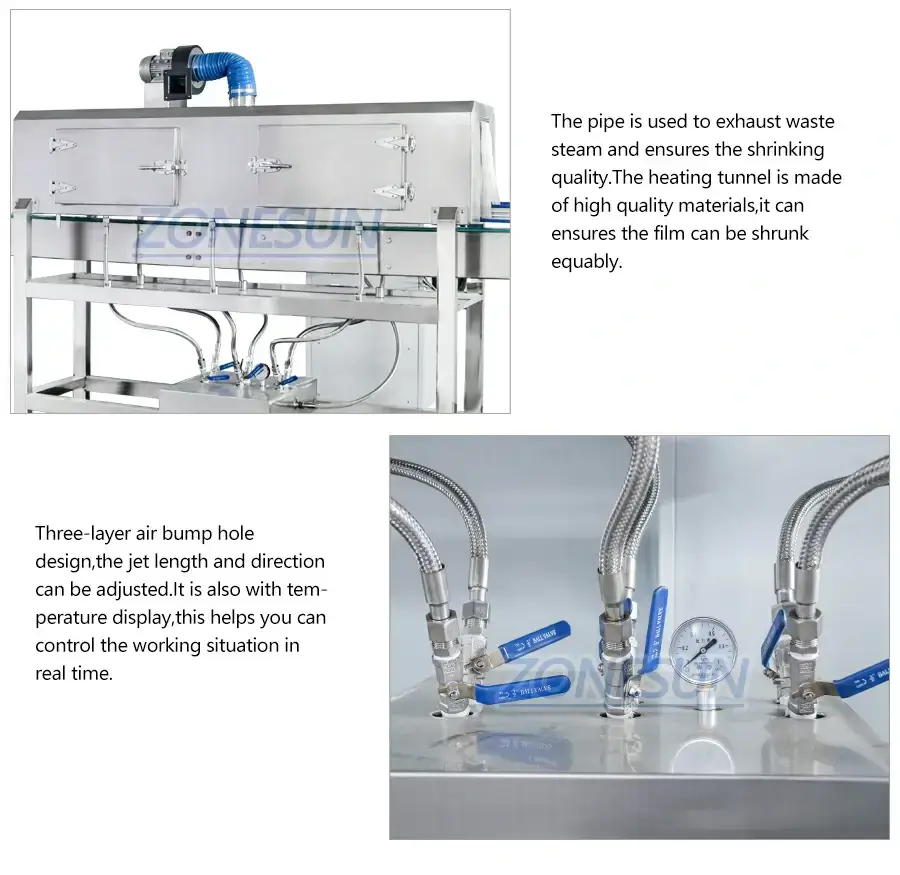

Shrinking Machine

Tunnel lengthAbout 1800mm
Tunnel widthAbout 395mm
Tunnel heightAbout 360mm
Suitable bottle diameter≤80mm
Conveyor heightAbout 900mm
Machine sizeAbout 3050*480*1330mm(L*W*H)
Machine weightAbout 86kg
Package sizeAbout 1905*610*1720mm
Package weightAbout 143kg
