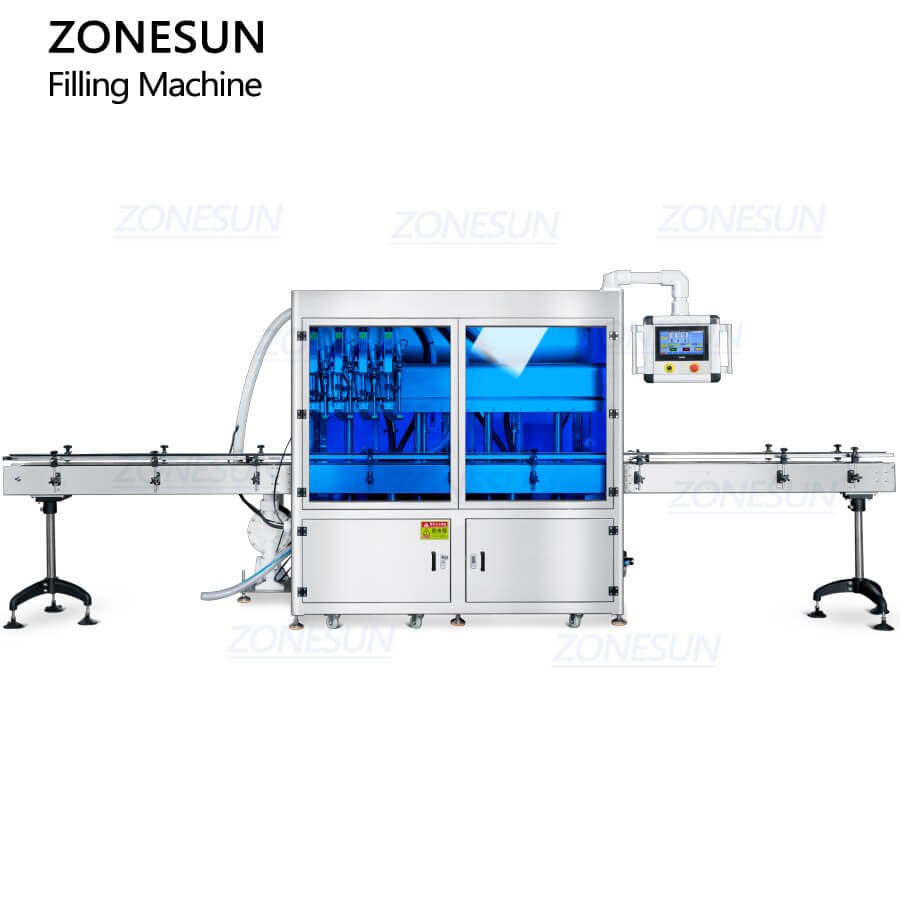

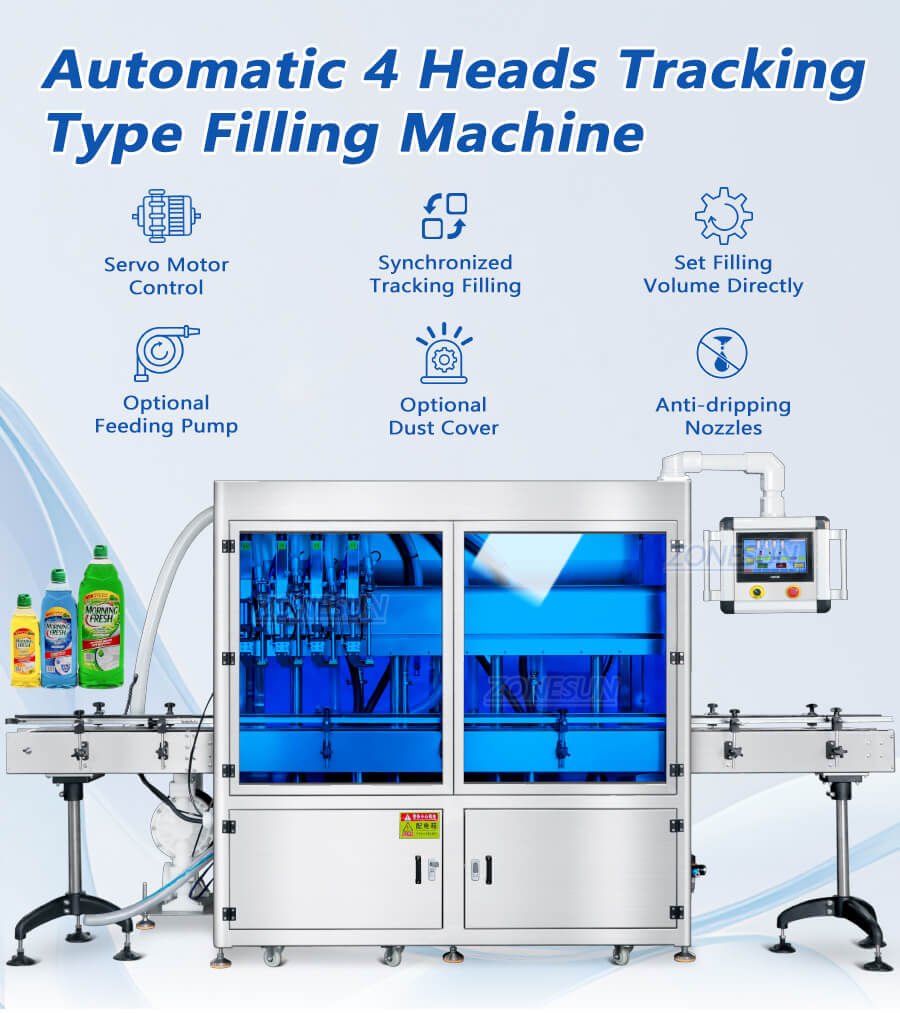

Quantitative Paste Tracking Filling Machine
This servo-controlled quantitative filling machine features synchronized tracking nozzles that move with bottles on the conveyor belt. Ideal for viscous liquids and pastes like shampoo, body lotion, and body gel.
$17,499.00
Share to
This servo-controlled quantitative filling machine features synchronized tracking nozzles that move with bottles on the conveyor belt. Ideal for viscous liquids and pastes like shampoo, body lotion, and body gel.
| Machine model | ZS-VTGF4 |
| Power supply | 110/220V 50-60HZ 7.5KW |
| Filling pump | Gear Pump |
| Filling range | 200-5000ml (Customizable) |
| Bottle size | Customized |
| Working speed | About 20-50 bottles/min (based on filling volume) |
| Filling accuracy | About ±0.5% |
| Air pressure | About 0.5-0.7MPa |
| Machine size | About 3600*1400*1980(L*W*H) |
| Machine weight | About 530kg |

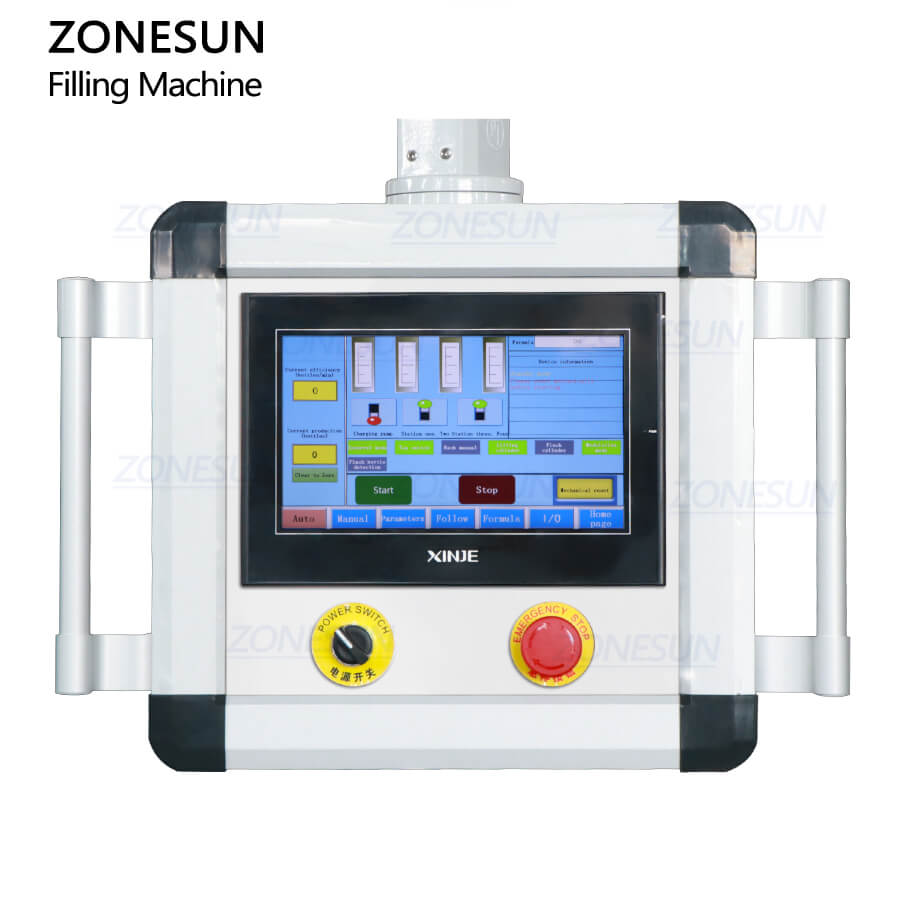

Swing Arm Control Panel
Equipped with a swing arm design for flexible and ergonomic operation, parameter setting more intuitive.

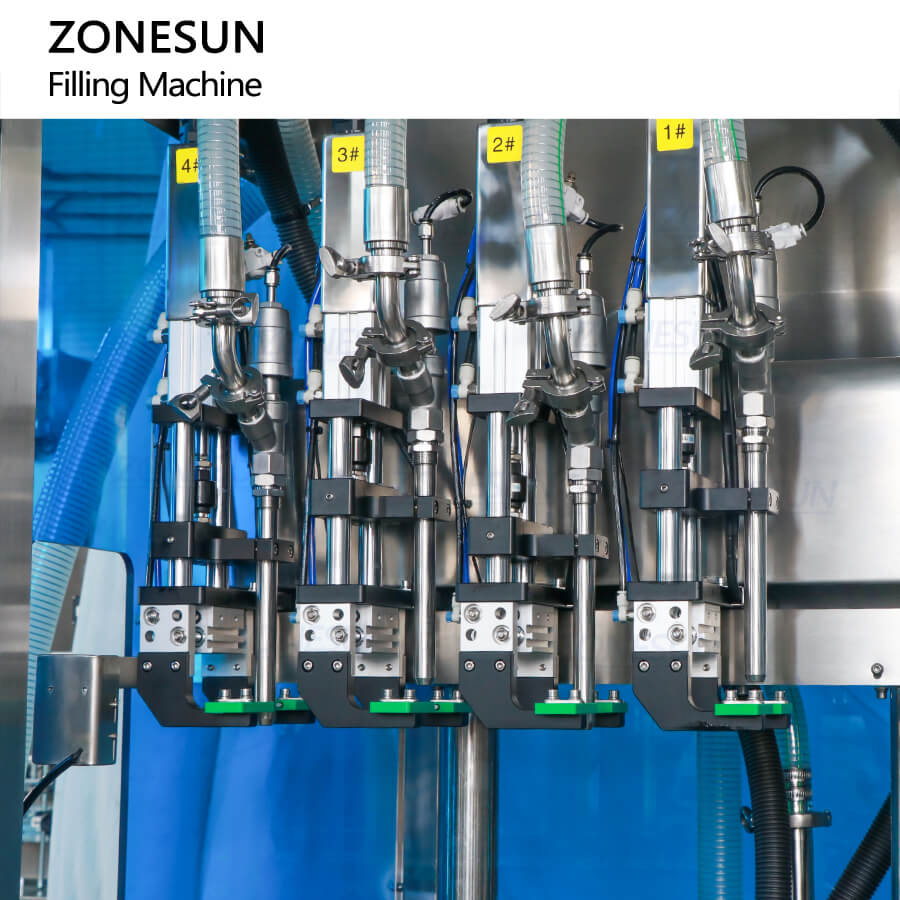

Synchronized Tracking Filling
Anti-dripping filling nozzles move in sync with the bottles on the conveyor belt, allowing dynamic filling.
Servo Gear Pump
Filling volume is digitally set via the touch screen. Servo-driven motion ensures high filling accuracy.

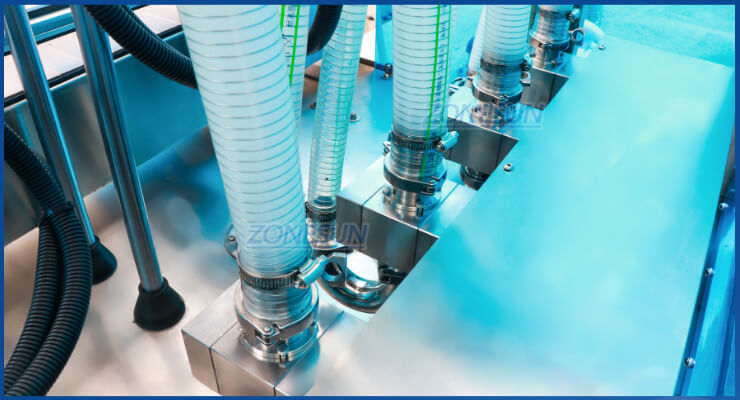

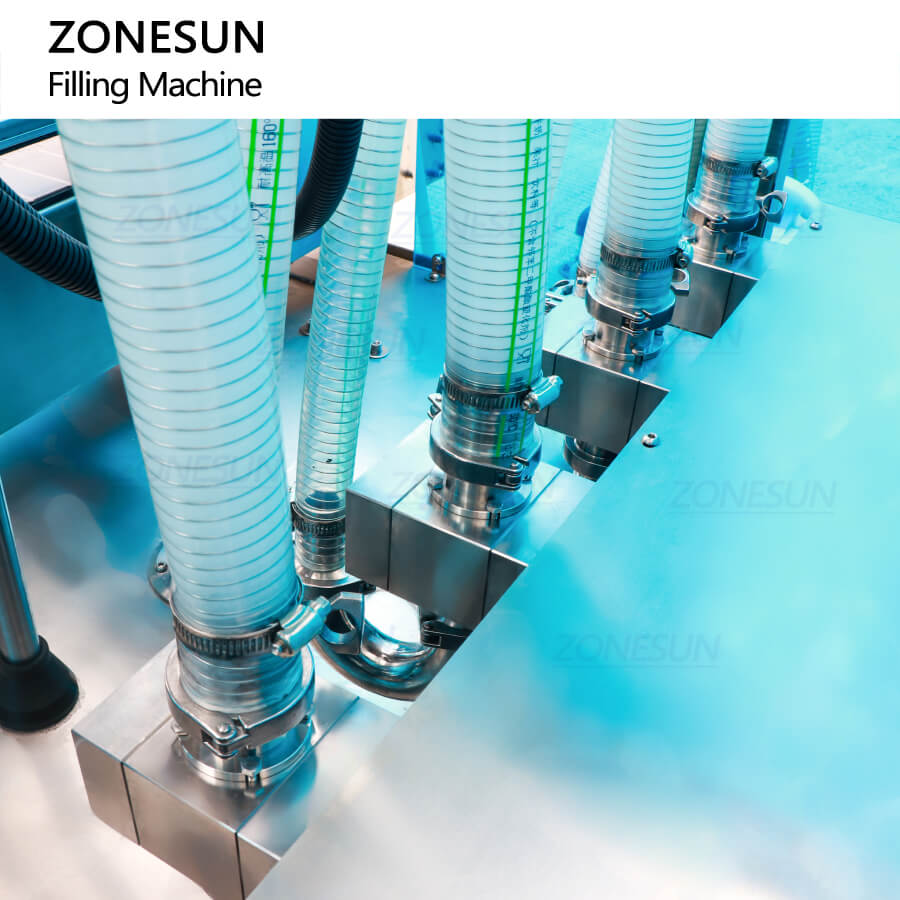

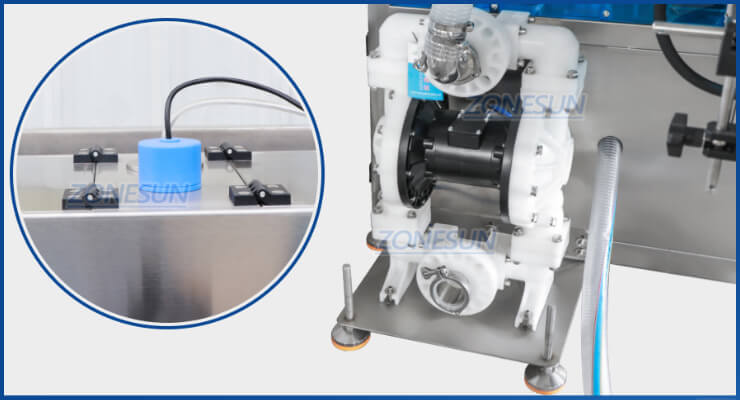

Diaphragm Feeding Pump
Features a diaphragm feeding pump with liquid level control that automatically refills based on real-time liquid level detection.

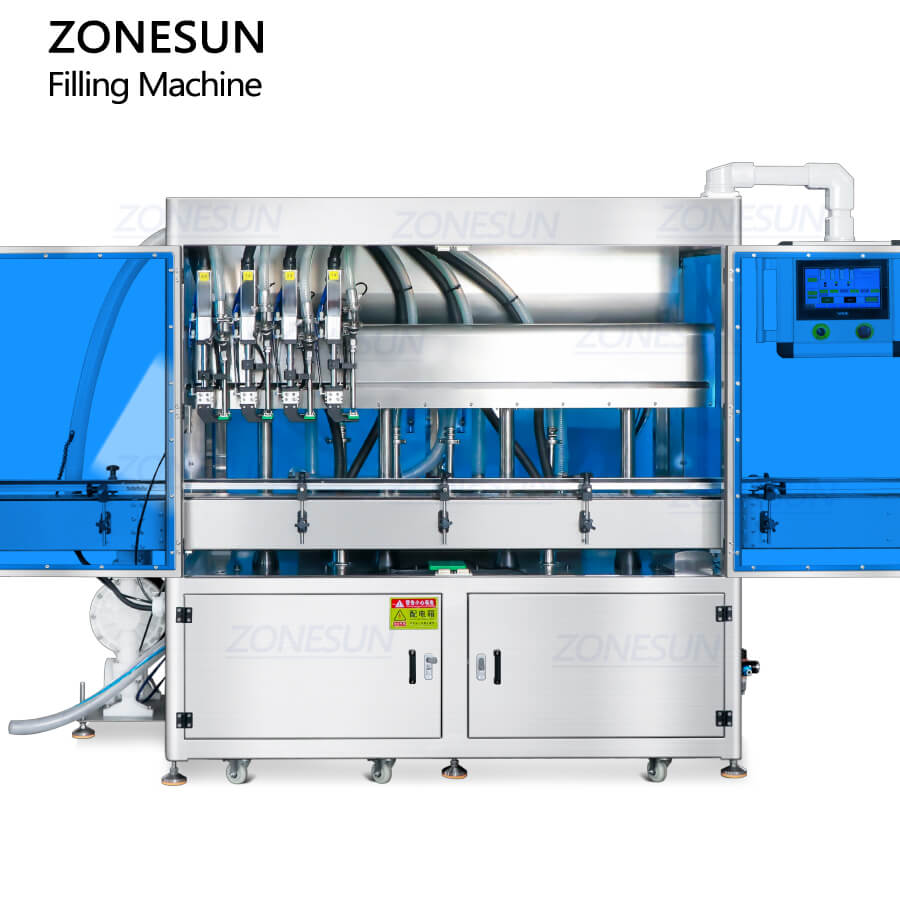

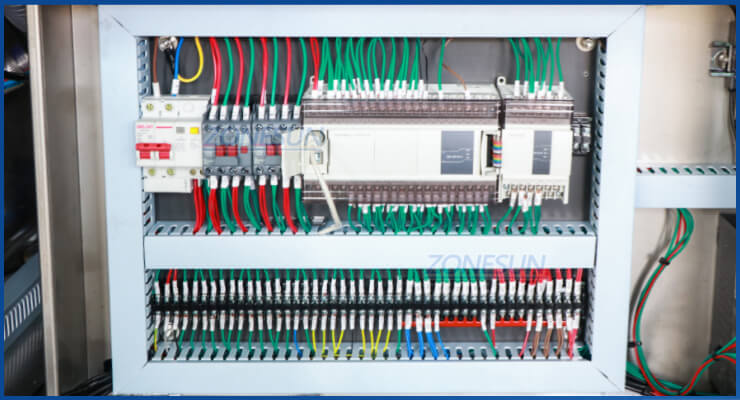

Electrical Wiring
Using branding components, the internal electrical system is cleanly organized for easier maintenance and improved safety.
