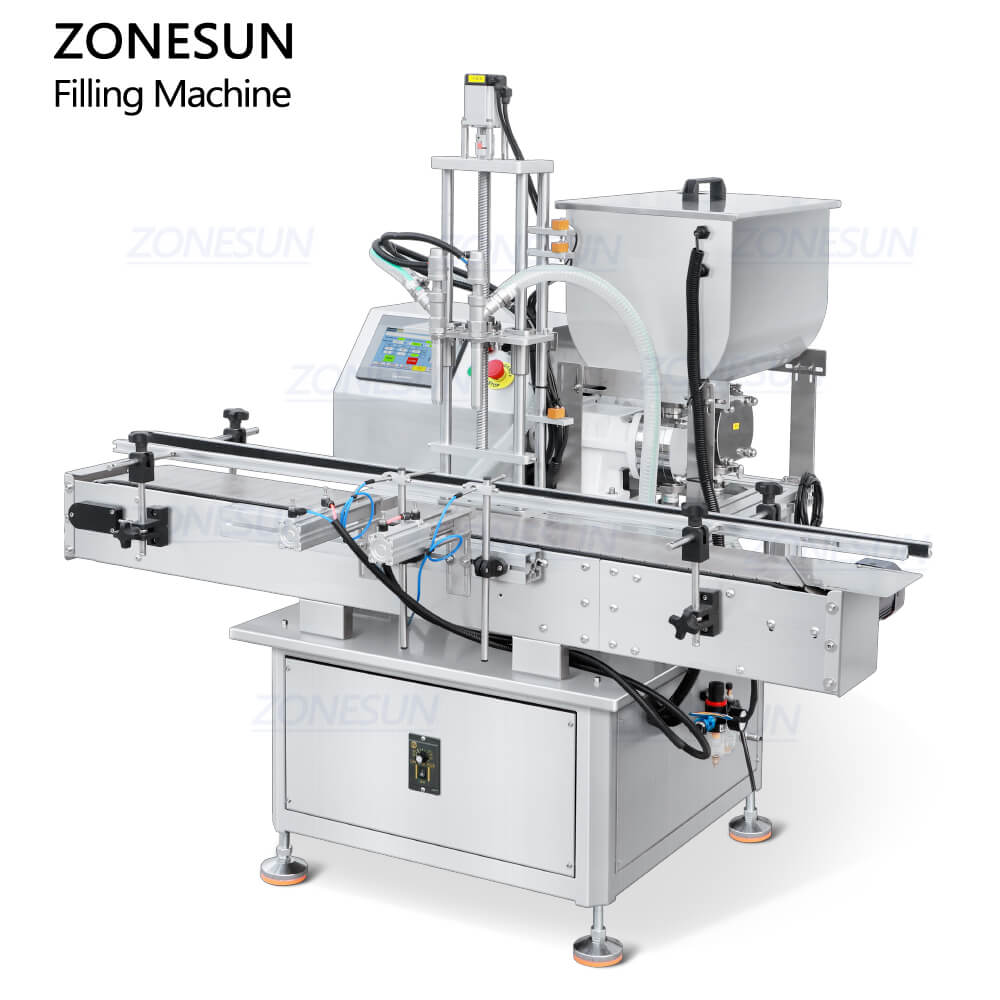

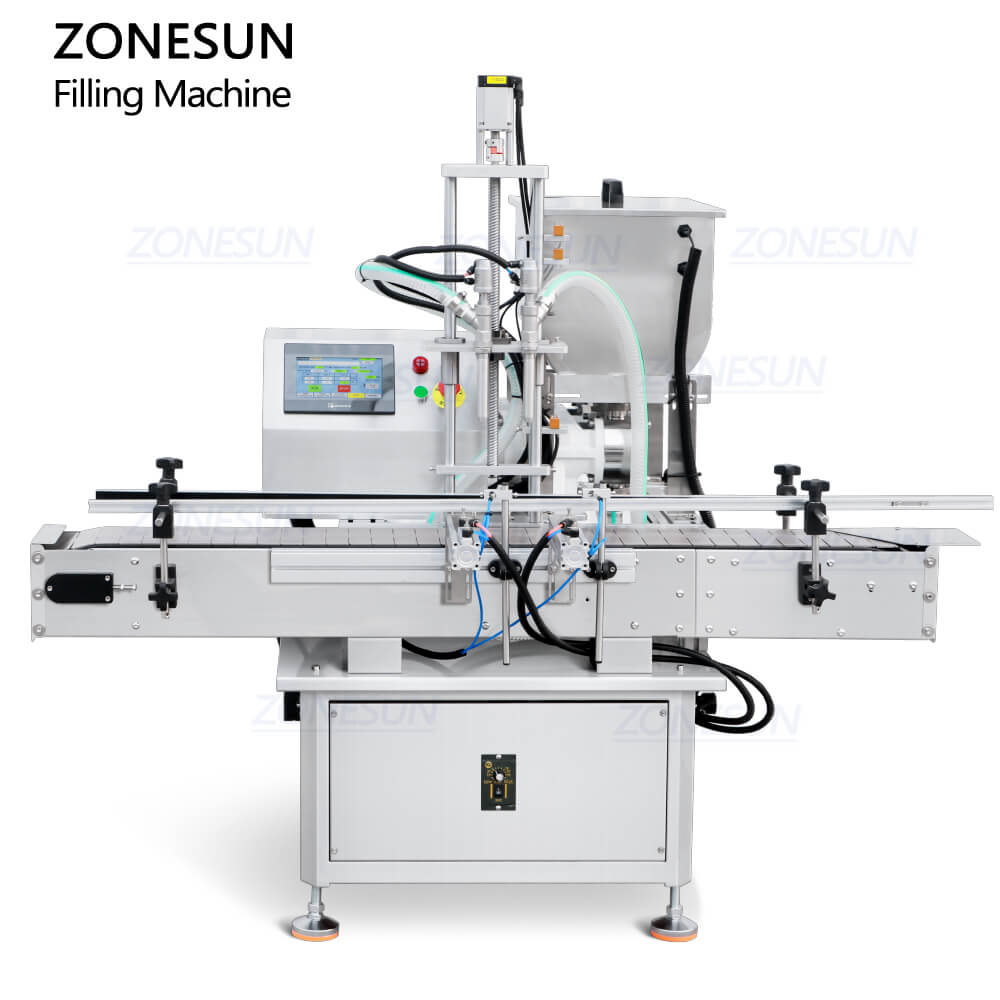

Quantitative Paste Filling Machine
This filling machine suits for thicker liquid or paste like sauce, mayonnaise, fruit jam. It has 316 stainless steel hopper and anti-dripping nozzles, tabletop machine design saves working space, it can integrate with capping and labeling machine to realize automated production.
Share to
Product Description:
This filling machine suits for thicker liquid or paste like sauce, mayonnaise, fruit jam. It has 316 stainless steel hopper and anti-dripping nozzles, tabletop machine design saves working space, it can integrate with capping and labeling machine to realize automated production.
Product Parameters:
|
Machine Model
|
ZS-DTGT800U2
|
|
Machine Voltage
|
3.5KW
|
|
Filling Range
|
50-5000ml
|
|
Filling Pump
|
Rotor Lobe Pump
|
|
Filling Nozzle Quantity
|
2 Anti-dripping Nozzle
|
|
Woking Capacity
|
8-20 BPM (based on filling volume)
|
|
Filling Accuracy
|
±1% (50ml filling error is ±2ml)
|
|
Air Pressure
|
0.4-0.8MPa
|
|
Suitable Bottle Size
|
Max 150mm(φ)*260mm(H)
|
|
Filling Hose Size
|
ID=25mm
|
|
Hopper Size
|
About 450*320*350mm 40L
|
|
Hopper Material
|
SUS 316
|
|

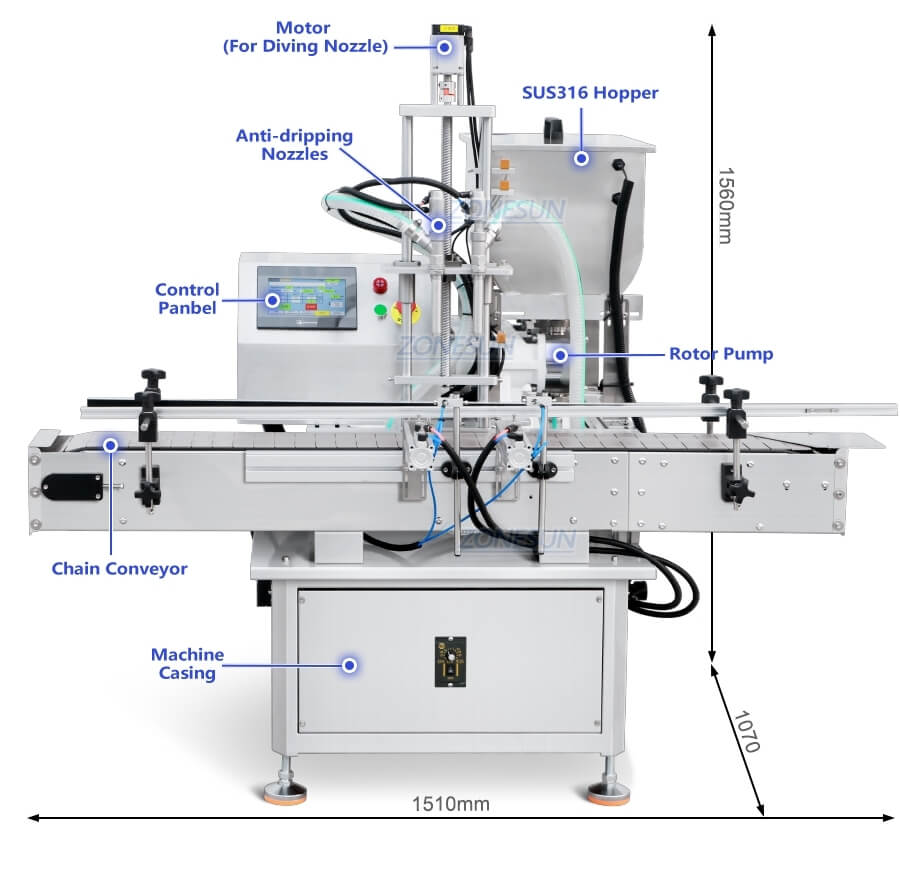

Machine Size
|
About 1510*1070*1560mm
|
|
Package Size
|
About 1600*950*1450mm
|
|
Package Weight
|
About 275kg
|
Product Details:

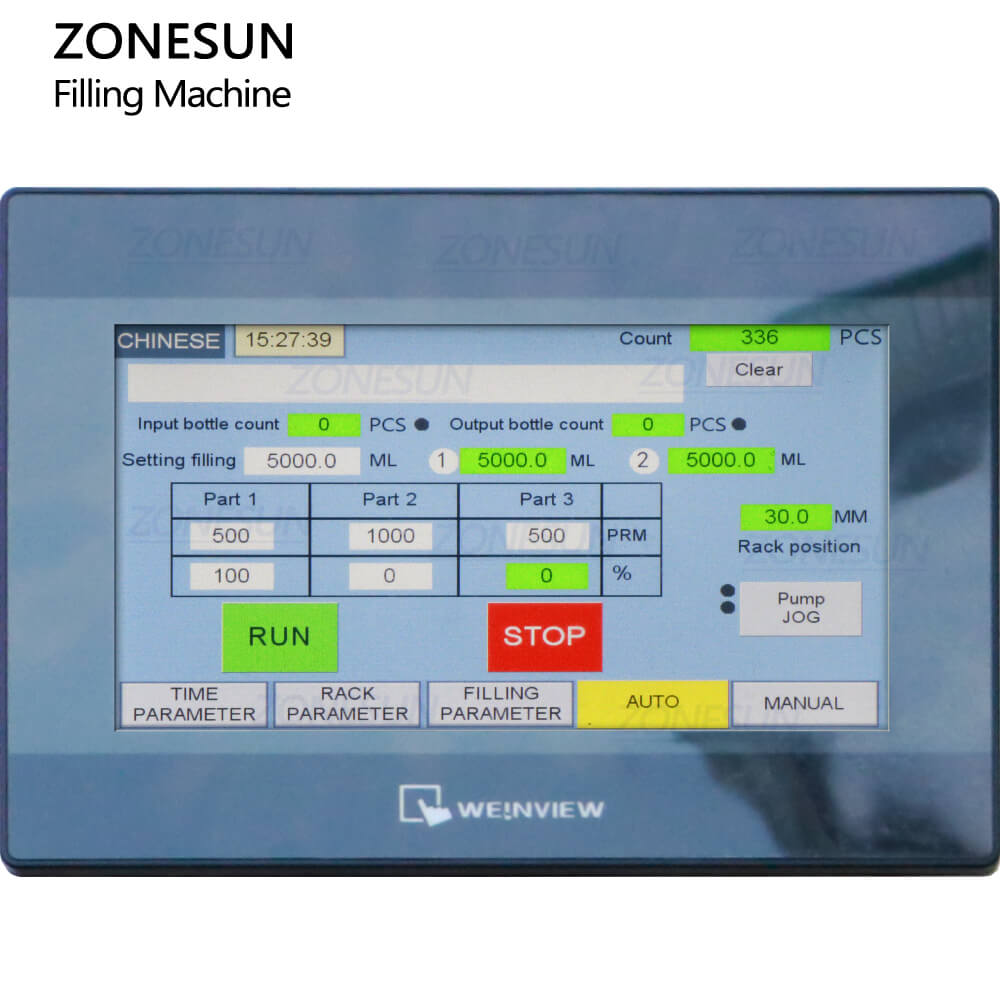

PLC Control Panel
This makes parameter setting intuitive, simplifies machine operation. Set filling volume directly.

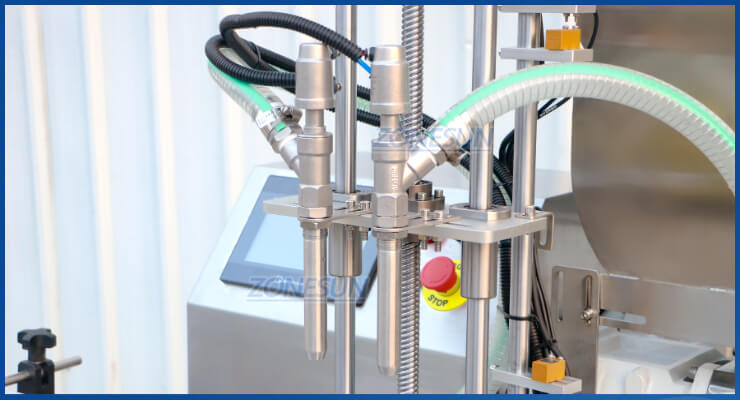

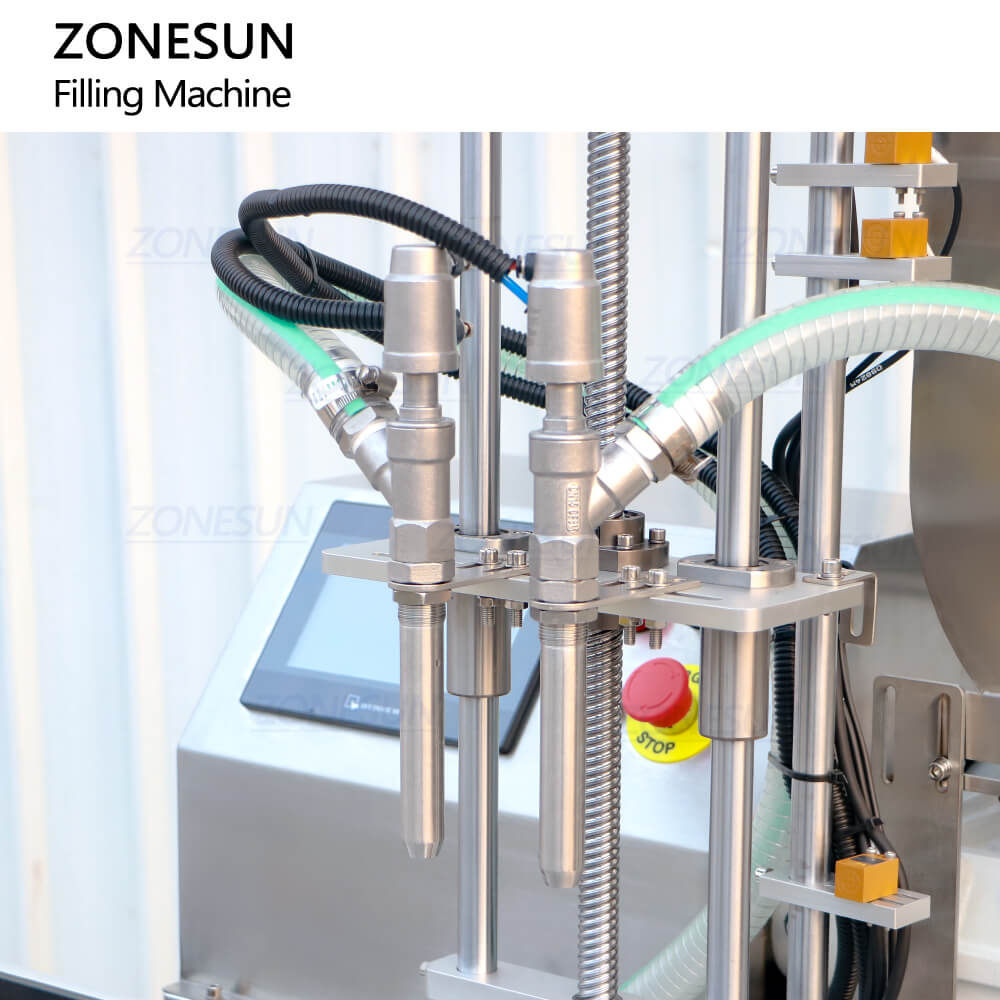

Anti-dripping Diving Nozzles
Can control filling nozzles go up & down during filling, anti-dripping nozzles can improve filling accuracy greatly.

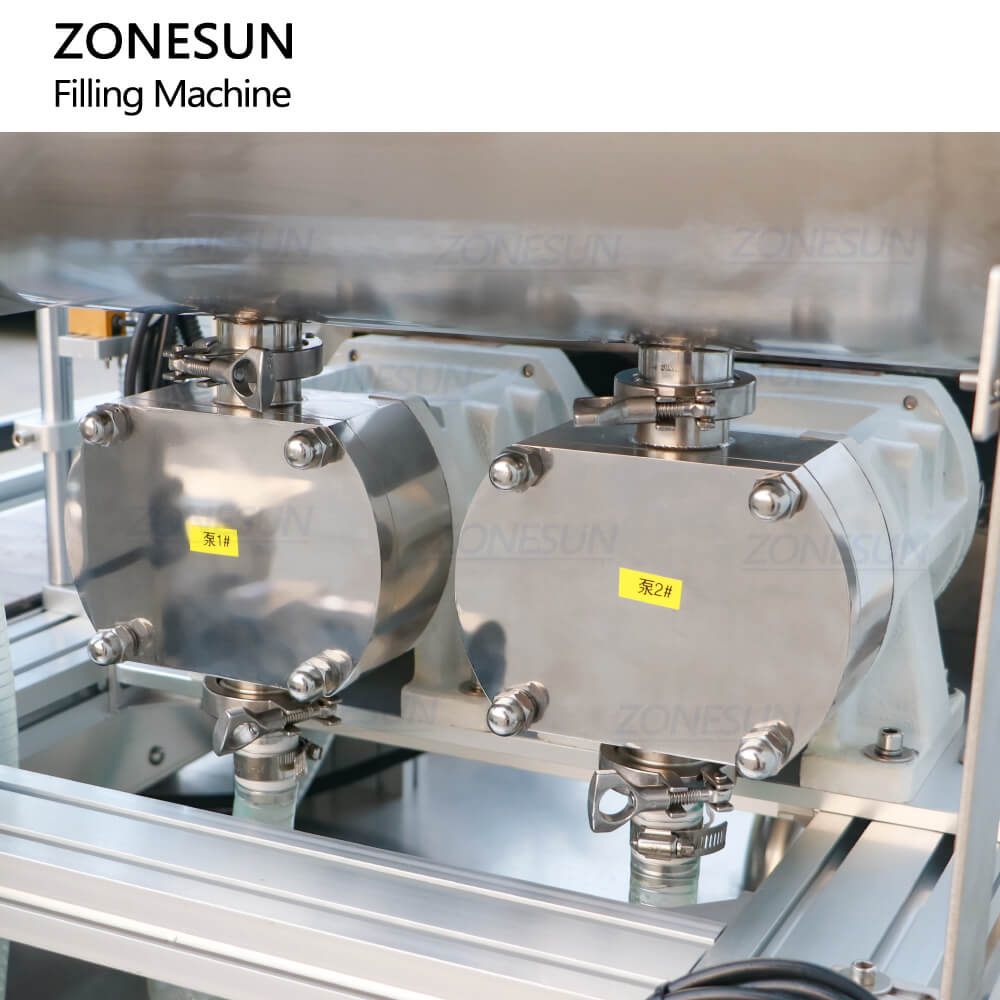

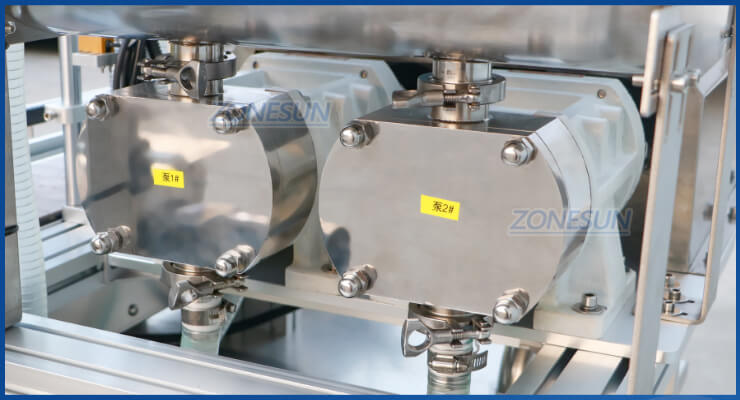

Servo Rotor Pump
Suitable for 50-5000ml thick paste filling ,large filling volume range and good for paste with small solid particle.

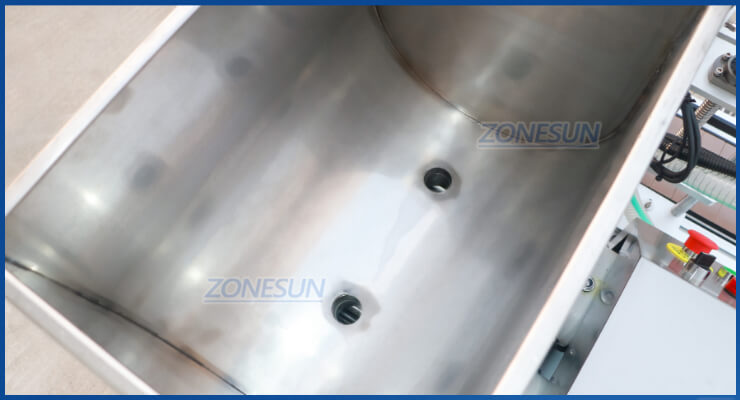

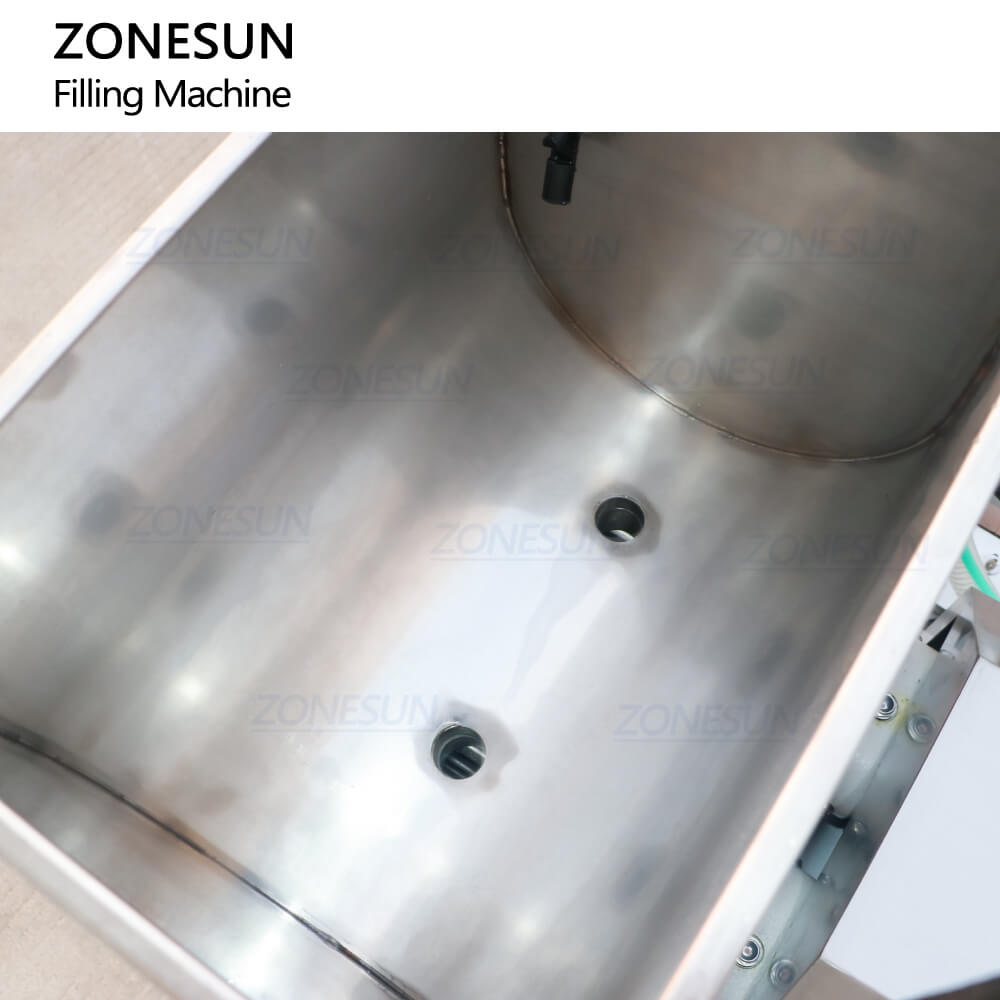

Storage Hopper
Made of SUS 316, hopper size is customizable. Extra mixing and heating function are customizable.

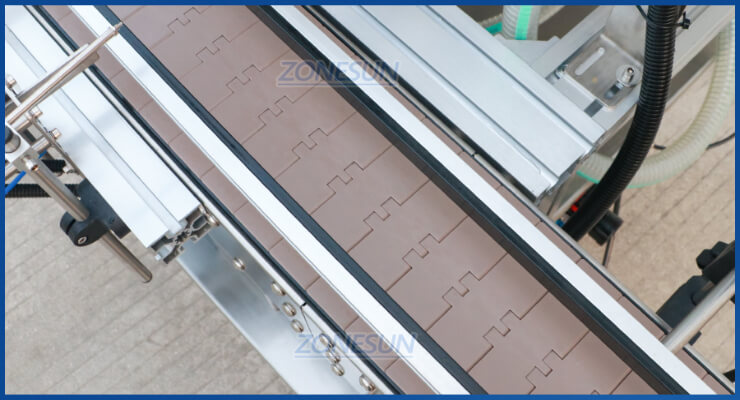

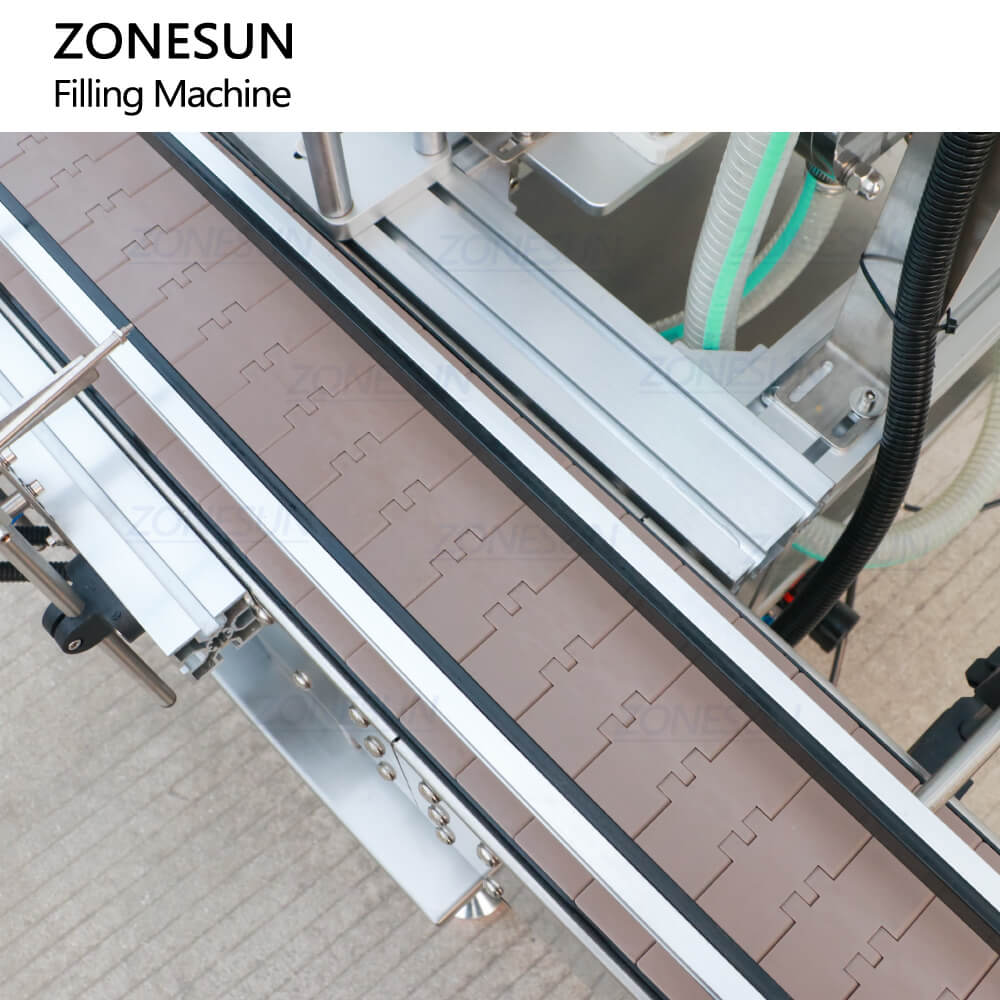

Chain Conveyor
Length and width of conveyor can be customized as production need, it can integrate with capping and labeling machine.
