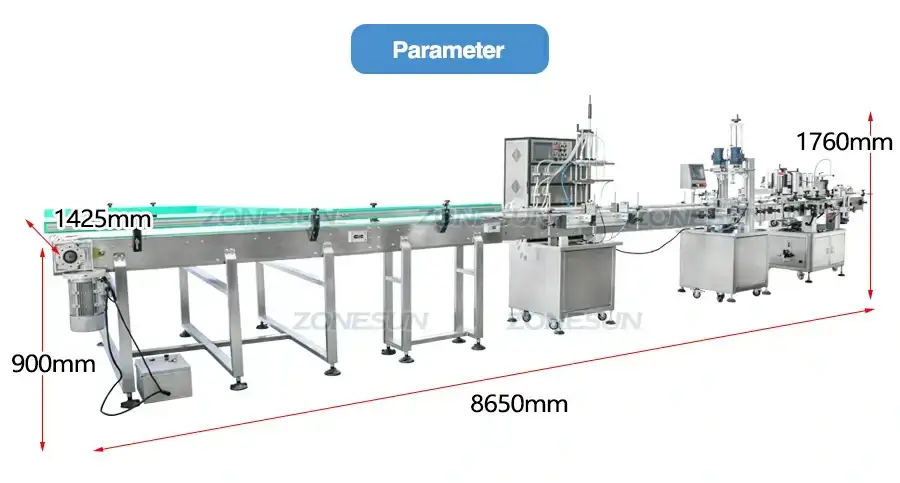

| Machine mode | ZS-CB190 |
| Machine power | 1.5KW |

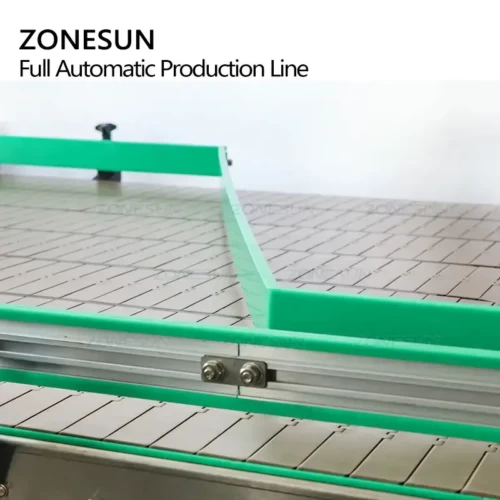

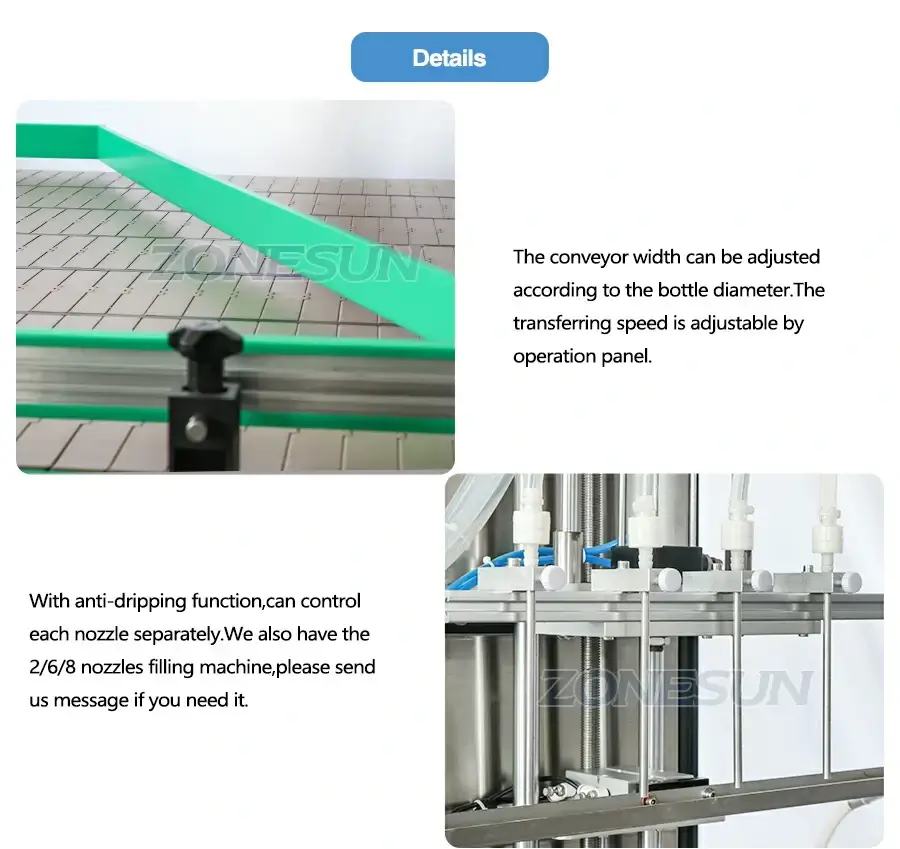

| Conveyor size | 1760*1425mm+960*190.5mm |
| Conveyor width | 190.5mm(Single) |
| Working speed | 0-20m/min |
| Package size | About 2050*1720*720mm |
| Package weight | About 276kg |

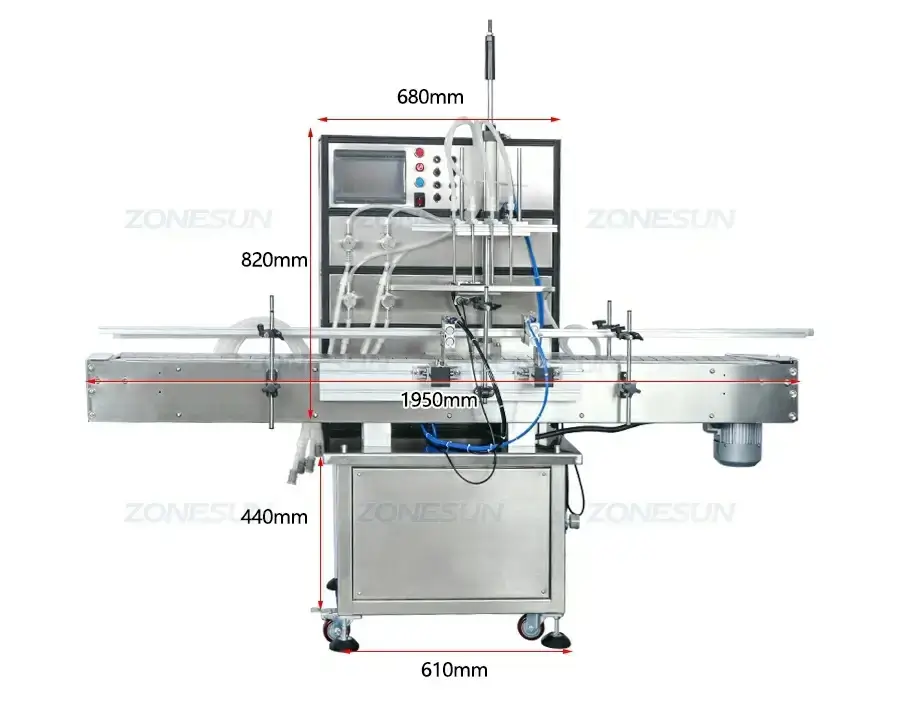

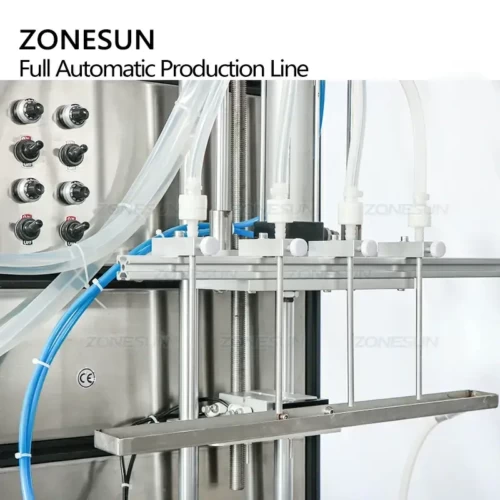

| Container size | φ20-160mm H30-300mm | ||
| Max flow rate | 6000ml/min | 7500ml/min | 12000ml/min |
| Material of pump | 316stainless steel | ||
| Filling accuracy |
≤100ml deviation≤±1ml
> 100ml deviation≤±1%
( based on water)
|
||
| Filling speed | 20-50pcs/min | 20-50pcs/min | 25-60pcs/min |
| (depending on bottles and flling liquid) | |||
| Size of air compressor connector | φ8mm | ||
| Power supply | 220V-50HZ/110V-60HZ | ||
| The whole machine power | 2000W | ||
| Net weight/Gross weight | About 114.5kg/195.5kg | ||
| Packing size | About 2000*820*1580mm | ||

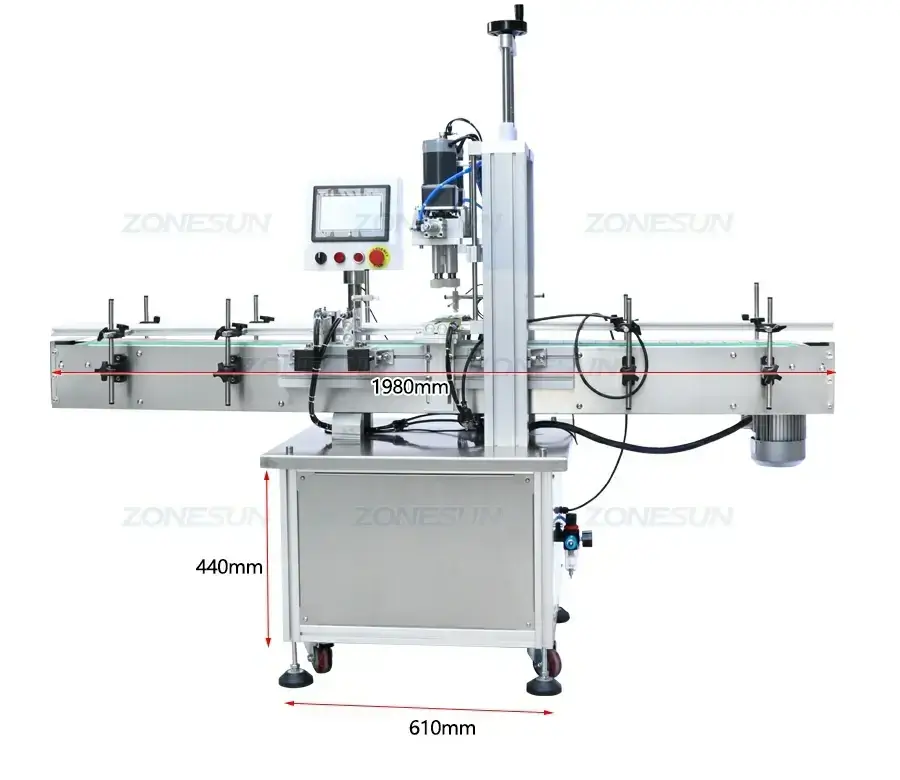

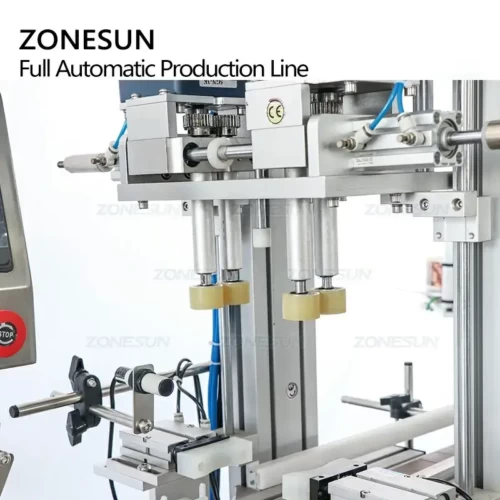

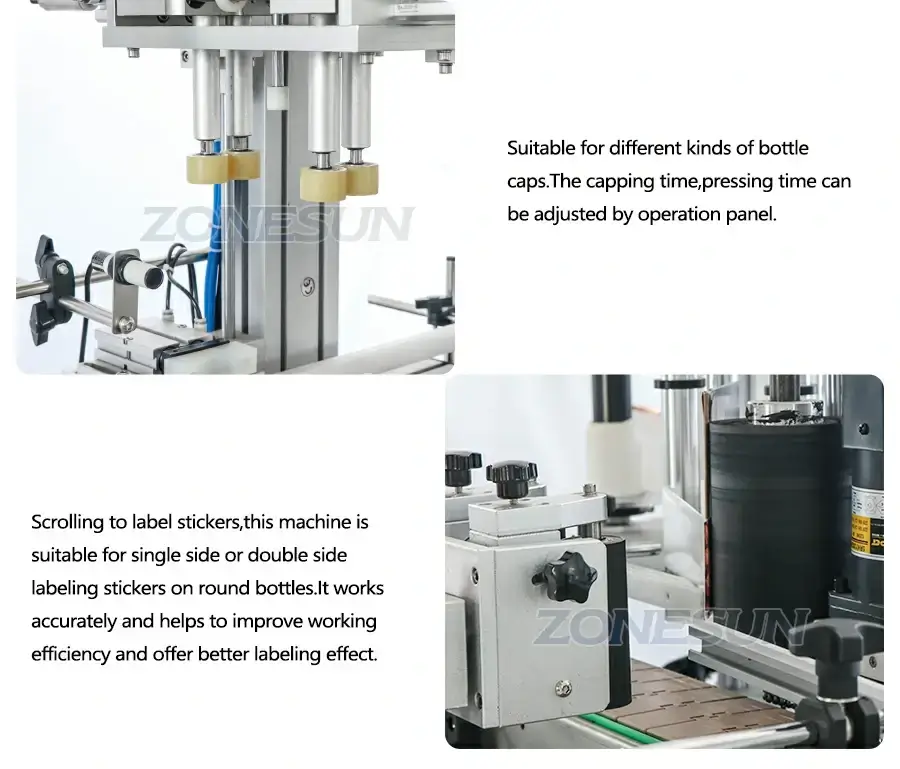

| Machine model | ZS-XG16 |
| Bottle height | 30-300mm |
| Cap diameter | 18-70mm |
| Bottle diameter | 20-160mm |
| Working speed |
20-60 bottles / minute
(depending on bottle and cap size and shape)
|
| Working voltage | AC220V/110v 50-60HZ |
| Working pressure | 0.4-0.6MPa |
| Dimension | About 1930*740*1600mm |
| Packing size | About 2000*820*1760mm |
| Net weight/Gross weight | About 113kg/192.5kg |

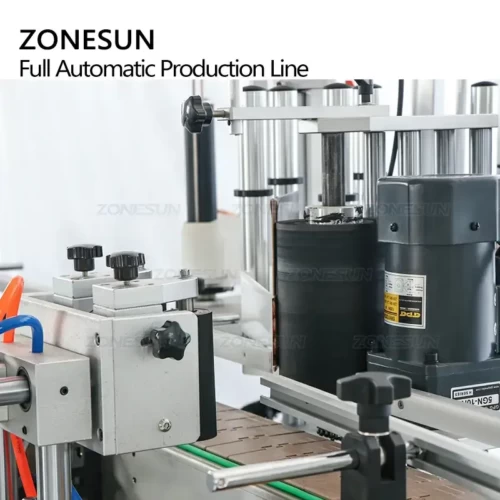

| Model | ZS-TB260 Labeling Machine |
| Power supply | AC220V 5OHz/60Hz 1500W |
| Labeling capacity | 25-50PCS /min(depends on bottle size) |
| Labeling accuracy | ±1.0mm |
| Suitable Bottle Diameter | φ30-100mm |
| Label size | (L)15-200mm (H)15-150mm |
| Roll inside diameter | φ76mm |
| Roll outside diameter | φ350mm |
| Conveyor size | 1950(L)*100mm(W) |
| Machine size | About 2000*1400*1300mm |
| Packing Size | About 2110*1040*1400mm |
| Net weight/Gross weight | About 223.5kg/280kg |
