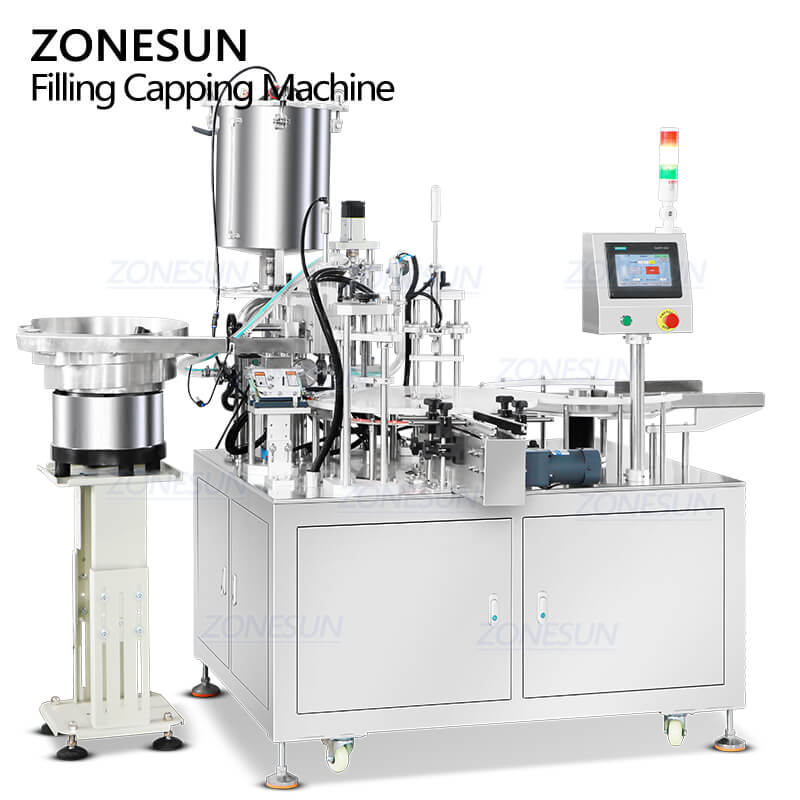

Pressurized Hopper Cosmetic Filling Capping Machine
This monoblock machine is equipped with pressurized hopper, which is suitable for filling thick paste includes cosmetic cream, lotion, lip gloss etc.Sevo piston pump simplifies machine operation. Machine is customizable based on container size, compact machine body saves working space.
Share to
Product Description:
This monoblock machine is equipped with pressurized hopper, which is suitable for filling thick paste includes cosmetic cream, lotion, lip gloss etc.Sevo piston pump simplifies machine operation. Machine is customizable based on container size, compact machine body saves working space.
Product Parameters:
| Machine model | ZS-AFC44 |
| Machine voltage | 110/220V 50-60HZ 3.5KW |
| Filling pump | Servo Piston Pump |
| Filling nozzle quantity | 2 |
| Pressurized hopper capacity | 30L(customizable) |
| Recommend filling range | 20-100ml (customizable) |
| Suitable bottle diameter | 10-40mm(customizable) |
| Suitable bottle height | 40-120mm(customizable) |
| Suitable cap size | 10-40mm(H)*20-40mm(φ)(customizable) |
| Working capacity | 20-25BPM |
| Machine size | About 1600*1250*1700mm(62.99*49.21*66.93inch) |

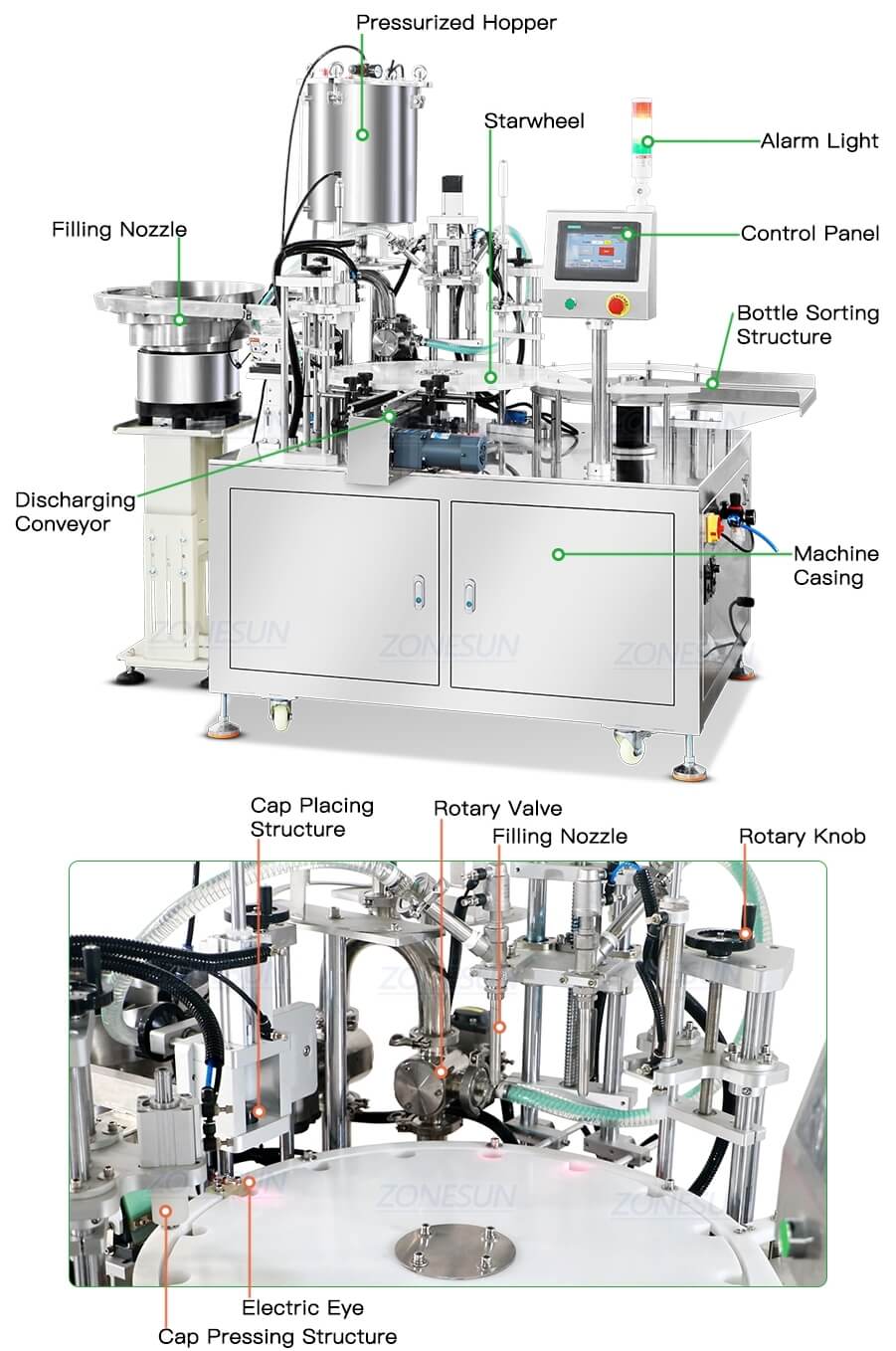

Product Details:

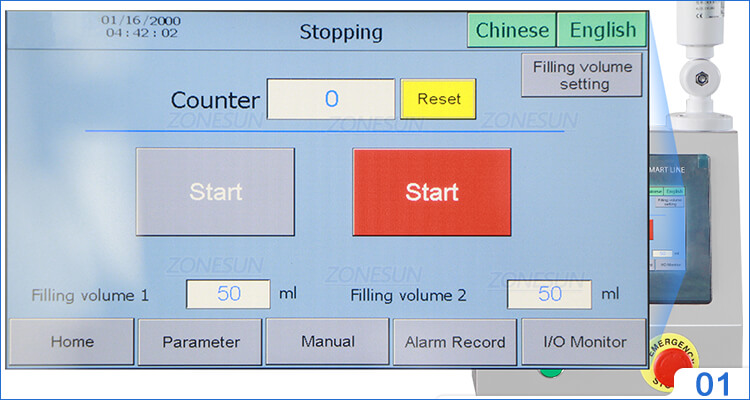

Control Panel
Touch screen control panel simplifies machine operation, alarm light alerts operators to machine working status.

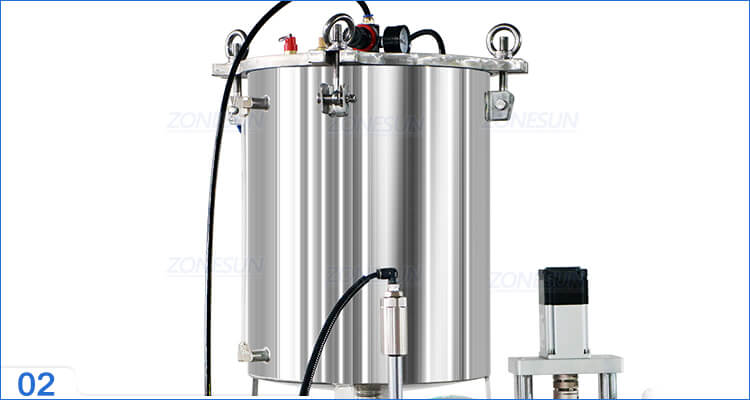

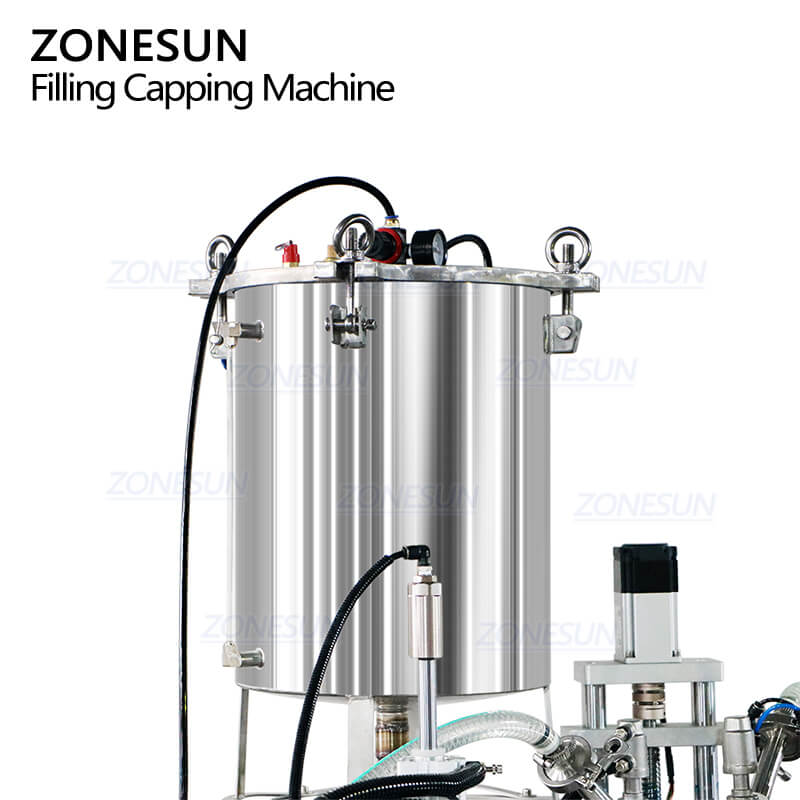

Pressurized Hopper
Maintains consistent pressure to ensure a smooth flow of filling material includes wax-based products.

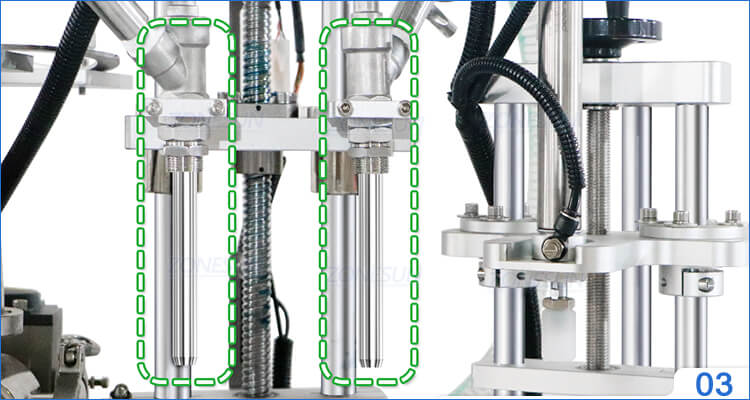

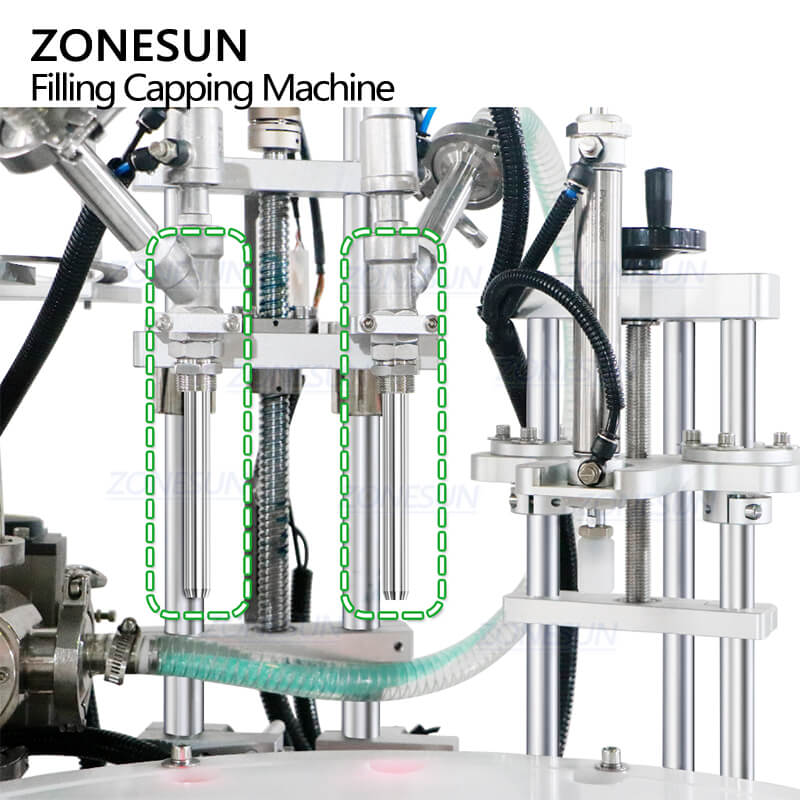

Anti-dripping Filling Nozzles
Quantity of filling nozzle is customizable, anti-dripping nozzles design improves filling accuracy.

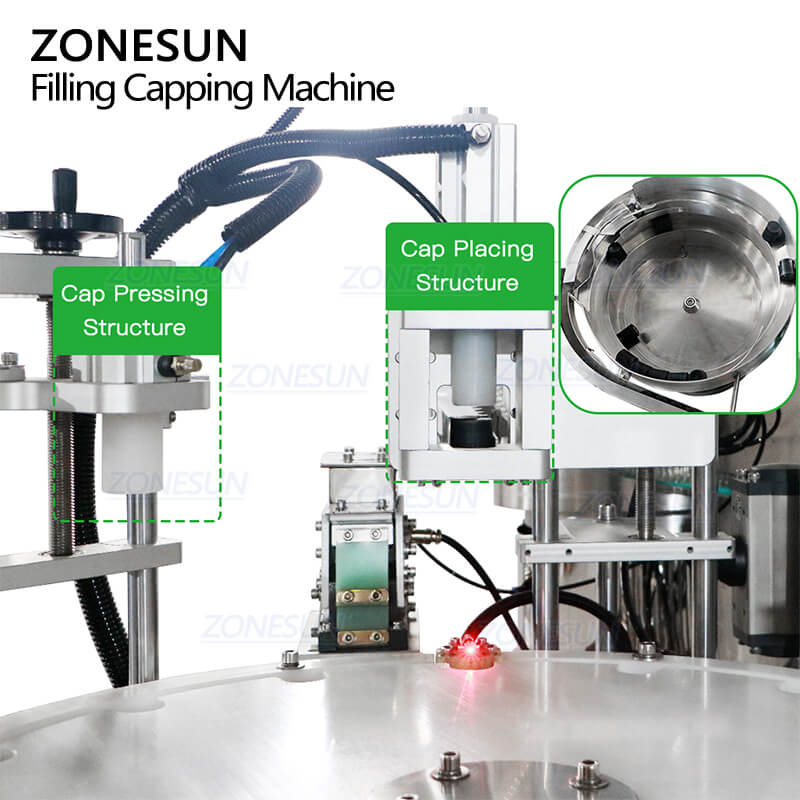

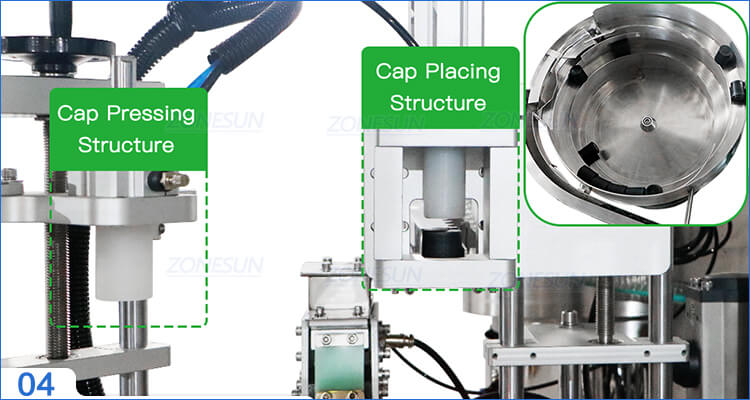

Capping Structure
Position bottle caps and pressing caps at the same time, vibratory bowl sorter can supply bottle caps in time to ensure smooth packaging.

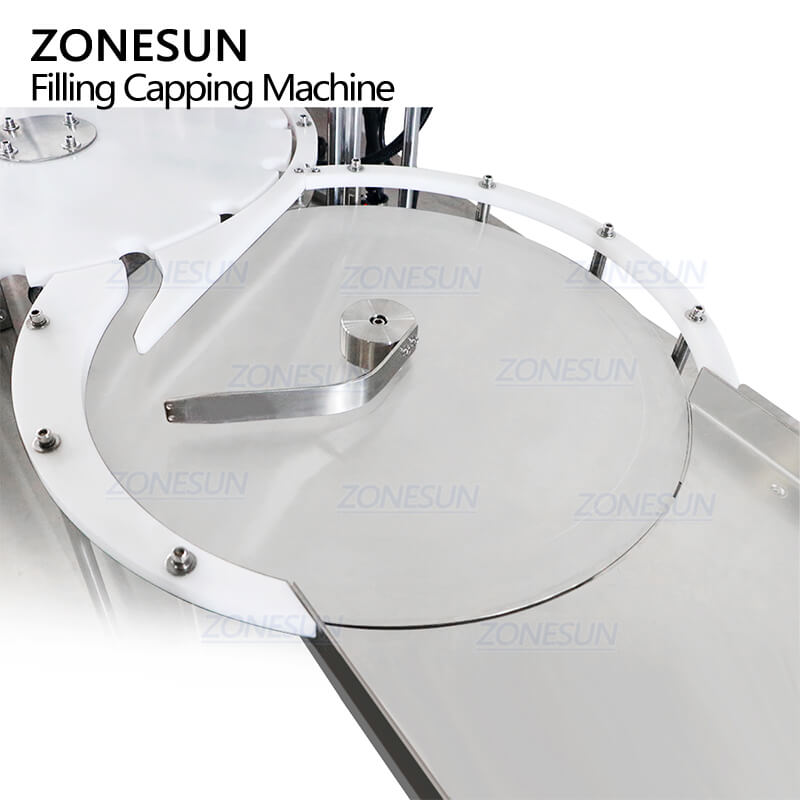

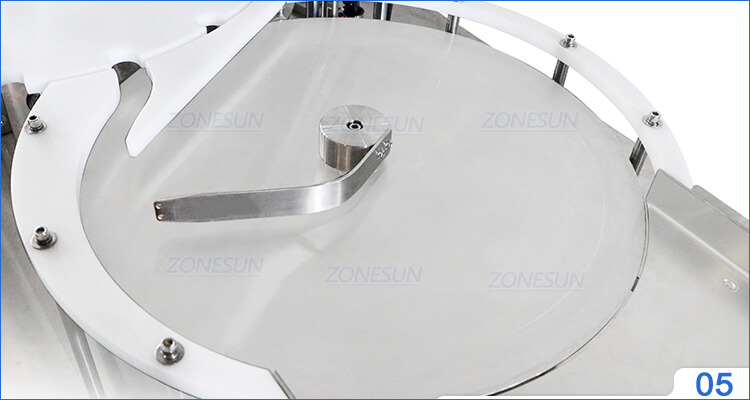

Bottle Sorting Structure
Make bottles be in order before filling and capping work, it saves working labor.

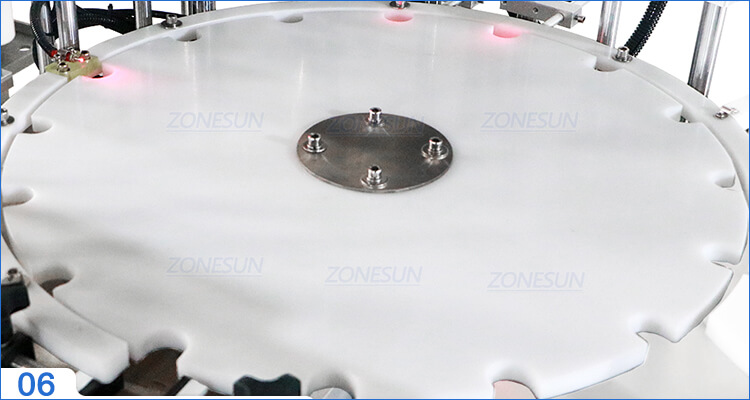

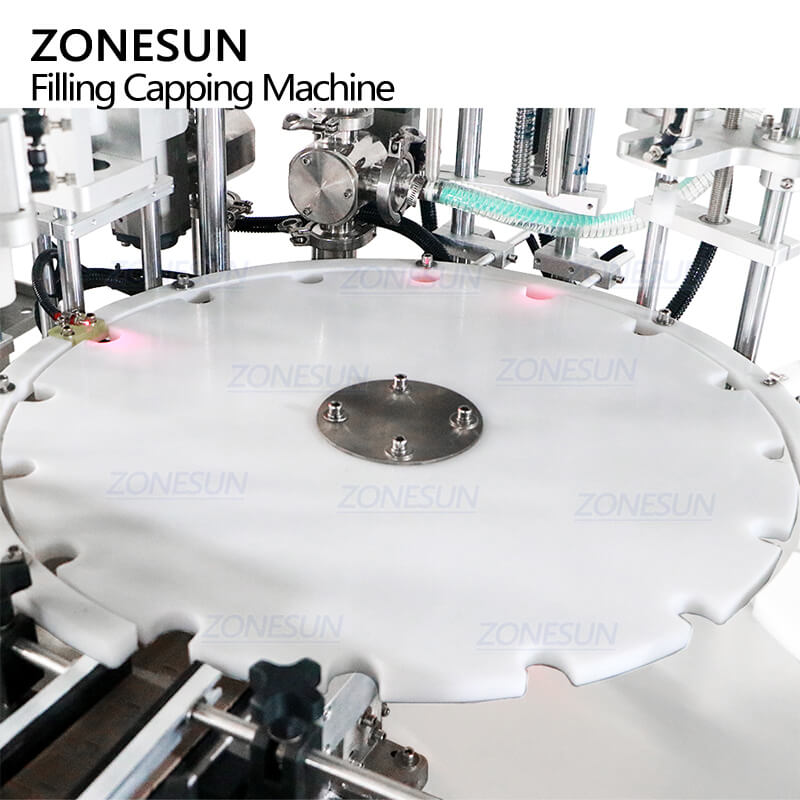

Starwheel
The starwheel is customizable based on container size to ensure smooth transporting.
