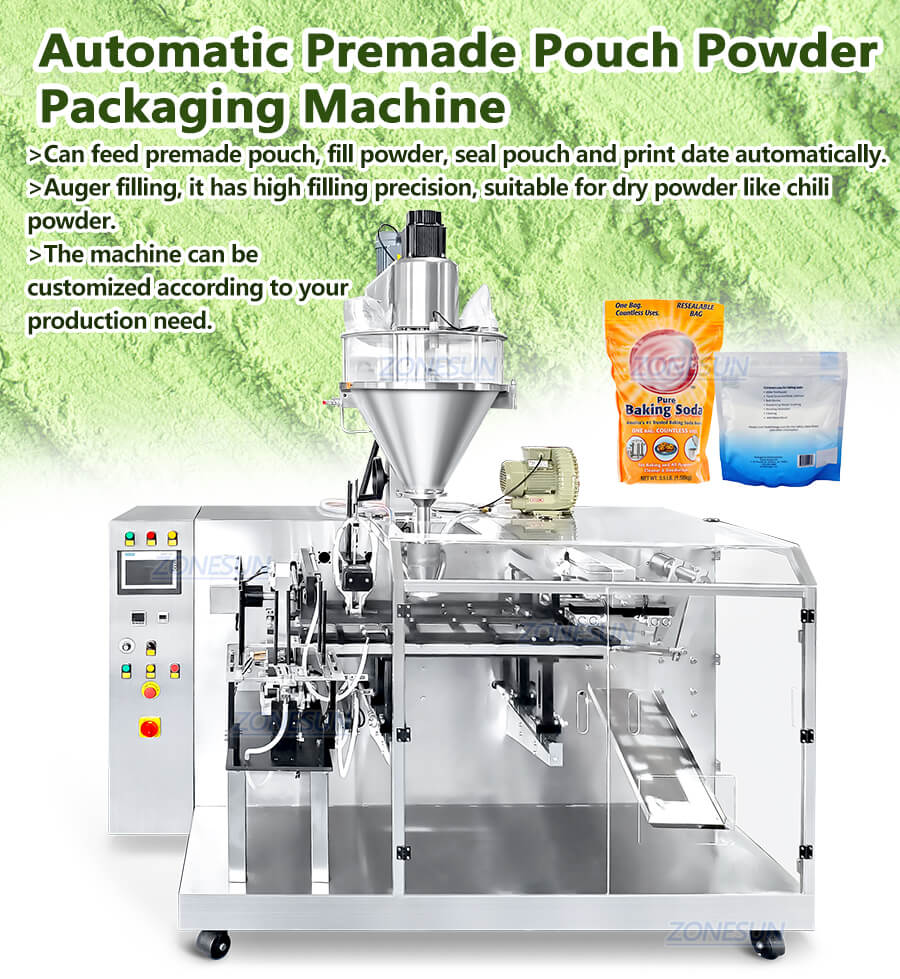

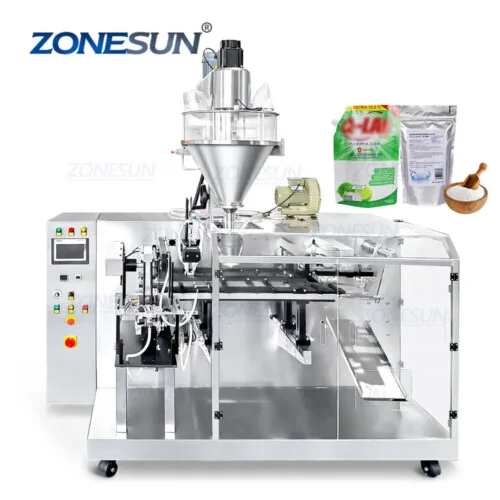

Powder Premade Pouch Filling Sealing Machine

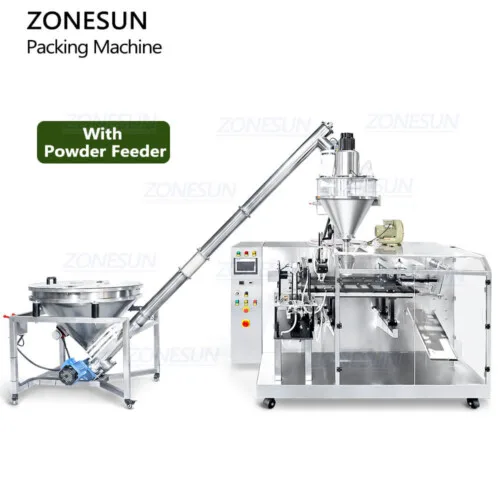

This powder premade pouch filling and sealing machine is a type of packaging equipment used to fill premade pouches with powdered products and then seal them.It can preventing spills and ensure accurate filling weights. Auger powder feeding machine and vaccum powder feeding machine can be equipped with as needed.
Price range: $16,099.00 through $25,199.00
Share to
Product Description:
This powder premade pouch filling and sealing machine is a type of packaging equipment used to fill premade pouches with powdered products and then seal them.It can preventing spills and ensure accurate filling weights. Auger powder feeding machine and vaccum powder feeding machine can be equipped with as needed.
Product Parameters:
| Machine Model | ZS-AFS210 |
| Voltage | 220V/380V 50-60Hz |
| Power | 2.5kW |
| Production Speed | About 15-60pcs/min (depending on pouch size and filling materials) |
| Premade Pouch Size | (W)80-210mm*(L)110-300mm(Can be customized) |
| Filling Range | 50g-5kg (Can be customized) |
| Filling Accuracy | ±0.3-1.5% |
| Measuring Method | Auger Filling |
| Hopper Capacity | 10L-100L(Customized as needed) |
| Sealing Temperature | 100-190℃ |
| Air Consumption | 0.7m³/min |
| Air Pressure | 0.6MPa |
| Machine Weight | About 755kg |
| Machine Size | About 2600*1600*2300mm(Main Machine) |
| Filling Machine Configuration | ||
| Machine Component | Brand | Origin |
| PLC | Siemens | Germany |
| Control Panel | Weinview/Siemens | China/Germany |
| Label Sensor | SICK | Germany |
| Intermediate Relay | AirTAC | Taiwan, China |
| Air Cylinder | AirTAC | Taiwan, China |
| Solenoid Valve | AirTAC | Taiwan, China |

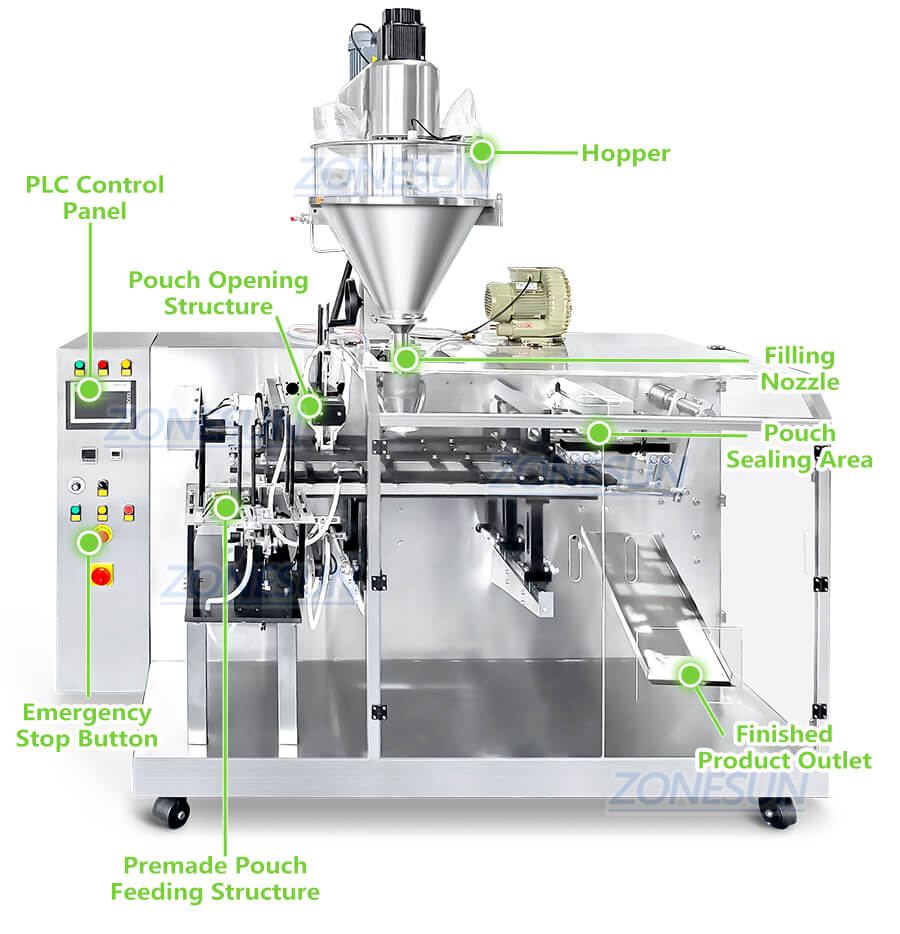

Product Details:

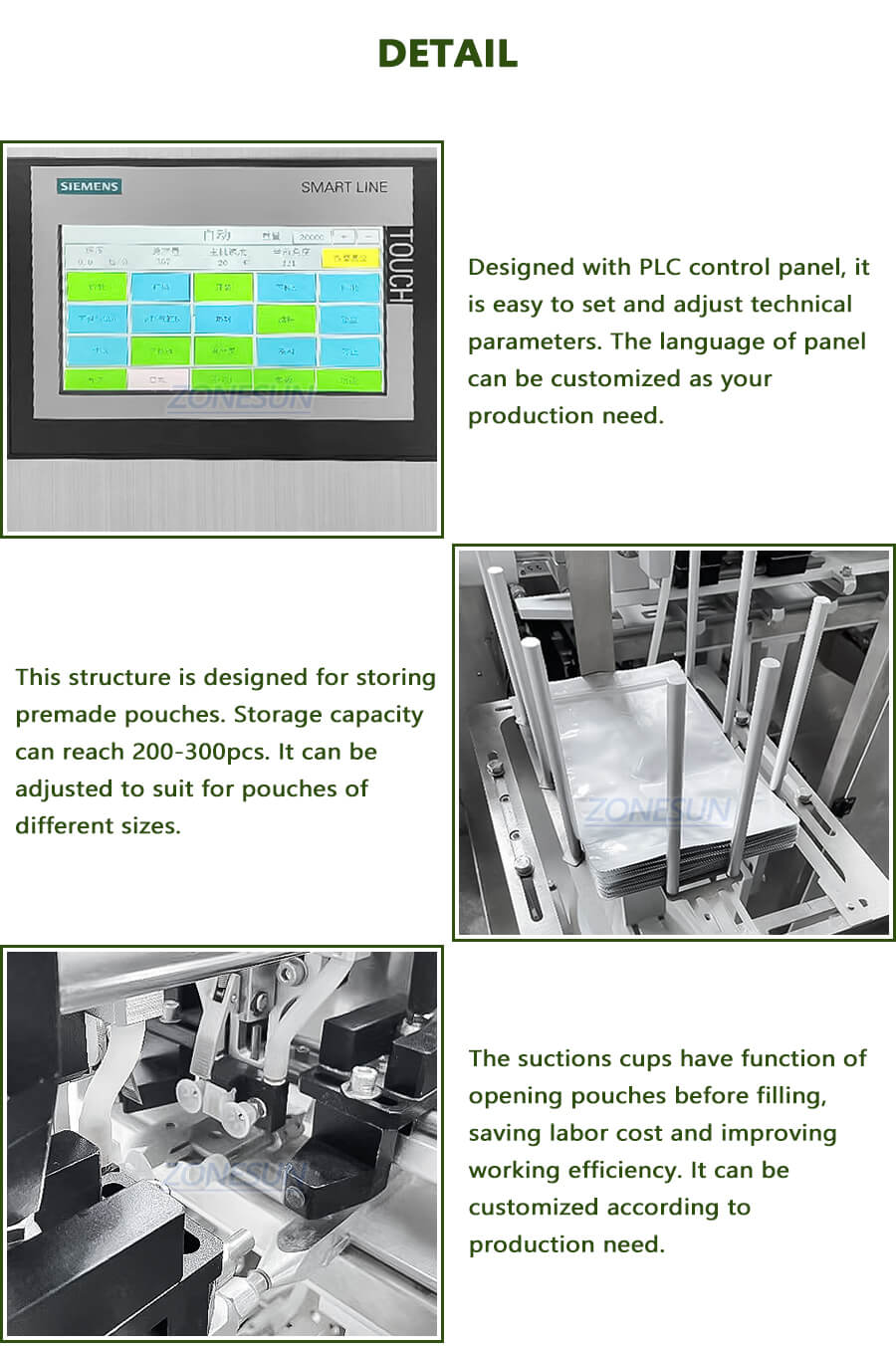

Touch Screen Control Panel
Easier to set and adjust technical parameters. Language can be customized as needed.

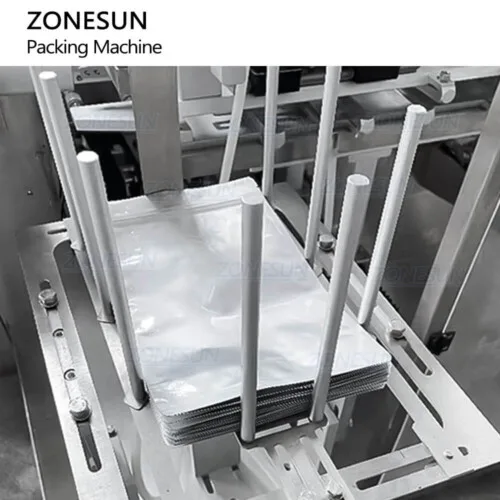

Pouch Holder & Feeding Structure
Storage capacity can reach 200-300pcs, using suctions cups to pass premade pouches to next working process.

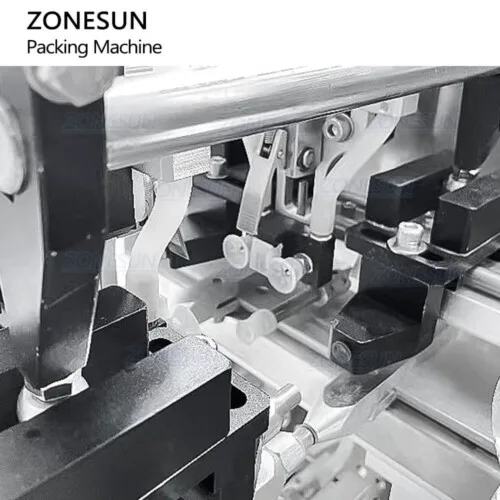

Pouch Opening Structure
Using suction cups to open pouches before filling work.

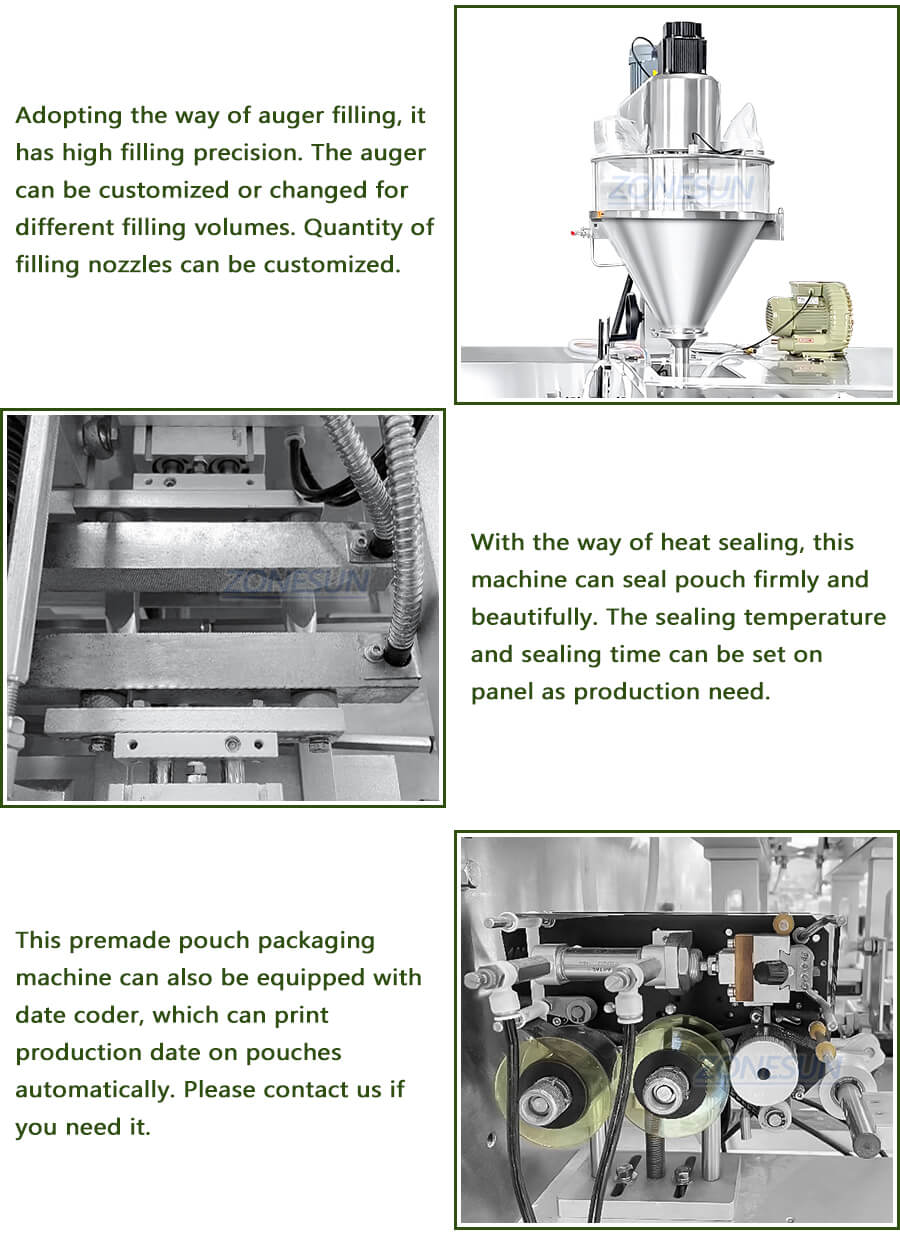

Filling Nozzle
The filling nozzle can be connected to a vacuum cleaner. Additional custom funnel can be used to manually place the spoon.

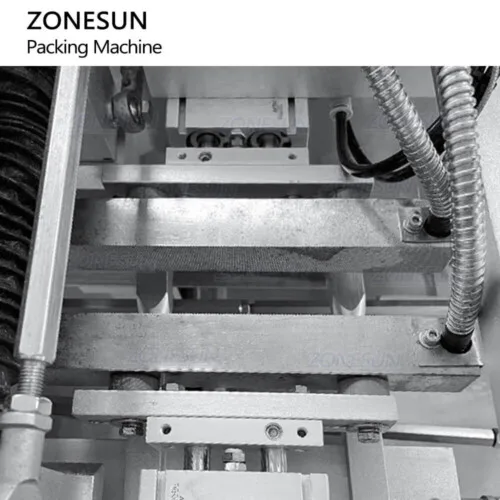

Sealing Structure
Temperature can be adjusted easily, suits heat sealable pouches.Sealing pattern can be customized.

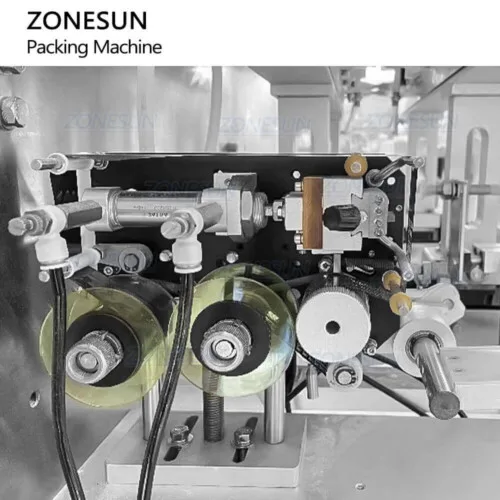

Date Coding Machine
Can also be equipped with date coder to print date or batch number, multi-lines coding are available.
