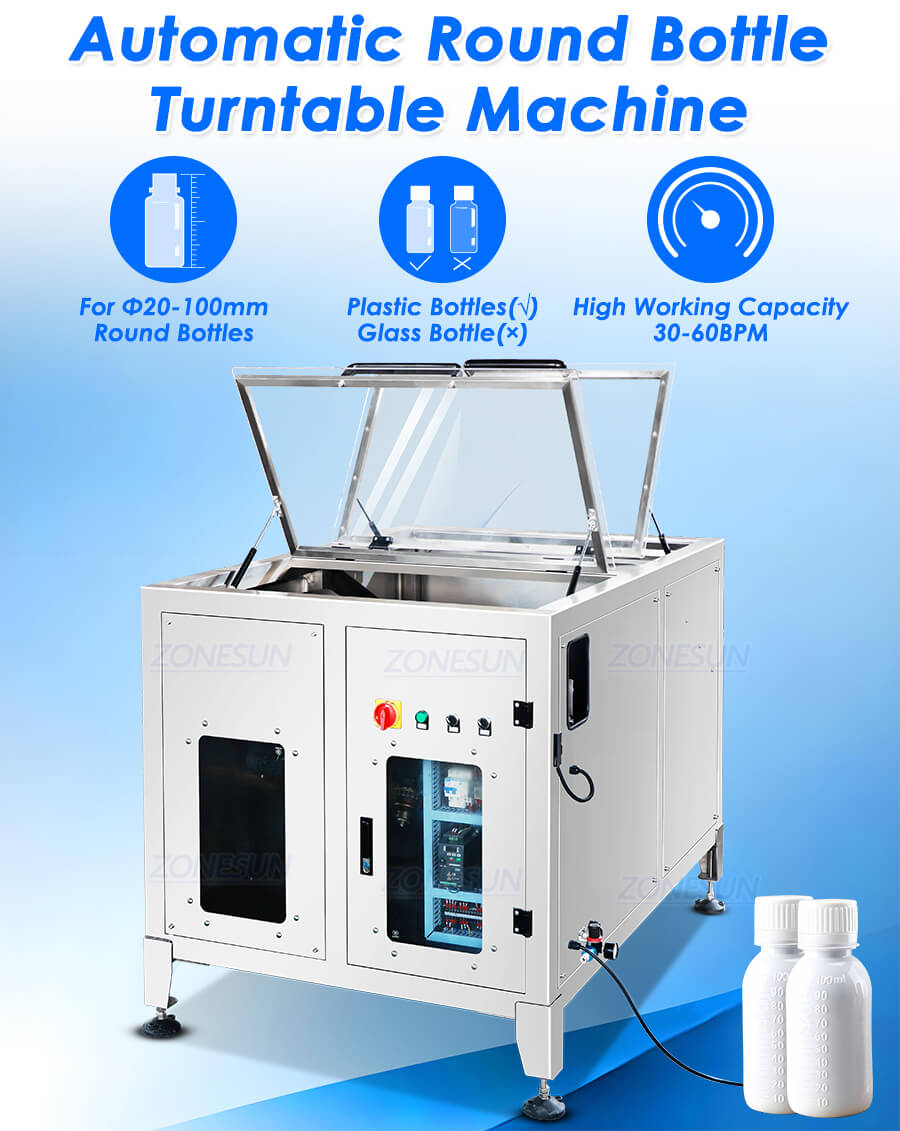

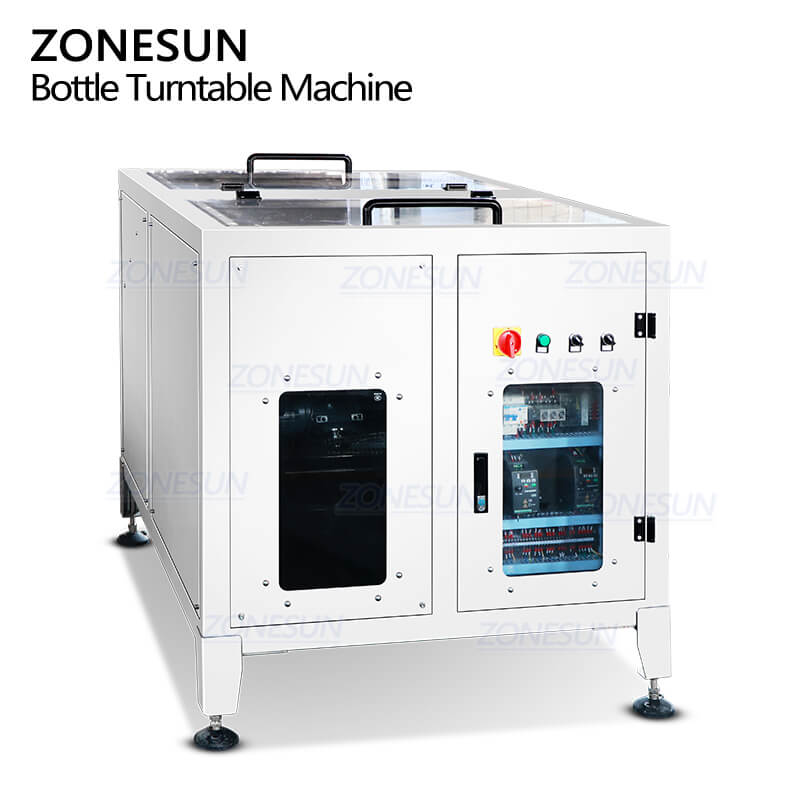

Plastic Bottles Unscrambler Machine
This turntable machine can integrate with filling machine, capping machine or labeling machine to realize automated bottle feeding and improve working efficiency.It has high working capacity and can reach 30-60BPM.
$7,199.00
Share to
This turntable machine can integrate with filling machine, capping machine or labeling machine to realize automated bottle feeding and improve working efficiency.It has high working capacity and can reach 30-60BPM.
| Machine model | ZS-LP150 |
| Machine voltage | 220V 50Hz |
| Machine power | 1000W |
| Working speed | 30-60 bottles/min |
| Suitable bottle size | (Φ)20-100mm*(H)20-150mm |

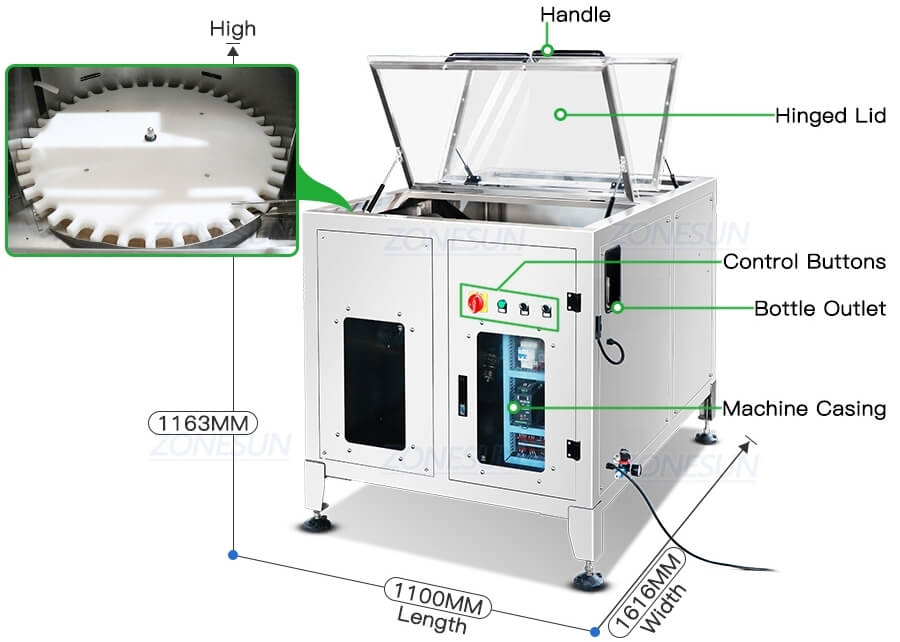

| Machine size | About 1100*1616*1163mm |
| Machine weight | About 260kg |
| Labeling Machine Configuration | ||
| Machine Component | Brand | Origin |
| Motor | GPG | China |
| Sensor | Panasonic | Japan |
| Relay | Siemens | Germany |
| Inverter | Coreken | China |

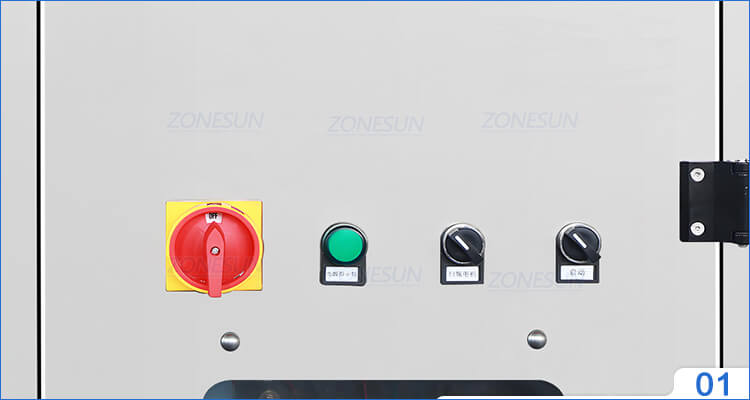

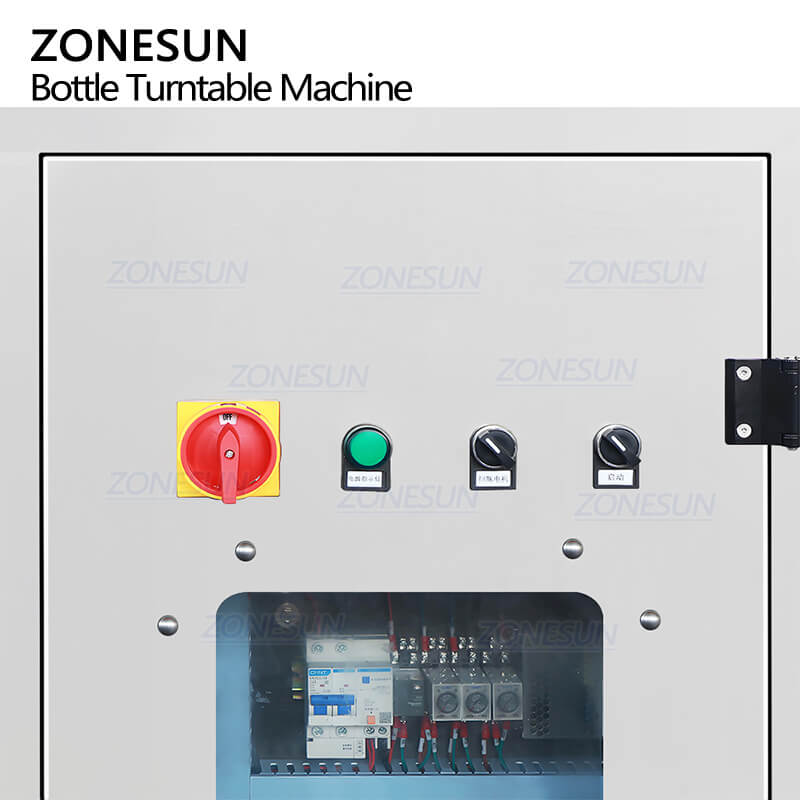

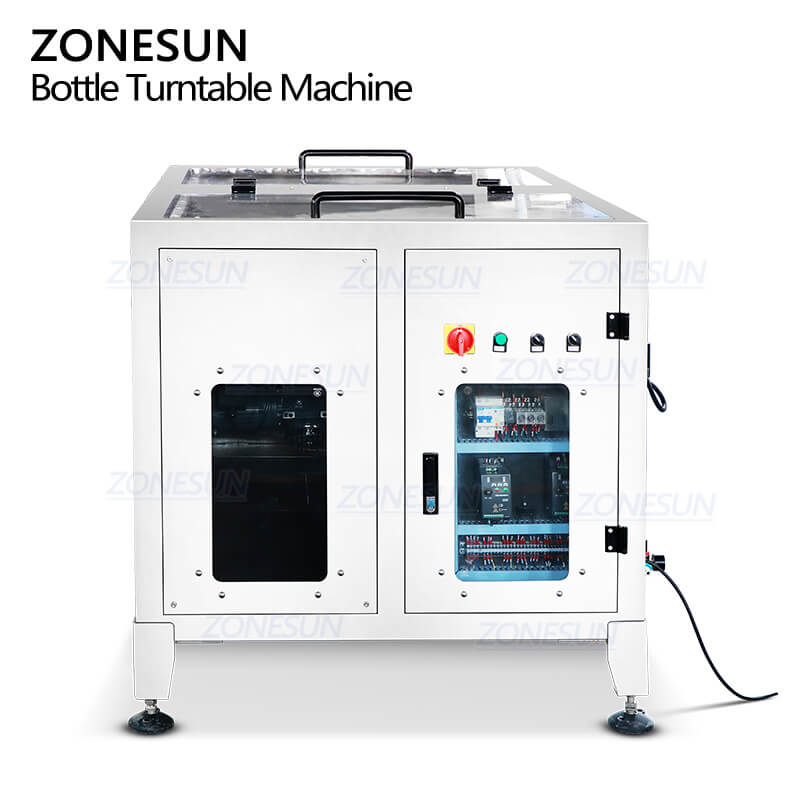

Control Buttons
Simple control buttons simplifies machine operation, easier to debug machine.

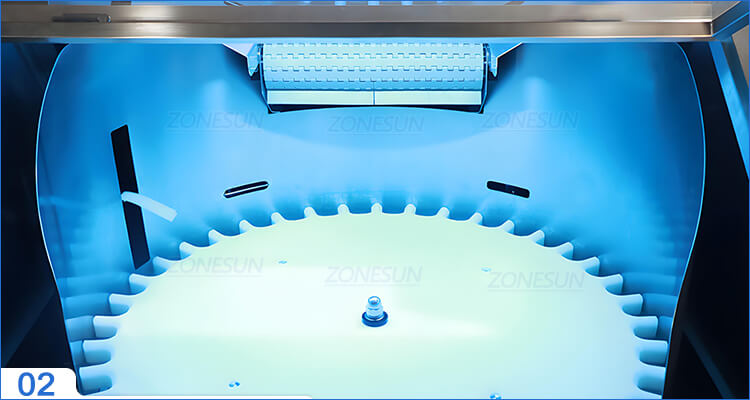

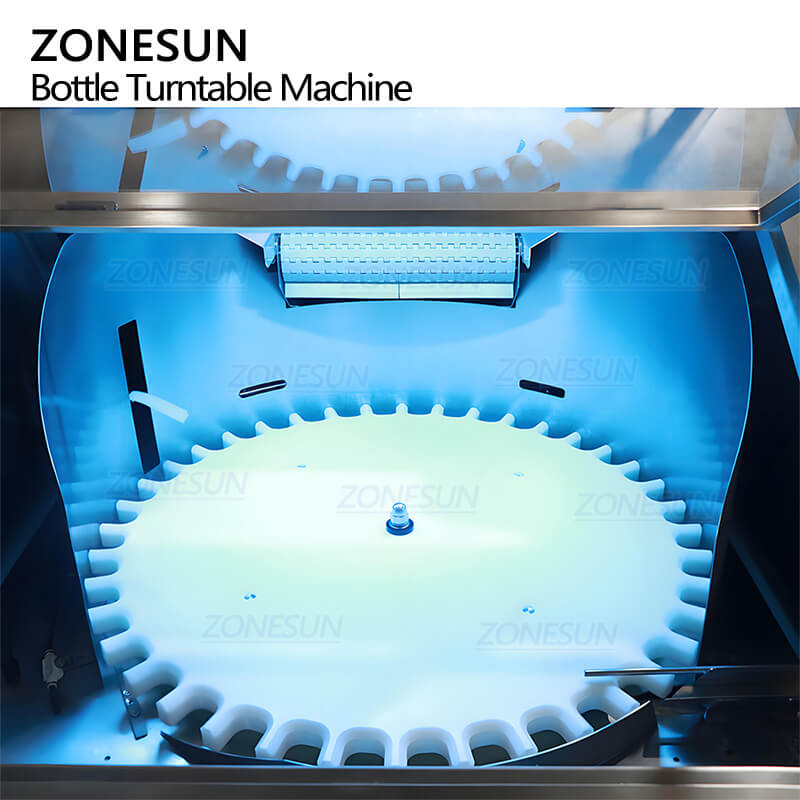

Starwheel
It is customizable based on bottle size, inside light makes operation more convenient.

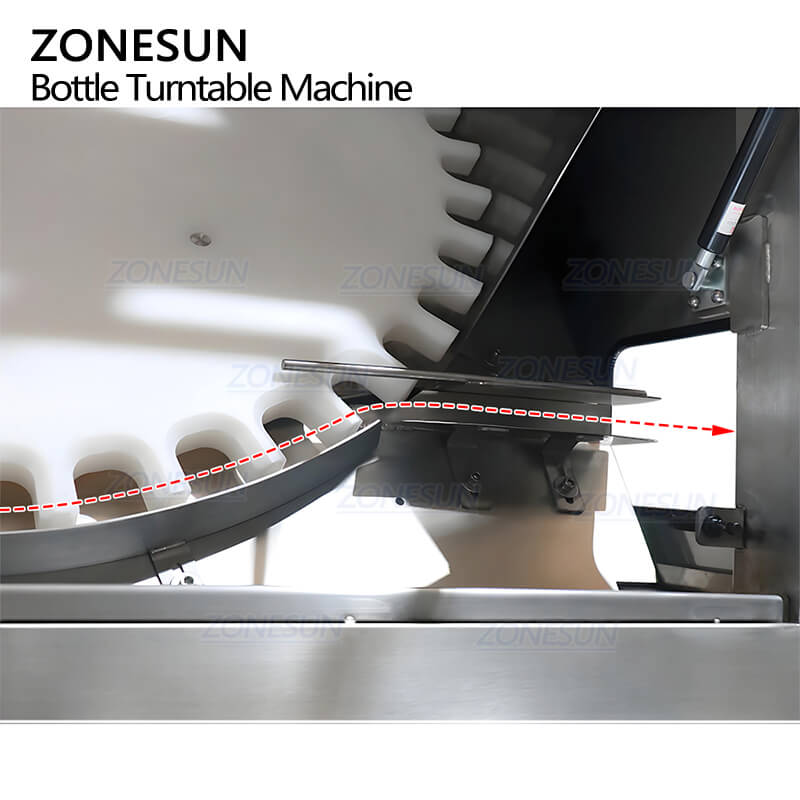

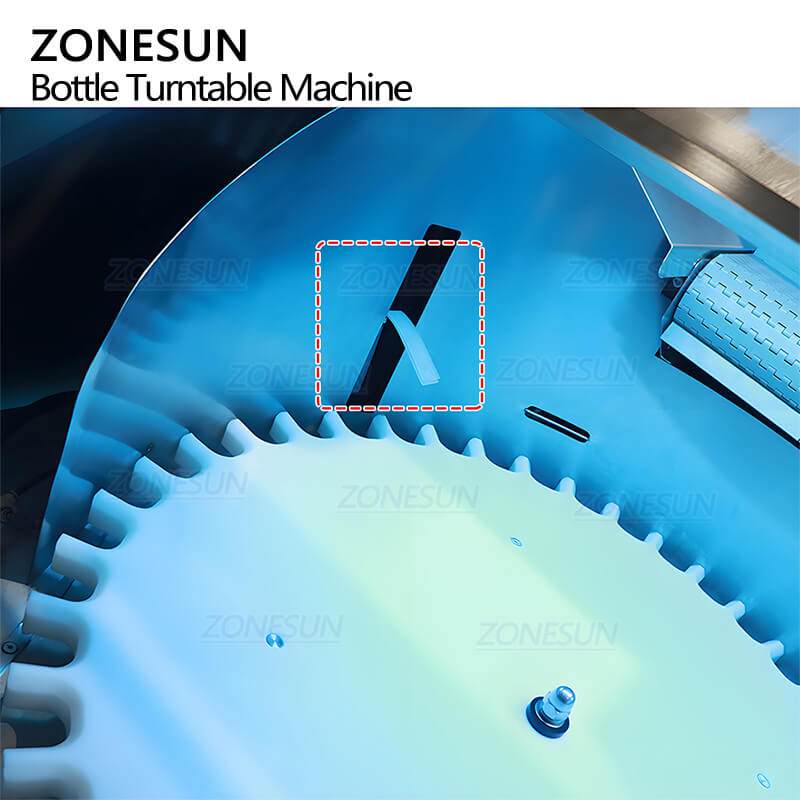

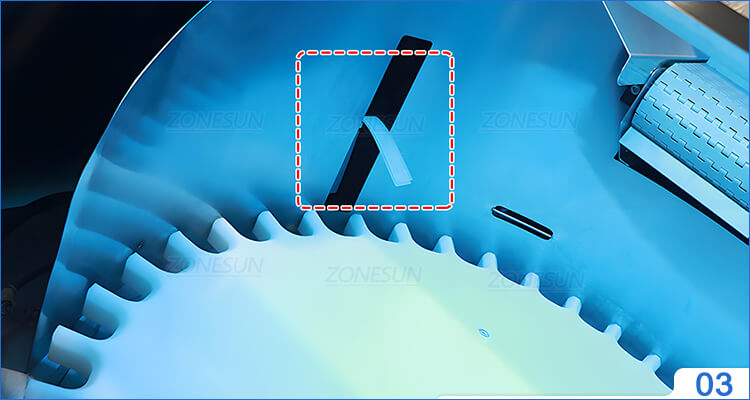

Bottle Separator
This ensures bottles can be oriented correctly, improves working accuracy.

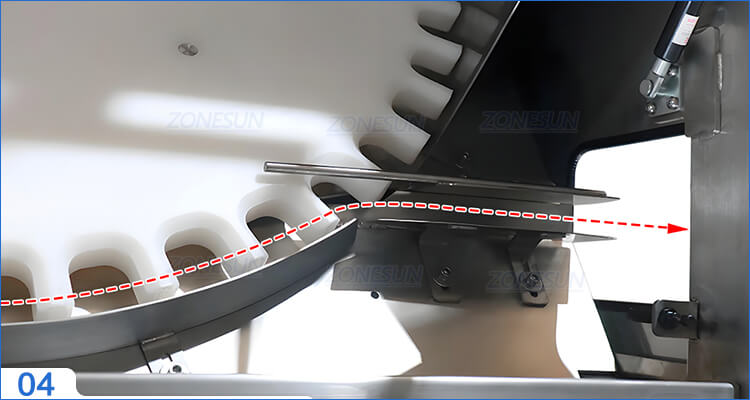

Discharge Outlet
It is adjustable according to bottle size, this can be customizable for integrating with filling capping or labeling machine.

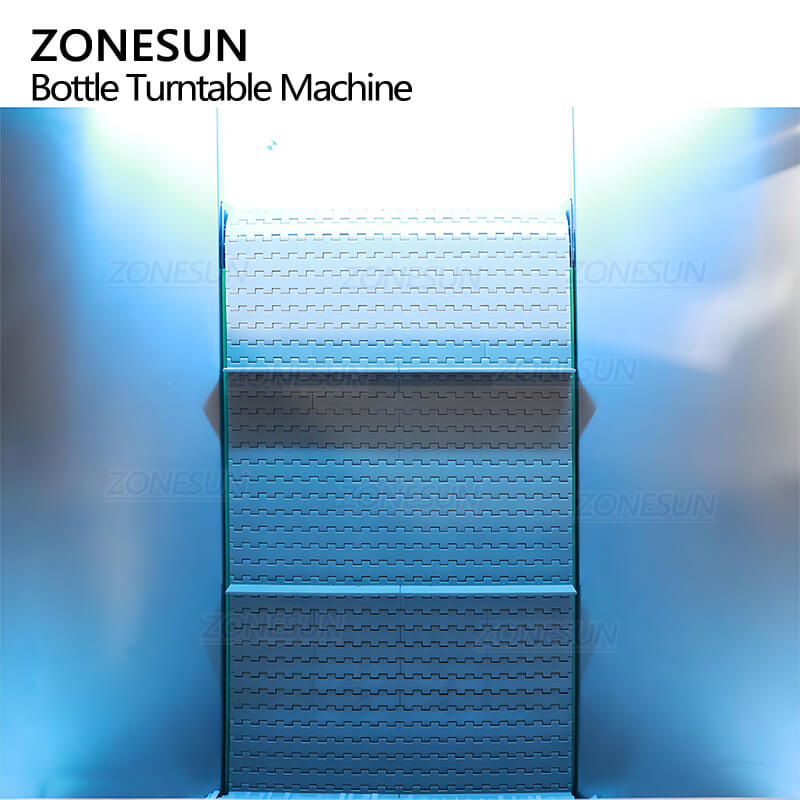

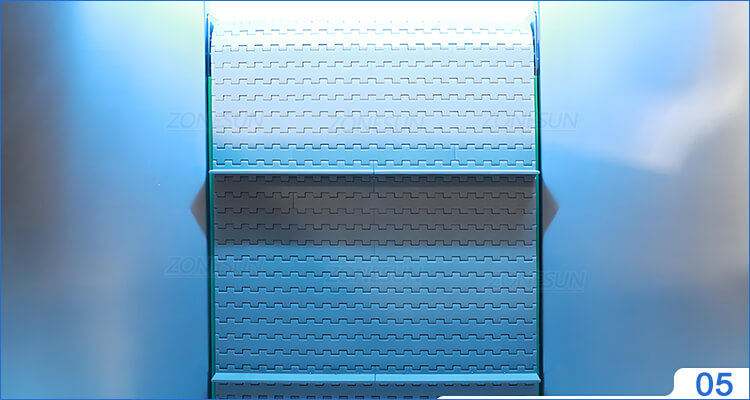

Chain Conveyor
Pour bottles into hoppers and conveyor and pass bottles to sorting structure, saves working labor.
