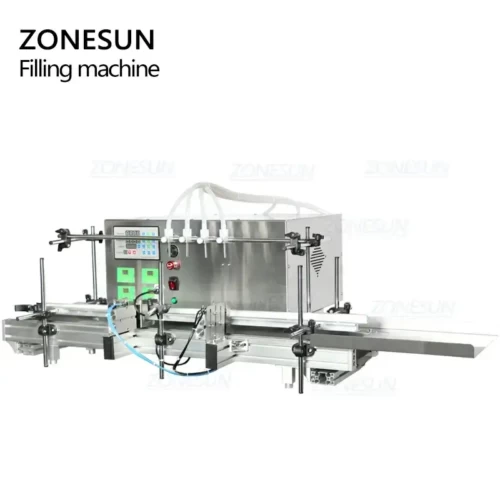

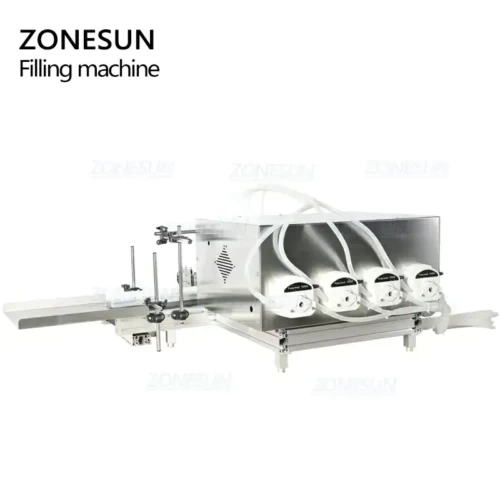

Peristaltic Pump Liquid Filling Machine

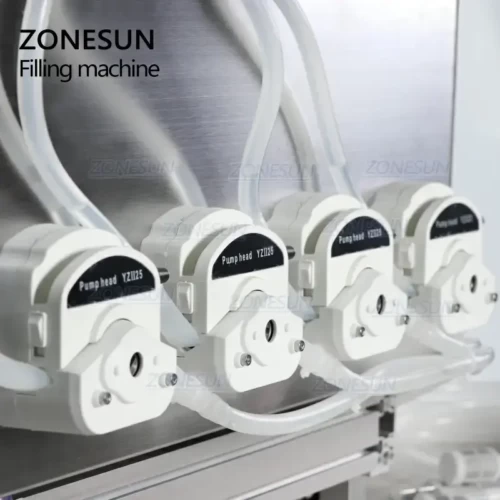

Desktop full automatic machine is very efficient with high cost performance.It is widely used in medicine,daily chemical and other industries such as essential oils,perfumes,juice liquid etc.Machine with peristaltic pump is easy to change tube.Liquid won't pass through the pump.It is good choice for strong corrosive liquid such as biological liquid,eye drops,sulfuric acid,hydrochloric acid,disinfectant,etc.To replace with fluorine rubber tubes,it can also use to essential oils,solvents,etc.

Product Detail

Product Tags

Description:

Desktop full automatic machine is very efficient with high cost performance.It is widely used in medicine,daily chemical and other industries such as essential oils,perfumes,juice liquid etc.Machine with peristaltic pump is easy to change tube.Liquid won’t pass through the pump.It is good choice for strong corrosive liquid such as biological liquid,eye drops,sulfuric acid,hydrochloric acid,disinfectant,etc.To replace with fluorine rubber tubes,it can also use to essential oils,solvents,etc.
Parameter:
Machine model ZS-DTPP4F
Voltage AC110V/220V 50Hz-60Hz
Power 60W(Each Pump)
Recommended filling volume 110V 10-500ml 220V 10-1000ml
Maximum flow 4000ml/min for each nozzle (based on water )
Filling nozzles 4(we can customize the nozzles based on your demands)
Working speed 30-50 bottles/min(based on bottles and liquids)
Air pressure 0.3-0.4mpa
Filling accuracy ≤±1%( for water)

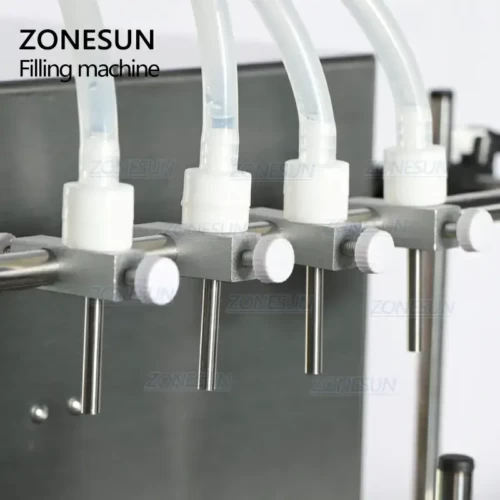

Dimension of fling nozzle standard 8mm and 6mm
Delay range 0.01s – 999.9s
Belt length 1.0 m
Size of air compressor connector OD8mm
Suitable bottle height <220mm(Can be customized,max height 300mm)
Machine size About 650*430*400mm
Machine weight About 55.5kg
Package size About 1115*770*440mm
Package weight About 73kg
