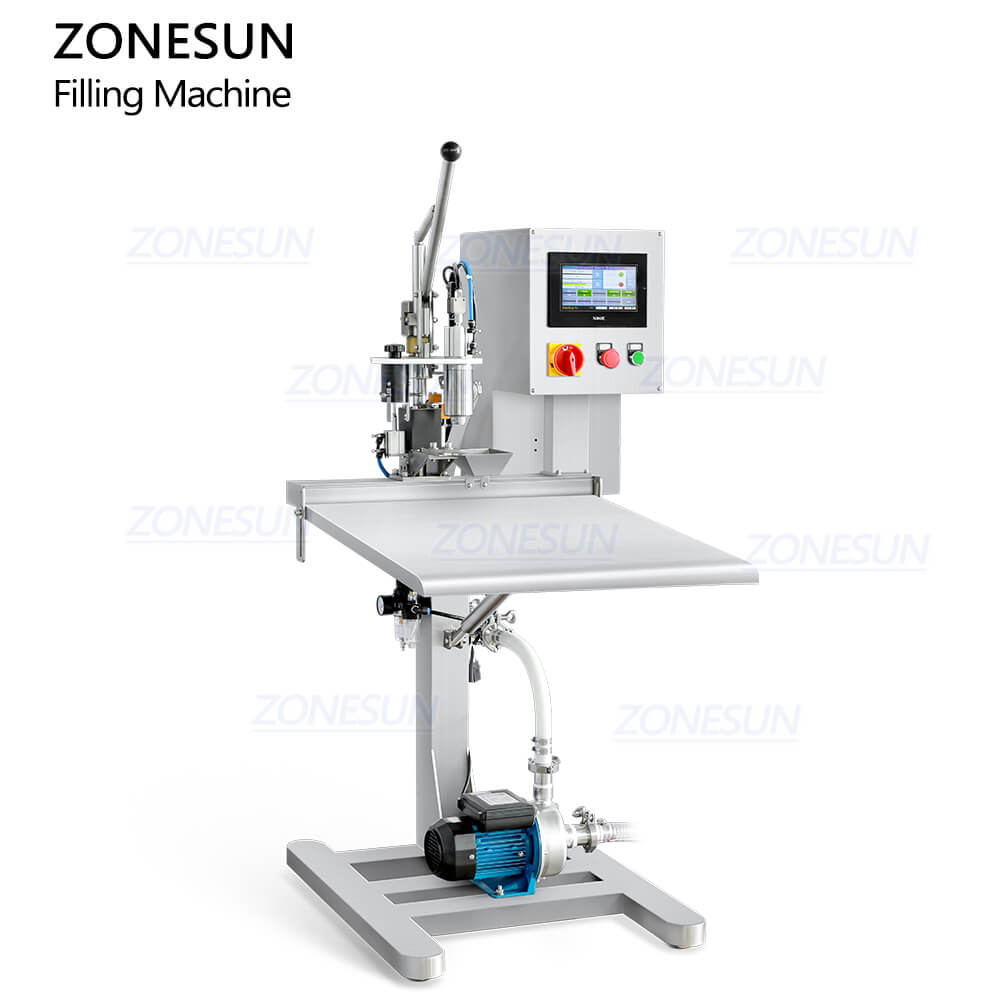

Manual Bag In Box Filling Machine

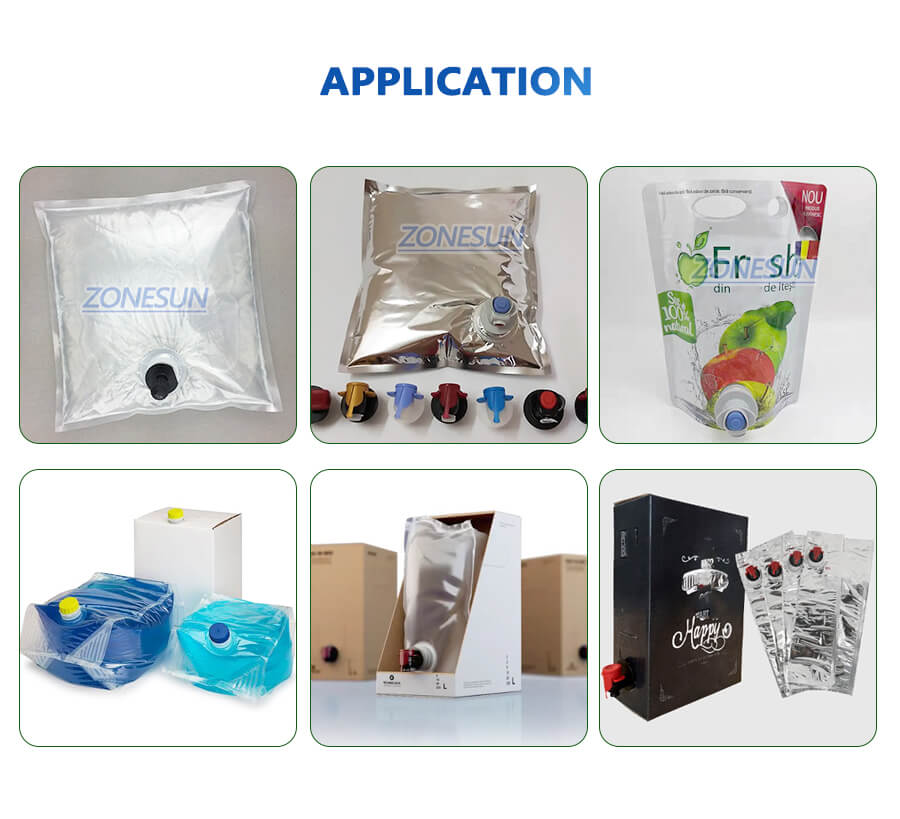

A Bag-in-Box (BiB) filling machine is a piece of equipment used to fill bags (usually made of plastic) with liquid products such as wine, water, juice, oil, milk, etc., and then place them into a box.Nitrogen filling or air extraction system can be customized as production need.
Share to
Product Description:
A Bag-in-Box (BiB) filling machine is a piece of equipment used to fill bags (usually made of plastic) with liquid products such as wine, water, juice, oil, milk, etc., and then place them into a box.Nitrogen filling or air extraction system can be customized as production need.
Product Parameters:
| Machine Model | ZS-BIB01M |
| Voltage | AC220V/50Hz |
| Power | 380W |
| Working Speed | About 200-220pcs/h(based on 3L filling volume)
About 180-200pcs/h(based on 5L filling volume) |
| Filling Range | 1L-30L |
| Filling Accuracy | ±0.5% |
| Air Consumption | 0.1m³/Min |
| Working Pressure | 0.4-0.6Mpa |

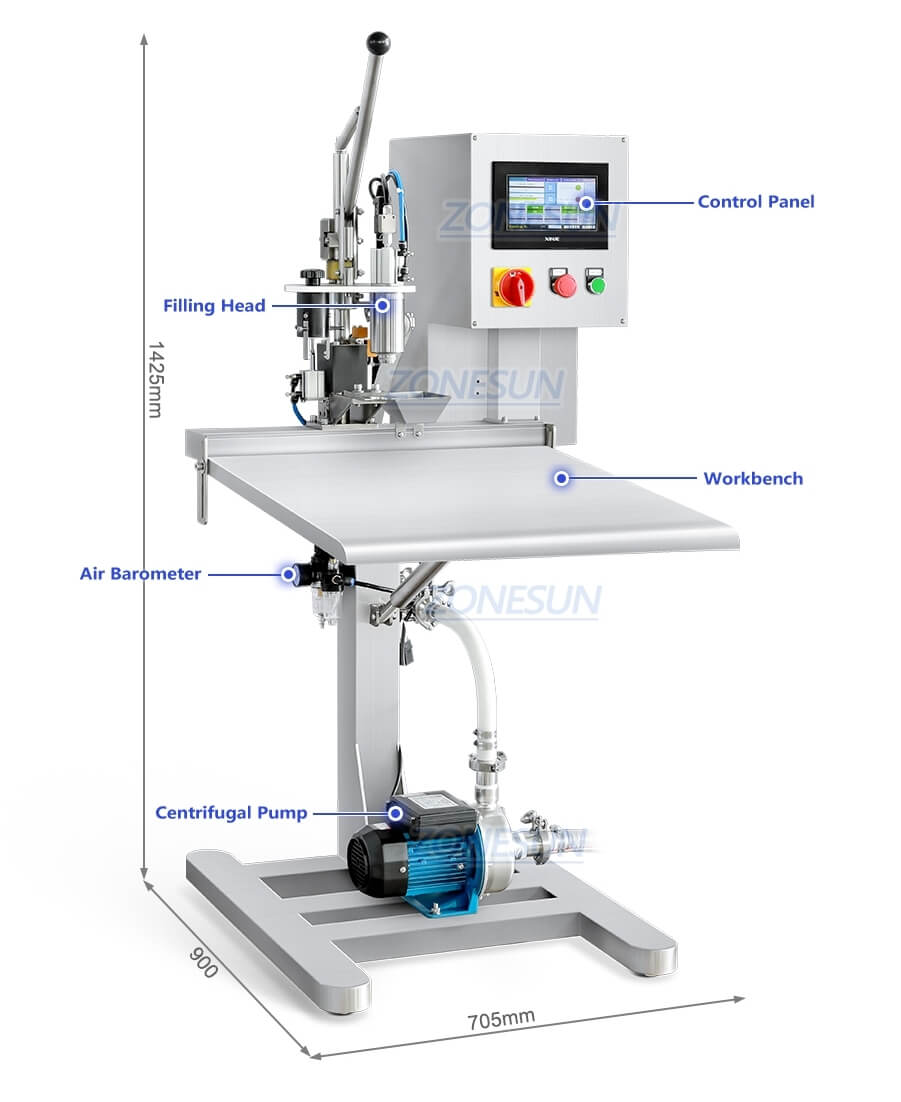

| Machine Size | About 705*900*1425mm |
| Machine Weight | About 71kg |
Product Details:

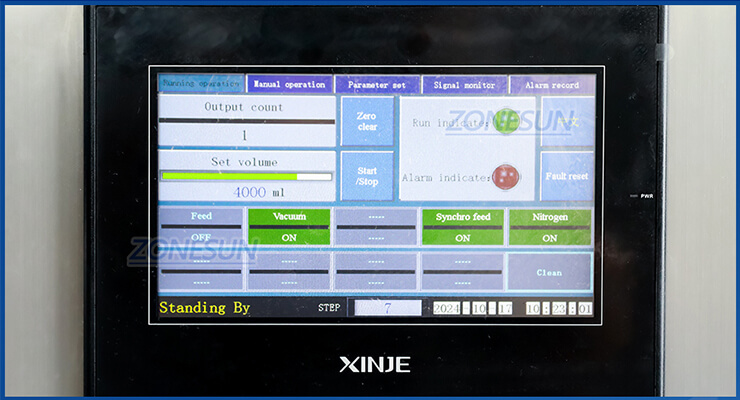

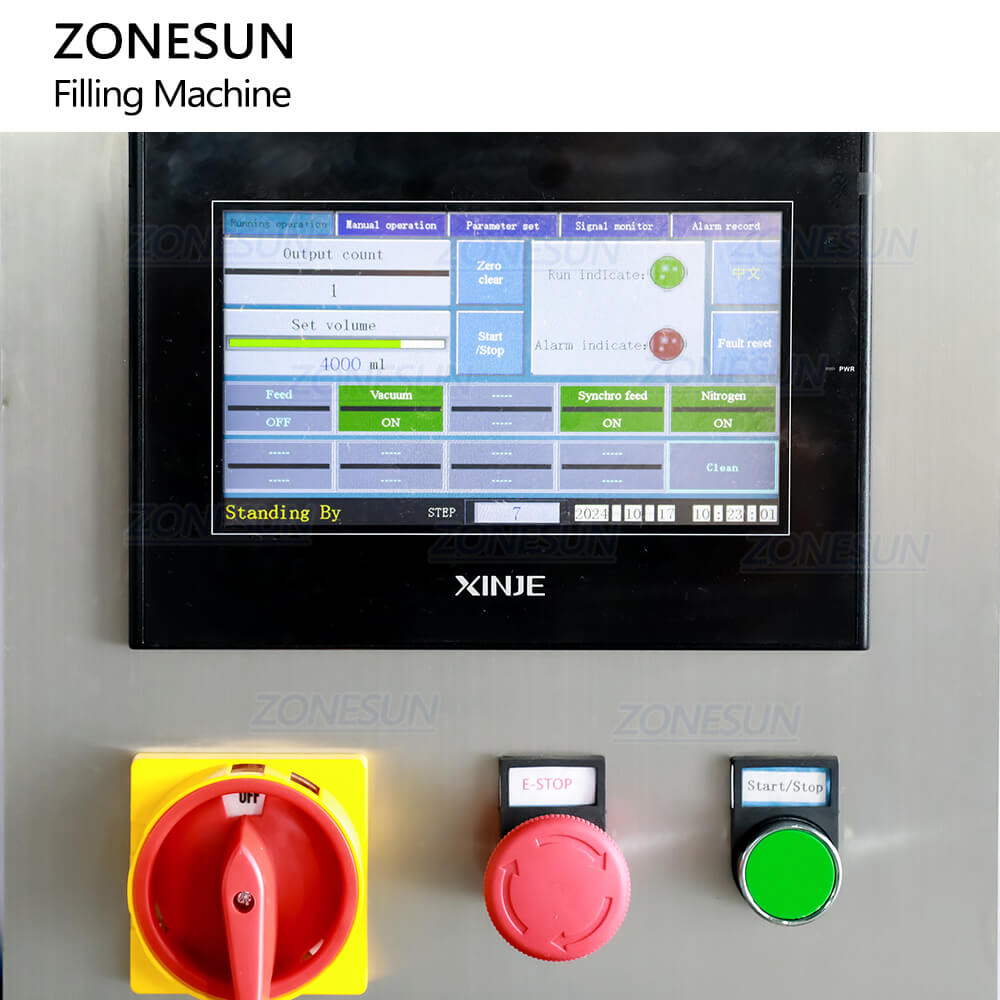

Touchscreen Panel
The intuitive interface makes it easier to set parameters like filling volume. Language of panel can be customized.

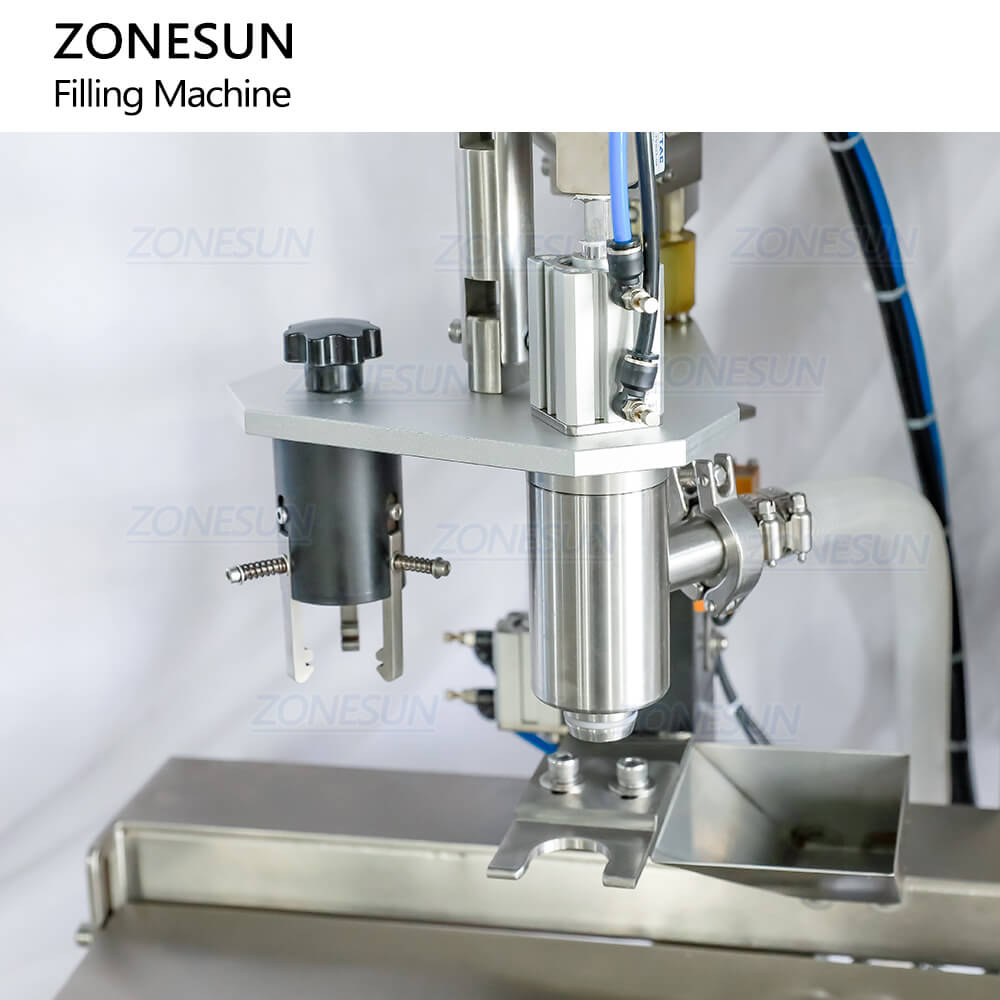

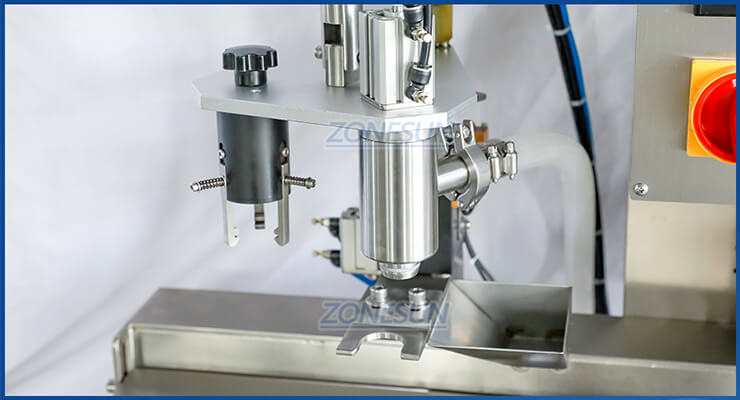

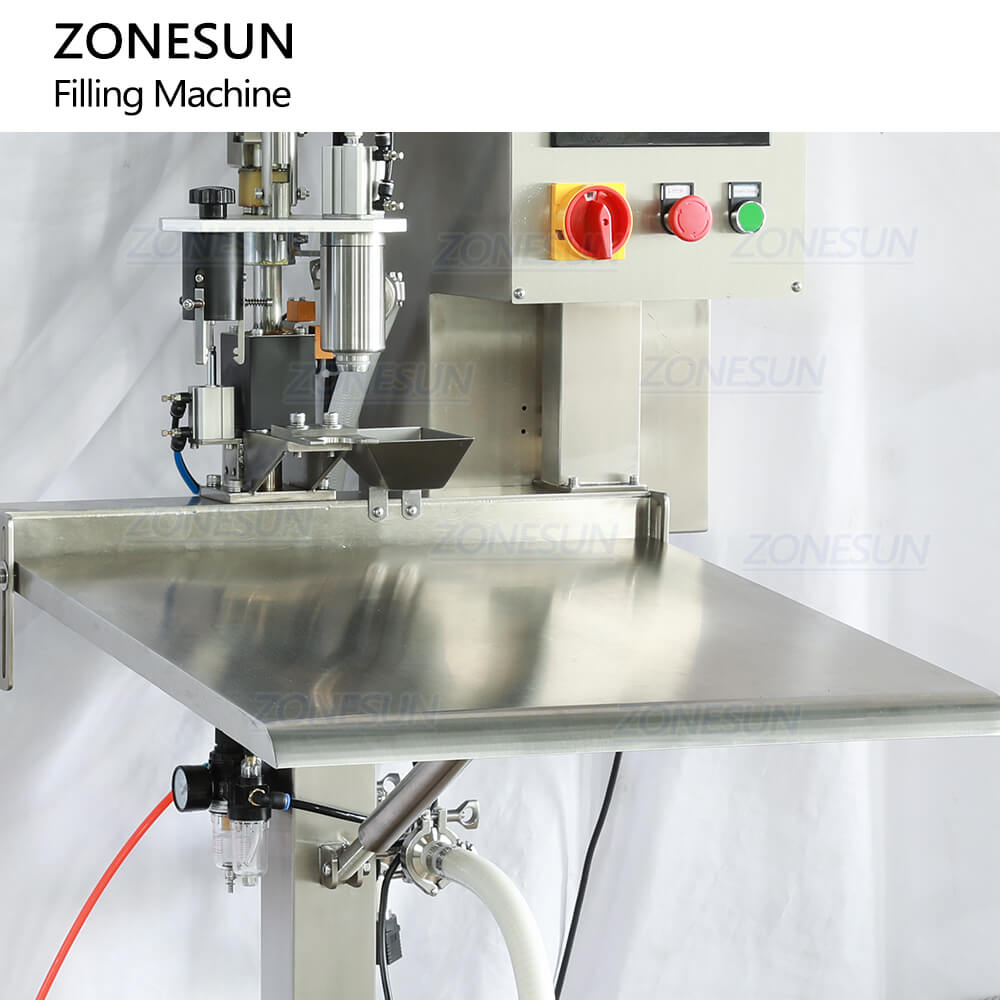

Filling Structure
Can take out caps, vacuum and fill bags automatically. It suits for filling low-viscosity liquid without particles.

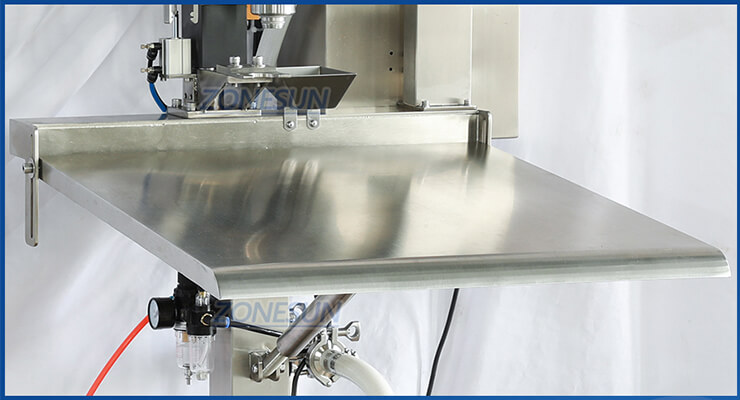

Workbench
The working height and tilt of workbench can be adjusted as production need.

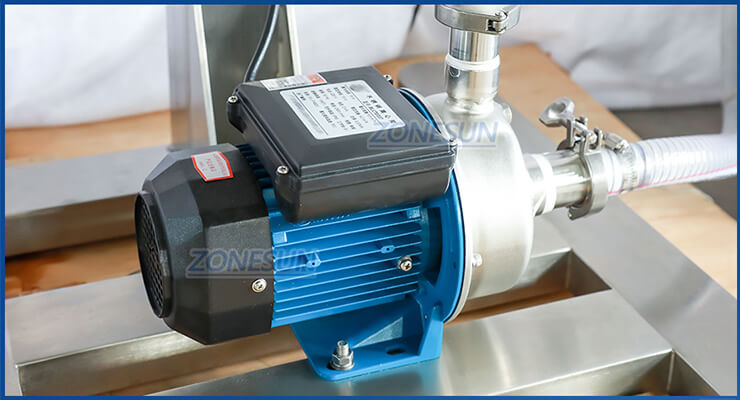

Centrifugal Pump
The feeding pump is stainless steel and food-grade, which can pump low-viscosity liquid like juice,oil.
Air Supply
This machine should work with air compressor, which should be bought separately.
