Magnetic Pump Liquid Filling Machine

This desktop filling machine is equipped with chain conveyor belt,compared with the leather conveyor belt,this one is with larger capacity,this makes it suitable for filling larger volume and transport them faster and more smooth.The magnetic pump filling machine is high precision that it can be used to fill essential oil,solution,eye drops,inks,perfume etc.

Product Detail

Product Tags

Description:

This desktop filling machine is equipped with chain conveyor belt,compared with the leather conveyor belt,this one is with larger capacity,this makes it suitable for filling larger volume and transport them faster and more smooth.The magnetic pump filling machine is high precision that it can be used to fill essential oil,solution,eye drops,inks,perfume etc.
Parameter:
Machine Model ZS-DTMP4C
Power Supply 220V/110V 50-60Hz 400W
Machine Pump 316L Stainless Steel Magnetic Pump
Recommended Filling Range 5-1000mL
Filling Speed 20-30bottles/min(depend on material and bottle size)
Filling Flow 3200ml/min(Each nozzle and depend on water)
Suitable Bottle Size H: 100-200mm
Conveyor Size 1200mm*100mm(L*W)

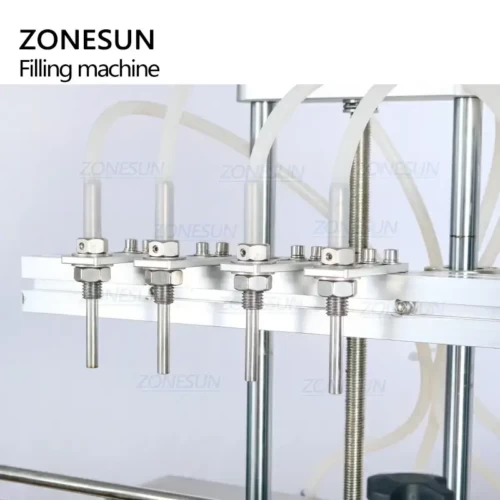

Diameter of Filling Nozzle OD 6/8mm
Filling Time Range 0.01-999.9s
Filling Accuracy ±0.5%
Size of Air Compressor Connector OD 8mm
Machine Size About 1200*700*850mm
Package Size About 1400*900*950mm
Net Weight/Gross Weight About 65kg/100.5kg
