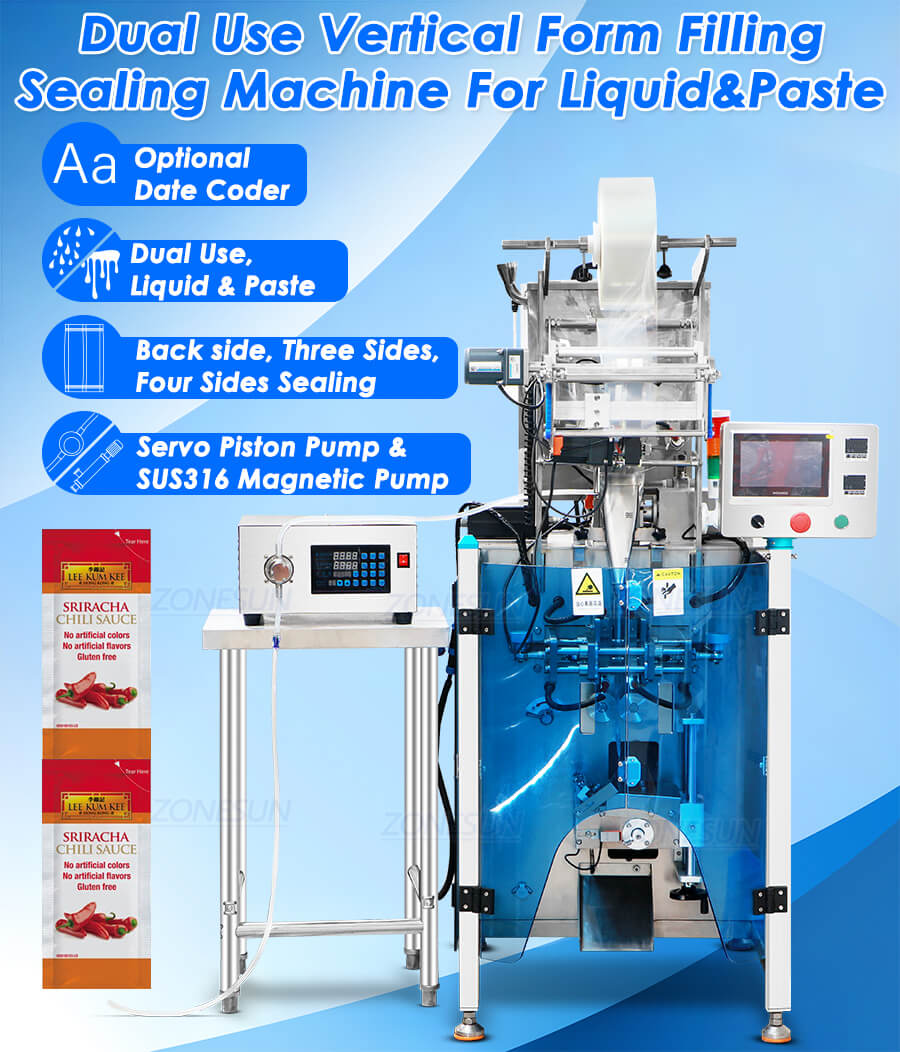

Liquid&Paste Vertical Form Filling Sealing Machine
This advanced VFFS machine performs integrated bag making, liquid/paste filling, sealing, and cutting in one seamless operation. Customize back-sealed, three-side-sealed, or four-side-sealed packaging configurations to match production requirements.
Share to
Product Description:
This advanced VFFS machine performs integrated bag making, liquid/paste filling, sealing, and cutting in one seamless operation. Customize back-sealed, three-side-sealed, or four-side-sealed packaging configurations to match production requirements.
Product Parameters:
| Machine model | ZS-FS220U |
| Machine voltage | 110/220V 50-60HZ 2KW |
| Metering method | Servo Piston Pump & Magnetic Pump |
| Packaging form | Back side sealing (can be customized) |
| Package film material | PET/VMPET/PE/PA/AL |
| Max roll film width | 220 mm |
| Dosage range | 0.1-20 ml (Customizable) |
| Hopper size | 50 L |
| Bag size length | L 20-145mm* W 20-105mm(Customizable) |
| Packaging speed | 45-150 bags/minute (depending on the actual material) |

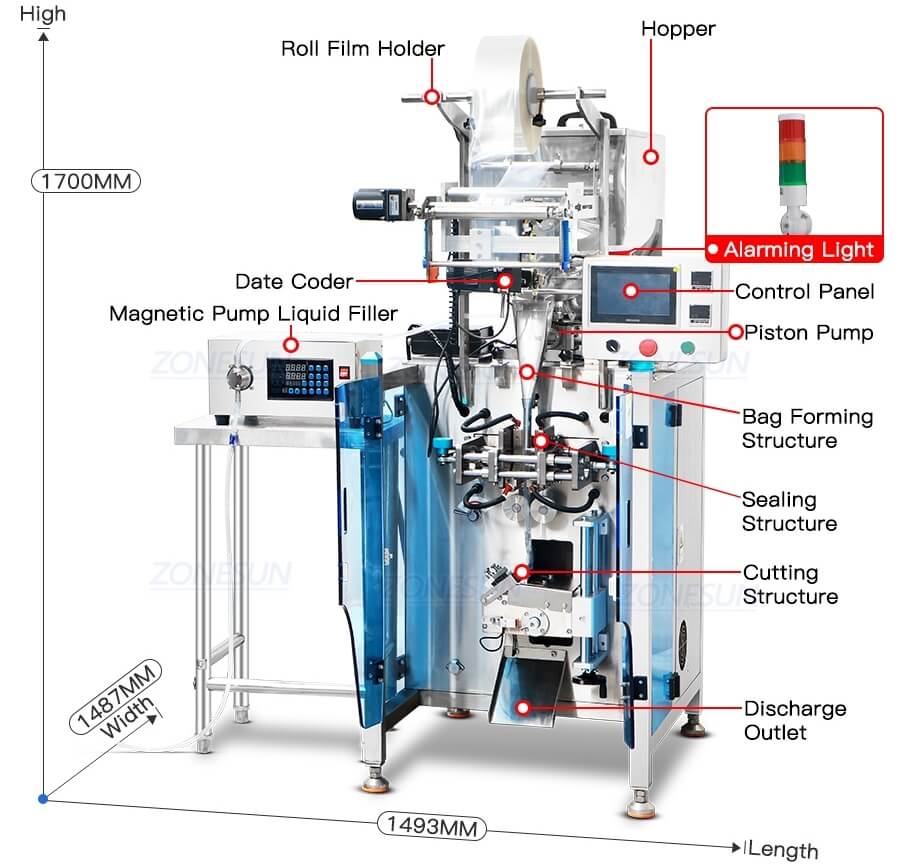

| Machine | About 1493*1487*1700mm |
| Machine weght | About 250kg |
Product Details:

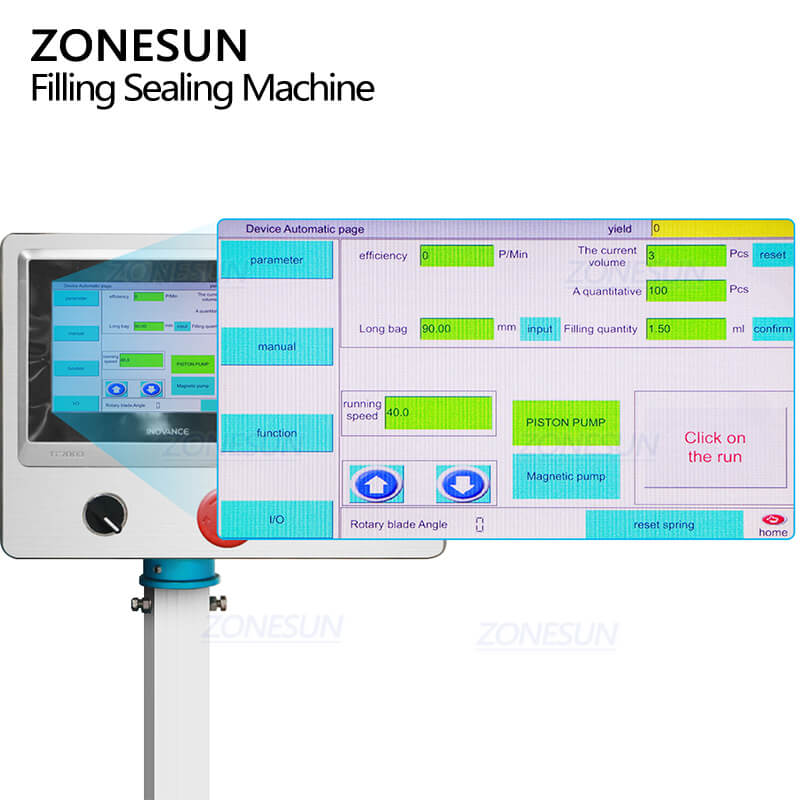

Touchscreen Control Panel
Easy-to-use touchscreen interface for fast parameter setting and smooth operation.
Dual Filling System
Equipped with servo piston pump for pastes and magnetic pump for liquids, switchable on demand.
U-Shaped Hopper with Agitator
Ensures consistent mixing of viscous products, maintaining stable and uniform filling quality.Heating function is customizable.

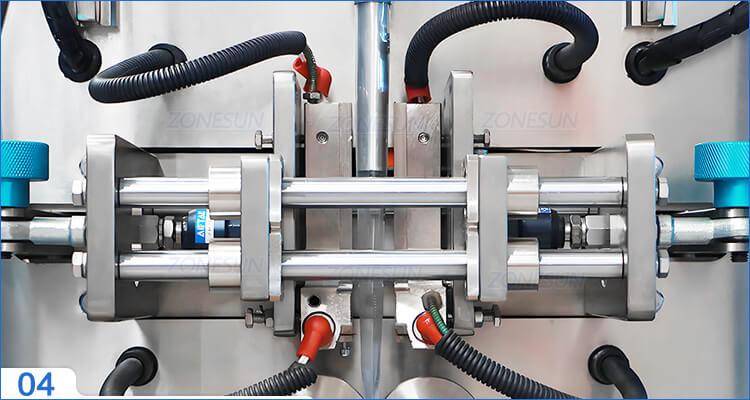

Versatile Sealing Options
Supports back side sealing, three-side sealing, or four-side sealing designs, customizable for production needs.

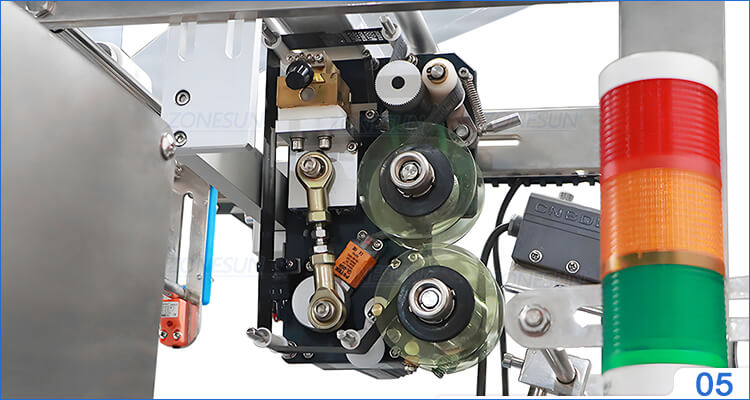

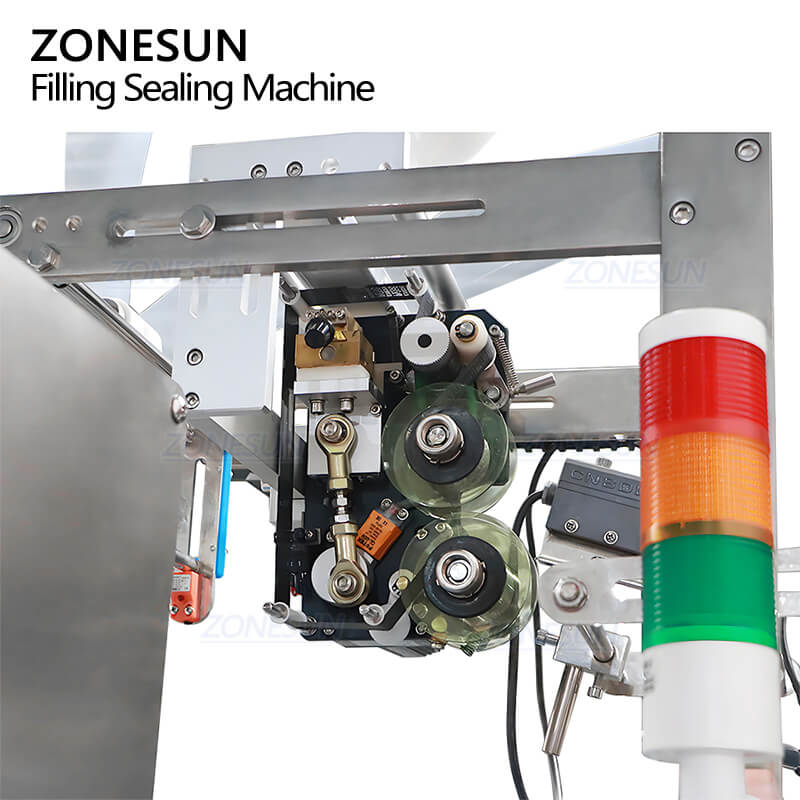

Optional Date Coder
Available for date or batch code printing to enhance product traceability.
