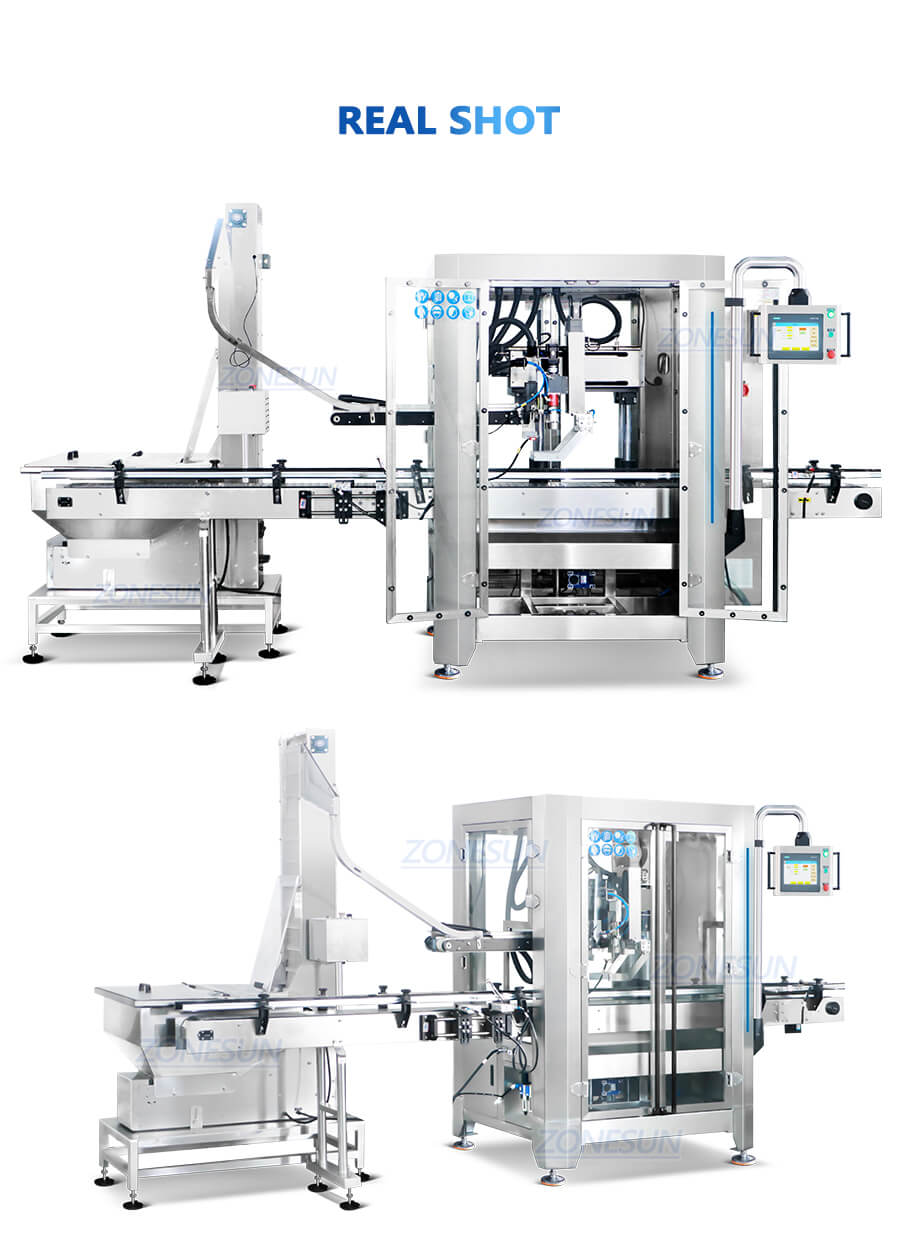

Jerry Can Tracking Capping Machine
This tracking capping machine is equipped with a cap elevator and a hopper with a uv lamp, enabling automatic cap replenishment. the gripper mechanism accurately picks and tightens caps, enhancing capping precision. a servo motor controls the capping process, ensuring high efficiency. this machine can be integrated with filling and labeling machines to achieve automated production.
$22,999.00
Share to
Product Description:
This tracking capping machine is equipped with a cap elevator and a hopper with a uv lamp, enabling automatic cap replenishment. the gripper mechanism accurately picks and tightens caps, enhancing capping precision. a servo motor controls the capping process, ensuring high efficiency. this machine can be integrated with filling and labeling machines to achieve automated production.
Product Parameters:

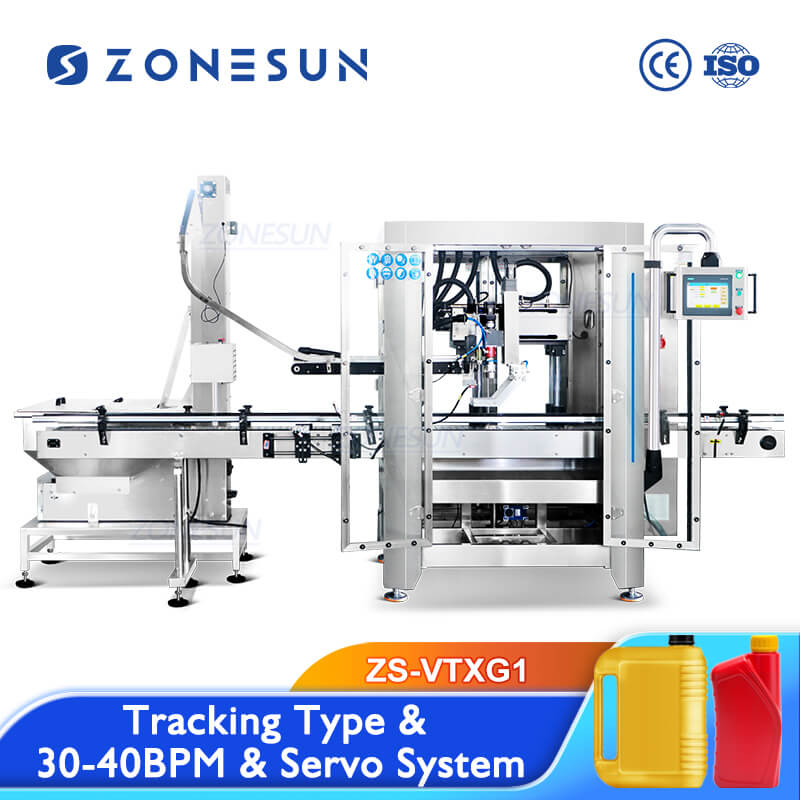

| Machine model | ZS-VTXG1 |
| Machine voltage | 110/220/380V 50-60HZ 2.5KW |
| Suitable cap diameter | 20-80mm |
| Suitable bottle size | Customized |
| Working capacity | 30-40BPM |
| Machine size | About 4200*1280*2350mm |
| Machine weight | About 450kg |
| Package size | About 2490*1220*2230mm(Capping Machine)
About 2350*860*1390mm(Cap Elevator) |
| Package weight | About 754kg(Capping Machine)
About 240kg(Cap Elevator) |
| Machine Component | Origin | Brand |
| PLC | China | Inovance/ Xinje |
| Touch Screen | China | Inovance/ Xinje |
| Relay | Japan | Schneider |
| Pneumatic Components | Taiwan | Airtac |
| Fiber Optic Sensor | Germany | Leuze |
| Servo Motor | China | Inovance/ Xinje |
Product Details:
Control Panel
Using branding components, parameter setting more intuitively.Swing arm design offers flexibility.
Cap Elevator
With UV sterilization function, cap elevator can supplys caps in time to ensure smooth capping work.
Cap Passing Structure
Using pneumatic claw to pass caps, it reduces error of placing caps.
Capping Structure
Servo motor control capping work, tracking type capping heads improves working efficiency.
Electric Eye
It can detect passing by bottles to realize automated production.
Chain Conveyor
Length & width are customizable as production need, it has larger weight capacity.
Electric Circuit
Electric circuit is arranged neatly, ensures stable working & simplifies machine debugging.
