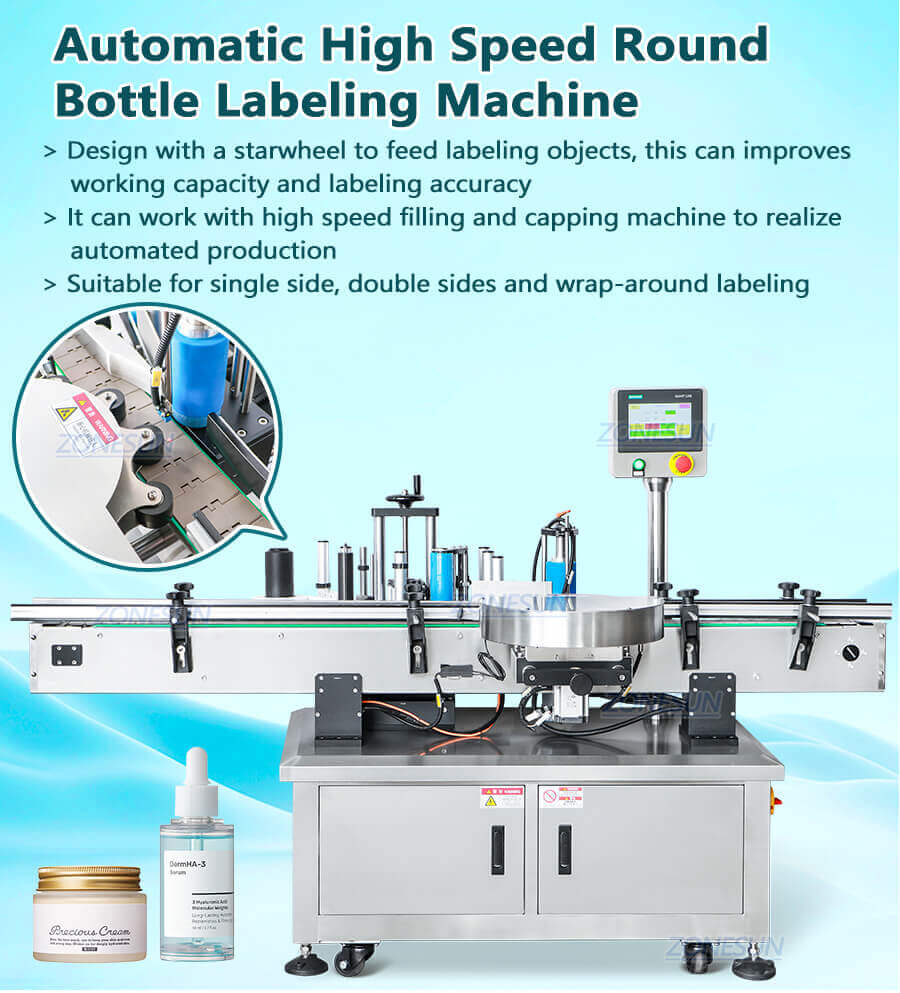

High Speed Labeling Machine
This labeling machine is specifically designed for small round bottles. Its labeling structure consists of multiple rollers, which significantly enhances work capacity and labeling accuracy. It is widely used in food, daily chemical, and cosmetics industries.
Product Description:
This labeling machine is specifically designed for small round bottles. Its labeling structure consists of multiple rollers, which significantly enhances work capacity and labeling accuracy. It is widely used in food, daily chemical, and cosmetics industries.
Product Parameter:
Model | ZS-TB700 |
Power supply | AC220V 50H-60HZ 2000W |
Labeling capacity | 60-100 bottles/min(depends on bottle size) |
Labeling accuracy | ±1.0mm |
Suitable Bottle Diameter | φ30-100mm H 30-120mm |
Label size | (L)20-300mm (H)15-130mm(Can be customized) |
Roll inside diameter | φ76mm |
Roll outside diameter | φ350mm |
Conveyor Size | 112*2000mm(W) (Can be customized) |
Machine size | About 2100*1230*1380mm(L*W*H) |
Machine weight | About 200kg |
Package size | About 2060*1070*1550mm(L*W*H) |
Package weight | About 304kg |

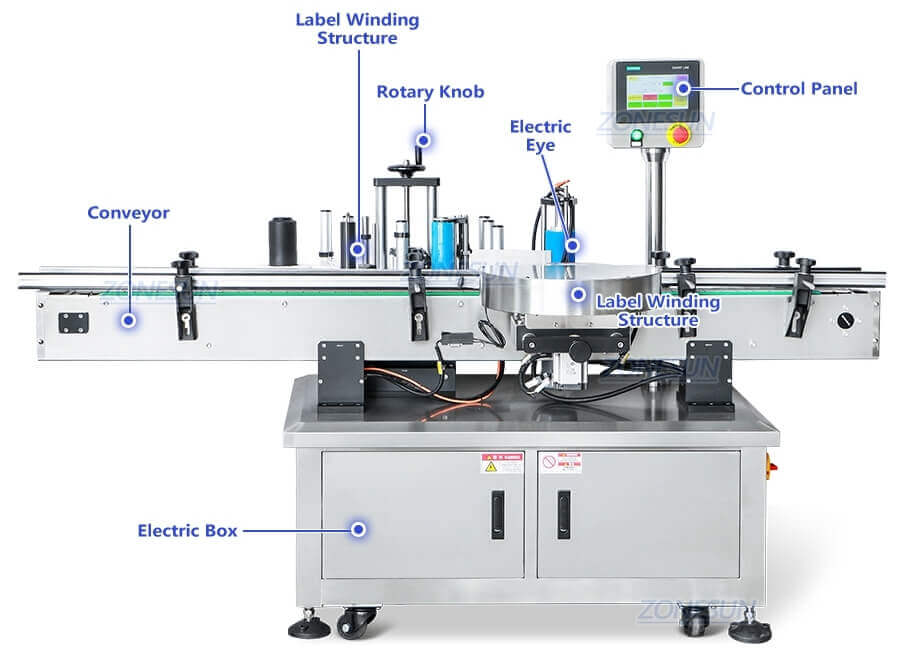

Product Details:

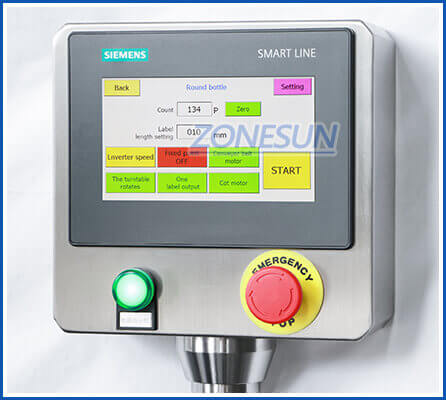

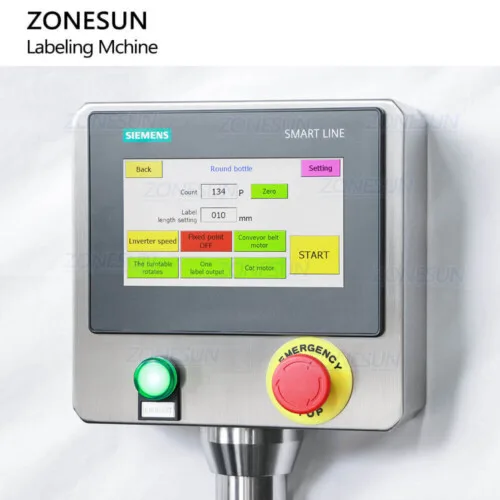

The touch screen control panel streamlines the management of the entire machine, enhancing the convenience and intuitiveness of adjusting machine settings. We can also customize the control panel's operating language based on your specific needs.

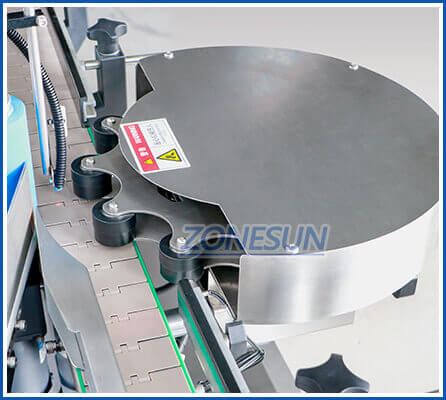

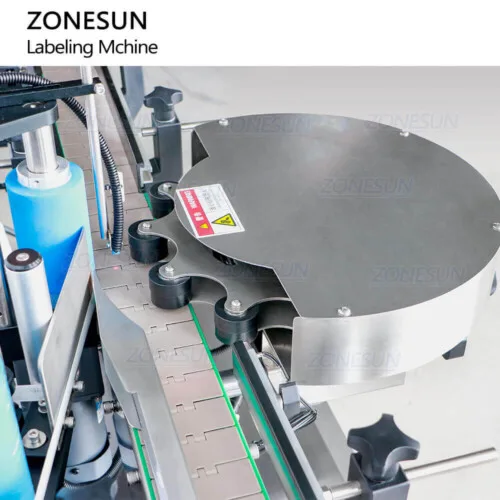

The star wheel is employed to substitute the bottle baffle, enabling the bottle division function. This enhances operational efficiency and labeling precision.
The sensor can detect passing by bottles and send signal to control system, the machine will start the labeling work.With this component, the labeler can realize automated work and reduce labeling error.

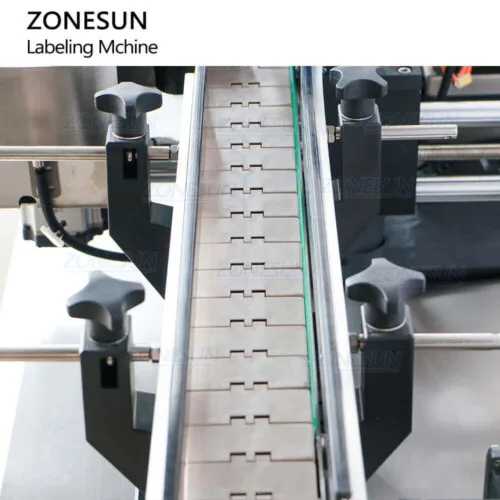

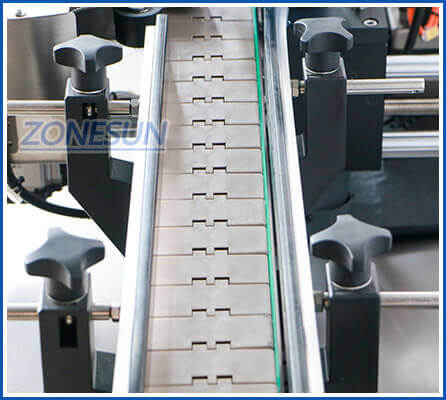

The chain conveyor boasts a larger weight capacity, ensuring smooth product conveyance. We can customize the width of the conveyor belt to suit your production needs.

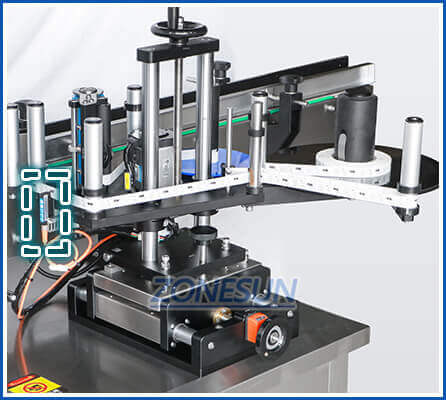

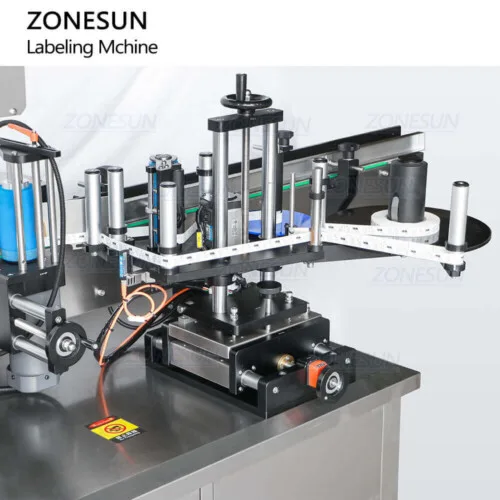

The label sensor is employed to detect labels, allowing the machine to control the output of label stickers. The sensitivity can be tailored to the material of the labels, enhancing working accuracy.
