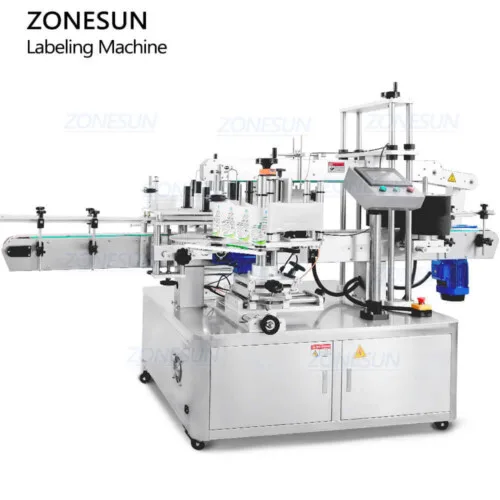

Flat Bottle Labeling Machine
Description:
Only designed for the flat bottle,it can detect passing by flat bottles and control the system to label stickers automatically.It is suitable for single side or double sides labeling on flat bottle like laundry detergent bottles,olive oil bottles,perfume bottles etc.It has high working speed and widely used in food,daily chemical and cosmetics industries.
Parameter:
| Machine model | ZS-TB600 |
| Flat Bottle | Single/Double Side |
| Power Supply | AC220V 50Hz/60Hz 1500W |
| Labeling Capacity | 60-350 bottles /min(depends on bottle size） |
| Labeling Material Thickness | 20-120mm |
| Labeling Material Height | 30-350mm |
| Label Size | (L)25-300mm (H)15- 200mm |
| Roll Inside | φ76mm |
| Roll Outside Diameter(mm) | φ350mm |
| Machine Size | About 2120*940*1500mm |
| Packing Size | About 2850*1300*1900mm |
| Net Weight/Gross Weight | About 450KG/650kg |
