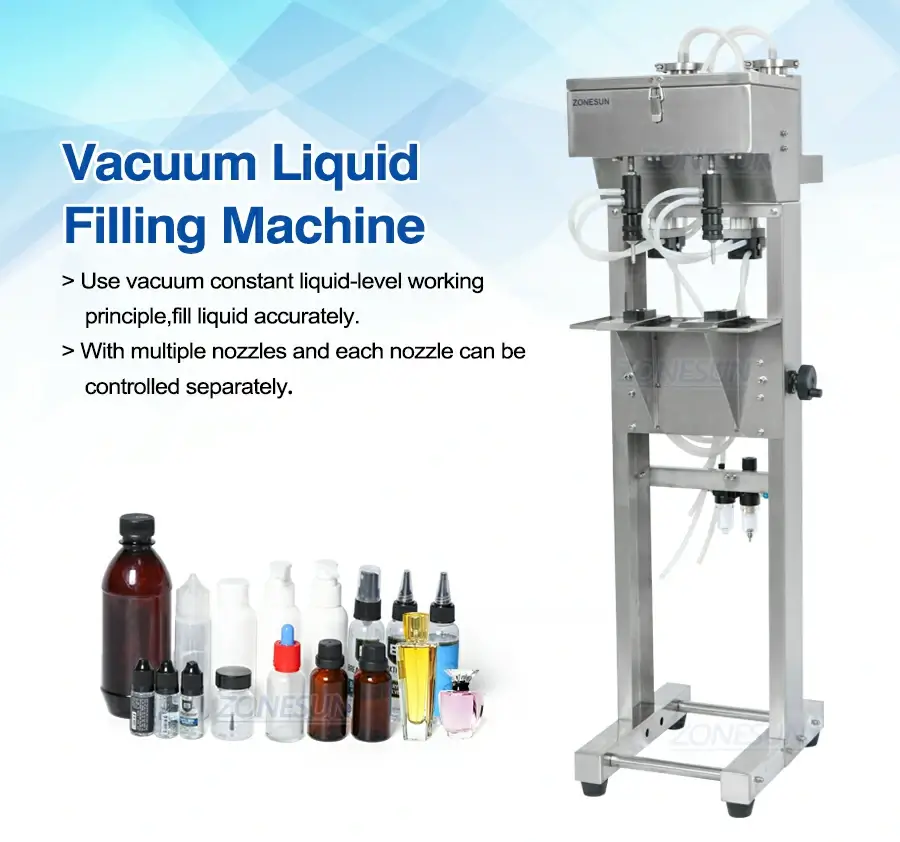

Vacuum Liquid Filling Machine

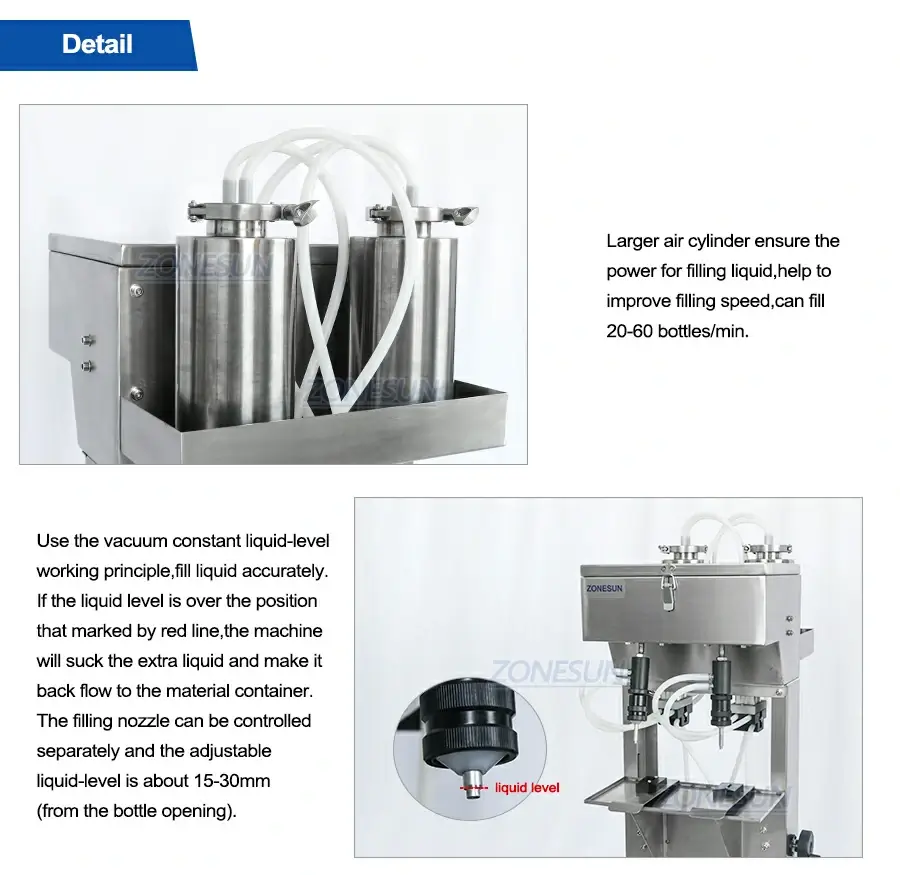

The vacuum liquid filling machine is a pure pneumatic equipment and requires no electricity,it can prevent the fragrance from spreading,this is especially good for perfume filling.The ZS-YTZL2 uses the vacuum constant liquid level filling principle,regardless of whether the bottle volume is the same,the filling liquid level will remain the same.
Description:
The vacuum liquid filling machine is a pure pneumatic equipment and requires no electricity,it can prevent the fragrance from spreading,this is especially good for perfume filling.The ZS-YTZL2 uses the vacuum constant liquid level filling principle,regardless of whether the bottle volume is the same,the filling liquid level will remain the same.
Application:

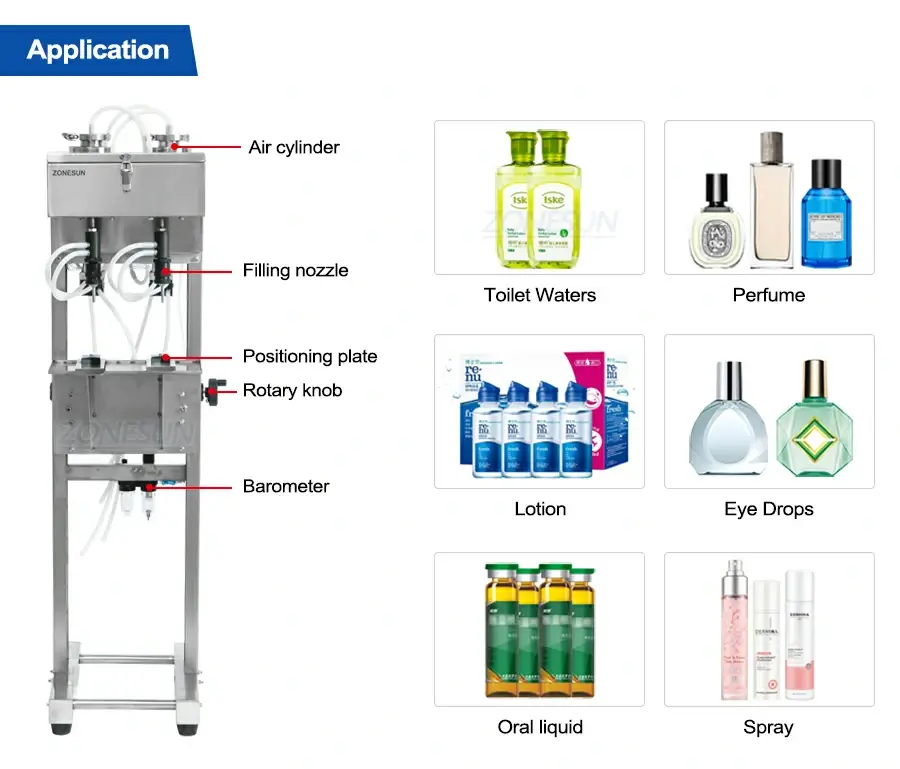

This machine is mainly used for filling small doses of liquid materials such as toilet water,perfume,skin care water,eye drops,oral liquid,sesame oil,fruit juice drinks,carbonated drinks,mineral water, purified water,alcohol,battery liquid,detergent,etc.
Parameter:
| Model | ZS-YTZL2 | ZS-YTZL4 | ZS-YTZL6 |
| Model | 2 Heads | 4 Heads | 6 Heads |
| Air pressure | 0.5-0.8MPa | ||
| Liquid level accuracy | ±1mm | ||
| Viscosity range | The maximum applicable viscosity is 20Cps (static viscosity) | ||
| Working Speed | 20 Botles / Minute | 40 Botles / Minute | 40 Botles / Minute |
| Botle height | ≤250mm | ||
| Bottle Opening Size | ≤φ4.5mm-φ28mm | ||
| Adjustable liquid level (from the bottle mouth) | ＜27mm | ＜27mm | |
| Pumping rate | 5.5L/S | ||
| Package size |
About 1370*440*510mm |
About 1350*710*480mm |
About 1060*1390*520mm |
| Package weight |
About 35kg |
About 48kg |
About 86kg |
