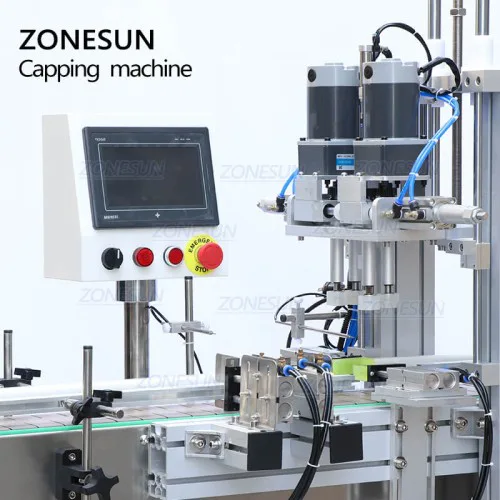

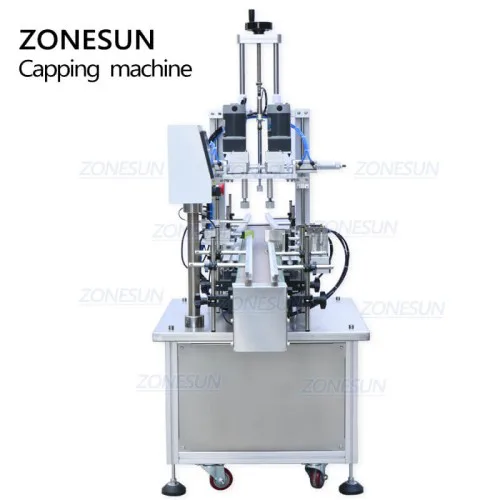

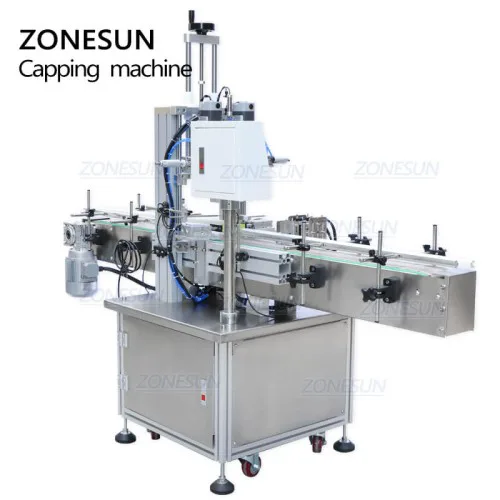

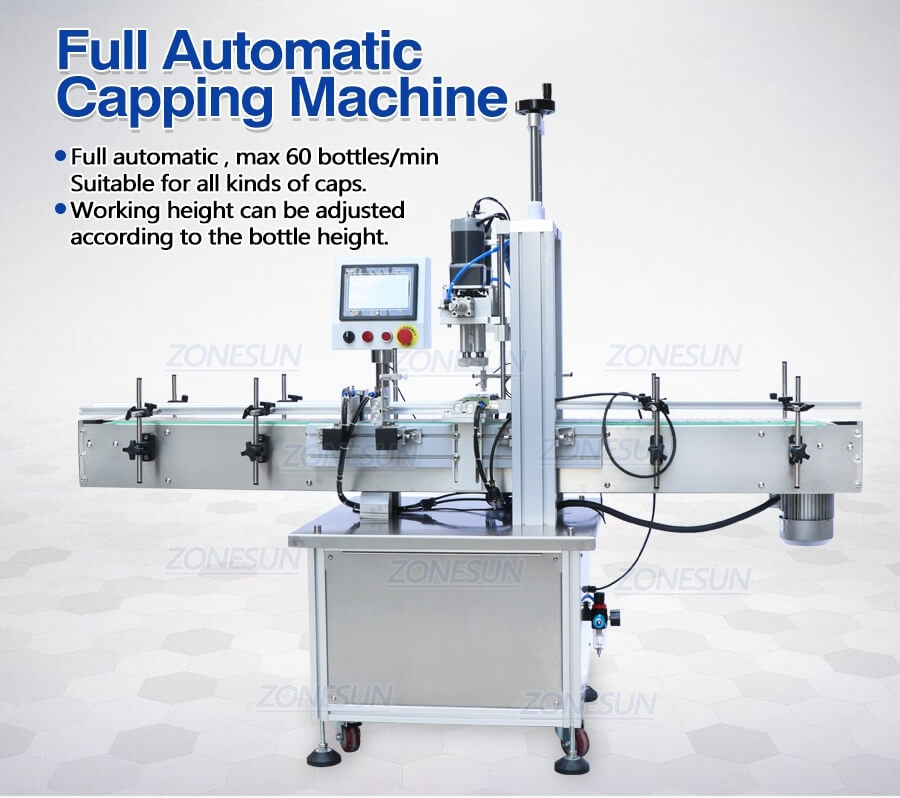

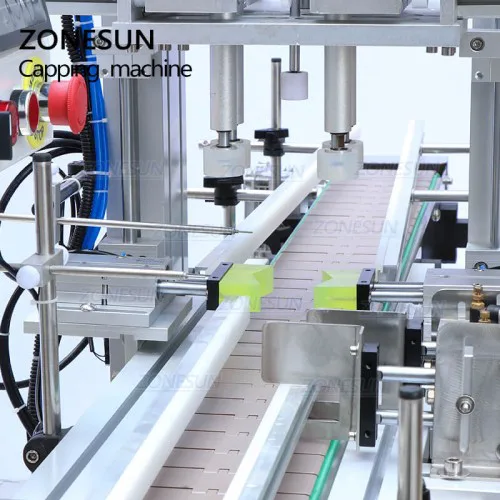

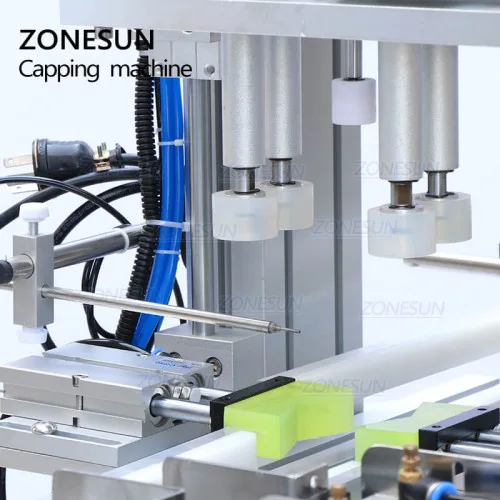

Full Automatic Bottle Capping Machine

There are no limitations of bottle caps for this machine.This makes the machine can be used for different shapes of bottle caps.The range of application is greater than other capping machine.It is with conveyor and this help to save a lot of labor.



Mode of transport:Express、Air transportation、Ocean shipping、Land transportation
Payment Options:Credit card、Paypal、Western Union、TT、Alipay、WeChat

Product Detail

Product Tags

Description:

This machine is used for automatic capping of plastic bottles and glass bottles in cosmetics,food and beverage,pesticide and fertilizer,chemical industry.Can be applied to a variety of bottle types,high production efficiency.

Application:

This full automatic capping machine is used for capping different kinds of bottles in cosmetics, food,beverages, pesticides, fertilizers industries like the mineral water bottle,spray bottles.

Parameter:

Model ZS-XG16

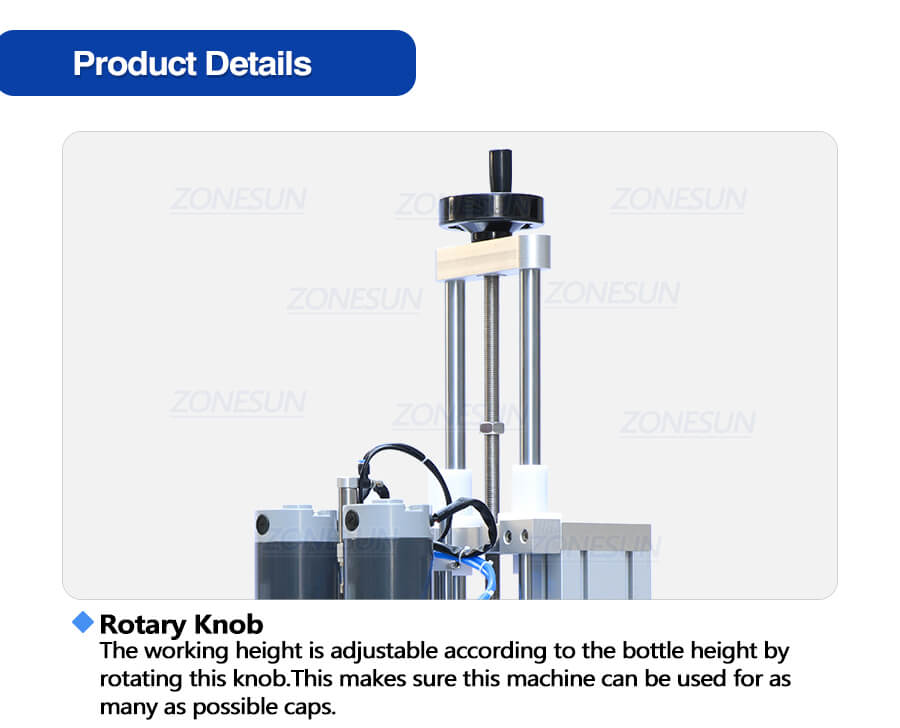

Bottle height 30-300mm
Bottle caps diameter 18-70mm
Bottle diameter 20-160mm
Working speed 20-60 bottles/minute (depending on bottle and caps)
Working voltage AC220V/110V 50-60HZ

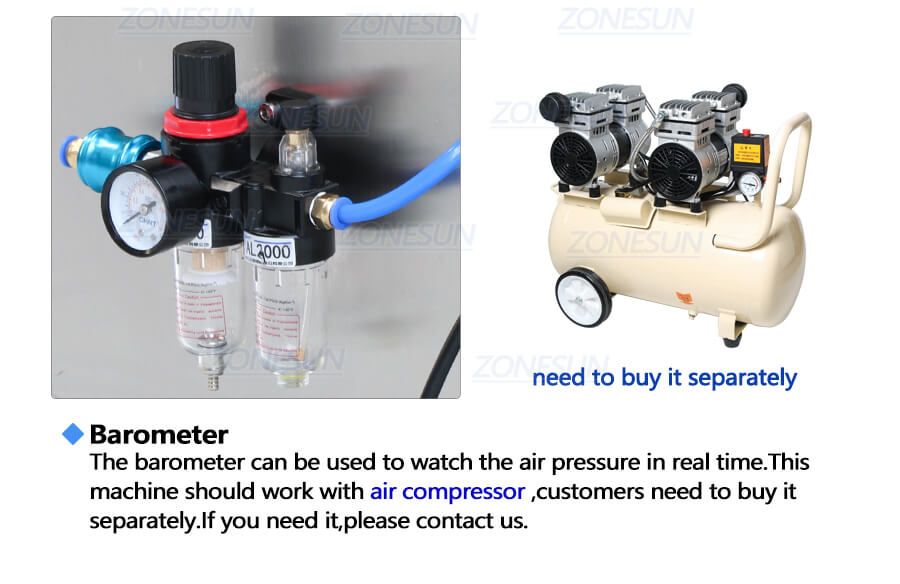

Working pressure 0.4-0.6 MPa
Size of air compressor connector
OD 8mm
Dimension About 1930*740*1600mm
Packing size About 2000*820*1760mm
Net weight/Gross weight About 113kg/192.5kg













FAQ:

Q:Can I adjust the working speed of the conveyor?
A:We won’t recommend you do that since the suitable transfer speed is set previously,but if you need to do this,you can adjust it and we will offer you method.

Q:Is this machine suitable for any caps?
A:The shapes of bottle caps is not limited,like the spray bottle caps,the smoke oil bottle caps.But the diameter of the cap should be 18-70mm
