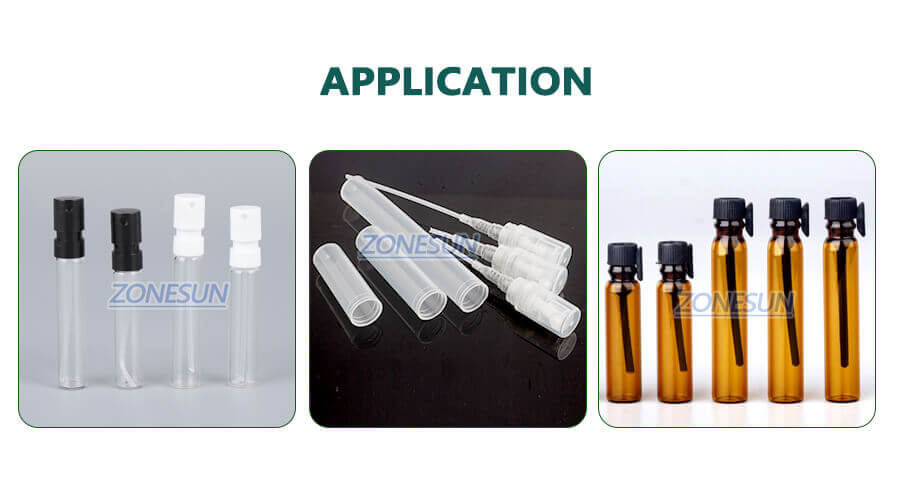

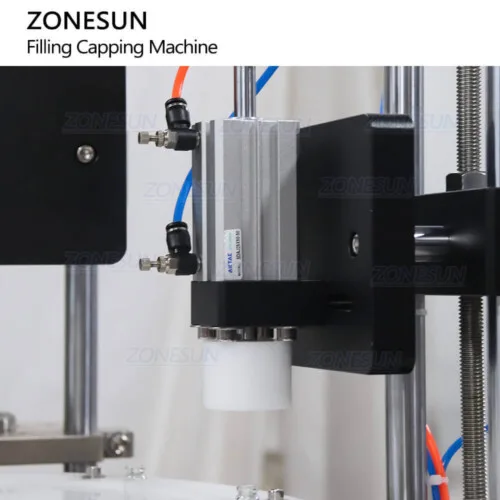

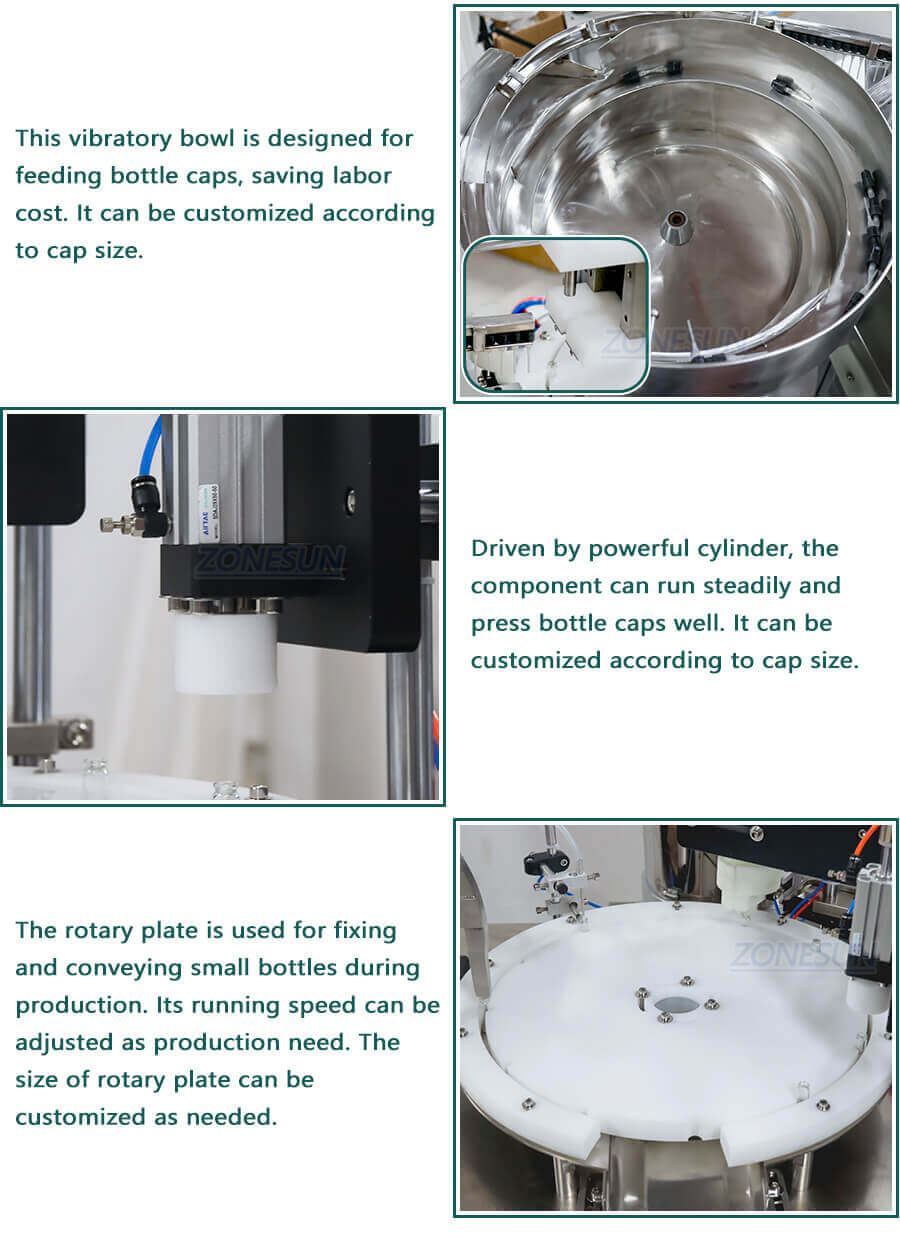

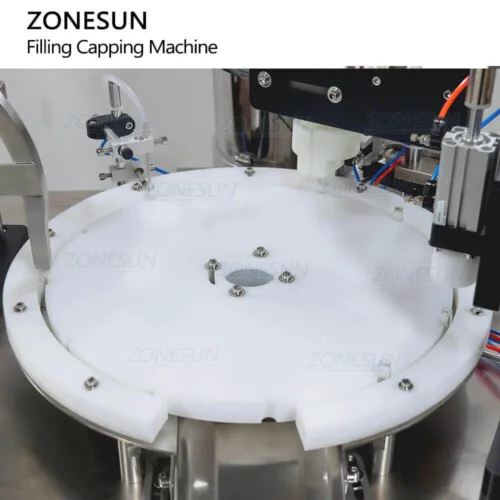

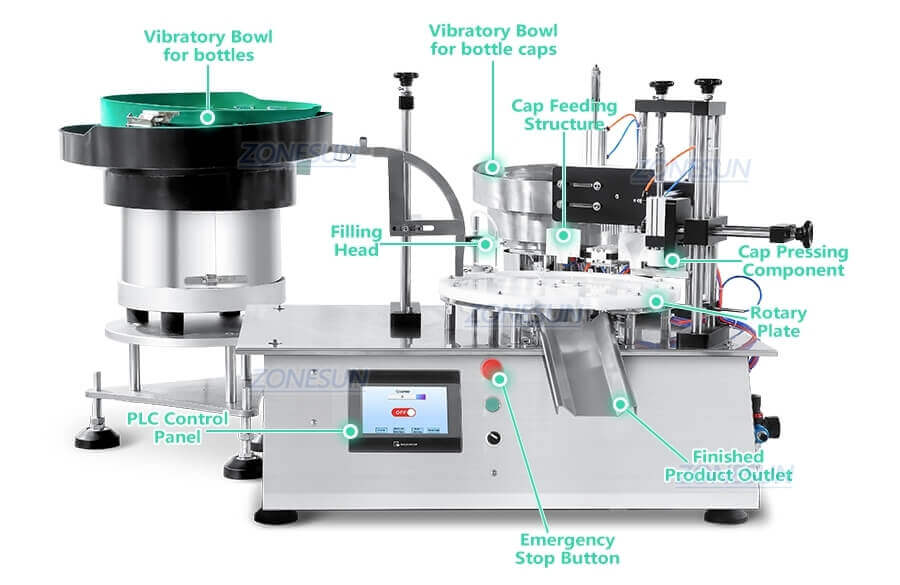

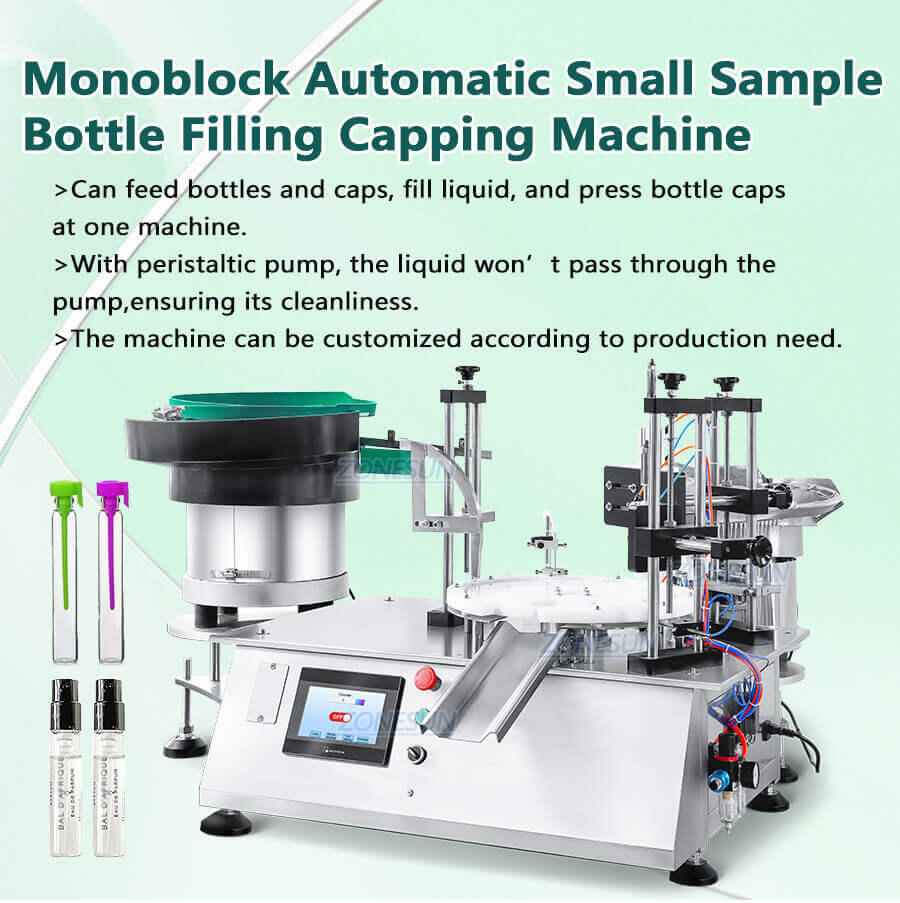

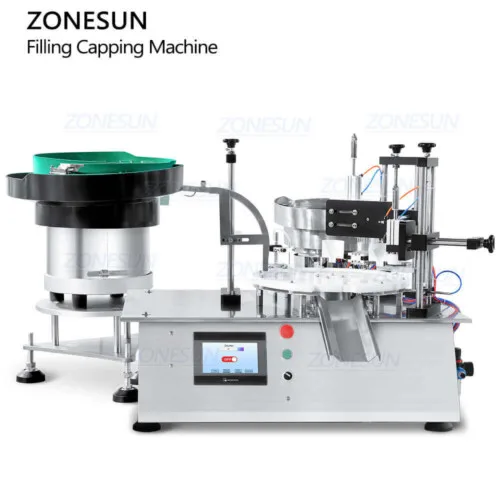

This monoblock filling capping machine can automatically feed bottles, fill liquid into bottles and press bottle caps. It is suitable for the vial that can not be vertically conveyed by conveyor, the rotary table will fix vials and transport them to next working station. It is suitable for the small and medium scale production.
| Machine Model | ZS-AFC7C |
| Voltage | 220V/110V 50-60Hz |
| Power | 500W |

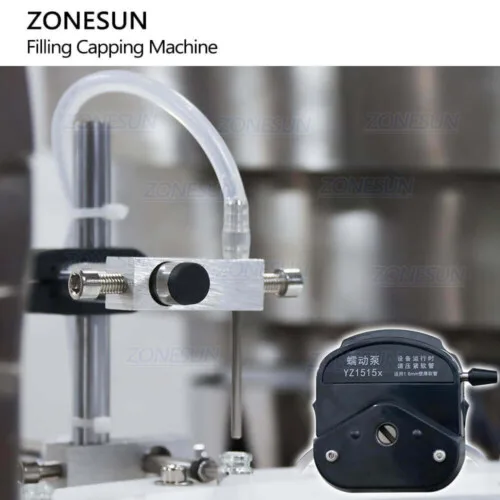

| Filling Pump | Peristaltic Pump |
| Working Speed | About 20bottles/min(depending on bottle size and filling material) |
| Filling Range | 10-100ML |
| Max Flow Rate | 1.5L/min(based on water) |
| Suitable Bottle Size | Can be customized |
| Bottle Cover Size | Can be customized |
|
Package Size |
About 1080*970*960mm(Machine) About 820*500*480mm(Vibratory Bowls-1) About 750*450*690mm(Vibratory Bowls-2) |
|
Package Weight |

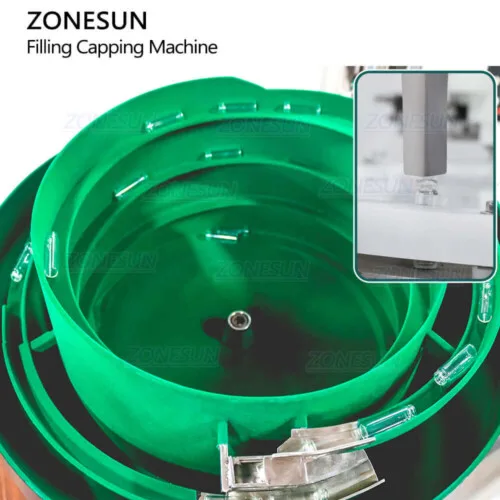

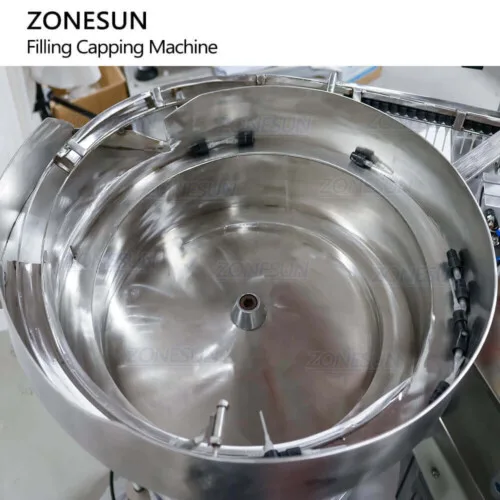

About 181kg(Machine) About 71kg(Vibratory Bowls-1) About 55kg(Vibratory Bowls-2) |
