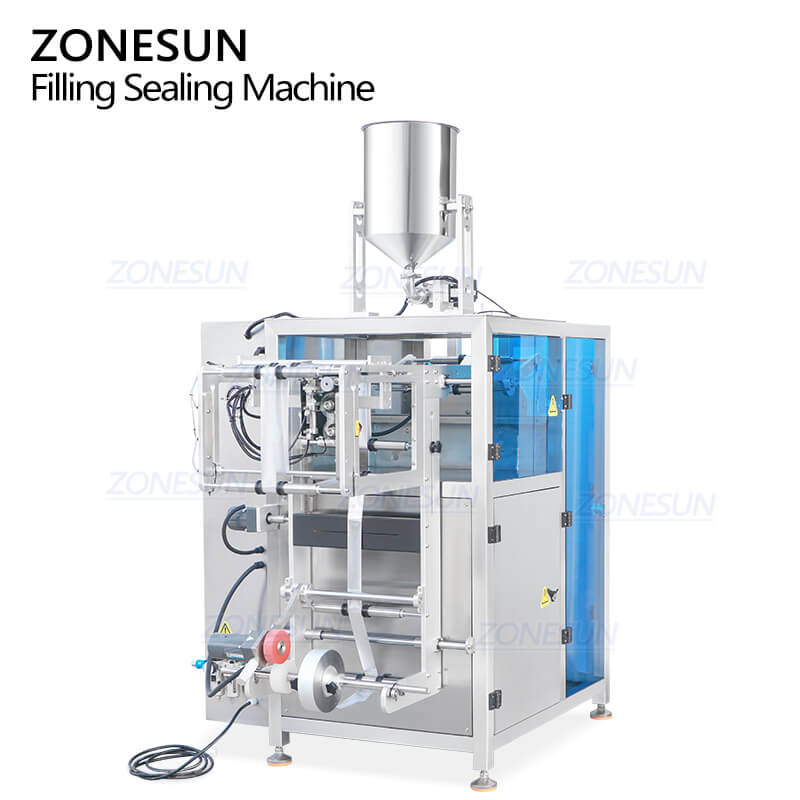

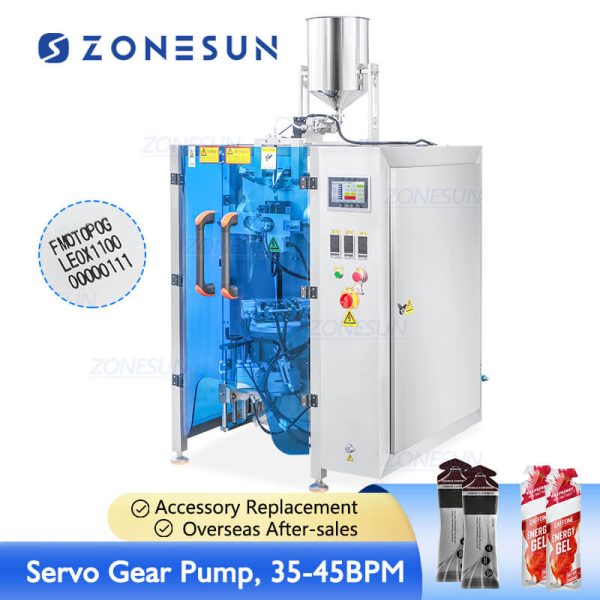

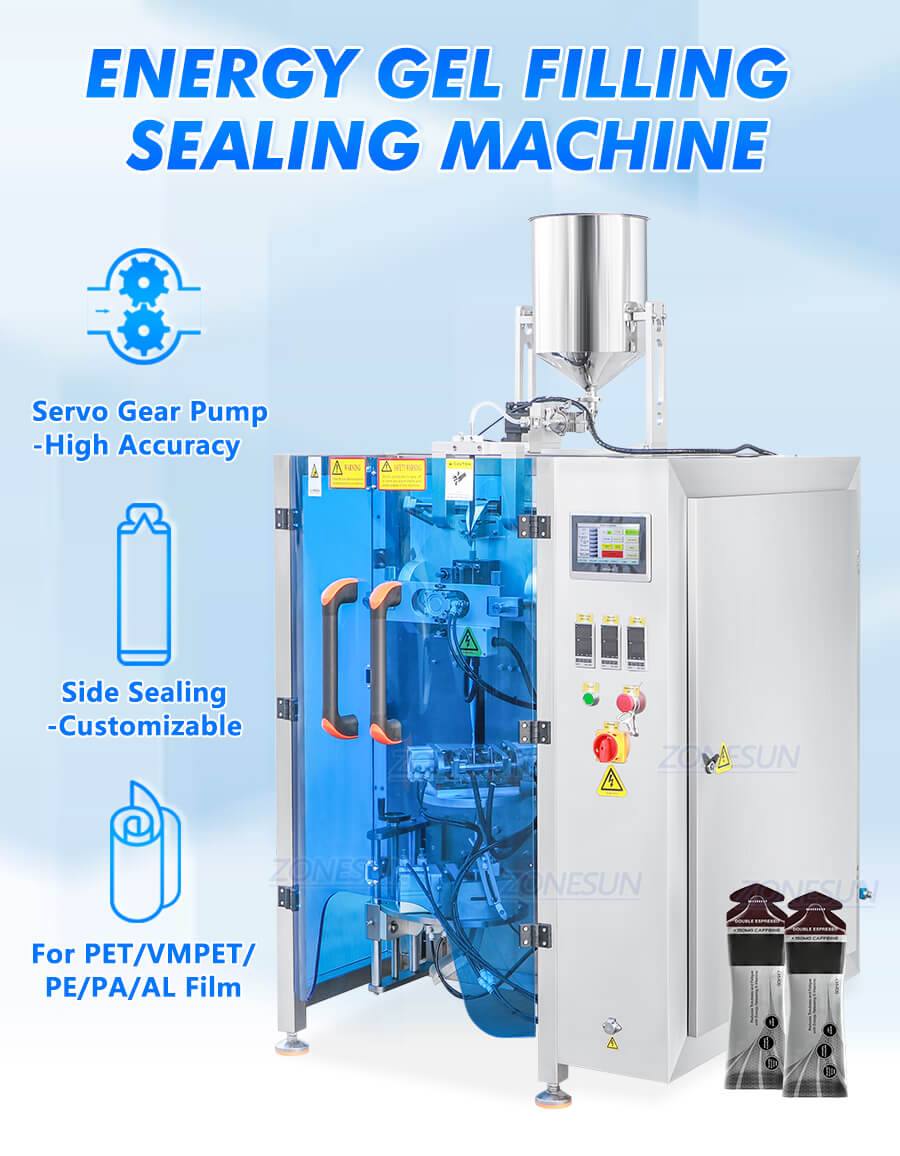

Energy Gel Sachet Filling Sealing Machine
This sachet packing machine is designed for packaging stick sachet with side sealing, this machine is suitable for small or medium scale production packaging of energy gel, sports supplements, hair serum etc.
$15,999.00
Share to
Product Description
This sachet packing machine is designed for packaging stick sachet with side sealing, this machine is suitable for small or medium scale production packaging of energy gel, sports supplements, hair serum etc.
Product Applications
This machine fills and seals gel products into narrow side seal sachets. The applications shown are single serve energy gel sachets in several flavours, a boxed gel sachet set, and a display tray of gel packs, all in the same stick pack shape. Packs of this format are small, filled with a thick gel and closed with a side seal, so the machine suits sports nutrition and supplement gels packed one portion per sachet.
Product Parameters
|
Machine model
|
ZS-FS05
|
|
Machine voltage
|
110/220V 50-60HZ 3KW
|
|
Metering method
|
Gear pump
|
|
Packaging form
|
Side sealing (can be customized)
|
|
Package film material
|
PET/VMPET/PE/PA/AL(80-120μm)
|
|
Max roll film width
|
130mm
|
|
Dosage range
|
5-30 ml/10-50ml (Customizable)
|
|
Hopper size
|
30 L
|
|
Bag size
|
length 50-160 mm; width 30-50 mm(Customizable)
|
|
Sealing width
|
8-12mm
|
|
Packaging speed
|
35-45 bags/minute (depending on the actual material)
|
|
Air consumption
|
0.8m³/min 0.6MPa
|
|
Machine size
|
About L 1090*W 1660*H 2070 mm
|

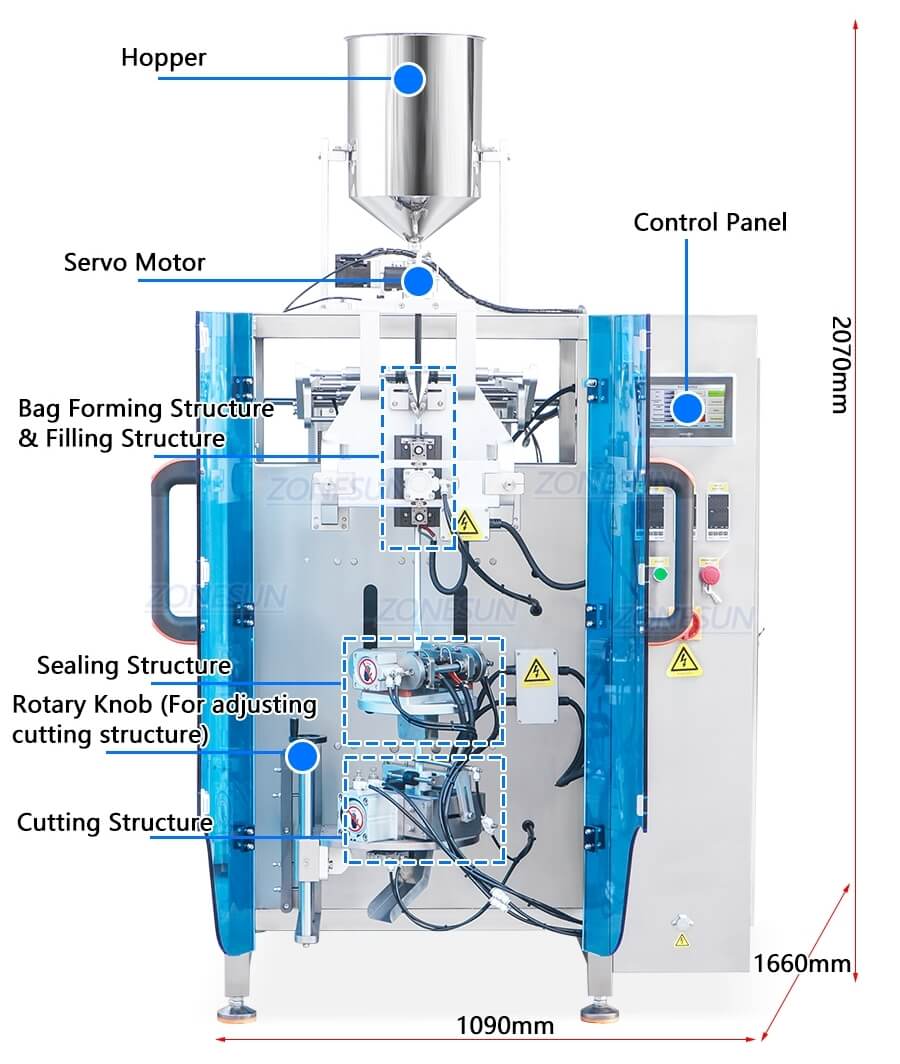

Product Details

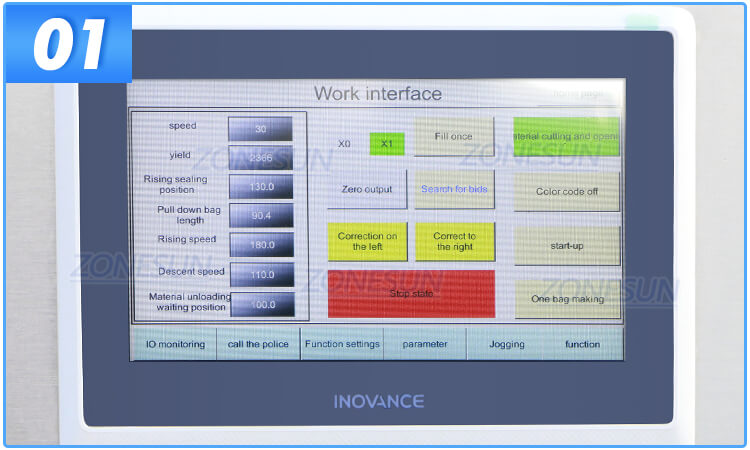

Control Panel
Touch screen control panel simplifies machine operation, different kinds of language are customizable.

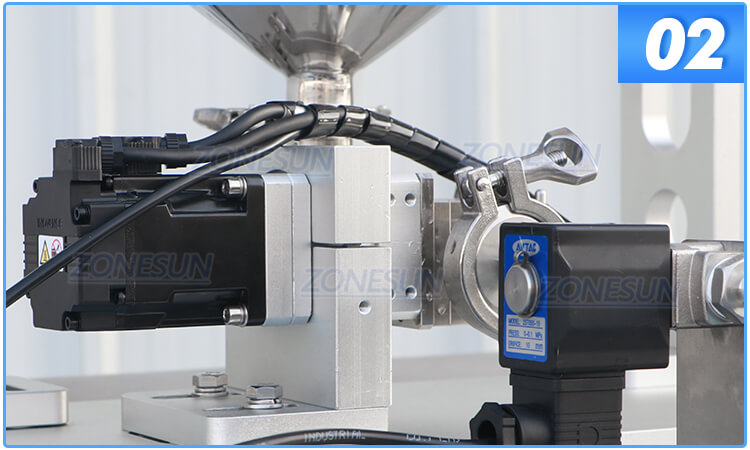

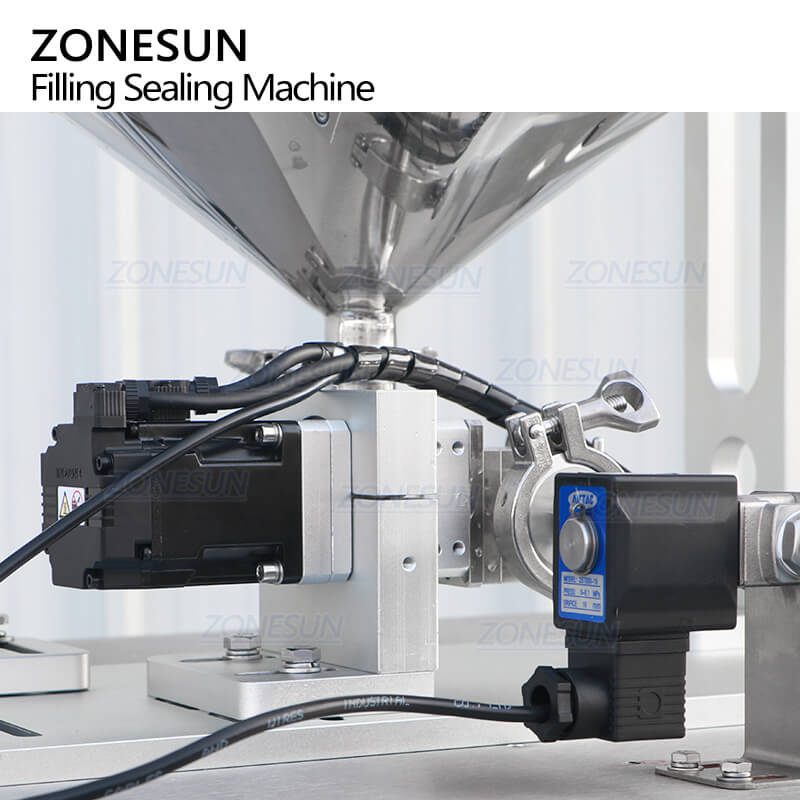

Servo Motor
Controlled by servo gear pump, it has high filling accuracy and parameting is more convenient.

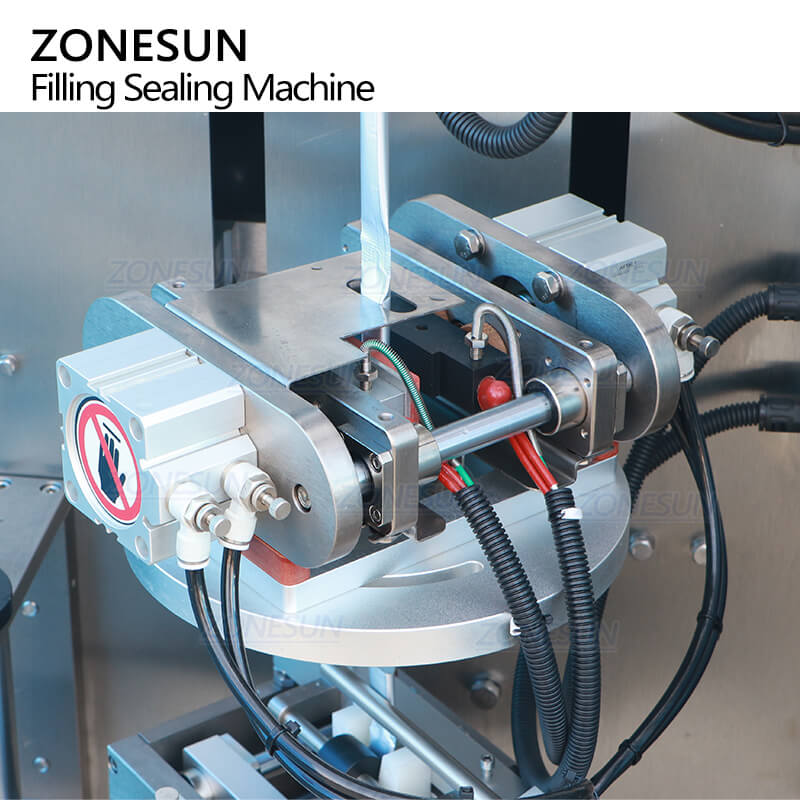

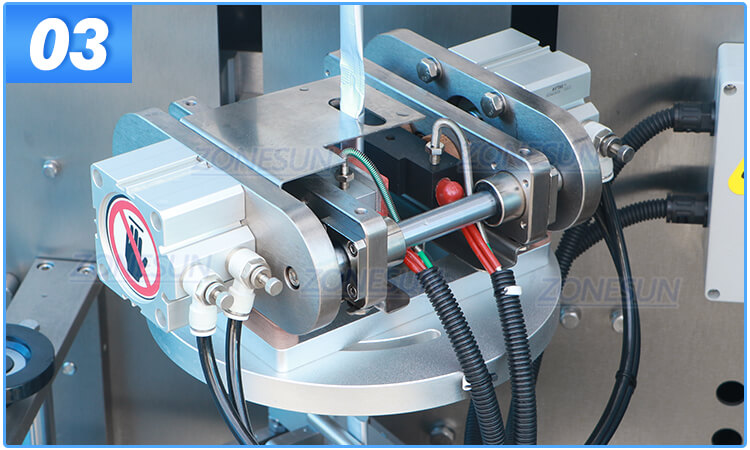

Sealing Structure
Using side sealing, it is suitable for PET/VMPET/PE/PA/AL packaging film.

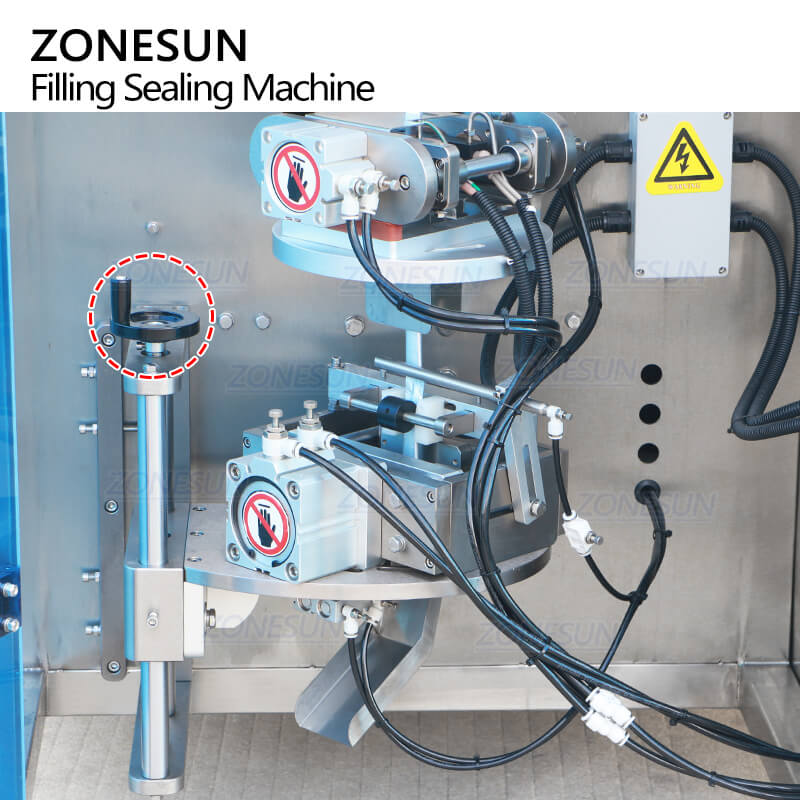

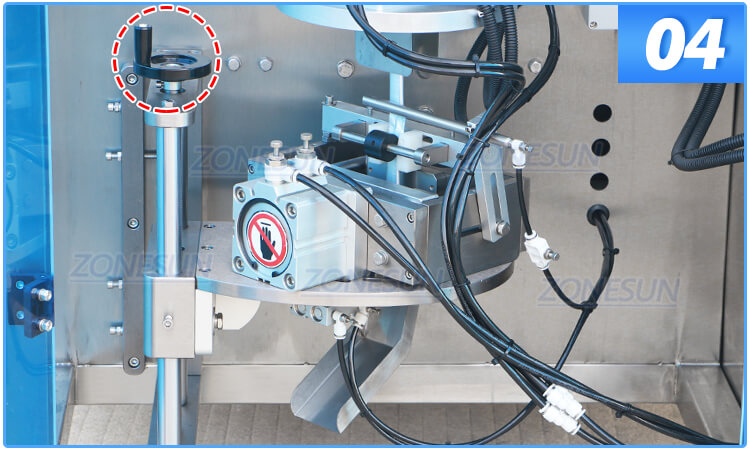

Cutting Structure
It is customizable for different shape of sachets, the cutting width is adjustable through rotary knob.

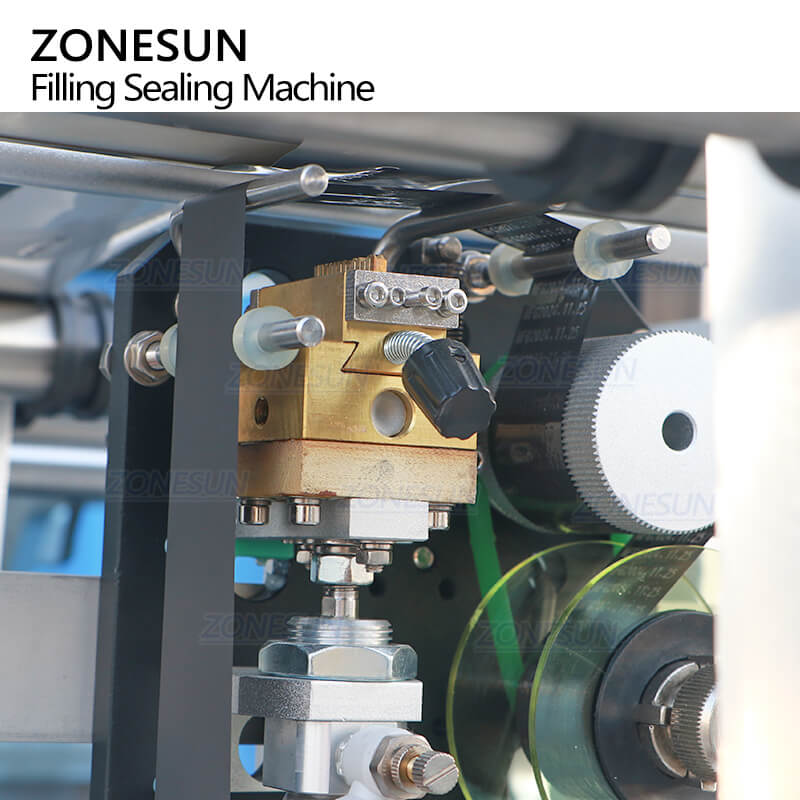

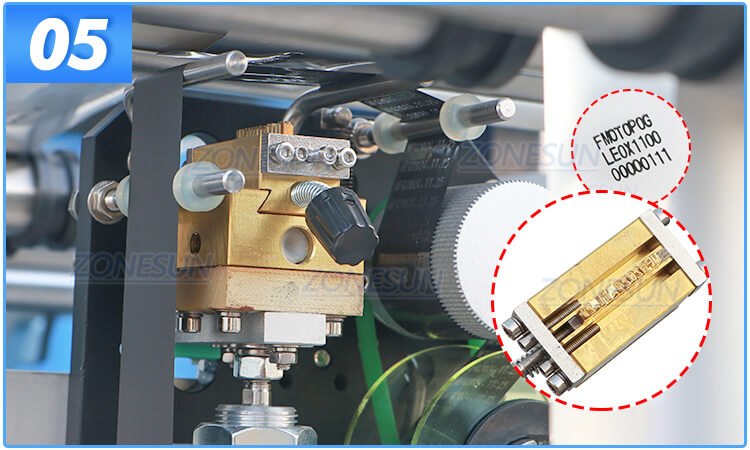

Date Coder
Date coding machine is optional as production need, simplifies process of batch number or date printing.
Electrical System
Using branded components, electric circuit is arranged neatly to ensure stable working.
FAQ
Are you factory or trading company?
We are factory or manufacturer. you not only buy the machine .
Can you guarantee your quality?
Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
What should I do if we are not able to operate the machine when we receive it?
Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer ‘s site to solve any problems.
How could I get the spares on machines?
We will send extra sets of easy broken spares and accessories . Non-artificial damaged spares will be sent freely and shipping free during 1 year’s warranty.
What’s the payment terms and trade terms for new customers?
Payment terms:PayPal, T/T, credit card, WeChat Pay, and Alipay.
What’s the Minimum Order Quantity and warranty?
MOQ:1 set warrnty :1year
Do I need to pay for the extra cost like tax or duty ?
A:Yes, custom duty / tax it’s the buyer responsibility need to pay it, the shipping cost it’s not included the tax.

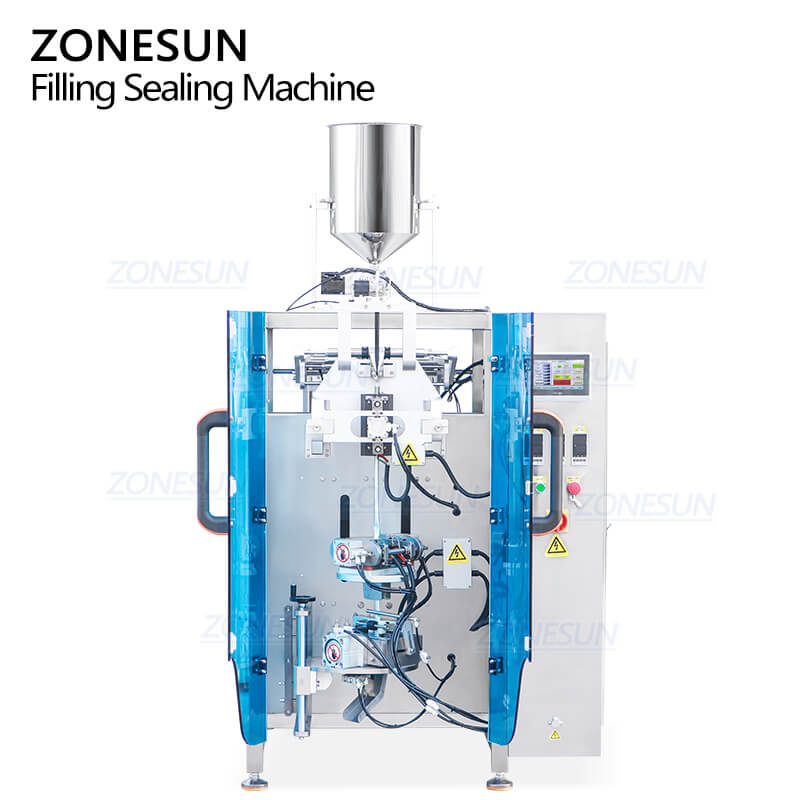

Product Real Shot
