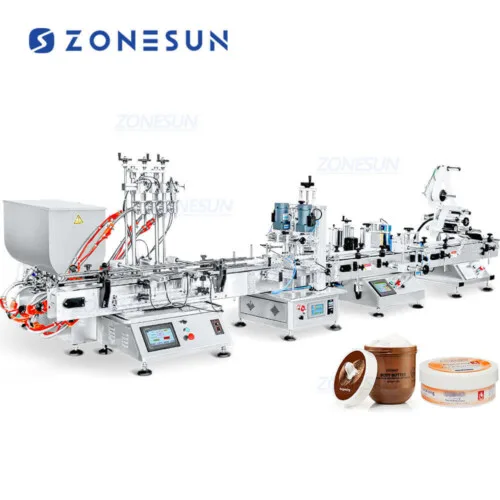

Desktop Cosmetic Paste Filling Production Line

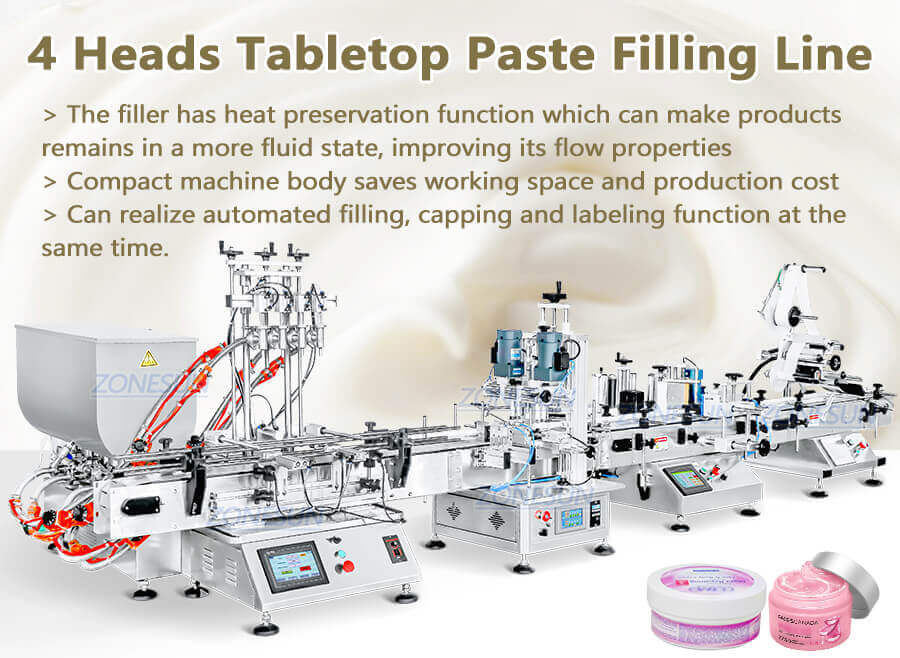

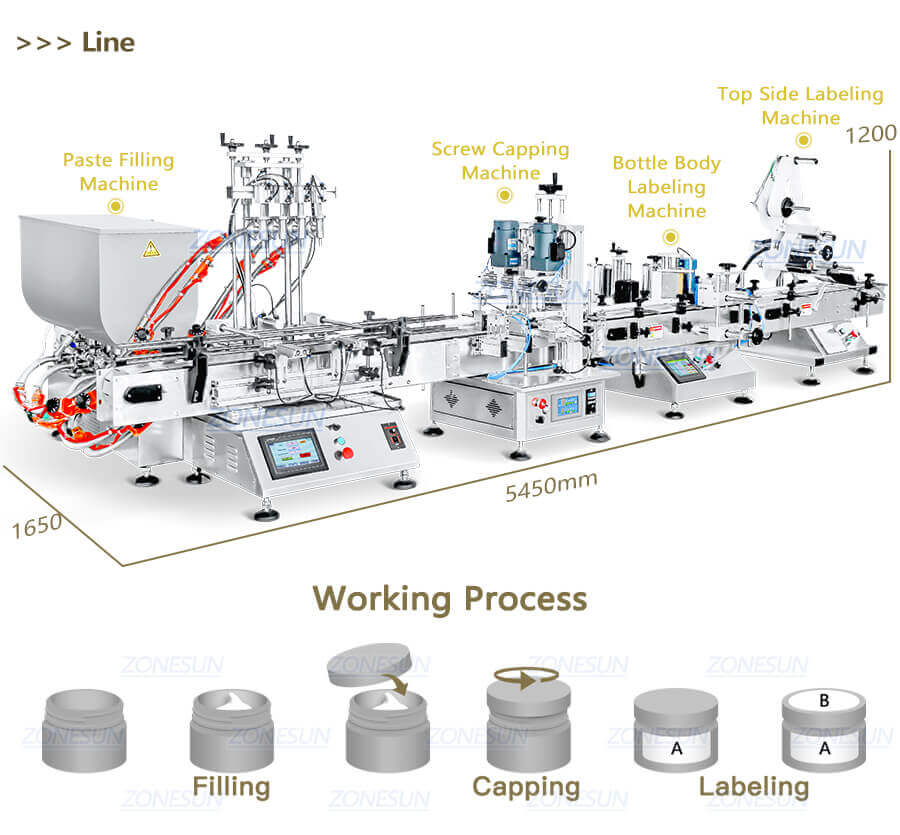

This tabletop filling system includes a paste filling machine, a screw capping machine, and two labeling machines (one for single-side labeling and another for top-side labeling). It also features heat preservation, which helps maintain the fluidity of the product and improves its flow properties. This is ideal for packaging cosmetic creams and vaseline.

Machine Video Click Here:

Product Detail

Product Tags

Desktop Cosmetic Paste Filling Production Line-ZONESUN TECHNOLOGY LIMITED

Description:
This tabletop filling system includes a paste filling machine, a screw capping machine, and two labeling machines (one for single-side labeling and another for top-side labeling). It also features heat preservation, which helps maintain the fluidity of the product and improves its flow properties. This is ideal for packaging cosmetic creams and vaseline.

Desktop Cosmetic Paste Filling Production Line-ZONESUN TECHNOLOGY LIMITED

Product Parameters:

Machine model
ZS-DTGT4T
Power
110/220V 50-60HZ About 300W
Filling range
10-100ml/30-300ml/50-500ml/100-1000ml/500-2500ml/1000-5000ml
Working speed
20-30bottles/min(based on liquid&filling volume)
Hopper size
90L
Conveyor size
About 1300*100mm
Filling nozzle size
OD 10mm(can choose other size)
Filling accuracy
≤±1%
Machine size
About 1300*1440*1200mm
Package size
About 1550*1400*1330mm
Package weight
About 237kg

Desktop Cosmetic Paste Filling Production Line-ZONESUN TECHNOLOGY LIMITED

Machine modelZS-XG1870
Bottle height
60-270mm
Bottle Caps Diameter
18-70mm
Working speed
20-40 bottles/minute(depending on bottle and caps)
Working voltage
AC220V/110V 50-60HZ
Working pressure
0.4-0.6 MPa
Conveyor length
1117mm
Machine size
About 1120*580*1110mm
Package size
About 1160*610*1140mm
Package weight
About 97.5kg

Desktop Cosmetic Paste Filling Production Line-ZONESUN TECHNOLOGY LIMITED

Machine modelZS-TB500
Voltage
110V- 60HZ / 220V-50HZ
Working Speed
About 20-50bottles/min
Suitable Labeling Size
15-140mm (W) X 25-300mm (L)
Roll inside diameter (mm)
φ76mm
Roll outside diameter (mm)
φ350mm
Suitable Bottle Diameter
≤100mm
Package Size
About 1290*860*900mm
Package Weight
About 130kg

Desktop Cosmetic Paste Filling Production Line-ZONESUN TECHNOLOGY LIMITED

Model
ZS-TB150P
Labeling capacity
About 20-200pcs/min
Labeling accuracy
±1.0mm
Label size
(L)25-300mm (H)15-150mm
Material size
φ30-φ120mm (H)20-200mm
Roll inside
φ75mm
Roll outside diameter
φ275mm
Voltage
220/110V 50-60HZ
Power
1.5kw
Package weight
About 109kg
Package size
About 1280*730*980mm

Desktop Cosmetic Paste Filling Production Line-ZONESUN TECHNOLOGY LIMITED

Desktop Cosmetic Paste Filling Production Line-ZONESUN TECHNOLOGY LIMITED

Product Details:

Desktop Cosmetic Paste Filling Production Line-ZONESUN TECHNOLOGY LIMITED

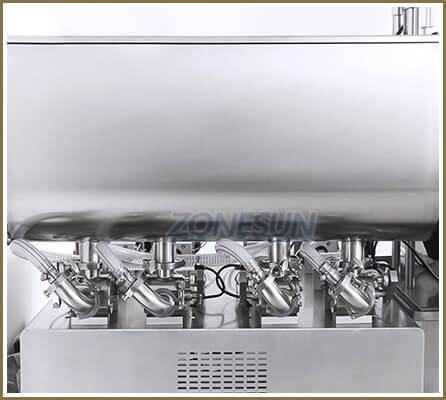

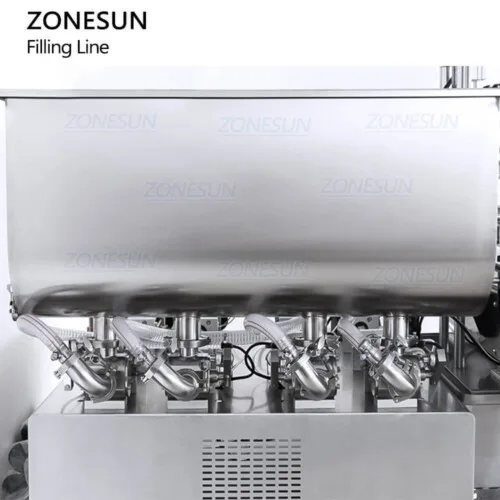

The 90L large hopper is designed to enhance the liquid flow and ensure timely feeding of the filling material, thereby improving your working speed.

Desktop Cosmetic Paste Filling Production Line-ZONESUN TECHNOLOGY LIMITED

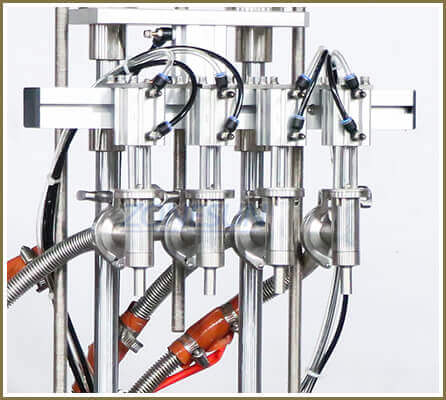

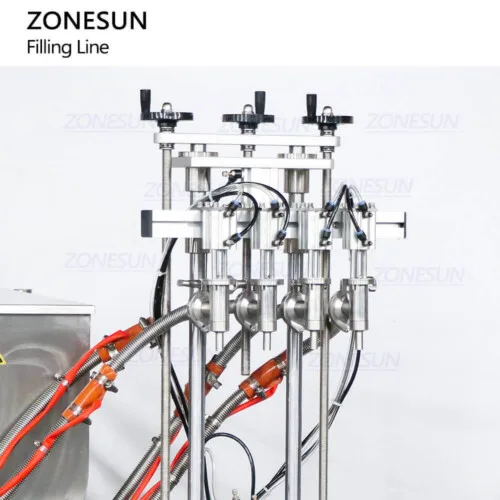

This filler comes with a pneumatic filling nozzle that boasts greater power and enhances filling speed for thicker liquids. It also features a heat preservation function, keeping the products in a more fluid state and improving their flow properties.

Desktop Cosmetic Paste Filling Production Line-ZONESUN TECHNOLOGY LIMITED

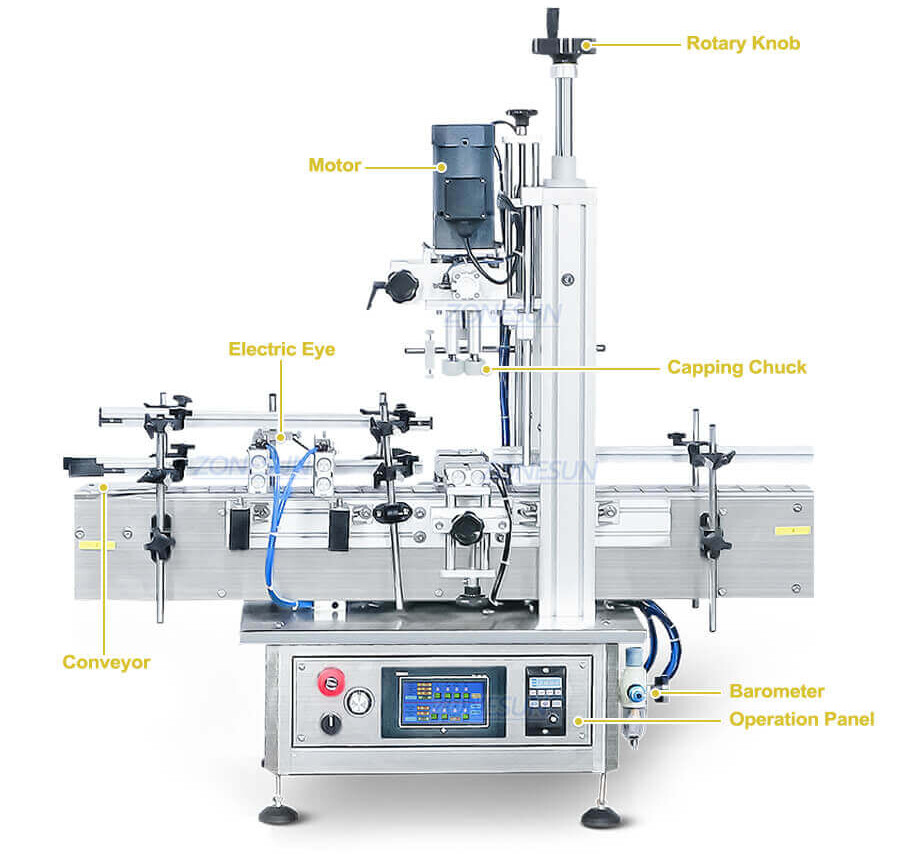

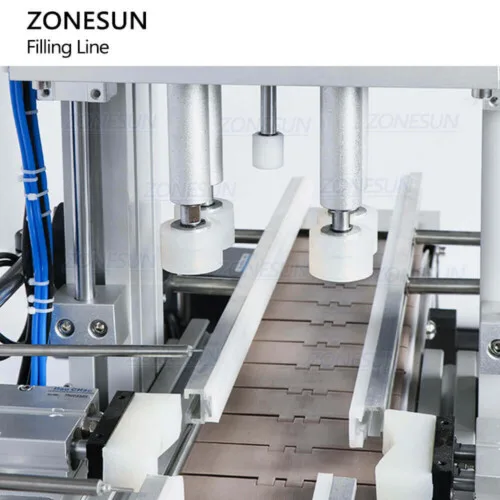

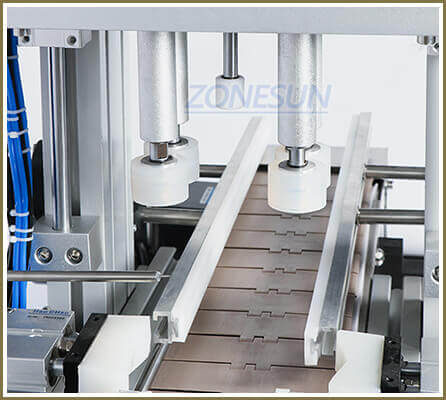

This machine is designed for various bottle cap shapes, such as spray bottles and screw-on caps. It automatically presses and tightens the bottle caps, significantly improving work efficiency.

Desktop Cosmetic Paste Filling Production Line-ZONESUN TECHNOLOGY LIMITED

This machine is equipped with electric eyes to prevent missing bottles and minimize working errors. The sensitivity of the electric eye can be adjusted using the black machine part during operation.

Desktop Cosmetic Paste Filling Production Line-ZONESUN TECHNOLOGY LIMITED

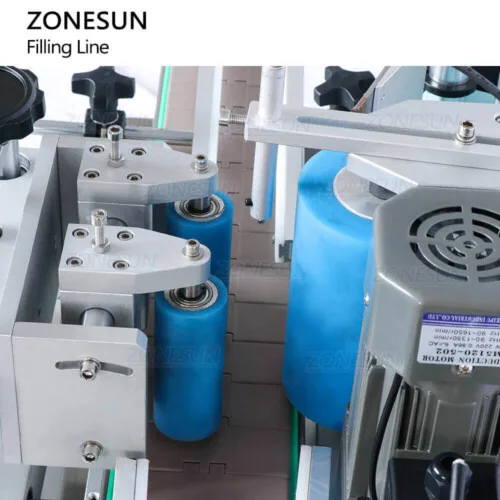

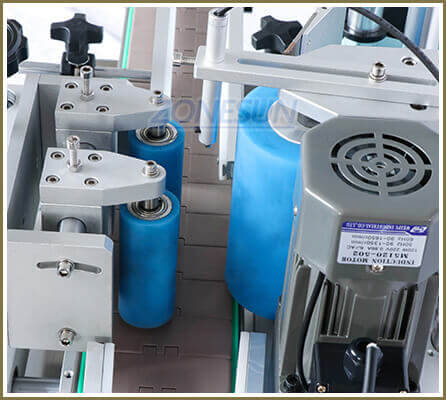

These three labeling wheels facilitate bottle rotation, ensuring a bubble-free labeling process. They are ideal for double-sided labeling, delivering a high-quality finish.

Desktop Cosmetic Paste Filling Production Line-ZONESUN TECHNOLOGY LIMITED

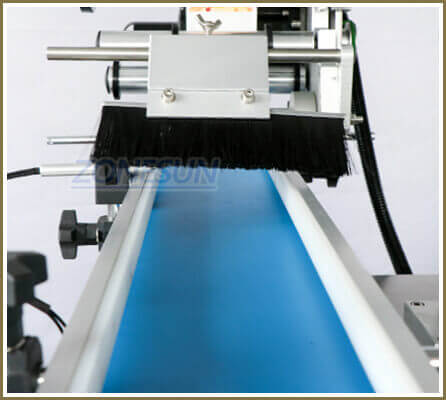

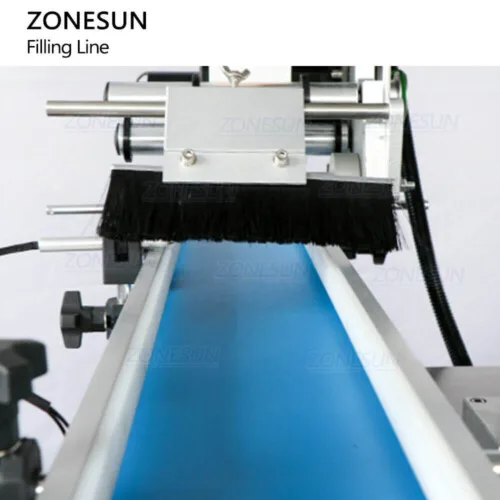

The machine is designed for labeling on flat surfaces like bottle caps. The working height can be adjusted to accommodate different labeling objects. It also features a brush to enhance packaging quality.
