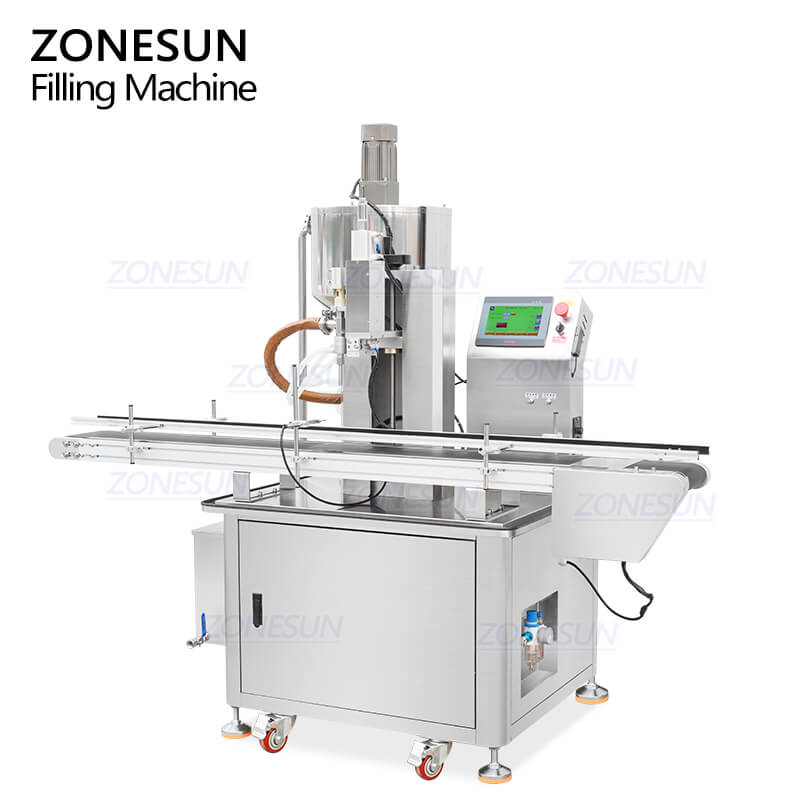

Cosmetic Temperature Filling Machine
Price range: $3,799.00 through $6,199.00
Share to
Product Description

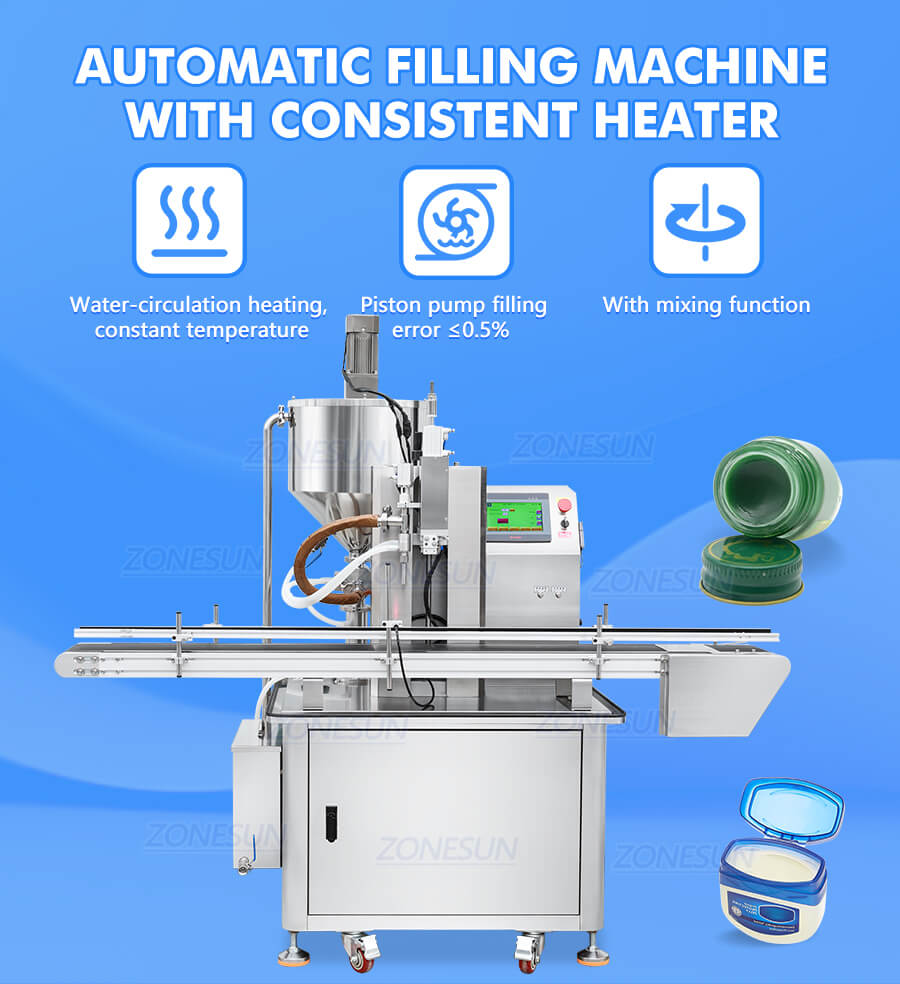

This paste filling machine uses a piston pump, which is suitable for filling pastes such as vaseline, skin cream, sauce, honey, etc. The storage barrel adopts a double-layer structure design, using a water circulation heating system and a stirring system to prevent the material from solidifying and ensure the smoothness of the filling process.
Product Applications
Product Parameter
| Machine Model | ZS-WCHJ1C |
| Power Supply | 220V/110V 50-60Hz 4kW |
| Filling Speed | About 20-30 bottles/min (depending on filling range and filling materials) |
| Suitable Bottle Diameter | 4-150 mm |
| Suitable Bottle Height | 10-200 mm |
| Filling Range | 5-150 ml (Can be Customized) |
| Filling Error | ≤0.5% |
| Filling Pump | Piston Pump |
| Air Pressure | 5-8 kg/cm² |
| Material Contact Part | SUS304 |
| Machine Size | About 2050*875*2060mm |
| Package Size | About 1730*940*1970mm |
| Package Weight | About 327kg |

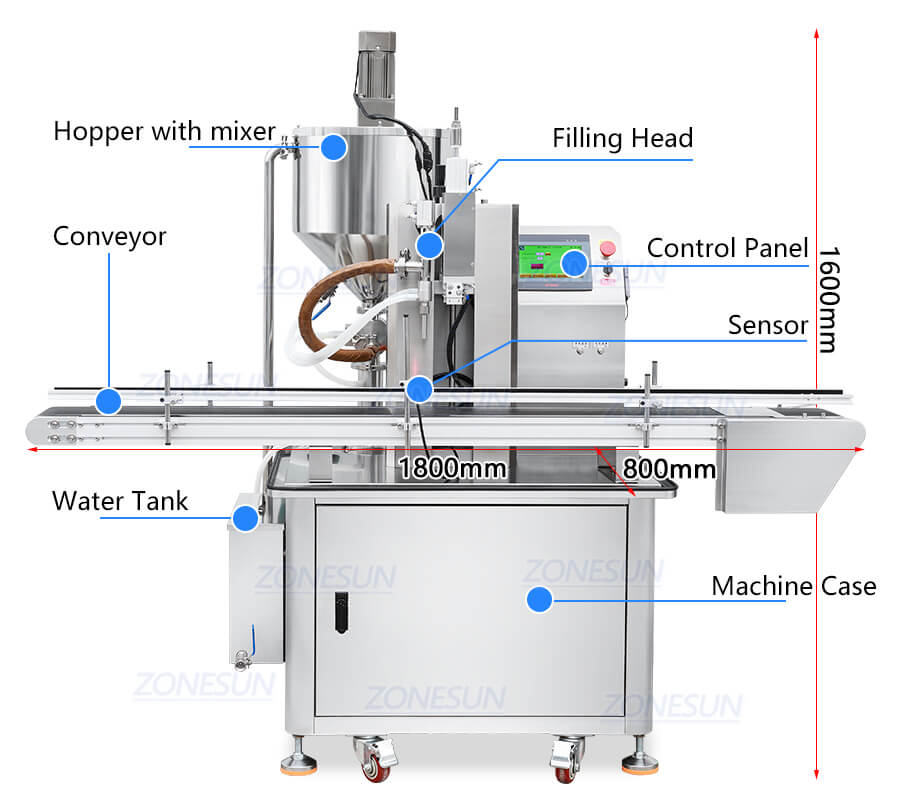

Product Details

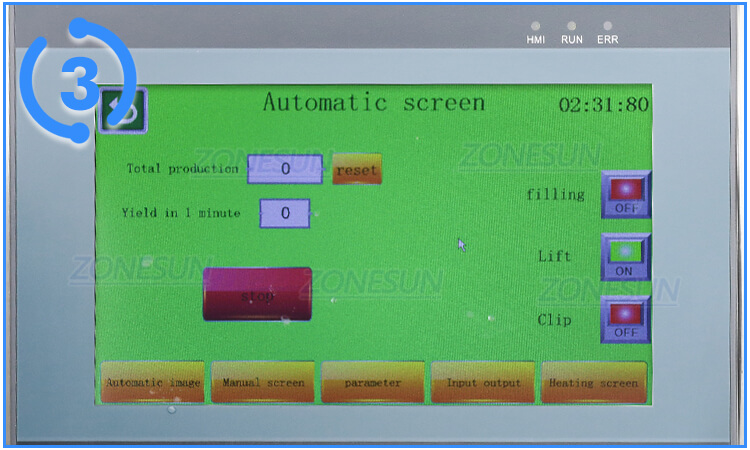

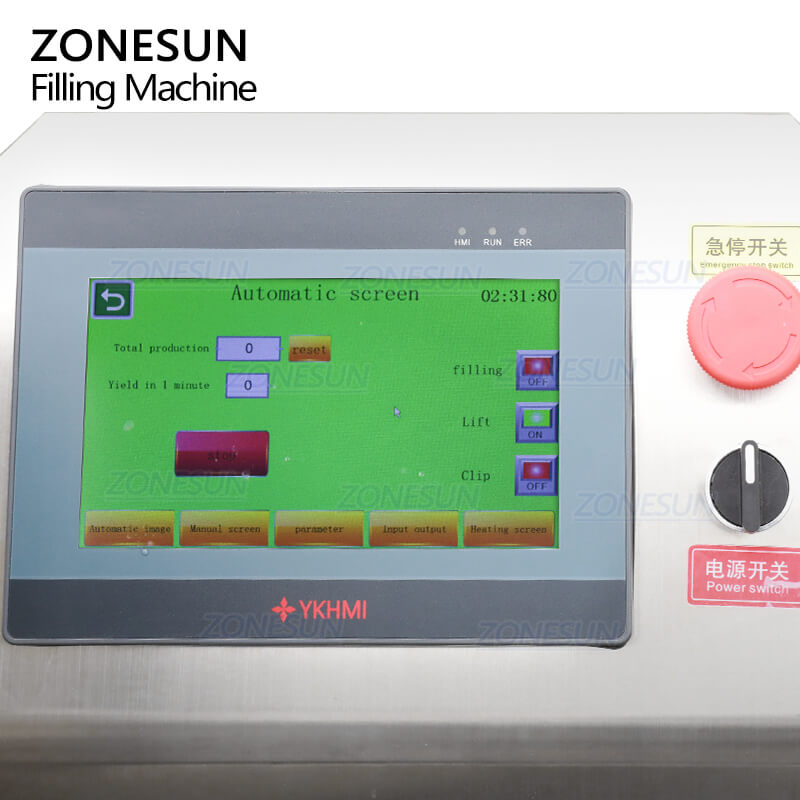

Touchscreen Control Panel
Allows operators to set filling parameters, control machine operation, operation language is customizable.

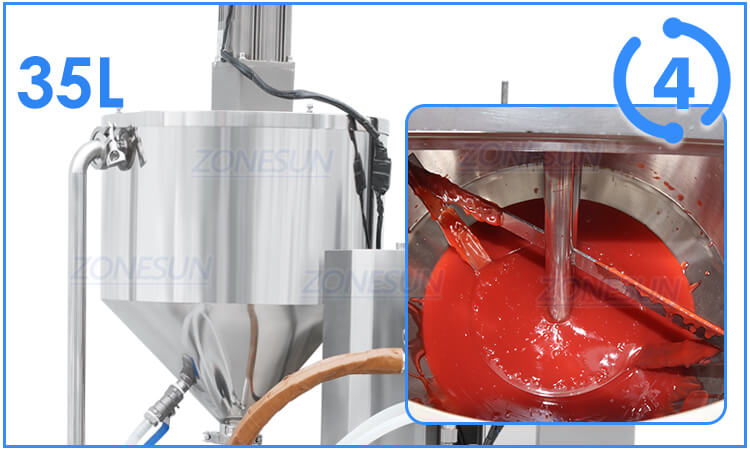

Jacketed Material Hopper
It can be filled with hot water or thermal oil to maintain material temperature, with optional mixing function for better material flow.

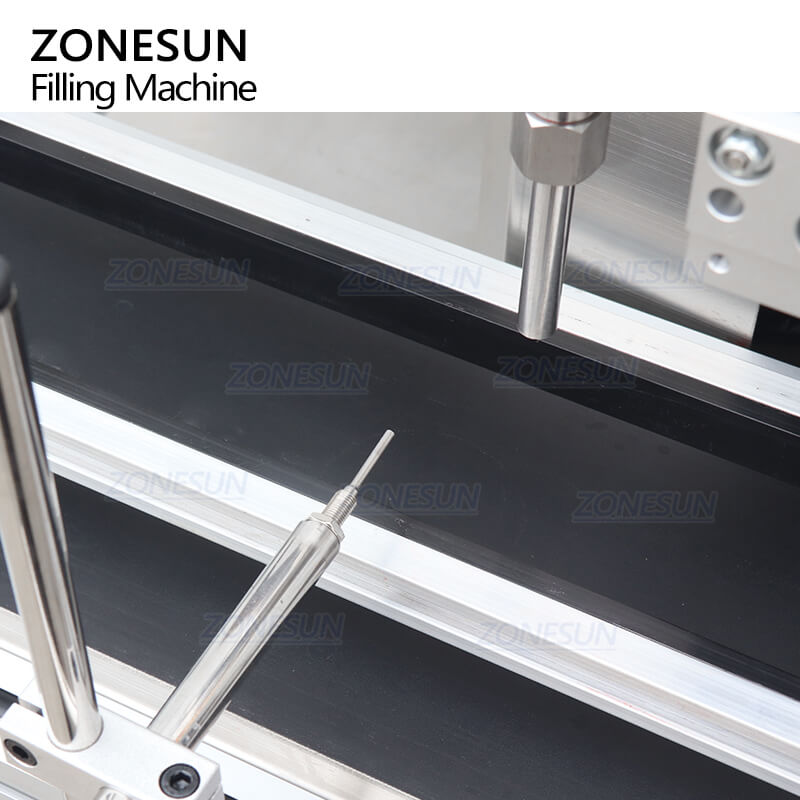

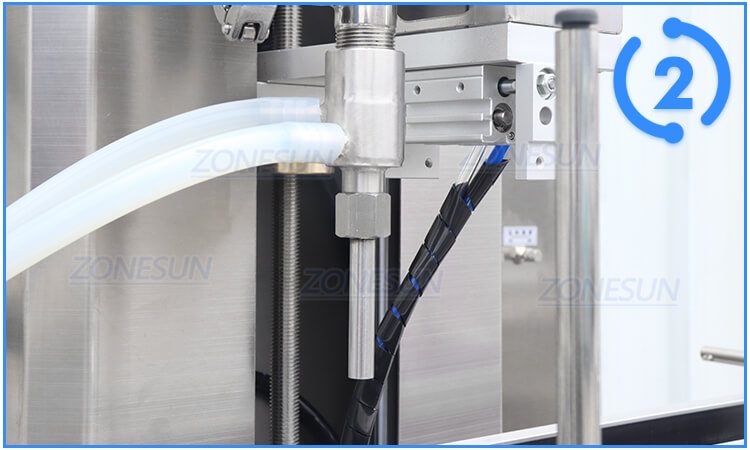

Filling Nozzle
It is connected with warm water circulation to maintain suitable temperature at the filling end and reduce wax solidification during filling.

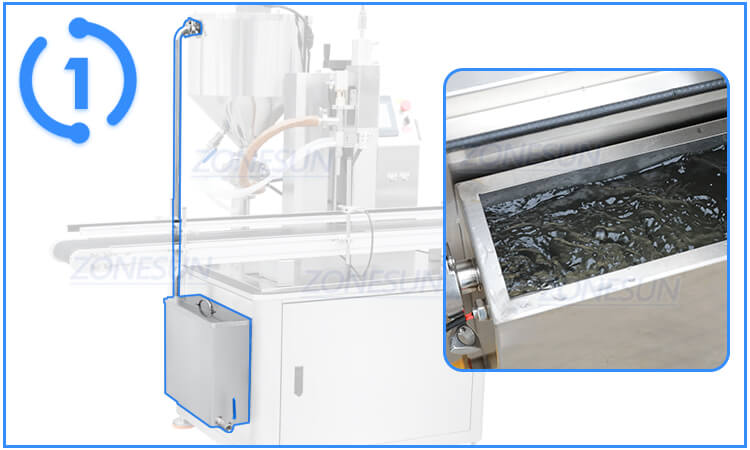

Water Circulation Heating Tank
Provides continuous temperature control for the material contact area, helping keep wax products in suitable filling condition.
Piston Pump Feeding System
This provides stable material supply during production and is suitable for high viscosity wax-based products.
Conveyor System
It transfers containers through the filling process smoothly and can be connected with downstream equipment.

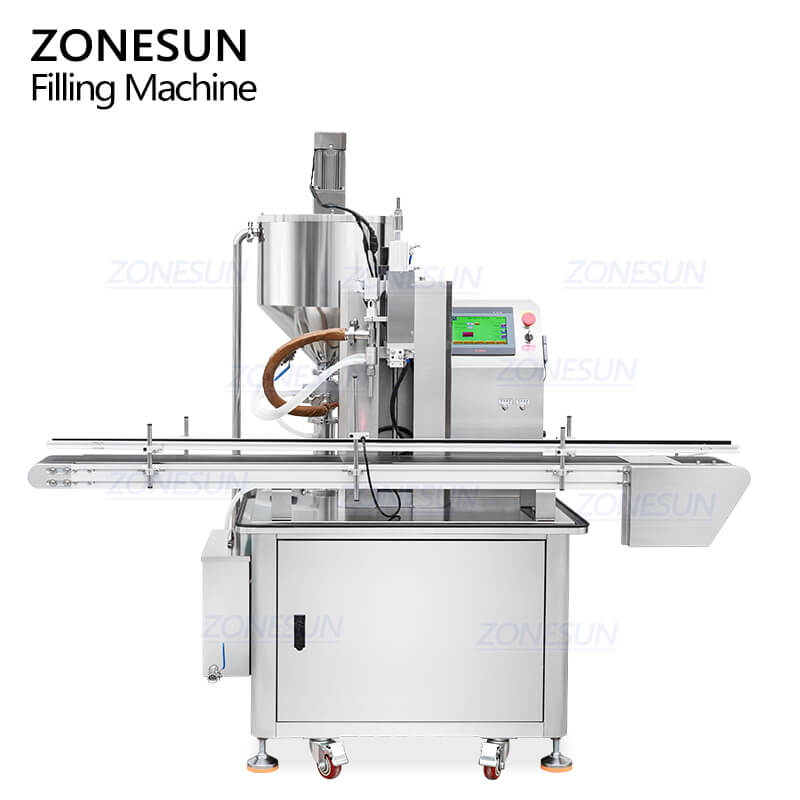

Product Real Shot
