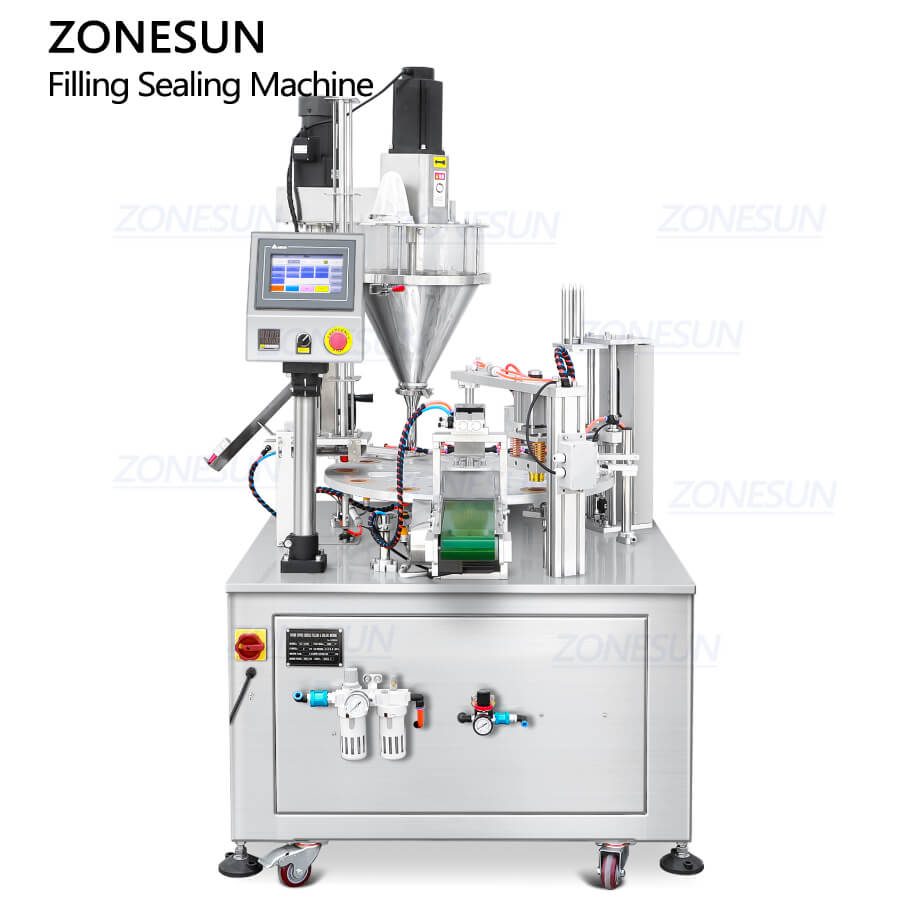

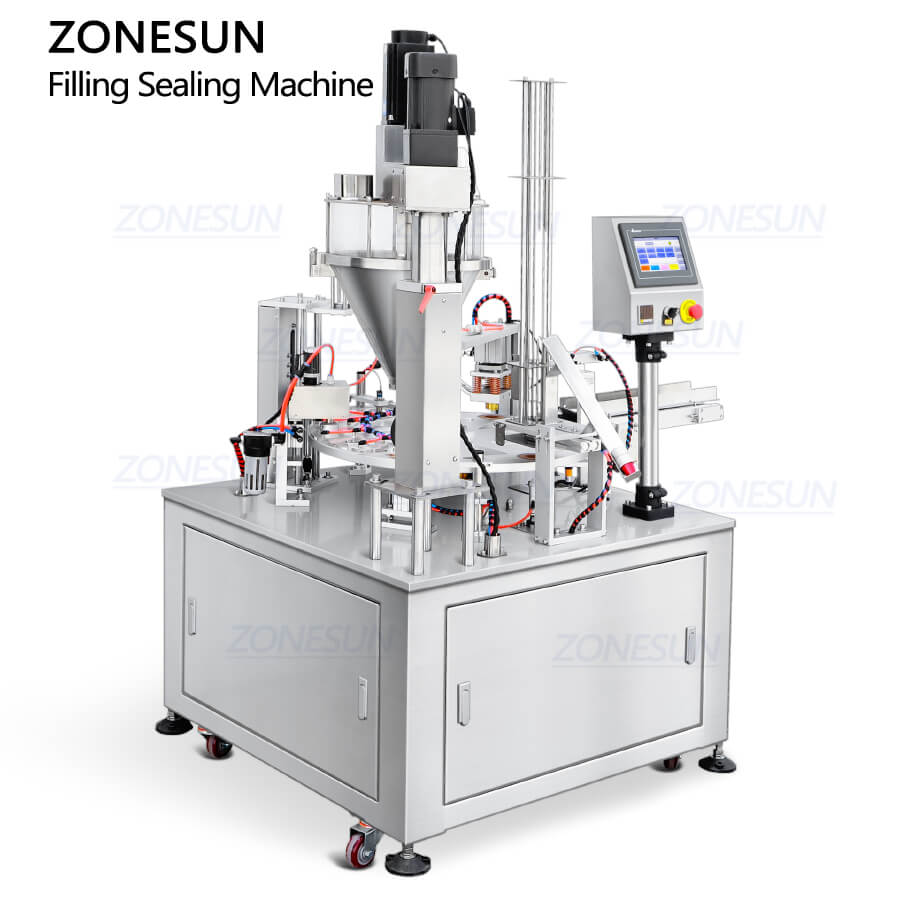

Coffee Capsule Filling Machine

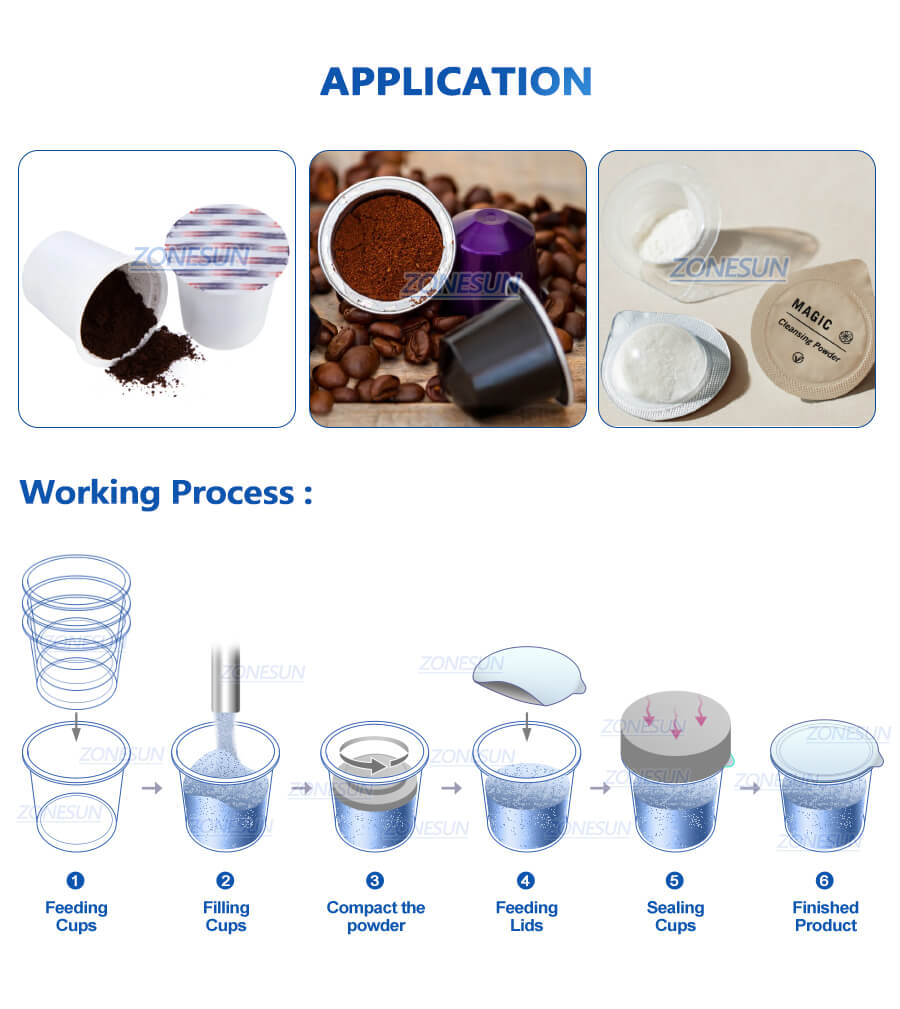

This rotary coffee capsule filling and sealing machine can feed cup,fill powder,seal cup cover automatically at the same time.The filling speed and sealing temperature can be controlled easily,and we can customized this machine to make it suitable for your products according to the diameter of the container.
Share to
Product Description:
This rotary coffee capsule filling and sealing machine can feed cup,fill powder,seal cup cover automatically at the same time.The filling speed and sealing temperature can be controlled easily,and we can customized this machine to make it suitable for your products according to the diameter of the container.
Product Parameters:
| Machine Model | ZS-GF900C |
| Voltage | 220V 50-60Hz |
| Power | 2.5KW |
| Working Capacity | About 1200-1500cups/hour(depending on filling range and materials) |
| Filling Range | 2-20g |
| Filling Method | Auger Filling |
| Filling Accuracy | ±1.5% |
| Sealing Temperature | 0-400℃ |
| Hopper Capacity | 30L |
| Machine Size | About 1480*1020*1850mm |
| Package Size | About 1260*1260*2040mm |
| Package Weight | About 374kg |

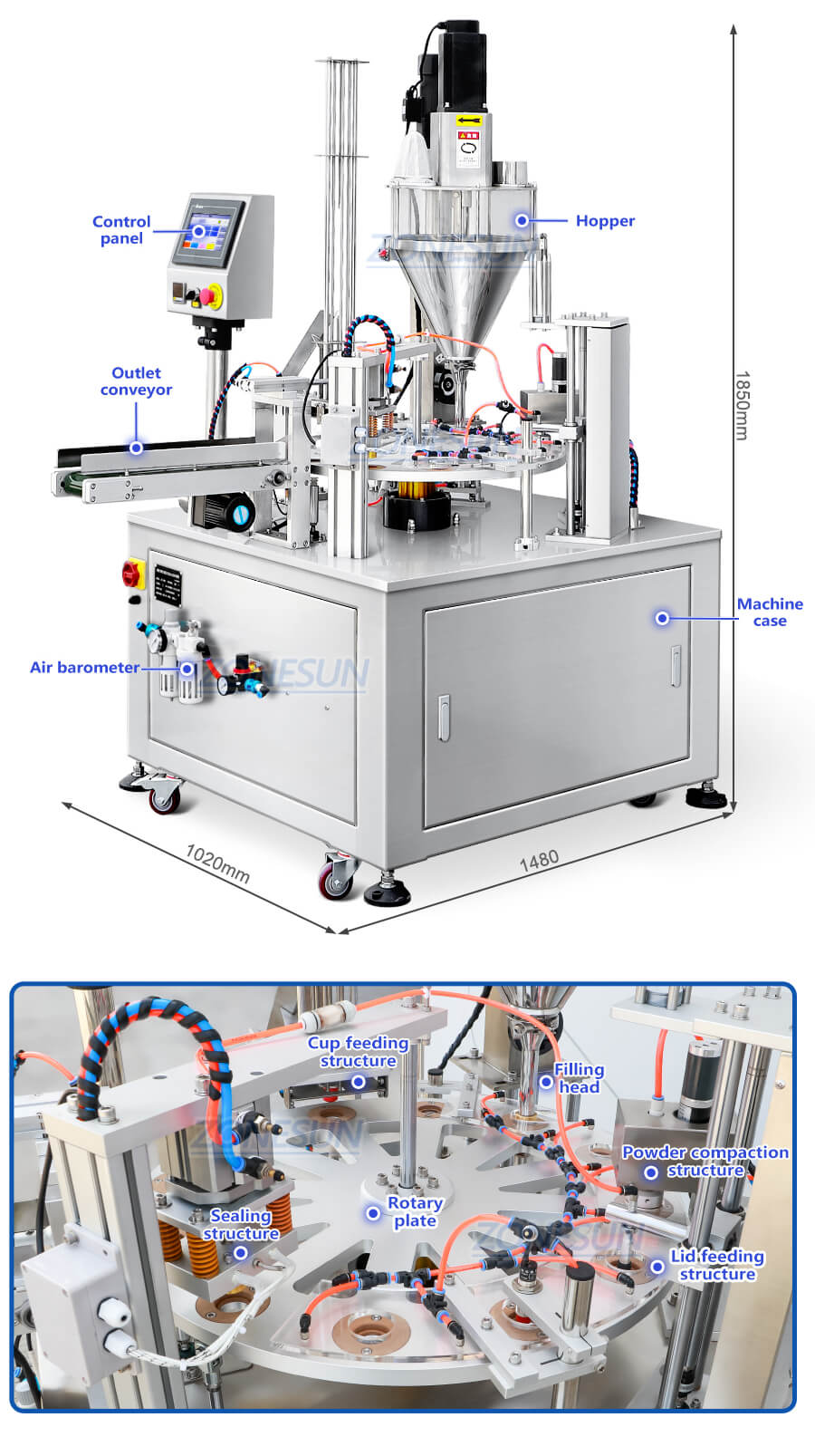

Product Details:

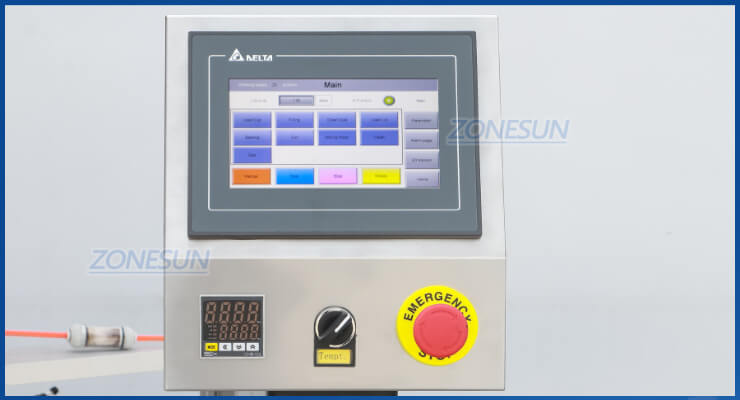

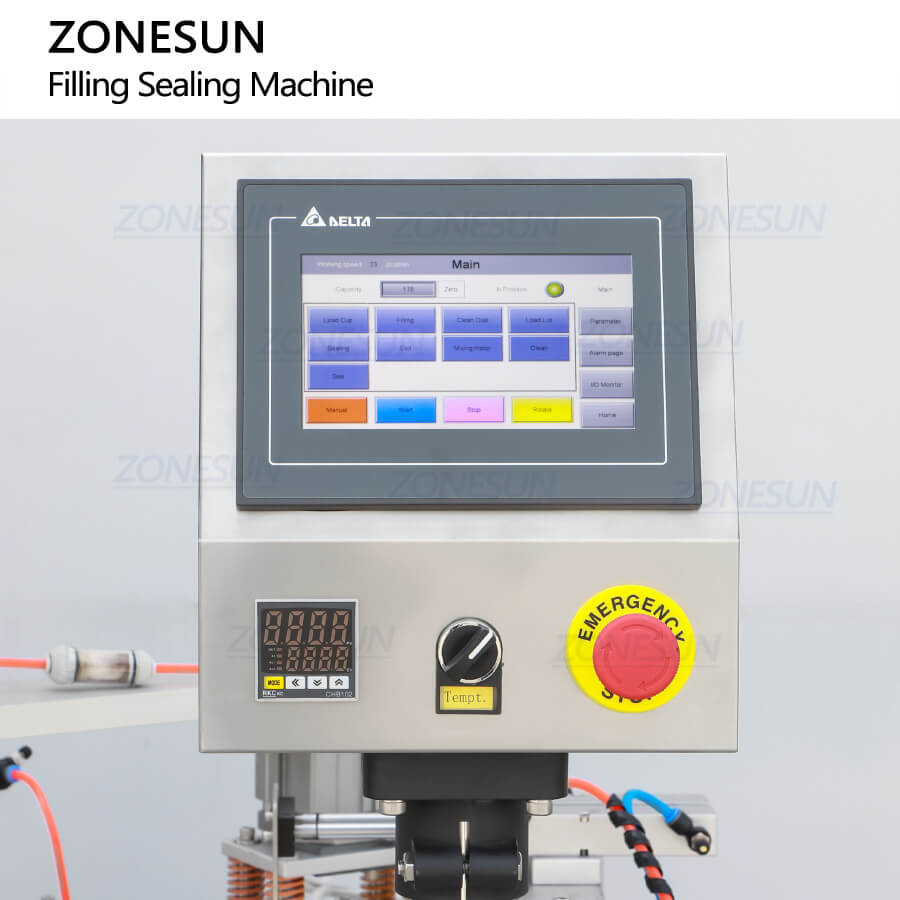

Control Panel
Intuitive panel for easy machine operation and parameter monitoring. Multiple languages can be customized.

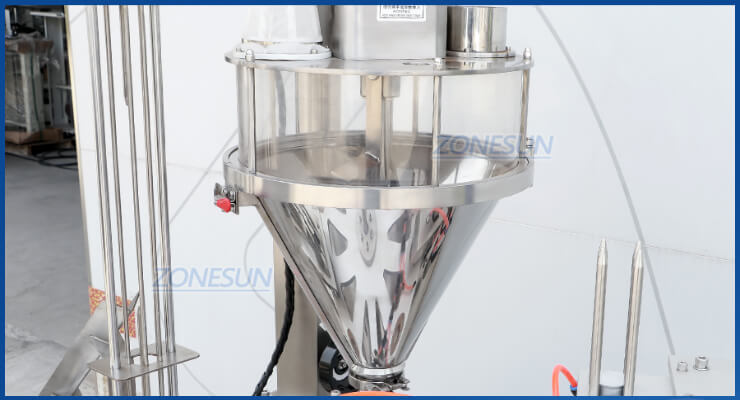

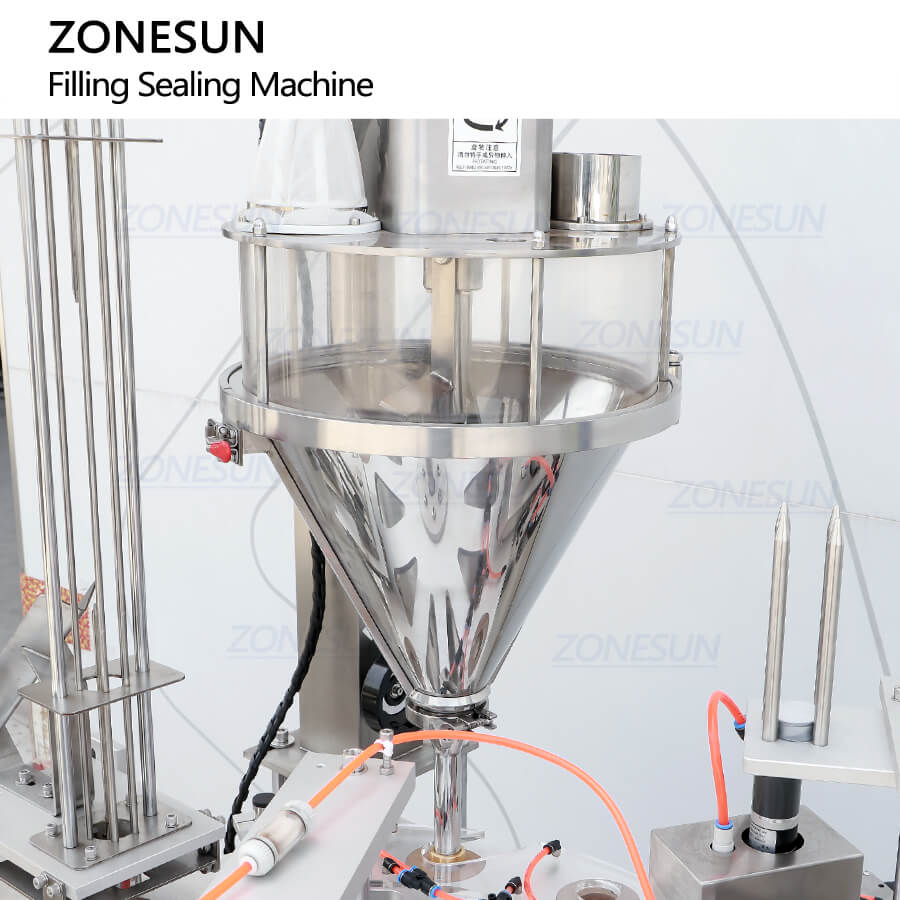

Hopper
The hopper has mixing function, ensuring even filling of powders.

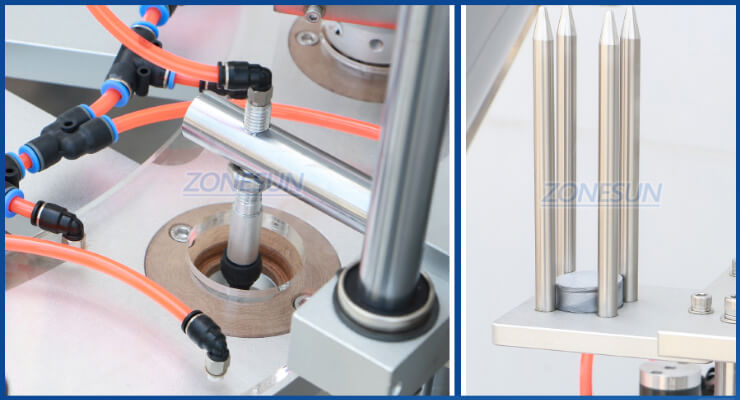

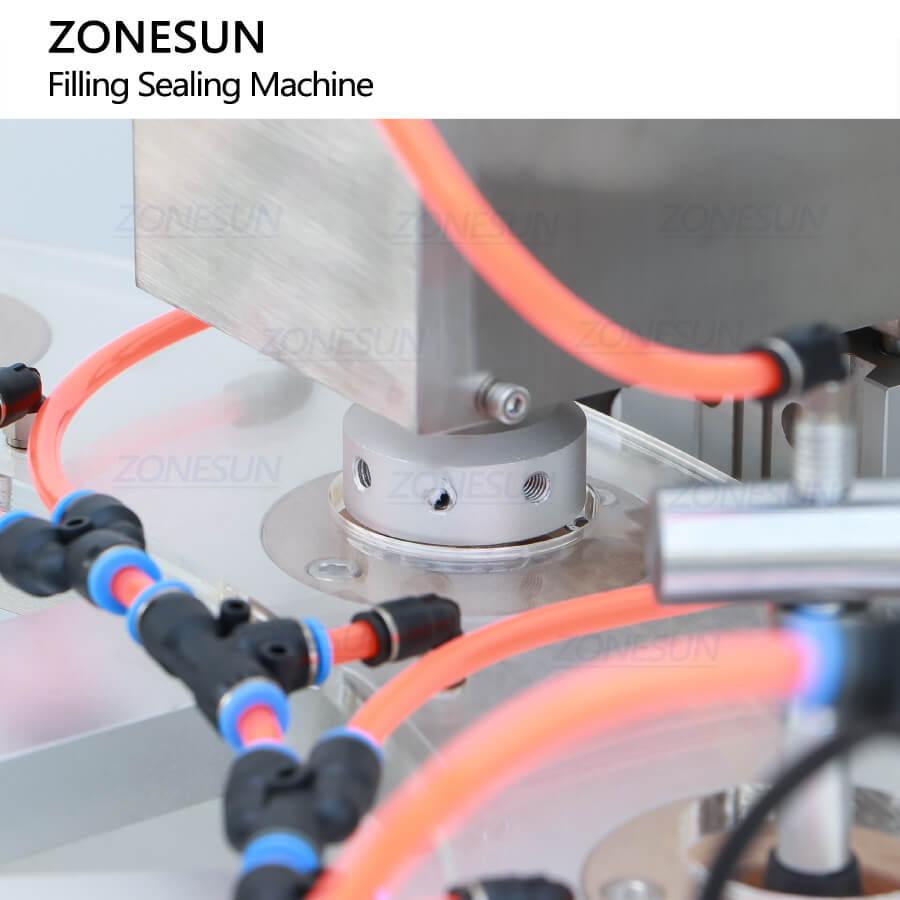

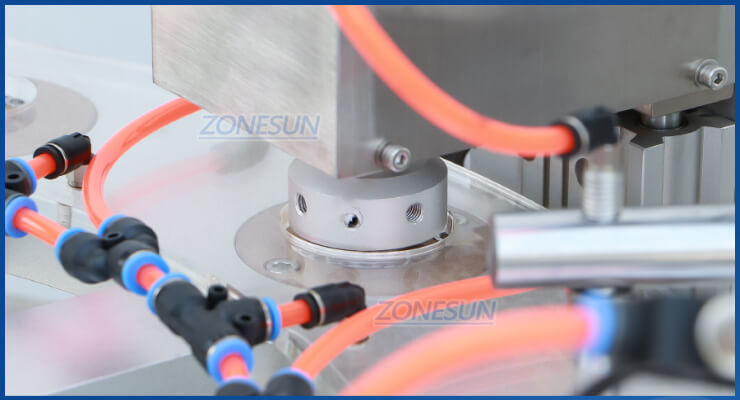

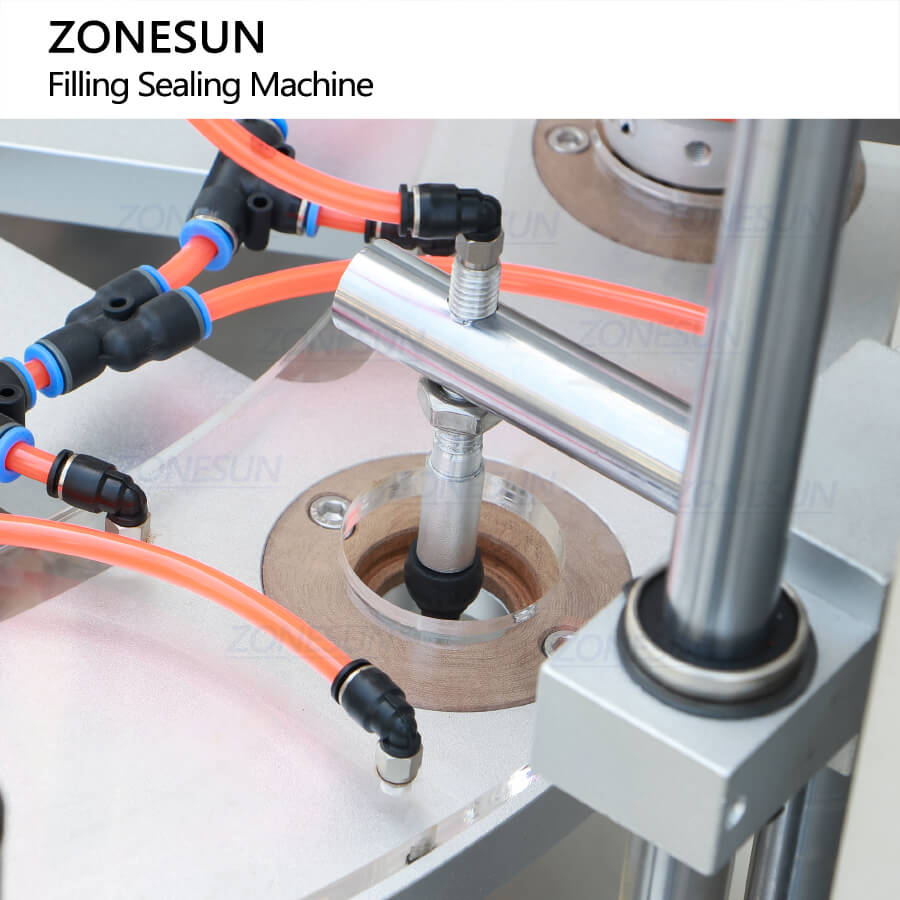

Powder Pressing Structure
It can compact the powder and blow away the dust at the mouth of cups.

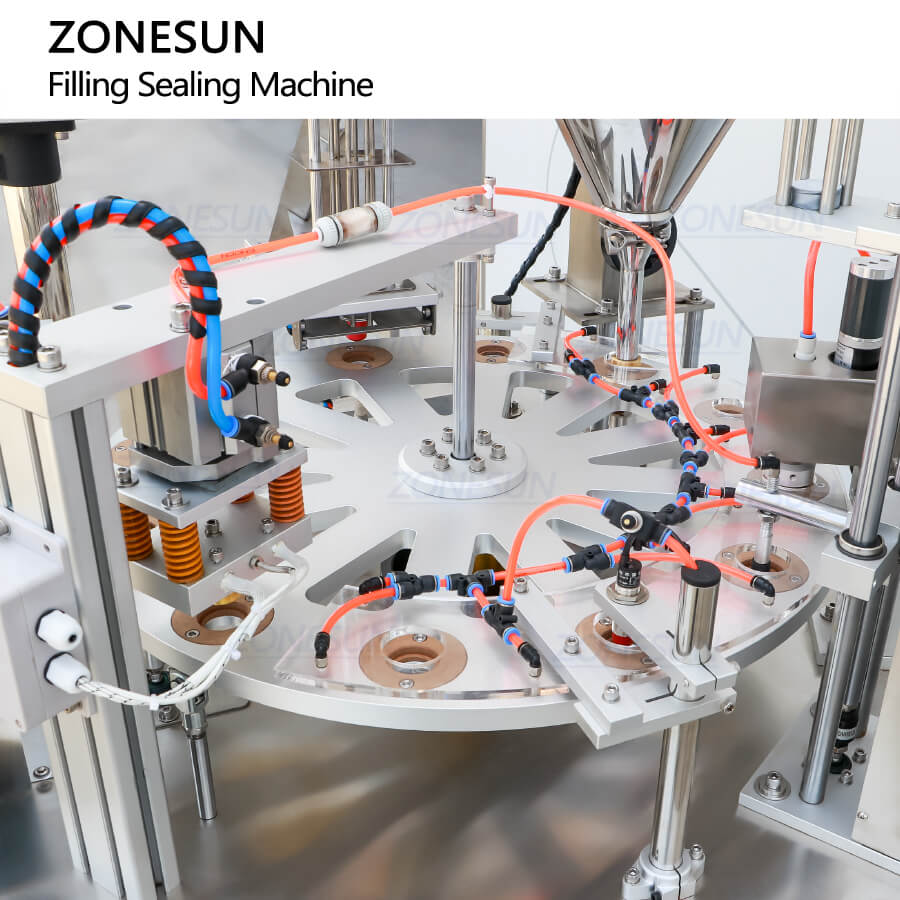

Lid Feeding Structure
It can place lids to k cups automatically, improving efficiency.

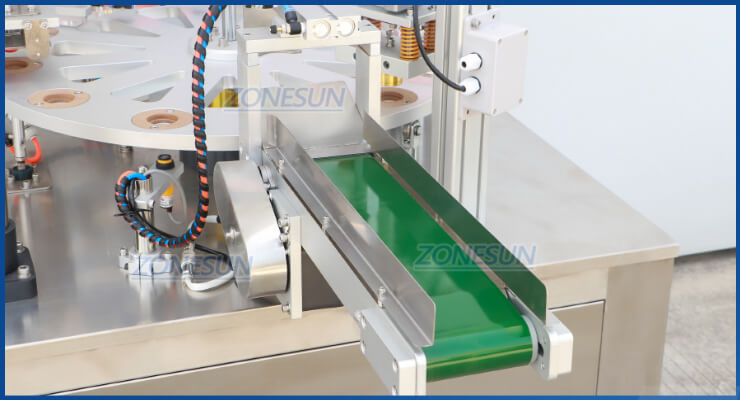

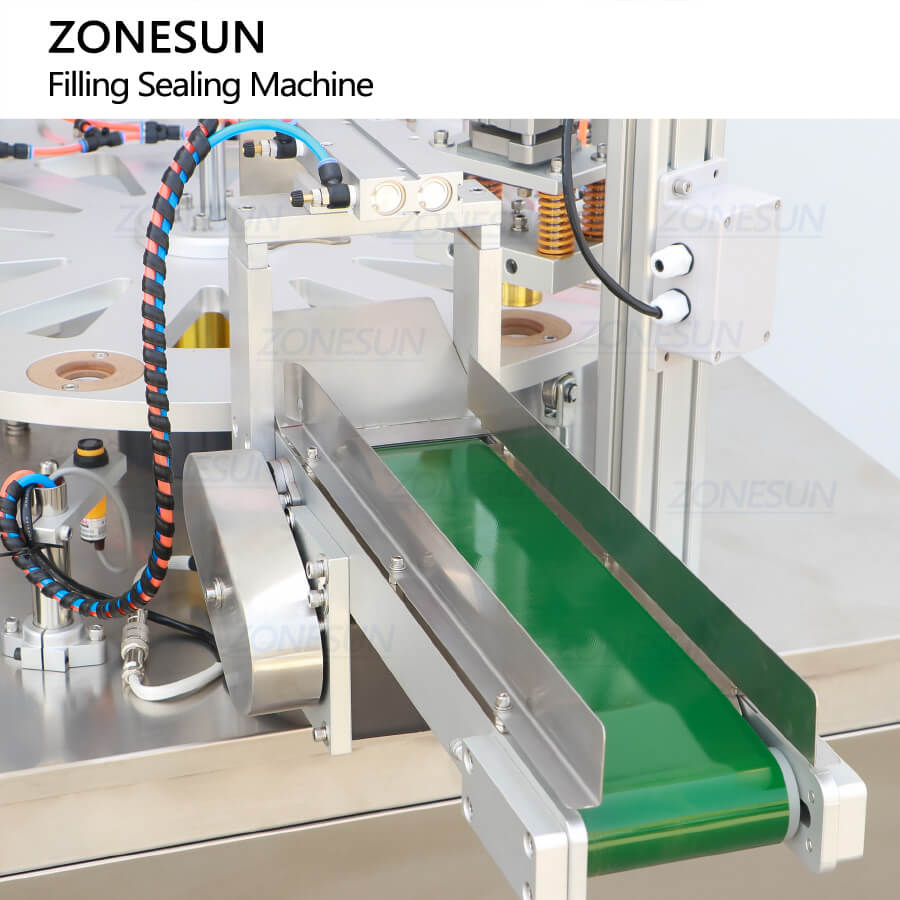

Conveyor
Can convey the cups to next process, saving cost.

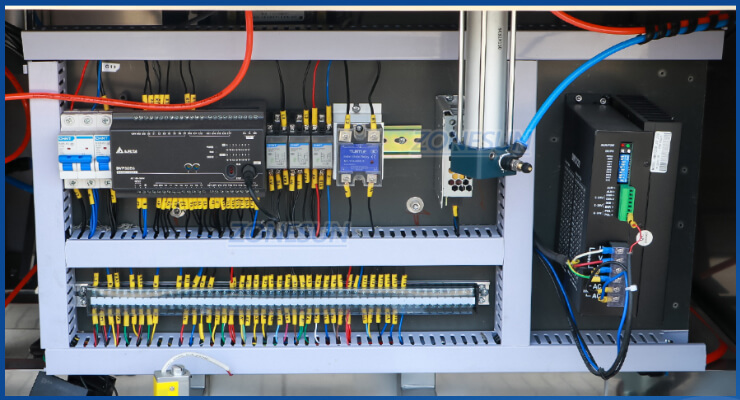

Electric Circuit
Electric circuits are organized well to ensure stable production.
