Carton Sealing Packing Production Line

Carton Sealing Packing Production Line

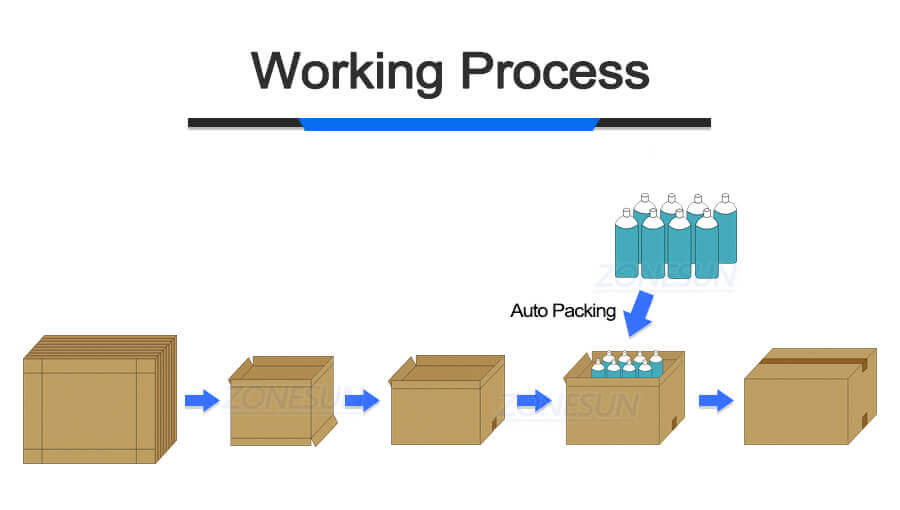

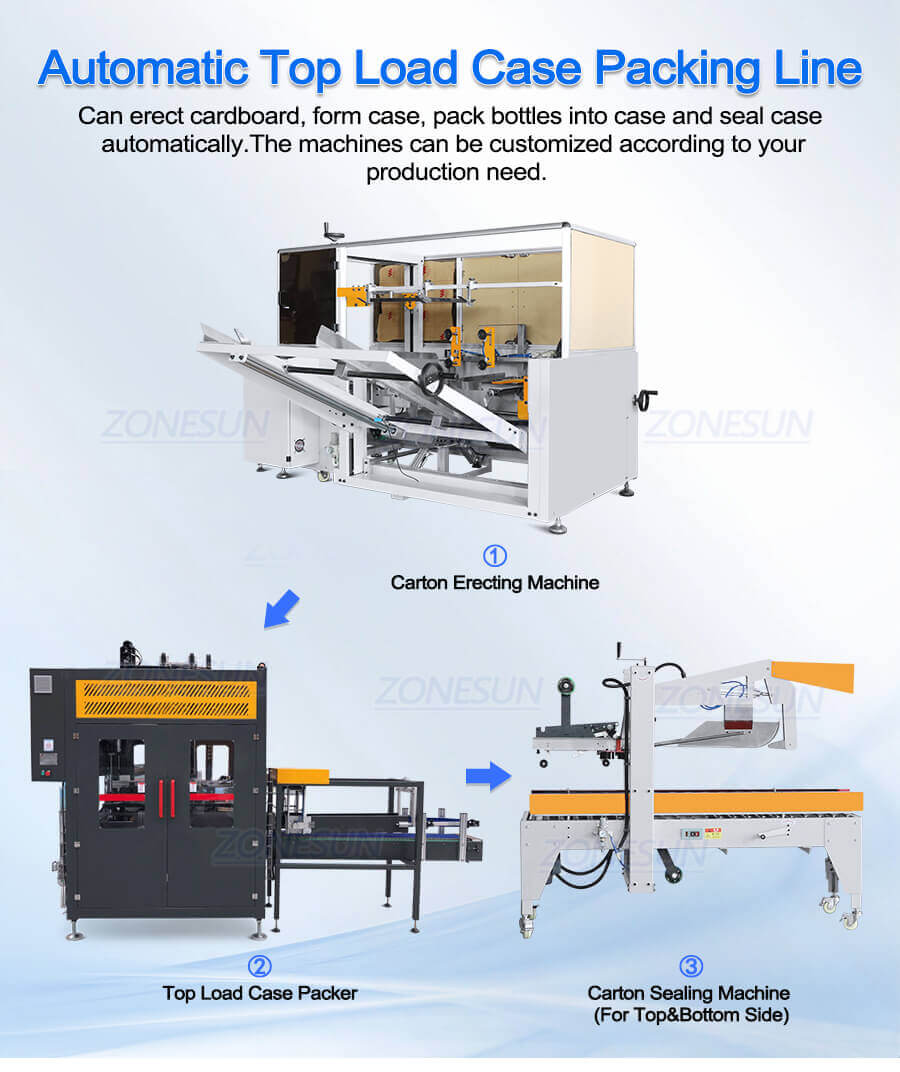

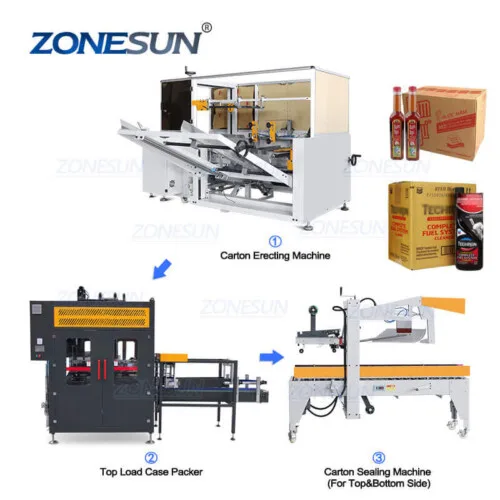

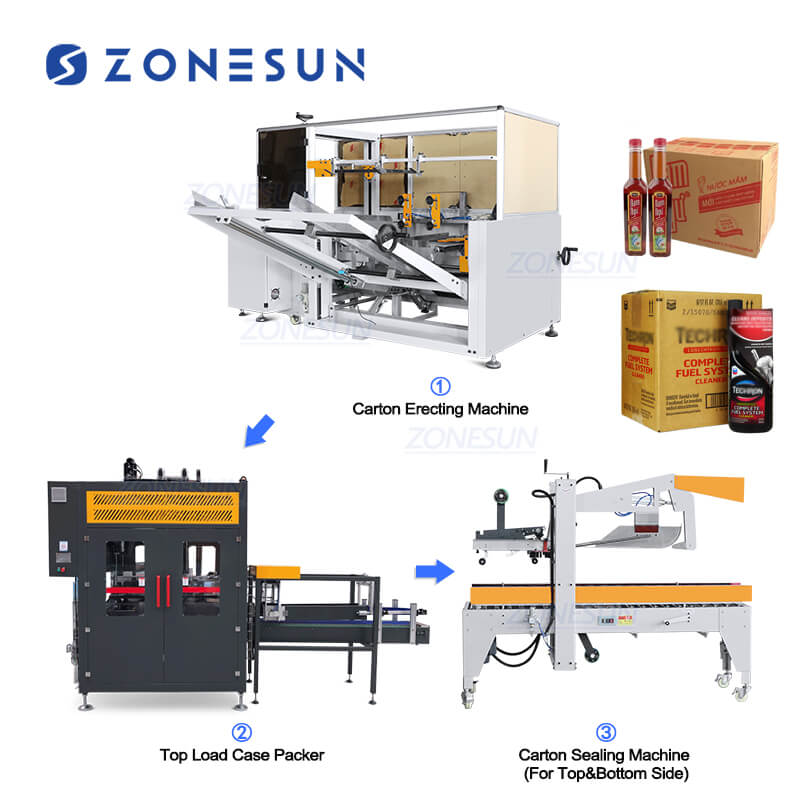

Can erect cardboard,form case,pack bottles into case and seal case automatically.The machines can be customized according to your production need.

Machine Video Click Here:

Product Detail

Product Tags

Carton Sealing Packing Production Line-ZONESUN TECHNOLOGY LIMITED

Description:
Can erect cardboard,form case,pack bottles into case and seal case automatically.The machines can be customized according to your production need.

Carton Sealing Packing Production Line-ZONESUN TECHNOLOGY LIMITED

TypeZS-CF50H
Power supply220V50HZ
Maximum packing size450*400*400mm
Minimum package size250*200*150mm
Working height600mm
Sealing speed6-10 boxes/min
Applicable tape(W)48-75mm-(L)0-914mm
Machine sizeAbout 2200*2050*1450mm
Machine weightAbout 400Kg

Carton Sealing Packing Production Line-ZONESUN TECHNOLOGY LIMITED

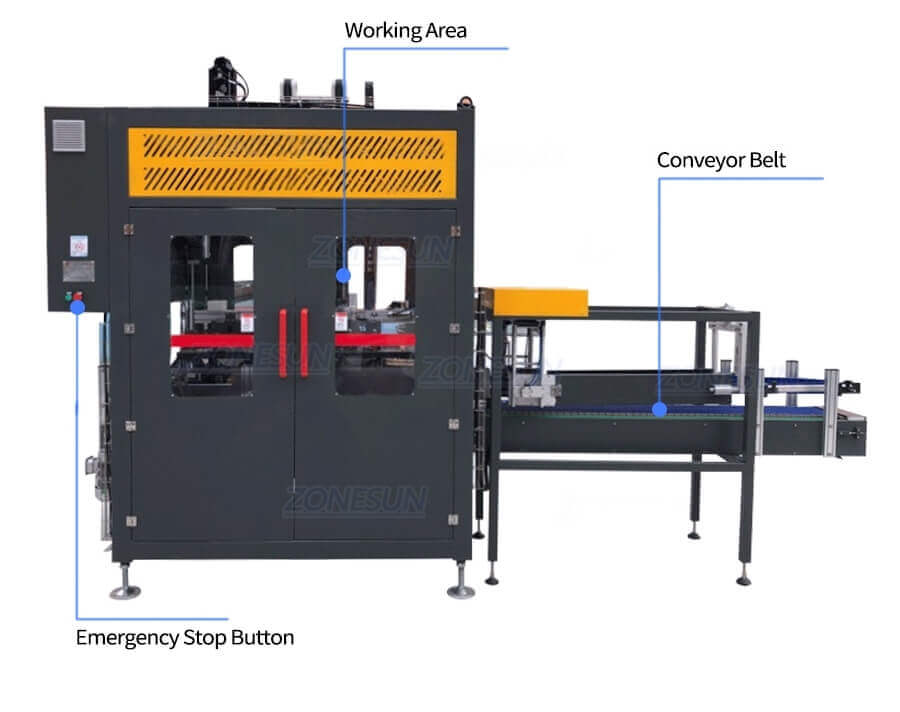

Machine ModelZS-CF60H
Voltage380V 50Hz 3 Phase
Power5kW
Working SpeedAbout 10-15cases/min
Air Pressure0.6MPa
Air Consumption450NL/min

Carton Sealing Packing Production Line-ZONESUN TECHNOLOGY LIMITED

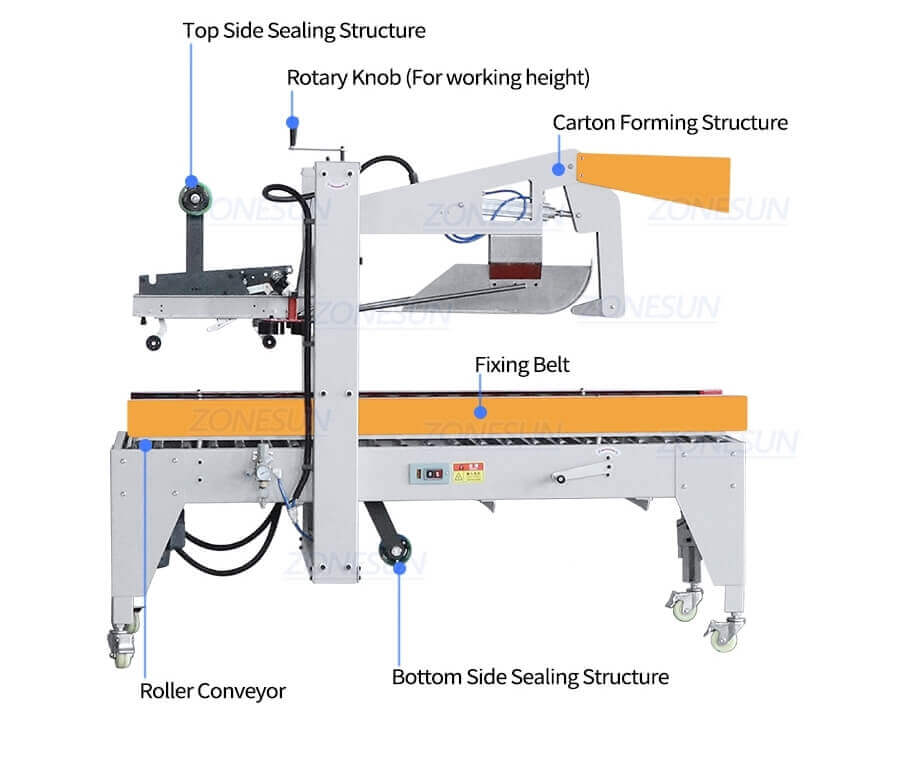

ModelZS-FXC50
Power supply220V 50HZ
Power240W
Maximum packing sizeL600*W500*H500mm
Minimum package sizeL250*W180*H180mm
Conveying speed0-20m/min
Tape widthAbout 6.7cm-10cm
Machine sizeAbout 1820*850*1450mm
Machine weightAbout 130kg

Carton Sealing Packing Production Line-ZONESUN TECHNOLOGY LIMITEDCarton Sealing Packing Production Line-ZONESUN TECHNOLOGY LIMITEDCarton Sealing Packing Production Line-ZONESUN TECHNOLOGY LIMITED
