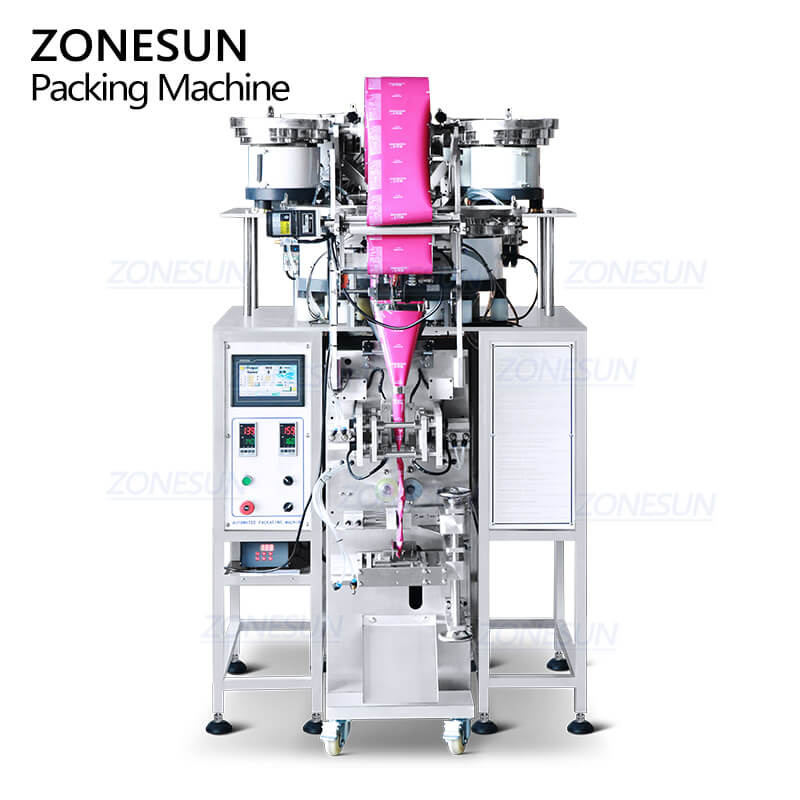

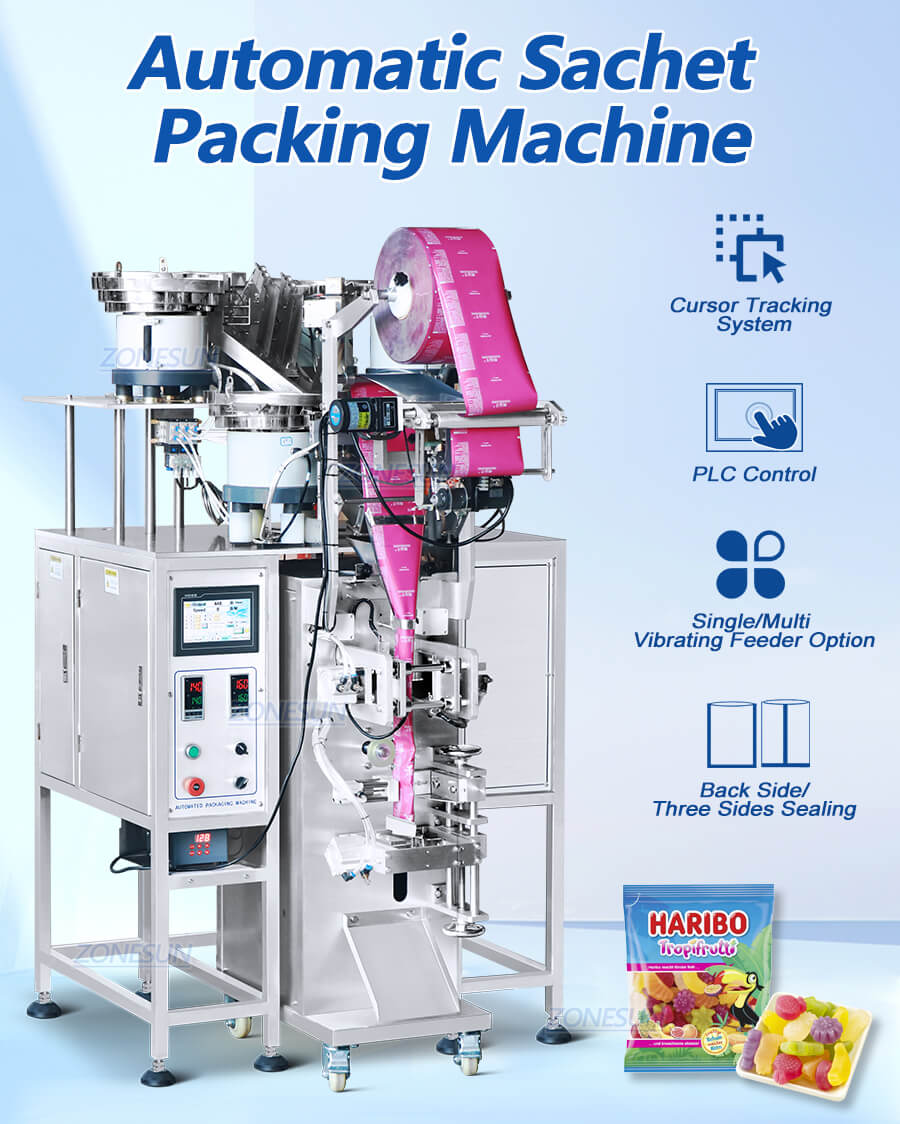

Capsule Counting Granule Sachet VFFS Packaging Machine
This sachet packing machine can finish counting, bag making,filling, sealing and cutting at the same time.It is suitable for small scale production of hardware accessories.
$16,799.00
Share to
This sachet packing machine can finish counting, bag making,filling, sealing and cutting at the same time.It is suitable for small scale production of hardware accessories.
| Machine model | ZS-FSCS01 |
| Machine voltage | 110/220V 1.5KW |
| Bag making size | 40-140mm*40-100mm(L*W) |
| Counting range | 1-10 pieces |
| Working capacity | 20-40 bags/min |
| Machine material | SUS304(Part in contact with materials) |
| Roll film width | 220mm |
| Sealing type | Three sides (Or back side) |
| Suitable film material | Composite packaging film |
| Gas consumption | 20L/min 0.75Ma |

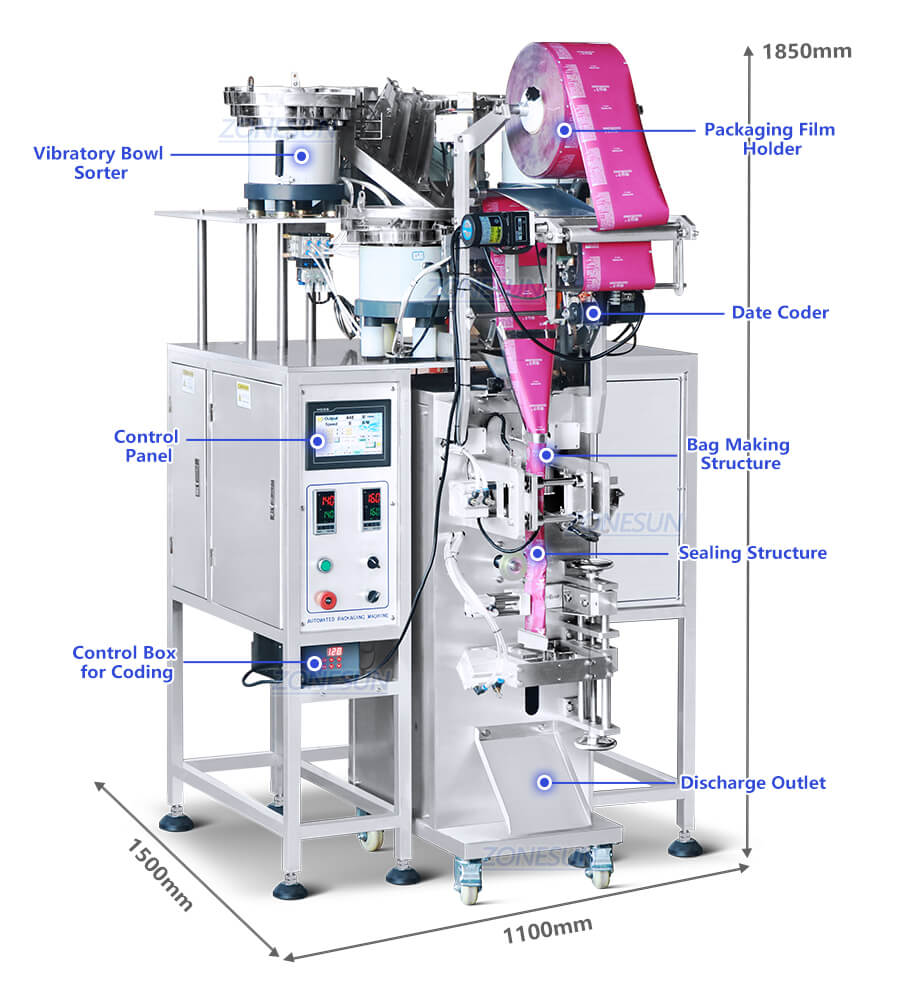

| Machine size | About 1100*1500*1850mm |
| Machine weight | About 220kg |

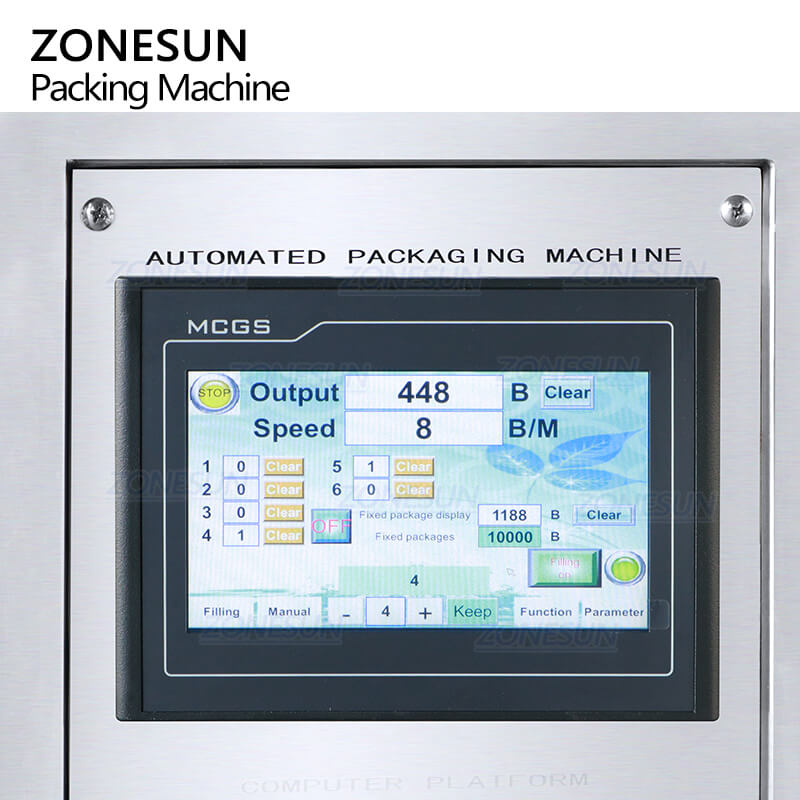

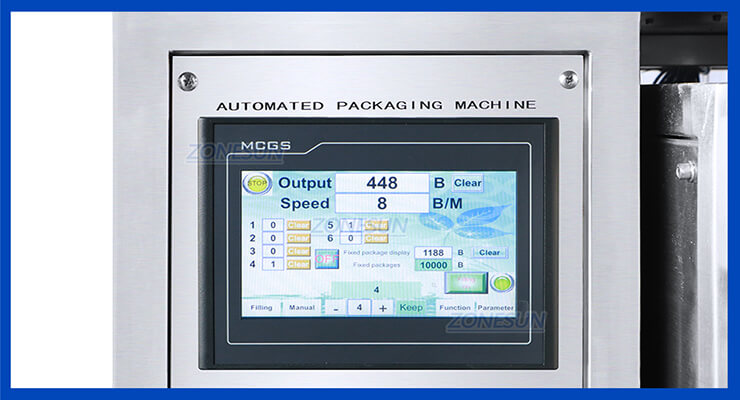

PLC Control System
This can be easily programmed and reprogrammed for different tasks or processes.

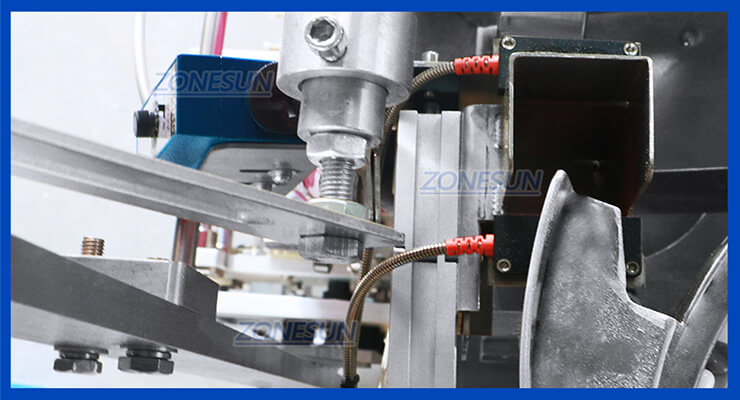

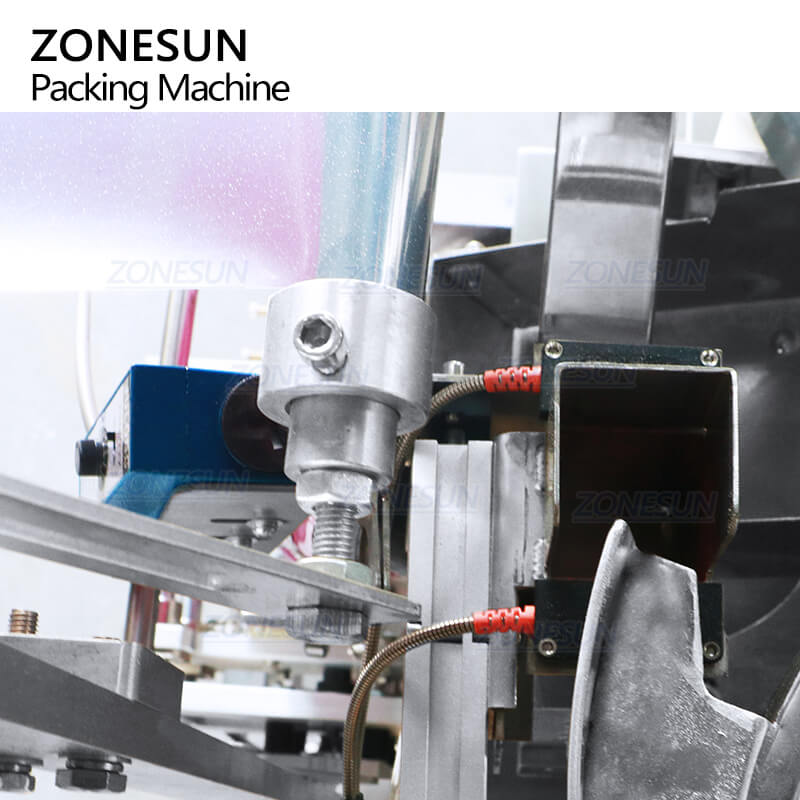

Counting Structure
Using a counting control device, it ensures accurate measurement for uniform-shaped and evenly dense materials.

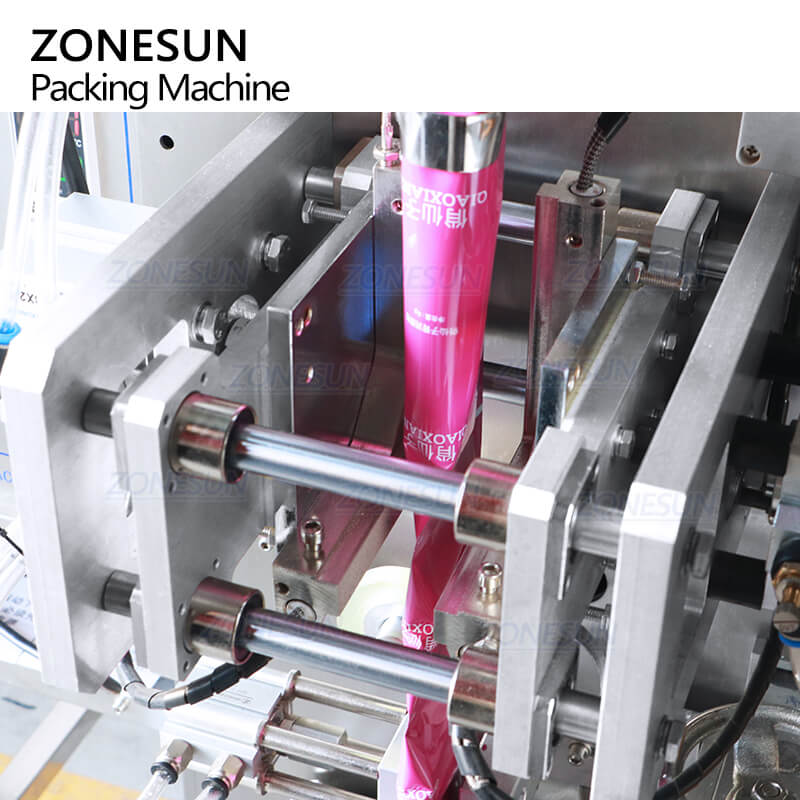

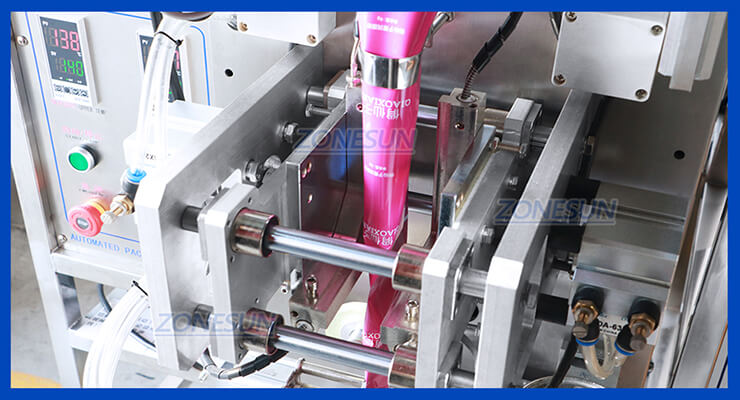

Sealing Structure
It suits composite packaging film, sealing type (back side/three sides) are customizable as needed.

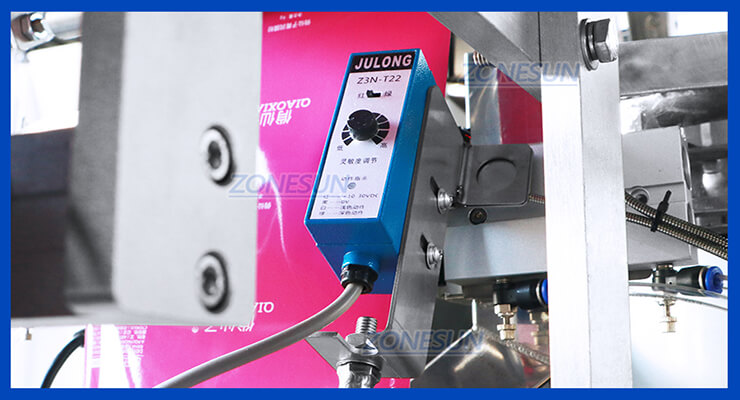

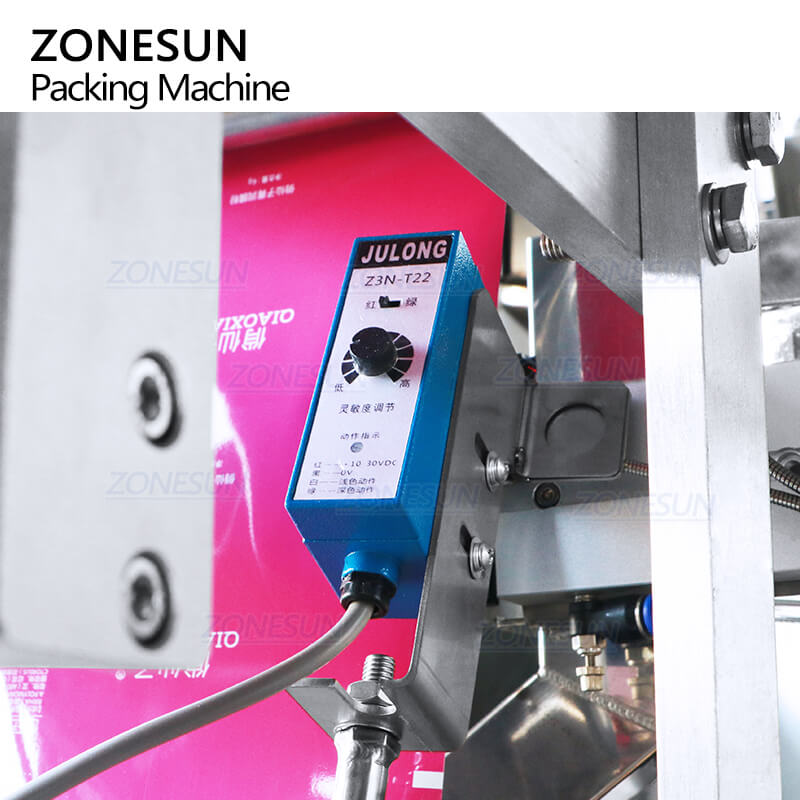

Color Mark Sensor
Equipped with a cursor tracking system, it ensures complete trademark recognition before packaging.

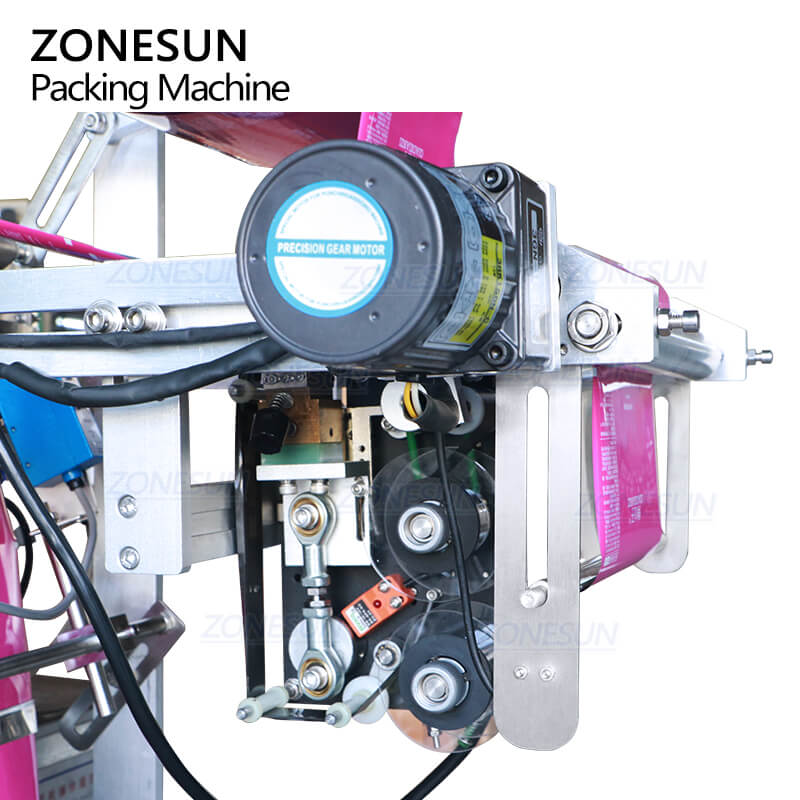

Date Coder
This is optional for printing batch number or production date on sachets,multi colors can be chosen.

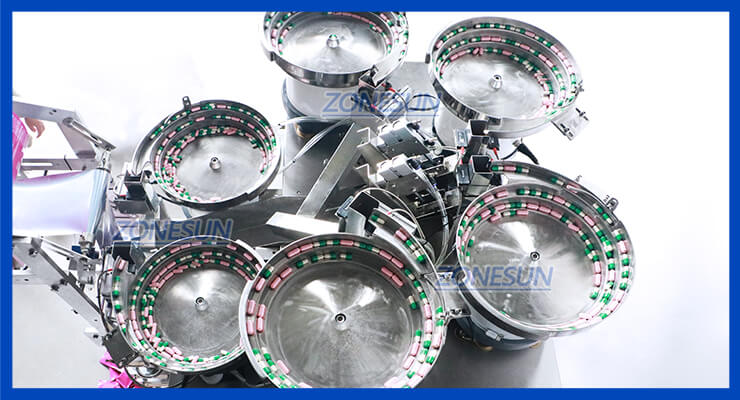

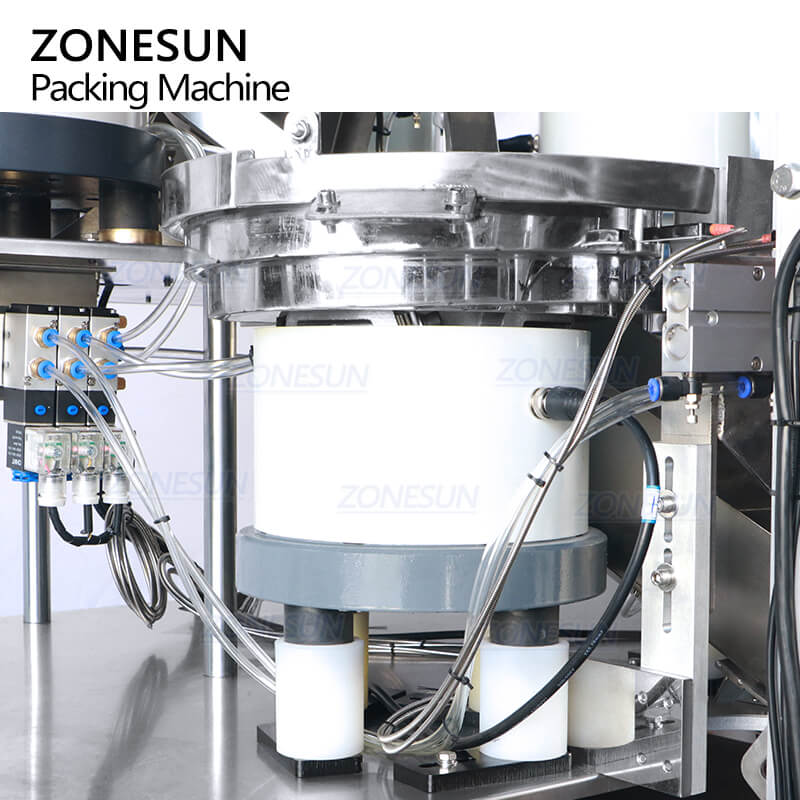

Vibrating Bowl Sorter
Based on the type and quantity of filling materials, multiple vibrating bowl feeders or a single feeder can operate independently.
