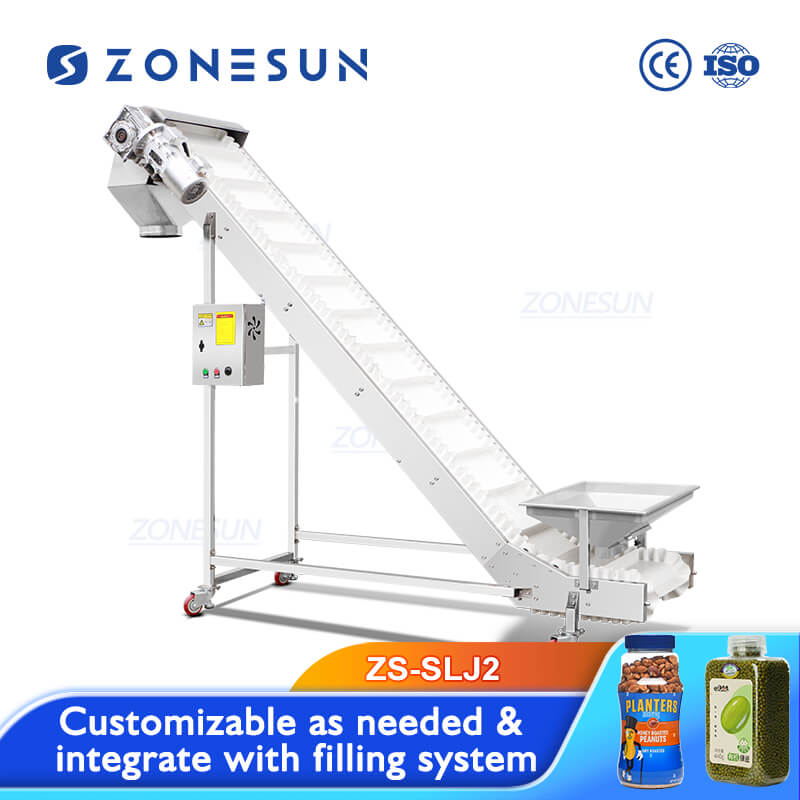

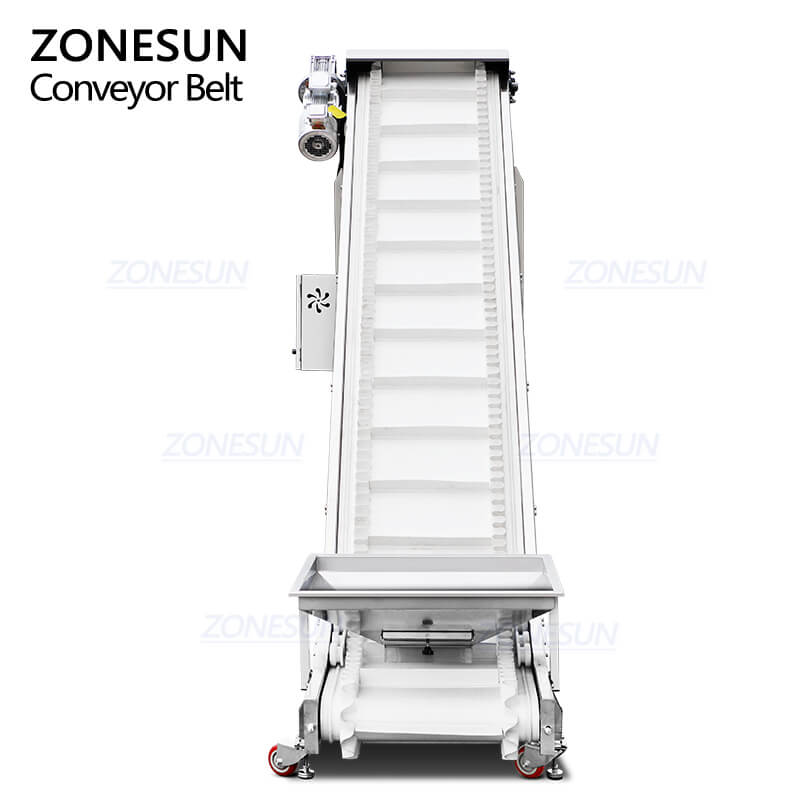

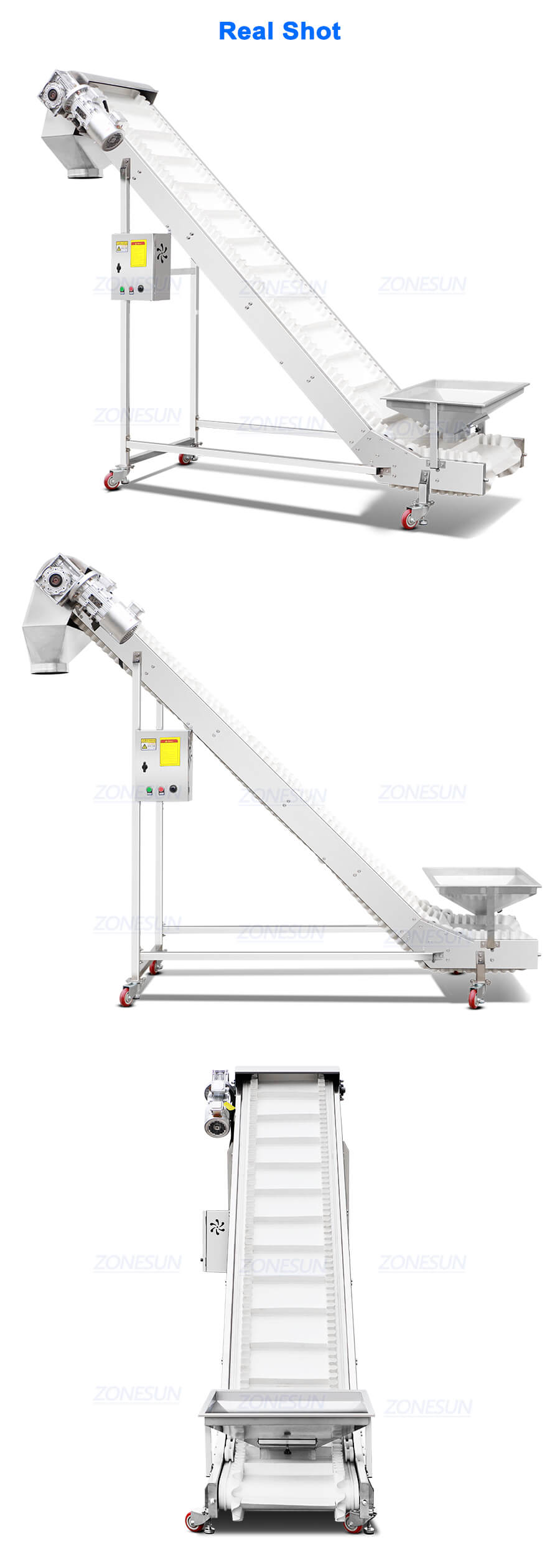

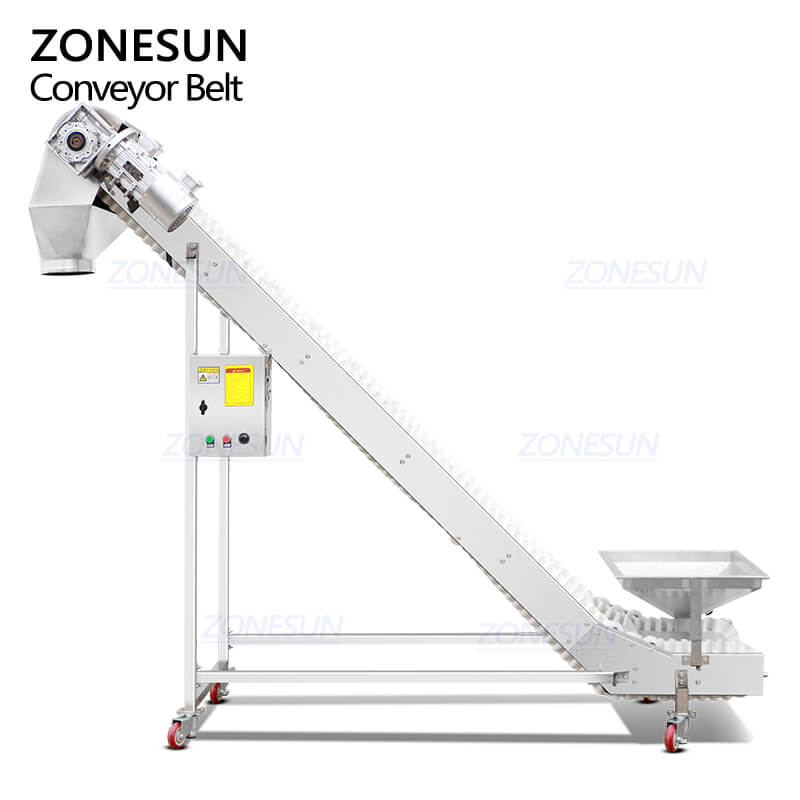

Bucket Type Conveyor Belt
This automatic feeding machine normally works with filling and weighing machine to realize automated production.It is suitable for granule,strip,block,and irregular material feeding.It is widely used in food packaging industries.
$2,849.00
Share to
Product Description:
This automatic feeding machine normally works with filling and weighing machine to realize automated production.It is suitable for granule,strip,block,and irregular material feeding.It is widely used in food packaging industries.
Product Parameters:
|

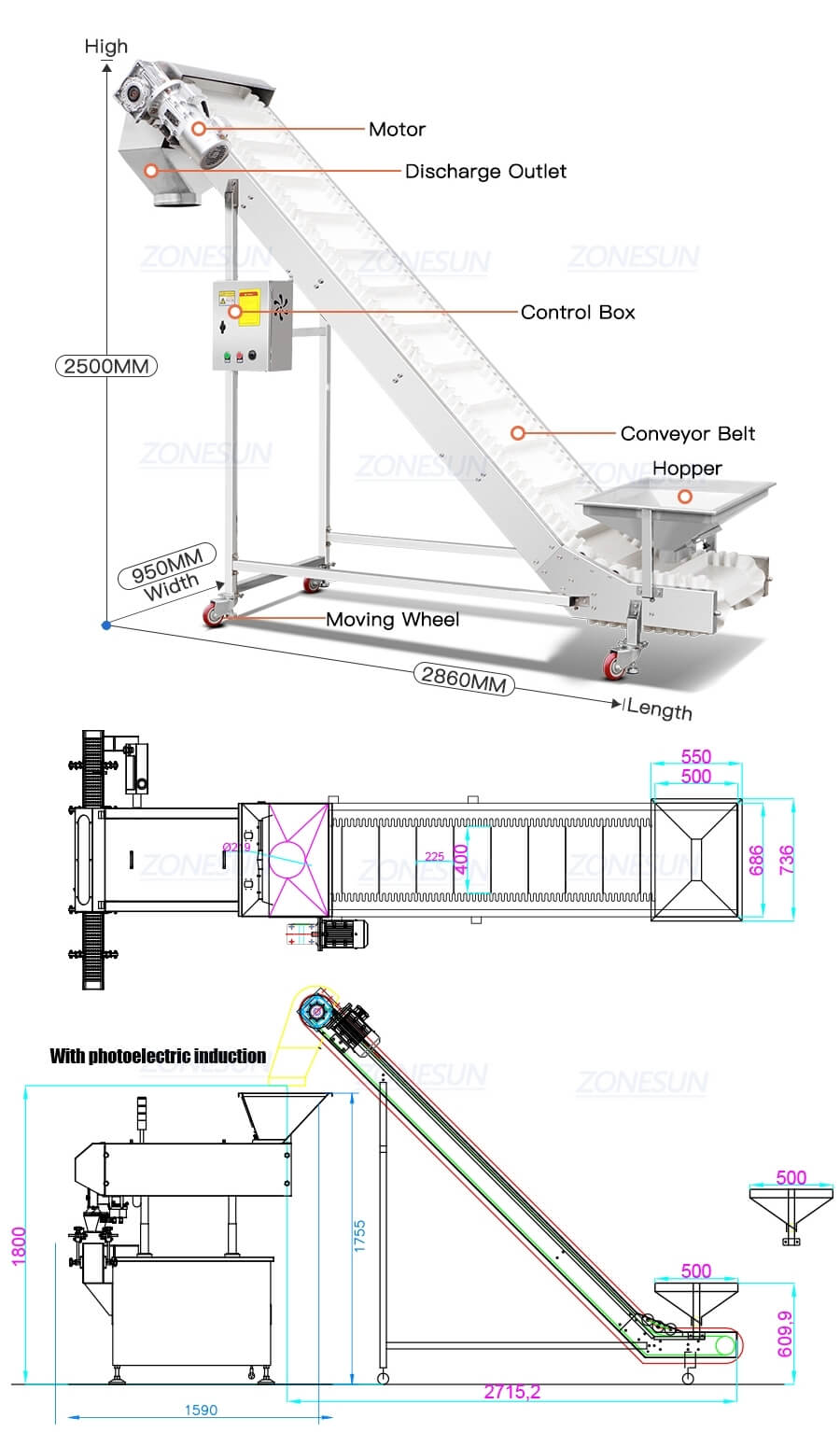

Machine model
|
ZS-SLJ2
|
|
Lifting height
|
1800mm(Customizable)
|
|
Slope length
|
3000mm(Customizable)
|
|
Horizontal length
|
2715mm (Customizable)
|
|
Material container size
|
550*736mm (Customizable)
|
|
Conveyor belt width
|
total 600mm, effective width 400mm (Customizable)
|
|
Baffle height
|
50mm (Customizable)
|
|
Baffle distance
|
225mm (Customizable)
|
|
Machine size
|
2860*950*2500mm
|
|
Specifications are for reference only and may vary by your product. Please confirm with us if required.
|
|
Product Details:

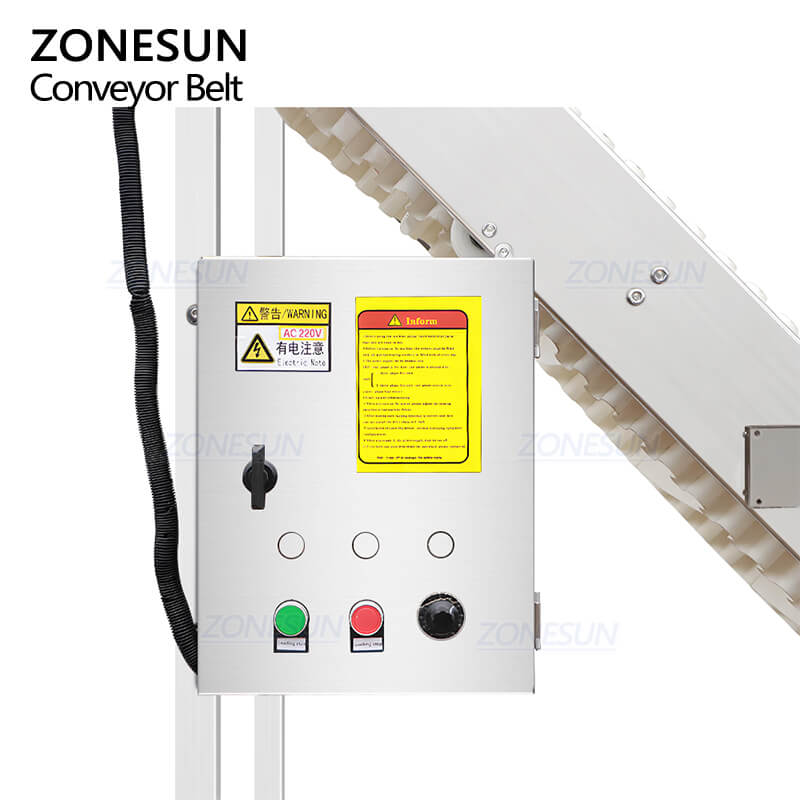

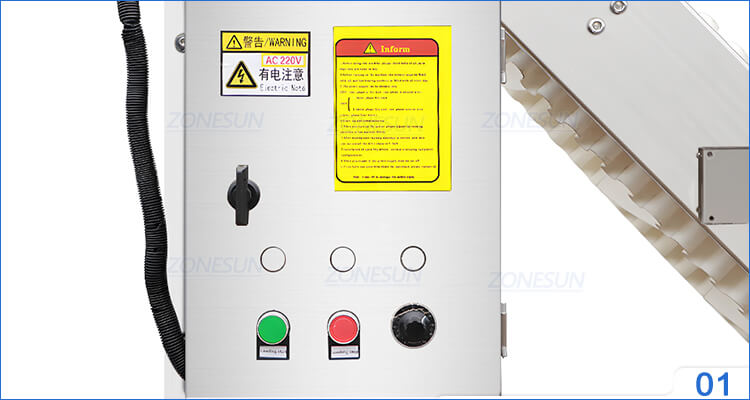

Control Box
Intuitive buttons and switches for easy operation and speed adjustment. Ensures safe and stable machine control.

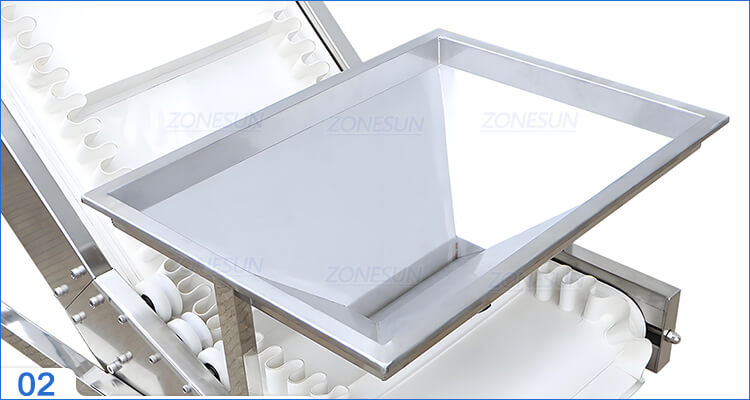

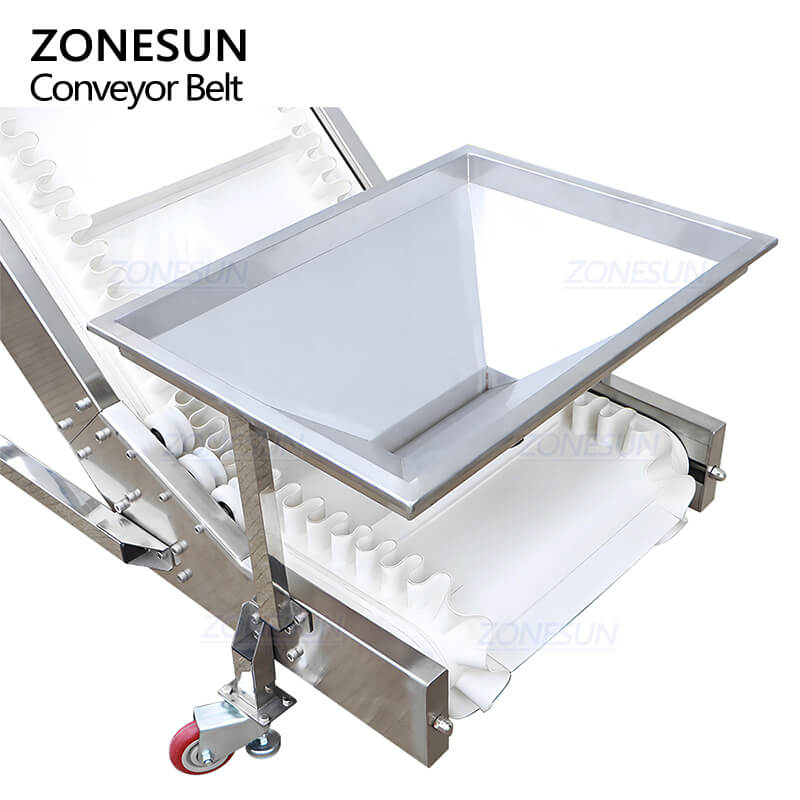

Hopper
Large-capacity hopper designed for smooth material feeding. Hopper size is customizable as needed.

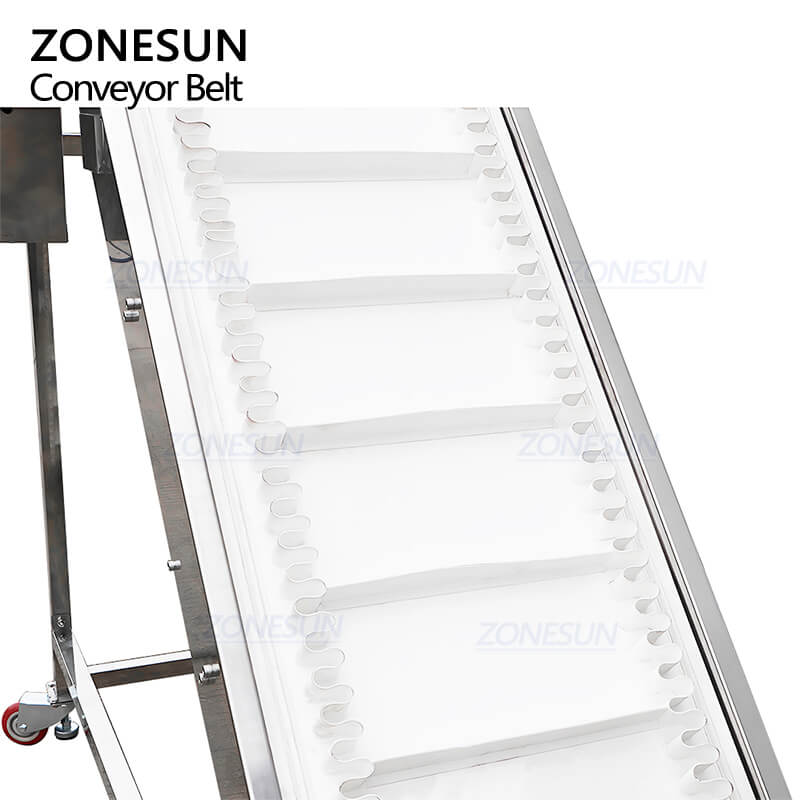

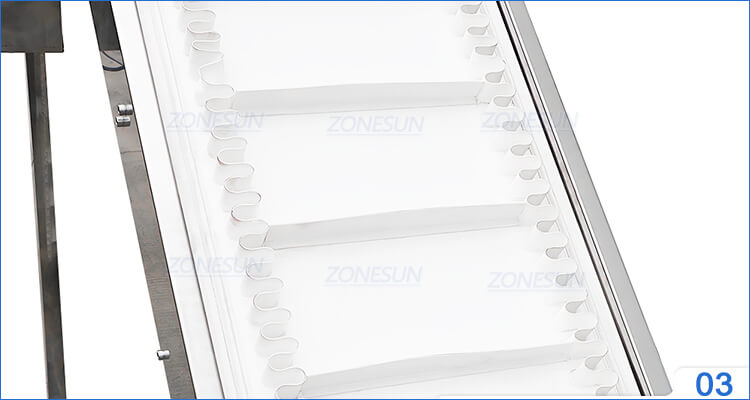

Conveyor Belt with Baffles
Fitted with baffles to prevent material from spilling during inclined transportation. Ideal for loose or granular products.

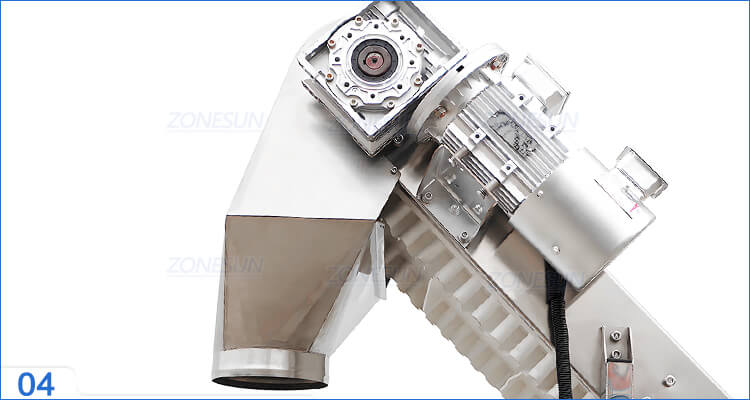

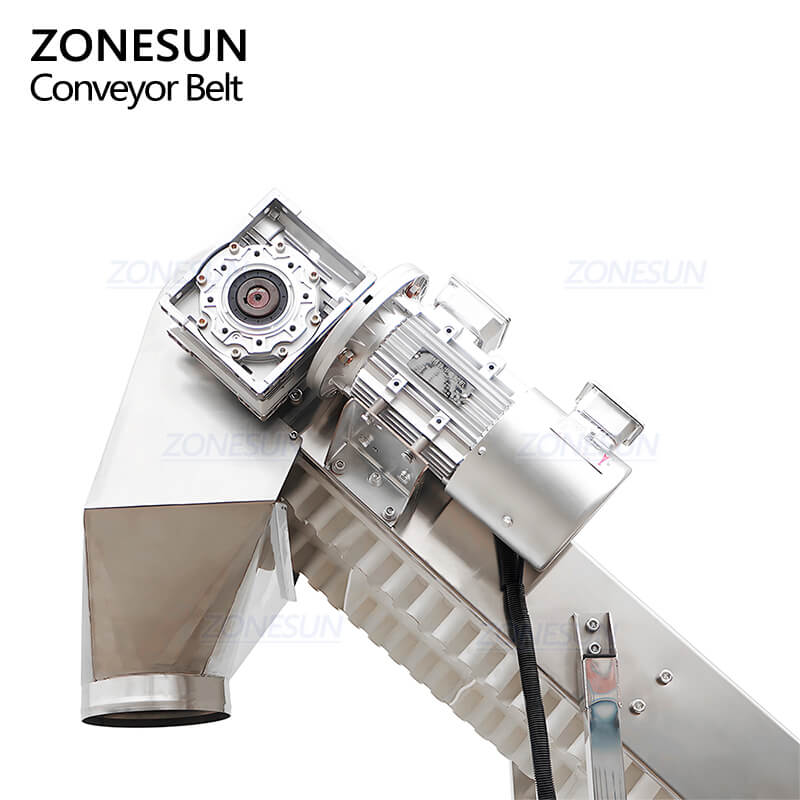

Discharge Outlet
Positioned at the top end for direct connection to the next machine. Can be customized in height and angle to match production lines.
