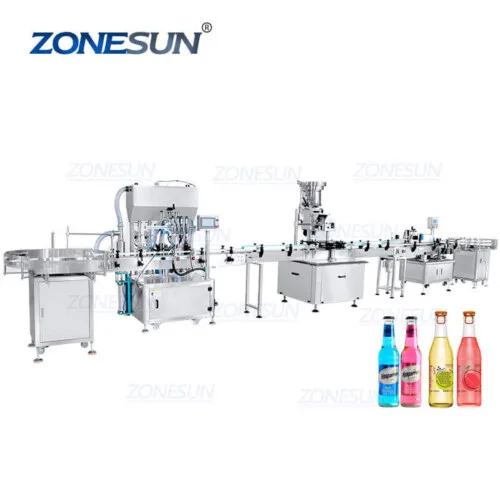

Beverage Filling Line

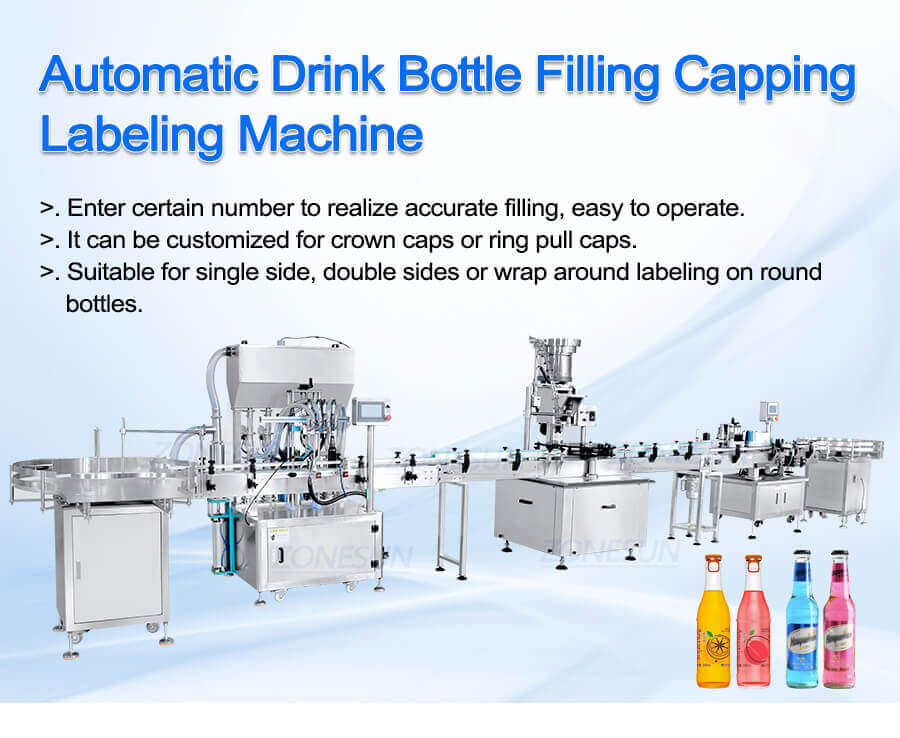

1.Enter certain number to realize accurate filling,easy to operate.

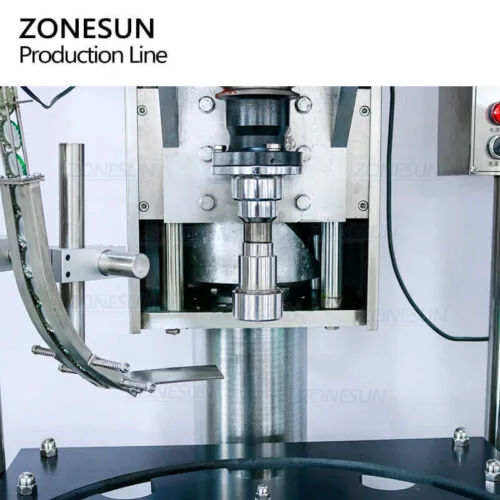

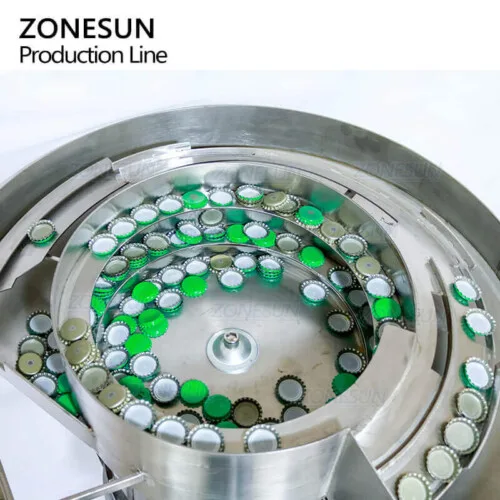

2.It can be customized for crown caps or ring pull caps.

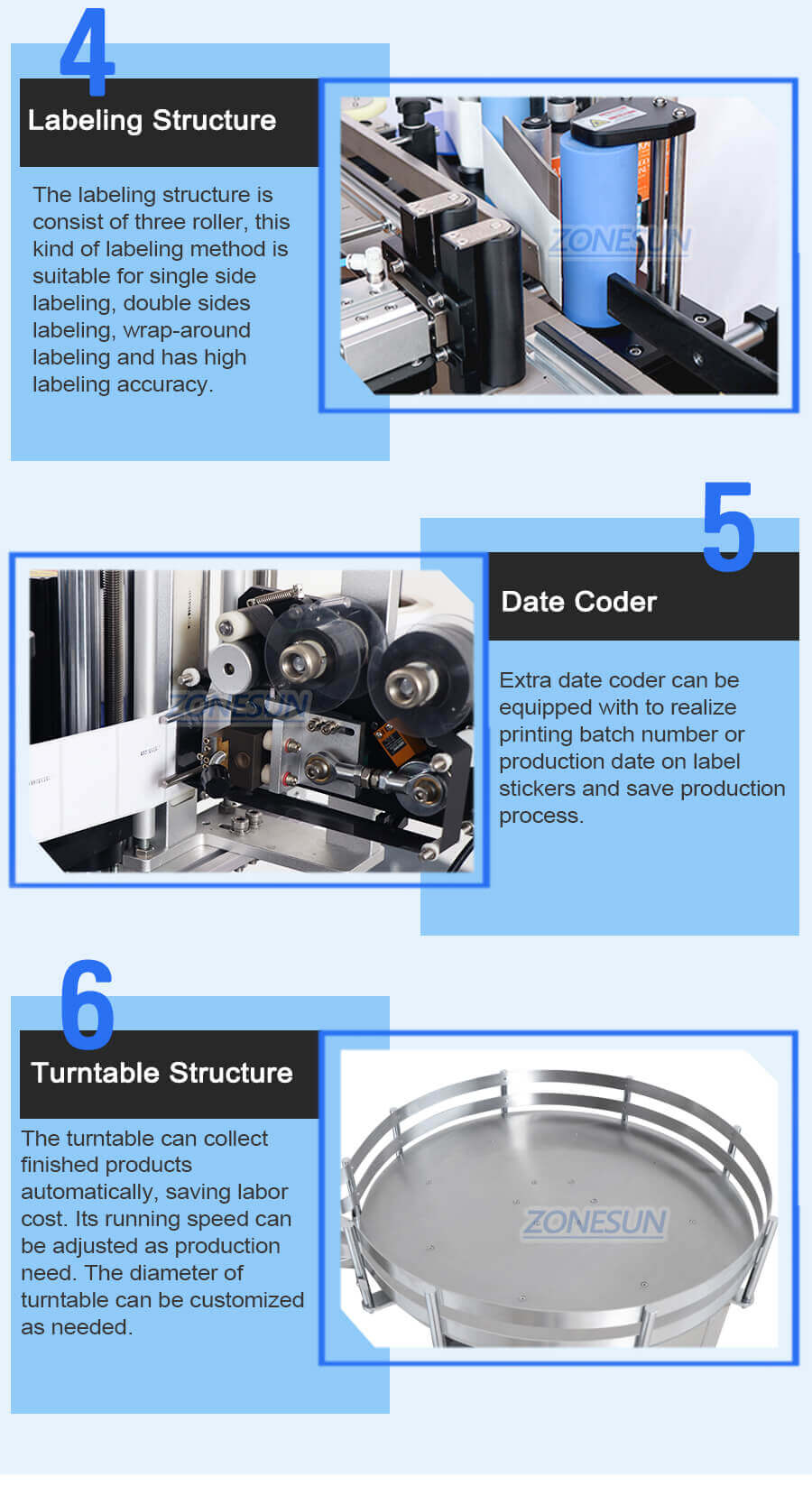

3.Suitable for single side,double sides or wrap around labeling on round bottles.

Machine Video Click Here:

Send email to us

Product Detail

Product Tags

Beverage Filling Line-ZONESUN TECHNOLOGY LIMITED

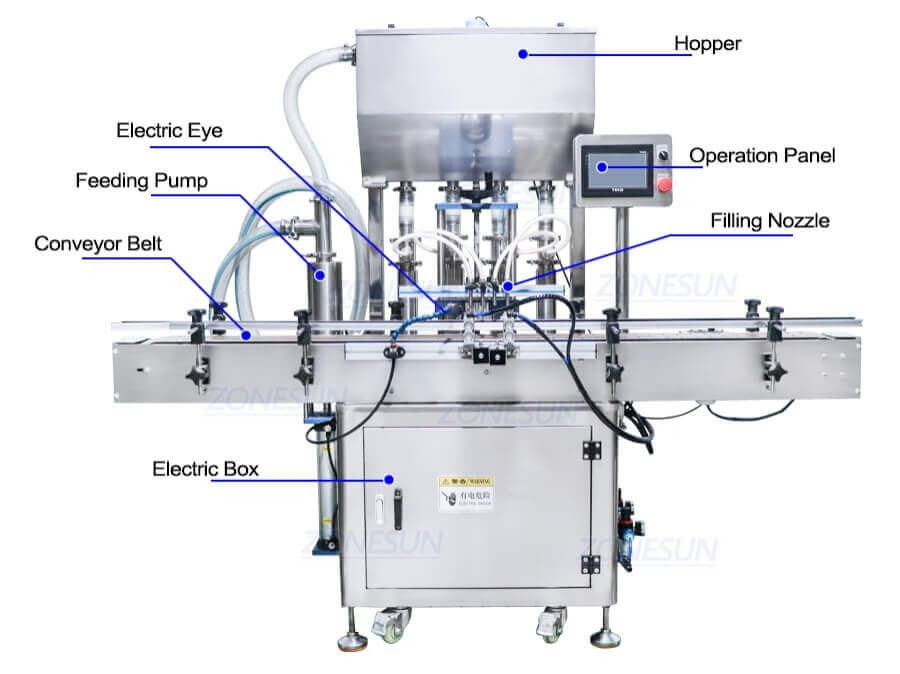

Machine Model	ZS-YT4T-4PX
Voltage	110/220V 50-60HZ 1KW
Filling Range	10-180ml/30-500ml/100-1000ml
Working Speed	About 30-100 bottles/min
Air Pressure	0.6-0.8MPa
Filling Accuracy	±1%

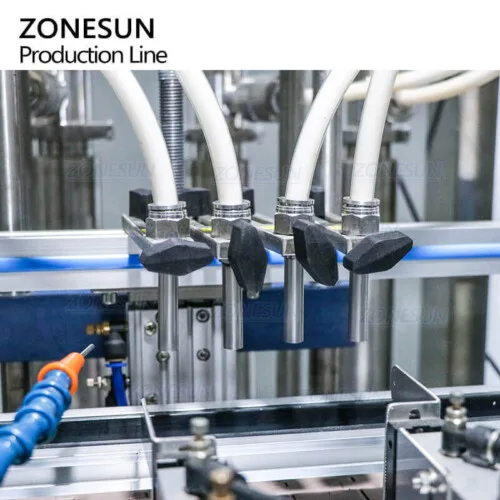

Filling Nozzle	4(can be customized)

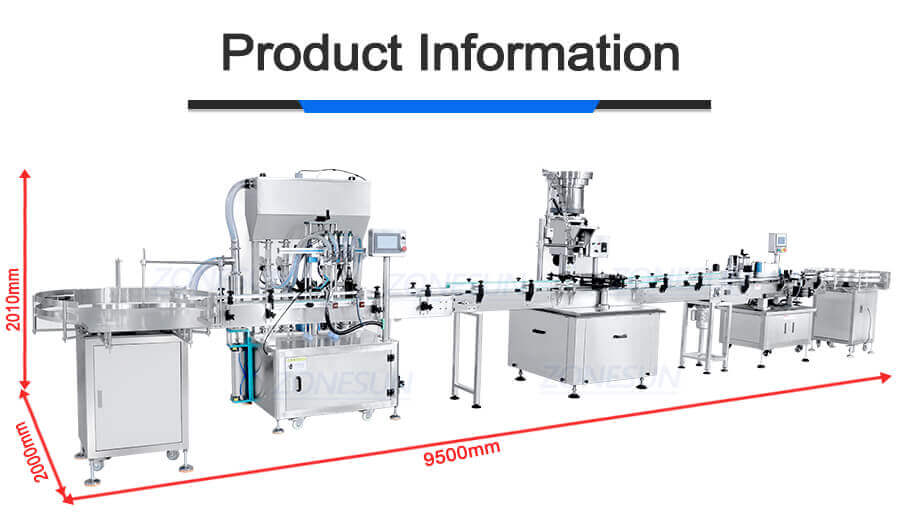

Machine Size	About 20008001800mm
Machine Weight	About 200kg
Packaging Size	About 20709602010mm(100-1000ml)
Packaging Weight	About 392kg(100-1000ml)

Beverage Filling Line-ZONESUN TECHNOLOGY LIMITED

Machine Model	ZS-XG440E
Capping Speed	2000 bottles/h
Power	1KW
Bottle Diameter	φ30mm-90mm
Bottle Cap Diameter	Customized
Bottle Height	100mm-330mm
Machine Size	About 340010401890mm
Packing Weight	About 622kg
Package Size	About 170012502220mm

Beverage Filling Line-ZONESUN TECHNOLOGY LIMITED

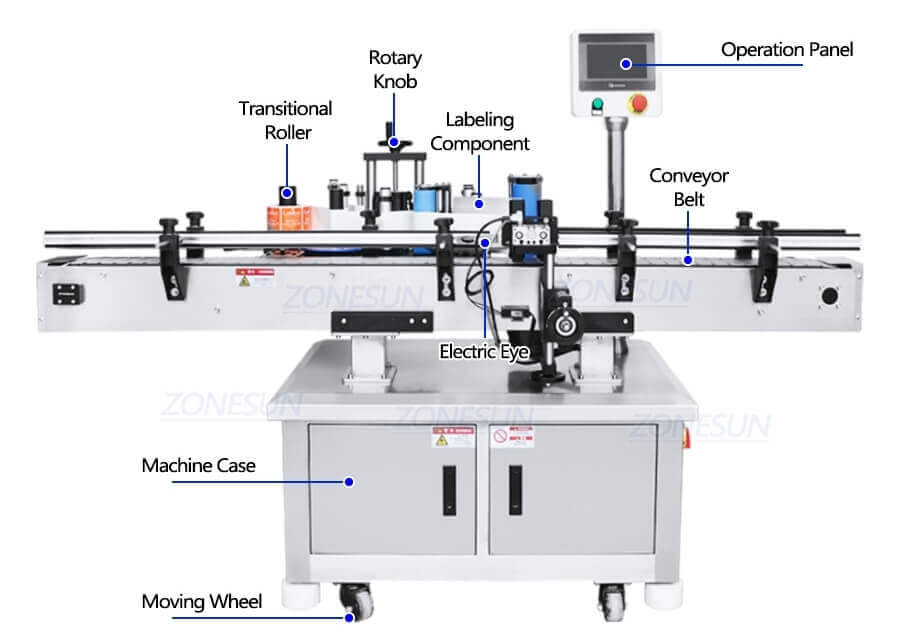

Model	ZS-TB260R
Power Supply	AC220V 50Hz/60Hz 1000W
Labeling Capacity	25-50 bottles/min(depends on bottle size)
Labeling Accuracy	±1.0mm
Suitable Bottle Diameter	φ12-100mm
Label Size	(L)20-300mm (H)15-150mm
Roll Inside Diameter	φ76mm
Roll Outside Diameter	φ350mm
Conveyor Size	112*2000mm(W)
Machine Size	About (L)2000(W)820(H)1380(mm)
Machine Weight	About 180kg
Packing Size	About (L)2100(W)890(H)1520(mm)
Package Weight	About 250kg
